Speculation and Discussion Thread about V8Roadsters LFX Swap - Page 3 - Miata Turbo Forum - Boost cars, acquire cats.

Welcome to Miataturbo.net   Members



Various Auto News Posts from our affiliate sites covering trucks, cars, bikes and more.

Reply



LinkBack Thread Tools Search this Thread
Old 10-20-2014, 09:13 PM   #41
Junior Member

Join Date: Feb 2012
Location: Atlanta, Ga
Posts: 265
Total Cats: 36
Default

Anything new here?
carnut169 is offline   Reply With Quote
Old 10-20-2014, 09:56 PM   #42
Moderator
Thread Starter
iTrader: (11)

sixshooter's Avatar

Join Date: Nov 2008
Location: Tampa, Florida
Posts: 15,684
Total Cats: 1,562
Default

Quote:
Originally Posted by carnut169 View Post
Anything new here?
NA/B 90-2005 - LFX products - V8 Roadsters
sixshooter is offline   Reply With Quote
Old 12-09-2014, 09:14 AM   #43
Senior Member
iTrader: (2)

Join Date: Oct 2011
Location: SE NM
Posts: 1,461
Total Cats: 48
Default

I looked up engine for this and I really think this would make my 01 just a bit more enjoyable. If the transmission it comes with sucks, then why not adapt a road racing version of a T5 or something?
Chilicharger665 is offline   Reply With Quote
Old 12-09-2014, 09:16 AM   #44
Senior Member
iTrader: (2)

Join Date: Oct 2011
Location: SE NM
Posts: 1,461
Total Cats: 48
Default

I found a brand new T5Z for $1960. I think I remember reading about their failed V8 Spec car series using T5's as well... I am sure it could fit.
Chilicharger665 is offline   Reply With Quote
Old 12-09-2014, 09:42 AM   #45
Elite Member
iTrader: (3)

Join Date: Mar 2008
Location: Granbury, TX
Posts: 6,010
Total Cats: 583
Default

Anybody know how this kit locates the front of the Torsen? Is the PPF retained somehow?
hornetball is online now   Reply With Quote
Old 12-09-2014, 10:09 AM   #46
Senior Member
iTrader: (2)

Join Date: Oct 2011
Location: SE NM
Posts: 1,461
Total Cats: 48
Default

The Laguna Seca car had a Getrag rear end in it. I don't know of any examples that are trying to use any factory stuff.
Chilicharger665 is offline   Reply With Quote
Old 12-09-2014, 12:07 PM   #47
Elite Member
iTrader: (3)

Join Date: Mar 2008
Location: Granbury, TX
Posts: 6,010
Total Cats: 583
Default

Hmmm. Do they have install instructions or a detailed build thread anywhere yet? I looked at their Facebook stuff, but it didn't have a lot of detail.
hornetball is online now   Reply With Quote
Old 12-09-2014, 12:53 PM   #48
Moderator
Thread Starter
iTrader: (11)

sixshooter's Avatar

Join Date: Nov 2008
Location: Tampa, Florida
Posts: 15,684
Total Cats: 1,562
Default

He's been working on getting it carb legal for California. That's taking most of his time right now. I'm sure more will be posted eventually.
sixshooter is offline   Reply With Quote
Old 12-27-2014, 12:24 AM   #49
Supporting Vendor
iTrader: (3)

Join Date: Jul 2006
Location: San Diego
Posts: 2,865
Total Cats: 493
Default

What I want to know is just how similar the guts are in the various versions of the AY6 - each mfg has the latitude to change elements of the Aisin trans to suit their particular prefences.. the RA62 (which is an AY6) in the IS250 has a true close-ratio 6spd with ratios that would rock for track use. Little to no chance of the bellhousing bolting to an LFX but maybe swapping the gearset could be done...

However, I've done a fair bit of playing with the camaro's ratios combined with available getrag diff ratios and I think there is a good solution to making the camaro trans work well on road courses. It wouldn't work for a BP but for the LFX with 240+ ft-lbs from 2k rpm and up, should be a good fit...

This trans would not work well with the miata diff ratios FYI

-Ryan
ThePass is offline   Reply With Quote
Old 01-04-2015, 10:34 AM   #50
Junior Member

Join Date: Feb 2012
Location: Atlanta, Ga
Posts: 265
Total Cats: 36
Default moving forward

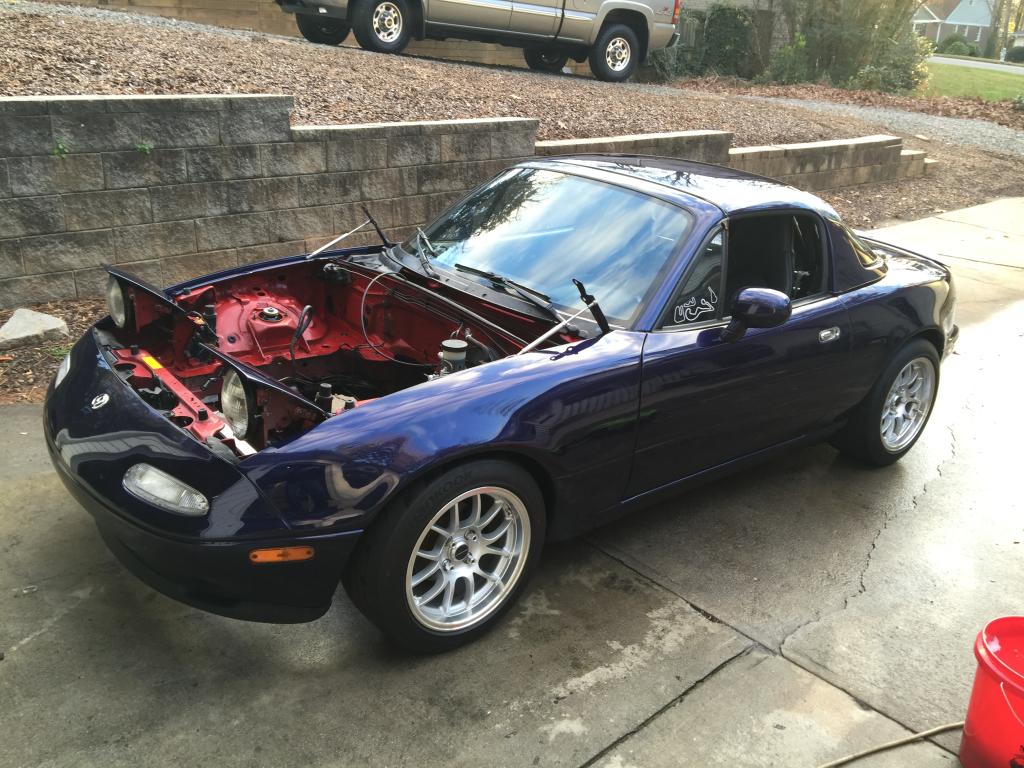

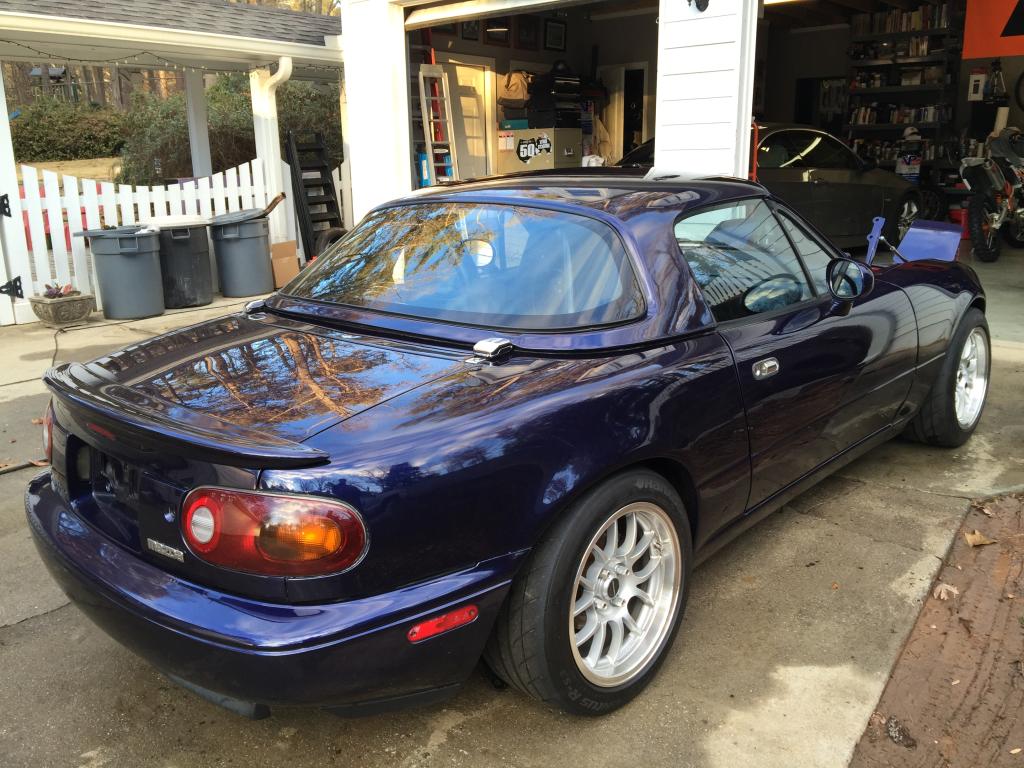

I've sold/ traded my turbo car for a NA roller and am actively searching the salvage auctions for a 12-15 Camaro V6 Manual for the conversion.

The NA will be built for track use- as light as reasonably possible and without anything not related to safety or making it go/ stop.

I will start a build thread once more of the major components are in hand. I will buy the V8 subframe kit and hope to be able to fabricate most other bits. Wish me luck!

Name:  8EABFF06-1277-4AD1-A509-56759A9A7A4A_zpszrwp039m.jpg
Views: 86
Size:  139.8 KB

Name:  7B4222E8-61FF-4D23-AA24-AD157A6158A7_zpswtmkuoyt.jpg
Views: 85
Size:  140.5 KB
carnut169 is offline   Reply With Quote
Old 01-04-2015, 11:03 AM   #51
Elite Member
iTrader: (3)

Join Date: Mar 2008
Location: Granbury, TX
Posts: 6,010
Total Cats: 583
Default

AWESOME. Nice roller. Looks like it already has some nice pieces on it. Pre-sub'd to your build thread.
hornetball is online now   Reply With Quote
Old 01-04-2015, 11:54 AM   #52
Junior Member

Join Date: Sep 2011
Location: Prescott, AZ
Posts: 433
Total Cats: 28
Default

Nice. Looks like a very clean NA. Looking forward to your progress as you may be the first to put the LFX in an NA.
Roda is offline   Reply With Quote
Old 01-04-2015, 11:39 PM   #53
Senior Member
iTrader: (2)

Join Date: Oct 2011
Location: SE NM
Posts: 1,461
Total Cats: 48
Default

Is there still no word on what transmission, PPF solution, and rear-end this kit will use?
Chilicharger665 is offline   Reply With Quote
Old 01-04-2015, 11:53 PM   #54
Junior Member

Join Date: Sep 2011
Location: Prescott, AZ
Posts: 433
Total Cats: 28
Default

Uses Camaro 6sp transmission, kit appears (from pics on V8R's site) to have a trans crossmember similar to the V8 swap kit, so no PPF. That being the case it will require something to locate the stock diff, or a Ford or Getrag diff. The ratios for the Miata diffs are less than ideal for the gearing in the Camaro trans, so the Getrag makes a lot of sense.

Does anyone know of a running LFX swap at this point, other than the prototype car?
Roda is offline   Reply With Quote
Old 01-20-2015, 11:44 PM   #55
Junior Member

Join Date: Feb 2012
Location: Atlanta, Ga
Posts: 265
Total Cats: 36
Default

Ordered the LFX mounting kit tonight...
carnut169 is offline   Reply With Quote
Old 01-20-2015, 11:53 PM   #56
Junior Member

Join Date: Sep 2011
Location: Prescott, AZ
Posts: 433
Total Cats: 28
Default

Congrats! You may be the 1st NA with one...

Please put up a build thread!
Roda is offline   Reply With Quote
Old 01-24-2015, 12:08 PM   #57
Junior Member

Join Date: Feb 2012
Location: Atlanta, Ga
Posts: 265
Total Cats: 36
Default

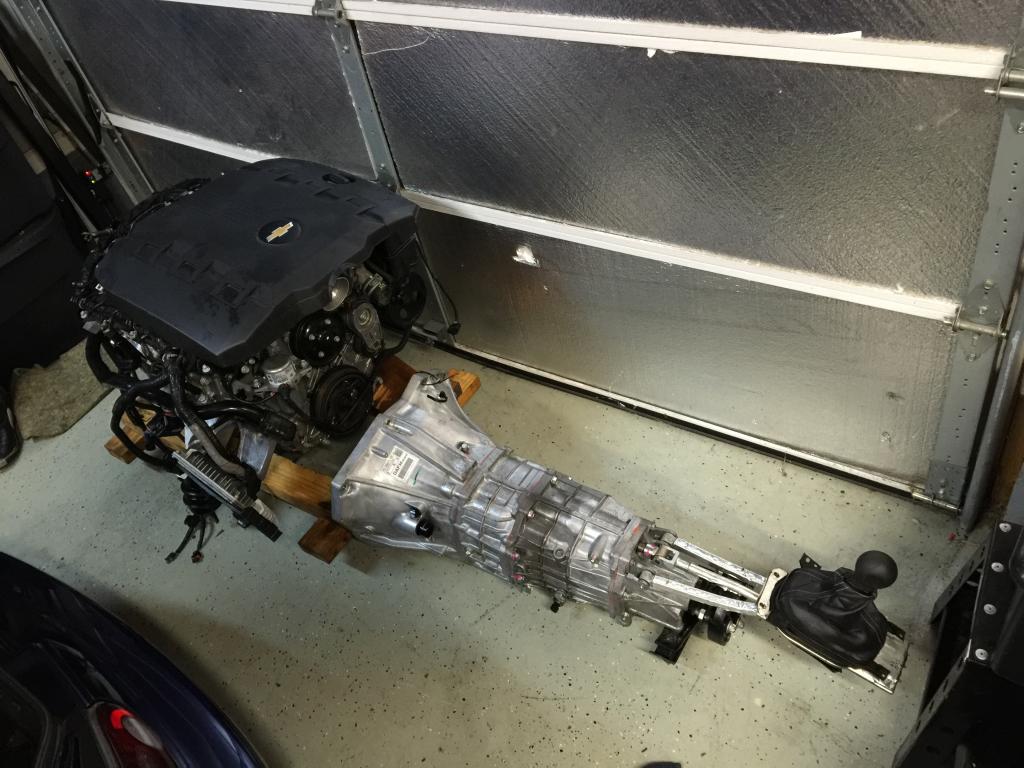

Name:  2A61D644-08C7-4C61-B2E5-5A28C62E276E_zpstiycgtq5.jpg
Views: 84
Size:  111.0 KB
carnut169 is offline   Reply With Quote
Old 01-24-2015, 12:10 PM   #58
Junior Member

Join Date: Feb 2012
Location: Atlanta, Ga
Posts: 265
Total Cats: 36
Default

Harness is underway(ish), lsd differential is inbound, pedal ordered. Trying to get more comfortable with the electronics portion of this install which will be the most challenging aspect
carnut169 is offline   Reply With Quote
Old 01-24-2015, 12:11 PM   #59
Junior Member

Join Date: Feb 2012
Location: Atlanta, Ga
Posts: 265
Total Cats: 36
Default

Oh, 2012 camaro motor and trans with 40k cost $2500. Diff was $350.
carnut169 is offline   Reply With Quote
Old 01-24-2015, 01:21 PM   #60
Junior Member

Join Date: Sep 2011
Location: Prescott, AZ
Posts: 433
Total Cats: 28
Default

Quote:
Originally Posted by carnut169 View Post
Oh, 2012 camaro motor and trans with 40k cost $2500.
Smokin' deal! Did you find it local to you, or online?
Roda is offline   Reply With Quote
