Old 07-29-2014, 11:49 PM   #1
Supporting Vendor
Thread Starter
iTrader: (3)

emilio700's Avatar

Join Date: May 2005
Posts: 5,308
Total Cats: 1,326
Default 15x8 6UL gen 4 released

Now accepting pre-paid orders for the late October 2014 15x8 6UL shipment. Visit the website to place order, see or get a shipping quote.

Low pressure cast, T6 heat treated, flow formed monoblock construction
+36 offset
11.4 lbs
4x100
67.1mm center bore
550kg max load rated
Cap included, color same as wheel

Silver with machined lip





Last edited by emilio700; 07-30-2014 at 03:37 PM.
emilio700 is offline   Reply With Quote
Old 07-30-2014, 03:52 PM   #2
Supporting Vendor
Thread Starter
iTrader: (3)

emilio700's Avatar

Join Date: May 2005
Posts: 5,308
Total Cats: 1,326
Default Flow forming

Cool videos showing the flow forming proccess. These videos are not from our factory but the idea is the same.



emilio700 is offline   Reply With Quote
Old 07-30-2014, 04:07 PM   #3
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,163
Total Cats: 2,573
Default

maybe I'm missing something, but didn't you specifically say that the next 6UL will be forged?
I can find that post if need be. I think it was in the discussion about china wheels.
18psi is offline   Reply With Quote
Old 07-30-2014, 04:33 PM   #4
Supporting Vendor
Thread Starter
iTrader: (3)

emilio700's Avatar

Join Date: May 2005
Posts: 5,308
Total Cats: 1,326
Default

Quote:
Originally Posted by 18psi View Post
maybe I'm missing something, but didn't you specifically say that the next 6UL will be forged?
I can find that post if need be. I think it was in the discussion about china wheels.
Nope. You are not going to see a full die forged 15" wheel for less than $300 each anytime soon. Our wheels are flow formed.

Most of the industry has adopted BBS "flow formed" nomenclature for this process. Also known as:

spun forged
rotary forged
flow formed

Technically, rotary forging is a bit different than flow forming as the blank and drawing process are done more or less at the same time.
emilio700 is offline   Reply With Quote
Old 07-30-2014, 04:40 PM   #5
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,163
Total Cats: 2,573
Default

I think I misunderstood your previous post. My mistake.

https://www.miataturbo.net/wheels-ti...2/#post1118437

Quote:
Originally Posted by emilio700 View Post
Gen 4 6UL's wil have rotary forged rims and probably cost less than gen 3's, be significantly lighter and have a load rating 10% over industry standard. We'll call that standard spec949. Catchy? We are hoping to have 15x8's and 9's towards the end of this year. Far too early to take orders, estimate ship dates or provide any specific technical details. Yes, it will look the same save for a few detail difference from the diet the wheel is being put on.

On one hand, I'm flattered that an entire cottage industry has popped up around the unique fitments I pioneered 6 years ago. OTOH, it sucks that I have to battle for market share with other companies using my innovations. What's cool now is that rotary forging has become so affordable that I can add that neat tech and not need to raise the price on the wheel.

Many more sizes on the horizon. Not one of which I will announce before we have tooling ready and certification complete. Learned my lesson after having every single fitment I have done copied by at least two other wheel companies, some before I even got mine into production. doh

The only weapon I have to combat this relentless copying of unprotectable information is to continue to innovate faster than it can be copied. So that's what I'll do.
I guess "rotary forged" is not the forged I was thinking of.

Last edited by 18psi; 07-30-2014 at 05:12 PM.
18psi is offline   Reply With Quote
Old 07-30-2014, 04:49 PM   #6
Junior Member
iTrader: (1)

Join Date: Mar 2012
Location: Pa
Posts: 129
Total Cats: 11
Default

Very nice, I love the charcoal color. Will stay tuned for 15x10 release.
darkcambria is offline   Reply With Quote
Old 07-30-2014, 05:39 PM   #7
Supporting Vendor
Thread Starter
iTrader: (3)

emilio700's Avatar

Join Date: May 2005
Posts: 5,308
Total Cats: 1,326
Default

Quote:
Originally Posted by 18psi View Post
I think I misunderstood your previous post. My mistake.

I guess "rotary forged" is not the forged I was thinking of.
It's easy to be confused by that. It's why we decided to stick with "flow formed" to describe the process and stop mentioning "forged" anything. I don't want to be lumped in with the likes of the Konig cast copy of a die forged RAYS Volk CE28N that has "FORGED" and "RAVS" stamped on it.
emilio700 is offline   Reply With Quote
Old 07-30-2014, 05:46 PM   #8
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,163
Total Cats: 2,573
Default

Props for that.
18psi is offline   Reply With Quote
Old 07-31-2014, 11:39 AM   #9
Senior Member

Join Date: Sep 2013
Posts: 903
Total Cats: 59
Default

You should get some stickers made that says (rotary) FORGED and 'LIOS, put them on the 15x8s, and sell them for $100 more a wheel.
Dunning Kruger Affect is offline   Reply With Quote
Old 08-01-2014, 08:54 AM   #10
Newb

Join Date: Dec 2013
Location: Wiltshire, UK
Posts: 15
Total Cats: 1
Default

Emilio,

Do you have any full wheel pictures of the other colours, particularly tungsten and bronze please?

I will be ordering though your UK distributor, MOT motorsport, but I am finding it hard to visualise the wheels in the other colours. The bronze looks gloss in the picture in your first post, rather than the matte finish in the previous generation.

Thank you,

Martin.
MJJ_ZX6RR is offline   Reply With Quote
Old 08-01-2014, 12:48 PM   #11
Supporting Vendor
Thread Starter
iTrader: (3)

emilio700's Avatar

Join Date: May 2005
Posts: 5,308
Total Cats: 1,326
Default

Quote:
Originally Posted by MJJ_ZX6RR View Post
Emilio,

Do you have any full wheel pictures of the other colours, particularly tungsten and bronze please?

I will be ordering though your UK distributor, MOT motorsport, but I am finding it hard to visualise the wheels in the other colours. The bronze looks gloss in the picture in your first post, rather than the matte finish in the previous generation.

Thank you,

Martin.
Nope. When we do, we will publish them. Until then, you will need to use your imagination.
emilio700 is offline   Reply With Quote
Old 08-01-2014, 01:11 PM   #12
Senior Member
iTrader: (3)

Join Date: May 2005
Location: Mass.
Posts: 816
Total Cats: 41
Default

Quote:
Originally Posted by emilio700 View Post
Nope. When we do, we will publish them. Until then, you will need to use your imagination.
You need yourself some keyshot.

https://www.keyshot.com/
thasac is offline   Reply With Quote
Old 08-01-2014, 05:27 PM   #13
Senior Member
iTrader: (3)

Join Date: Dec 2011
Location: Tucson, Az
Posts: 514
Total Cats: 33
Default

Quote:
Originally Posted by emilio700 View Post
It's easy to be confused by that. It's why we decided to stick with "flow formed" to describe the process and stop mentioning "forged" anything. I don't want to be lumped in with the likes of the Konig cast copy of a die forged RAYS Volk CE28N that has "FORGED" and "RAVS" stamped on it.
One of my friends just got a Miata. He was so thrilled that it had super expensive forged Ray's Engineering wheels on it.

They were "forged" alright. RAVS ENGINEERING.
TheScaryOne is offline   Reply With Quote
Old 08-01-2014, 06:50 PM   #14
Newb

Join Date: Jun 2014
Location: Florida Panama City/Pensacola
Posts: 38
Total Cats: 3
Default

Quote:
Originally Posted by emilio700 View Post
you will need to use your imagination.


I imagine the tungstens are going to look great and be a really popular choice, but my imagination isn't as good as I'd like so I still went with the bronze/gold like I'd been originally planning. There's nothing classier than gold wheels on a red car. I'll probably have to change them out when I repaint it white and pink like a barbie car but that's a problem for future me.
PetrolPiglet is offline   Reply With Quote
Old 08-04-2014, 01:32 AM   #15
Elite Member
iTrader: (2)

Join Date: Dec 2011
Posts: 1,510
Total Cats: 142
Default

Quote:
Originally Posted by emilio700 View Post

Now accepting pre-paid orders for the late October 2014 15x8 6UL shipment. Visit the website to place order ...
Done!
good2go is offline   Reply With Quote
Old 08-16-2014, 04:36 PM   #16
Supporting Vendor
Thread Starter
iTrader: (3)

emilio700's Avatar

Join Date: May 2005
Posts: 5,308
Total Cats: 1,326

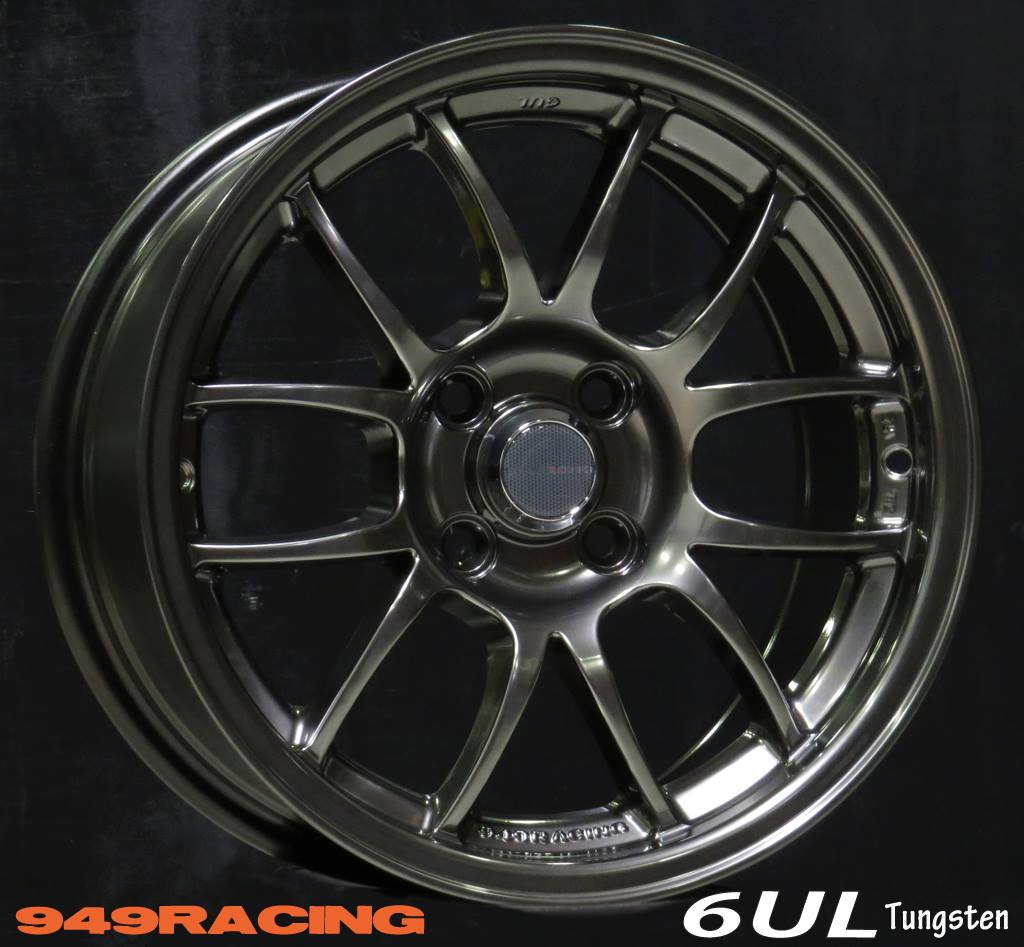

Default Tungsten

I'll just leave this right here

Attached Thumbnails
15x8 6UL gen 4 released-10428313_10152309764987749_8704376075236964437_o.jpg
emilio700 is offline   Reply With Quote
Old 08-16-2014, 05:06 PM   #17
Newb

Join Date: Jun 2014
Location: Florida Panama City/Pensacola
Posts: 38
Total Cats: 3
Default

I'm regretting going for the bronze now
PetrolPiglet is offline   Reply With Quote
Old 08-19-2014, 06:11 PM   #18
Senior Member
iTrader: (3)

Join Date: May 2005
Location: Mass.
Posts: 816
Total Cats: 41
Default

Quote:
Originally Posted by emilio700 View Post
I'll just leave this right here

Well, that finish looks ******* AWESOME. I'm glad I went tungsten after much internal debate.

-Zach
thasac is offline   Reply With Quote
Old 08-19-2014, 11:44 PM   #19
Senior Member
iTrader: (2)

Join Date: Aug 2013
Location: Houston, TX
Posts: 598
Total Cats: 30
Default

Quote:
Originally Posted by PetrolPiglet View Post
I'm regretting going for the bronze now
If you want the Tungsten... I'll take the bronze off your hands.

Lemme know?
SchmoozerJoe is offline   Reply With Quote
Old 08-31-2014, 08:27 PM   #20
Junior Member

Join Date: Jul 2014
Posts: 60
Total Cats: 2
Default

I went with charcoal,this runs bronze looked a bit too gold for me. However tungsten came out looking great. Can't wait to get these bad boys,running around on stock wheels is getting old.
Justin case is offline   Reply With Quote
