Default Rota Grid Offroad | Toyo R1R

Finally got the Grid's in last week. Running 225/45/16 R1R's. at approx. 12"F 12.5"R. All fenders are rolled and I'm dealing with a little rubbing in the front where the R-package front lip screws in. Going to attempt to continue massaging til they fit perfectly.





TheBandit is offline   Reply With Quote
Old 07-10-2010, 07:10 PM   #2
Elite Member
iTrader: (9)

Join Date: Aug 2006
Location: Concord, North Carolina
Posts: 4,172
Total Cats: 5
Default

Moar Camber....



I like those wheels though.
miatamania is offline   Reply With Quote
Old 07-10-2010, 09:55 PM   #3
Supporting Vendor
Thread Starter
iTrader: (6)

Join Date: Mar 2005
Location: Broken Arrow,Ok
Posts: 1,061
Total Cats: 40
Default

I've got it set up with what Shaik recommended alignment wise. Can't recall the #'s. I sort of did a mild roll to the front with the Eastwood tool, but I went back last night and rolled all fenders flat with a hair dryer and a 2lb sledge.
TheBandit is offline   Reply With Quote
Old 07-11-2010, 11:02 PM   #4
Elite Member
iTrader: (8)

Join Date: Dec 2008
Location: Kingston, Ontario
Posts: 2,791
Total Cats: 71
Default

those tires are huge.
shlammed is offline   Reply With Quote
Old 07-16-2010, 08:10 PM   #5
MT Pony Underground
iTrader: (6)

Nagase's Avatar

Join Date: May 2009
Posts: 1,811
Total Cats: 0
Default

Only 16's i've ever seen that i've kind of liked. Well done. Ish.
Nagase is offline   Reply With Quote
Old 07-16-2010, 09:12 PM   #6
I'm Miserable!

Join Date: Jan 2010
Location: Chattanooga, TN
Posts: 52
Total Cats: 0
Default

Those sidewalls are HUGE. I wanted to run 225's on my 16's but didn't want a 45 series sidewall. I ended up with 215 40 16's
eunos735 is offline   Reply With Quote
Old 07-16-2010, 09:16 PM   #7
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,174
Total Cats: 2,575
Default

What are the specs of the rims? Those 225's look meaty as hell on them, they look like 7's

Looks very good though
18psi is offline   Reply With Quote
Old 07-16-2010, 09:33 PM   #8
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

I was in Miami yesterday, I should have PM'd you.
hustler is offline   Reply With Quote
Old 07-17-2010, 01:55 AM   #9
Junior Member
iTrader: (4)

Join Date: Mar 2005
Location: Kansas City, MO.
Posts: 133
Total Cats: 0
Default

Very Nice!! Not sure what makes a 45 series tire look so large??
blrx7r1 is offline   Reply With Quote
Old 07-17-2010, 09:06 AM   #10
Moderator
iTrader: (11)

sixshooter's Avatar

Join Date: Nov 2008
Location: Tampa, Florida
Posts: 15,661
Total Cats: 1,559
Default

Rim width and offset?
sixshooter is online now   Reply With Quote
Old 07-17-2010, 09:37 AM   #11
Junior Member
iTrader: (2)

Join Date: Aug 2006
Location: Louisville Kentucky
Posts: 222
Total Cats: 0
Default

most likely 16x8 +10
TwoScoopsofHooah is offline   Reply With Quote
Old 07-17-2010, 12:09 PM   #12
Supporting Vendor
Thread Starter
iTrader: (6)

Join Date: Mar 2005
Location: Broken Arrow,Ok
Posts: 1,061
Total Cats: 40
Default

16x8 +20. I think they are the perfect offset if you want to be flush with the fenders. The tires are 1" oversize from stock but this is my second set in this size and I think it works out nicely. Coming from my 16x7 grids with RS-2's these 16x8 with R1R's look much wider IMO. I did have to do a full roll on all the fenders, remove the front fender liners and massage part of the front lip. Still having a little issue rubbing the rears at the autox last weekend. Might have to look into a very mild pull to fix.
Thanks for the comments. Kind of went out on a limb with this wheel/tire combo but I'm glad i did.

Michael
TheBandit is offline   Reply With Quote
Old 07-18-2010, 02:58 AM   #13
Elite Member
iTrader: (9)

TurboTim's Avatar

Join Date: Jun 2006
Location: Chesterfield, NJ
Posts: 6,484
Total Cats: 248
Default

I think this looks pretty F'in badass. I like it a lot.
TurboTim is offline   Reply With Quote
Old 10-24-2010, 11:43 PM   #14
Senior Member
iTrader: (13)

Join Date: Jul 2008
Location: Macon, Ga
Posts: 826
Total Cats: 0
Default

Quote:
Originally Posted by TheBandit View Post
16x8 +20. I think they are the perfect offset if you want to be flush with the fenders. The tires are 1" oversize from stock but this is my second set in this size and I think it works out nicely. Coming from my 16x7 grids with RS-2's these 16x8 with R1R's look much wider IMO. I did have to do a full roll on all the fenders, remove the front fender liners and massage part of the front lip. Still having a little issue rubbing the rears at the autox last weekend. Might have to look into a very mild pull to fix.
Thanks for the comments. Kind of went out on a limb with this wheel/tire combo but I'm glad i did.

Michael

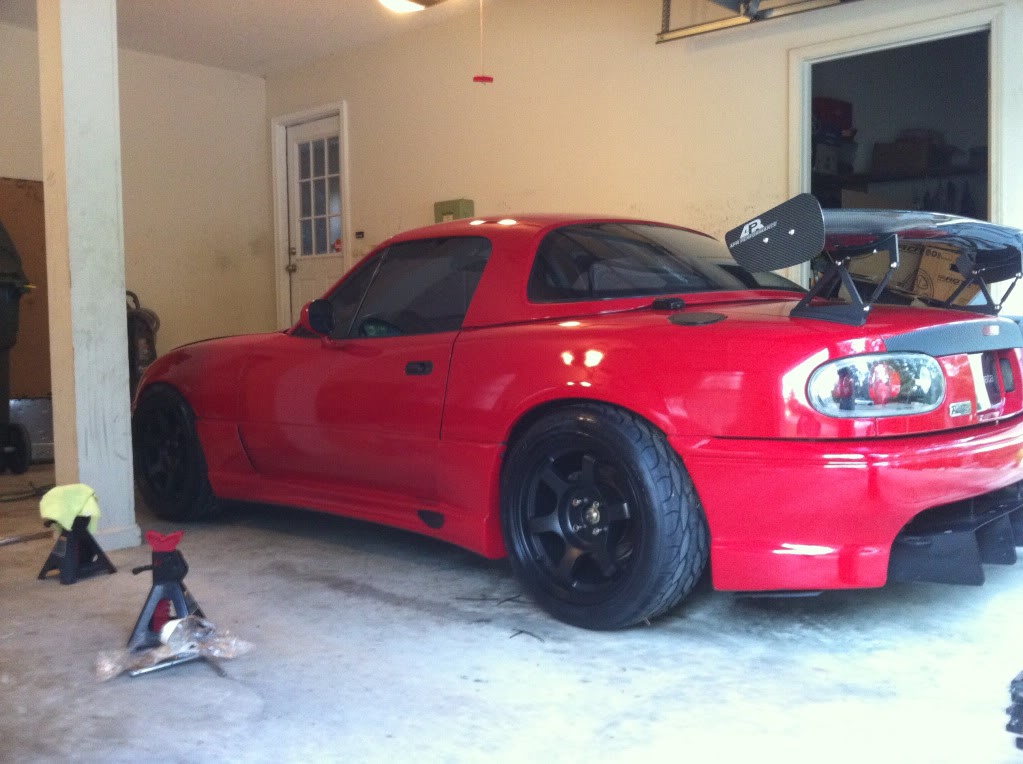

Im running the same setup and have plenty of scrubbing. Will probably roll em this weekend. I've been looking for two days for a good alignment setup with these. What are your specs?

Name:  IMG_0146.jpg
Views: 99
Size:  111.9 KB
Sam Amporful is offline   Reply With Quote
Old 10-25-2010, 09:10 AM   #15
Supporting Vendor
Thread Starter
iTrader: (6)

Join Date: Mar 2005
Location: Broken Arrow,Ok
Posts: 1,061
Total Cats: 40
Default

Sam,

Per FatCats suggestions I am running 4.5* Caster, -2* Camber (F), -1.5* Camber (R), and either 0 toe or .125 Toe Out. I still get minimal rubbing in the rear at times but it does really well at autox days. I couldn't be much happier.. Well maybe on R-comps..

Michael
TheBandit is offline   Reply With Quote
Old 10-25-2010, 03:13 PM   #16
Senior Member
iTrader: (13)

Join Date: Jul 2008
Location: Macon, Ga
Posts: 826
Total Cats: 0
Default

Thanks Michael. That thing will be even more of a beast once you get the LS6 in there with the R-comps lol. Talk about rocket ship..
Sam Amporful is offline   Reply With Quote
Old 10-25-2010, 06:19 PM   #17
I'm Miserable!

Join Date: Feb 2010
Posts: 584
Total Cats: 0
Default

Quote:
Originally Posted by TheBandit View Post
Sam,

Per FatCats suggestions I am running 4.5* Caster, -2* Camber (F), -1.5* Camber (R), and either 0 toe or .125 Toe Out. I still get minimal rubbing in the rear at times but it does really well at autox days. I couldn't be much happier.. Well maybe on R-comps..

Michael
Hey how do you do degrees on a windoze machine? 'Tis easy on brand A as in 4.5 but I forget how on a pc...
sjmarcy is offline   Reply With Quote
Old 10-25-2010, 11:27 PM   #18
Senior Member
iTrader: (2)

Join Date: May 2010
Location: Beckley, WV
Posts: 868
Total Cats: 36
Default

Quote:
Originally Posted by TheBandit View Post
16x8 +20. I think they are the perfect offset if you want to be flush with the fenders. The tires are 1" oversize from stock but this is my second set in this size and I think it works out nicely. Coming from my 16x7 grids with RS-2's these 16x8 with R1R's look much wider IMO. I did have to do a full roll on all the fenders, remove the front fender liners and massage part of the front lip. Still having a little issue rubbing the rears at the autox last weekend. Might have to look into a very mild pull to fix.
Thanks for the comments. Kind of went out on a limb with this wheel/tire combo but I'm glad i did

Michael
Love these wheels and have it narrowed down to these or 6ul. I know with these I will have to roll. But if I were to run something like 215 40 (if they would even fit?)would I have to worry about the rubbing? I am pure street right now so seems like 225 might be overkill. Thanks.
Tekel is offline   Reply With Quote
Old 10-29-2010, 02:38 PM   #19
Junior Member
iTrader: (1)

Join Date: Oct 2010
Location: Irvine, CA
Posts: 63
Total Cats: 0
Default

Those are some serious meets.
Bob Loblaw is offline   Reply With Quote
Old 10-31-2010, 11:24 PM   #20
Senior Member
iTrader: (13)

Join Date: Jul 2008
Location: Macon, Ga
Posts: 826
Total Cats: 0
Default

Quote:
Originally Posted by TheBandit View Post
Sam,

Per FatCats suggestions I am running 4.5* Caster, -2* Camber (F), -1.5* Camber (R), and either 0 toe or .125 Toe Out. I still get minimal rubbing in the rear at times but it does really well at autox days. I couldn't be much happier.. Well maybe on R-comps..

Michael
I autocrossed this setup today and its WIN. The car did everything I told it to and everything it shouldve. Grip is excellent. Thanks again bud.
Sam Amporful is offline   Reply With Quote
