Old 08-25-2011, 06:03 AM   #1
Junior Member
Thread Starter

Join Date: Jul 2009
Location: Pineville,LA
Posts: 174
Total Cats: 0
Wink Exhaust parts 2.5 or 3in.

I need some bends you need money lets make this **** happen looking for a couple of 90*s, trying to build downpipe for t3 60trim let me know what you have left over.
chris824 is offline   Reply With Quote
Old 08-25-2011, 09:34 AM   #2
Elite Member
iTrader: (12)

Join Date: Nov 2009
Location: Harpers Ferry WV
Posts: 1,521
Total Cats: 20
Default

I bought two 2.5" mild steel J-Bends online for $30 each. I do not think it gets much better than that. I will see if I can find the company.
Sean is offline   Reply With Quote
Old 08-26-2011, 02:08 AM   #3
Junior Member
Thread Starter

Join Date: Jul 2009
Location: Pineville,LA
Posts: 174
Total Cats: 0
Default

Quote:
Originally Posted by Sean View Post
I bought two 2.5" mild steel J-Bends online for $30 each. I do not think it gets much better than that. I will see if I can find the company.
Sounds great!!
chris824 is offline   Reply With Quote
Old 08-26-2011, 09:37 AM   #4
Elite Member
iTrader: (46)

Stein's Avatar

Join Date: Dec 2007
Location: Nebraska
Posts: 4,812
Total Cats: 138
Default

http://www.mandrel-bends.com/catalog...FQfBKgodrg_rNw

Used to be a sponsor here. I used them for everything to build my V8 exhaust. Good quality, good prices, fast shipping. They have v-bands as well. Nice if building your own DP.
Stein is offline   Reply With Quote
Old 08-26-2011, 11:02 AM   #5
Elite Member
iTrader: (12)

Join Date: Nov 2009
Location: Harpers Ferry WV
Posts: 1,521
Total Cats: 20
Default

Here is a link link to there ebay store witch is where I bought my parts but you can also call them. They are based out of MD and they are a fantastic supplier and great people to work with.
Ebay store-

http://stores.ebay.com/mandrelbendingsolutions

This is the link to their regular web site.

http://www.mandrelbendingsolutions.c...let/StoreFront
Sean is offline   Reply With Quote
Old 08-26-2011, 11:25 AM   #6
Elite Member
iTrader: (8)

Join Date: Dec 2008
Location: Kingston, Ontario
Posts: 2,791
Total Cats: 71
Default

Quote:
Originally Posted by Stein View Post
http://www.mandrel-bends.com/catalog...FQfBKgodrg_rNw

Used to be a sponsor here. I used them for everything to build my V8 exhaust. Good quality, good prices, fast shipping. They have v-bands as well. Nice if building your own DP.
I have dealt with these guys before too.... fast shipping, etc.

I wasnt exactly pleased with the surface of the tube, but thats pretty standard for the price point.
shlammed is offline   Reply With Quote
Old 08-28-2011, 04:58 PM   #7
Junior Member
Thread Starter

Join Date: Jul 2009
Location: Pineville,LA
Posts: 174
Total Cats: 0
Default

Quote:
Originally Posted by Stein View Post
http://www.mandrel-bends.com/catalog...FQfBKgodrg_rNw

Used to be a sponsor here. I used them for everything to build my V8 exhaust. Good quality, good prices, fast shipping. They have v-bands as well. Nice if building your own DP.
What size outer diameter you think I should get for 3in?
chris824 is offline   Reply With Quote
Old 08-28-2011, 08:23 PM   #8
Elite Member
iTrader: (2)

triple88a's Avatar

Join Date: Apr 2006
Location: Chicago, IL
Posts: 9,131
Total Cats: 598
Default

I'm running a 3" pipe on my NB and i gotta say it rattles everywhere. Fit is...tough.
triple88a is offline   Reply With Quote
Old 08-28-2011, 09:35 PM   #9
Junior Member
Thread Starter

Join Date: Jul 2009
Location: Pineville,LA
Posts: 174
Total Cats: 0
Default

Quote:
Originally Posted by triple88a View Post
I'm running a 3" pipe on my NB and i gotta say it rattles everywhere. Fit is...tough.

Whats the pipe thickness?
chris824 is offline   Reply With Quote
Old 08-28-2011, 10:03 PM   #10
Elite Member
iTrader: (2)

triple88a's Avatar

Join Date: Apr 2006
Location: Chicago, IL
Posts: 9,131
Total Cats: 598
Default

Thin cheap stuff. You know the little exhaust cuts from autozone that you can get? Same thickness.

Fit is very tough especially around the differential and that bottom pipe. We had to bang on the pipe and squish it a bit just to give it half an inch of flex room and still hits all the way around top and bottom.

Last edited by triple88a; 08-28-2011 at 10:15 PM.
triple88a is offline   Reply With Quote
Old 08-29-2011, 01:42 PM   #11
Junior Member
Thread Starter

Join Date: Jul 2009
Location: Pineville,LA
Posts: 174
Total Cats: 0
Default

Quote:
Originally Posted by triple88a View Post
Thin cheap stuff. You know the little exhaust cuts from autozone that you can get? Same thickness.

Fit is very tough especially around the differential and that bottom pipe. We had to bang on the pipe and squish it a bit just to give it half an inch of flex room and still hits all the way around top and bottom.
Should I stay with a 3in or go 2.5in its going to be tough to spool that t3 60 trim?
chris824 is offline   Reply With Quote
Old 08-30-2011, 12:08 AM   #12
Elite Member
iTrader: (2)

triple88a's Avatar

Join Date: Apr 2006
Location: Chicago, IL
Posts: 9,131
Total Cats: 598
Default

I'd go with a 3" again however i'd do it my self with more care than the local exhaust shop.
triple88a is offline   Reply With Quote
Old 08-30-2011, 12:22 AM   #13
Elite Member
iTrader: (46)

Stein's Avatar

Join Date: Dec 2007
Location: Nebraska
Posts: 4,812
Total Cats: 138
Default

Quote:
Originally Posted by triple88a View Post
Fit is very tough especially around the differential and that bottom pipe. We had to bang on the pipe and squish it a bit just to give it half an inch of flex room and still hits all the way around top and bottom.
U R doing it wrong. I have 3" through my subframe/diff and that's with a huge Ford 8.8" diff in there. Zero pipes were dented and zero contact anywhere.

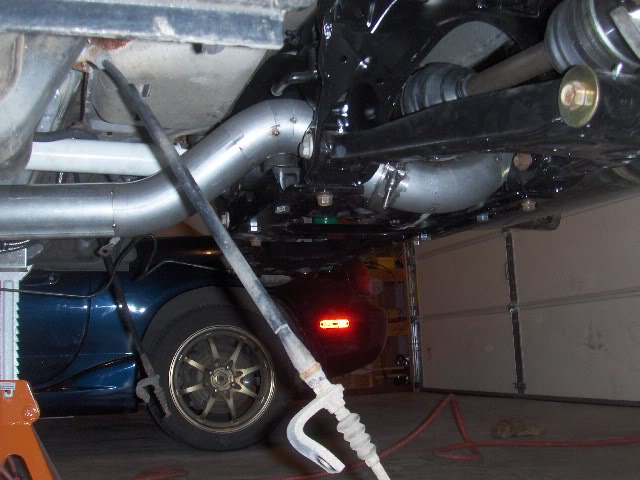

Name:  HPIM0893.jpg
Views: 0
Size:  57.5 KB

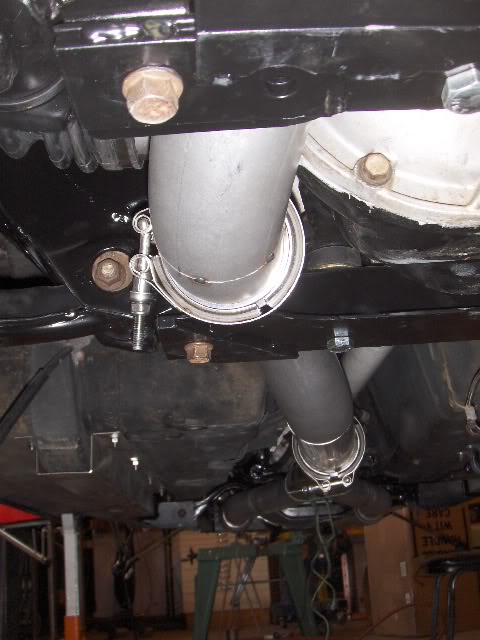

Name:  HPIM0887.jpg
Views: 0
Size:  57.5 KB

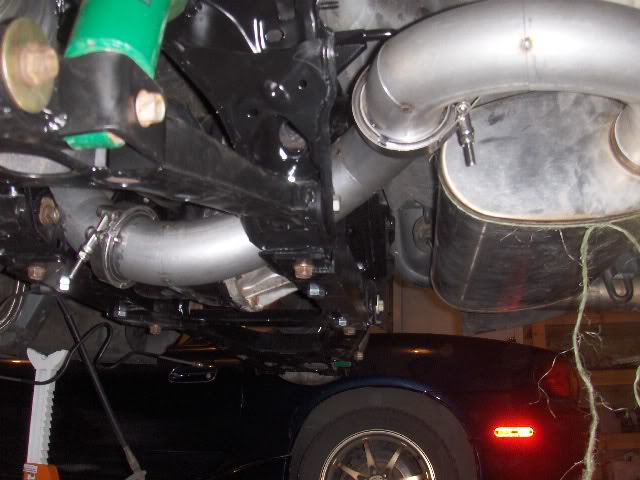

Name:  HPIM0889.jpg
Views: 0
Size:  55.5 KB

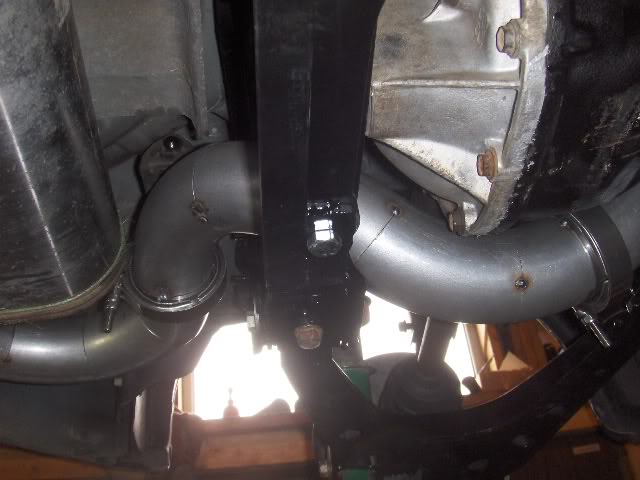

Name:  HPIM0898.jpg
Views: 0
Size:  51.6 KB

^^^Would you look at the quality of those joints? Everything was cut with a harbor freight bandsaw, freehand.

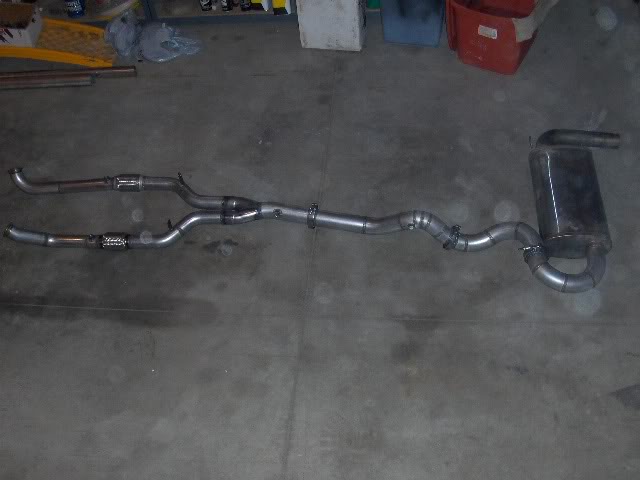

Name:  HPIM0899.jpg
Views: 0
Size:  35.5 KB

There are five v-bands in the exhaust but it can be assembled without unbolting anything else from the car. The diff piece will fit through the subframe.
Stein is offline   Reply With Quote
Old 08-30-2011, 12:26 AM   #14
Elite Member
iTrader: (2)

triple88a's Avatar

Join Date: Apr 2006
Location: Chicago, IL
Posts: 9,131
Total Cats: 598
Default

^Show off

jk like i said if i could do it my self it would have been much better i think.
triple88a is offline   Reply With Quote
Old 08-30-2011, 12:30 AM   #15
Elite Member
iTrader: (46)

Stein's Avatar

Join Date: Dec 2007
Location: Nebraska
Posts: 4,812
Total Cats: 138
Default

Quote:
Originally Posted by triple88a View Post
^Show off

jk like i said if i could do it my self it would have been much better i think.
No doubt you could. A shop will never spend the time that you would. I have over 30 hours in building that exhaust.
Stein is offline   Reply With Quote
Old 08-30-2011, 03:26 PM   #16
Elite Member
iTrader: (8)

Join Date: Dec 2008
Location: Kingston, Ontario
Posts: 2,791
Total Cats: 71
Default

A 3" exhaust will fit no problem in a miata.

If you wanted, a 3.5" would fit with the factory brace as well.
shlammed is offline   Reply With Quote
Old 08-31-2011, 12:07 AM   #17
Junior Member
Thread Starter

Join Date: Jul 2009
Location: Pineville,LA
Posts: 174
Total Cats: 0
Default

Quote:
Originally Posted by Stein View Post
No doubt you could. A shop will never spend the time that you would. I have over 30 hours in building that exhaust.
30 hours holy crap man!!!!!!!!!!!!!!!!!
chris824 is offline   Reply With Quote
Old 08-31-2011, 08:15 AM   #18
Elite Member
iTrader: (8)

Join Date: Sep 2006
Location: Severn, MD
Posts: 1,927
Total Cats: 5
Default

Quote:
Originally Posted by Stein View Post
No doubt you could. A shop will never spend the time that you would. I have over 30 hours in building that exhaust.
I probably spent 30 on mine. But my welding sucked as I was learning. I took my car to mandrelbendingsolutions that Sean mentioned in this thread and they redid some of my work. Pretty much from my front v-bands all the way back to the tip. Took them about 7 hours but they charged me 5.

It is very similar to yours except I'm running the CTS diff.

V bands after the cats before the Y-pipe, and one right next to the diff like you have. Makes dropping the whole thing a 5 minute affair.
fmowry is offline   Reply With Quote
Old 09-02-2011, 01:01 AM   #19
Junior Member
Thread Starter

Join Date: Jul 2009
Location: Pineville,LA
Posts: 174
Total Cats: 0
Default

this maybe a stupid question but what is od and radius of pipe how is it measured?
chris824 is offline   Reply With Quote
Old 09-02-2011, 01:04 AM   #20
Elite Member
iTrader: (46)

Stein's Avatar

Join Date: Dec 2007
Location: Nebraska
Posts: 4,812
Total Cats: 138
Default

Quote:
Originally Posted by chris824 View Post
this maybe a stupid question but what is od and radius of pipe how is it measured?
OD is the Outside Diameter of the pipe.

Radius is what the centerline radius would be. For instance, a 2" OD with a 6" radius would have a 5" inside radius (measured on the very inside of the bend) and a 7" outside radius (measured on the very outside of the bend).
Stein is offline   Reply With Quote
