Default Single Piece Differential Axle

Hi guys, I recently picked up a torsen swap from a 1997, but the owner smashed the end of one of the single piece axles to bits. I have gone through every local auto parts store, local craigslist, even specialty shops that only specialize in drive axles.... no one has one. If someone has one please PM me with price and shipping costs to 53110.

Thanks a lot guys.

Last edited by Swanpuppy; 03-27-2014 at 10:44 AM.
Swanpuppy is offline   Reply With Quote
Old 03-27-2014, 02:09 PM   #2
Elite Member
iTrader: (12)

Join Date: Nov 2009
Location: Harpers Ferry WV
Posts: 1,521
Total Cats: 20
Default

No one sells a complete axle? Or are you looking to just buy the end of the axle?
Sean is offline   Reply With Quote
Old 03-27-2014, 02:17 PM   #3
Junior Member
Thread Starter

Join Date: Jun 2013
Location: Milwaukee
Posts: 177
Total Cats: 5
Default

I cannot find a parts store that sells a complete axle. The closest I got was Oreilly's which offered to ship it away to be rebuilt. Our local Milwaukee miata recycler was out as well. I have not looked to see if I can buy just the end with the threads that got smashed in and try to rebuilt it that way myself. I assumed these were easier to come by and was going to just buy a full axle to get this installed quicker.
Swanpuppy is offline   Reply With Quote
Old 03-27-2014, 02:33 PM   #4
Elite Member
iTrader: (12)

Join Date: Nov 2009
Location: Harpers Ferry WV
Posts: 1,521
Total Cats: 20
Default

1999 2000 2001 2002 2003 2004 Mazda Miata MX5 Halfshaft Axle CV Shaft | eBay

Here is a used one
I will try and figure out where I bought mine I bought two new ones about two years ago now.
Sean is offline   Reply With Quote
Old 03-27-2014, 02:34 PM   #5
Elite Member
iTrader: (12)

Join Date: Nov 2009
Location: Harpers Ferry WV
Posts: 1,521
Total Cats: 20
Default

2001 MAZDA MX-5 MIATA CV Half Shaft Assembly


Is this what you are looking for or something different? I think this is what you are talking about.
That link has an A-1 Cardone part number witch you should be able to have cross referenced at any local parts store.
Sean is offline   Reply With Quote
Old 03-27-2014, 02:37 PM   #6
Junior Member
Thread Starter

Join Date: Jun 2013
Location: Milwaukee
Posts: 177
Total Cats: 5
Default

From my understanding I thought the 2000 and up had different sized axles??? Or is this incorrect.

Rockauto did not have the 1997 axles available.
Swanpuppy is offline   Reply With Quote
Old 03-27-2014, 02:40 PM   #7
Elite Member
iTrader: (12)

Join Date: Nov 2009
Location: Harpers Ferry WV
Posts: 1,521
Total Cats: 20
Default

If you are using one piece axle with no stub shafts you need 2000 and up if you are using stub shafts then you need 93-97 also use the axle seal that corresponds to the axle year you are using.
Sean is offline   Reply With Quote
Old 03-27-2014, 02:42 PM   #8
Elite Member
iTrader: (12)

Join Date: Nov 2009
Location: Harpers Ferry WV
Posts: 1,521
Total Cats: 20
Default

For example I have an RX7 TurboII rear in my car ATM. I used to have a 1.6L open then I had a 1.8 open.

TurboII - 2001 miata axle 2001 miata axle seals
1.8L Open - 2001 miata axle 2001 miata axle seals just had to remove stub shafts
1.6L open - 1.6L stubs 1.6L axles 1.6L seals

Drive shaft is different between 1.6L and 1.8L
Sean is offline   Reply With Quote
Old 03-27-2014, 03:10 PM   #9
Junior Member
Thread Starter

Join Date: Jun 2013
Location: Milwaukee
Posts: 177
Total Cats: 5
Default

Ok, now this is another question. If an NB axle fits in a 1997 torsion, i would need different axle nuts, but will I run into issues by running a NA 1.8 half shaft on one side and a NB 1.8 shaft on the other?
Swanpuppy is offline   Reply With Quote
Old 03-27-2014, 03:12 PM   #10
Elite Member
iTrader: (12)

Join Date: Nov 2009
Location: Harpers Ferry WV
Posts: 1,521
Total Cats: 20
Default

That I do not know if I had to I would do it but given the option I would much rather run a matching set. I would say it would work but I don't know what could happen doing that.
Sean is offline   Reply With Quote
Old 03-27-2014, 03:16 PM   #11
Junior Member
Thread Starter

Join Date: Jun 2013
Location: Milwaukee
Posts: 177
Total Cats: 5
Default

Thats kinda where I'm stuck, I can't even source a two piece AND was advised against that, and even with the 2002 shaft, I could have other potential issues.

This means I'm kinda in the same spot. Either A) i try to run the 2002 and hope it works ok. B)buy two new axles for a lot more money than I hoped to spend or C) sit and do nothing because I cannot find the right axle.
Swanpuppy is offline   Reply With Quote
Old 03-27-2014, 03:27 PM   #12
Elite Member
iTrader: (12)

Join Date: Nov 2009
Location: Harpers Ferry WV
Posts: 1,521
Total Cats: 20
Default

Post a pic of your axle and what's broke or damaged I am sure you can find what you need at a reasonable price.
Sean is offline   Reply With Quote
Old 03-27-2014, 03:38 PM   #13
Junior Member
Thread Starter

Join Date: Jun 2013
Location: Milwaukee
Posts: 177
Total Cats: 5
Default

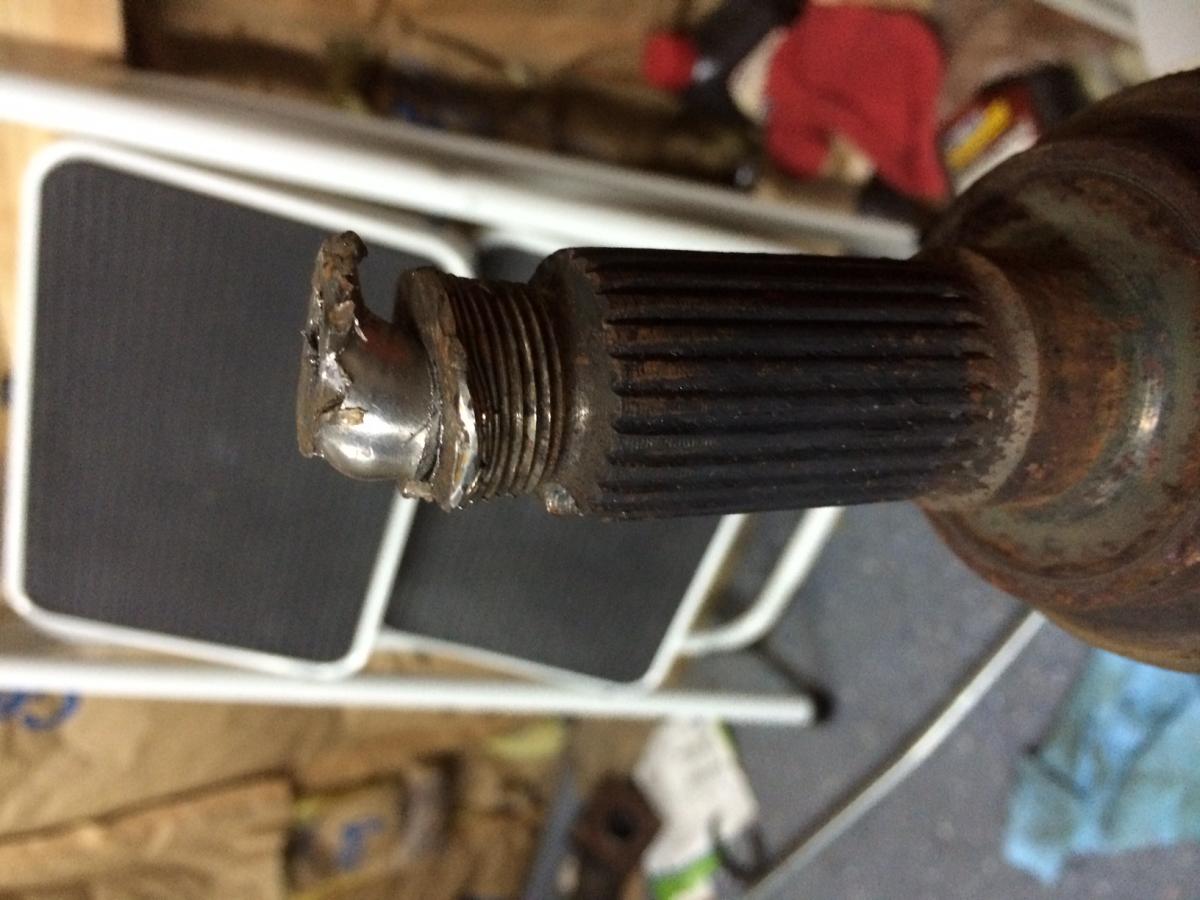

Here are pics of the damage. Guy bashed all the threads of the shaft and the movement inside the boot is very clunky.. I have a feeling its broken inside as well.
Attached Thumbnails
Single Piece Differential Axle-photo-1.jpg   Single Piece Differential Axle-photo-2.jpg
Swanpuppy is offline   Reply With Quote
Old 03-27-2014, 03:38 PM   #14
Junior Member
Thread Starter

Join Date: Jun 2013
Location: Milwaukee
Posts: 177
Total Cats: 5
Default

Sorry for the sideways pictures.
Swanpuppy is offline   Reply With Quote
Old 03-27-2014, 03:46 PM   #15
Elite Member
iTrader: (3)

Join Date: Mar 2008
Location: Granbury, TX
Posts: 6,010
Total Cats: 583
Default

I've been down this path recently. Swan, you're right. These just aren't available from rebuilders unless you send them yours.

Used off E-bay is the way to go.
hornetball is offline   Reply With Quote
Old 03-27-2014, 03:50 PM   #16
Elite Member
iTrader: (2)

fooger03's Avatar

Join Date: Jan 2009
Location: Columbus, OH
Posts: 4,133
Total Cats: 188
Default

email [email protected]

He has always been extremely helpful about getting used parts at used part prices. Stand up business in my experience.
fooger03 is offline   Reply With Quote
Old 03-27-2014, 03:50 PM   #17
Junior Member
Thread Starter

Join Date: Jun 2013
Location: Milwaukee
Posts: 177
Total Cats: 5
Default

Hornetball (I like the builds btw), can the busted threads even be rebuilt? Seems more like you would need a full machine shop and even at that point it would probably need to just be replaced. I was told 14 days to rebuild the axle, no idea on cost, otherwise that 2002 axle from ebay posted above would take maybe a week... Sigh, I think no matter what I'm going to miss the first autocross of the season.

Any input on running a NB axle with the NA torsen and NA axle?
Swanpuppy is offline   Reply With Quote
Old 03-27-2014, 03:52 PM   #18
Junior Member
Thread Starter

Join Date: Jun 2013
Location: Milwaukee
Posts: 177
Total Cats: 5
Default

Fooger: I have actually been in contact with Blake, I missed out on their last axle by a few days. He MIGHT have a 1999 and up axle, I didn't know they were interchangeable, so maybe he didn't know either. I can give him a ring and check.
Swanpuppy is offline   Reply With Quote
Old 03-27-2014, 03:54 PM   #19
Elite Member
iTrader: (3)

Join Date: Mar 2008
Location: Granbury, TX
Posts: 6,010
Total Cats: 583
Default

The axles all interchange so far as I know. Also, the swap from 2 piece to 1 piece actually happened on NA's, around 95 I think. Not sure if the busted threads can be rebuilt in this case because that outer CV joint can't be dismantled without special equipment. A-1 Cardone might do this . . . . don't know.

Guys, don't bang on your frozen axles (was that X-rated?).
hornetball is offline   Reply With Quote
Old 03-27-2014, 03:57 PM   #20
Junior Member
Thread Starter

Join Date: Jun 2013
Location: Milwaukee
Posts: 177
Total Cats: 5
Default

Ill see if Blake has any NB axles locally (I'm about 20 minutes from him) if not i might pull the trigger on that ebay axle and pray everything works out correctly.
Swanpuppy is offline   Reply With Quote
