Old 10-07-2012, 12:05 AM   #121
Senior Member
Thread Starter
iTrader: (5)

Join Date: Jul 2005
Posts: 715
Total Cats: 53
Default

Yeah what a pain in the butt to make it work with twin scroll! This better be worth it! haha
bcrx7 is offline   Reply With Quote
Old 10-07-2012, 12:07 AM   #122
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 33,437
Total Cats: 2,038
Default

Pretty sure it will be.
That tube layout and twin scroll is what all the people making a LOT of power are running (on other cars). And when I say a lot I mean more than almost all miatas
18psi is offline   Reply With Quote
Old 10-07-2012, 12:09 AM   #123
Senior Member
Thread Starter
iTrader: (5)

Join Date: Jul 2005
Posts: 715
Total Cats: 53
Default

So you are saying Fae is not running twin scroll? haha
bcrx7 is offline   Reply With Quote
Old 10-07-2012, 12:11 AM   #124
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 33,437
Total Cats: 2,038
Default

Or any kinda scroll....Just his mouth
18psi is offline   Reply With Quote
Old 10-07-2012, 12:13 AM   #125
Senior Member
Thread Starter
iTrader: (5)

Join Date: Jul 2005
Posts: 715
Total Cats: 53
Default

Speaking of that, his thread is burried somewhere. I should bring it alive hah
bcrx7 is offline   Reply With Quote
Old 10-07-2012, 12:45 AM   #126
Boosting since 1984
iTrader: (1)

stefanst's Avatar

Join Date: Sep 2011
Location: Levittown
Posts: 999
Total Cats: 38
Default

Not sure if this was mentioned before. Is this going to be internally wastegated? There's nothing to be seen for an external. Reasons?
stefanst is offline   Reply With Quote
Old 10-07-2012, 12:47 AM   #127
Senior Member
Thread Starter
iTrader: (5)

Join Date: Jul 2005
Posts: 715
Total Cats: 53
Default

yes! BorgWarner EFR 8374 twin scroll! Their internal wastegate is the cats-***! As it is, I will be running a 4" exhaust, so no issues there either! Going with the good old KISS rule! (keep it simple stupid)
bcrx7 is offline   Reply With Quote
Old 10-07-2012, 01:11 AM   #128
Elite Member
iTrader: (2)

Join Date: Aug 2012
Location: Indianapolis
Posts: 3,325
Total Cats: 231
Default

I don't remember if Fae is running a twin-scroll mani, I think he just has a quick-spool valve.
thenuge26 is offline   Reply With Quote
Old 10-07-2012, 10:38 PM   #129
Senior Member
Thread Starter
iTrader: (5)

Join Date: Jul 2005
Posts: 715
Total Cats: 53
Default

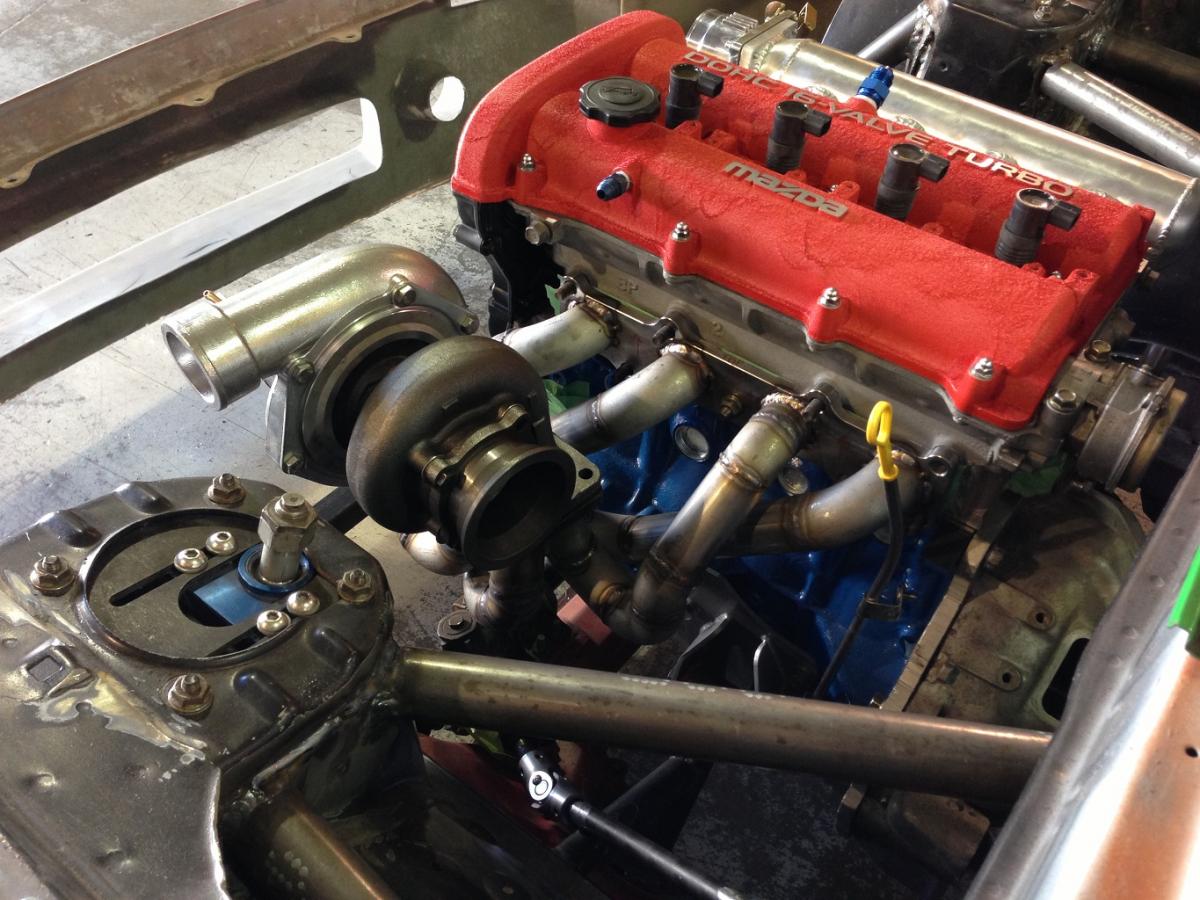

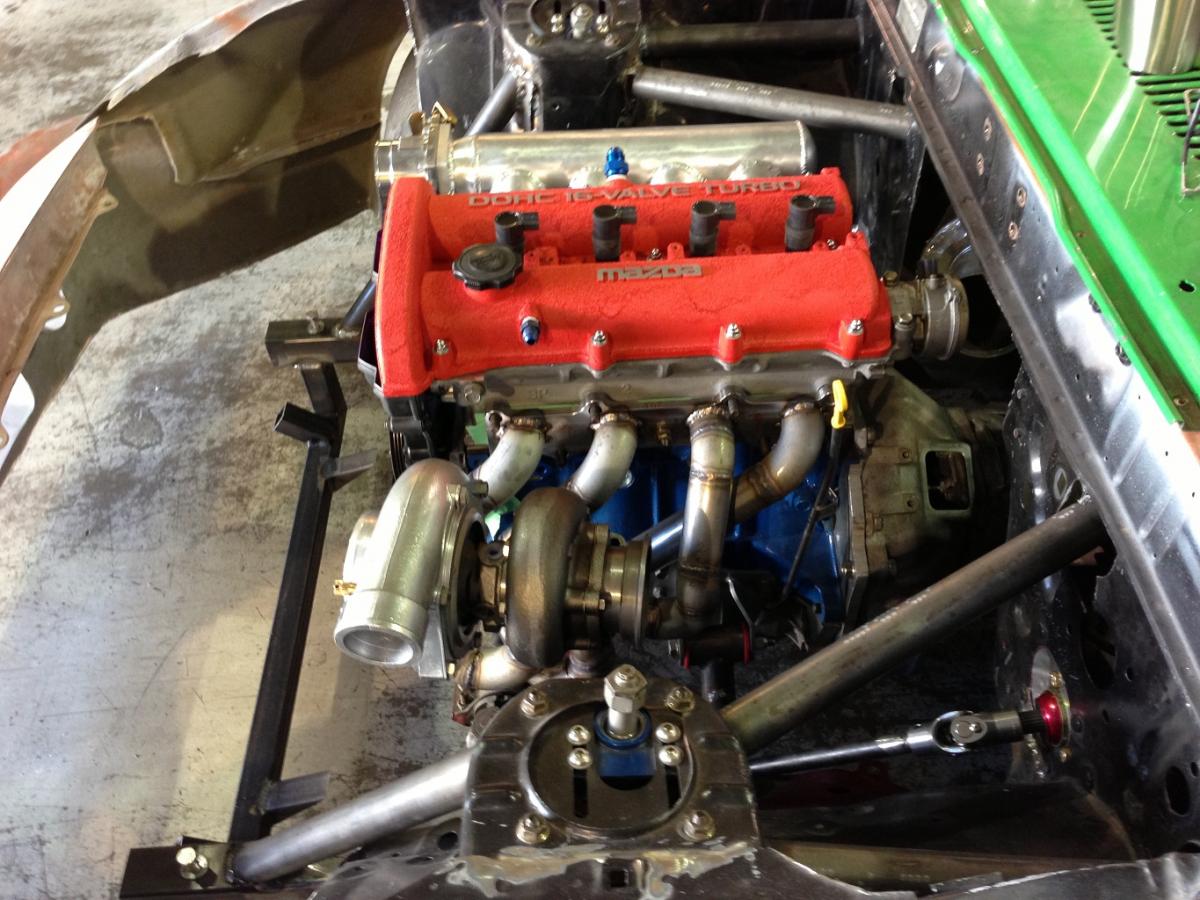

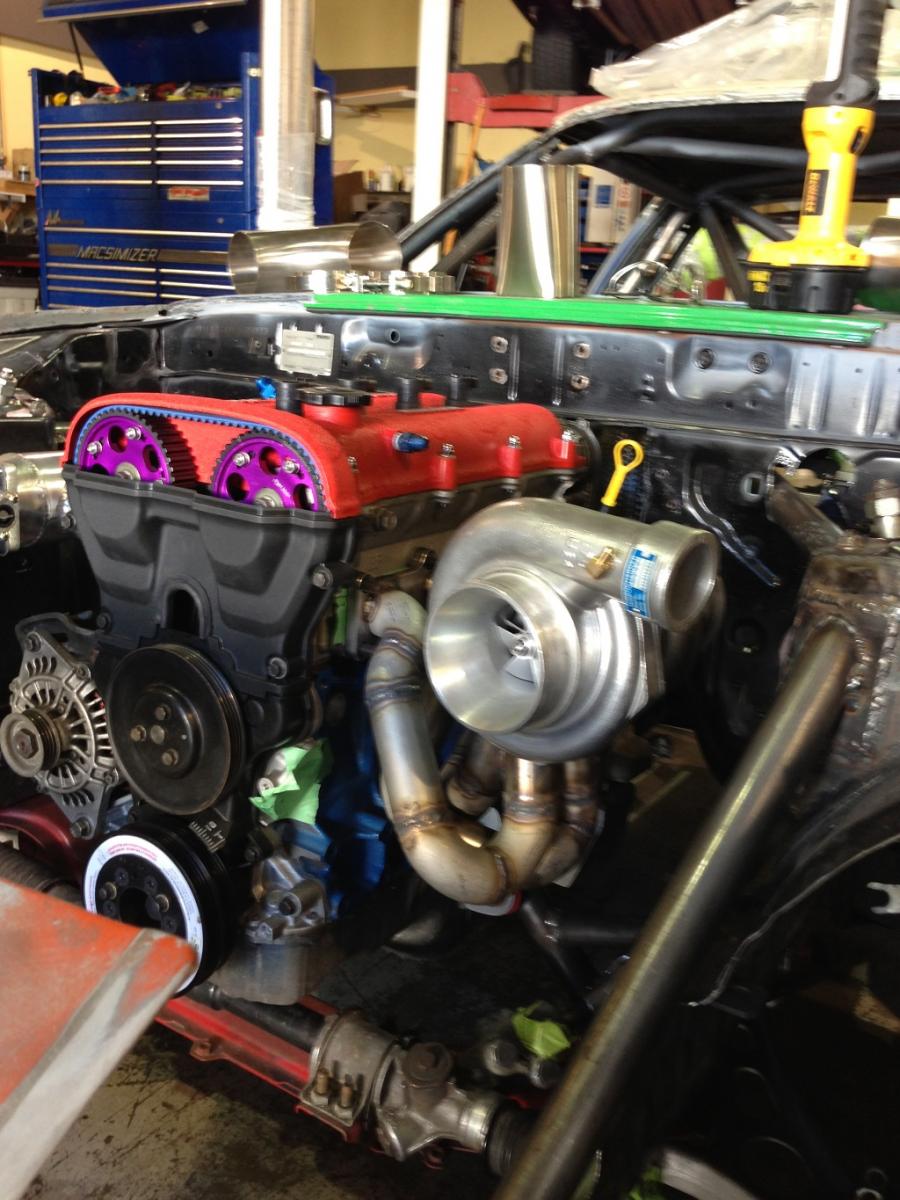

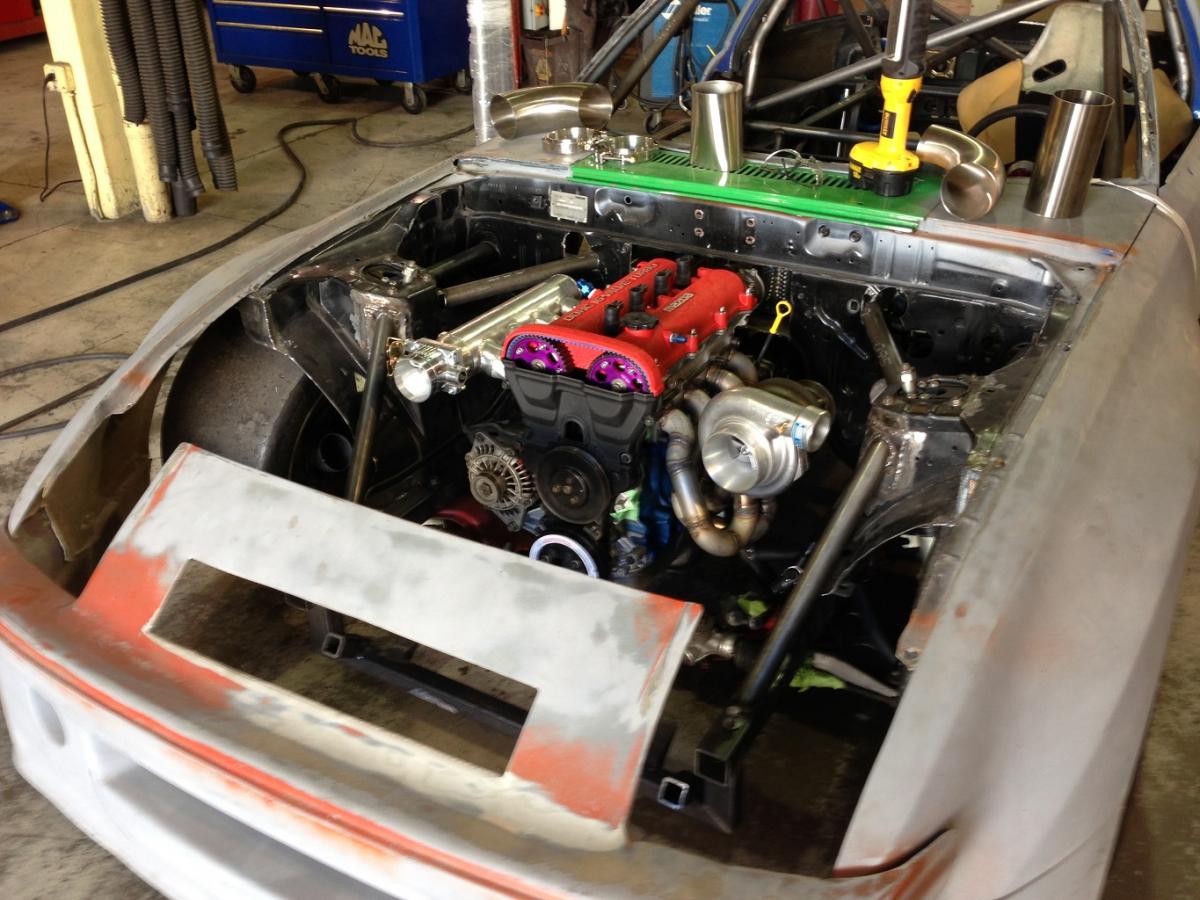

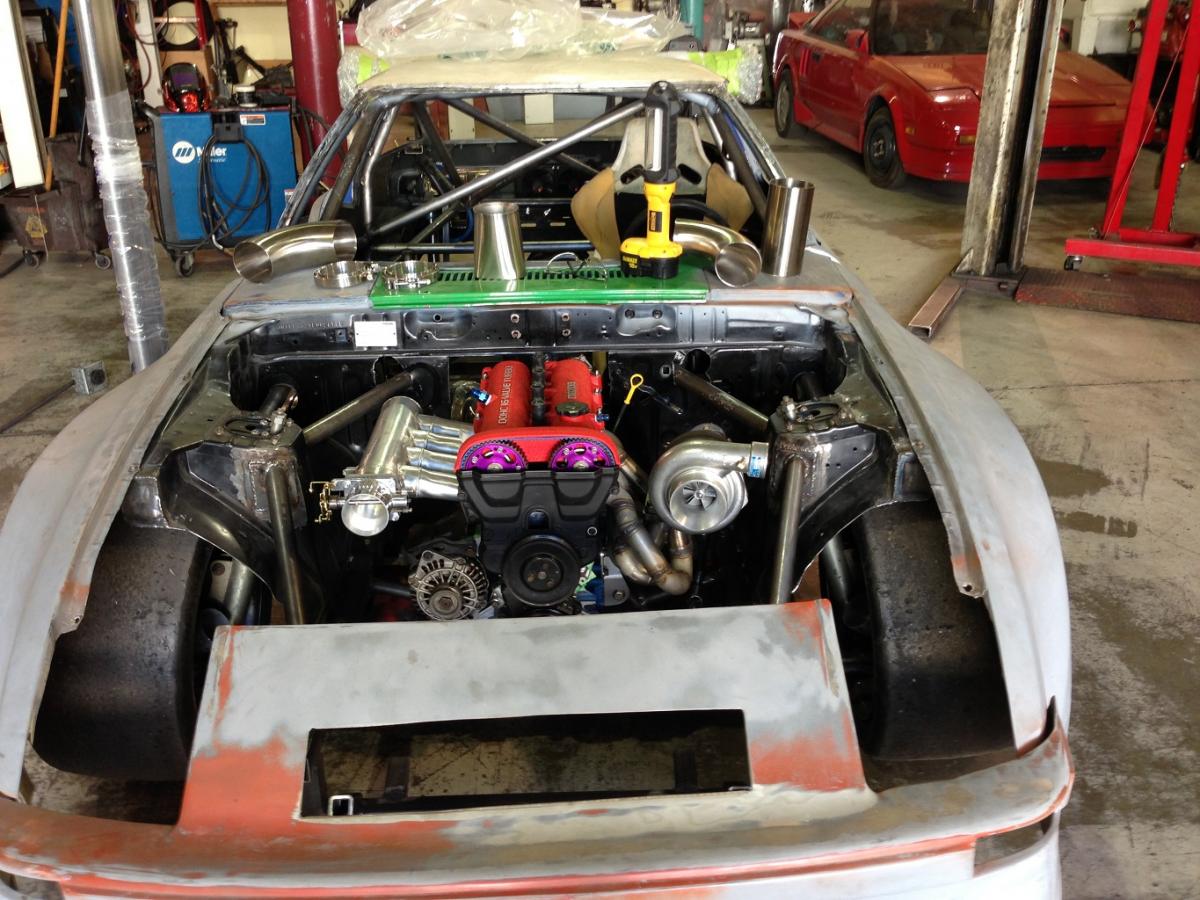

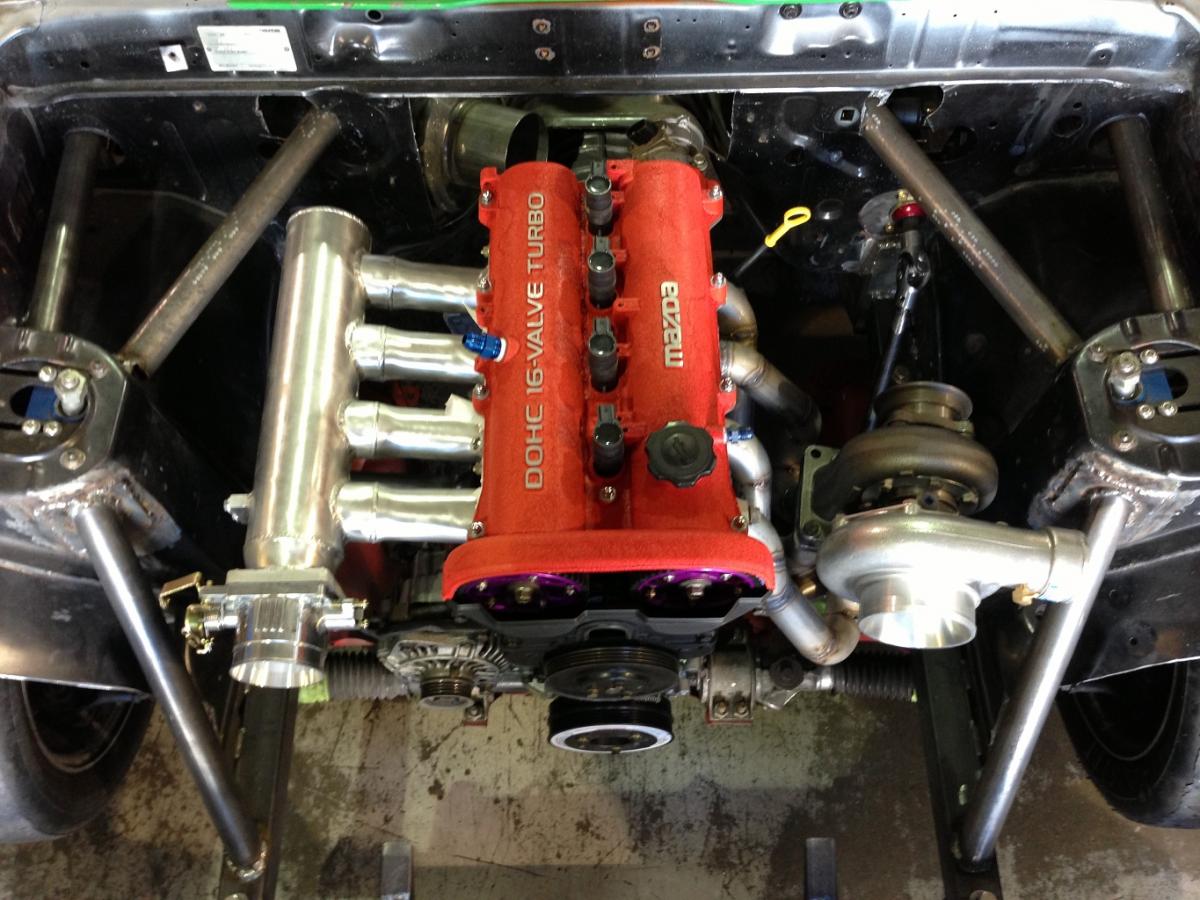

Had a cheap china-charge around that put it on the manifold with one bolt! Manifold is pretty much done. Some welding is still required, but waiting for a smaller TIG torch to arrive! Will start the rest of the exhaust tomorrow.











Attached Thumbnails
1984 RX-7 Race Car with BP! (almost a Miata)-img_0337.jpg   1984 RX-7 Race Car with BP! (almost a Miata)-img_0338.jpg   1984 RX-7 Race Car with BP! (almost a Miata)-img_0339.jpg   1984 RX-7 Race Car with BP! (almost a Miata)-img_0340.jpg   1984 RX-7 Race Car with BP! (almost a Miata)-img_0341.jpg

1984 RX-7 Race Car with BP! (almost a Miata)-img_0342.jpg
bcrx7 is offline   Reply With Quote
Old 10-08-2012, 04:29 AM   #130
A living god
iTrader: (23)

viperormiata's Avatar

Join Date: Aug 2008
Location: Key West
Posts: 5,953
Total Cats: 228
Default

What are great looking project. I love the updates.

What pipe are you using for the manifold? Also, do you have any plans for bracing or a crane?
viperormiata is offline   Reply With Quote
Old 10-08-2012, 02:48 PM   #131
Senior Member
Thread Starter
iTrader: (5)

Join Date: Jul 2005
Posts: 715
Total Cats: 53
Default

Thank you!
It is schedule 10 stainless. Yes I will have a crane on the T4 flange. Have to figure out where. The EFR turbo is on back-order, so I will figure that out once it gets here to make sure there is enough room!
bcrx7 is offline   Reply With Quote
Old 10-09-2012, 02:59 AM   #132
Senior Member
Thread Starter
iTrader: (5)

Join Date: Jul 2005
Posts: 715
Total Cats: 53
Default

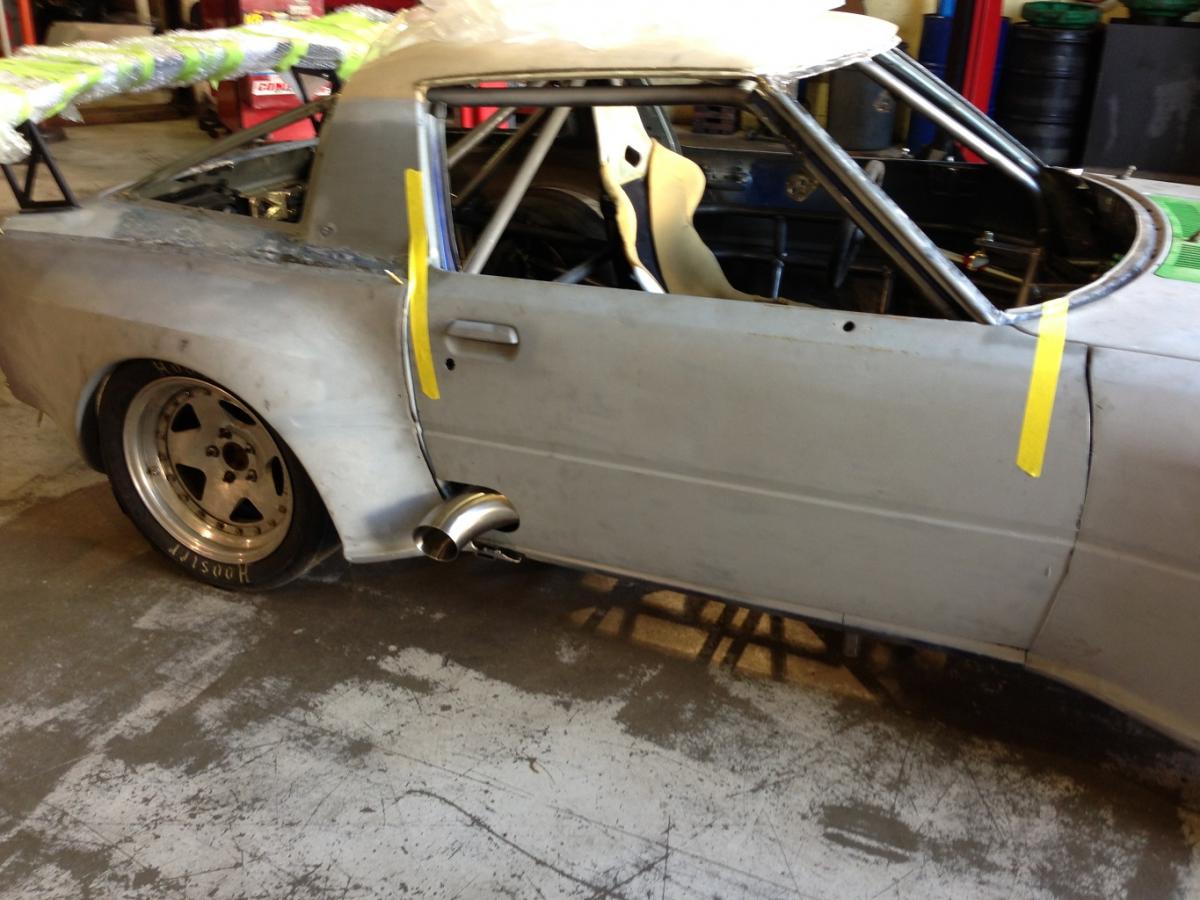

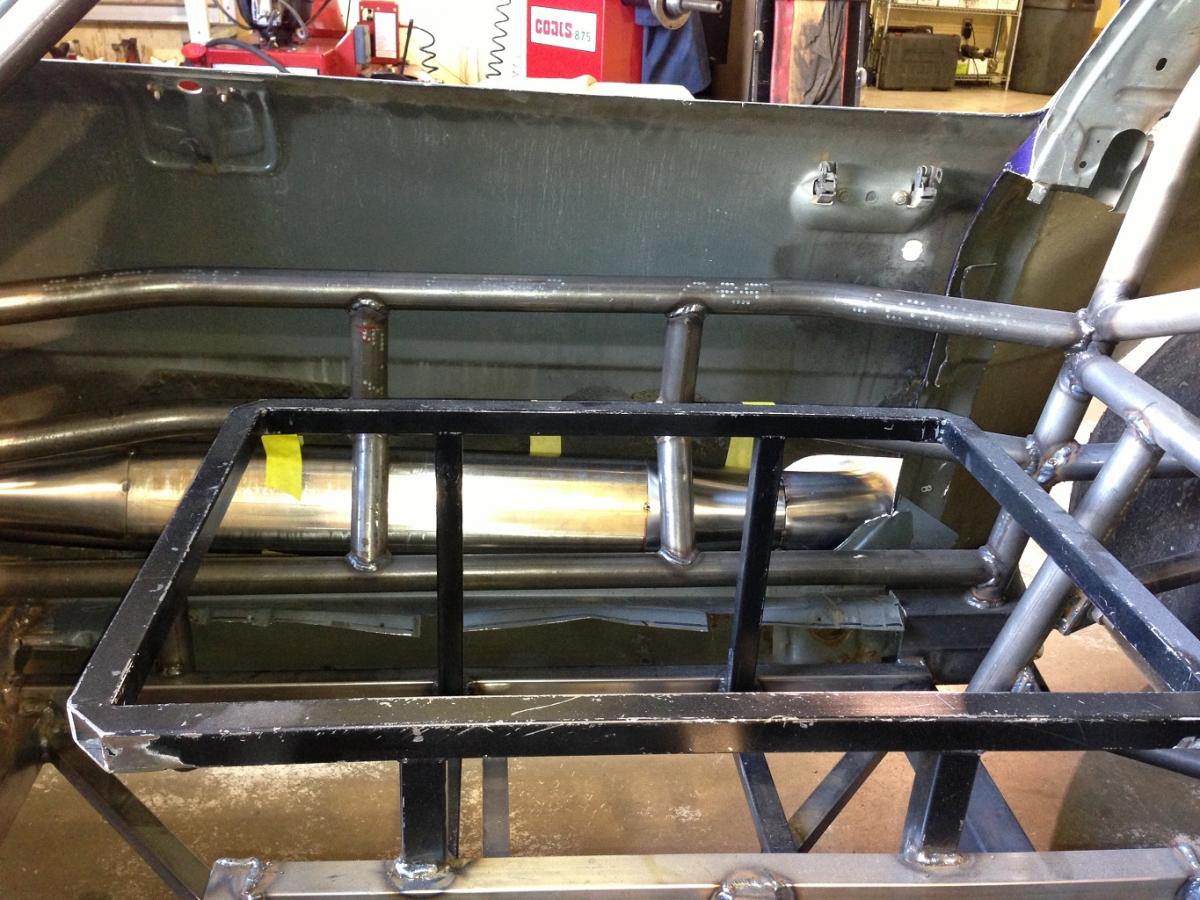

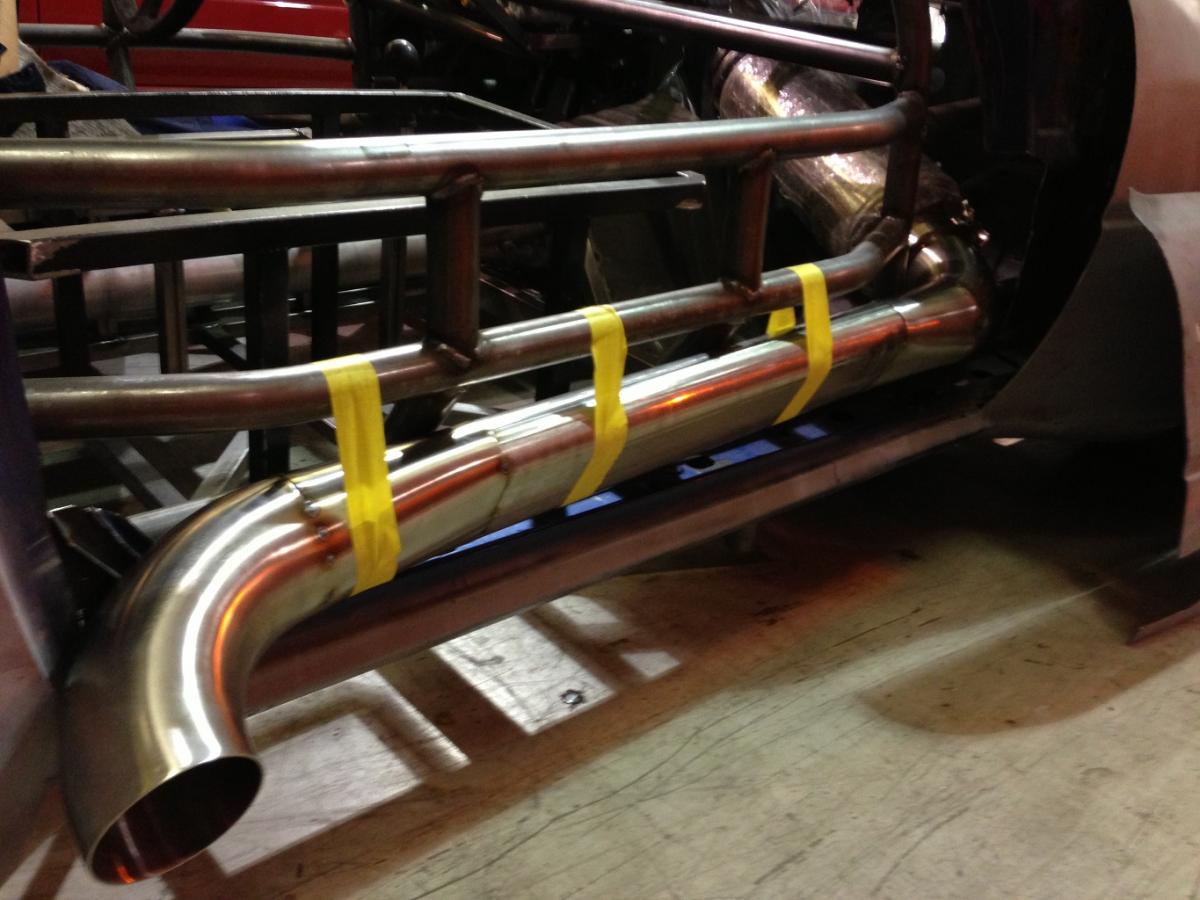

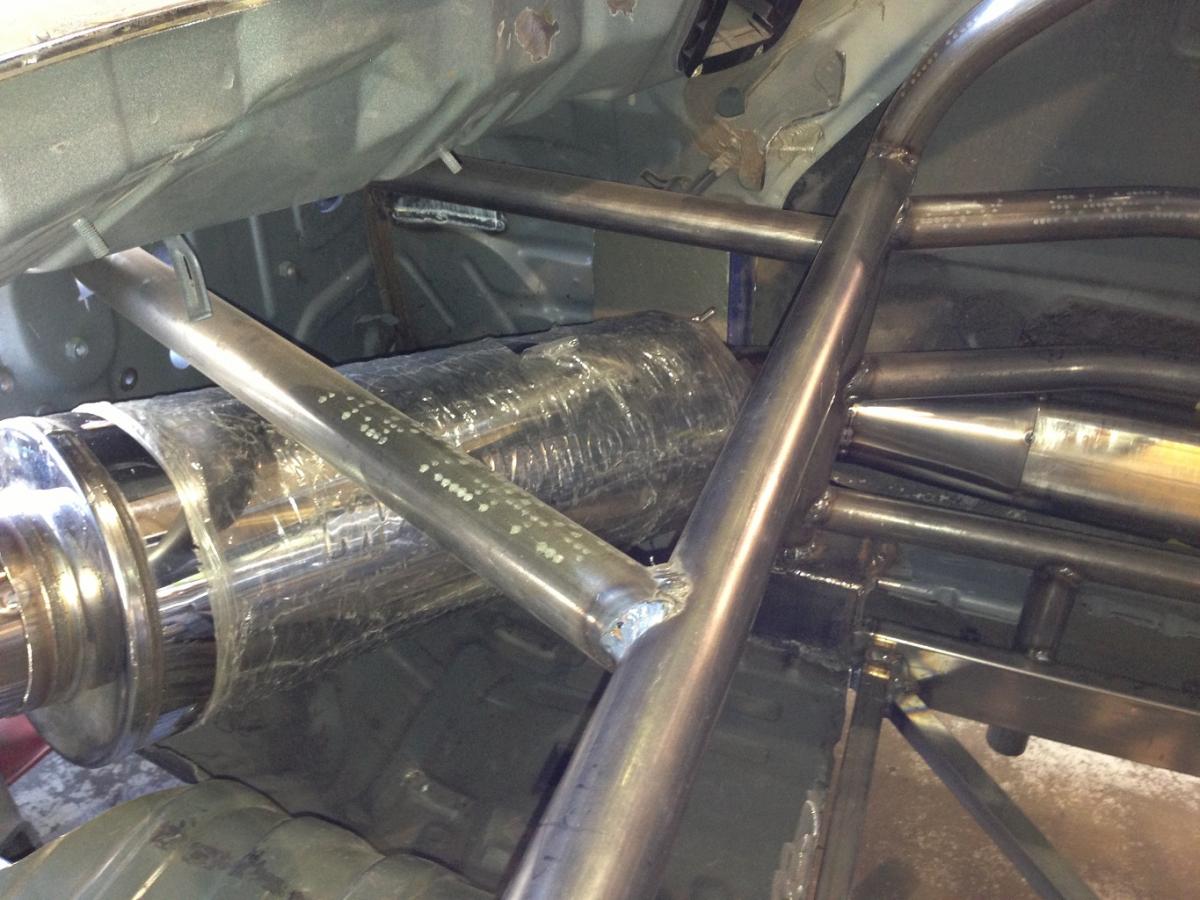

And I have the side pipe figured out!







Attached Thumbnails
1984 RX-7 Race Car with BP! (almost a Miata)-img_0343.jpg   1984 RX-7 Race Car with BP! (almost a Miata)-img_0346.jpg   1984 RX-7 Race Car with BP! (almost a Miata)-img_0348.jpg   1984 RX-7 Race Car with BP! (almost a Miata)-img_0353.jpg
bcrx7 is offline   Reply With Quote
Old 10-09-2012, 11:05 AM   #133
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 33,437
Total Cats: 2,038
Default

Isn't it going to get crazy hot inside with that thing?
18psi is offline   Reply With Quote
Old 10-09-2012, 12:09 PM   #134
Senior Member
Thread Starter
iTrader: (5)

Join Date: Jul 2005
Posts: 715
Total Cats: 53
Default

Well there is going to be a box made around the muffler with gold shielding. We have done it before and it works well!
bcrx7 is offline   Reply With Quote
Old 10-09-2012, 01:19 PM   #135
Boost Czar

iTrader: (60)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 70,430
Total Cats: 1,426
Default

what about the CAS and coolant outlet?
Braineack is online now   Reply With Quote
Old 10-09-2012, 01:21 PM   #136
Senior Member
Thread Starter
iTrader: (5)

Join Date: Jul 2005
Posts: 715
Total Cats: 53
Default

I've made sure there is plenty of room between those and the exhaust. I will most likely wrap the exhaust there too as the flex will go there!
bcrx7 is offline   Reply With Quote
Old 10-09-2012, 01:51 PM   #137
Senior Member
Thread Starter
iTrader: (5)

Join Date: Jul 2005
Posts: 715
Total Cats: 53
Default

What do you guy recommend as far as a crane setup? I have seen a few, but what are your experience?
bcrx7 is offline   Reply With Quote
Old 10-09-2012, 03:42 PM   #138
Moderator
iTrader: (9)

sixshooter's Avatar

Join Date: Nov 2008
Location: Tampa, FL
Posts: 13,713
Total Cats: 1,060
Default

I thought it was against many racing organizations' rules to have exhaust components inside the driver's compartment at all. I am certain it was in ChumpCar (who copies others' safety guidelines) and I think it is in NASA but I haven't looked yet. I won't bother to look through 1800 pages of SCCA rules.

Just a heads up, that's all.
sixshooter is offline   Reply With Quote
Old 10-09-2012, 03:52 PM   #139
Senior Member
Thread Starter
iTrader: (5)

Join Date: Jul 2005
Posts: 715
Total Cats: 53
Default

It's not in the driver's compartment. It will have a box around it and separated! We have done this before on multiple cars!

Last edited by bcrx7; 10-09-2012 at 04:13 PM.
bcrx7 is offline   Reply With Quote
Old 10-12-2012, 02:51 AM   #140
Senior Member
Thread Starter
iTrader: (5)

Join Date: Jul 2005
Posts: 715
Total Cats: 53
Default

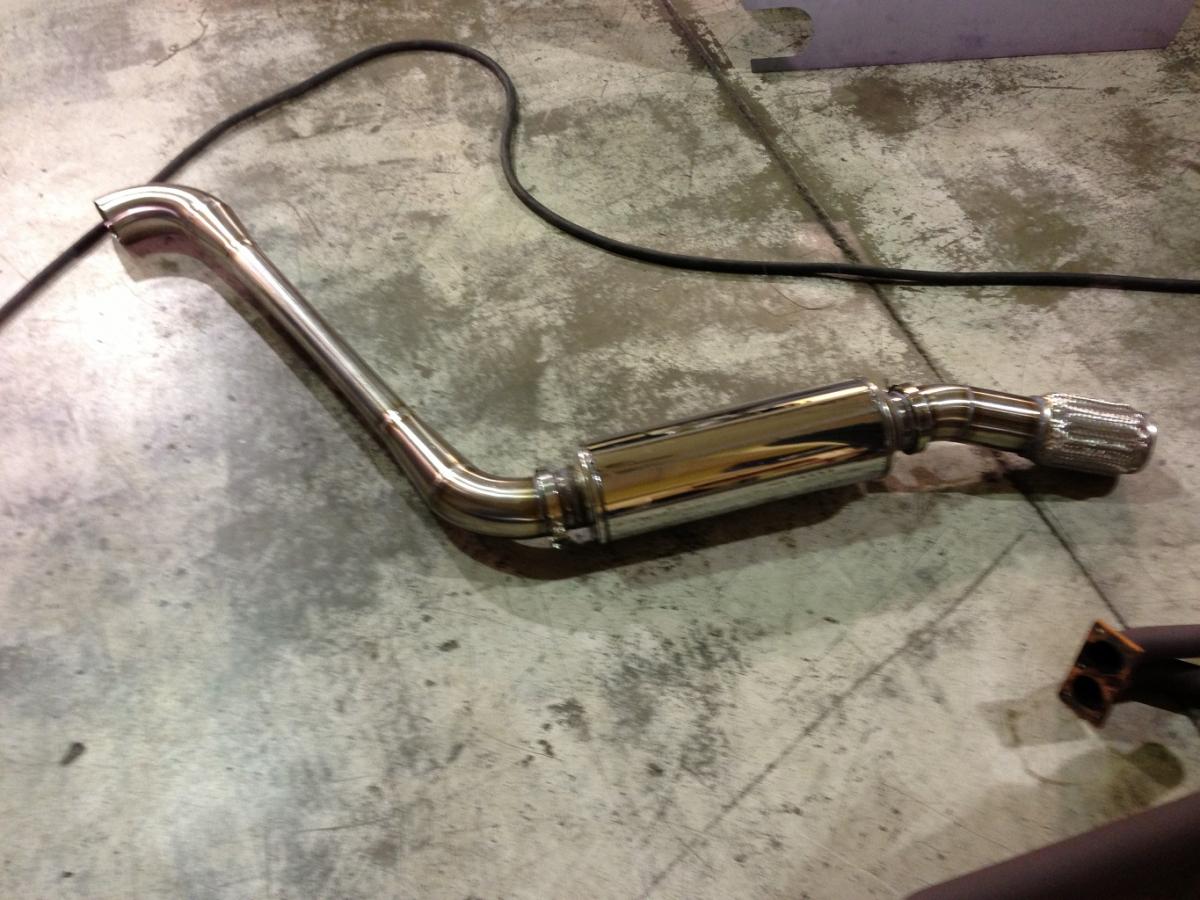

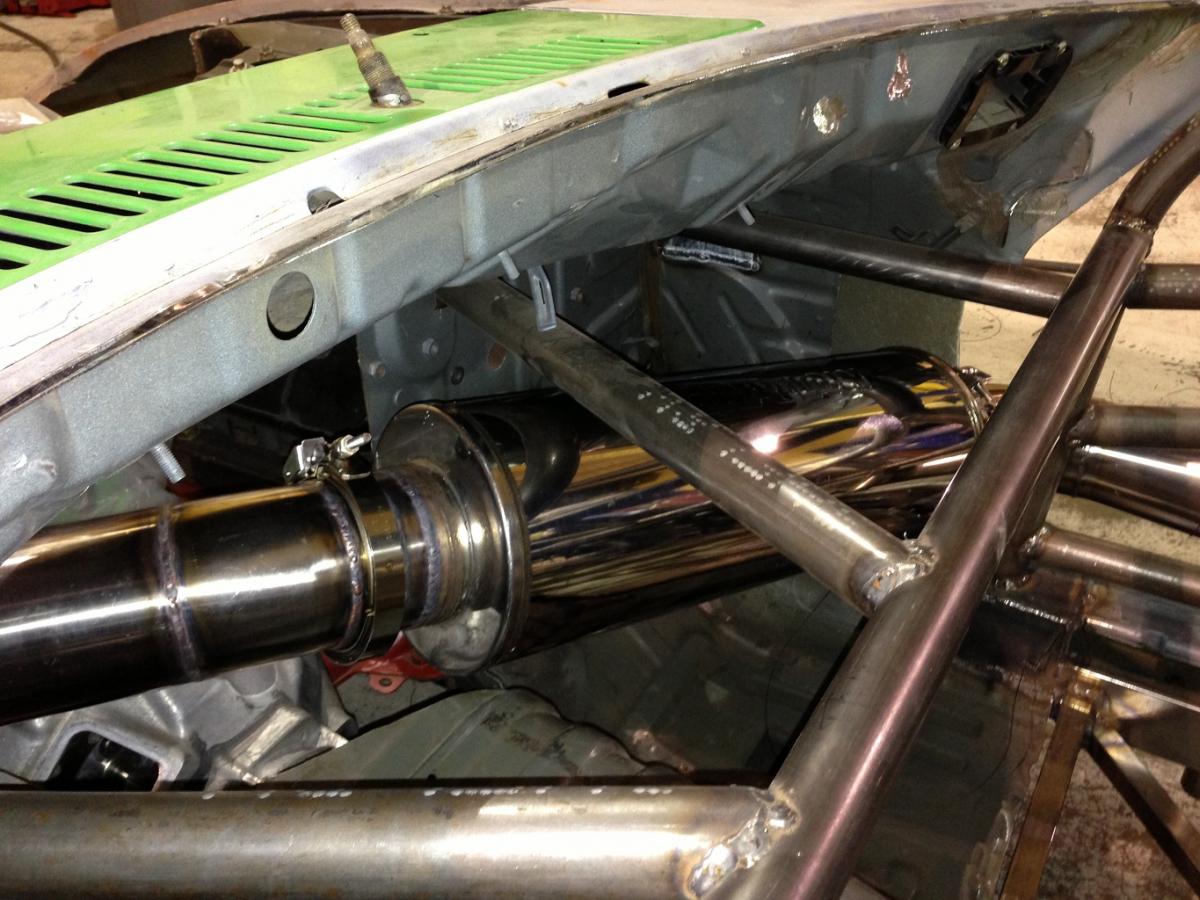

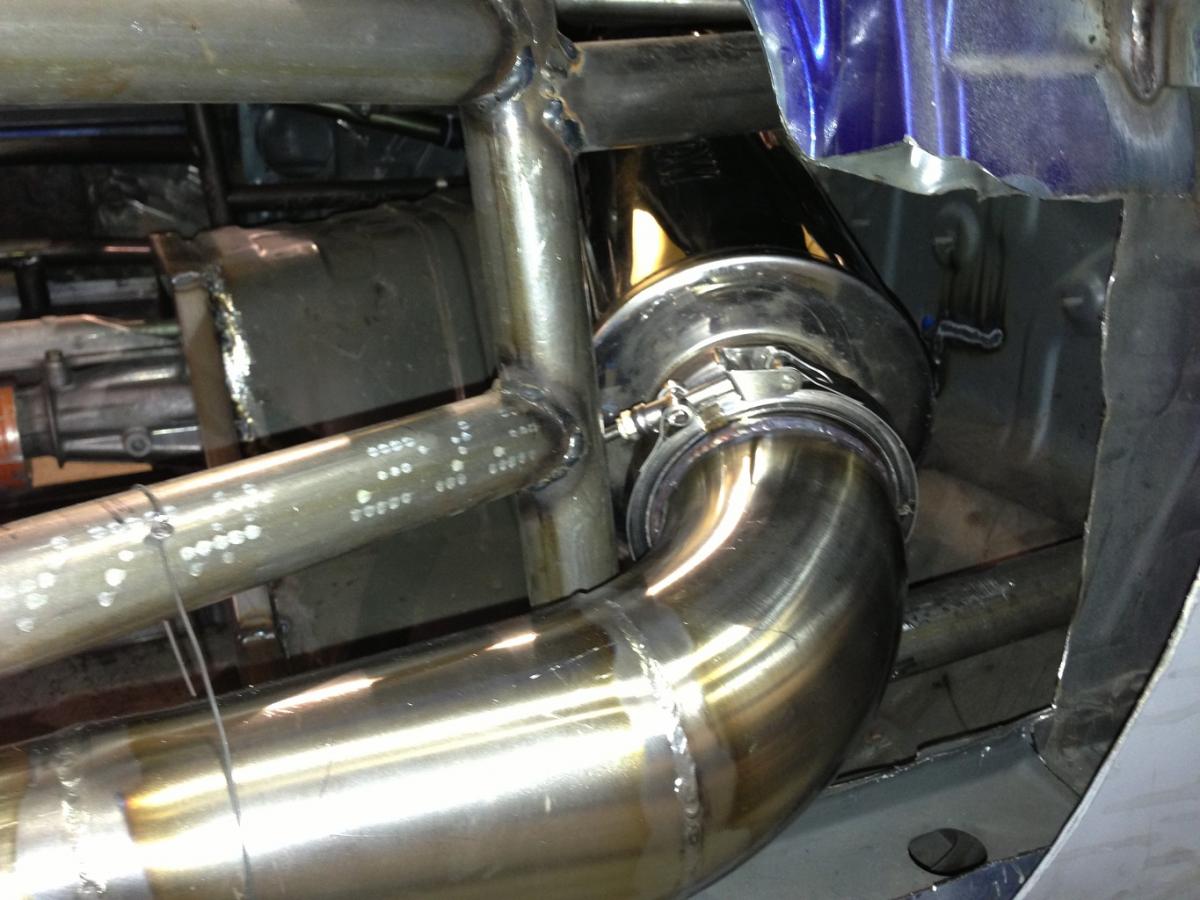

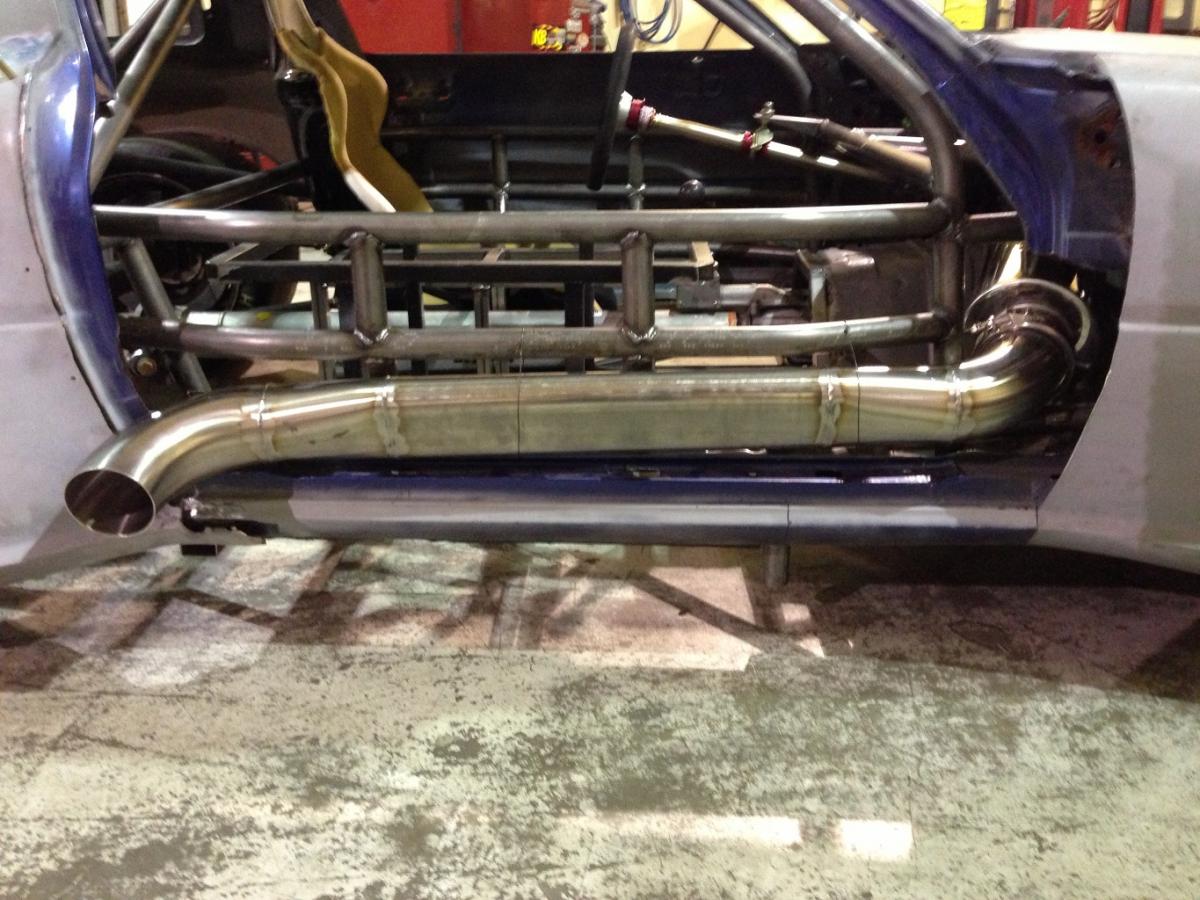

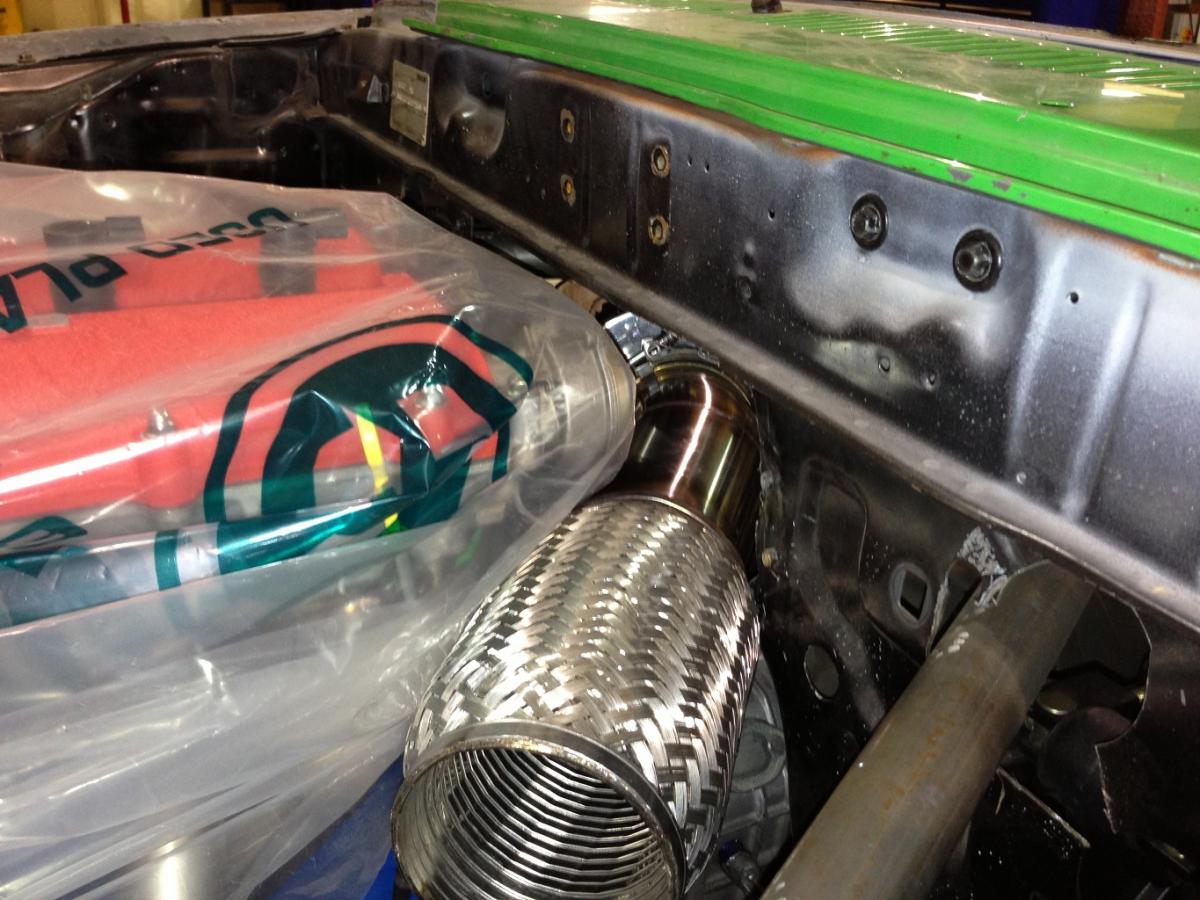

Well the exhaust is all done and welded. Only piece required will be an elbow from the turbo to the flex when the turbo shows up!









Attached Thumbnails
1984 RX-7 Race Car with BP! (almost a Miata)-img_0363.jpg   1984 RX-7 Race Car with BP! (almost a Miata)-img_0364.jpg   1984 RX-7 Race Car with BP! (almost a Miata)-img_0366.jpg   1984 RX-7 Race Car with BP! (almost a Miata)-img_0367.jpg   1984 RX-7 Race Car with BP! (almost a Miata)-img_0369.jpg

bcrx7 is offline   Reply With Quote
