Old 07-27-2015, 09:12 PM   #61
Senior Member
Thread Starter

Join Date: Oct 2011
Location: The Race Track & St Pete FL
Posts: 574
Total Cats: 49
Default

So my build hit a bit of a speed bump, since my 2004 MX-5 was totaled at a Red Light where I was rear ended. I am still trying to get things together so I can get on track to have the engine be ready to start.

I picked up a 2006 Cobalt SS for my new DD running 17 psi on the supercharger

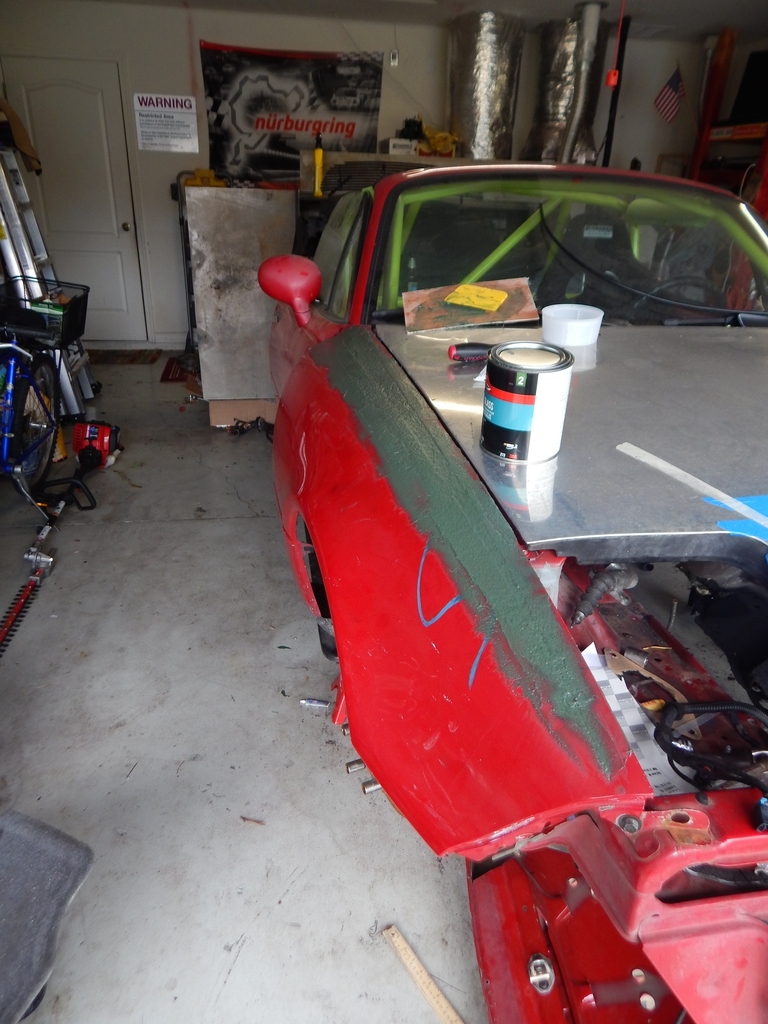

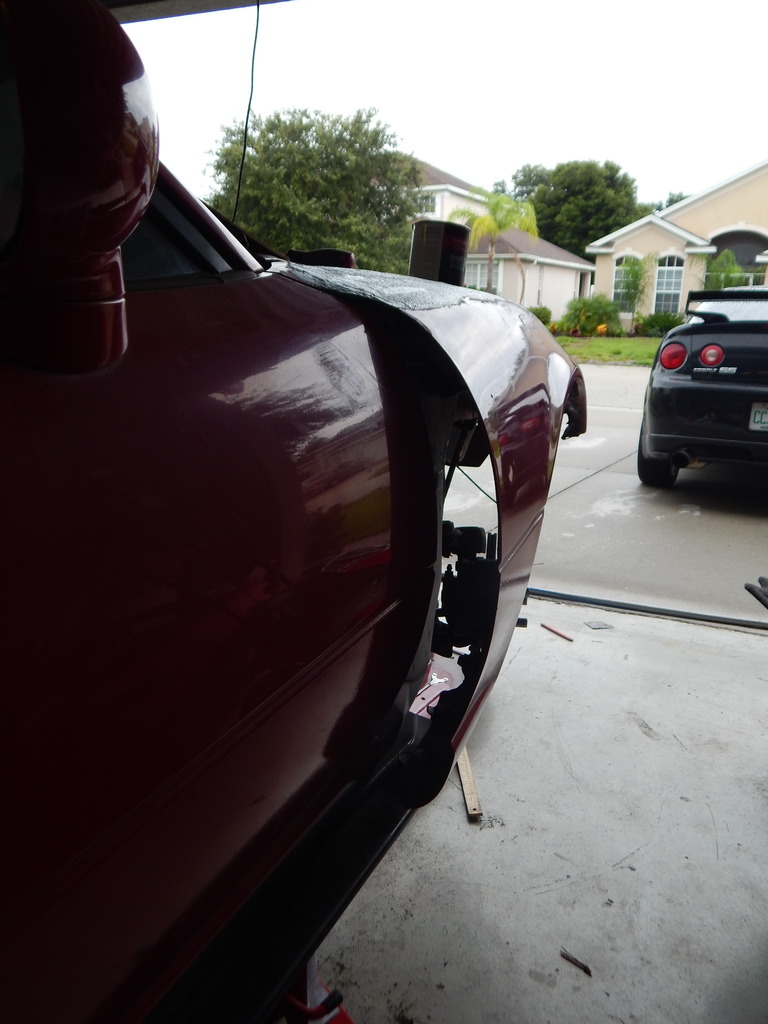

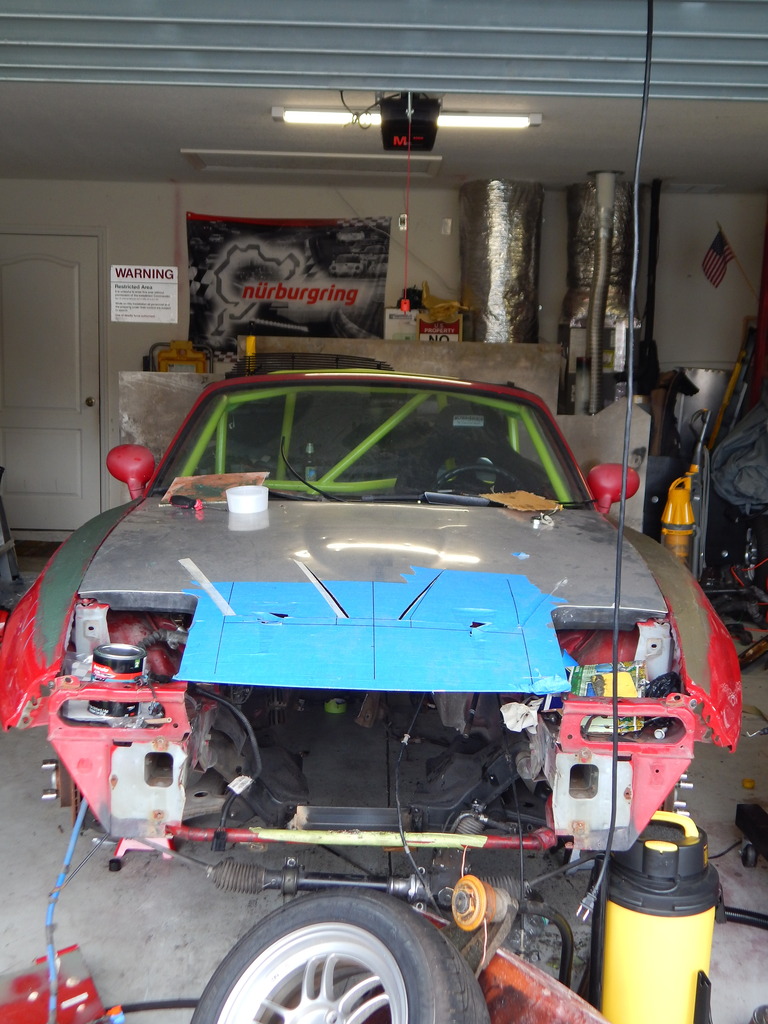

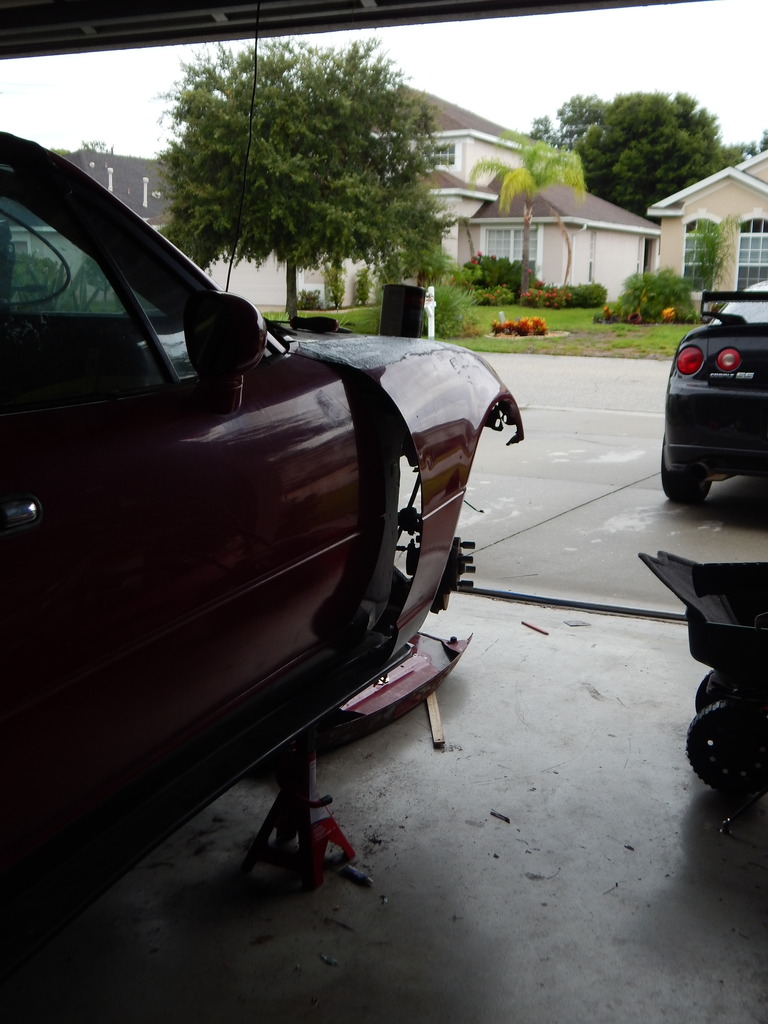

I'm working on widening the fenders 30mm and make moulds of them to make them into composite







Attached Thumbnails
1993ka24det's Simple Miata-11336992_993027547382476_7646226707870143479_o_zpsgaq0yx55.jpg   1993ka24det's Simple Miata-dscn4438_zpsz149rbbz.jpg   1993ka24det's Simple Miata-a062cbd8-5355-4e05-8899-41902f0b76ec_zpscecd0m8o.jpg   1993ka24det's Simple Miata-dscn4536_zps3khnritg.jpg   1993ka24det's Simple Miata-dscn4535_zpsz5gw1if1.jpg

1993ka24det's Simple Miata-dscn4534_zpsg2t6x9ty.jpg
1993ka24det is offline   Reply With Quote
Old 09-09-2015, 08:50 PM   #62
Senior Member
Thread Starter

Join Date: Oct 2011
Location: The Race Track & St Pete FL
Posts: 574
Total Cats: 49
Default

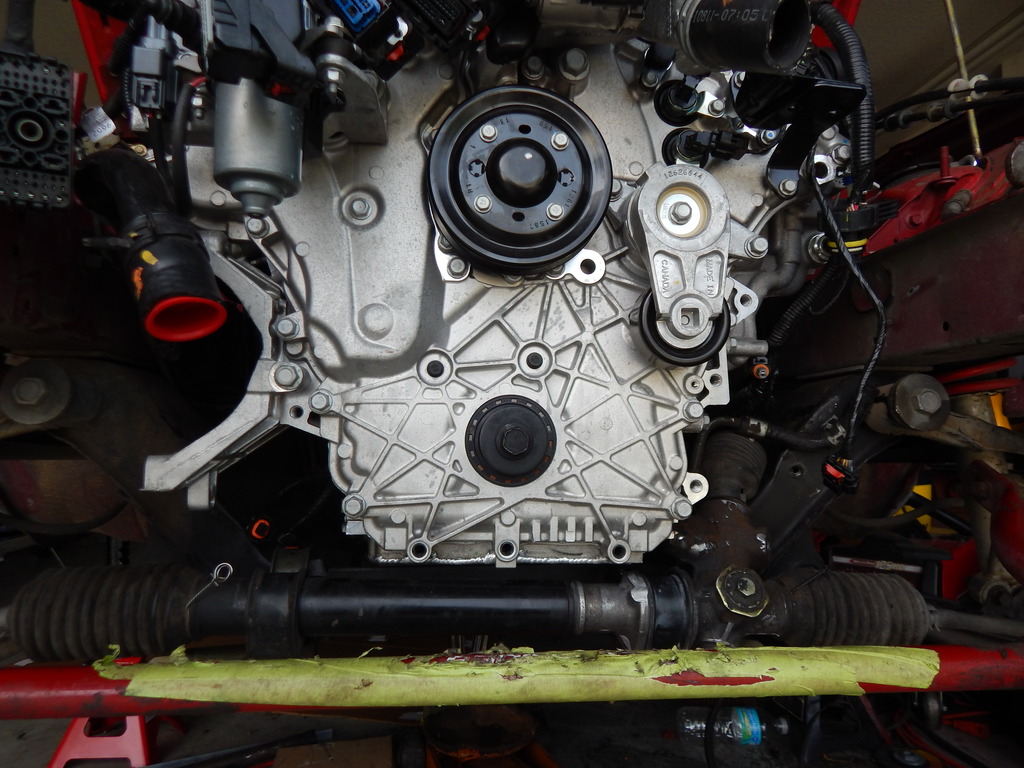

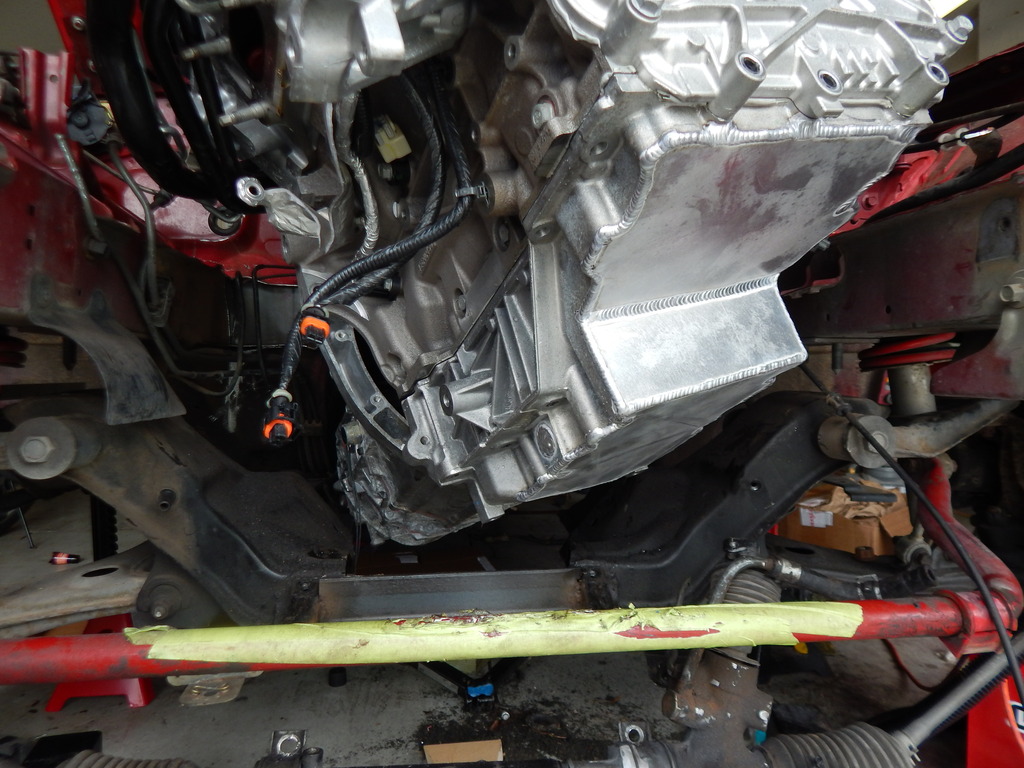

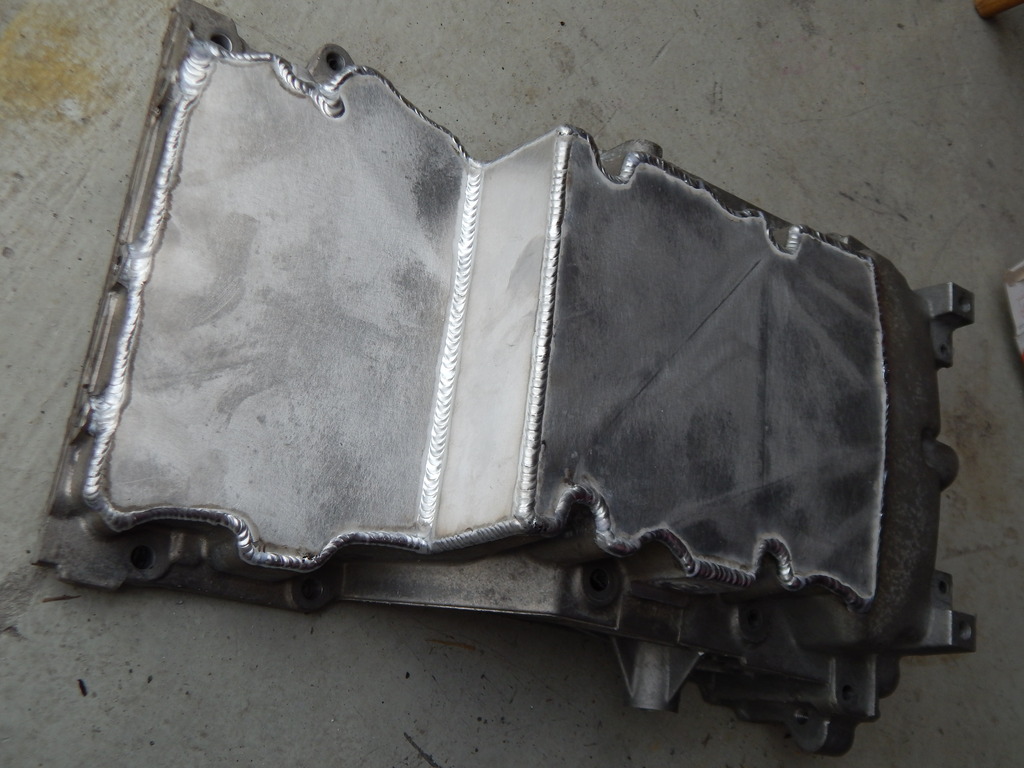

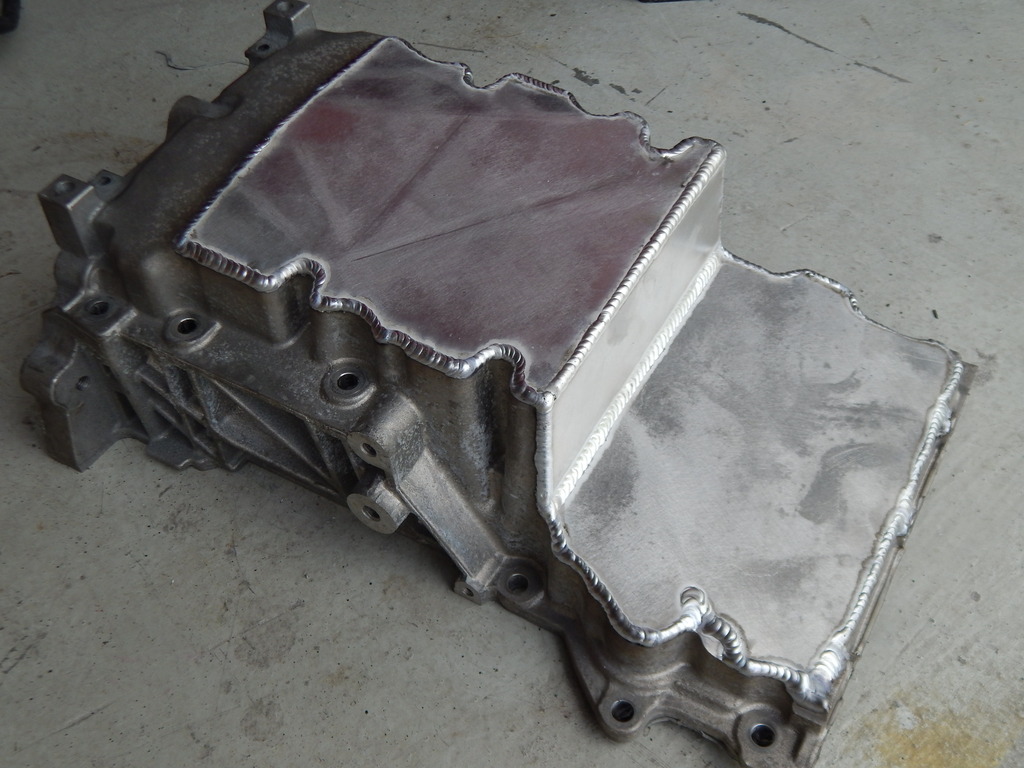

After spending $40 I got my Oil Pan done







Attached Thumbnails
1993ka24det's Simple Miata-dscn4571_zps99g3ryhz.jpg   1993ka24det's Simple Miata-dscn4572_zpsuotn1ile.jpg   1993ka24det's Simple Miata-dscn4573_zpspcmlnvwd.jpg   1993ka24det's Simple Miata-dscn4577_zpsozvzqrhs.jpg
1993ka24det is offline   Reply With Quote
Old 09-21-2015, 09:36 PM   #63
Senior Member
Thread Starter

Join Date: Oct 2011
Location: The Race Track & St Pete FL
Posts: 574
Total Cats: 49
Default

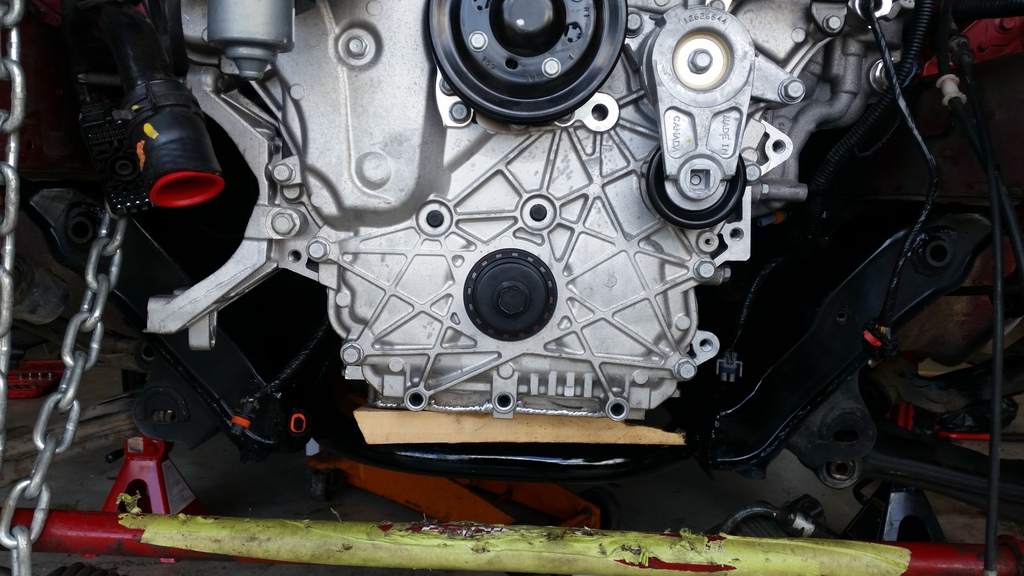

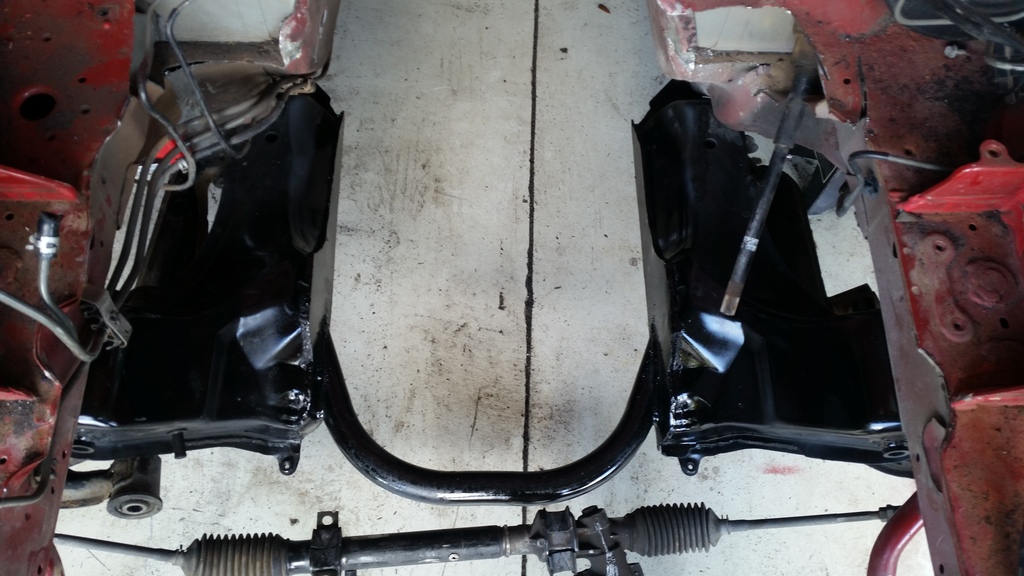

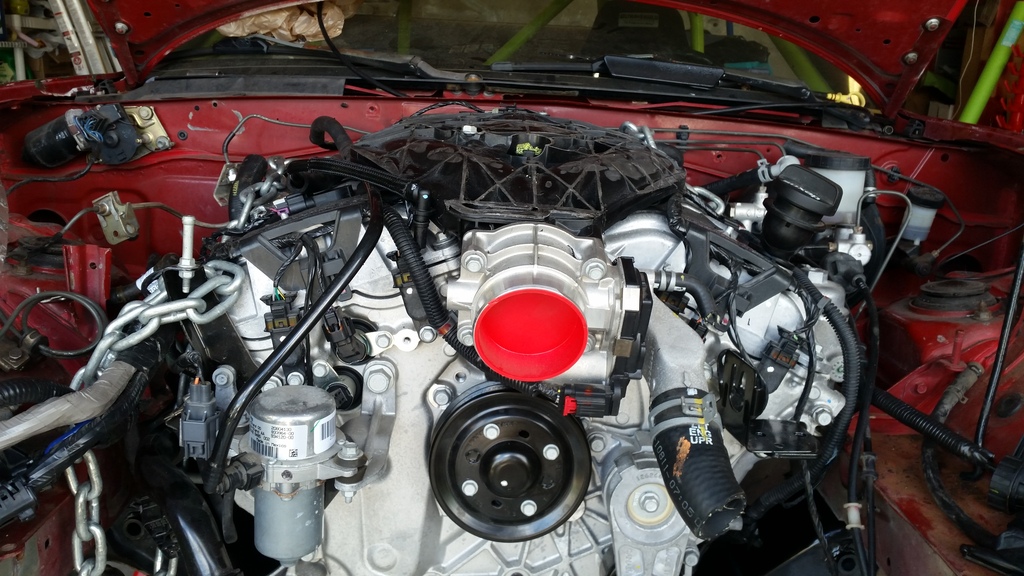

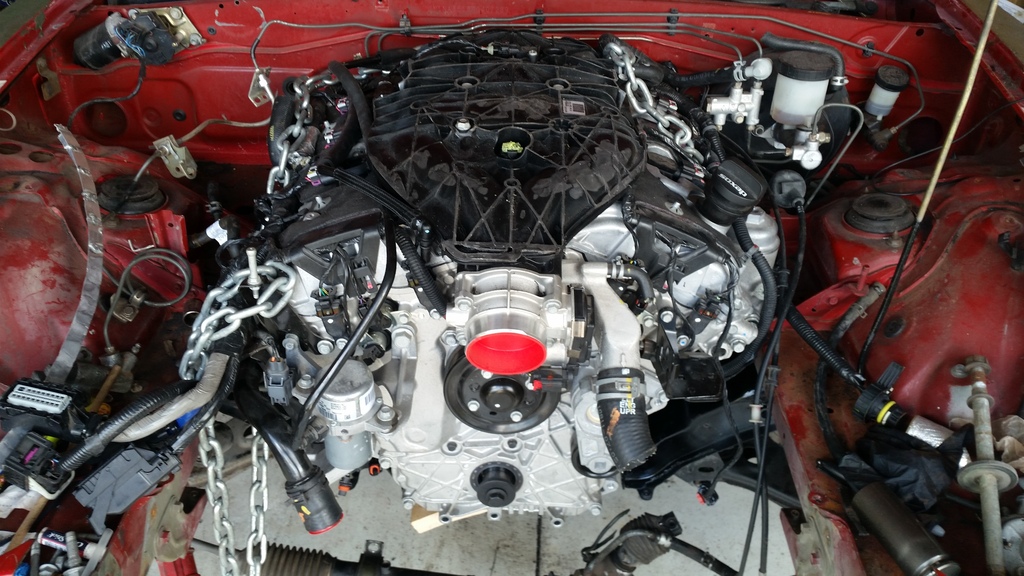

So I mad some progress today after installing my newly built crossmember. The factor crossmember weighed 29.2 lbs and after it weighs 27.8 lbs, so no weight added is a good thing. The engine is now sitting an inch lower than before.







Attached Thumbnails
1993ka24det's Simple Miata-20150920_134646_zpslofdasj8.jpg   1993ka24det's Simple Miata-20150920_142719_zpsxed1ycnz.jpg   1993ka24det's Simple Miata-20150920_142727_zpsy2z0kuyk.jpg   1993ka24det's Simple Miata-20150920_142801_zpsl6vtmfgl.jpg
1993ka24det is offline   Reply With Quote
Old 10-16-2015, 04:25 PM   #64
Senior Member
iTrader: (8)

paNX2K&SE-R's Avatar

Join Date: Dec 2007
Location: Mocksville, NC
Posts: 651
Total Cats: 10
Default

Are you going to retain the power steering?
paNX2K&SE-R is offline   Reply With Quote
Old 10-17-2015, 04:04 PM   #65
Senior Member
Thread Starter

Join Date: Oct 2011
Location: The Race Track & St Pete FL
Posts: 574
Total Cats: 49
Default

Quote:
Originally Posted by paNX2K&SE-R View Post
Are you going to retain the power steering?
I'm building it to be a manual steering. I should have some more updates here soon.
1993ka24det is offline   Reply With Quote
Old 11-14-2015, 08:03 AM   #66
Senior Member
Thread Starter

Join Date: Oct 2011
Location: The Race Track & St Pete FL
Posts: 574
Total Cats: 49
Default

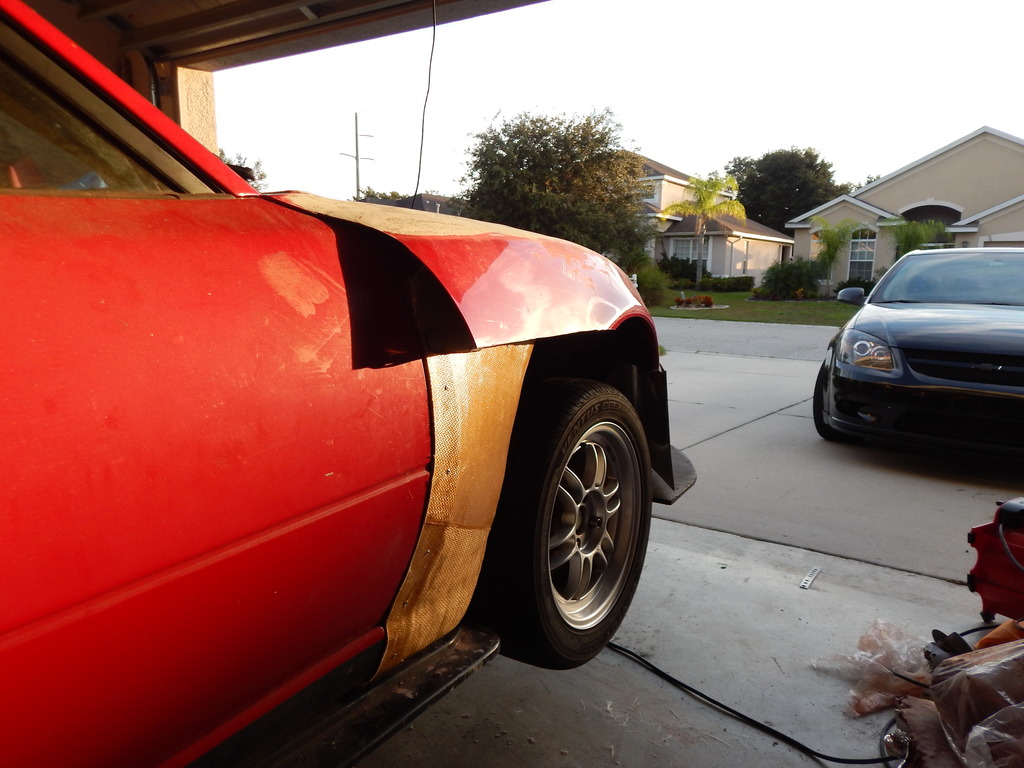

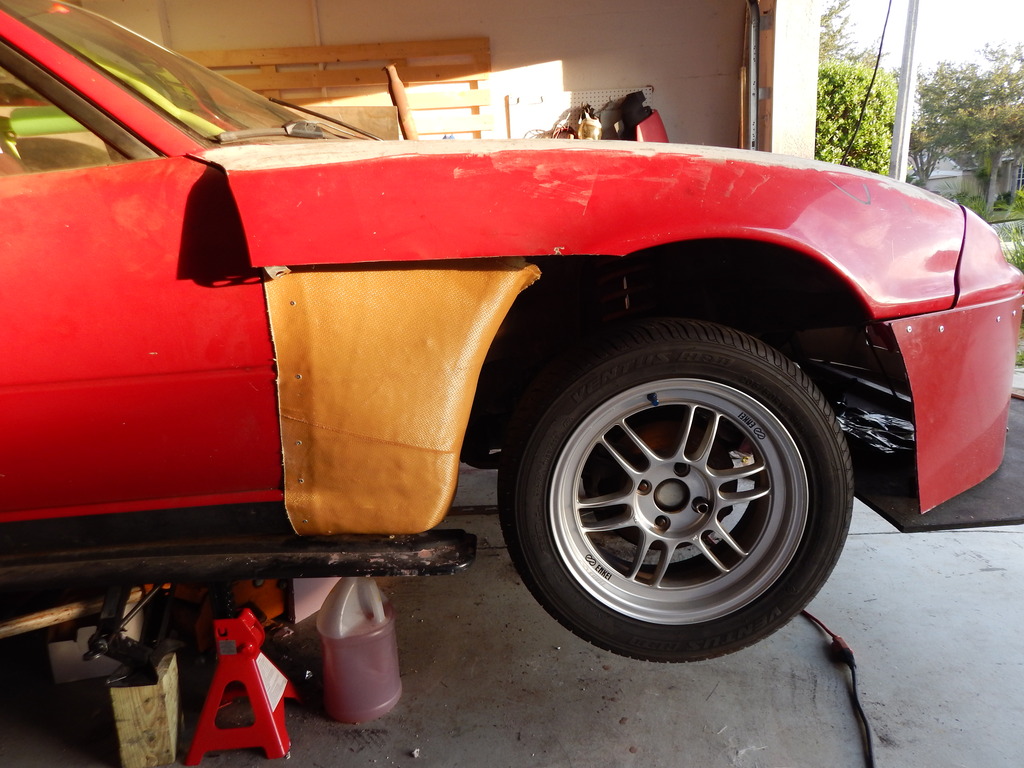

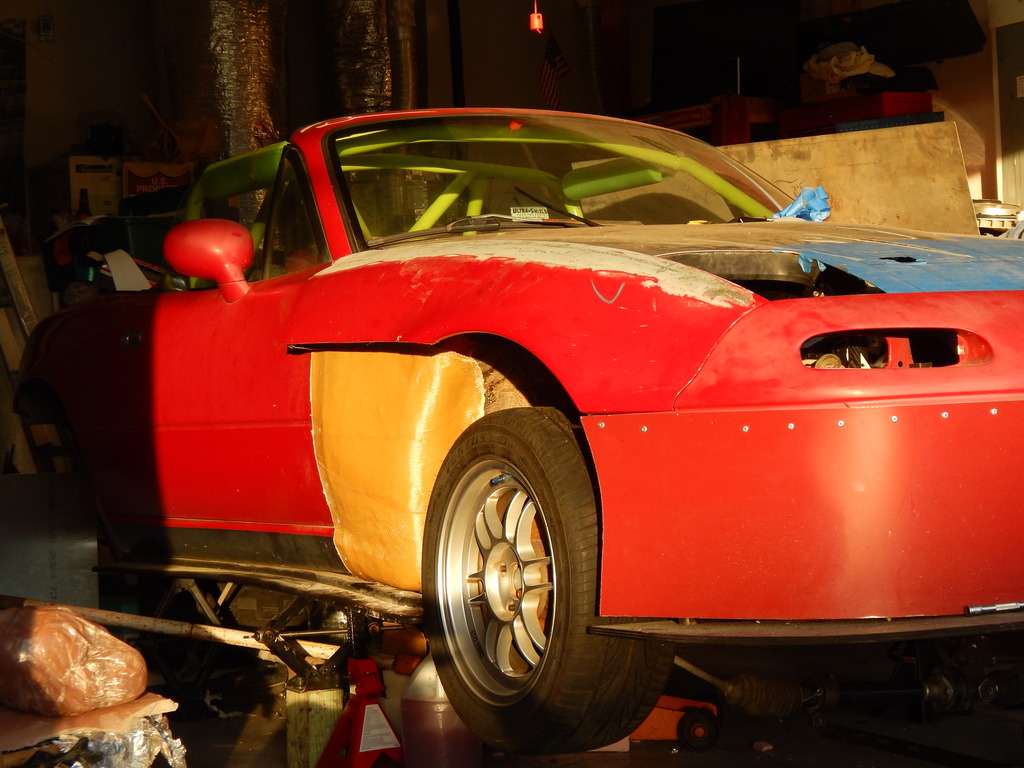

Here is sorta the finished product of mt Miata Aero Front Fenders







And here is how I made the Aero Fenders

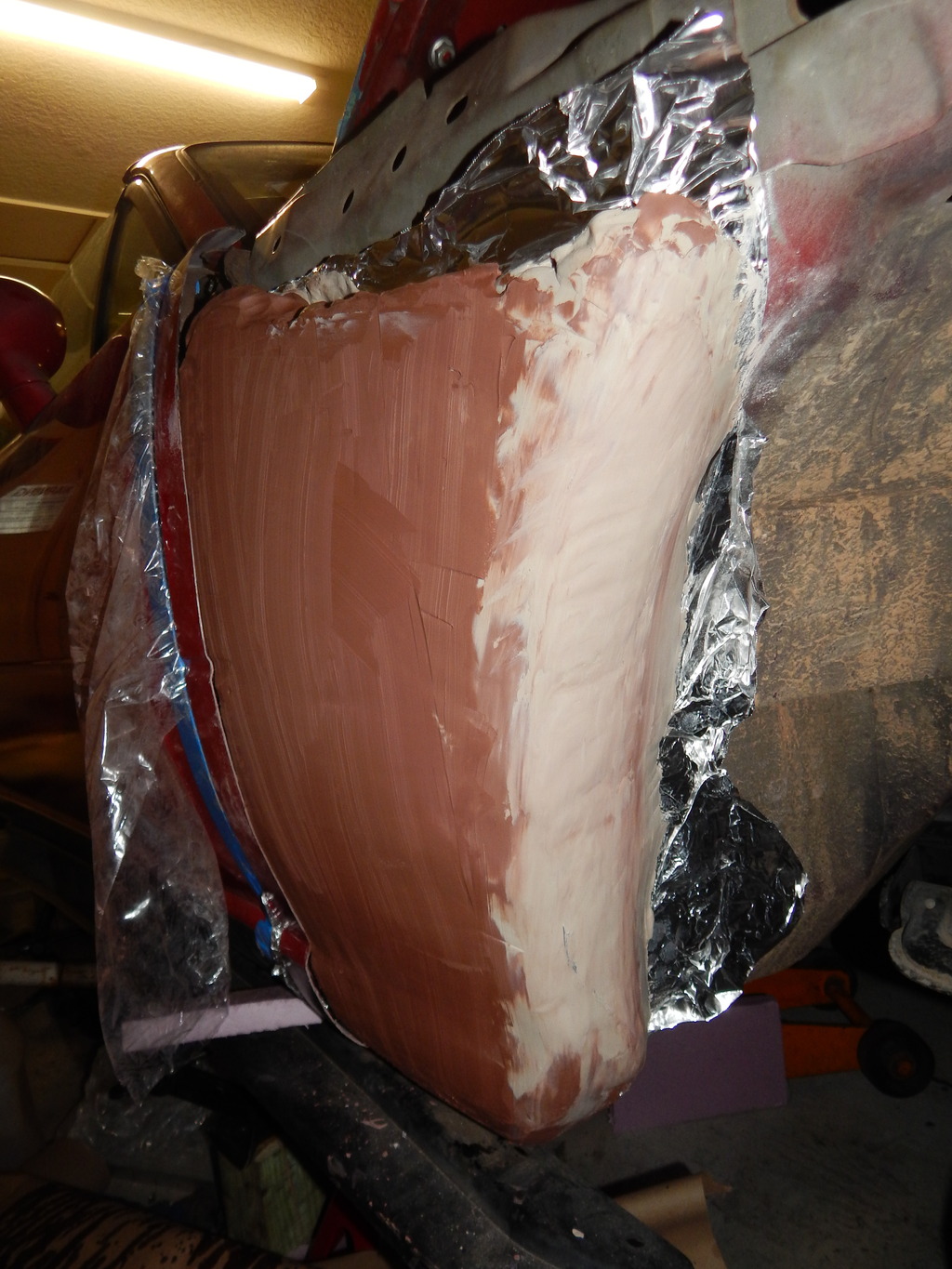

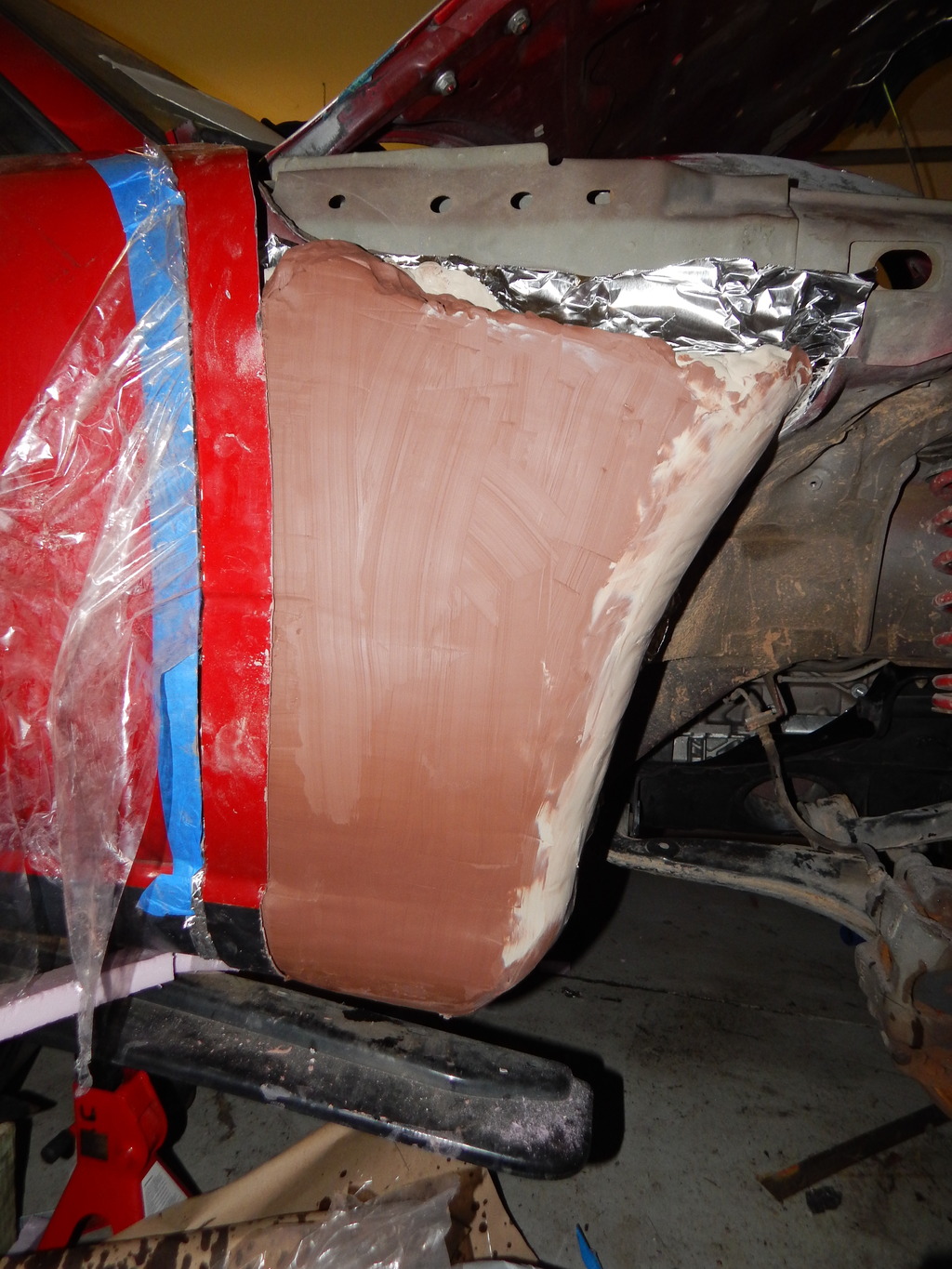

First I put some 3M Spray Tack and some aluminium foil. Then I put on about 20lbs of clay to shape to the design I wanted.

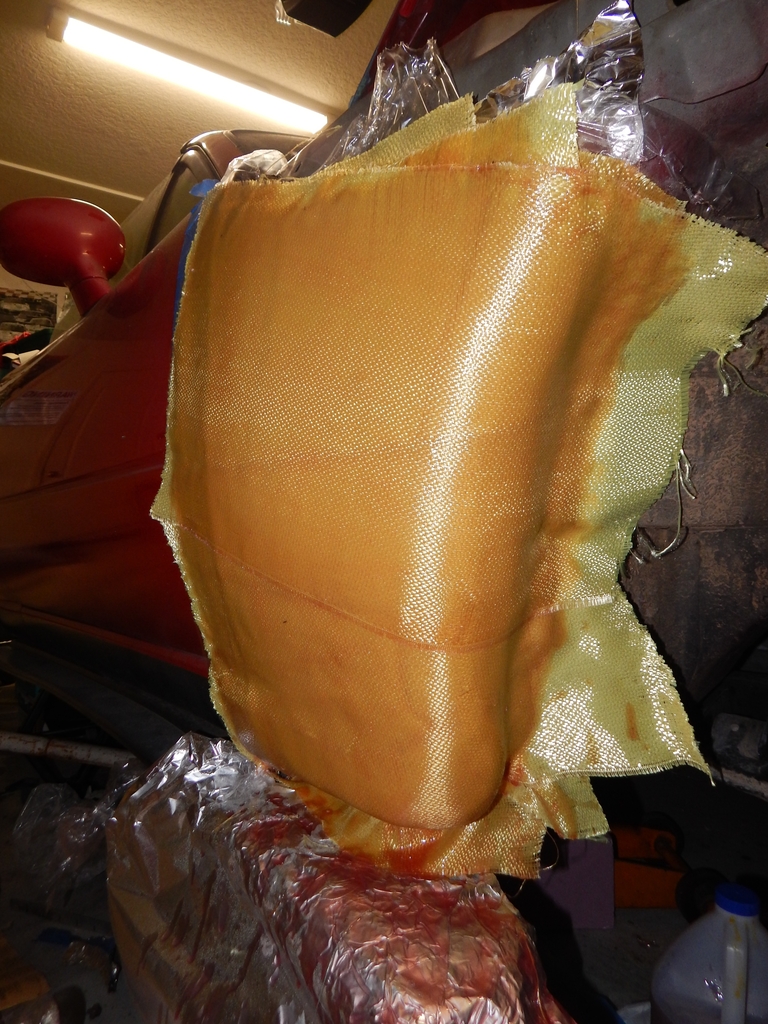

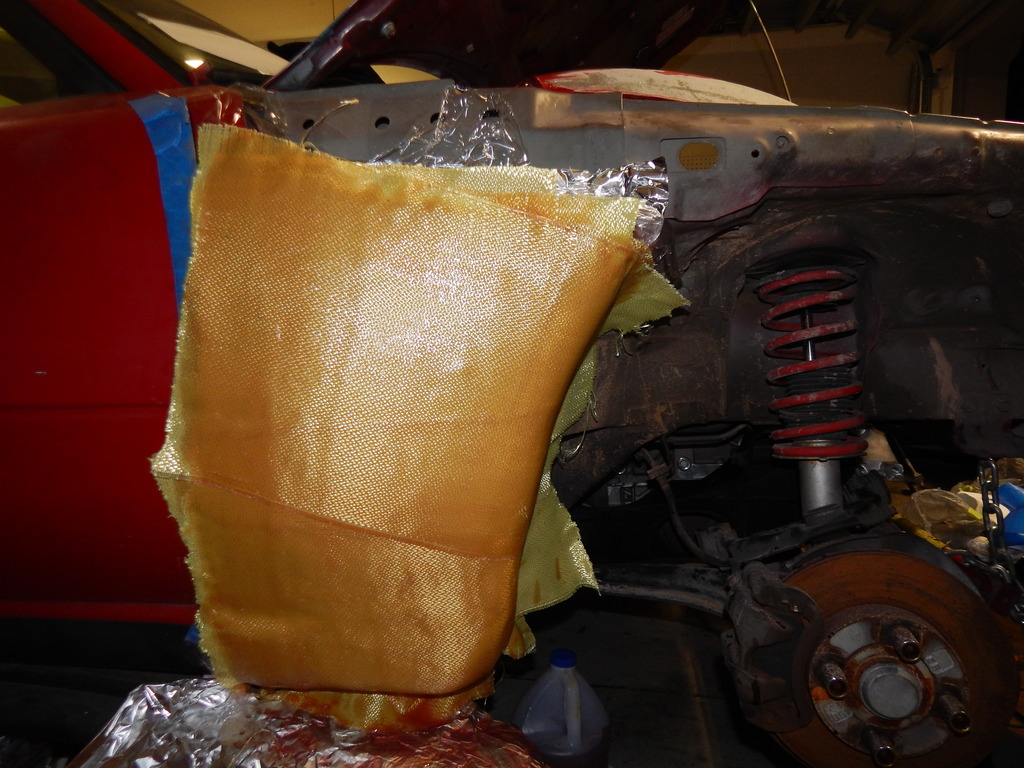

After I got the shape I wanted I covered the clay with Cling Wrap. Put some more 3M Spray tack down to lay my first layer of Kevlar down and soak with resin, then next layer and the next

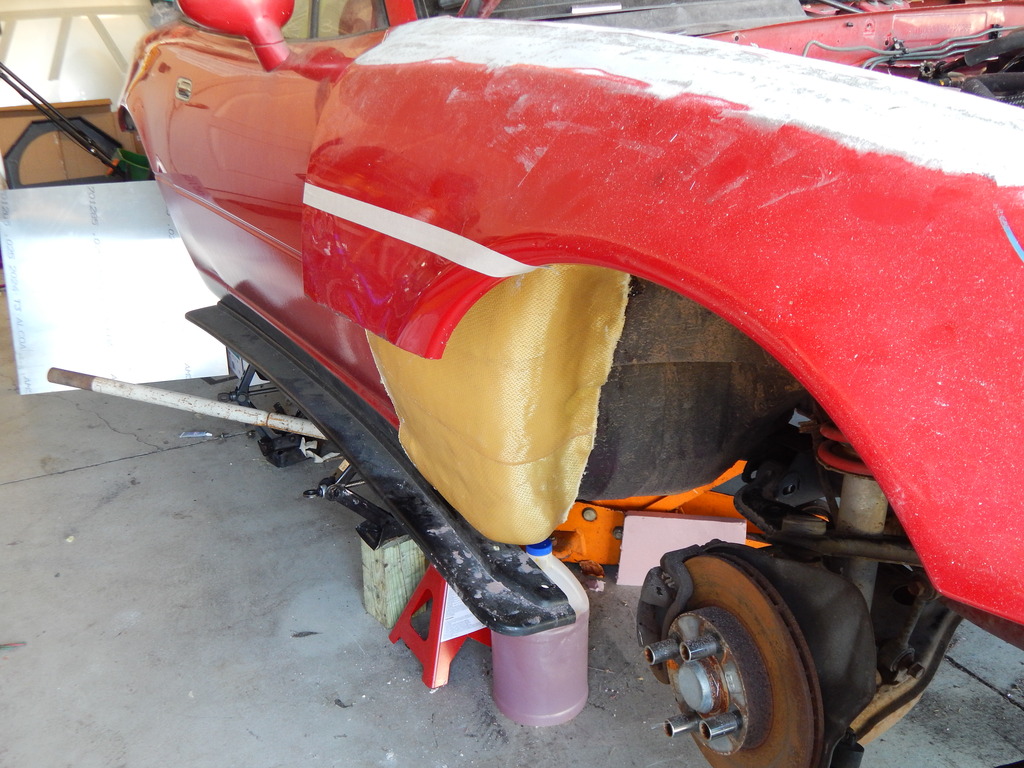

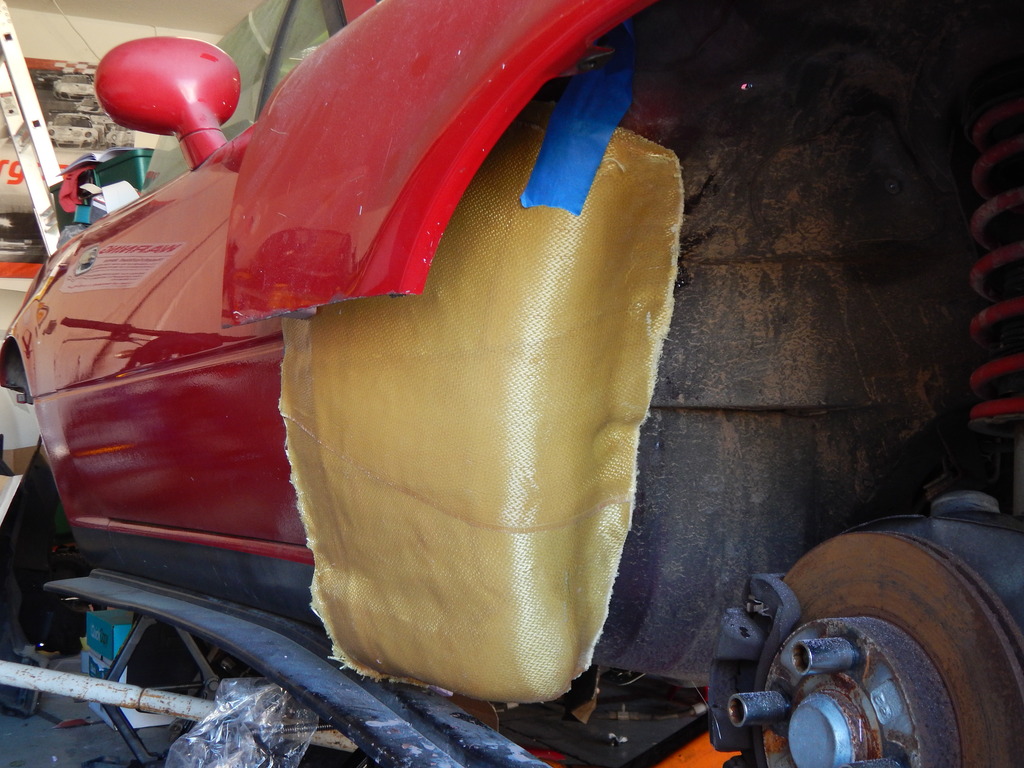

Before cutting and just test fitting

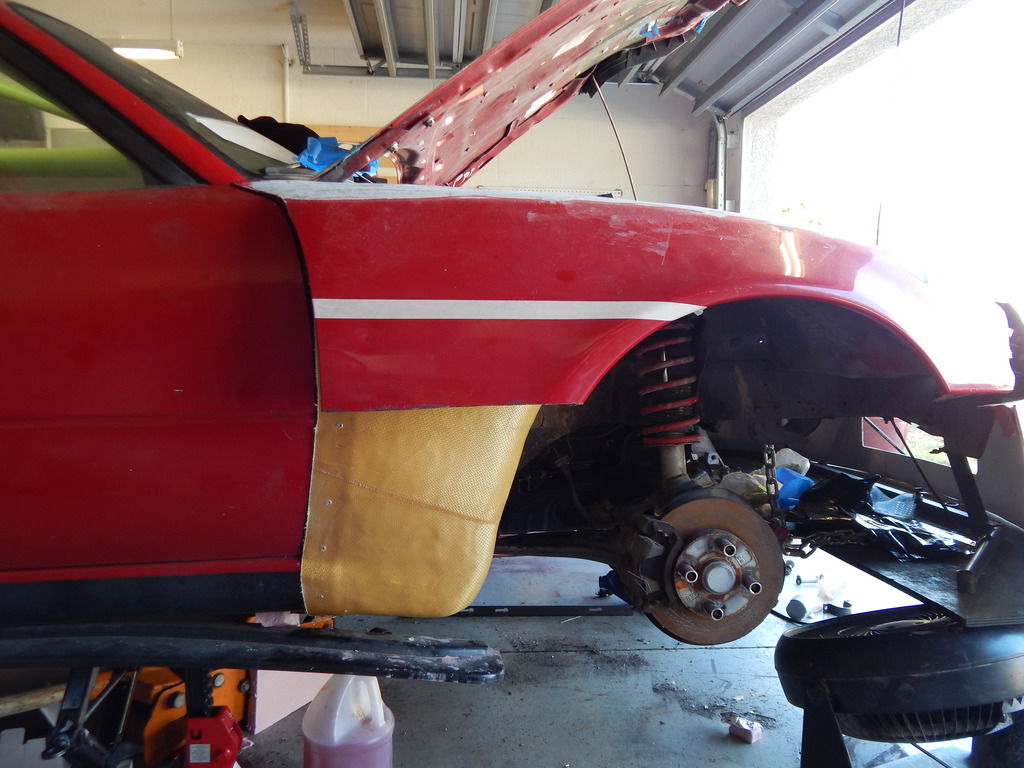

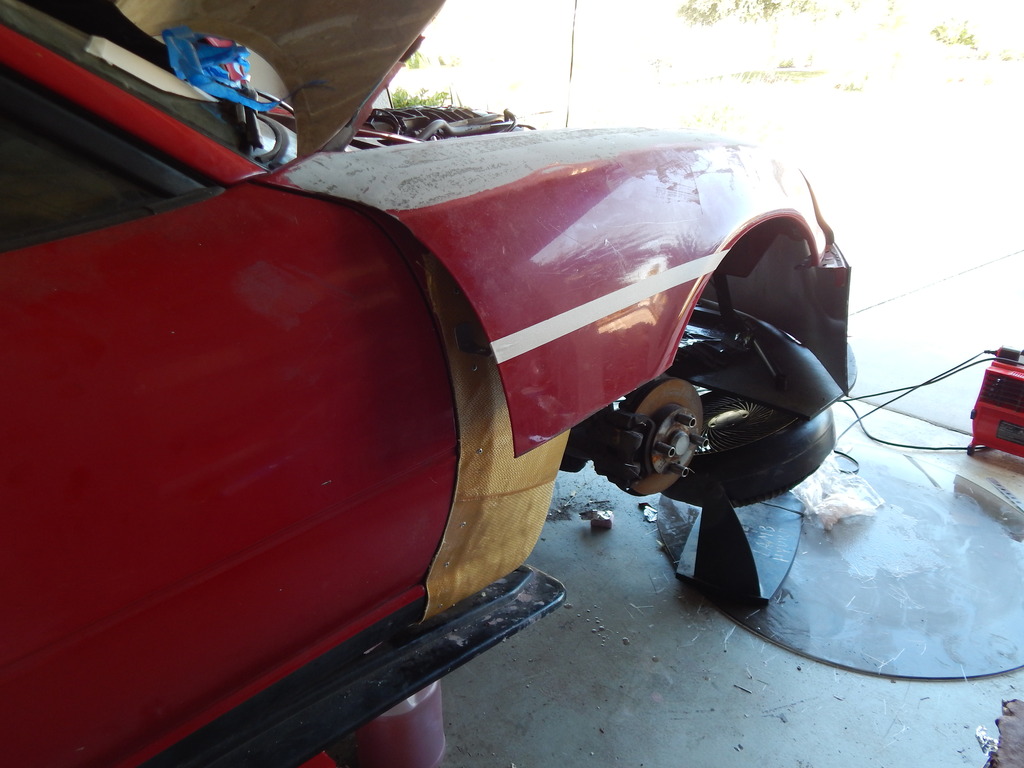

Now to cut the fender





Attached Thumbnails
1993ka24det's Simple Miata-dscn5018_zpsgm7rzcnk.jpg   1993ka24det's Simple Miata-dscn5022_zpsuybir9dy.jpg   1993ka24det's Simple Miata-dscn5019_zpsa4w87sp8.jpg   1993ka24det's Simple Miata-dscn4991_zpstnzfpzn9.jpg   1993ka24det's Simple Miata-dscn4992_zpsmfcyp82d.jpg

1993ka24det's Simple Miata-285d23b8-2576-43c2-b939-8bbebac772c3_zpsw2av9d5f.jpg   1993ka24det's Simple Miata-dscn5006_zpszqr36c2t.jpg   1993ka24det's Simple Miata-dscn5009_zpsqimbbywt.jpg   1993ka24det's Simple Miata-dscn5013_zpsf56fst3q.jpg   1993ka24det's Simple Miata-dscn5014_zps5uaimdwm.jpg

1993ka24det's Simple Miata-dscn5015_zps0kp8ycxz.jpg
1993ka24det is offline   Reply With Quote
Old 05-20-2016, 04:52 PM   #67
Senior Member
Thread Starter

Join Date: Oct 2011
Location: The Race Track & St Pete FL
Posts: 574
Total Cats: 49
Default

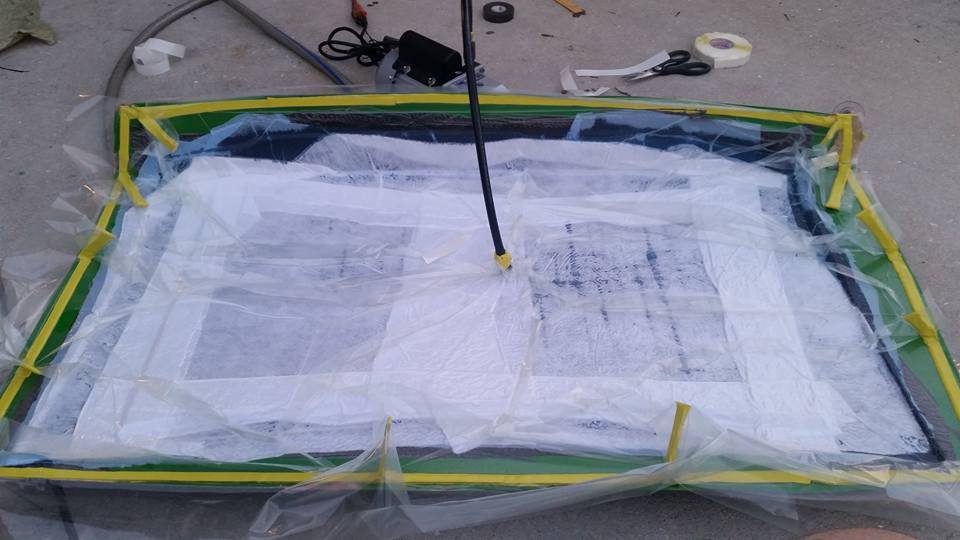

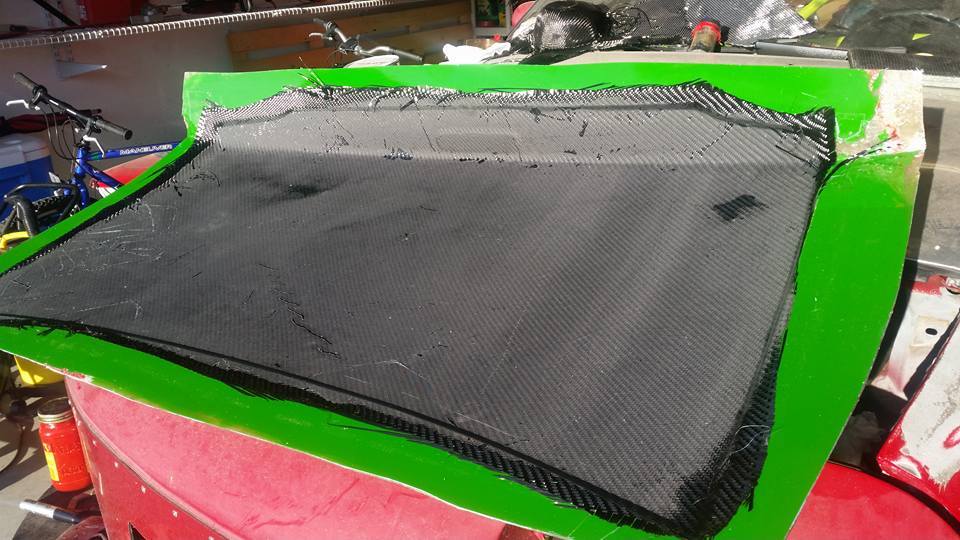

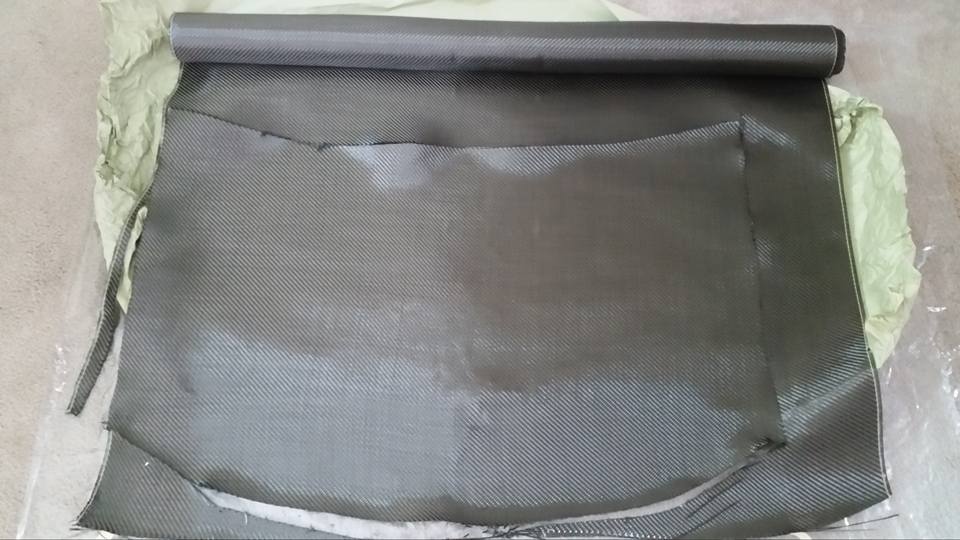

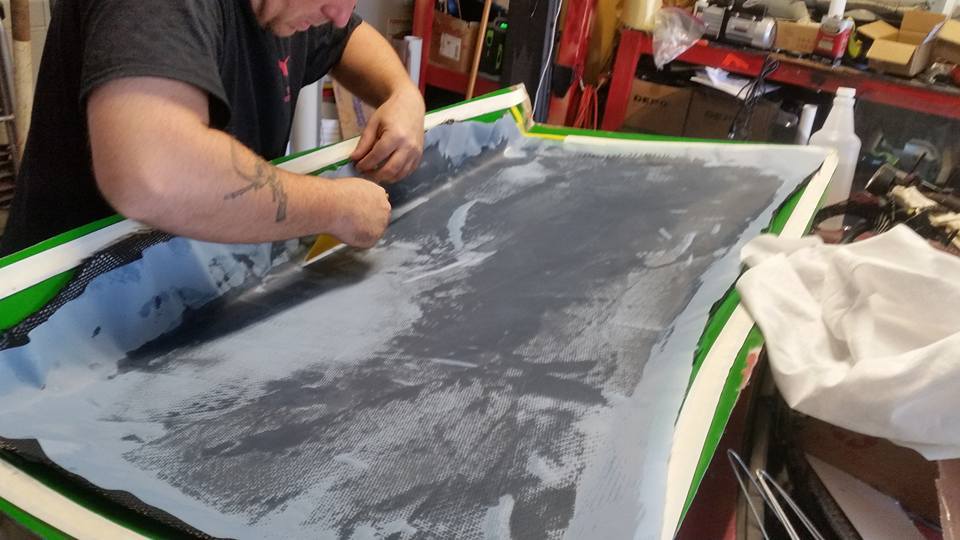

I made a trunk

1 layer of10.9 oz



Epoxy Resin

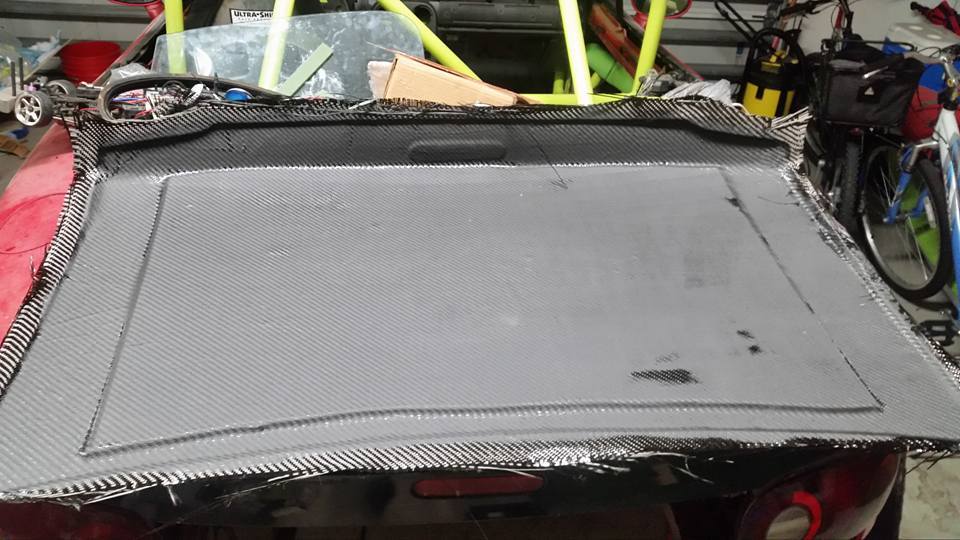

Before trimming

Attached Thumbnails
1993ka24det's Simple Miata-13051591_1177022788982950_3075458511654610167_n_zps8axeqxh4.jpg   1993ka24det's Simple Miata-13043744_1177022808982948_4915756367784967822_n_zpsc0nhp6dl.jpg   1993ka24det's Simple Miata-13083219_1177022875649608_5657978376942591359_n_zpsvyigokoh.jpg   1993ka24det's Simple Miata-13083234_1177022952316267_86191297168981862_n_zps1ov1uskj.jpg   1993ka24det's Simple Miata-13062123_1179508815401014_3439166762913463224_n_zpsfqroyxxh.jpg

1993ka24det's Simple Miata-13082696_1179789978706231_3641366640881248729_n_zpshoiynekw.jpg   1993ka24det's Simple Miata-13082639_1179790002039562_3278661199887425979_n_zpsfrikxalr.jpg
1993ka24det is offline   Reply With Quote
Old 05-28-2016, 04:48 PM   #68
Senior Member
Thread Starter

Join Date: Oct 2011
Location: The Race Track & St Pete FL
Posts: 574
Total Cats: 49
Default

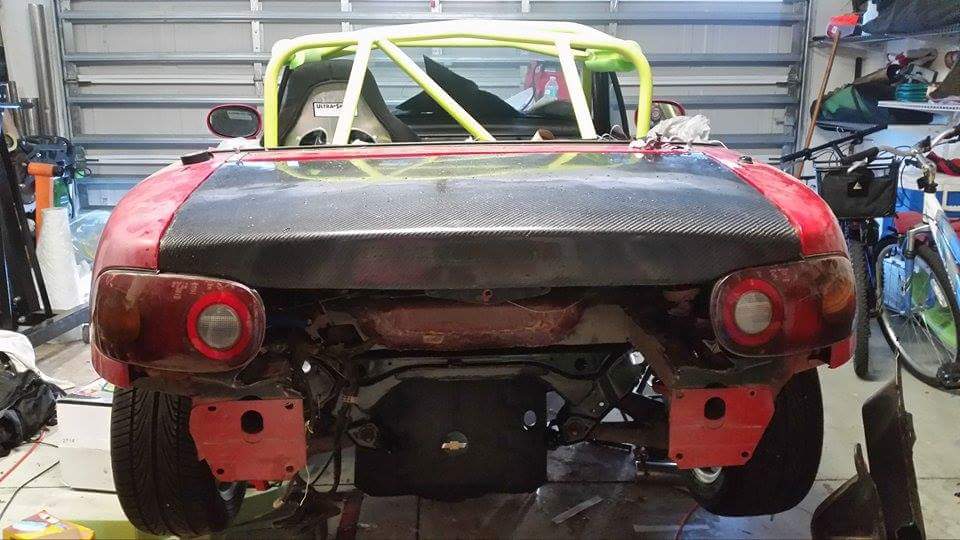

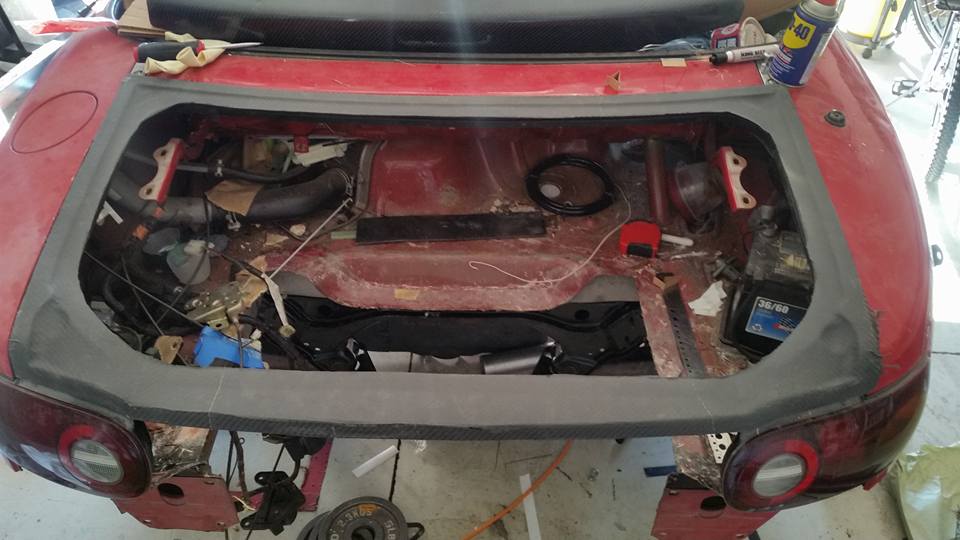

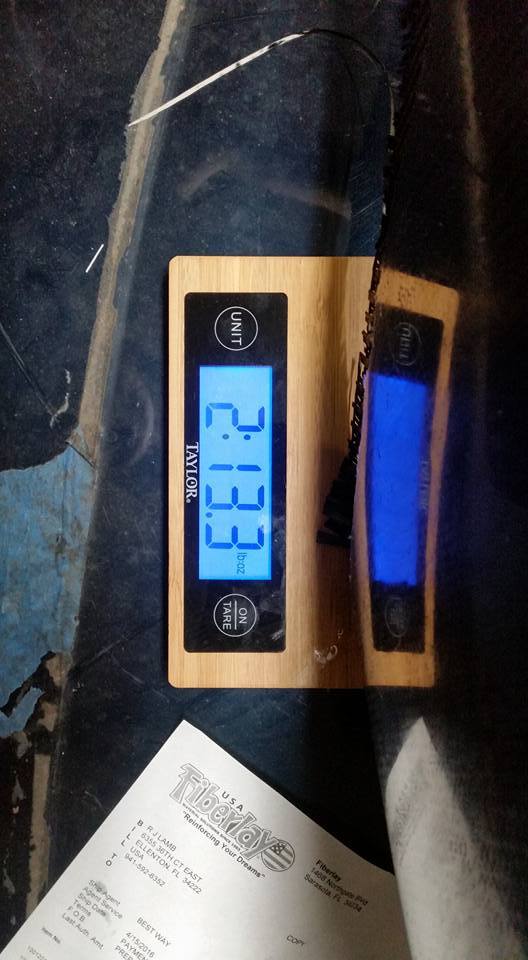

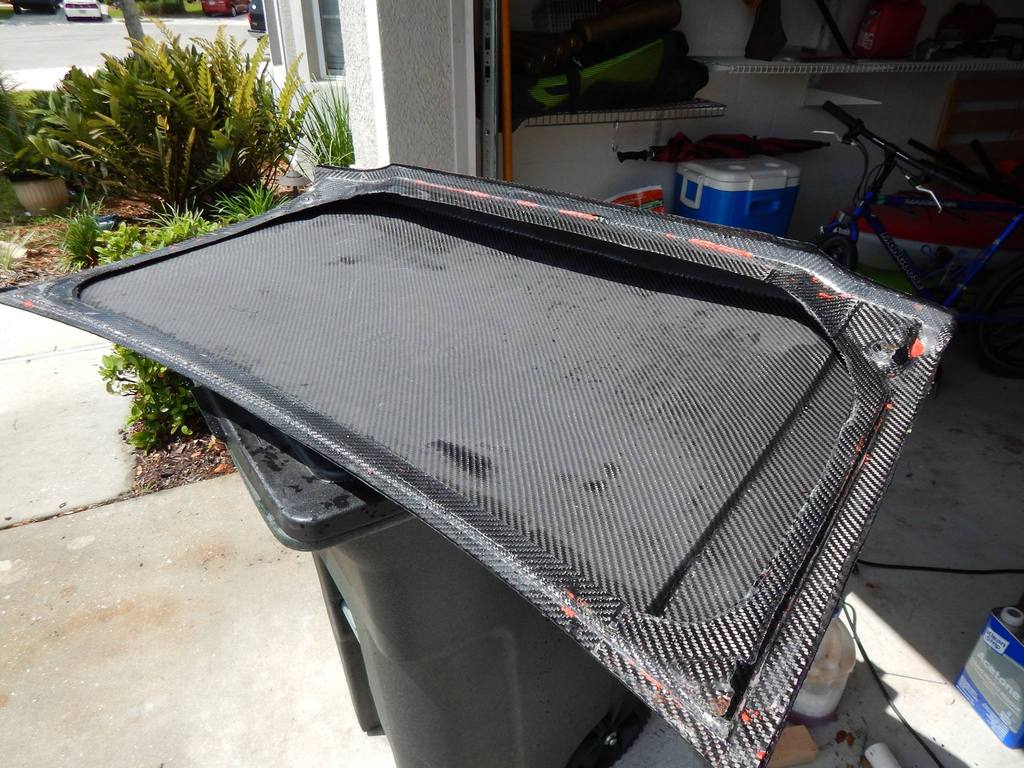

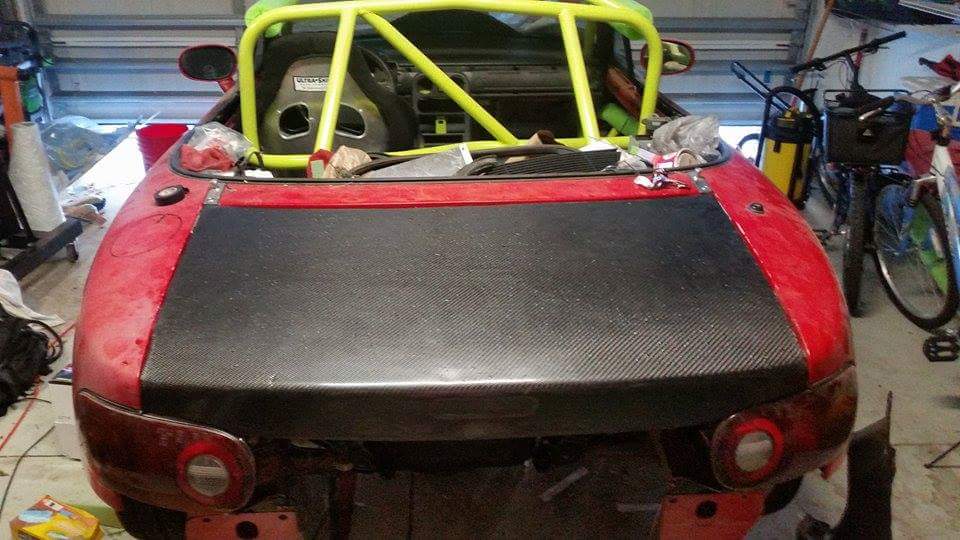

Finished trunk is on the heavy side at 3 Lbs 1oz but not bad for the first one.







Attached Thumbnails
1993ka24det's Simple Miata-13094395_1187798674572028_5153571709317878822_n_zpscyvyjaz0.jpg   1993ka24det's Simple Miata-13113006_1191405920877970_8824016860763015694_o_zps7zdcews6.jpg   1993ka24det's Simple Miata-13239409_1196751543676741_5967569431847904099_n_zpskod6lz3z.jpg   1993ka24det's Simple Miata-13266023_1196751520343410_4643903845974673747_n_zpsuluhosva.jpg
1993ka24det is offline   Reply With Quote
Old 06-03-2016, 02:42 PM   #69
Junior Member

Join Date: Oct 2015
Location: Denton, Texas
Posts: 60
Total Cats: 0
Default

Glad to see this car is still being messed with.
G_Wheezy is offline   Reply With Quote
Old 06-03-2016, 05:09 PM   #70
Junior Member

Join Date: Jul 2015
Location: Bremerton, WA
Posts: 419
Total Cats: 30
Default

I am curious as to why you cut the fenders instead of leaving them long and offset. Seems like that gaping exit port would be just as good for brake cooling and I think it looks better.
Itty is offline   Reply With Quote
Old 06-03-2016, 06:30 PM   #71
Senior Member
Thread Starter

Join Date: Oct 2011
Location: The Race Track & St Pete FL
Posts: 574
Total Cats: 49
Default

Quote:
Originally Posted by Itty View Post
I am curious as to why you cut the fenders instead of leaving them long and offset. Seems like that gaping exit port would be just as good for brake cooling and I think it looks better.
Im working on moving as much air out from the front splitter ducts (coming soon). I need as much down force on the front to offset the new wing coming soon. If I want, I could go back to my original fenders.

I might make new inner fenders out of carbon instead of kevlar


Last edited by 1993ka24det; 06-03-2016 at 07:01 PM.
1993ka24det is offline   Reply With Quote
Old 06-06-2016, 07:52 PM   #72
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 8,817
Total Cats: 92
Default

Quote:
Originally Posted by Itty View Post
I am curious as to why you cut the fenders instead of leaving them long and offset. Seems like that gaping exit port would be just as good for brake cooling and I think it looks better.
I was more wondering about the fiberglass vanity panel instead of just leaving the ugly raw unibody there.
Leafy is offline   Reply With Quote
Old 06-07-2016, 07:19 PM   #73
Senior Member
Thread Starter

Join Date: Oct 2011
Location: The Race Track & St Pete FL
Posts: 574
Total Cats: 49
Default

Quote:
Originally Posted by Leafy View Post
I was more wondering about the fiberglass vanity panel instead of just leaving the ugly raw unibody there.
I was moving the air more fluidly out of the wheel well and its made of Kevlar
1993ka24det is offline   Reply With Quote
Old 08-11-2016, 09:54 PM   #74
Senior Member
Thread Starter

Join Date: Oct 2011
Location: The Race Track & St Pete FL
Posts: 574
Total Cats: 49
Default

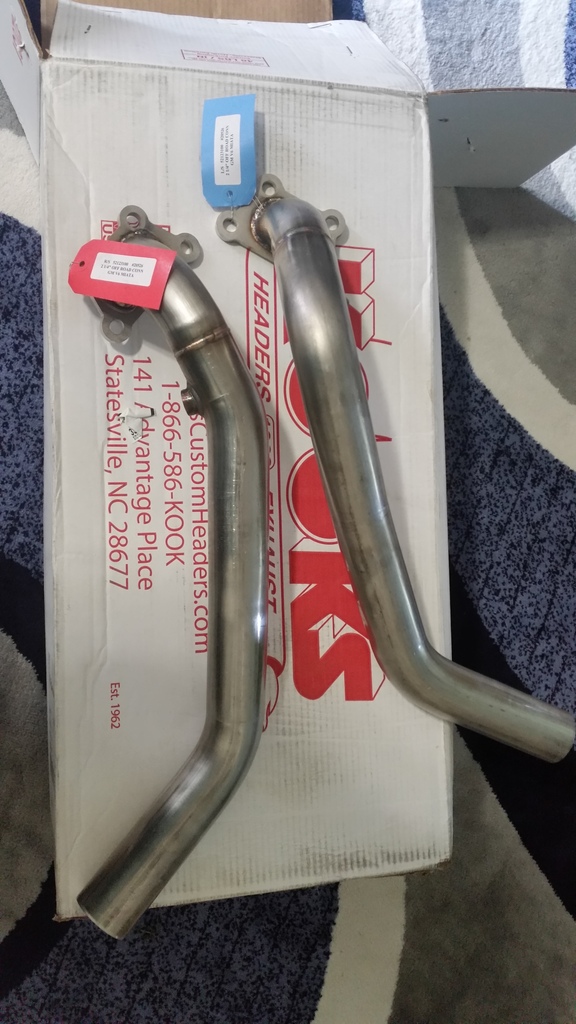

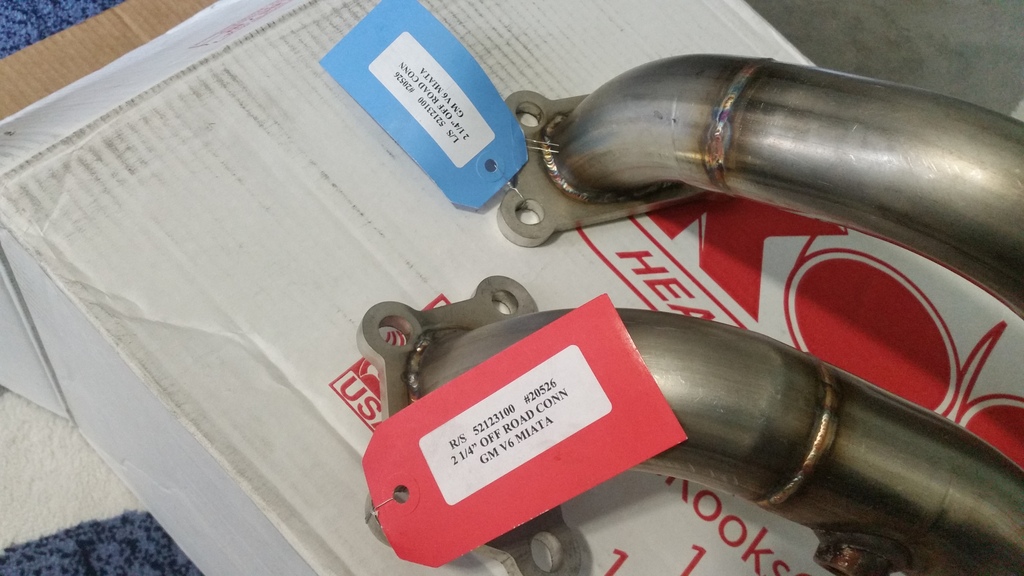

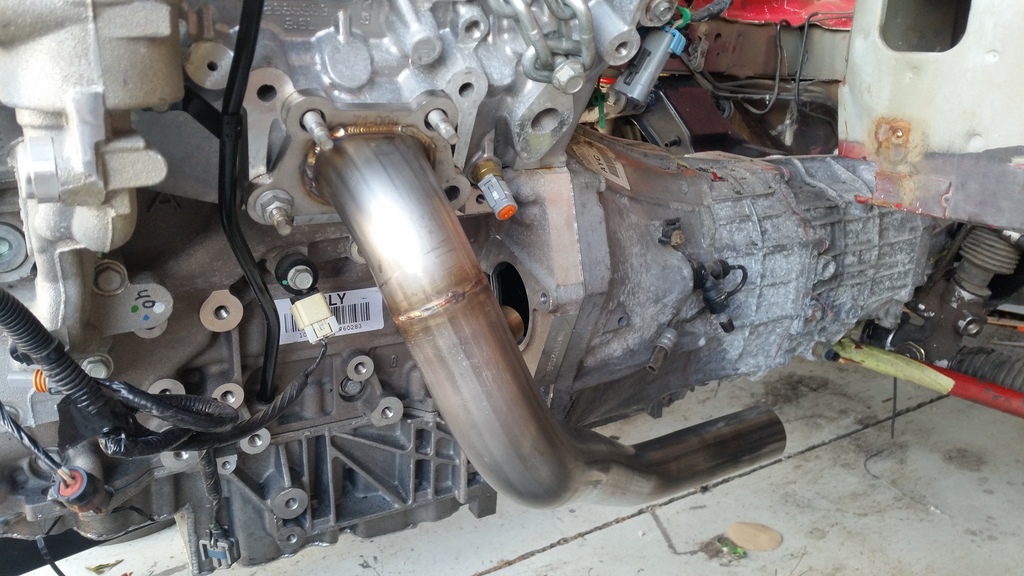

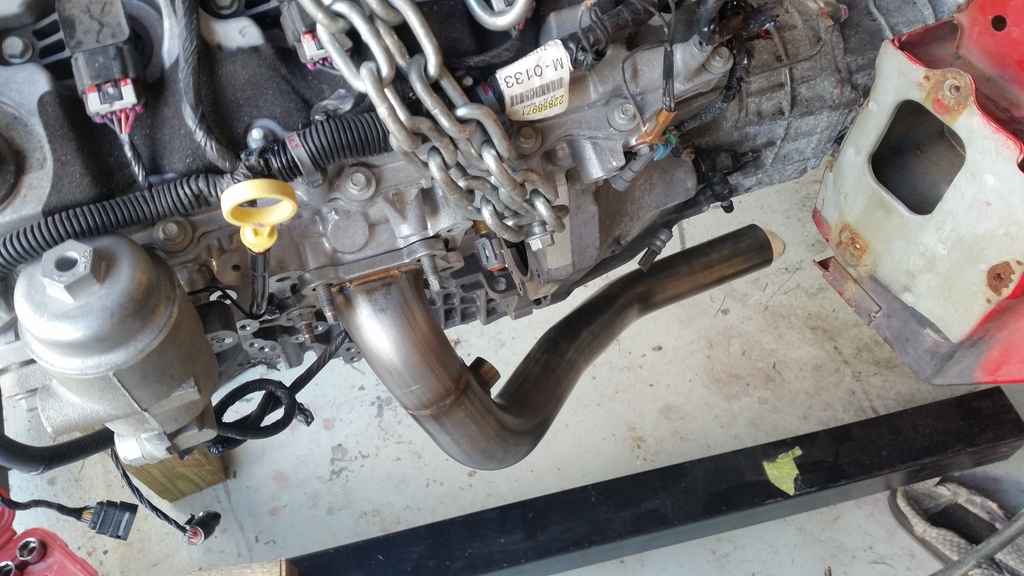

I know I haven't posted anything for a while, so here it is. I got my downpipes in for the car.
