Default 2JZ Miata 68mm turbo six speed

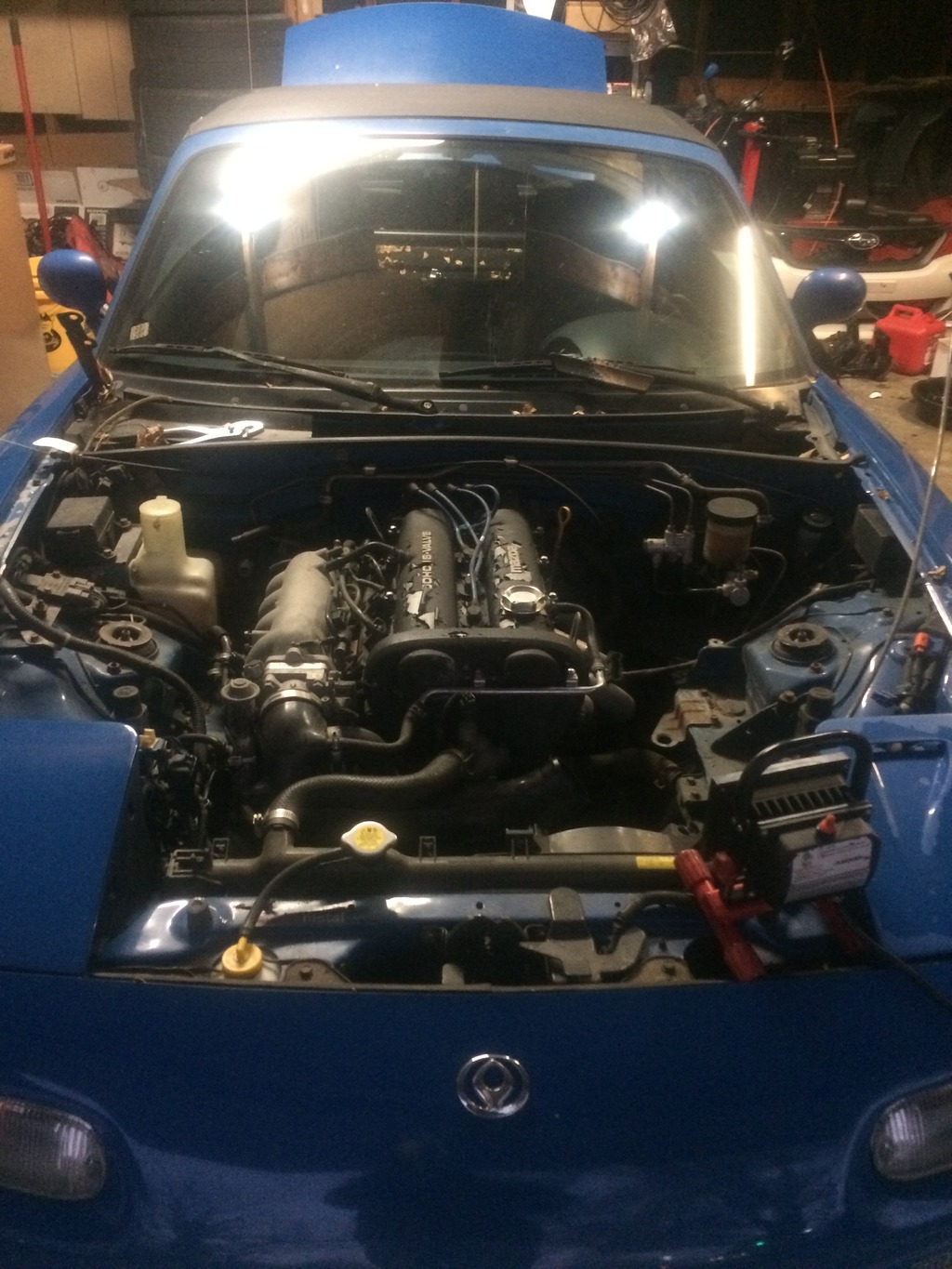

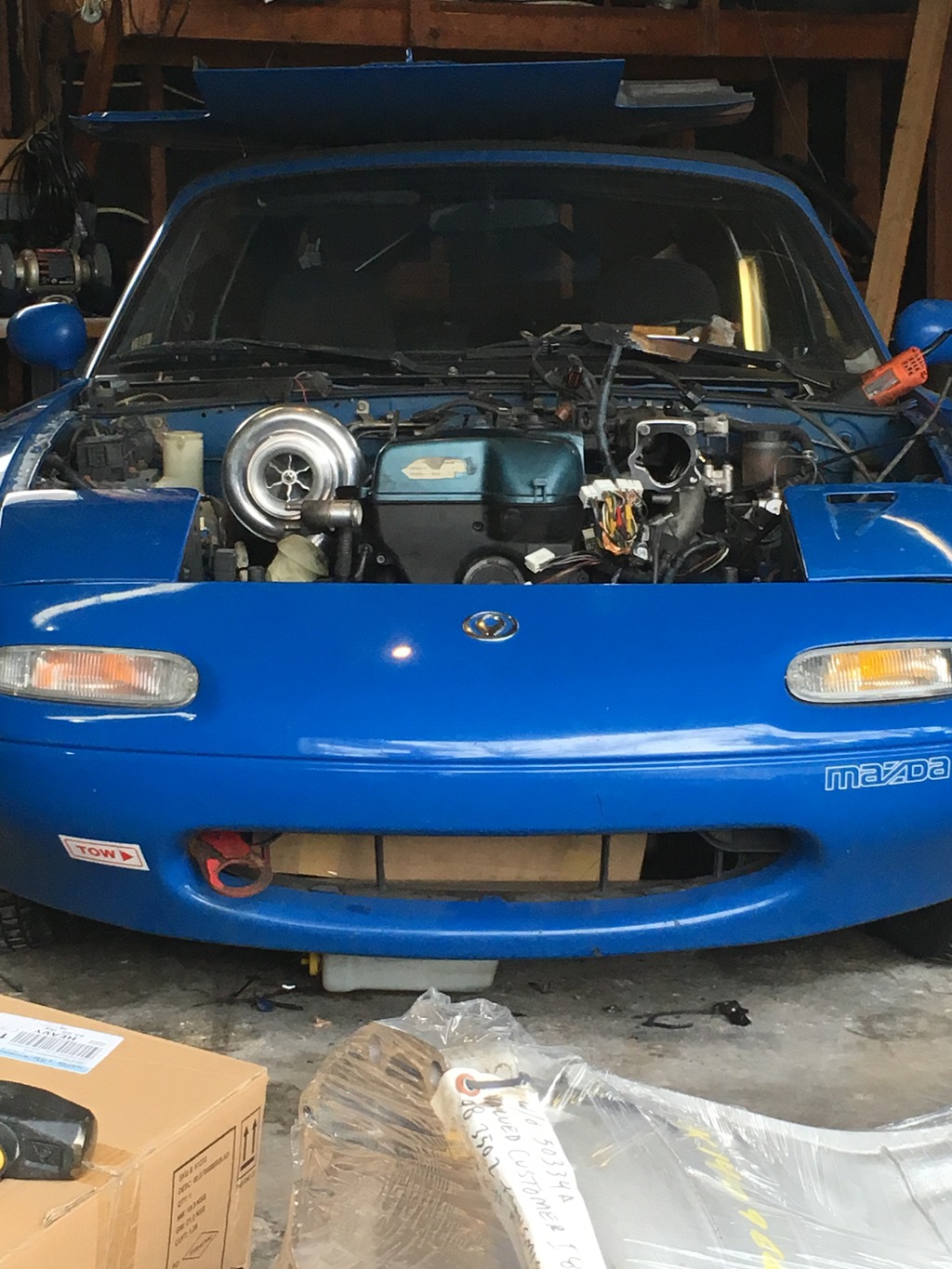

So I have been working on this for a couple months maybe one day a week when I have time. I have kept a pretty active build thread on the supra forums but I thought I'd share some pictures and info here for fun.
Major parts are

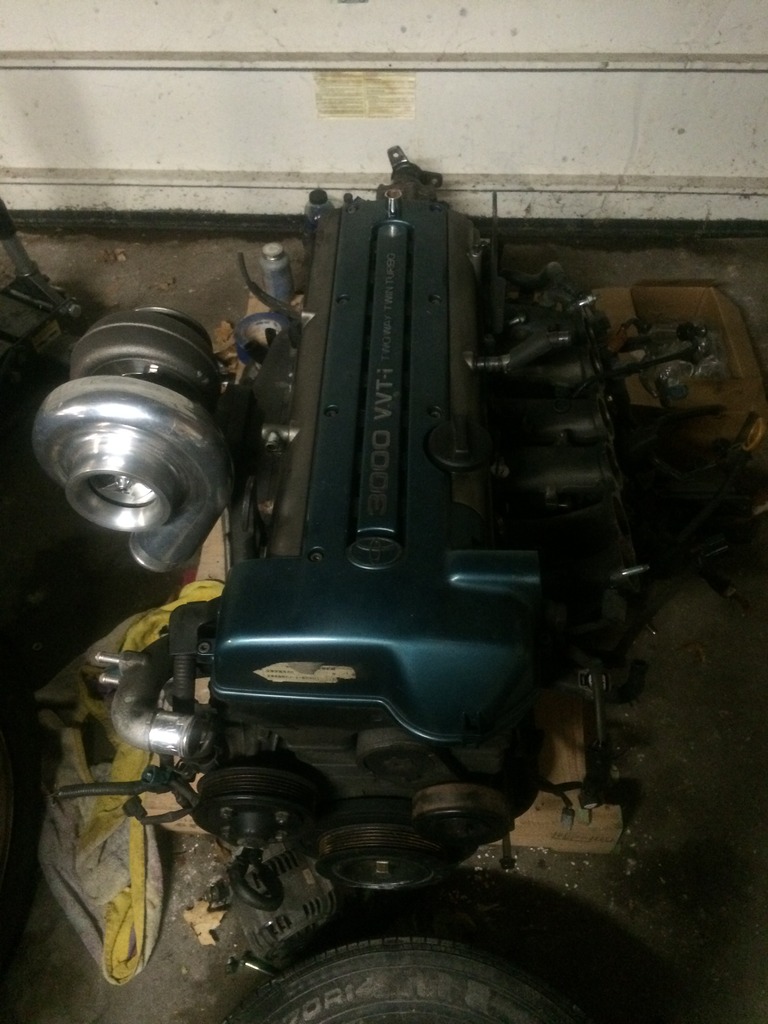

2jz gte vvti motor
Cast manifold
Bullseye 68mm turbo (good for 900+whp on e85 with the current turbine wheel/housing)
1000cc injectors we are going to start on pump gas
6 speed transmission from a 350z
Spec twin disk good for 900ft lbs
Pro efi 128 ecu











Attached Thumbnails
2JZ Miata 68mm turbo six speed-img_5180_zpskxj97hgd.jpg   2JZ Miata 68mm turbo six speed-img_5212_zps9tbxod0j.jpg   2JZ Miata 68mm turbo six speed-2b480a73-d8cc-419d-b909-aca38886090f_zps4a5ad1qi.jpg   2JZ Miata 68mm turbo six speed-f234ed3a-3e93-47ac-b204-fac68109e93f_zpsz0xnlrj9.jpg   2JZ Miata 68mm turbo six speed-458a85fd-065b-4c64-9587-71381bec7418_zpscnxfhjbi.jpg


Last edited by Shortpersonbk; 02-28-2016 at 04:33 PM.
Shortpersonbk is offline   Reply With Quote
Old 03-05-2016, 10:16 AM   #2
Junior Member
Thread Starter

Join Date: Sep 2013
Posts: 193
Total Cats: 7
Default

Im surprised i have not gotten more negative post cats for this build thread yet.

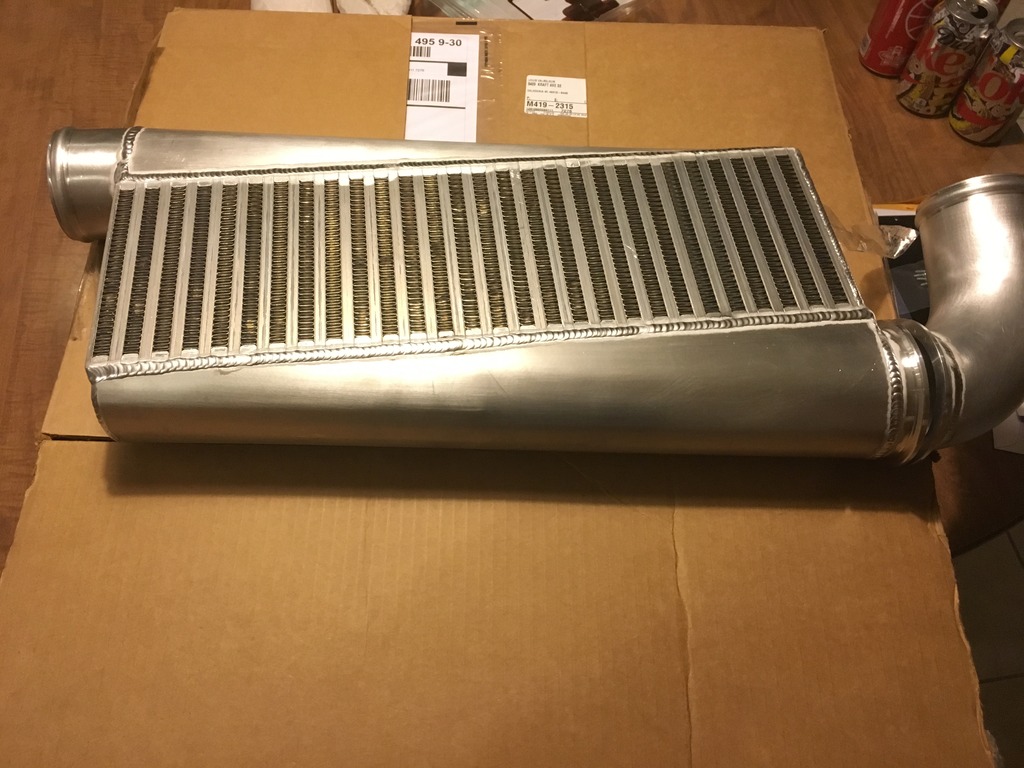

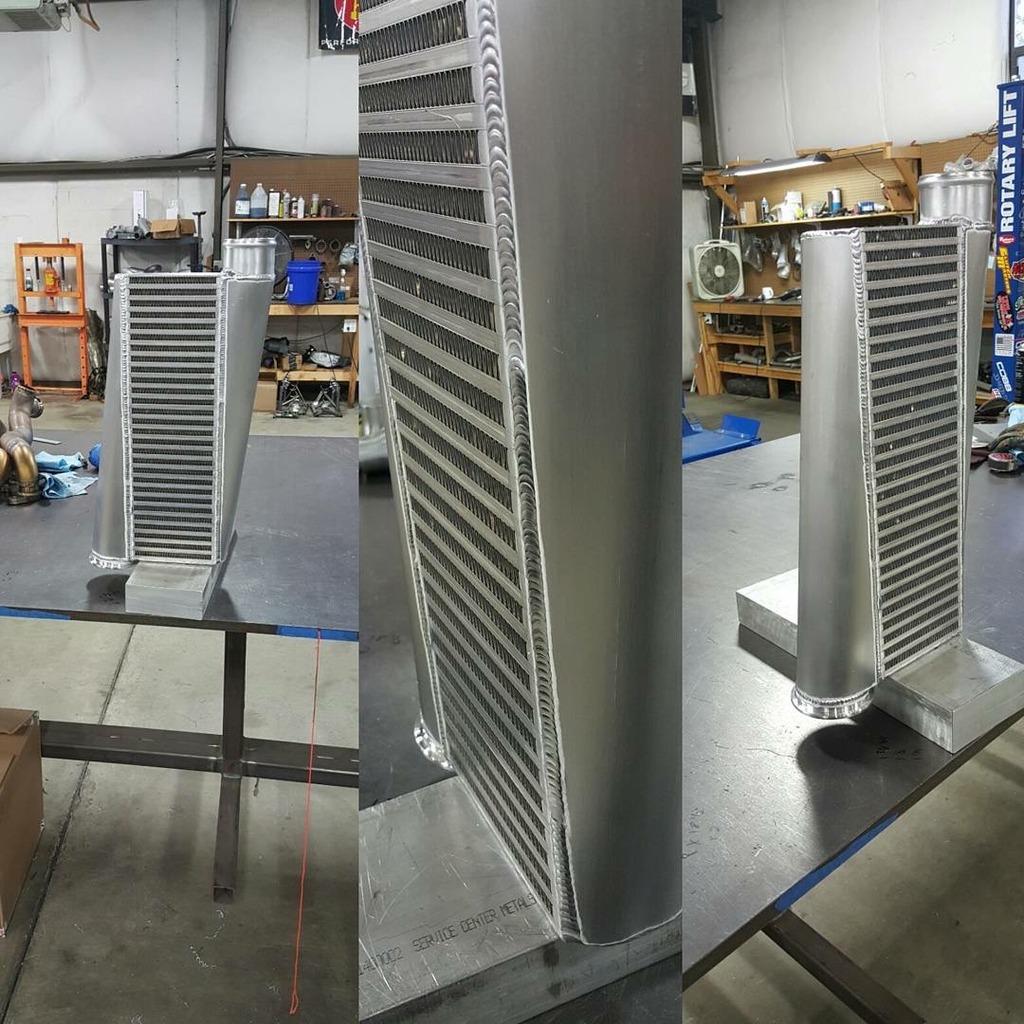

custom intercooler i had made to a solidworks drawing. Fitting a large core is difficult even more so with a longer motor so this is what we have to work with. It is a bell intercooler core. Everything will be vband and vanjen clamps i hate intercooler couplers.
Attached Thumbnails
2JZ Miata 68mm turbo six speed-e9fbd356-937a-42df-8d77-563d75b816e7_zpswahsijqy.jpg
Shortpersonbk is offline   Reply With Quote
Old 03-05-2016, 11:04 AM   #3
Junior Member

MaineMiata91's Avatar

Join Date: Feb 2016
Location: maine
Posts: 101
Total Cats: 8
Default

In for this build!! i give you positive cats sir!
MaineMiata91 is offline   Reply With Quote
Old 03-05-2016, 12:05 PM   #4
Junior Member
iTrader: (5)

Join Date: Oct 2014
Posts: 405
Total Cats: 17
Default

That's awesome, care to link your build thread?
90civichhb is offline   Reply With Quote
Old 03-05-2016, 12:15 PM   #5
Ich verstehe nur Bahnhof
iTrader: (2)

psyber_0ptix's Avatar

Join Date: Mar 2012
Location: Northern VA
Posts: 2,813
Total Cats: 224
Default

wow, is that a subaru bumper in the background?
psyber_0ptix is offline   Reply With Quote
Old 03-05-2016, 06:45 PM   #6
Junior Member
Thread Starter

Join Date: Sep 2013
Posts: 193
Total Cats: 7
Default

Quote:
Originally Posted by MaineMiata91 View Post
In for this build!! i give you positive cats sir!
haha thank you sir
Quote:
Originally Posted by 90civichhb View Post
That's awesome, care to link your build thread?
It is on supraforums but i dont want to link it and get in trouble. Anything i work get done moving forward i will be posted on here and there though .

Quote:
Originally Posted by psyber_0ptix View Post
wow, is that a subaru bumper in the background?
Yeah i had a GR sti that i attempted to daily drive when ever it was running before pulling apart the miata for the 2jz swap. I ended up selling it and buying a new prius .

Here is some videos of that dump lol. My goal was the first GR sti in the 10s..but instead if bent a rod bolt or two on a turbo tuff i beam and then i ended up just putting a smaller 58mm turbo in and a lighter built motor until i sold it 400whp was boring .
Shortpersonbk is offline   Reply With Quote
Old 03-05-2016, 08:34 PM   #7
Junior Member
Thread Starter

Join Date: Sep 2013
Posts: 193
Total Cats: 7
Default

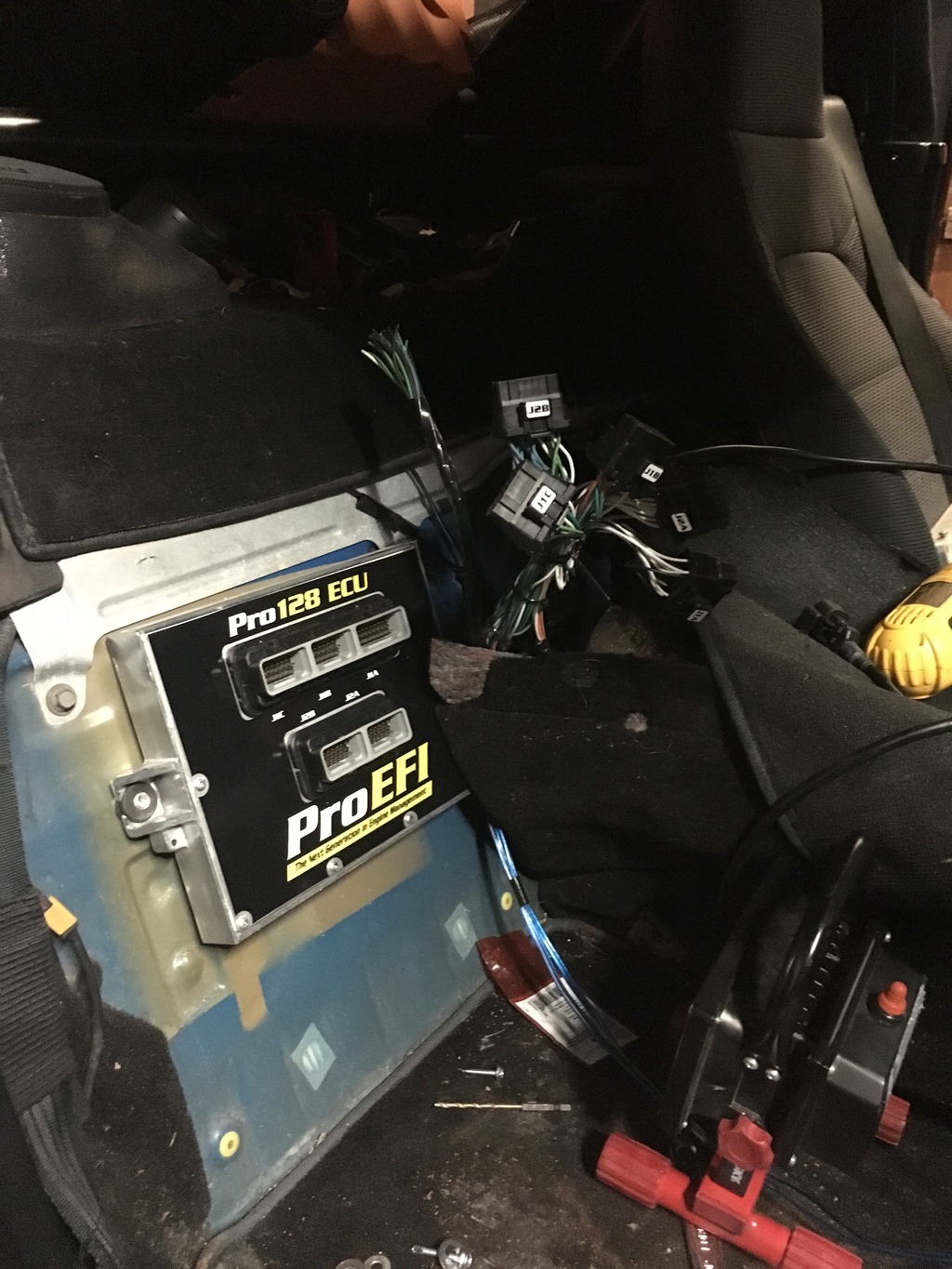

I got the ecu half way mounted tonight. I still need to head to the store to get some scrap steel to make a little bracket for the hole on the left. Its so hard to fit all these super sized items in this little car it calls for mounting things in some odd places.
Attached Thumbnails
2JZ Miata 68mm turbo six speed-d374d795-4d48-42a8-9065-639a470139dd_zps0lmly1wh.jpg
Shortpersonbk is offline   Reply With Quote
Old 03-05-2016, 08:41 PM   #8
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 33,408
Total Cats: 2,035
Default

If you get this setup to work it will be nuts.

Nothing wrong with that

No need for neg props either, you're using good parts and shooting for absurd power

Absurd power is really amusing
18psi is offline   Reply With Quote
Old 03-05-2016, 08:44 PM   #9
Elite Member
iTrader: (17)

Join Date: Aug 2007
Location: Fort Myers, FL
Posts: 2,618
Total Cats: 102
Default

Thanks for posting, interested to see where this goes. What are your plans for the car? I'd imagine that thing is going to be quite a handful to drive.
pdexta is offline   Reply With Quote
Old 03-05-2016, 08:49 PM   #10
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 33,408
Total Cats: 2,035
Default

I'm seeing more and more swaps on different cars run the tree fiddy trans
they're getting popular. will likely go up in price soon
18psi is offline   Reply With Quote
Old 03-05-2016, 10:28 PM   #11
Junior Member
Thread Starter

Join Date: Sep 2013
Posts: 193
Total Cats: 7
Default

Quote:
Originally Posted by pdexta View Post
Thanks for posting, interested to see where this goes. What are your plans for the car? I'd imagine that thing is going to be quite a handful to drive.
Plans are for it to just be a fun car to drive. My only real goal would be to make a 9 second pass eventually when we can actually get it running and kinks worked out.

Quote:
Originally Posted by 18psi View Post
I'm seeing more and more swaps on different cars run the tree fiddy trans
they're getting popular. will likely go up in price soon
350z trans seem pretty solid from my research and are perfect for many swaps. A big negative though is there massive size fitting it in the miata was well interesting and we still have not 100% bolted it up only shoved it up and down in the tunnel and then correcting the spots that hit until we stopped hitting. I think i only paid around $700 shipped for the trans and there are people making 1000+whp on them without issues in heavier cars.

Someone should make a setup to use one on a BP it is cheap and would be a good replacement for the current 6 speed swaps even though they are pnp.
Shortpersonbk is offline   Reply With Quote
Old 03-06-2016, 01:10 AM   #12
SadFab Sales Lady
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 15,203
Total Cats: 974
Default

What are you running for a rear end?
aidandj is offline   Reply With Quote
Old 03-06-2016, 10:14 AM   #13
Junior Member
Thread Starter

Join Date: Sep 2013
Posts: 193
Total Cats: 7
Default

Quote:
Originally Posted by aidandj View Post
What are you running for a rear end?
It is only a ford monster Miata 7.5 setup I found one locally for super cheap and only have about 5-600 into the whole rear setup by the time I sold my stock rear end.

Once it explodes on what I'm sure will be the first time I launch it I'll move up to the 8.8 I actually wanted.
Shortpersonbk is offline   Reply With Quote
Old 03-09-2016, 05:00 PM   #14
Newb

Join Date: Jan 2016
Location: Austin, TX
Posts: 14
Total Cats: 0
Default

That's an impressive swap! I'm curious to see how it all turns out.
K_sr20 is offline   Reply With Quote
Old 03-14-2016, 09:25 PM   #15
Junior Member
Thread Starter

Join Date: Sep 2013
Posts: 193
Total Cats: 7
Default

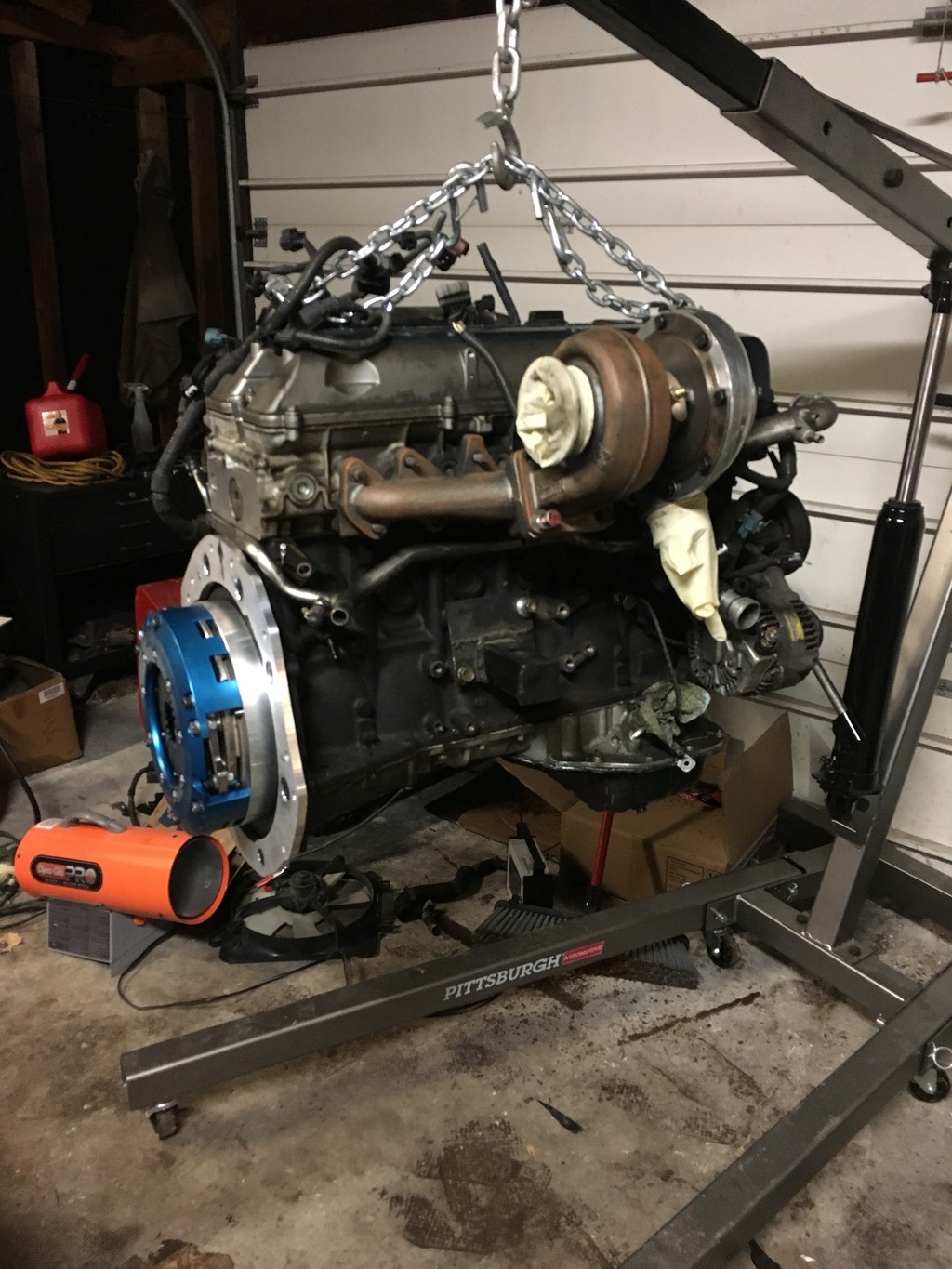

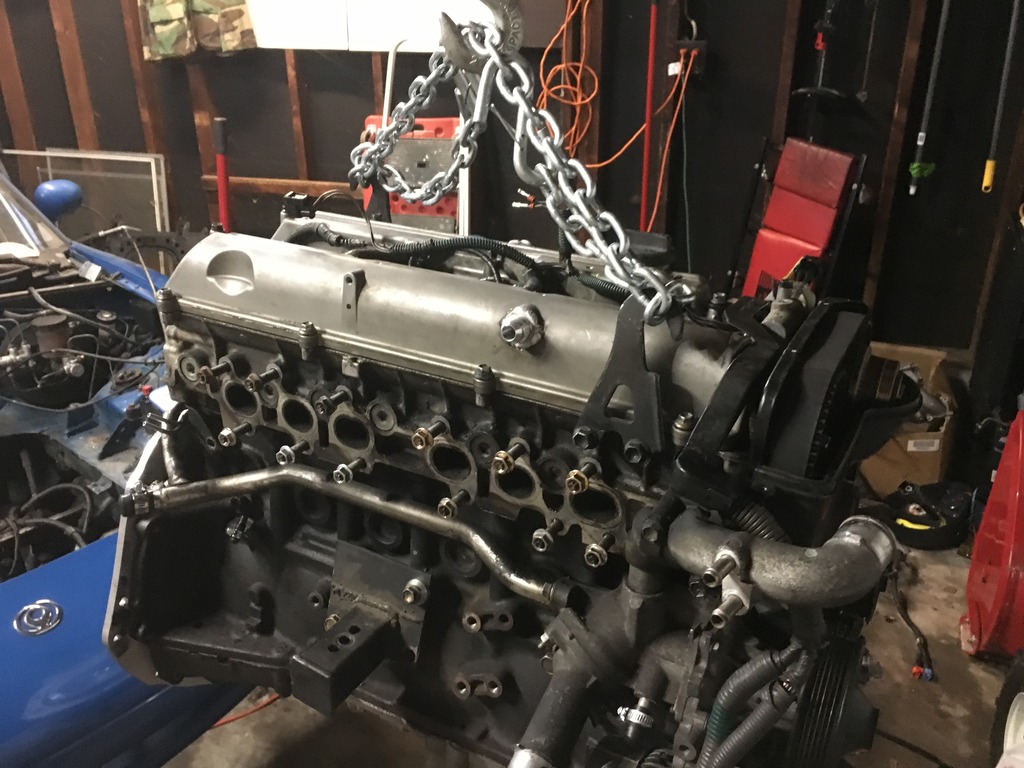

Motor can go back in with the trans once we get the pilot bearing i ordered. I did not like the bushing setup that came with the swap kit. I also got the valve covers cleaned up and some -10an fittings welded on.



Some more parts came in.

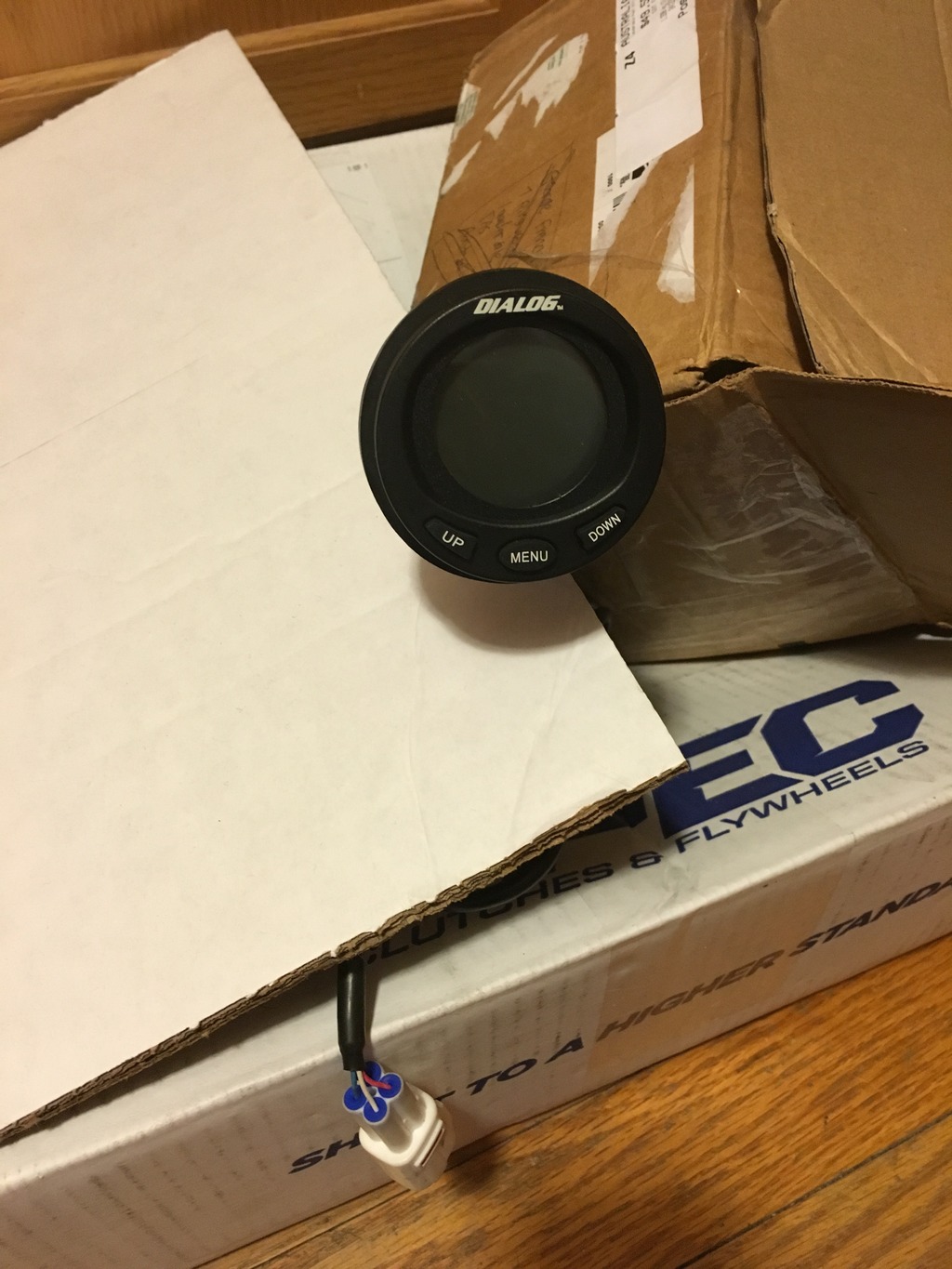

Can gauge for the pro efi

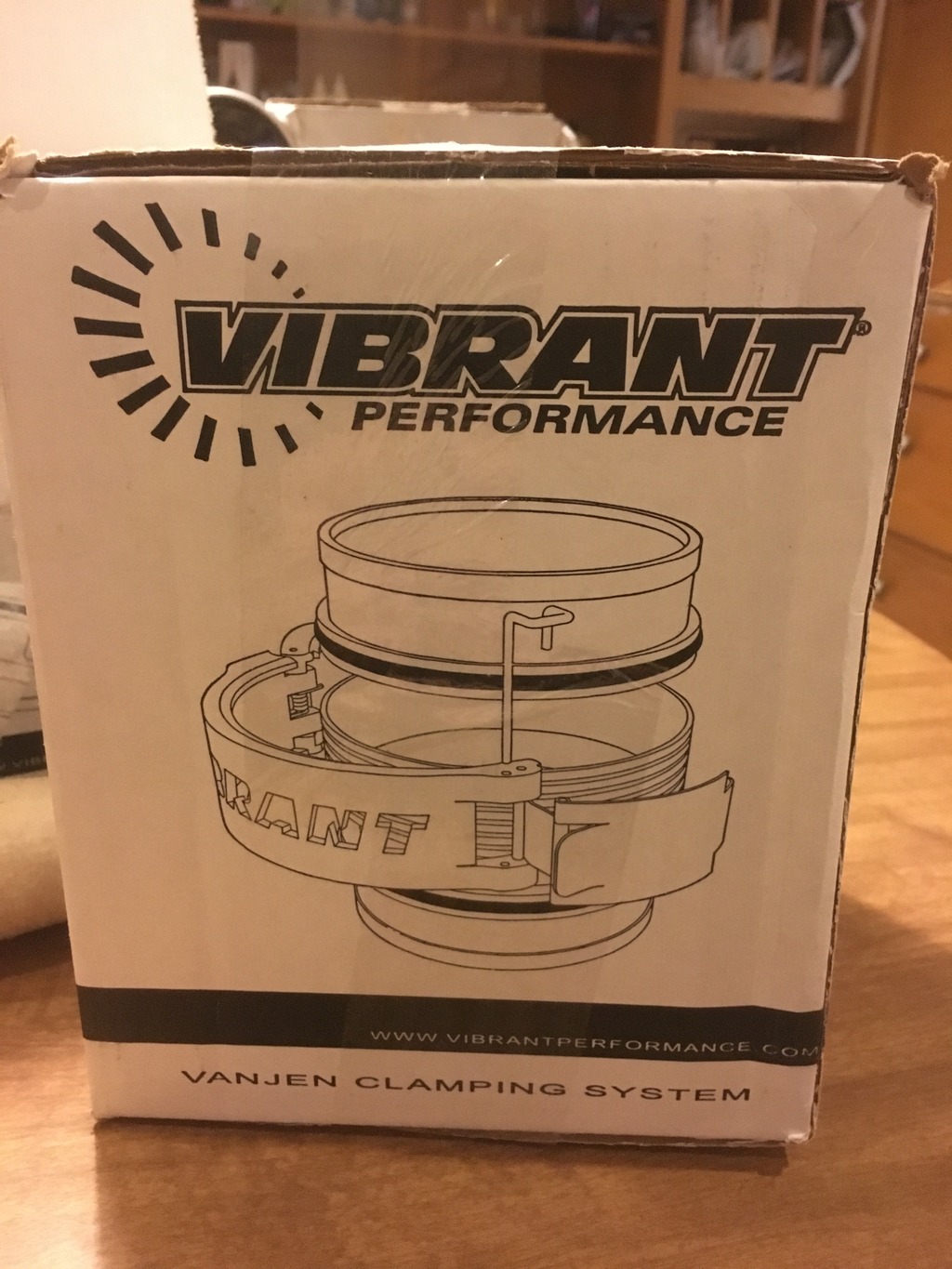

Also ordered one of the real street catch cans so hopefully we will have that this week.
Attached Thumbnails
2JZ Miata 68mm turbo six speed-b0830818-d74c-4793-ab46-1cf45b846e20_zpsw2mlgpkn.jpg   2JZ Miata 68mm turbo six speed-8b9c115b-d03e-4e8f-a6c1-1f1ac233595b_zpssz2nkddw.jpg   2JZ Miata 68mm turbo six speed-b544cee8-a7bd-4c81-88c4-f46ed2133849_zpsatx1v0sx.jpg   2JZ Miata 68mm turbo six speed-9626988e-fe7b-4a73-ba93-4ff0972eeaf4_zpsh0kk2a0q.jpg
Shortpersonbk is offline   Reply With Quote
Old 03-14-2016, 10:18 PM   #16
Hug Life
iTrader: (3)

Monk's Avatar

Join Date: Apr 2014
Location: Huntington, Indiana
Posts: 2,452
Total Cats: 359
Default

Oh damn. Straight six Toyota engines are my jam.
I tried my best to break a 7.5 behind a 350 whp 302 and I just ended up breaking the c4 trans... after 10 years of constant abuse.
Any more pics of the dif mounted to the rear subframe?
Monk is online now   Reply With Quote
Old 03-15-2016, 02:53 AM   #17
Junior Member

Scaxx's Avatar

Join Date: Sep 2015
Location: Seattle, WA
Posts: 350
Total Cats: 120
Default

Interested in watching this come along, keep the pics coming.
Scaxx is offline   Reply With Quote
Old 03-15-2016, 02:39 PM   #18
Boost Czar

iTrader: (60)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 70,402
Total Cats: 1,426
Default

Quote:
Originally Posted by Shortpersonbk View Post
Im surprised i have not gotten more negative post cats for this build thread yet.

custom intercooler i had made to a solidworks drawing. Fitting a large core is difficult even more so with a longer motor so this is what we have to work with. It is a bell intercooler core. Everything will be vband and vanjen clamps i hate intercooler couplers.
why the vertical runners?

reading an outdated Maximum Boost?
Braineack is offline   Reply With Quote
Old 03-15-2016, 02:50 PM   #19
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 33,408
Total Cats: 2,035
Default

maximum boost was outdated when it came out
18psi is offline   Reply With Quote
Old 03-15-2016, 04:11 PM   #20
Junior Member
Thread Starter

Join Date: Sep 2013
Posts: 193
Total Cats: 7
Default

Quote:
Originally Posted by Braineack View Post
why the vertical runners?

reading an outdated Maximum Boost?
lol....
All i did was find out my maximum size i could fit, then draw up a model in solidworks with how i wanted end tanks and the 90 degree vband end for adjustment on it then sent it to a shop called fathouse fabrications and then a couple weeks later my intercooler showed up. I did not choose the core or any details around it, it a quality bell ic core though.
