Or you can actually make an effort on this project and replace the OEM OPG with the AEM one.
Oscar is offline   Reply With Quote
Old 04-30-2014, 12:24 PM   #2322
Elite Member

Jeffbucc's Avatar

Join Date: Oct 2013
Location: Cedar City, UT
Posts: 2,769
Total Cats: 946
Default

Quote:
Originally Posted by Oscar View Post
Or you can actually make an effort on this project and replace the OEM OPG with the AEM one.
I. Will. Not. Be. Provoked! Honestly though it seems to big to fit in that spot.
Jeffbucc is offline   Reply With Quote
Old 04-30-2014, 12:40 PM   #2323
Moderator
iTrader: (24)

chriscar's Avatar

Join Date: Dec 2007
Location: Carrollton TX
Posts: 1,702
Total Cats: 11
Default

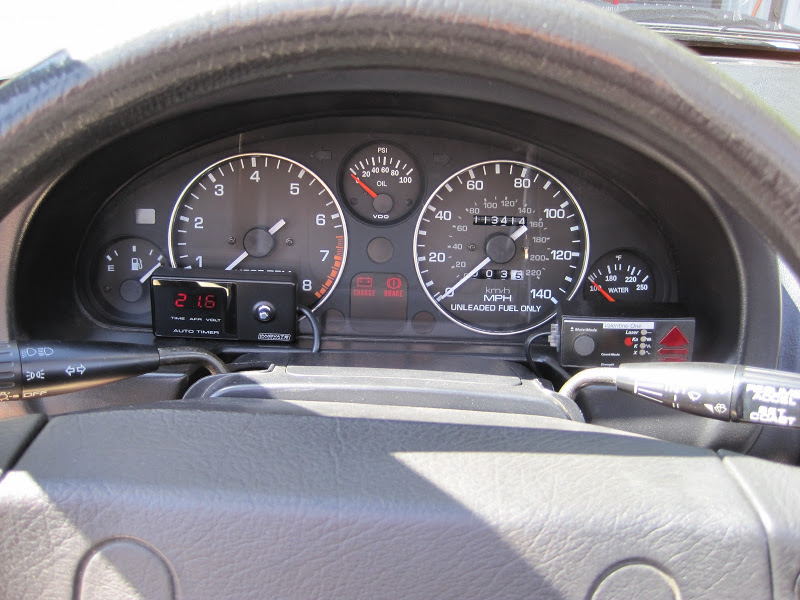

If you can remove the bezel and glass like the VDO gauges, then it should work fine.



https://plus.google.com/photos/10160...369?banner=pwa

C
Attached Thumbnails
93' Miata stolen and flipped build thread-img_0040.jpg
chriscar is offline   Reply With Quote
Old 04-30-2014, 04:41 PM   #2324
Elite Member

Chiburbian's Avatar

Join Date: Feb 2008
Location: Gilberts, IL
Posts: 1,964
Total Cats: 108
Default

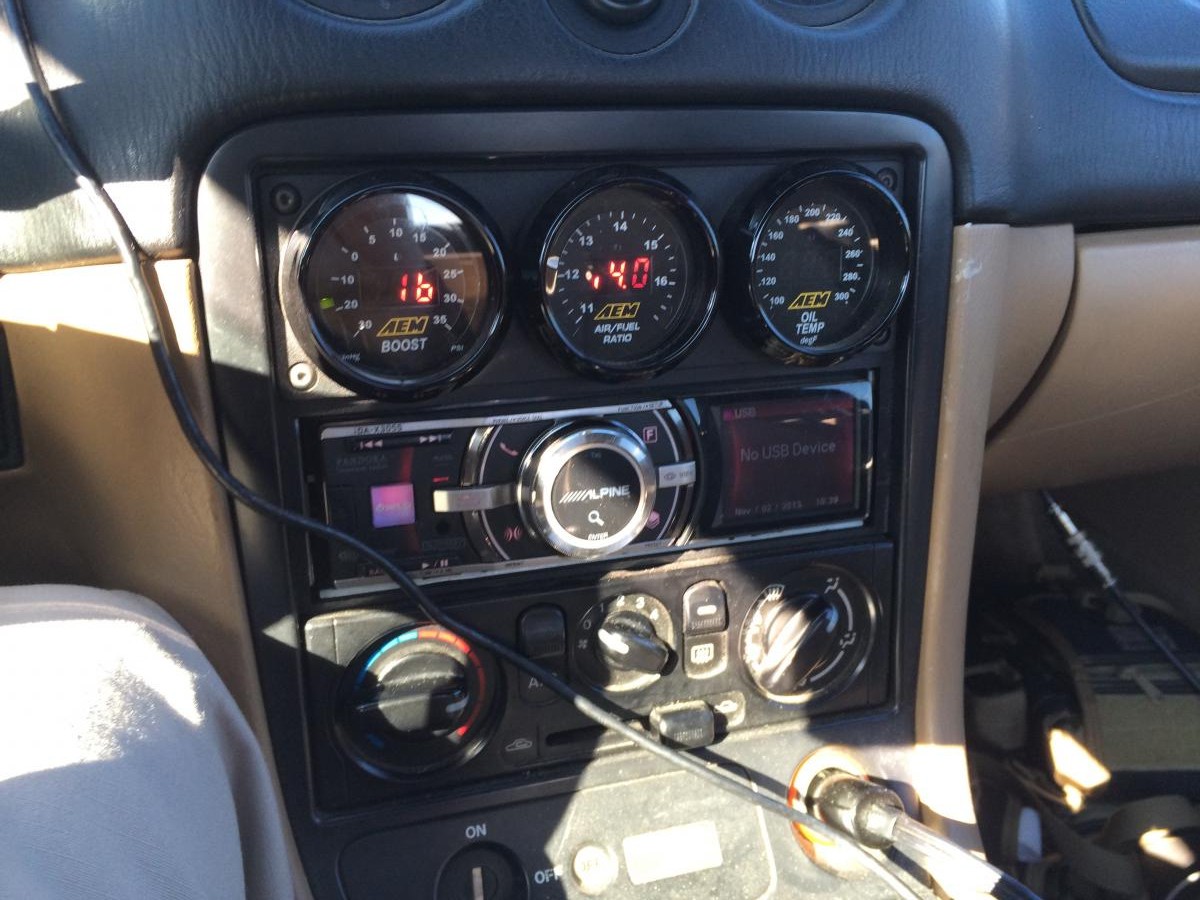

I went with the NJOY Carlife three gauge single din panel and it works fine with 3 AEM across. Wither or not you want to deal with possible shipping issues or other headaches is up to you. My transasction went well and I am very happy with how it turned out.
!NJOY CARLIFE - Radio Gauge Plates


Attached Thumbnails
93' Miata stolen and flipped build thread-image%5B1%5D.jpg
Chiburbian is offline   Reply With Quote
Old 04-30-2014, 04:45 PM   #2325
Elite Member
iTrader: (3)

Join Date: Aug 2011
Posts: 7,237
Total Cats: 554
Default

Quote:
Originally Posted by Chiburbian View Post
I went with the NJOY Carlife three gauge single din panel and it works fine with 3 AEM across. Wither or not you want to deal with possible shipping issues or other headaches is up to you. My transasction went well and I am very happy with how it turned out.
!NJOY CARLIFE - Radio Gauge Plates

Did you order more than a year ago? I tried to order in February 2013, and to the best of my knowledge, not one person has gotten their order since then. Including myself.

Retromodern would probably be a better idea for that sort of thing, but i think Jeff is pretty capable of making his own.
concealer404 is offline   Reply With Quote
Old 04-30-2014, 04:50 PM   #2326
Elite Member

Chiburbian's Avatar

Join Date: Feb 2008
Location: Gilberts, IL
Posts: 1,964
Total Cats: 108
Default

Quote:
Originally Posted by concealer404 View Post
Did you order more than a year ago? I tried to order in February 2013, and to the best of my knowledge, not one person has gotten their order since then. Including myself.

Retromodern would probably be a better idea for that sort of thing, but i think Jeff is pretty capable of making his own.
My thread shows it arriving June of 2013. I am sure Jeff could do something as nice but it would take a bit of work. I am glad I got my parts, I haven't found anything else that I was as happy with build quality wise.
Chiburbian is offline   Reply With Quote
Old 04-30-2014, 04:50 PM   #2327
Moderator
iTrader: (24)

chriscar's Avatar

Join Date: Dec 2007
Location: Carrollton TX
Posts: 1,702
Total Cats: 11
Default

What about the DDMWORKS radio / gauge cage?

DDMWorks Miata Radio Surrounds

C
chriscar is offline   Reply With Quote
Old 04-30-2014, 05:05 PM   #2328
Senior Member
iTrader: (1)

revlimiter's Avatar

Join Date: Jan 2009
Location: ABQ, NM
Posts: 512
Total Cats: 86
Default

This guy specializes in gauge plates and plastic products. Might check it out.

NA Miata Gauge Plates

revlimiter is offline   Reply With Quote
Old 04-30-2014, 11:19 PM   #2329
Senior Member
iTrader: (1)

revlimiter's Avatar

Join Date: Jan 2009
Location: ABQ, NM
Posts: 512
Total Cats: 86
Default

Also, if there's enough room in the cluster to actually fit the AEM gauge (I'm talking the guts and needle), I could very likely make a face for it with the artwork and scale shrunk down to fit the smaller opening.

I wonder how much there actually IS to the gauge once you remove it from the housing...
revlimiter is offline   Reply With Quote
Old 05-01-2014, 12:12 AM   #2330
Elite Member

Jeffbucc's Avatar

Join Date: Oct 2013
Location: Cedar City, UT
Posts: 2,769
Total Cats: 946
Default

While I would love to try to make it fit. I'm not sure I want to mess with pulling the innards out of such an expensive gauge. I'm all for OCD and clean and yadda yadda, but I'm not sure I want to risk the damage

I'll just do a 3 across arrangement. The problem with fitting the AEM gauge in the tach is the almost 360 degree sweep pattern of the gauge. The VDO one linked earlier has roughly the same sweep as the stock OPS gauge.

I've already fought the issue of having a reliable source of oil pressure indication twice, and I don't intend provoke my shitty luck in wasting additional money on the issue.

Anyways, thanks for the ideas and thoughts on solving the problem, I always appreciate it....but I'm honestly ok leaving the stock OPS in the tach and having all the gauges in the tombstone
Jeffbucc is offline   Reply With Quote
Old 05-01-2014, 03:51 AM   #2331
Junior Member

Join Date: Mar 2013
Location: Redmond, WA
Posts: 110
Total Cats: 42
Default

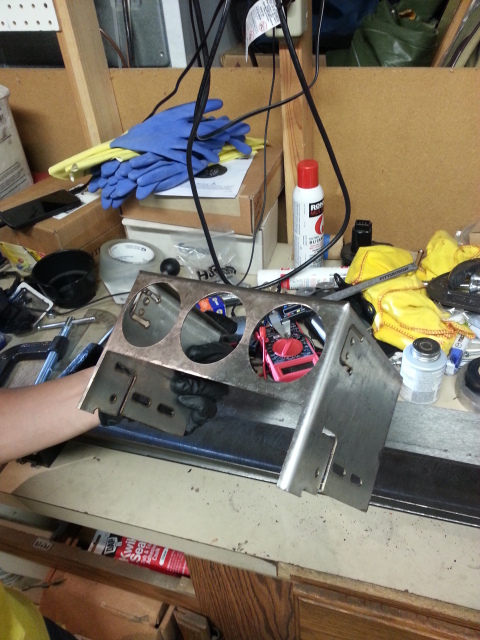

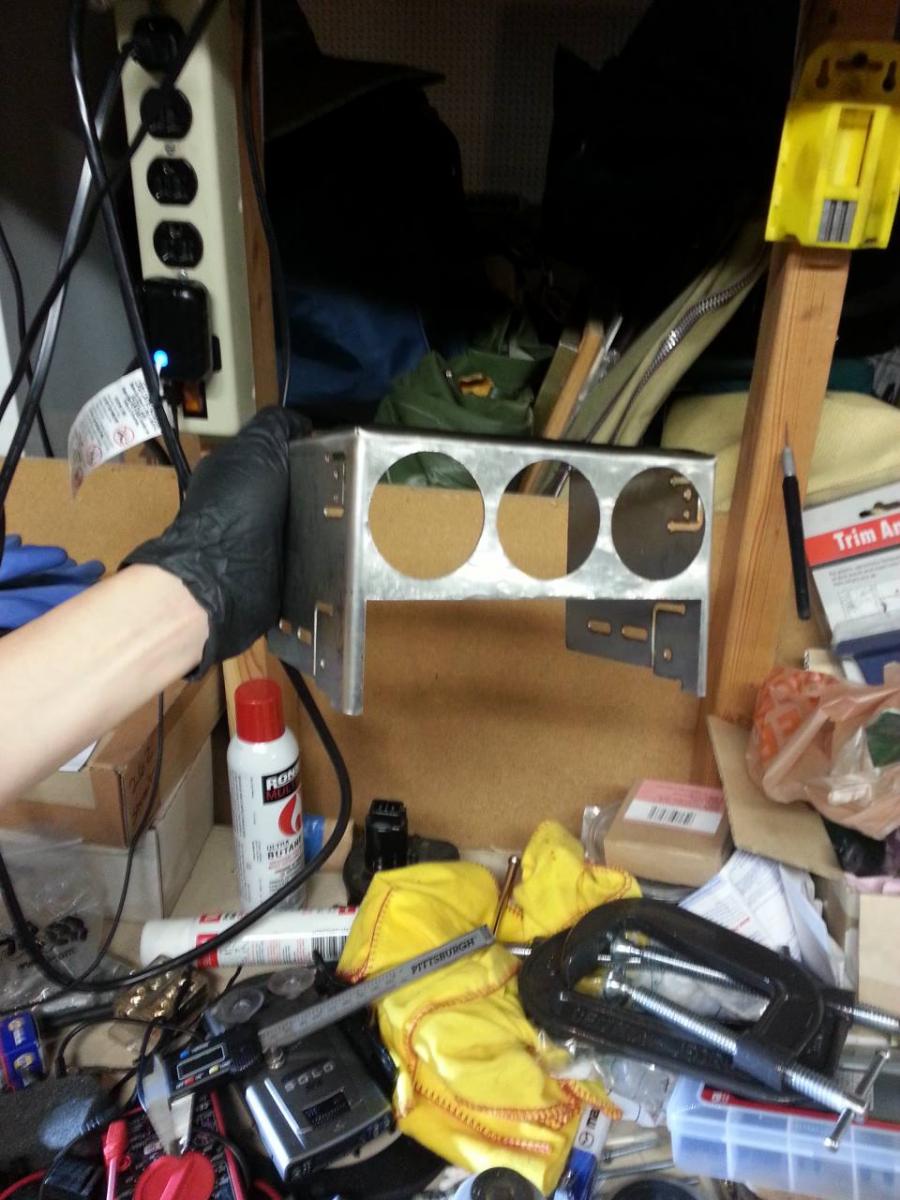

I made my own replica DDM works radio surround for my gauges. It's great because the radio mounts to it as well. I laser cut it out of 18 gauge stainless steel and bent it up. PITA to get the bends lined up though.

Attached Thumbnails
93' Miata stolen and flipped build thread-1486062_10200825014779138_2022776533_o.jpg   93' Miata stolen and flipped build thread-1501201_10200903521141748_1871331008_o.jpg   93' Miata stolen and flipped build thread-55fd4y.jpg   93' Miata stolen and flipped build thread-24d3k12.jpg   93' Miata stolen and flipped build thread-s49nxy.jpg

Yezzir is offline   Reply With Quote
Old 05-01-2014, 10:02 AM   #2332
Elite Member
iTrader: (3)

Join Date: Mar 2008
Location: Granbury, TX
Posts: 5,821
Total Cats: 555
Default

That's really nice Jeremy. Does Utah have a laser-cutter? LOL.
hornetball is offline   Reply With Quote
Old 05-01-2014, 03:15 PM   #2333
Elite Member

Jeffbucc's Avatar

Join Date: Oct 2013
Location: Cedar City, UT
Posts: 2,769
Total Cats: 946
Default

Quote:
Originally Posted by hornetball View Post
That's really nice Jeremy. Does Utah have a laser-cutter? LOL.
Definitely not in Southern Utah!
Jeffbucc is offline   Reply With Quote
Old 05-01-2014, 04:06 PM   #2334
I take big bites
iTrader: (1)

turbofan's Avatar

Join Date: Sep 2010
Location: Portland, OR
Posts: 6,084
Total Cats: 424
Default

turbofan is offline   Reply With Quote
Old 05-01-2014, 04:14 PM   #2335
Elite Member
iTrader: (3)

Join Date: Aug 2011
Posts: 7,237
Total Cats: 554
Default

After you get it laser cut, you can send it out to be zinc plated.
concealer404 is offline   Reply With Quote
Old 05-01-2014, 04:27 PM   #2336
Junior Member
iTrader: (1)

Join Date: Aug 2010
Posts: 45
Total Cats: 7
Default

Quote:
Originally Posted by revlimiter View Post
This guy specializes in gauge plates and plastic products. Might check it out.

NA Miata Gauge Plates

+1

Extremely well made radio surrounds and docking systems.

I have one in my car, and I love it.

They also make switch plates?





Last edited by Joker; 05-01-2014 at 04:39 PM.
Joker is offline   Reply With Quote
Old 05-01-2014, 09:08 PM   #2337
Elite Member

Jeffbucc's Avatar

Join Date: Oct 2013
Location: Cedar City, UT
Posts: 2,769
Total Cats: 946
Default

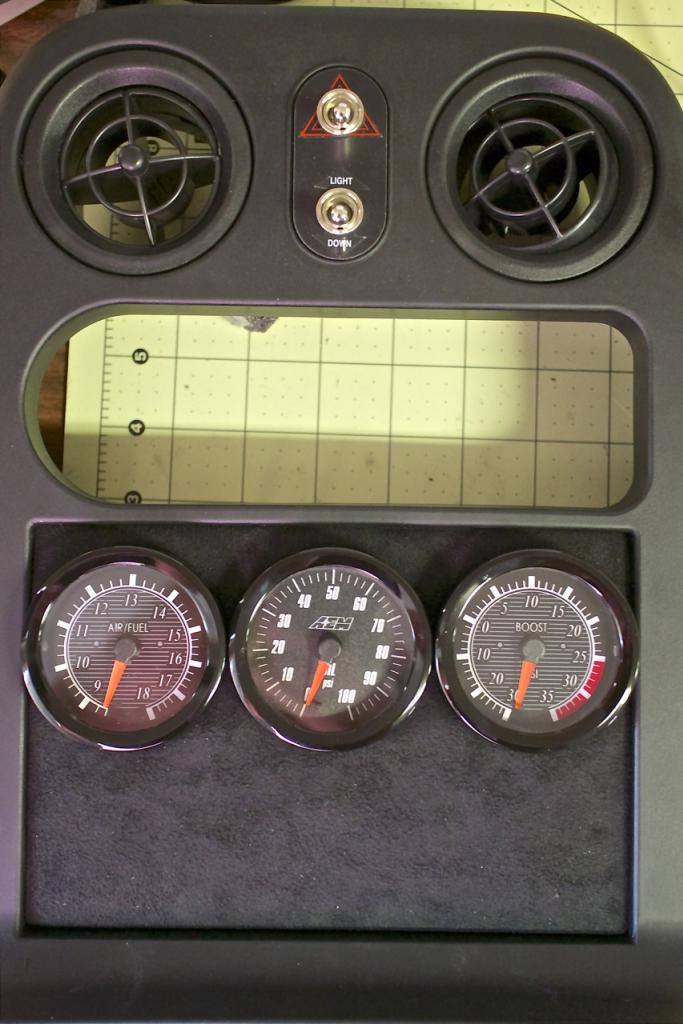

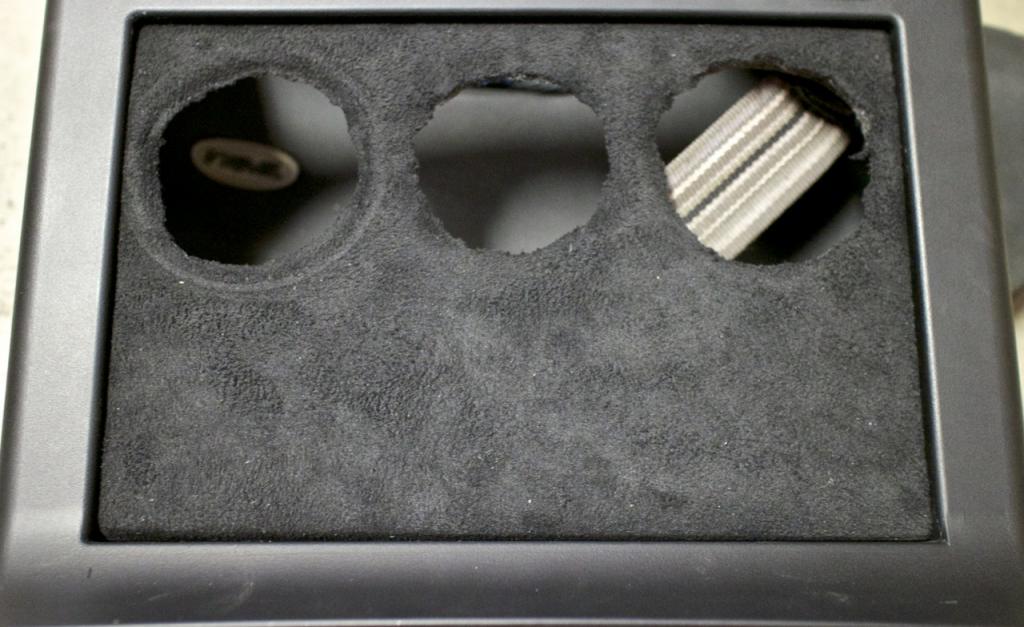

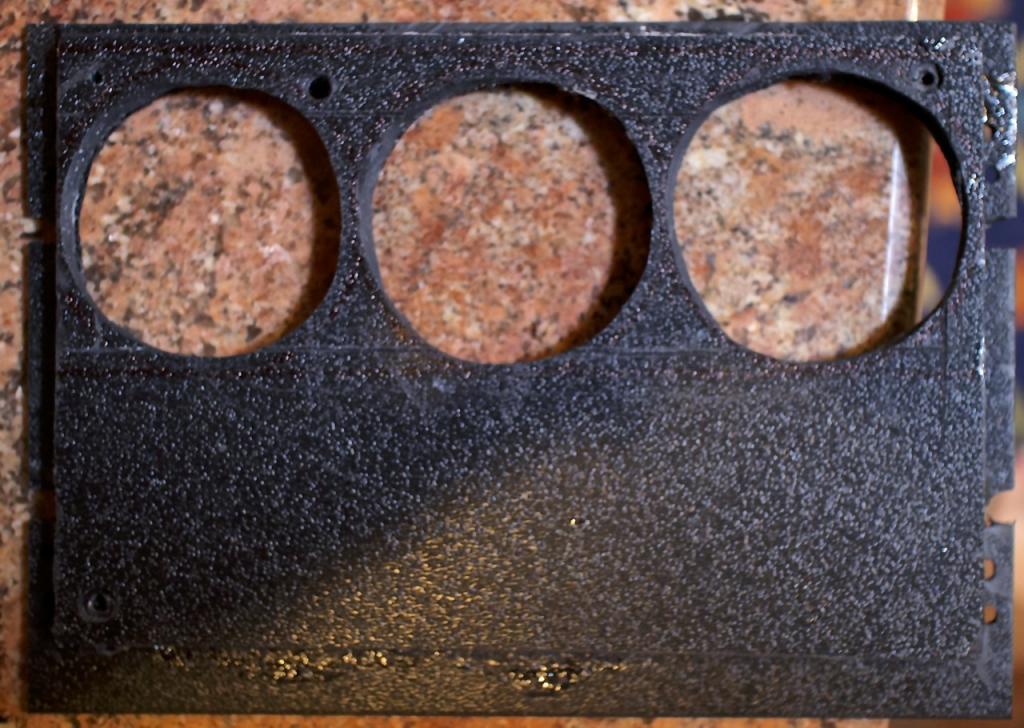

Well rather than spend more money I just decided to make an entirely new one. There isn't even a 1/4 mm between then gauges. Really tight fit, which is good I guess, because that means I did it right!

Now I just need to get another guage face from Mr Revlimiter...

I put some spacers between the front plate and the rear mounting plate and then used plastic epoxy to attach both of them. Holes really don't need to be perfect I've learned.



And some fresh suede



and with the gauges back in. I'll be honest, the 3rd gauge actually made it look better by filling up some of the empty space in the plate.

Didn't actually take me very long this time. After you make 4 different revisions you get pretty good at it.

Attached Thumbnails
93' Miata stolen and flipped build thread-img_2729.jpg   93' Miata stolen and flipped build thread-img_2730.jpg   93' Miata stolen and flipped build thread-img_2733.jpg
Jeffbucc is offline   Reply With Quote
Old 05-01-2014, 11:00 PM   #2338
Elite Member

Jeffbucc's Avatar

Join Date: Oct 2013
Location: Cedar City, UT
Posts: 2,769
Total Cats: 946
Default

Started it up after putting all the gauges back together and seeing about 60-70 psi on cold idle.

Now I just need to get my AFR voltage calibration right in TS and also mess with switching my VREF & TPS signal wires to see if I can pull closed idle off the insanely high 450+ reading (45% throttle).

Baby steps
Jeffbucc is offline   Reply With Quote
Old 05-01-2014, 11:21 PM   #2339
Junior Member

Join Date: Mar 2013
Location: Redmond, WA
Posts: 110
Total Cats: 42
Default

Great job, Jeff. Those gauges look perfectly aligned and evenly spaced out!
Yezzir is offline   Reply With Quote
Old 05-02-2014, 01:35 PM   #2340
Elite Member

Jeffbucc's Avatar

Join Date: Oct 2013
Location: Cedar City, UT
Posts: 2,769
Total Cats: 946
Default

OK so I have been toying with my tps wiring for a while this morning to try to get the closed idle frequency down to 0%(instead of 45%) and I'm getting pretty perturbed.

I've looked at others and what they have done with the vtps wiring and mine mirrors them but the sensor wire is not being grounded when installed on the connector.

Testing the tps/ground wires by touching the 2 pins together causes the tps calibration to be perfect(reads 0%) but no combination I have tried can get the same result when actually plugged into the connector.

Is there a wiring issue on the ms3x I overlooked when switching to vtps? By that I mean did I neglect to rewire the 5v to 1N?

Basically this is all that is holding me back from allowing the engine to idle...that and wildly oscillating AFR gauges in TS and the AEM gauge.

Jeffbucc is offline   Reply With Quote
