Old 01-12-2015, 10:53 AM   #3121
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 11,816
Total Cats: 479
Default

You really want to avoid cutting into the chassis as much as possible. I've regretted every cut I've made, although it's all in the name of functionality.

Have you considered an RX-7 oil cooler? Doesn't require any airflow because it's so huge, and it's a little easier to mount since it's only ~6x6. Basically replaces the plastic bumper support.
curly is offline   Reply With Quote
Old 01-12-2015, 10:55 AM   #3122
SadFab Sales Lady
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 15,895
Total Cats: 1,091
Default

What about post radiator, isnt that where laz's is mounted?
aidandj is offline   Reply With Quote
Old 01-12-2015, 11:49 AM   #3123
Elite Member
iTrader: (3)

Join Date: Mar 2008
Location: Granbury, TX
Posts: 5,845
Total Cats: 559
Default

I'm absolutely thrilled with my oil cooler location. TX Summer tested and approved.

HornetBall's Build #2: Meet Red
hornetball is offline   Reply With Quote
Old 01-12-2015, 11:55 AM   #3124
Elite Member

Join Date: Oct 2013
Location: Cedar City, UT
Posts: 2,769
Total Cats: 947
Default

Quote:
Originally Posted by hornetball View Post
I'm absolutely thrilled with my oil cooler location. TX Summer tested and approved.

HornetBall's Build #2: Meet Red
That is much cleaner than any solutions I've theorized. The only issue with mounting it behind the radiator I see is that your car is NA, which to my knowledge, doesn't see as much heat as mine potentially will.
*edit* but seeing as Texas is very relative to Vegas/southern Utah temps, it may not be as incomparable as I originally thought *edit*

I'm contemplating mounting it in front of the radiator hoping that the big *** TSE radiator will still get enough flow to be in the green with coolant temps.
Jeffbucc is offline   Reply With Quote
Old 01-12-2015, 12:06 PM   #3125
Elite Member
iTrader: (3)

Join Date: Mar 2008
Location: Granbury, TX
Posts: 5,845
Total Cats: 559
Default

What's the diff? Your radiator AND your oil cooler combined cool the engine. Whether one is in front of the other doesn't matter much, you're still adding engine cooling capacity. If you put the oil cooler in front of the radiator, you either add to the stack and reduce radiator effectiveness, or you divert air and reduce radiator effectiveness. If you put the oil cooler behind the radiator, you add to the stack and reduce the oil cooler effectiveness slightly.

HOWEVER, proper design and stacking of heat transfer devices should consider the target temperature of the fluid you are cooling, since heat transfer is a product of the delta-T. What that means is your coolest fluid should go up front, and your warmest in the back. That order would be intercooler (target temp < 100F), radiator (target temp < 200F), oil cooler (target temp < 230F).

Or, I could just skip the science and tell you to do it this way because it works (in TX in August), it's easy to install, easy to maintain, keeps the oil cooler protected and doesn't require you to cut up your car.

Or . . . well, that's enough. BTW, the heat in your oil comes more from RPM than from power.
hornetball is offline   Reply With Quote
Old 01-12-2015, 12:21 PM   #3126
Elite Member

Join Date: Oct 2013
Location: Cedar City, UT
Posts: 2,769
Total Cats: 947
Default

Quote:
Originally Posted by hornetball View Post
Or, I could just skip the science and tell you to do it this way because it works (in TX in August), it's easy to install, easy to maintain, keeps the oil cooler protected and doesn't require you to cut up your car.

Or . . . well, that's enough. BTW, the heat in your oil comes more from RPM than from power.
I wasn't fighting yah, merely an inquiry. You know me, I listen to the sage advice given by those who know their ****, rather than I who knows ****. I am too tired and lazy to try to reinvent the wheel here, and knowing it works in Texas means it will work in Utah.

Attached Thumbnails
93' Miata stolen and flipped build thread-78799096_3.gif
Jeffbucc is offline   Reply With Quote
Old 01-12-2015, 12:21 PM   #3127
Elite Member

Join Date: Oct 2013
Location: Cedar City, UT
Posts: 2,769
Total Cats: 947
Default

Website did it!

Last edited by Jeffbucc; 01-12-2015 at 12:24 PM. Reason: Site lag
Jeffbucc is offline   Reply With Quote
Old 01-12-2015, 09:29 PM   #3128
Senior Member
iTrader: (1)

revlimiter's Avatar

Join Date: Jan 2009
Location: ABQ, NM
Posts: 512
Total Cats: 86
Default

Congrats on getting the MR short shifter! I expect you'll love it more with every passing drive.
revlimiter is offline   Reply With Quote
Old 01-13-2015, 01:43 AM   #3129
Elite Member
iTrader: (2)

Mobius's Avatar

Join Date: May 2008
Location: Portland, Oregon
Posts: 2,826
Total Cats: 222
Default

Quote:
Originally Posted by hornetball View Post
Or . . . well, that's enough. BTW, the heat in your oil comes more from RPM than from power.
This ... granted I have Brotrex boost, but even so, ALL of my oil heat comes from RPM and not power. Trubos may be different due to the trubo sharing oil with the engine for cooling purposes. But other than that, BP engine oil heat is almost entirely due to average RPM.
Mobius is offline   Reply With Quote
Old 01-13-2015, 01:55 AM   #3130
Elite Member
iTrader: (3)

Join Date: Mar 2008
Location: Granbury, TX
Posts: 5,845
Total Cats: 559
Default

Quote:
Originally Posted by Mobius View Post
ALL of my oil heat comes from RPM and not power.
Not sure I'd go quite that far. After all, we do have squirted pistons so there is an increment related to power production. But, yeah, for the most part, high RPM = high oil temps.
hornetball is offline   Reply With Quote
Old 01-13-2015, 02:28 AM   #3131
Elite Member
iTrader: (2)

Mobius's Avatar

Join Date: May 2008
Location: Portland, Oregon
Posts: 2,826
Total Cats: 222
Default

I've played with it on the freeway. On my car virtually none of the oil temp is due to engine load. Avg engine rpm is by far the deciding factor.
Mobius is offline   Reply With Quote
Old 01-13-2015, 06:09 AM   #3132
Elite Member
iTrader: (3)

Join Date: Mar 2008
Location: Granbury, TX
Posts: 5,845
Total Cats: 559
Default

Quote:
Originally Posted by Mobius View Post
I've played with it on the freeway. On my car virtually none of the oil temp is due to engine load. Avg engine rpm is by far the deciding factor.
Ditto. Doing light-load/high-RPM autotuning, oil temp goes through the roof.
hornetball is offline   Reply With Quote
Old 01-13-2015, 08:45 PM   #3133
Elite Member

Join Date: Oct 2013
Location: Cedar City, UT
Posts: 2,769
Total Cats: 947
Default

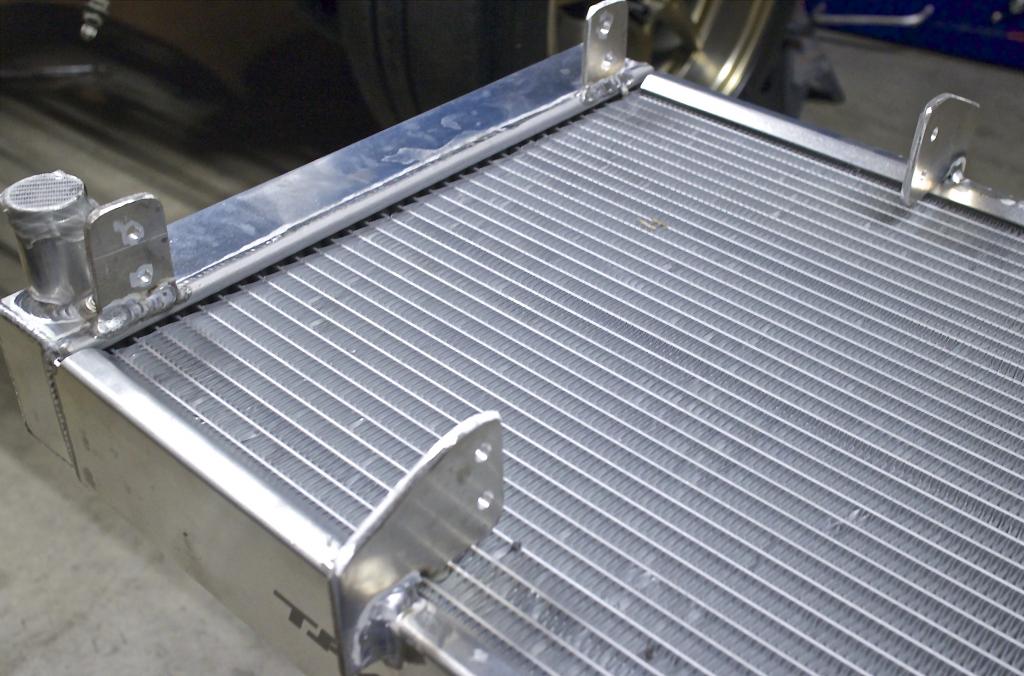

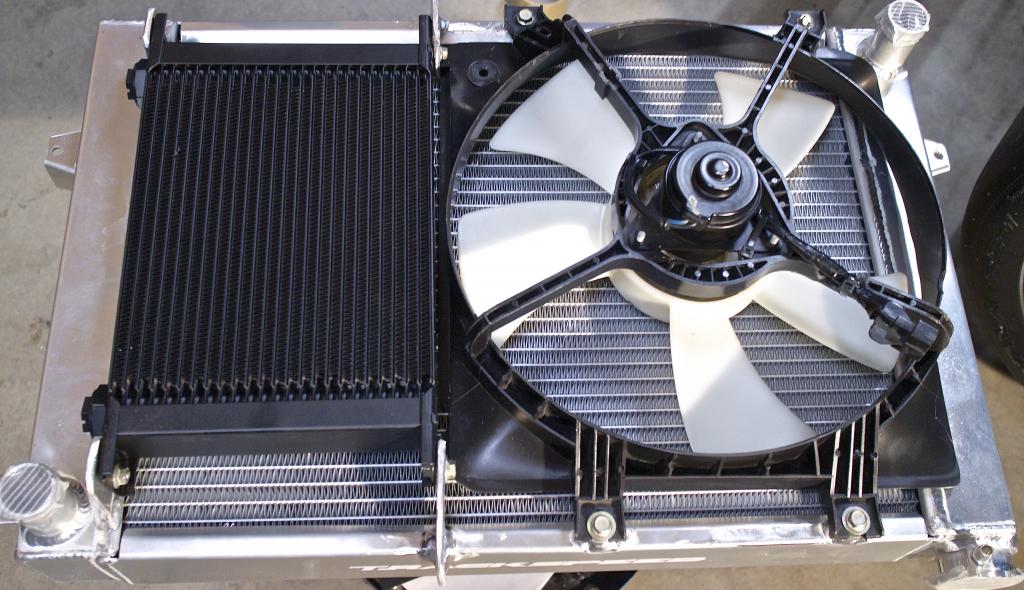

Followed Rick's advice and mounted it as he did and it works really nicely. Took it to a Welder who does aluminum railings/iron work, he cut off the original fan bungs and moved them to the drivers side. Welded some tabs onto the passenger side and $50 later and no frustration we are good to go.

Had to trim the fan a little and add a couple washers to the fan mounts to clear the blades, but other than that no problem.

Now I just need to figure out how to connect the AN connectors to the stainless lines. Just glad they are 90 connectors to clear the frame rails.



Attached Thumbnails
93' Miata stolen and flipped build thread-img_2919.jpg   93' Miata stolen and flipped build thread-img_2920.jpg
Jeffbucc is offline   Reply With Quote
Old 01-13-2015, 08:59 PM   #3134
I take big bites
iTrader: (1)

turbofan's Avatar

Join Date: Sep 2010
Location: Portland, OR
Posts: 6,116
Total Cats: 426
Default

That's really, really clean. Love it.
turbofan is offline   Reply With Quote
Old 01-13-2015, 09:56 PM   #3135
Destroyer of Inconel
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 9,041
Total Cats: 809
Default

Ok, wow. That may make me seriously rethink my oil cooler plans.
EO2K is online now   Reply With Quote
Old 01-13-2015, 10:48 PM   #3136
SadFab Sales Lady
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 15,895
Total Cats: 1,091
Default

Quote:
Originally Posted by aidandj View Post
What about post radiator, isnt that where laz's is mounted?
Quote:
Originally Posted by hornetball View Post
I'm absolutely thrilled with my oil cooler location. TX Summer tested and approved.

HornetBall's Build #2: Meet Red
Hey I said it first! lol.

I think I will run mine off some brackets on the AC fan mounts. Whenever I get around to actually getting an oil cooler.
aidandj is offline   Reply With Quote
Old 01-13-2015, 11:30 PM   #3137
Junior Member
iTrader: (1)

Join Date: Mar 2012
Location: Pa
Posts: 128
Total Cats: 11
Default

That's a great job Jeff. I'm looking to mount the same kit soon and will have to look into that location.
darkcambria is offline   Reply With Quote
Old 01-14-2015, 07:56 AM   #3138
Elite Member

Join Date: Oct 2013
Location: Cedar City, UT
Posts: 2,769
Total Cats: 947
Default

Quote:
Originally Posted by EO2K View Post
Ok, wow. That may make me seriously rethink my oil cooler plans.
It really is most choice. Do it...it ain't like you're in a rush!

Quote:
Originally Posted by aidandj View Post
Hey I said it first! lol.

I think I will run mine off some brackets on the AC fan mounts. Whenever I get around to actually getting an oil cooler.
You said first....Rick just won due to pictures and data.

Ok I switched to imgur to try it out, and get Scott off my PB account.
-
-
-
So while I'm waiting to get my AN lines made I decided to do a once over of all my bolts/connections/et al and holy **** am I glad I did. Considering I have to drive the Miata 5 hours to Willow springs and back, this could have been a slight issue on the track.

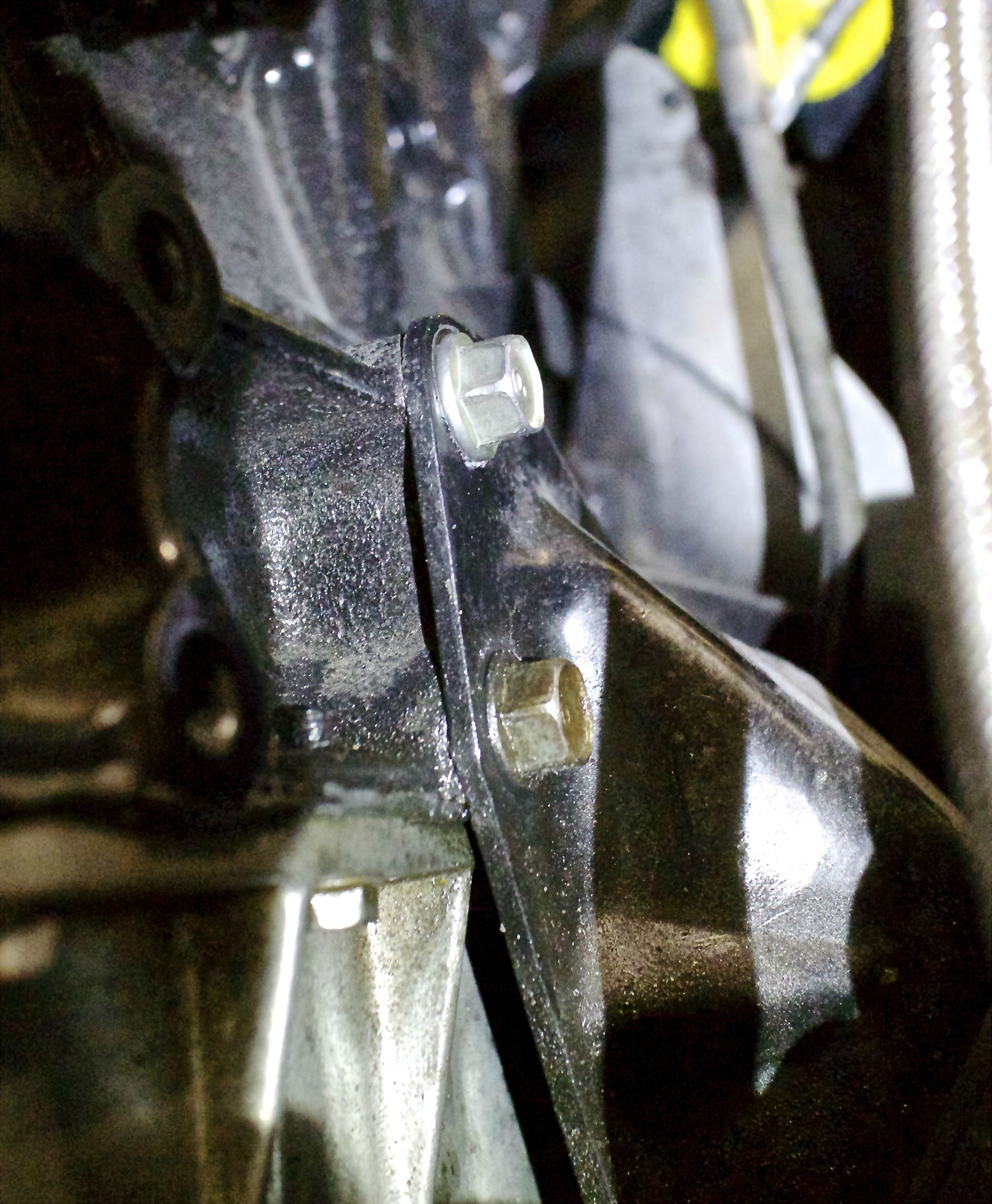

Notice the difference between these two bolts? One is shiny and not covered in road grime...yeah... On each motor mount I had a bolt missing and the others were hand tight. I clearly remember torquing them to spec, but I guess with the Mazdaspeed motor mounts, I either need to loctite them, or just check them more regularly.

What is y'alls solution? Loctite, overtorque, or regular preventative maintenance?



Also decided to redo my heater core hose downpipe heat prevention solution. I originally used a **** load of aluminum tape and transmission tunnel wrap. But the adhesive on both gave up the ghost and I was using a ton of metal zip ties to keep it on. Functionally it was working, but I didn't want to risk it falling off in some areas and getting a melted hose as a result.

I bought 3' of

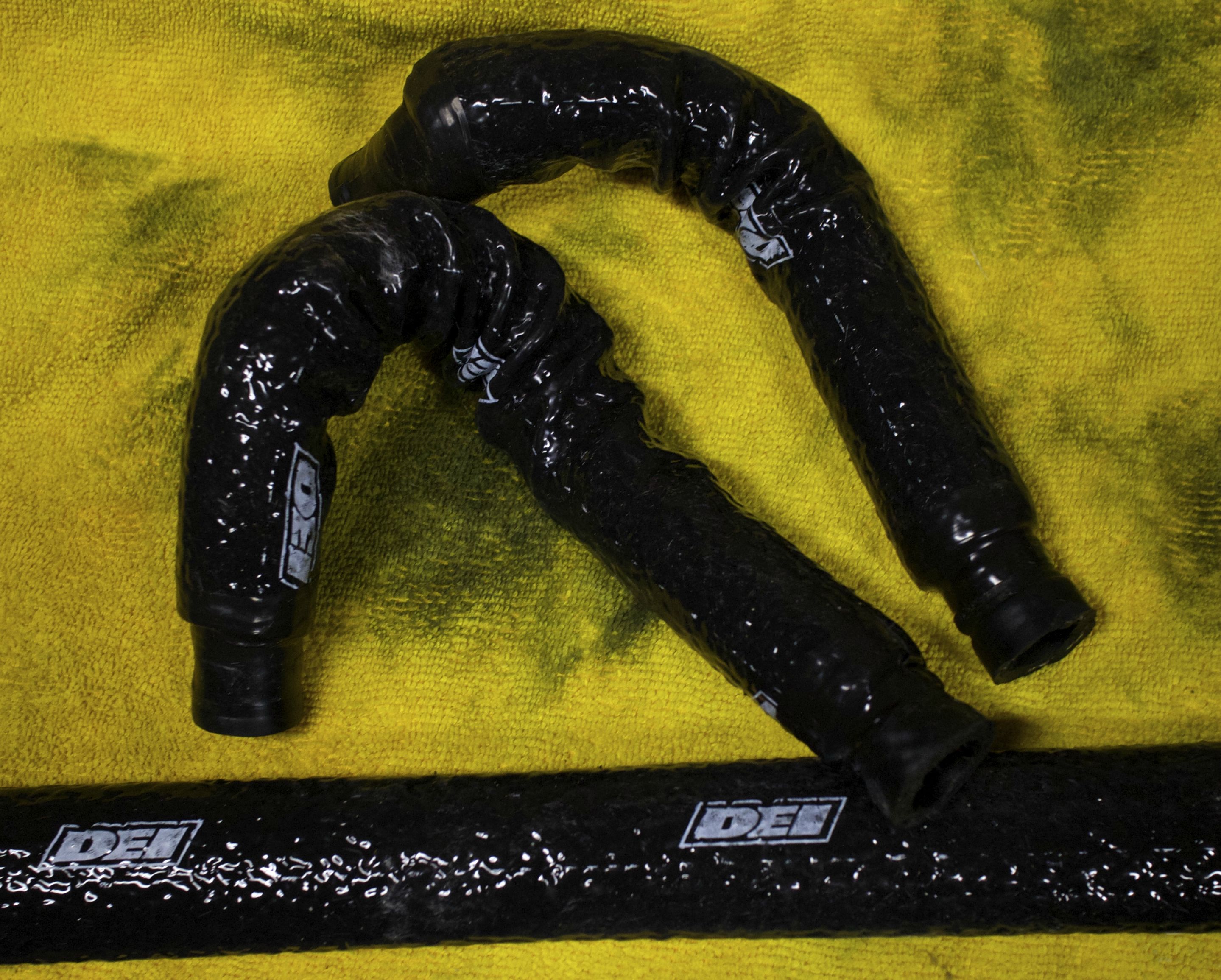

DEI 1" diameter Fire Sleeve DEI 1" diameter Fire Sleeve
after doing a bit of research. I should have done this in the first place. Super easy, and slips on without any struggle(I just put rubber conditioner on so it was easier for me). Highly recommend it. Plus it looks a lot clean as hell.

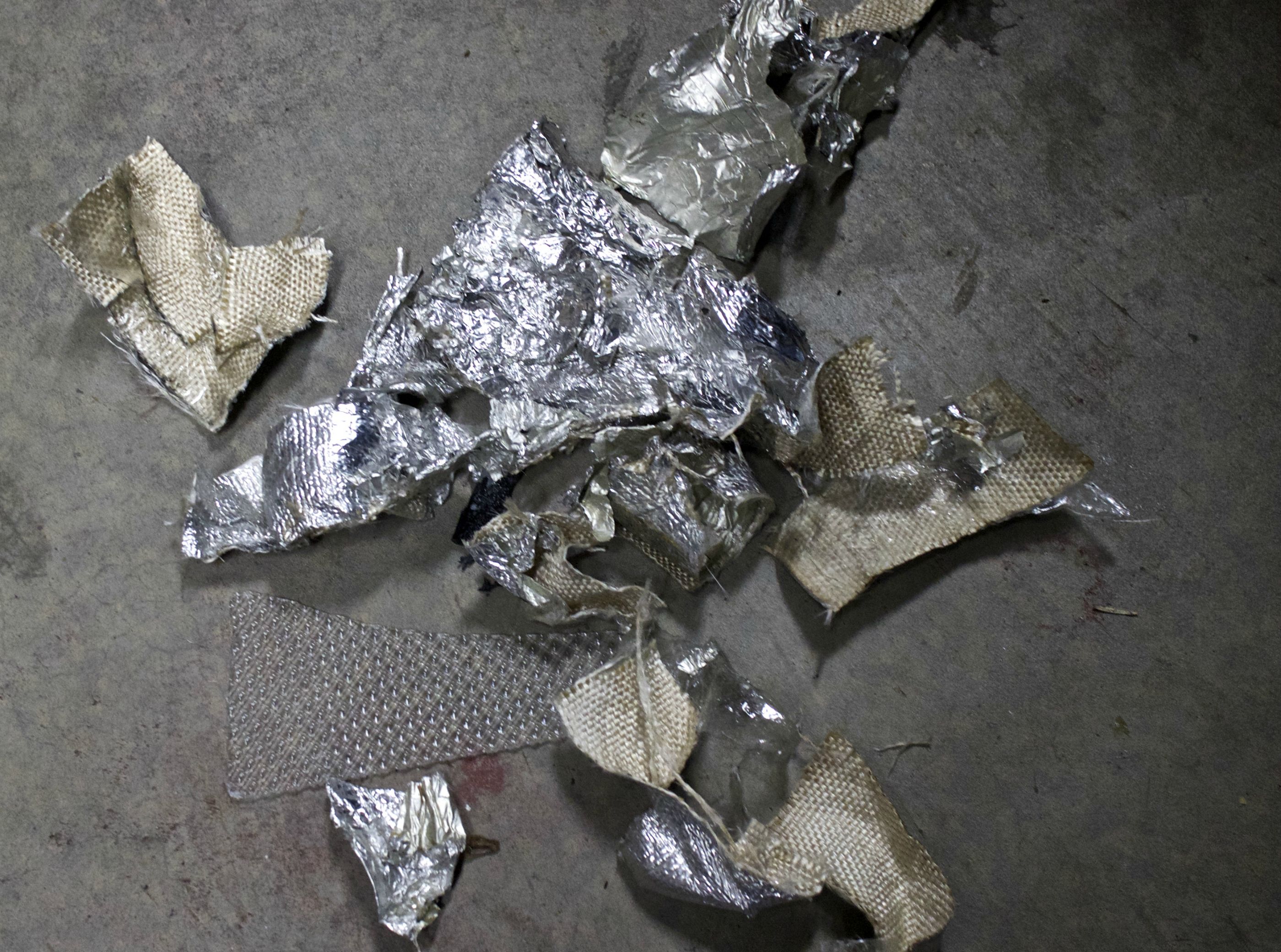

It also comes with this awesome(as in I'm buying several rolls of it) rubber tape. Only it has no adhesive, it just attaches to itself somehow...no clue, love it though.

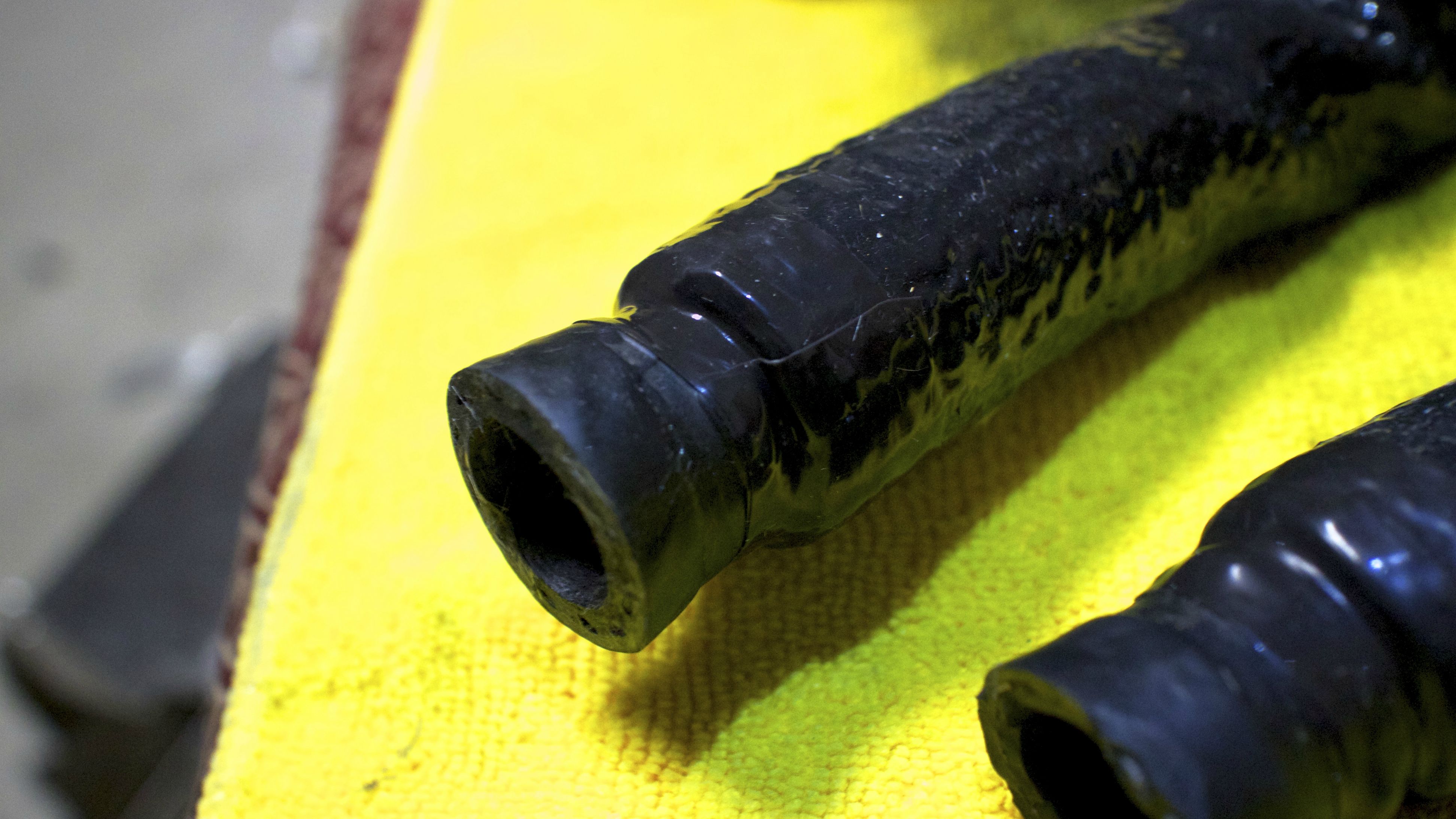

Much better than this!



Trying to make it to the autocross meet this weekend to see how the car does before my track date, so hopefully I can get it tidied up before Sunday.
Jeffbucc is offline   Reply With Quote
Old 01-14-2015, 08:25 AM   #3139
Elite Member
iTrader: (21)

Join Date: Jun 2007
Location: Rochester, NY
Posts: 5,324
Total Cats: 379
Default

Silicone tape. Electricians have been using it for years. Sold as "home repair" tape in the big box stores.
rleete is offline   Reply With Quote
Old 01-14-2015, 08:38 AM   #3140
Elite Member

Join Date: Oct 2013
Location: Cedar City, UT
Posts: 2,769
Total Cats: 947
Default

Quote:
Originally Posted by rleete View Post
Silicone tape. Electricians have been using it for years. Sold as "home repair" tape in the big box stores.
I love you...

Jeffbucc is offline   Reply With Quote
