Old 04-20-2015, 02:53 AM   #3741
Elite Member

codrus's Avatar

Join Date: Mar 2007
Location: Santa Clara, CA
Posts: 3,026
Total Cats: 222
Default

Quote:
Originally Posted by Jeffbucc View Post
Hmmm I'm interested in what a different Dyno would report then. It certainly doesn't feel like it spools that late/delivers power that slowly.

What are the right questions to ask the tuner to find the answers we are obviously lacking?

Could my EBC to EWG routing have affected the spool?

If it was truly that slow on power you'd think I'd be able to feel it compared to my 2860rs turbo.
Can you datalog it on the street? Put it in 5th at 2000 RPM, stand on it, post the graph of the MAP & RPM.

--Ian
codrus is online now   Reply With Quote
Old 04-20-2015, 04:55 PM   #3742
Elite Member

Jeffbucc's Avatar

Join Date: Oct 2013
Location: Cedar City, UT
Posts: 2,769
Total Cats: 946
Default

OK so I got a hold of kyle who tuned the car and asked him why, compared to other similar builds it showed such negative performance and apparently in order for the Dyno to display the results on the Dyno he was using(not his own, a BMW shop's, he found that one of the sensors was faulty and had to deactivate it so it didn't go on the fritz when trying to get a plot. Also the power runs shown in the graph were done in fifth gear rather than 4th like I thought.

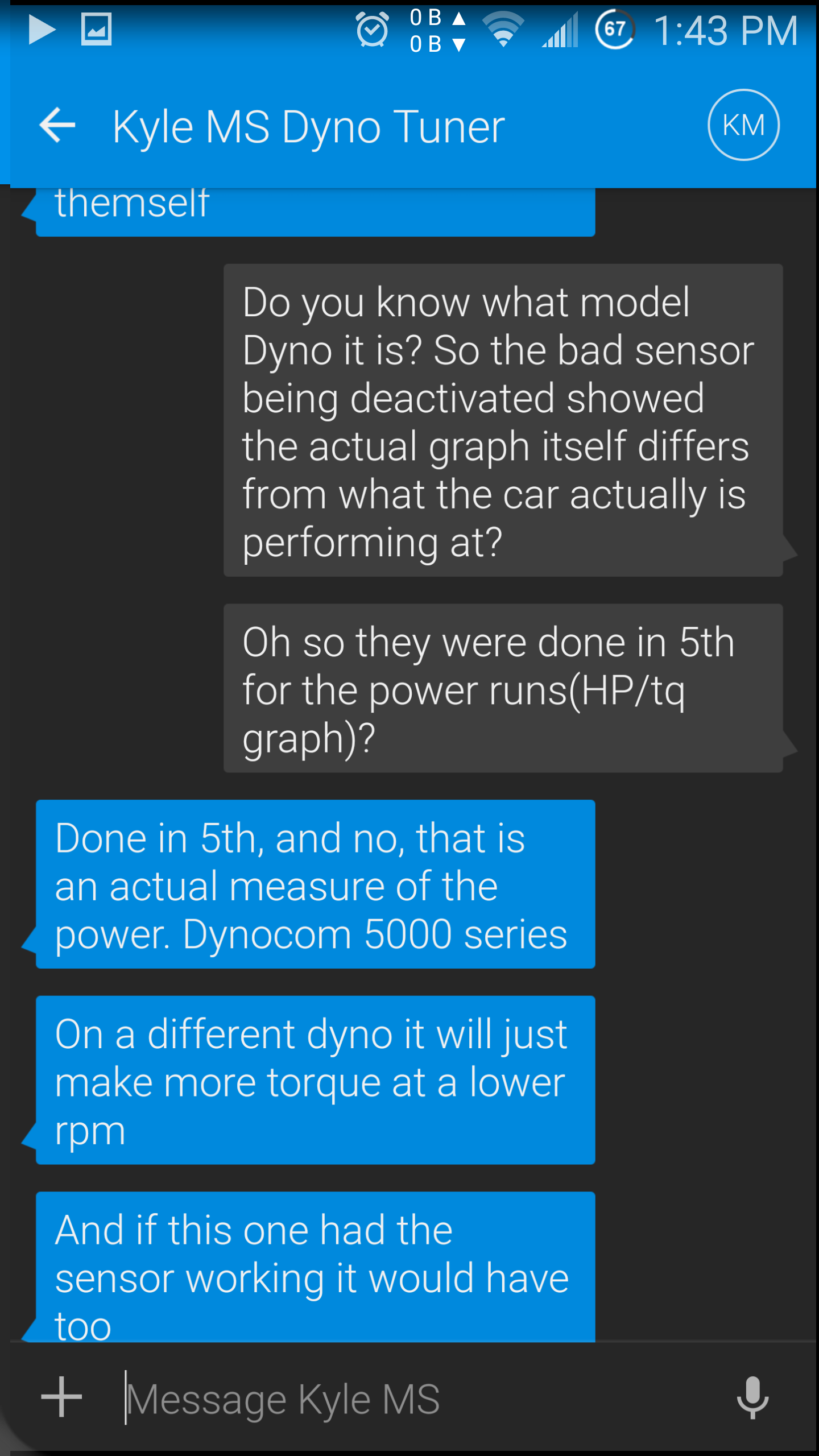

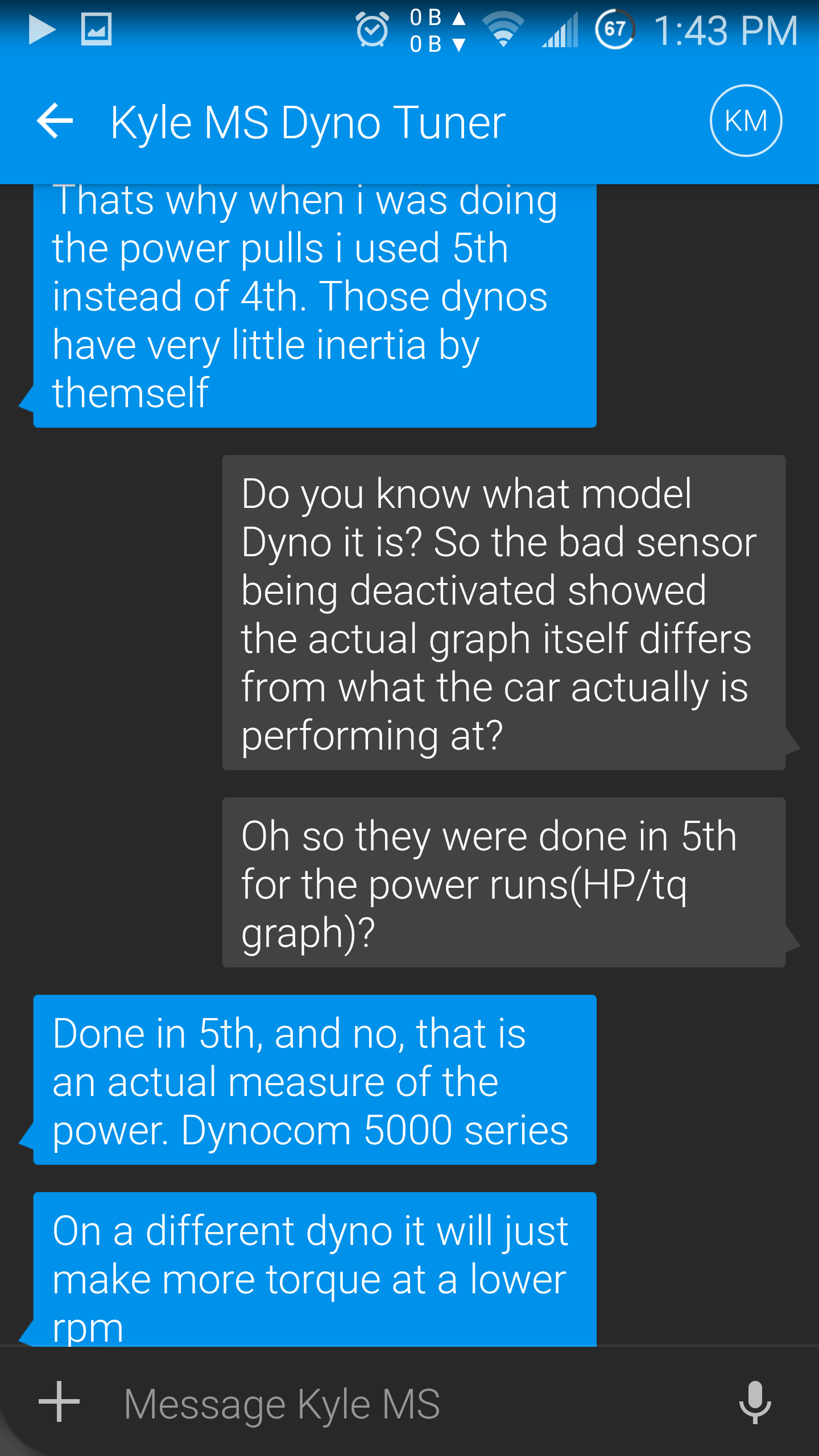

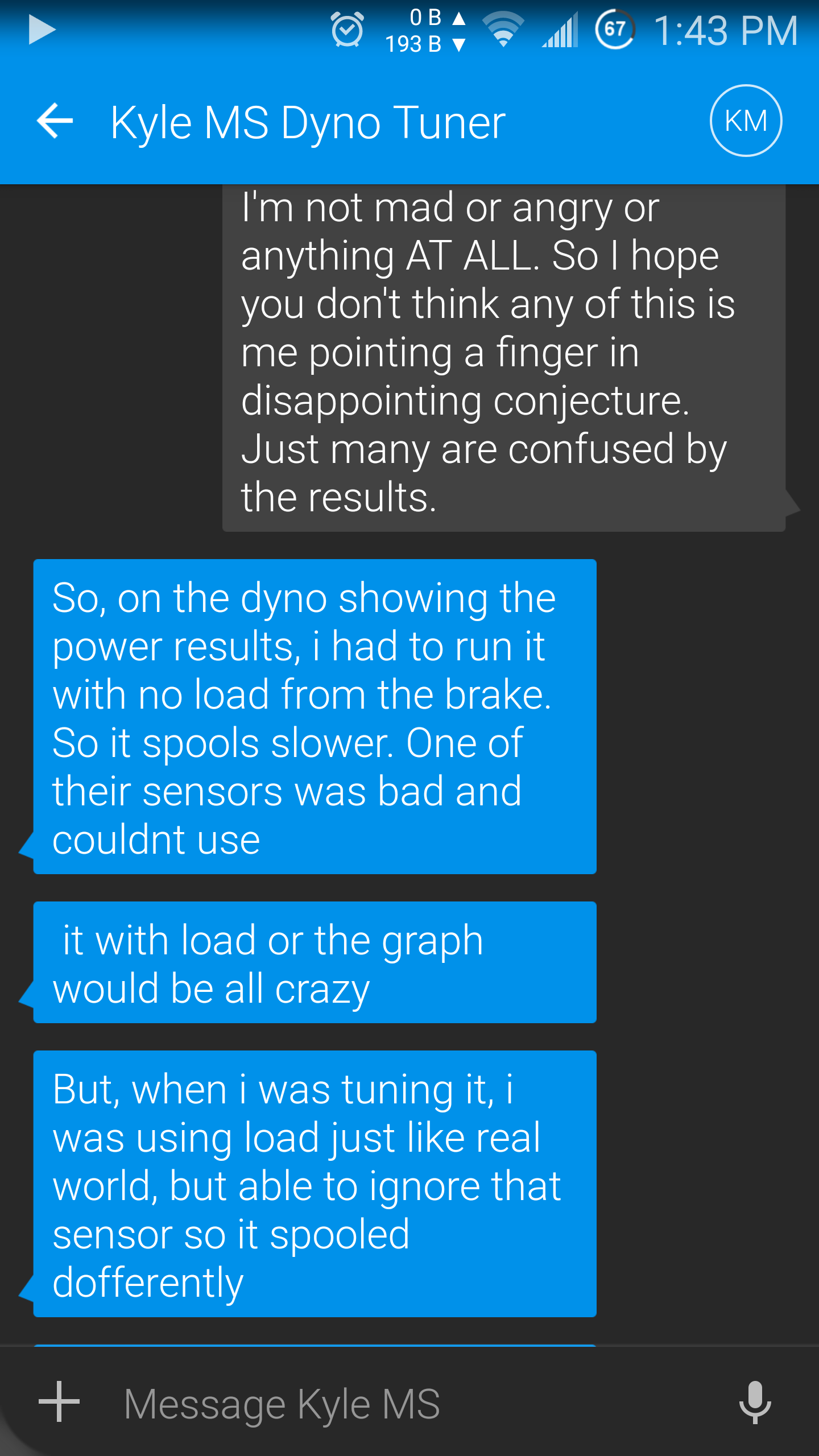

Here are the texts since he explained it better than I am.





Jeffbucc is offline   Reply With Quote
Old 04-20-2015, 04:58 PM   #3743
SadFab Sales Lady
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 15,245
Total Cats: 979
Default

Makes sense to me Problem solved.
aidandj is offline   Reply With Quote
Old 04-20-2015, 05:25 PM   #3744
Elite Member

codrus's Avatar

Join Date: Mar 2007
Location: Santa Clara, CA
Posts: 3,026
Total Cats: 222
Default

That's a reasonable explanation for why the spool on the dyno was so bad -- just like if the run had been done in 2nd, with no load the motor is spinning up faster than the turbo can.

The only potential downside to this is that if it's not making full boost until, say 4500 RPM whereas it would make it at 3500 RPM on the street, that means there are a few cells that haven't been tuned on the dyno because he could never put the car into those cells.

--Ian
codrus is online now   Reply With Quote
Old 04-20-2015, 05:26 PM   #3745
SadFab Sales Lady
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 15,245
Total Cats: 979
Default

He tuned it with a load on it, just did the power pulls with no load. The load worked, but screwed up the graph if it was on.
aidandj is offline   Reply With Quote
Old 04-20-2015, 05:29 PM   #3746
Supporting Vendor
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 13,522
Total Cats: 877
Default

I feel for the guy. We owned a Dynocom unit for about 6 months in 2011. The manufacturer is beyond incompetent and the dynos are total junk.
Savington is online now   Reply With Quote
Old 04-20-2015, 05:30 PM   #3747
Elite Member

Jeffbucc's Avatar

Join Date: Oct 2013
Location: Cedar City, UT
Posts: 2,769
Total Cats: 946
Default

Quote:
Originally Posted by aidandj View Post
He tuned it with a load on it, just did the power pulls with no load. The load worked, but screwed up the graph if it was on.
Exactly. The actual tuning itself was done correctly with load since he was looking at the megasquirt data, but to get an accurate graph plot, he had to pull the load due to the sensor going on the fritz if load was applied

So the actual HP/TQ is accurate, just not the power in relation to RPMs, which is would show results much more in line with similar builds.

So I hope to get a few runs this weekend on a different Dyno in Vegas this weekend when I go down for the autocross on Sunday.
Jeffbucc is offline   Reply With Quote
Old 04-20-2015, 05:57 PM   #3748
Elite Member
iTrader: (3)

Join Date: Mar 2008
Location: Granbury, TX
Posts: 5,821
Total Cats: 555
Default

Correction. The torque would be accurate but shifted. The HP is a calculated number that requires accurate RPM as an input. You'll note that on your plot, you still crossed at 5250, even though the RPM is bogus. So . . . .

Enough drama. When is your track day?
hornetball is offline   Reply With Quote
Old 04-20-2015, 07:34 PM   #3749
Elite Member

Jeffbucc's Avatar

Join Date: Oct 2013
Location: Cedar City, UT
Posts: 2,769
Total Cats: 946
Default

Quote:
Originally Posted by hornetball View Post

Enough drama. When is your track day?
Don't have one planned any time soon, but that is mostly due to being really busy at work lately....employees, equipment failure, etc...

I need to take a look at what events are happening soon and see what I can make.
Jeffbucc is offline   Reply With Quote
Old 04-22-2015, 03:50 AM   #3750
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 33,441
Total Cats: 2,038
Default

I come back from vaca and this thread has gone from awesome to over 9,000

well done el heffe that is some serious power and love the videos

PS: and I too was shocked by the lack of low end torque but the dudes explanation does make sense to me too
18psi is offline   Reply With Quote
Old 04-22-2015, 08:58 AM   #3751
Elite Member

Jeffbucc's Avatar

Join Date: Oct 2013
Location: Cedar City, UT
Posts: 2,769
Total Cats: 946
Default

Quote:
Originally Posted by 18psi View Post
I come back from vaca and this thread has gone from awesome to over 9,000

That is due to the advances in Turbo Encabulator technology!

Jeffbucc is offline   Reply With Quote
Old 04-22-2015, 10:39 AM   #3752
Junior Member
iTrader: (2)

Join Date: Sep 2014
Location: PHX, Arizona
Posts: 227
Total Cats: 13
Default

ah yes, there have been leaps and bounds in the fields of magneto-reluctance and capacitive diractance.

Awesome build, awesome numbers.
humming is offline   Reply With Quote
Old 04-29-2015, 10:30 PM   #3753
Elite Member

Jeffbucc's Avatar

Join Date: Oct 2013
Location: Cedar City, UT
Posts: 2,769
Total Cats: 946
Default

Finally got some ***** from Brainiack

Attached Thumbnails
93' Miata stolen and flipped build thread-5umoesx.jpg
Jeffbucc is offline   Reply With Quote
Old 04-30-2015, 02:10 AM   #3754
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 33,441
Total Cats: 2,038
Default

Quote:
Originally Posted by Jeffbucc View Post
Finally got some ***** from Brainiack Braineak
you spelled it correctly, so I fixed it
18psi is offline   Reply With Quote
Old 04-30-2015, 09:22 AM   #3755
Boost Czar

iTrader: (60)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 70,438
Total Cats: 1,426
Default

just spell it phonetically like i did.
Braineack is offline   Reply With Quote
Old 05-01-2015, 12:58 PM   #3756
Senior Member
iTrader: (1)

Join Date: Nov 2007
Location: Saint Paul, MN
Posts: 1,168
Total Cats: 18
Default

I'd love to take a ride in your car sometime but after looking up your location I can understand why it's so tough to get a dyno. Maybe FM would be willing to open their doors for a few pulls? Not exactly close but hey you get to see FM...?
Der_Idiot is offline   Reply With Quote
Old 05-01-2015, 01:04 PM   #3757
Elite Member

Jeffbucc's Avatar

Join Date: Oct 2013
Location: Cedar City, UT
Posts: 2,769
Total Cats: 946
Default

Quote:
Originally Posted by Der_Idiot View Post
I'd love to take a ride in your car sometime but after looking up your location I can understand why it's so tough to get a dyno. Maybe FM would be willing to open their doors for a few pulls? Not exactly close but hey you get to see FM...?
I'll get another run done in Vegas when time permitting, not huge on my importance list though.

Right now waiting on a few AN fittings from Fab9 to solve my fuel leaking issue once and for all. 70 psi rail pressure is a bit much for hose clamps and LAPS fuel line apparently. Gonna have full -6an fuel lines off the rail to the fuel regulator. All the AN!
Jeffbucc is offline   Reply With Quote
Old 05-01-2015, 09:06 PM   #3758
Junior Member
iTrader: (1)

Join Date: Feb 2013
Location: Windsor, Ontario
Posts: 403
Total Cats: 64
Default

Quote:
Originally Posted by Jeffbucc View Post
Gonna have full -6an fuel lines off the rail to the fuel regulator. All the AN!
I like this!
BoostedSmurf is offline   Reply With Quote
Old 05-01-2015, 09:19 PM   #3759
Elite Member
iTrader: (19)

Join Date: Jun 2007
Location: Rochester, NY
Posts: 5,220
Total Cats: 339
Default

Can he polish the braided hoses in the meantime?
rleete is offline   Reply With Quote
Old 05-02-2015, 12:43 AM   #3760
Elite Member

Jeffbucc's Avatar

Join Date: Oct 2013
Location: Cedar City, UT
Posts: 2,769
Total Cats: 946
Default

Quote:
Originally Posted by rleete View Post
Can he polish the braided hoses in the meantime?

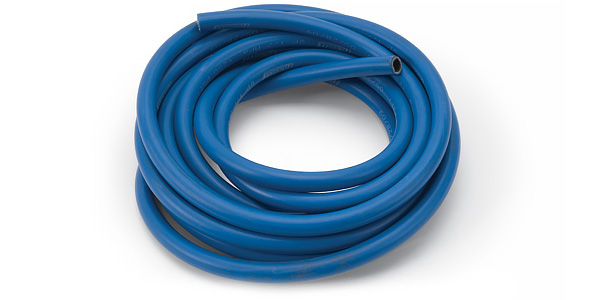

I would but I'm experimenting with push lock fittings for the fuel system for a variety of reasons. Plus, everything is E85 compatible if I ever get my hands on it down the road.

(only in black)

Attached Thumbnails
93' Miata stolen and flipped build thread-twist-lok.jpg
Jeffbucc is offline   Reply With Quote
