Old 06-26-2015, 02:35 PM   #4061
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 33,834
Total Cats: 2,122
Default

Quote:
Originally Posted by aidandj View Post
<p>Just needs more RTV.</p>
no
18psi is offline   Reply With Quote
Old 06-26-2015, 02:36 PM   #4062
SadFab Sales Lady
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 15,912
Total Cats: 1,094
Default

<p>hehe</p>
aidandj is offline   Reply With Quote
Old 06-26-2015, 02:41 PM   #4063
Elite Member

Join Date: Oct 2013
Location: Cedar City, UT
Posts: 2,769
Total Cats: 947
Default

Quote:
Originally Posted by aidandj View Post
<p>Just needs more RTV.</p>
Jeffbucc is offline   Reply With Quote
Old 06-26-2015, 02:48 PM   #4064
Elite Member

Join Date: Oct 2013
Location: Cedar City, UT
Posts: 2,769
Total Cats: 947
Default

(Aidan I RTV'd my throttle body I can't say ****)
Jeffbucc is offline   Reply With Quote
Old 06-27-2015, 10:57 PM   #4065
Elite Member

Join Date: Oct 2013
Location: Cedar City, UT
Posts: 2,769
Total Cats: 947
Default

Hooray nothing exploded on startup. But I do need a new battery. even after sitting on a tender for 2 months it only had 8 volts and wouldn't turn the motor over. Borrowed the battery from my VW and primed for oil pressure and we it started right up.

My CAS alignment must be off though because the engine is really sluggish a coughs for a second on a little throttle input. Need to get a timing light on it to see if maybe I'm off a tooth but at TDC it aligns properly.

Also there is a tiny amount of side to side movement in the timing belt, like 1mm at most, no damper wobble. should I be concerned? Everything torqued properly.

Attached Thumbnails

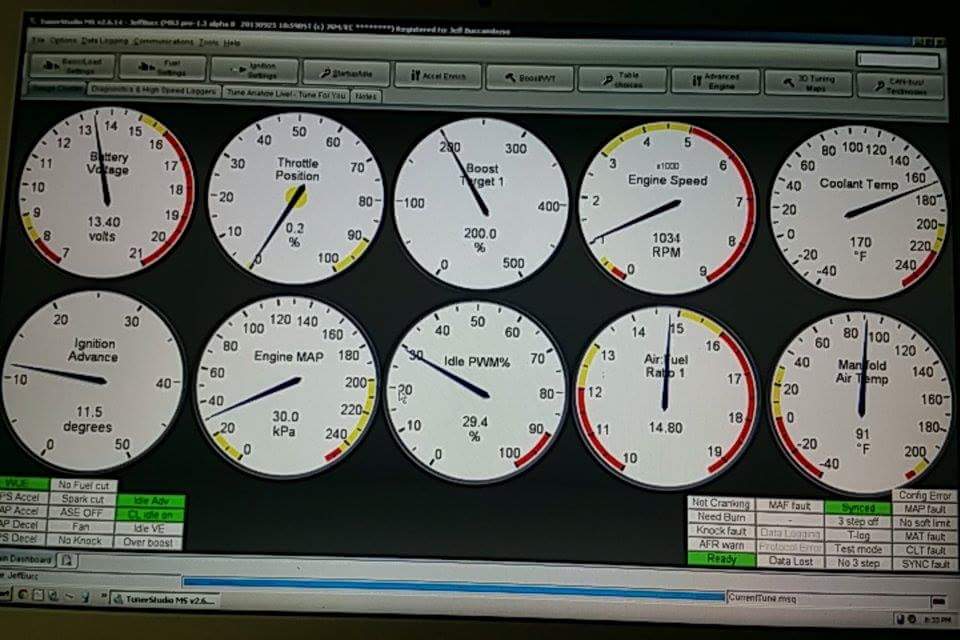

93' Miata stolen and flipped build thread-cssw8yk.jpg

Last edited by Jeffbucc; 06-27-2015 at 11:16 PM.
Jeffbucc is offline   Reply With Quote
Old 06-27-2015, 11:40 PM   #4066
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 33,834
Total Cats: 2,122
Default

nice target boost at idle
18psi is offline   Reply With Quote
Old 06-27-2015, 11:42 PM   #4067
Elite Member

Join Date: Oct 2013
Location: Cedar City, UT
Posts: 2,769
Total Cats: 947
Default

Lol, that gauge has never worked properly, not sure why I have it up on the main screen.
Jeffbucc is offline   Reply With Quote
Old 06-28-2015, 02:52 AM   #4068
Elite Member

Join Date: Oct 2013
Location: Cedar City, UT
Posts: 2,769
Total Cats: 947
Default

Noise in question. Coming from around the rear of the head. Definitely not the injectors. Running on all 4 cylinders just fine, pulling connector on coils shows that. I'm wondering if supertech with double light springs is just inherently louder and it is all in my head.

Last edited by Jeffbucc; 06-28-2015 at 04:14 AM.
Jeffbucc is offline   Reply With Quote
Old 06-28-2015, 10:05 AM   #4069
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 11,816
Total Cats: 479
Default

Sounds like a single cylinder exhaust leak to me
curly is offline   Reply With Quote
Old 06-28-2015, 10:39 AM   #4070
Elite Member
iTrader: (5)

Erat's Avatar

Join Date: Oct 2011
Location: Detroit
Posts: 3,992
Total Cats: 235
Default

I wouldn't worry. My supertech engine makes a ton of noise too.
Erat is offline   Reply With Quote
Old 06-28-2015, 07:40 PM   #4071
Elite Member

Join Date: Oct 2013
Location: Cedar City, UT
Posts: 2,769
Total Cats: 947
Default

Quote:
Originally Posted by curly View Post
Sounds like a single cylinder exhaust leak to me
Hmmm guess that is my fault for reusing the exhaust manifold gasket, I figured I could reuse it since it only had 500 miles on it, guess not!

Quote:
Originally Posted by Erat View Post
I wouldn't worry. My supertech engine makes a ton of noise too.

Good to know thanks man. I'm such a nervous bitch about stuff like this, ugh.

In other news, Miata batteries are adorable compared to full size. Was a little hesitant buying a L.A.P.S. battery but Adam(Revlimiter) threw one in both his Miata so I'm not worried too much. Plus it is an AGM rather than flooded. Also my battery terminals on the old one looked like someone took a grinder to them so my cables wouldn't tight down as tight as I'd like them to.

Jeffbucc is offline   Reply With Quote
Old 06-29-2015, 12:17 AM   #4072
Senior Member
iTrader: (1)

revlimiter's Avatar

Join Date: Jan 2009
Location: ABQ, NM
Posts: 512
Total Cats: 86
Default

That's a great battery. I think you'll be happy with it. Both of mine are still going strong.
revlimiter is offline   Reply With Quote
Old 06-30-2015, 12:06 AM   #4073
Elite Member

Join Date: Oct 2013
Location: Cedar City, UT
Posts: 2,769
Total Cats: 947
Default

Houston we have lift off....After I reset the timing belt once again. Some how it slipped on the crankshaft cog and was way off timing AFTER I hit it with a timing light.

So I removed it and popped some cardboard shims under the belt so it would be positively engaged with the teeth, reset the cam wheel positions, checked play in between cams(perfect 9-11mm) and started her up and she purred....kinda. After burping the radiator with 4 thermostat cycles to get the bubbles out I took it for a spin.

My idle parameters are all sorts of fucky. No idle recovery after throttle input, but I was able to get it good enough to take it down the highway to see if any problems cropped up. Gotta love that TSE radiator. 110 and with no radiator cowling or bottom tray on it held 206 even sitting at a stop light, god bless yah Andrew!

I had meth programmed to engage at 2 psi since I didn't want to get into boost with how hot it is and how badly the tune needs tweaking, but it engaged just fine and the intake temps dropped like a rock. Pretty cool to see on the gauges.

So now I just need to wait for my tuner to get back from Pikes Peak(he is crew chief for Danny George with a nutso Time Attack NC Miata).
Jeffbucc is offline   Reply With Quote
Old 06-30-2015, 12:52 AM   #4074
Destroyer of Inconel
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 9,048
Total Cats: 812
Default

Where is your IAT and where are you injecting meth that you are seeing a drop in intake temps? Still pretty damn cool, glad it running!
EO2K is offline   Reply With Quote
Old 06-30-2015, 01:00 AM   #4075
Elite Member

Join Date: Oct 2013
Location: Cedar City, UT
Posts: 2,769
Total Cats: 947
Default

Quote:
Originally Posted by EO2K View Post
Where is your IAT and where are you injecting meth that you are seeing a drop in intake temps? Still pretty damn cool, glad it running!
Woops sorry I was in a rush and didn't explain that correctly. I have a $400(retail) thermocouple that I use in my bakery and I connected it to a vacuum line on the manifold to see my temp change. It has a super fast and accurate response. Injector is in my 90 elbow before the throttle body. AIT is on the cold side intercooler
Jeffbucc is offline   Reply With Quote
Old 07-05-2015, 11:44 AM   #4076
Elite Member

Join Date: Oct 2013
Location: Cedar City, UT
Posts: 2,769
Total Cats: 947
Default

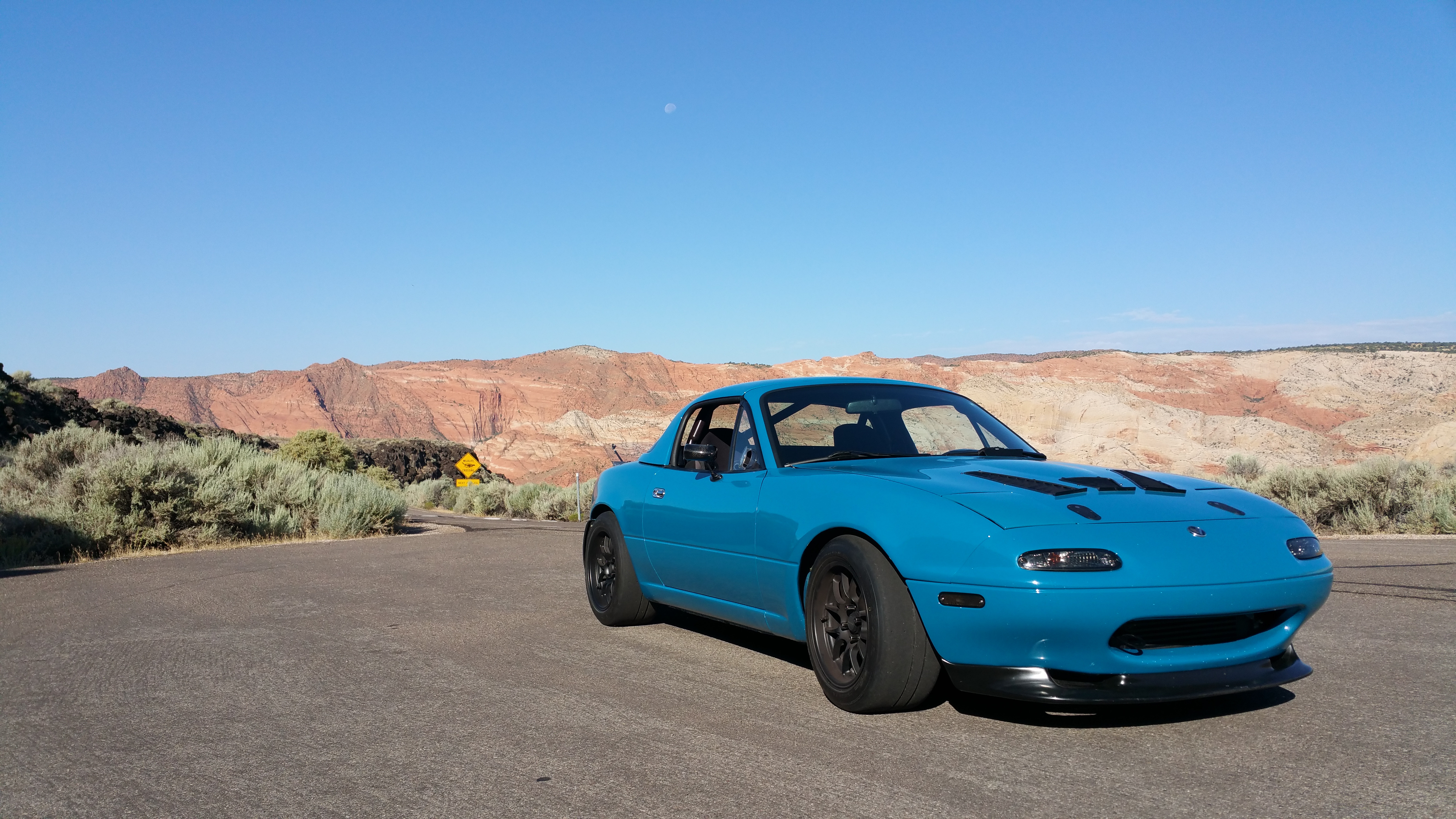

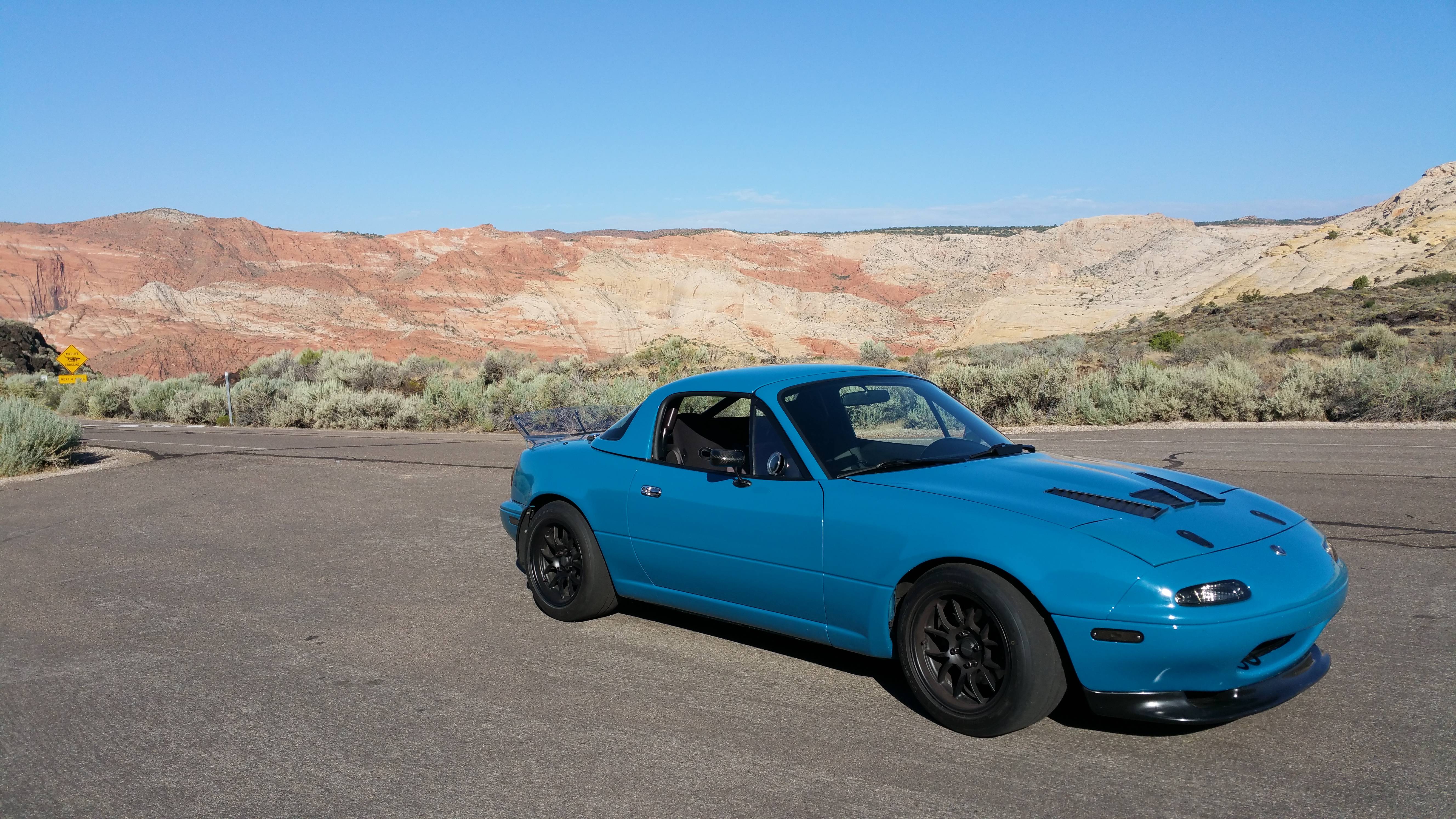

Wow, I really really have missed driving this car. Just running off wastegate for now until I have time to get it tuned. 7 PSI still makes me grin though.



Attached Thumbnails
93' Miata stolen and flipped build thread-egaq0le.jpg   93' Miata stolen and flipped build thread-jmwh8ob.jpg
Jeffbucc is offline   Reply With Quote
Old 07-05-2015, 11:43 PM   #4077
Junior Member
iTrader: (1)

Join Date: Feb 2013
Location: Windsor, Ontario
Posts: 403
Total Cats: 64
Default

hnnngghhhh

so good
BoostedSmurf is offline   Reply With Quote
Old 07-06-2015, 12:26 AM   #4078
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 33,834
Total Cats: 2,122
Default

awwwwwwww yissssssssssss

el heffe is back in bidness
18psi is offline   Reply With Quote
Old 07-09-2015, 01:15 PM   #4079
Elite Member

Join Date: Oct 2013
Location: Cedar City, UT
Posts: 2,769
Total Cats: 947
Default

Does anyone happen to know the size of the alternator pulley nut? I can't find any info on the size/thread pitch on that sucker. Thought I had torqued it down but it seems to have ejected itself from the car at some point. I know it is an M24 but don't have my thread pitch measurement tool on me.
Jeffbucc is offline   Reply With Quote
Old 07-09-2015, 01:24 PM   #4080
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 11,816
Total Cats: 479
Default

How did you do that? I thought it was self tightening. Or does it spin the wrong way?

You can have the nut off our spare alternator, if it comes down to that.
curly is offline   Reply With Quote
