Old 04-28-2011, 06:02 AM   #101
Senior Member
Thread Starter
iTrader: (2)

dc2696's Avatar

Join Date: May 2005
Location: Edmonton Ab, Canada
Posts: 1,157
Total Cats: 10
Default

The revised oil pan is in progress, should be a week or two depending on my welders schedule, looks way better than the old kia steel one so far.

Next swap will be a k20 as this swap makes no sense for power and weight vs time and mods required. Might as well start with a better engine, although its alittle more expensive I guess lol.
dc2696 is offline   Reply With Quote
Old 04-28-2011, 07:51 AM   #102
Elite Member
iTrader: (24)

kotomile's Avatar

Join Date: Oct 2006
Location: Monterey, CA
Posts: 7,578
Total Cats: 40
Default

In for K20 swap.
kotomile is offline   Reply With Quote
Old 05-05-2011, 07:58 PM   #103
Newb

Join Date: Apr 2010
Posts: 9
Total Cats: 0
Default

I want to see a drive inside video of this badboy,before you put the K20 in.
miata'ed is offline   Reply With Quote
Old 06-15-2011, 11:56 PM   #104
Senior Member
Thread Starter
iTrader: (2)

dc2696's Avatar

Join Date: May 2005
Location: Edmonton Ab, Canada
Posts: 1,157
Total Cats: 10
Default

Yay an update!

Finally done school and time to finish up the neverending project!

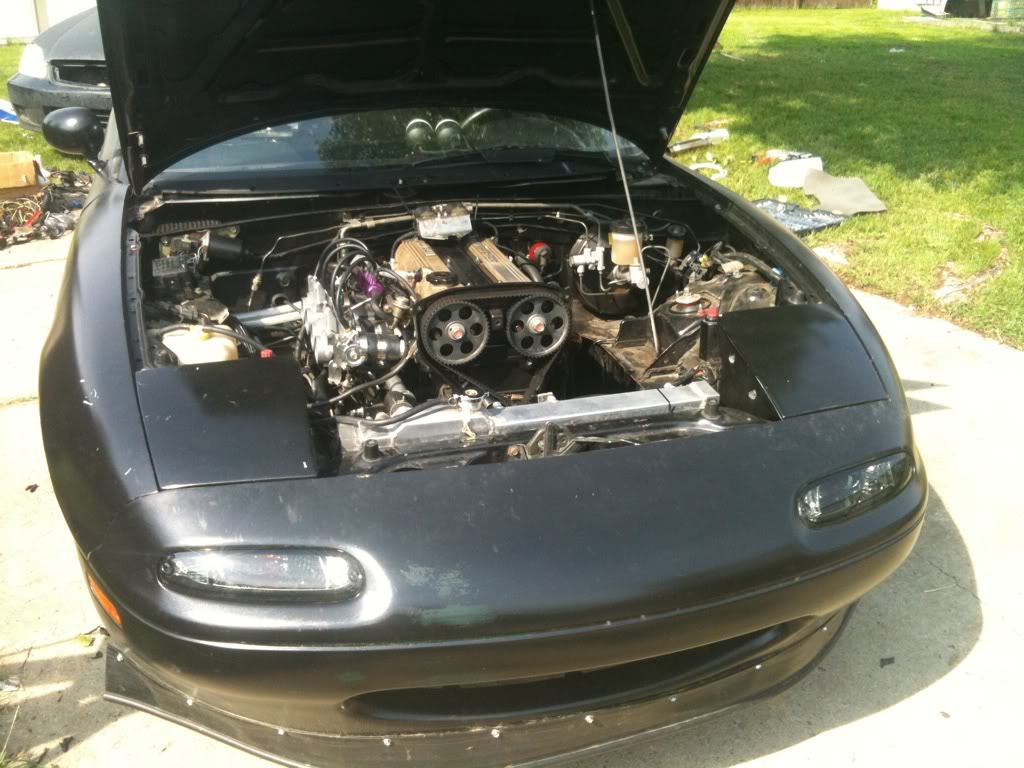

Lately I've gotten a few things tackled, new alum tig welded oil pan with increased ground clearance is in, had 3 holes tapped in the side for: dipstick (used SS tubing and swegelock fittings and a moroso dipstick), oil temp and a return incase I ever boost it.

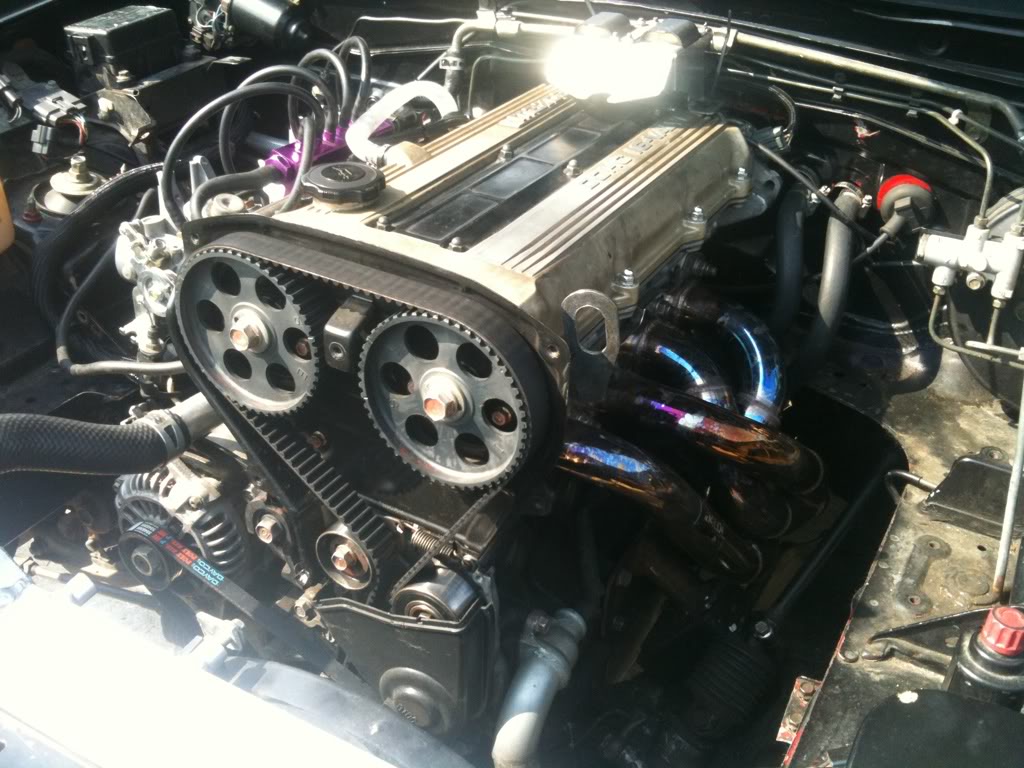

New SS raceland header is on, as usual had to notch and drill out some holes, also its 4-2-1 so the trans had to have some alum shaved off for clearance.

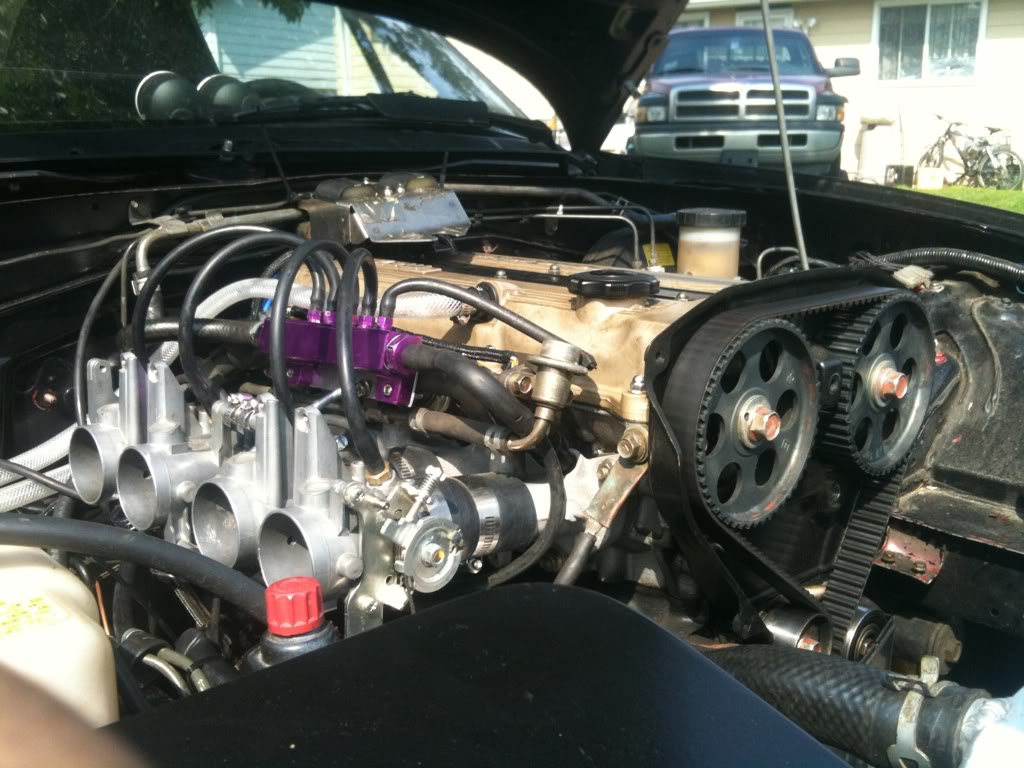

Vacuum manifold is on, and works well but I don't think it will be large enough as I lose vac after 10% throttle :P

Mounted a mech oil press and water temp gauges..

Hasnt been alot of work but between moving and finishing school and starting 2 jobs its been a busy few months.

Rest of the exhaust is in shipping now as is my speedo sensor for the trans, hope to have it on the streets and start tuning this weekend/early next week.

Enough power to spin the wheels(open header in residential so it was short and sweet)..didnt know you could do that NA lol
dc2696 is offline   Reply With Quote
Old 06-16-2011, 12:02 AM   #105
Senior Member
Thread Starter
iTrader: (2)

dc2696's Avatar

Join Date: May 2005
Location: Edmonton Ab, Canada
Posts: 1,157
Total Cats: 10
Default

Quote:
Originally Posted by m2cupcar View Post
Then I def think the flywheel and miata starter teeth fit are the issue. That said, I bet you could fit up a start from one of those car's that has the same size flywheel.
I should clarify this issue for future reference.

Indeed the miata start has the both the improper teeth spacing/count and to low of a power rating for the starter.

I grabbed an F2 starter and its working perfectly, only 2 bolts line up but no issues thus far.
dc2696 is offline   Reply With Quote
Old 07-03-2011, 04:06 AM   #106
Senior Member
Thread Starter
iTrader: (2)

dc2696's Avatar

Join Date: May 2005
Location: Edmonton Ab, Canada
Posts: 1,157
Total Cats: 10
Default

Car is done and on the road as of last week. The FE3 pulls pretty decent for an old shitty truck motor, about as quick as a b18c after a header,itbs,flywheel, 6 speed, fe3 cams, ported intake manifold(well whats left of it) and 2.5" exhaust no cat.

I'll have some 1/4 mile times in a couple weeks when i get a friday night off, so far I like it.

Its not as fast as my old motor obviously but it sounds great, has a nice torque curve and so far isnt to bad on fuel.

The 6 speed is working well although I think the pilot bearing is making alot of noise (maybe the aluminum flywheel is contributing to this, i'm not sure atm). The 4-2-1 raceland header made me have to remove one of the trans mounts to the block so atm theres only 4 bolts holding them together. I'm not to worried but obviously this is not ideal. Will address this issue during the winter.

The itbs seem fairly easy to tune with a MAP signal on an ebay vac manifold, signal can get alittle shaky but I'm working on a restrictor to smooth things out.

If you want to mate a 6 speed up to the FE3 its a fairly straight forward process. The dowels on the FE3 block line up with the notches/dowel on the trans, from there you can see where the two top bolts line up with two blank holes (as in there should have been holes drilled in these spots as they are in the right spot just left filled with aluminum) I used the metal plate that goes between the trans and block to center punch the holes in the bell housing then drilled them out. The side mounts can then be drilled once you bolt the trans to the block, and depending on how you go about the oil pan you can have some bracing down there aswell (I don't).

I'm using a probe 2.2 flywheel with a miata pilot bearing and the input shaft line sup perfectly, can say how it would with any other flywheel (depth wise of course)

Any questions or whatever I'll try and answer but really if I could figure this out any one can, no measurement tools required (although they were nice to confirm that everything did indeed fit as it looked like it was going to)

So, pics/vids ect to come but I'll start a seperate thread for that.

-Dean
dc2696 is offline   Reply With Quote
Old 07-03-2011, 04:23 AM   #107
Senior Member
Thread Starter
iTrader: (2)

dc2696's Avatar

Join Date: May 2005
Location: Edmonton Ab, Canada
Posts: 1,157
Total Cats: 10
Default






Last edited by dc2696; 07-06-2011 at 01:54 AM.
dc2696 is offline   Reply With Quote
Old 07-03-2011, 03:04 PM   #108
Senior Member
iTrader: (1)

Join Date: Jun 2007
Posts: 657
Total Cats: 28
Default

Quote:
Originally Posted by dc2696 View Post
Any questions or whatever I'll try and answer but really if I could figure this out any one can, no measurement tools required (although they were nice to confirm that everything did indeed fit as it looked like it was going to)

For those asking the questions.. Before i started my swap i was one of the guys looking for a "how to" guide to make the swap but once i started i realized how different each swap is. Im just taking it one problem at a time and coming up with my solution to it. The trick is having the right tools, space, and patience to make it happen.

Good to hear its up an running!
yank is offline   Reply With Quote
Old 07-18-2011, 01:17 PM   #109
Newb

Join Date: Apr 2010
Posts: 9
Total Cats: 0
Default

such a great build, mad props go to you. wish it was boosted though
looking forward to some videos and pictures. keep up the great work,and keep us updated
miata'ed is offline   Reply With Quote
Old 07-18-2011, 01:55 PM   #110
Senior Member
iTrader: (12)

absRTP's Avatar

Join Date: Sep 2009
Location: Montreal, Canada
Posts: 582
Total Cats: 0
Default

I'm wondering, is there a big weight difference between a FE3 and a BP?
absRTP is offline   Reply With Quote
Old 07-18-2011, 06:42 PM   #111
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 11,816
Total Cats: 479
Default

40lbs, according to the first post in m2cupcar's build thread.
curly is offline   Reply With Quote
Old 07-18-2011, 08:12 PM   #112
Newb

Join Date: Apr 2010
Posts: 9
Total Cats: 0
Default

hey, quick question "i know im probably gonna get flamed on for this" but, lets say i put one of these in a miata,and wanted to boost it. What kinda manifold could i use? i was thinking a 626 aftermarket manifold would work, but i wasn't sure, because its for front wheel drive..? would that make any deference? thanks
miata'ed is offline   Reply With Quote
Old 07-18-2011, 10:05 PM   #113
Senior Member
iTrader: (12)

absRTP's Avatar

Join Date: Sep 2009
Location: Montreal, Canada
Posts: 582
Total Cats: 0
Default

40lbs, not so bad
absRTP is offline   Reply With Quote
Old 07-19-2011, 09:31 AM   #114
Elite Member
iTrader: (5)

m2cupcar's Avatar

Join Date: Jan 2005
Location: Atlanta
Posts: 7,001
Total Cats: 169
Default

The biggest problem with the weight is that it mostly goes higher and in front of the front wheel axis. That's why these guys worked hard to get the engine lower and further back.

DC- install looks good, who cares if it's fast.
m2cupcar is offline   Reply With Quote
Old 07-19-2011, 09:38 AM   #115
Senior Member
iTrader: (12)

absRTP's Avatar

Join Date: Sep 2009
Location: Montreal, Canada
Posts: 582
Total Cats: 0
Default

Quote:
Originally Posted by miata'ed View Post
hey, quick question "i know im probably gonna get flamed on for this" but, lets say i put one of these in a miata,and wanted to boost it. What kinda manifold could i use? i was thinking a 626 aftermarket manifold would work, but i wasn't sure, because its for front wheel drive..? would that make any deference? thanks
I don't remember where I saw this, but you can take a BP manidolf, the runners hole are very close, then you just need to redrill the flange.

Maybe I saw this on solomiata or something like this
absRTP is offline   Reply With Quote
Old 07-19-2011, 09:55 AM   #116
Senior Member
Thread Starter
iTrader: (2)

dc2696's Avatar

Join Date: May 2005
Location: Edmonton Ab, Canada
Posts: 1,157
Total Cats: 10
Default

Quote:
Originally Posted by m2cupcar View Post
The biggest problem with the weight is that it mostly goes higher and in front of the front wheel axis. That's why these guys worked hard to get the engine lower and further back.

DC- install looks good, who cares if it's fast.

Thanks!

Haha well she may not be 300whp but I'm smiling all day long listening to those itbs!

I have another fe3(usdm) and a holset if I feel the need to flex 400whp 8P
dc2696 is offline   Reply With Quote
Old 07-19-2011, 10:02 AM   #117
Senior Member
iTrader: (12)

absRTP's Avatar

Join Date: Sep 2009
Location: Montreal, Canada
Posts: 582
Total Cats: 0
Default

any videos of the 2.0L with itbs on the road?

I've always wondered how would it sounds...
absRTP is offline   Reply With Quote
Old 07-19-2011, 10:19 AM   #118
Senior Member
Thread Starter
iTrader: (2)

dc2696's Avatar

Join Date: May 2005
Location: Edmonton Ab, Canada
Posts: 1,157
Total Cats: 10
Default

Quote:
Originally Posted by absRTP View Post
any videos of the 2.0L with itbs on the road?

I've always wondered how would it sounds...
Just need to borrow a camera with decent sound, my iPhone doesn't do it justice.
dc2696 is offline   Reply With Quote
Old 07-27-2011, 01:46 AM   #119
Senior Member
Thread Starter
iTrader: (2)

dc2696's Avatar

Join Date: May 2005
Location: Edmonton Ab, Canada
Posts: 1,157
Total Cats: 10
Default

shitty and short but its something. and yes the car is that loud lol

http://s22.photobucket.com/albums/b3...rent=001-2.mp4
dc2696 is offline   Reply With Quote
Old 07-27-2011, 07:01 PM   #120
meatbag
iTrader: (50)

gospeed81's Avatar

Join Date: Nov 2008
Location: Houston, TX
Posts: 7,357
Total Cats: 26
Default

Does sound nice.

Your "road test" freaked me out a little until I realized the speedo was in in km...



Very awesome swap. I still want to do this one. Cheap 500hp stock internal motors ftw.
gospeed81 is offline   Reply With Quote
