Old 06-23-2013, 09:35 AM   #441
Elite Member
iTrader: (2)

triple88a's Avatar

Join Date: Apr 2006
Location: Chicago, IL
Posts: 8,911
Total Cats: 499
Default

Quote:
Originally Posted by 18psi View Post
If I start hacking/slicing/pounding faeflora style I'd probably do this way faster.
Attached Thumbnails
H3AVY to H3AVYER to...H3AV1EST P1G-iftnmba.gif
triple88a is offline   Reply With Quote
Old 06-23-2013, 08:21 PM   #442
Newb

Join Date: Jul 2011
Location: Auckland, New Zealand
Posts: 20
Total Cats: -2
Default

I believe you can delete the fuel damper if you mount a regulator closer to the rail. The damper is just there to account for fluctuating fuel pressure due to the regulator being in the fuel tank
Delete intank fuel regulator and the damper on the rail
Mount Fuel Regulator on firewall
Route lines
Win
kieran is offline   Reply With Quote
Old 06-23-2013, 09:27 PM   #443
Elite Member
iTrader: (2)

miata2fast's Avatar

Join Date: Aug 2009
Location: Dover, FL
Posts: 2,691
Total Cats: 84
Default

Quote:
Originally Posted by kieran View Post
I believe you can delete the fuel damper if you mount a regulator closer to the rail. The damper is just there to account for fluctuating fuel pressure due to the regulator being in the fuel tank
Delete intank fuel regulator and the damper on the rail
Mount Fuel Regulator on firewall
Route lines
Win
That is very nice advice, but you really should not mount anything fuel related to the firewall. I believe most motorsport sanctioning bodies do not allow it. It is a safety issue.

Edit: I looked at the SCCA and NASA rule books and there is no such rule. Interestingly, metal fuel lines are allowed in the passenger compartment. That surprises me. NHRA rules do not allow fuel components on the firewall. Those are the rules I am most familiar with.

Last edited by miata2fast; 06-23-2013 at 09:53 PM.
miata2fast is offline   Reply With Quote
Old 06-24-2013, 09:19 AM   #444
Murderator
Thread Starter
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 33,383
Total Cats: 2,032
Default

I'm not mounting it to the wall guys, or even running an aftermarket regulator actually. Again, my biggest emphasis here is to not modify anything permanently or obviously.

From what I gather I can simply eliminate the "loop" and 1 of the dampeners without much, if any, consequences. That's what I'm going to do: leave the one on the oem rail, but delete the one to the side of the manifold because with the thupercharger it just simply doesn't fit without relocating or moving it.

Anywho, I plan to have this nearly finished up today, and hopefully, HOPEFULLY, start this bad boy up on the new setup finally.
18psi is offline   Reply With Quote
Old 06-24-2013, 09:24 AM   #445
Elite Member
iTrader: (2)

triple88a's Avatar

Join Date: Apr 2006
Location: Chicago, IL
Posts: 8,911
Total Cats: 499
Default

In b4thebeltslipping.
triple88a is offline   Reply With Quote
Old 06-24-2013, 09:27 AM   #446
Elite Member
iTrader: (8)

Ryan_G's Avatar

Join Date: Jan 2012
Location: Tampa, Florida
Posts: 2,270
Total Cats: 122
Default

I am interested to hear driving impressions of a well setup supercharger from someone who is from team turbo and not 100% bias for or against the supercharger from the get go. I have never had the pleasure of driving one so I am curious.
Ryan_G is online now   Reply With Quote
Old 06-24-2013, 10:12 AM   #447
Murderator
Thread Starter
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 33,383
Total Cats: 2,032
Default

Quote:
Originally Posted by triple88a View Post
In b4thebeltslipping.
6rib setup with autotensioner....I highly doubt it.
Quote:
Originally Posted by Ryan_G View Post
I am interested to hear driving impressions of a well setup supercharger from someone who is from team turbo and not 100% bias for or against the supercharger from the get go. I have never had the pleasure of driving one so I am curious.
I have already driven an MP62 supercharged car quite a bit. I even posted videos about it as well as my driving impressions.
It was a BRP intercooled setup running on power cards/aux injectors/JR boost/timing controller and pump gas. So not even "well set up". It was fun.
Not "knock your socks off" fun like a proper turbo setup, but very enjoyable. If this runs as good as that setup (it should) I'll be happy for some time til I finish up the turbo setup. IF it runs better, I'll be REALLY happy for quite some time til I finish the turbo setup. The end result goal here is still going turbo though.

I will definitely post more feedback/impressions/review and possibly some videos once its all set up though.
18psi is offline   Reply With Quote
Old 06-24-2013, 10:41 AM   #448
Senior Member
iTrader: (8)

Join Date: May 2011
Location: Granbury, Tx
Posts: 815
Total Cats: 14
Default

Video
FowlerMotorsports is offline   Reply With Quote
Old 06-24-2013, 10:43 AM   #449
Elite Member
iTrader: (1)

Join Date: Jun 2006
Location: Warrington/Birmingham
Posts: 2,658
Total Cats: 41
Default

Quote:
Originally Posted by triple88a View Post
In b4thebeltslipping.
6 rib setup, it won't slip
richyvrlimited is offline   Reply With Quote
Old 06-24-2013, 10:46 AM   #450
Elite Member
iTrader: (1)

Join Date: Jun 2006
Location: Warrington/Birmingham
Posts: 2,658
Total Cats: 41
Default

Quote:
Originally Posted by Ryan_G View Post
I am interested to hear driving impressions of a well setup supercharger from someone who is from team turbo and not 100% bias for or against the supercharger from the get go. I have never had the pleasure of driving one so I am curious.
Drives like a stock car with more power.

Imagine if the MX5 came with a 3 litre 4pot motor, that's exactly how it feels. It's no tarmac ripper, it doesn't punch you in the back at 4k, but it does drive very nicely and everything responds very quickly.

Even the most baller turbo setup still requires a nominal amount of time for the turbine to react to throttle requests, this doesn't, that's the small benefit of being directly crank driven.

Won't be anywhere near as quick on a decent circuit, nor be as fuel efficient though.

Horses for courses.
richyvrlimited is offline   Reply With Quote
Old 06-24-2013, 11:25 AM   #451
I'm a terrible person
iTrader: (19)

FRT_Fun's Avatar

Join Date: Apr 2009
Location: Arizona
Posts: 7,292
Total Cats: 178
Default

Quote:
Originally Posted by richyvrlimited View Post
Drives like a stock car with more power.

Imagine if the MX5 came with a 3 litre 4pot motor, that's exactly how it feels. It's no tarmac ripper, it doesn't punch you in the back at 4k, but it does drive very nicely and everything responds very quickly.
I can second this. Even though I had a sorry M45, it just felt like the stock car, but with moar powa at any RPM. But alas, I prefer the feel of a turbo.
FRT_Fun is offline   Reply With Quote
Old 06-24-2013, 11:48 AM   #452
Murderator
Thread Starter
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 33,383
Total Cats: 2,032
Default

Quote:
Originally Posted by FowlerMotorsports View Post
Video
Search, n00b

WAT AM I LOOKING AT HERE?! (seriously)
18psi is offline   Reply With Quote
Old 06-24-2013, 12:26 PM   #453
Destroyer of Inconel
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 8,865
Total Cats: 773
Default

Let me get this straight: I go on vacation for 2 weeks and Vlad buys a FFS kit?

Attached Thumbnails
H3AVY to H3AVYER to...H3AV1EST P1G-hkpl2dd.jpg
EO2K is offline   Reply With Quote
Old 06-24-2013, 02:54 PM   #454
Elite Member
iTrader: (2)

miata2fast's Avatar

Join Date: Aug 2009
Location: Dover, FL
Posts: 2,691
Total Cats: 84
Default

/\ It is quite the odd circumstance.
miata2fast is offline   Reply With Quote
Old 06-24-2013, 02:57 PM   #455
Murderator
Thread Starter
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 33,383
Total Cats: 2,032
Default

Not buys. Trades. You n00bs can't read

I am making some judgement calls based on circumstances, timing, and the pace of my build thread.

Or maybe its because I hate myself
18psi is offline   Reply With Quote
Old 06-24-2013, 03:22 PM   #456
Destroyer of Inconel
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 8,865
Total Cats: 773
Default

I actually looked into a used FFS or Moss MP62 simply for the CARB cert after the Rotrex debacle so I can understand the motivation... if that's the motivation.

I'm very interested to see how this comes out. Look me up when you move on to something snail shaped, hopefully Rev will have shipped my MS3 by then
EO2K is offline   Reply With Quote
Old 06-24-2013, 09:04 PM   #457
Murderator
Thread Starter
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 33,383
Total Cats: 2,032
Default

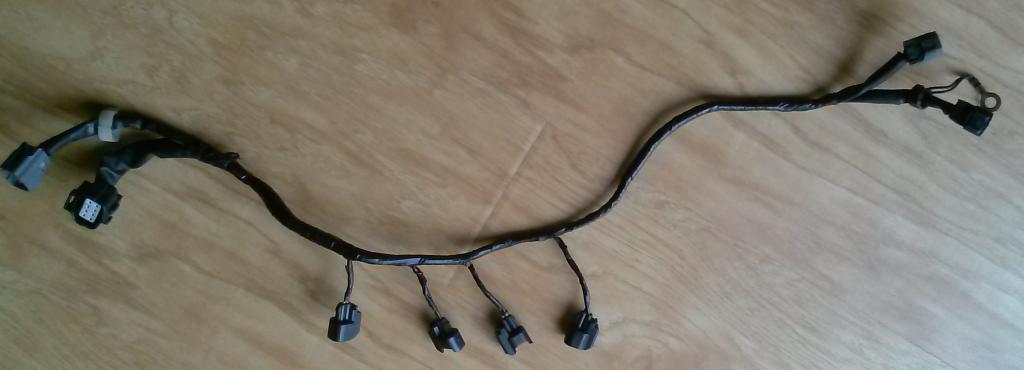

What happens when a spare injector harness meets some ID1000 clips and a soldering iron?

dis


Kinda happy with how clean it came out, and was a really straightforward process.
Crimped and soldered, for her pleasure.

ID1000's are in, nice and snug and all pretty lookin

Next up - pump install and hooking the MS back up as well as wiring in the AEM dbg.
Attached Thumbnails
H3AVY to H3AVYER to...H3AV1EST P1G-cam00157.jpg
18psi is offline   Reply With Quote
Old 06-25-2013, 03:57 AM   #458
Elite Member
iTrader: (4)

Pen2_the_penguin's Avatar

Join Date: Dec 2009
Location: Reno, NV
Posts: 3,689
Total Cats: 95
Default

so where is the sex change where you turn into a heterosexual male?
Pen2_the_penguin is offline   Reply With Quote
Old 06-25-2013, 08:54 AM   #459
Junior Member
iTrader: (1)

Join Date: Jan 2008
Posts: 161
Total Cats: -1
Default

Quote:
Originally Posted by Braineack View Post
tell these people that they suck at photography and the additon of fake HDR is a crime and I want to hit them with a bat and doesnt mask their shitty skills only make it more obvious.

how close are you to SanFran?
And carry a level with him. FastStone Image Viewer is freeware and has a easy app for cropping, resizing, horientation, framing of pictures.
psiturbo is offline   Reply With Quote
Old 06-25-2013, 09:15 AM   #460
Murderator
Thread Starter
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 33,383
Total Cats: 2,032
Default

Quote:
Originally Posted by Pen2_the_penguin View Post
so where is the sex change where you turn into a heterosexual male?
Its right up there with your supra being slow than either of my cars

Back on topic:

-Installed overlay, tensioner and belt (more time consuming than anticipated)
-Rerouted like half the wiring in the engine bay to accomodate new locations for tps, iacv, etc. (HUGE pain in the butt)
-Made and installed above harness for the ID1000's
-Tapped manifold for and installed GM IAT sensor

Today its down to buttoning up a couple things, cleaning up, then start fiddling with the MS and hopefully try to start it.

Last edited by 18psi; 06-25-2013 at 09:25 AM.
18psi is offline   Reply With Quote
