Old 05-19-2014, 03:10 PM   #1121
Elite Member
iTrader: (12)

Join Date: Dec 2006
Location: Taos, New mexico
Posts: 5,673
Total Cats: 230
Default

I hate to say it, but +1 for the 2554 setup. I don't think i'd waste my time bolting a MSM setup to the car if i were you. You can get a plug n play 2554 setup for around ~800 invested if you shop around.. that is about what I have in mine.

it's a very fun setup.
Fireindc is offline   Reply With Quote
Old 05-19-2014, 03:23 PM   #1122
Elite Member
iTrader: (5)

Join Date: Oct 2007
Location: Canton, Ga
Posts: 1,618
Total Cats: 12
Default

Msm kit is ****
Stealth97 is offline   Reply With Quote
Old 05-19-2014, 05:18 PM   #1123
Elite Member

DNMakinson's Avatar

Join Date: Jan 2013
Location: Seneca, SC
Posts: 2,025
Total Cats: 185
Default

Jeff Goji is at 200WHP with. MSM and OBD2 with BEGI reflash.

Jeff Goji's 2004 Mazdaspeed Miata BSP Build Thread - Kiryu

One of many threads of his.
DNMakinson is offline   Reply With Quote
Old 05-19-2014, 08:59 PM   #1124
Senior Member

Join Date: Dec 2004
Location: Brisbane, Australia
Posts: 1,271
Total Cats: 32
Default

Check out my build thread too, I have used a lot of MSM bits out of laziness.
timk is offline   Reply With Quote
Old 05-20-2014, 12:21 AM   #1125
Junior Member
iTrader: (2)

Join Date: Mar 2008
Location: Irvine, Ca
Posts: 277
Total Cats: 22
Default

If you have all the msm bits laying around go for it. The setup is good enough for a lower power goal and the oem-ness of it is a nice plus in california. As long as you use all the bits I doubt the average smog tech will notice a difference. Also with an intake the turbo makes ricer approved turbo noises.
cjsafski is offline   Reply With Quote
Old 05-20-2014, 12:27 AM   #1126
Murderator
Thread Starter
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 33,801
Total Cats: 2,116
Default

Thanks gayzz

Looked at all the linked threads, also searched around some more, looks like 160-200 is possible depending on dyno and all that.

My brother has a few MSM setups laying around. I'm going to talk to him, if he lets me pick one up for cheap I'll go that route, if not then what's already been suggested. I'm working on my other cars right now, and enjoying the miata in all of its n/a glory because it is about as solid and reliable as a car can be, and I have come to appreciate a daily driver that's not on jack stands every other week lol.

Just kinda planning ahead for when I'm done with my subarus and start getting bored again with the miata in the future lol.
I thought about just selling it but I honestly love it. I'm going to hold on to it
18psi is offline   Reply With Quote
Old 07-16-2014, 01:00 AM   #1127
Murderator
Thread Starter
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 33,801
Total Cats: 2,116
Default

So completely random insignificant update:

Driving the car every single day, loving it, haven't even popped the hood for anything besides changing the oil. Its rock solid and awesome.

One minor issue I am having, well not even issue but something I need to address:

When it over 100* outside (yes, its stupid hot here right now), my A/C is pretty much non-existent when creeping in traffic or moving under 40mph or idling at a light.

This is uncool cause I drive it to work where I have to dress nice, and I don't like to walk around with sweat stains like some of the "because racecar" folks around here.

I checked the charge today, and its solid- completely full and pressure holds fine. Fans also work fine. Undertray and bumper air guide are both on.

So that leaves just 1 thing:
There is a .75" gap between my rad and the rad support. There is also about a .50" gap between my rad and my fans. Its an aftermarket rad, and the fans seal fine on sides and bottom, but on top there is this gap. Just the way the stock shrouds are made. Also the stock rad has a piece of foam where I had the gap, so I'm guessing missing that foam piece causes air to go through the gaps and not through the heat exchangers like it should.

So I think its time for moar shrowding on the top of the rad/support/fans

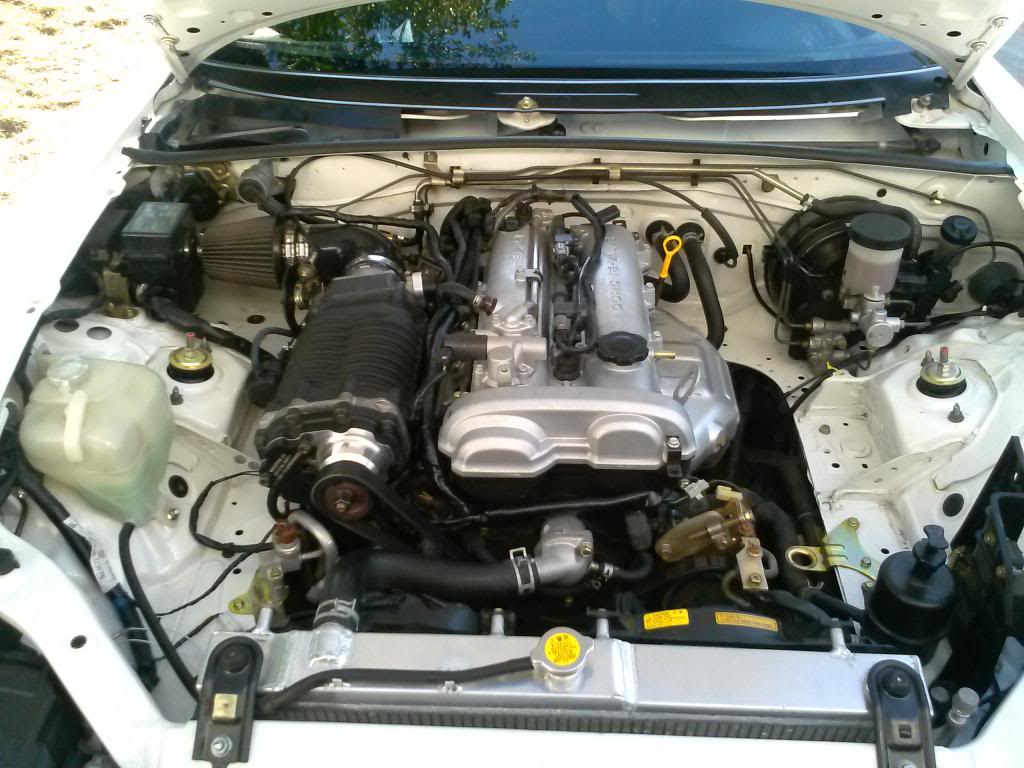

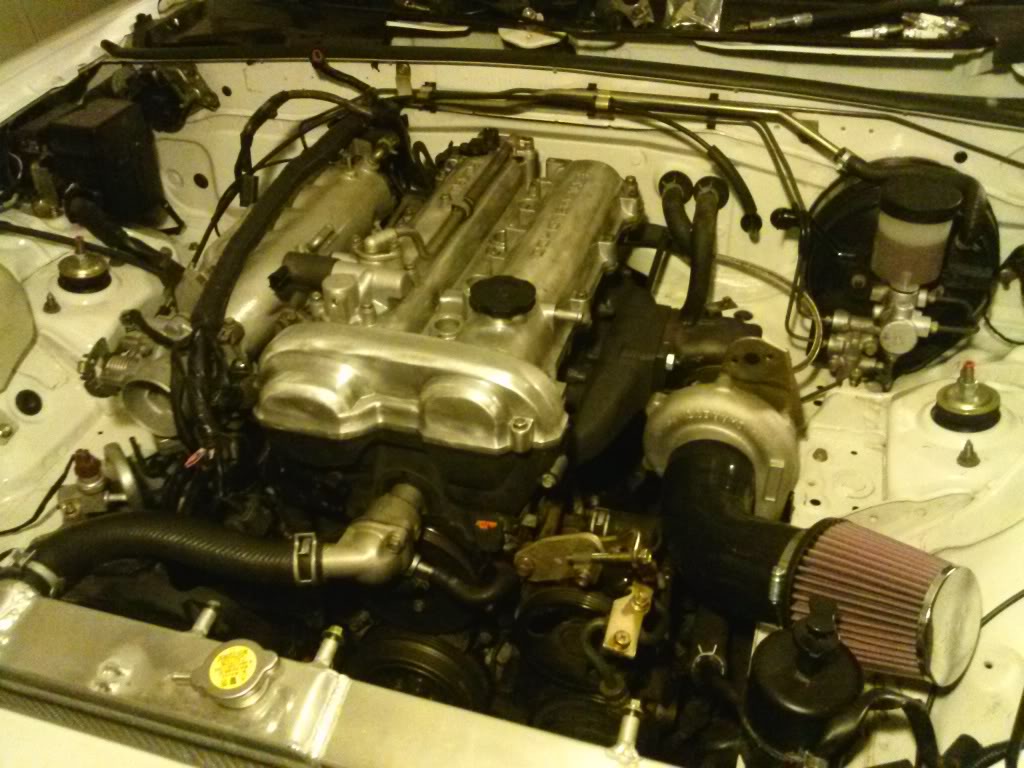

*edit: you can kinda see it in these old pics:
Attached Thumbnails
H3AVY to H3AVYER to...H3AV1EST P1G-cam00470.jpg   H3AVY to H3AVYER to...H3AV1EST P1G-cam00166.jpg
18psi is offline   Reply With Quote
Old 07-16-2014, 01:38 AM   #1128
Destroyer of Inconel
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 9,038
Total Cats: 809
Default

Moar shroud, seal that beetch up.

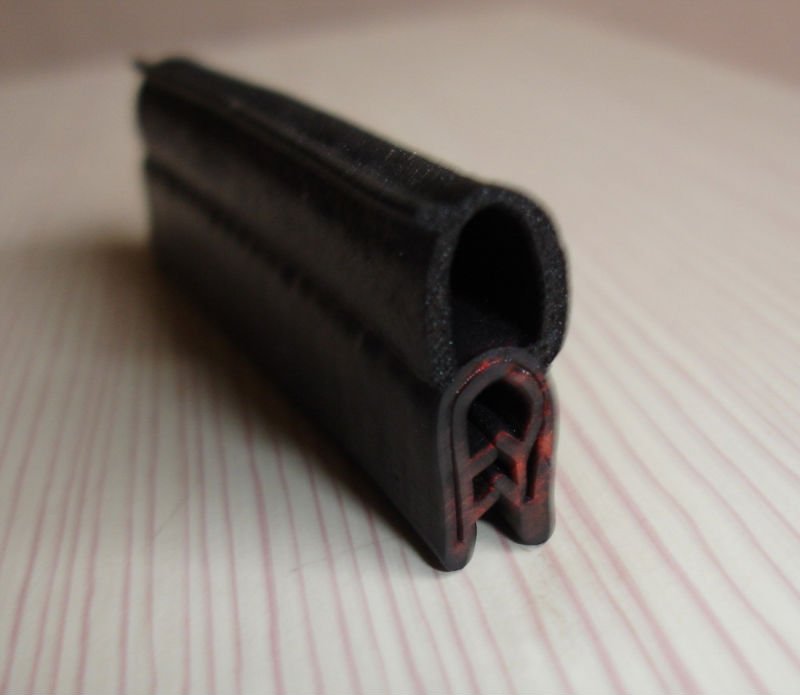

Get a roll of something with this kind of profile:


The part with the gripping "fingers" goes over the edge of the sheet metal in front of the radiator, and will easily go between the edges of the fan and the core without causing damage. Makes a good seal and (probably) won't look like BECAUSERACECAR ***

The only other thing I can think of is maybe adhesive weatherstrip foam, one of the ones with a square profile like this:

Something like that might work, and it comes in a buttload of different thicknesses.

I tried using the shiny metallic 3M ducting tape and literally taping the core to the core support and core to fans, but the adhesive couldn't handle radiator temperatures. It got soft, the tape ripped apart and cleanup was teh suk.

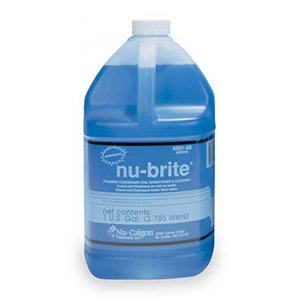

Something else you might look into is a legitimate condenser cleaner:

Nu-Calgon 4291-08 Nu-Brite Coil Cleaner Nu-Calgon 4291-08 Nu-Brite Coil Cleaner

Its a professional grade kinda nasty chemical **** that you mix with water in a spray bottle, take the nose off the car, spray on the condenser, let sit, and rinse. Its supposed to do wonders with cleaning all the terribleness off the core and increasing efficiency. Remember you are talking about a 10 year old core so its had a lot of time to collect road grime.
Attached Thumbnails
H3AVY to H3AVYER to...H3AV1EST P1G-flocking_rubber_seal_strip_glassed_channel_634557738717457171_1.jpg   H3AVY to H3AVYER to...H3AV1EST P1G-mm3jxc6xiqc0ibi_ifm1xzq.jpg   H3AVY to H3AVYER to...H3AV1EST P1G-31kqoqafnsl.jpg   H3AVY to H3AVYER to...H3AV1EST P1G-flocking_rubber_seal_strip_glassed_channel_634557738717457171_1.jpg   H3AVY to H3AVYER to...H3AV1EST P1G-mm3jxc6xiqc0ibi_ifm1xzq.jpg

H3AVY to H3AVYER to...H3AV1EST P1G-31kqoqafnsl.jpg

Last edited by EO2K; 07-16-2014 at 02:13 AM.
EO2K is offline   Reply With Quote
Old 07-16-2014, 02:01 AM   #1129
Junior Member
iTrader: (5)

hankclaussen's Avatar

Join Date: Mar 2010
Location: Houston
Posts: 364
Total Cats: 56
Default

I'm pretty sure I am putting my 2554 on my 01 over the winter (Houston is flipping hot) and once/if this MSM motor in pieces is built I'll run that with my 2860 in the 92. 01 being more DD and autocross practice events. So there's my +1

Though Goji's car was mentioned and it is a blast at 200whp and no TX inspection worries (cant imagine CA is much fun) with the reflash, although that did need to be re-worked from its original tune.
hankclaussen is offline   Reply With Quote
Old 07-16-2014, 09:14 AM   #1130
Murderator
Thread Starter
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 33,801
Total Cats: 2,116
Default

Thanks guys.

Yeah I considered that adheisive foam, but am convinced it will fall off due to heat, so that's out I think.

I'll have to look over the other stuff.

Also today I plan to stop by a plastic sheet store and browsring around. My prev '99 I actually made one out of a sheet of real carbon fiber, looked perty cool, but I think a thin sheet of plastic will do if I can cut it all pretty and non RACECAR looking
18psi is offline   Reply With Quote
Old 07-16-2014, 09:30 AM   #1131
Elite Member

DNMakinson's Avatar

Join Date: Jan 2013
Location: Seneca, SC
Posts: 2,025
Total Cats: 185
Default

Quote:
Originally Posted by 18psi View Post
Thanks guys.

Yeah I considered that adheisive foam, but am convinced it will fall off due to heat, so that's out I think.

I'll have to look over the other stuff.

Also today I plan to stop by a plastic sheet store and browsring around. My prev '99 I actually made one out of a sheet of real carbon fiber, looked perty cool, but I think a thin sheet of plastic will do if I can cut it all pretty and non RACECAR looking
I went to Home Depot and got some 1 1/4" square foam strip, and some 2 1/4" foam square stip. For the location you are looking at, the 1 1/4" fits well, and stays in place even without adhesive. However, I do plan to get some 3M spray adhesive to glue it to the radiator (like the stock part).

This is in the HVAC section and is sold to seal around room A/C units. It is urethane foam, so it should have no issues with the heat. Been working for me for a month now.
DNMakinson is offline   Reply With Quote
Old 07-16-2014, 10:37 AM   #1132
Elite Member
iTrader: (1)

Join Date: Jun 2006
Location: Warrington/Birmingham
Posts: 2,658
Total Cats: 41
Default

Quote:
Originally Posted by 18psi View Post
Thanks guys.

Yeah I considered that adheisive foam, but am convinced it will fall off due to heat, so that's out I think.

I'll have to look over the other stuff.

Also today I plan to stop by a plastic sheet store and browsring around. My prev '99 I actually made one out of a sheet of real carbon fiber, looked perty cool, but I think a thin sheet of plastic will do if I can cut it all pretty and non RACECAR looking

I use that foam, it doesn't fall off. the rad doesn't get that hot!
richyvrlimited is offline   Reply With Quote
Old 07-16-2014, 10:44 AM   #1133
Junior Member

Join Date: Oct 2013
Posts: 66
Total Cats: 2
Default

Quote:
Originally Posted by richyvrlimited View Post
I use that foam, it doesn't fall off. the rad doesn't get that hot!
Concur! I've used self adhesive weather stripping for the last 12 months and 3 summer track days in Atlanta. Works like a charm. Starting to get a little crispy but still stuck on tight.

Also the high quality silver (metal backed) "duct tape" works well. Much of my front bumper ducting is made out of that stuff.
Rick02R is offline   Reply With Quote
Old 07-16-2014, 11:03 AM   #1134
Elite Member
iTrader: (3)

Join Date: Aug 2011
Posts: 7,237
Total Cats: 554
Default

+1 for the square adhesive foam. Doesn't fall off.
concealer404 is offline   Reply With Quote
Old 07-17-2014, 12:52 AM   #1135
Murderator
Thread Starter
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 33,801
Total Cats: 2,116
Default

ok I went to hoe depot today and this is the thickest they have that's self adhesive:

Frost King E/O 1-1/4 in. x 7/16 in. x 10 ft. Black High-Density Rubber Foam Weatherstrip Tape-R516H at The Home Depot

1-1/4 wide, but only 7/16 thick.

The ones thicker are non self-adhesive. So now Im not sure if I should just buy that and glue it on, or keep looking for something thicker that's self adhesive?

Its only going to be 90* the next couple days so I have some time for this lol


**EDIT: just measured it and actually 7/16" is .43" and the gaps are right around .5" in those spots so I think this actually might work after all.

Another thing I haven't considered yet either is the fact that my dual row rad is much thicker than the stocker, so maybe its harder for the fans to pull enough air through it and through the condenser at the same time when stopped resulting in this.

Last edited by 18psi; 07-17-2014 at 01:08 AM.
18psi is offline   Reply With Quote
Old 07-17-2014, 01:52 AM   #1136
Junior Member

Golferluke's Avatar

Join Date: Oct 2009
Location: Springfield, MO
Posts: 497
Total Cats: 3
Default

I used that stuff on one of my motorcycle tanks to stop a vibration. It's really handy stuff and I still keep the roll around for odd jobs. It compresses easily and is hella sticky, I would just stack it up two layers thick and compress it to size. Should be a nice snug fit with two strips of it stacked.
Golferluke is offline   Reply With Quote
Old 07-17-2014, 03:08 AM   #1137
Supporting Vendor
iTrader: (10)

Reverant's Avatar

Join Date: Jun 2006
Location: Athens, Greece
Posts: 5,359
Total Cats: 187
Default

With the car stationary, increase the revs to 2000, and see if it blows any colder. In my experience, it does.
Reverant is offline   Reply With Quote
Old 07-19-2014, 04:27 PM   #1138
Murderator
Thread Starter
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 33,801
Total Cats: 2,116
Default

It doesn't, unfortunately.

I bought the foam, started installing it, yanked off a fan and 2 of the bolts broke off. UGH! Driving it to the shop to extract the stupid 2 bolts.

I'm going to seal the fans to the rad and the rad to the condenser really well.
18psi is offline   Reply With Quote
Old 07-19-2014, 05:04 PM   #1139
Elite Member

DNMakinson's Avatar

Join Date: Jan 2013
Location: Seneca, SC
Posts: 2,025
Total Cats: 185
Default

Anti-seize on those bolts?
DNMakinson is offline   Reply With Quote
Old 07-19-2014, 09:28 PM   #1140
Murderator
Thread Starter
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 33,801
Total Cats: 2,116
Default

Ok so fun fact:

the stupid ebay all alum radiators the mounting for the stock fans sticks out way too far, leaving a huge gap. So I trim the mounting points and bring the fans closer, but guess what? the threads in those holes only go half way So I break off the two bolts holding the top of one of the fans cause it just seized up because no thread.

So we cut off the mounting points, fabricate our own, and weld them back on.

So something that should have taken 10 minutes took 3 hours total. UGH!!

Anyways, we cut new threads inside the stupid mounts, and now everything is all sealed up and properly together. What a pain.

Moral of the story: don't ever expect ebay parts to actually work correctly lol.

Pics to come
