2 things:

IATfuel correction table is stealing my fuel as my IAT rises throwing off my AFRs and making the car run leaner... WTF? I zeroed that **** out and suddenly my AFRs start hitting their targets.

CLT based timing retard is pulling my timing as the engine heats up, thus I start losing 1-2 the longer I sit. This makes my AFRs wonky and inconsistent as things heat up. This in turn causes the autotune to add or pull fuel.

OK, so **** me right?

So on the first point, why in the world would I want it to pull fuel as the IAT rises in a boosted application? This seems suicidal unless I'm completely not understanding why it does this.

On the second point how do you get a consistent set of AFRs if the ECU is going to jack with the timing? Pulling 2 changes my AFR by a full point. How do you deal with this?

Advice on the above would be awesome, if anyone is still bothering to read this train wreck of a thread.
EO2K is offline   Reply With Quote
Old 07-02-2015, 01:02 AM   #1525
Elite Member
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 8,023
Total Cats: 129
Default

Quote:
Originally Posted by EO2K View Post
2 things:

IATfuel correction table is stealing my fuel as my IAT rises throwing off my AFRs and making the car run leaner... WTF? I zeroed that **** out and suddenly my AFRs start hitting their targets.

CLT based timing retard is pulling my timing as the engine heats up, thus I start losing 1-2 the longer I sit. This makes my AFRs wonky and inconsistent as things heat up. This in turn causes the autotune to add or pull fuel.

OK, so **** me right?

So on the first point, why in the world would I want it to pull fuel as the IAT rises in a boosted application? This seems suicidal unless I'm completely not understanding why it does this.

On the second point how do you get a consistent set of AFRs if the ECU is going to jack with the timing? Pulling 2 changes my AFR by a full point. How do you deal with this?

Advice on the above would be awesome, if anyone is still bothering to read this train wreck of a thread.
What is "IAT fuel correction table"? Is it "MAT Air Density Table"?
The MAT Air density table pulls fuel as air temps rise, because hotter air is less dense, and has less oxygen, thus you need less fuel.

What is CLT based timing retard? Again, I don't see this either! I do see AIT based timing retard.
patsmx5 is offline   Reply With Quote
Old 07-02-2015, 01:22 AM   #1526
Destroyer of Inconel
Thread Starter
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 8,869
Total Cats: 774
Default

Quote:
Originally Posted by patsmx5 View Post
What is "IAT fuel correction table"? Is it "MAT Air Density Table"?
The MAT Air density table pulls fuel as air temps rise, because hotter air is less dense, and has less oxygen, thus you need less fuel.
Yes, MAT Air Density Table.

Well yes, hotter air is less dense thus has less oxygen and thus you need less fuel except that its making **** go lean. **** that table.


There, I fixed it. I'd rather it be rich than go lean and continue to **** me off.

Quote:
Originally Posted by patsmx5 View Post
What is CLT based timing retard? Again, I don't see this either! I do see AIT based timing retard.
Yes, again sorry, MAT-Based Timing retard.

Pulling timing as **** gets hot makes some sense, but it ***** with the fuel and complicates tuning.

What else am I missing that I don't know I'm fighting?
Attached Thumbnails
Nothing to see here, just project Sisyphus, move along-biglebowski-markitzero-1.jpg
EO2K is offline   Reply With Quote
Old 07-02-2015, 01:29 AM   #1527
Elite Member
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 8,023
Total Cats: 129
Default

Quote:
Originally Posted by EO2K View Post
Yes, MAT Air Density Table.

Well yes, hotter air is less dense thus has less oxygen and thus you need less fuel except that its making **** go lean. **** that table.


There, I fixed it. I'd rather it be rich than go lean and continue to **** me off.



Yes, again sorry, MAT-Based Timing retard.

Pulling timing as **** gets hot makes some sense, but it ***** with the fuel and complicates tuning.

What else am I missing that I don't know I'm fighting?
MS in the past, the MAT air density was an equation you couldn't modify. Now it's an equation with a correction table, so you can compensate for non-ideal-gas-law behavior such as what you're seeing. Ideally you should tune that curve so AFRs stay constant with constant timing and varying air temps. Mine is non-linear too, I need to work on that.

AFR's are going to "change" with timing because when you retard the timing, the combustion efficiency drops and you end up with more O2 in the exhaust, and it reports a lean condition. This effect will be small unless you're pulling a lot of timing. 1-2 degrees of retard will change AFRs maybe 0.3-0.4 in my experience.

You really don't want to pull fuel if you're pulling timing for high AITs, obviously. Best case is fuel stays the correct duty cycle to maintain your AFRs, and when your timing retard hits, it will show a touch lean but that's nothing to worry about as it's just the timing retarding affecting it.

I've been wanting to discuss MAT based timing retard, gonna do a search and if I don't find a recent thread with good info, I'll start one and link to it here: Post your MAT Based Timing Retard Table

Edit- posted link. My MAT-based table is in the link, I think it's too conservative but it's what I'm running right now.
patsmx5 is offline   Reply With Quote
Old 07-02-2015, 04:37 AM   #1528
Elite Member
iTrader: (1)

Join Date: Jun 2006
Location: Warrington/Birmingham
Posts: 2,658
Total Cats: 41
Default

Quote:
Originally Posted by patsmx5 View Post
MS in the past, the MAT air density was an equation you couldn't modify. Now it's an equation with a correction table,
Depends on the code version used. Later versions it's the ideal gas law in a 2D table that you alter directly, rather than a correction curve for the ideal gas law.

When you're boosting are your IAT's significantly higher than when your idling? if so make sure the correction is only taking place at temps you never/very rarely see at idle.

I'm very surprised you see a full 1pt AFR swing from 2 deg of advance change though. That seems an awful lot.

For idle stability I've had a lot luck utilising the "Idle RPM Timing Correction" option in the idle advance settings screen. It manipulates timing to correct the idle speed based on the closed loop target.

With the PWM valve off and using the Idle RPM Timing Correction I can catch pretty hefty load changes just from manipulating the ignition timing. It's much faster to react compared to the idle valve too.
richyvrlimited is offline   Reply With Quote
Old 07-02-2015, 11:48 AM   #1529
Destroyer of Inconel
Thread Starter
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 8,869
Total Cats: 774
Default

Quote:
Originally Posted by patsmx5 View Post
MS in the past, the MAT air density was an equation you couldn't modify. Now it's an equation with a correction table, so you can compensate for non-ideal-gas-law behavior such as what you're seeing. Ideally you should tune that curve so AFRs stay constant with constant timing and varying air temps. Mine is non-linear too, I need to work on that.
Oh, don't I know it. Looking back I believe my DIYPNP had it hard-coded. One day I drove up to San Jose in 100+ weather and idling in traffic the IAT heatsoaked so bad the ECU just kept pulling fuel and pulling fuel until it hit 18:1 and the car started to misfire. It was not a good day.

Quote:
Originally Posted by patsmx5 View Post
AFR's are going to "change" with timing because when you retard the timing, the combustion efficiency drops and you end up with more O2 in the exhaust, and it reports a lean condition. This effect will be small unless you're pulling a lot of timing. 1-2 degrees of retard will change AFRs maybe 0.3-0.4 in my experience.
What I'm seeing is probably a combination of the 2 corrections, pulling fuel and pulling timing at the same time.

Quote:
Originally Posted by patsmx5 View Post
You really don't want to pull fuel if you're pulling timing for high AITs, obviously. Best case is fuel stays the correct duty cycle to maintain your AFRs, and when your timing retard hits, it will show a touch lean but that's nothing to worry about as it's just the timing retarding affecting it.
Oh for sure, I agree 100%. That's why I zeroed out (actually 100'd it out, but you get the idea) that ideal gas law table. As to why they are both active at the same time is what's killing me.

Quote:
Originally Posted by patsmx5 View Post
I've been wanting to discuss MAT based timing retard, gonna do a search and if I don't find a recent thread with good info, I'll start one and link to it here: Post your MAT Based Timing Retard Table

Edit- posted link. My MAT-based table is in the link, I think it's too conservative but it's what I'm running right now.
Neat. I'll sub and follow along and ask stupid questions.

Quote:
Originally Posted by richyvrlimited View Post
Depends on the code version used. Later versions it's the ideal gas law in a 2D table that you alter directly, rather than a correction curve for the ideal gas law.
Yup, see above. I'm guessing its a combination of things.

Quote:
Originally Posted by richyvrlimited View Post
When you're boosting are your IAT's significantly higher than when your idling? if so make sure the correction is only taking place at temps you never/very rarely see at idle.
No boost, yet. I'm getting a grip on this stuff first with the stock motor before the built motor and EFR get installed.

Quote:
Originally Posted by richyvrlimited View Post
I'm very surprised you see a full 1pt AFR swing from 2 deg of advance change though. That seems an awful lot.
Yarr, see above. I've not had a chance to play with it since I noticed the corrections.

Quote:
Originally Posted by richyvrlimited View Post
For idle stability I've had a lot luck utilising the "Idle RPM Timing Correction" option in the idle advance settings screen. It manipulates timing to correct the idle speed based on the closed loop target.

With the PWM valve off and using the Idle RPM Timing Correction I can catch pretty hefty load changes just from manipulating the ignition timing. It's much faster to react compared to the idle valve too.
I like this, a lot. I'll have to play with it and see if its something I can figure out. Out of curiosity, what timing wheel are you using?

Thanks guys, I appreciate the comments
EO2K is offline   Reply With Quote
Old 07-02-2015, 02:08 PM   #1530
Elite Member
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 8,023
Total Cats: 129
Default

Quote:
Originally Posted by richyvrlimited View Post
Depends on the code version used. Later versions it's the ideal gas law in a 2D table that you alter directly, rather than a correction curve for the ideal gas law.

When you're boosting are your IAT's significantly higher than when your idling? if so make sure the correction is only taking place at temps you never/very rarely see at idle.

I'm very surprised you see a full 1pt AFR swing from 2 deg of advance change though. That seems an awful lot.

For idle stability I've had a lot luck utilising the "Idle RPM Timing Correction" option in the idle advance settings screen. It manipulates timing to correct the idle speed based on the closed loop target.

With the PWM valve off and using the Idle RPM Timing Correction I can catch pretty hefty load changes just from manipulating the ignition timing. It's much faster to react compared to the idle valve too.
I too run the timing correction idle stuff. I think I told E02K already here, but if not, it works great.


Quote:
Originally Posted by EO2K View Post
Oh, don't I know it. Looking back I believe my DIYPNP had it hard-coded. One day I drove up to San Jose in 100+ weather and idling in traffic the IAT heatsoaked so bad the ECU just kept pulling fuel and pulling fuel until it hit 18:1 and the car started to misfire. It was not a good day.


What I'm seeing is probably a combination of the 2 corrections, pulling fuel and pulling timing at the same time.


Oh for sure, I agree 100%. That's why I zeroed out (actually 100'd it out, but you get the idea) that ideal gas law table. As to why they are both active at the same time is what's killing me.


Neat. I'll sub and follow along and ask stupid questions.

Yup, see above. I'm guessing its a combination of things.

No boost, yet. I'm getting a grip on this stuff first with the stock motor before the built motor and EFR get installed.

Yarr, see above. I've not had a chance to play with it since I noticed the corrections.


I like this, a lot. I'll have to play with it and see if its something I can figure out. Out of curiosity, what timing wheel are you using?

Thanks guys, I appreciate the comments
On the mat timing correction table, I need to mess with it myself on my own vehicle, so I can't really tell you what to set it to. I tried zero'ing it out too, and it helped, but then when it got hot it ran rich or lean, I don't even remember, but it was off. I put it back to stock curve and will actually tune this down the road.

I run the OEM timing wheels, they work great.

They are both active at the same time since they do 2 different things. Ideally we will tune both, and they will work together to make everything great. When both work, a datalog should show AFRs are constant until the timing retard begins to kick in, then it will show AFRs going leaner. But not a lot, just a little.
patsmx5 is offline   Reply With Quote
Old 07-02-2015, 02:35 PM   #1531
Destroyer of Inconel
Thread Starter
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 8,869
Total Cats: 774
Default

S'all good.

I was asking richyvrlimited about the timing wheel because I'm wondering if higher resolution wheel might make it more responsive. My 949 balancer is still on the bench until I get my seals and timing set installed so this would be the time to change wheels.
EO2K is offline   Reply With Quote
Old 07-02-2015, 02:38 PM   #1532
Elite Member
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 8,023
Total Cats: 129
Default

Stock wheels FTW. They work fine. The only benefit to a higher-tooth wheel is off-idle timing accuracy and even then who cares whether I shoot from 20-25 or 20-23.5 in 0.003 seconds because the wheel lagged a bit?
patsmx5 is offline   Reply With Quote
Old 07-02-2015, 05:03 PM   #1533
Elite Member
iTrader: (1)

Join Date: Jun 2006
Location: Warrington/Birmingham
Posts: 2,658
Total Cats: 41
Default

<p>I'm on the stock wheel</p><p>&nbsp;</p><p>Reverant has used both the stock wheel and a hight tooth wheel and couln't tell any difference between the two.</p>
richyvrlimited is offline   Reply With Quote
Old 07-02-2015, 05:42 PM   #1534
Destroyer of Inconel
Thread Starter
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 8,869
Total Cats: 774
Default

Cool, thanks. I probably don't need to be buying more parts anyway.
EO2K is offline   Reply With Quote
Old 07-03-2015, 02:50 PM   #1535
Destroyer of Inconel
Thread Starter
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 8,869
Total Cats: 774
Default

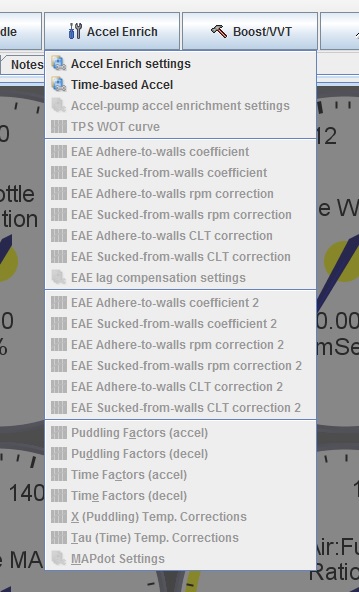

Lean tip in is AE, right? Ungh.

I'm currently set to Time-based AE. I thought MS3 was supposed to have options for EAE?
EO2K is offline   Reply With Quote
Old 07-03-2015, 02:56 PM   #1536
Elite Member
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 8,023
Total Cats: 129
Default

I don't run EAE, just the accel pump and that's it. Accel pump is for big transitions, EAE is for smaller ones I believe.

How lean is the tip in? What rpm/load or driving condition?

The way I do it is if goes lean a bit but doesn't affect driveability, I don't worry about it.

This works for me with 1,175cc/min injectors on my car.

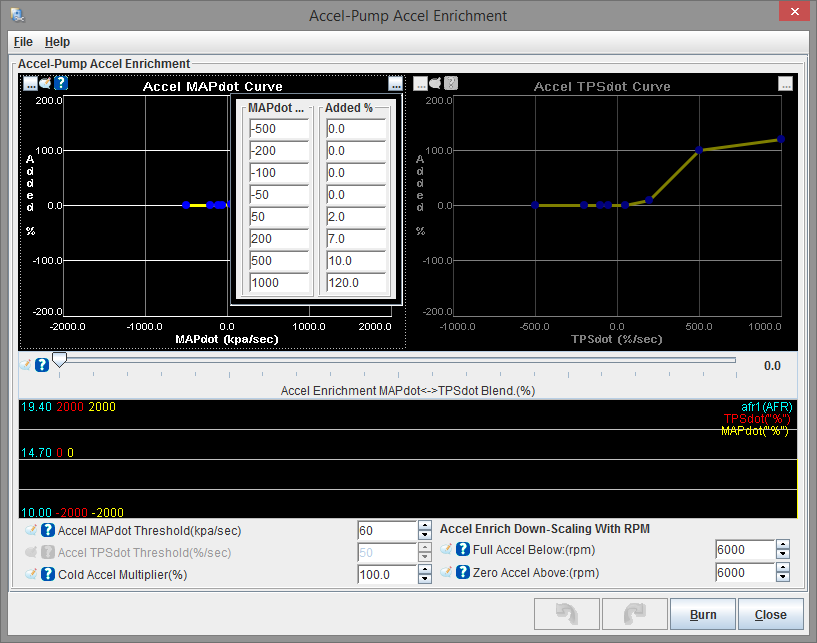

Attached Thumbnails
Nothing to see here, just project Sisyphus, move along-accel_zpsuvherz0y.png
patsmx5 is offline   Reply With Quote
Old 07-03-2015, 03:01 PM   #1537
Destroyer of Inconel
Thread Starter
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 8,869
Total Cats: 774
Default

humm...

Attached Thumbnails
Nothing to see here, just project Sisyphus, move along-yunoeae.jpg
EO2K is offline   Reply With Quote
Old 07-03-2015, 03:09 PM   #1538
Elite Member
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 8,023
Total Cats: 129
Default

Haha well I think you found your problem!
patsmx5 is offline   Reply With Quote
Old 07-03-2015, 03:41 PM   #1539
SadFab Sales Lady
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 15,165
Total Cats: 972
Default

<p>What pat said. EAE is for slower changes. AE is for quick ones.</p>
aidandj is offline   Reply With Quote
Old 07-04-2015, 12:57 PM   #1540
Destroyer of Inconel
Thread Starter
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 8,869
Total Cats: 774
Default

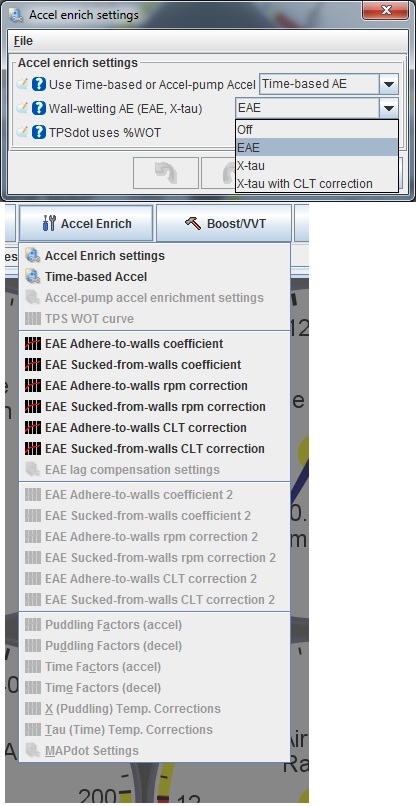

Well, this is frustrating and I'm stumped. I hate wasting his time but I guess I'll email Rev and see if he can advise. I feel like 90% of the time when I run into an issue like this its something stupid, like a check box I missed on some sub-menu buried somewhere.

kek



Now I'm wondering why it was off in the first place.
Attached Thumbnails
Nothing to see here, just project Sisyphus, move along-thedumb.jpg
EO2K is offline   Reply With Quote


Reply

Related Topics
Thread Thread Starter Forum Replies Last Post
Help me test MS3 firmware! Win stuff! Ben MEGAsquirt 16 01-13-2017 08:56 PM
3d scanned miata parts- interest check asmasm General Miata Chat 32 01-05-2017 10:22 AM
Noob from Arizona, Hi Richard here! Richard346 Meet and Greet 11 12-16-2016 05:48 PM
Move to Florida. Buy Miata vtbandit Meet and Greet 7 12-15-2016 09:33 PM
The Slowest Miata in Tampa Build vtbandit Build Threads 4 12-13-2016 06:08 PM


Tags
begi isn't helping, buttsex, doubt, efr=tits man, failure is an option, iono mang, longing, manifold mastectomy, moist b-hole, offending tits, procrastination, silent but deadly, tartar sauce massage oil, uncertainty, yearning

Thread Tools Search this Thread
Search this Thread:

Advanced Search

Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off
Trackbacks are On
Pingbacks are On
Refbacks are On



All times are GMT -4. The time now is 02:01 AM.
