Old 02-16-2016, 01:23 AM   #301
Senior Member
iTrader: (2)

Join Date: Nov 2011
Location: Beaverton, OR
Posts: 683
Total Cats: 27
Default

So will this car ever see a dyno?
greddygalant is offline   Reply With Quote
Old 02-16-2016, 01:25 AM   #302
SadFab Sales Lady
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 14,859
Total Cats: 938
Default

Quote:
Originally Posted by greddygalant View Post
So will this car ever see a dyno?
Doubtful
aidandj is offline   Reply With Quote
Old 02-16-2016, 01:52 AM   #303
Elite Member
Thread Starter
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 7,979
Total Cats: 128
Default

Boost controller installed. Not sure what it's set at, should be a surprise tomorrow. I did 2.5 or 3.5 turns, don't remember but it has 11 turns total adjustment.

Dyno or not, I literally have 15 miles on this setup, so no I'm not throwing it on a dyno right now. Probably going to learn how to setup a compound boost setup, and fix whatever problems pop up first. Then drive and track it, and enjoy it.
patsmx5 is offline   Reply With Quote
Old 02-16-2016, 01:59 AM   #304
Elite Member
Thread Starter
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 7,979
Total Cats: 128
Default

Also planning to track it at 22 PSI and 30 PSI (old SC boost levels) to see how the car's performance changed at the same boost level. Expecting the turbo to be faster of course, but I doubt the 60' will be as good.
patsmx5 is offline   Reply With Quote
Old 02-16-2016, 02:01 AM   #305
SadFab Sales Lady
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 14,859
Total Cats: 938
Default

So that's a no to the dyno?
aidandj is offline   Reply With Quote
Old 02-16-2016, 02:03 AM   #306
Elite Member
Thread Starter
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 7,979
Total Cats: 128
Default

Quote:
Originally Posted by aidandj View Post
So that's a no to the dyno?
patsmx5 is offline   Reply With Quote
Old 02-16-2016, 02:04 AM   #307
SadFab Sales Lady
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 14,859
Total Cats: 938
Default

Quote:
Originally Posted by patsmx5 View Post
aidandj is offline   Reply With Quote
Old 02-16-2016, 02:06 AM   #308
Elite Member
Thread Starter
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 7,979
Total Cats: 128
Default

Maybe dyno it. Maybe.
patsmx5 is offline   Reply With Quote
Old 02-16-2016, 02:24 AM   #309
Elite Member
Thread Starter
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 7,979
Total Cats: 128
Default

Anyone know a cheap thing I can use to PWM the pump? A solid state relay, or some transistor(s) that I can hook up easily/cheap? Emphasis on cheap. I can figure out the MS control part.
patsmx5 is offline   Reply With Quote
Old 02-16-2016, 02:25 AM   #310
SadFab Sales Lady
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 14,859
Total Cats: 938
Default

Whatever was suggested for the fuel pump PWM, wherever we were talking about it.

A big fet
aidandj is offline   Reply With Quote
Old 02-16-2016, 02:27 AM   #311
Elite Member
Thread Starter
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 7,979
Total Cats: 128
Default

Joe posted a link to 20,000 different ones, not a specific one that would work though he described one that would work.
patsmx5 is offline   Reply With Quote
Old 02-16-2016, 02:58 AM   #312
Sadfab Union President
iTrader: (2)

Join Date: May 2014
Location: Kansas
Posts: 2,690
Total Cats: 114
Default

You've gotta dump a lot of heat to pwm a 10A load with a transistor.

Something like this is what you need, all premade with extra things you can ignore. This is only rated at 3A, or 6 continuous.

PWM Adjustable Speed Motor Driver Module LMD18200T for Arduino R3 Robot Project | eBay

Or some hella relay, was it something like this?

Hella Solid State Relay Current Control Unit 12V 4RA007865 031 | eBay
deezums is offline   Reply With Quote
Old 02-16-2016, 04:04 AM   #313
lvw
Junior Member

Join Date: Jun 2008
Location: Hanover,Va
Posts: 76
Total Cats: 0
Default

Wow..speaking of the "A Team", very cool build, in a very short time. "I love it when a plan comes together!"
lvw is offline   Reply With Quote
Old 02-16-2016, 01:32 PM   #314
Senior Member
iTrader: (3)

Join Date: Feb 2006
Location: Centennial, CO
Posts: 659
Total Cats: 18
Default

Quote:
Originally Posted by 18psi View Post
You guys are overthinking it.
direct port 100 shot will help the 1st turbo spool.
then fuel injection in the midpipe will help the 2nd turbo spool.
Wouldn't that count as E-Cooling the 2nd turbo?

Sound like a win all around.
karter74 is offline   Reply With Quote
Old 02-16-2016, 02:53 PM   #315
Junior Member

Join Date: Jun 2008
Location: Senatobia, MS
Posts: 122
Total Cats: 6
Default

Hey Pat, when you get all your learning and satisfaction from this awesome build, I want to see combo #3: Turbo to super charger.
fivehundredton is offline   Reply With Quote
Old 02-16-2016, 03:10 PM   #316
Boost Czar

iTrader: (60)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 70,179
Total Cats: 1,402
Default

no.

keep the remote turbo on, and then go back to the dual supercharger build.
Braineack is offline   Reply With Quote
Old 02-16-2016, 03:17 PM   #317
Elite Member
Thread Starter
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 7,979
Total Cats: 128
Default

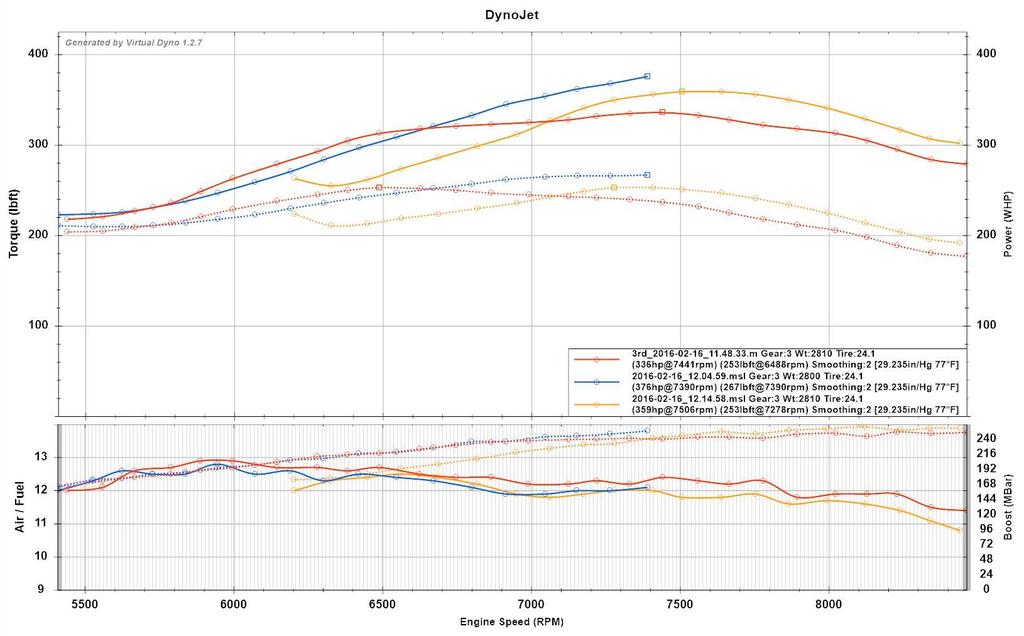

LOL. At 22 PSI, the Turbo setup is making 20 whp more than the SC did at 30 PSI. Whipple was 350whp @ 30 PSI for reference. Same tune, I have not TOUCHED the maps at all in any way, literally just unbolted the SC and installed the turbo setup.

Oh yeah, up to 22 PSI so far.

I have a video I'm uploading now, 2nd and 3rd with me holding the camera in one hand, shifting with the other...

For now.... Yes they're 3rd gear from high RPMs, no I didn't do 2K 5th gear pulls. I was upping the boost and seeing what affects it had. Thus why power is different for each, those are diff boost levels.

Attached Thumbnails
Pat's Ebay Turbo Compound Boost Build-compound%2520boost_zpsiwa5avpx.jpg
patsmx5 is offline   Reply With Quote
Old 02-16-2016, 03:24 PM   #318
Elite Member
iTrader: (17)

Join Date: Aug 2007
Location: Fort Myers, FL
Posts: 2,613
Total Cats: 102
Default

Nice! Looking forward to the video and some spool data. Seems like it's working pretty damn well so far.
pdexta is offline   Reply With Quote
Old 02-16-2016, 03:24 PM   #319
Elite Member
Thread Starter
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 7,979
Total Cats: 128
Default

patsmx5 is offline   Reply With Quote
Old 02-16-2016, 03:41 PM   #320
Elite Member
Thread Starter
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 7,979
Total Cats: 128
Default

Oh yeah, at 376whp/267wtq, this motor breathes up top pretty well.

Maybe I can get the power up to say 500whp and keep the torque around 350? Might help keep the 6 speed alive.
patsmx5 is offline   Reply With Quote
