Old 02-29-2016, 06:18 PM   #561
SadFab Sales Lady
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 14,783
Total Cats: 930
Default

Miata e breaks are shitie. Unles yu had sum sort of hydrawlik brak bak there.
aidandj is offline   Reply With Quote
Old 02-29-2016, 06:46 PM   #562
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 33,150
Total Cats: 1,988
Default

Quote:
Originally Posted by aidandj View Post
Miata e breaks are shitie. Unles yu had sum sort of hydrawlik brak bak there derr.
fixt
18psi is offline   Reply With Quote
Old 02-29-2016, 07:30 PM   #563
Supporting Vendor
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 13,359
Total Cats: 807
Default

Quote:
Originally Posted by deezums View Post
That's all fine and good, if you want to be pedant.

Saying "stock block" to a car guy means one thing 99.9% of the time. Wikipedia isn't changing that.
This. Colloquially, "stock block" means 100% stock from the head surface down. "Built block" means upgraded internals.
Savington is offline   Reply With Quote
Old 02-29-2016, 08:40 PM   #564
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: woosta, ma
Posts: 8,596
Total Cats: 91
Default

Pat I bet you can call DSS tomorrow and have you make you some axles. You need S2000 inners on miata axles. Not 100% confident that will seal to the diff but it'll function.
Leafy is offline   Reply With Quote
Old 02-29-2016, 08:55 PM   #565
Junior Member

Join Date: Jun 2008
Location: Senatobia, MS
Posts: 120
Total Cats: 6
Default

Quote:
Originally Posted by 18psi View Post
fixt
Ats more lak it. I unnerstan waht yore sayin now. ****. Dog knocked th lantern over. hole on.
fivehundredton is offline   Reply With Quote
Old 02-29-2016, 08:58 PM   #566
Junior Member

Join Date: Jun 2008
Location: Senatobia, MS
Posts: 120
Total Cats: 6
Default

Congrats on the low et Pat. Was your camber about what it was before you added the spacers?
fivehundredton is offline   Reply With Quote
Old 02-29-2016, 09:34 PM   #567
Elite Member
Thread Starter
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 7,945
Total Cats: 126
Default

Quote:
Originally Posted by sixshooter View Post
Cryo treat the next ones to make them stronger or step up to larger hubs and even bigger axles.
Hmm. I wonder if that would help? I've read it typically makes heat treated metals harder, which can also have the negative affect of making them more brittle.


Quote:
Originally Posted by 18psi View Post
just weld it back together
I would if I could! This one's done though.

Quote:
Originally Posted by Joe Perez View Post
Which company is manufacturing aftermarket B-series blocks?

I realize that the bouncy parts aren't stock, but unless there have been some major developments recently which I missed, I'm pretty sure he's running a stock block and crank. My point there was to differentiate from people who have done engine swaps.
Correct, stock block and crank. I agree with you on the people calling engines blocks, it's dumb. That seems to be a common thing in the 4 cylinder community though for whatever reason.


Quote:
Originally Posted by curly View Post
Even a loose axle nut can ruin a bearing, they're meant to have the axle in the hub or they'll be damaged. My boss doesn't even let us take a car off jack stands when it has no axles. was it towed flat bed or tow dolly?
It was tow-dolly'd, with the dolly on the back tires, front tires rolling on the ground. Is there any way to tell if the bearing is shot or ok? If I reassemble it and the bearing is damaged, will it be obvious but not dangerous? I'd like to just swap in the axle and drive it, make sure nothing else failed (trans, diff, etc).

Quote:
Originally Posted by Joe Perez View Post
You are all massacring the English language...
Agreed!

Quote:
Originally Posted by y8s View Post
stock short block?

btw would an axle snap if you did a clutch dump with the e brake on?
Dunno, probably spin the wheels if I had to guess.
Quote:
Originally Posted by Leafy View Post
Pat I bet you can call DSS tomorrow and have you make you some axles. You need S2000 inners on miata axles. Not 100% confident that will seal to the diff but it'll function.
Thanks for the heads up. Sealing would be important though, but who knows maybe they can build some better ones.

For now I'm going to change my launch control settings, and a couple other things. Try to minimize drivetrain shock as I gave it hell on the 1-2 gear change that broke that axle.

Essentially I rev'd 1st to 8,200, then clutch in (motor shuts off) and into 2nd, and then clutch out. Well once the RPMs dropped below 7,800 (400 rpm drop) the motor turned on at full power while I'm dropping the clutch out. Drivetrain shock city, and I was on drag radials on a prepped track, so it refused to spin. Datalog shows the clutch (or tires) went grab/slip/grab/slip/grab-breakaxle.

Quote:
Originally Posted by fivehundredton View Post
Congrats on the low et Pat. Was your camber about what it was before you added the spacers?
Thanks! I don't know what the camber is to be honest... Need to get it aligned for sure, it's been a while, long enough to not quote those numbers since I doubt it's held an alignment for that long.
patsmx5 is offline   Reply With Quote
Old 02-29-2016, 09:34 PM   #568
Elite Member
Thread Starter
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 7,945
Total Cats: 126
Default

Also a big thanks to Joe, I went there and bought an axle.
patsmx5 is offline   Reply With Quote
Old 02-29-2016, 09:51 PM   #569
Boost Czar

iTrader: (60)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 70,100
Total Cats: 1,400
Default


Quote:
Originally Posted by patsmx5 View Post
It is not on my setup, stock ecu controls that light right now.
Attached Thumbnails

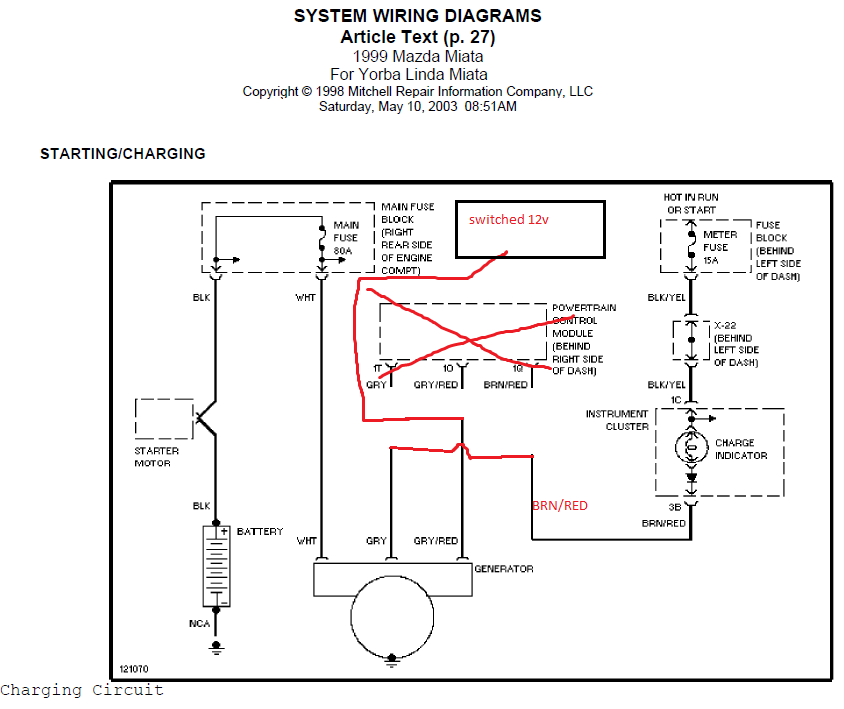

Pat's Ebay Turbo Compound Boost Build-80-18067d1282535453_na_alternator_nb_lame_7ef930eee8754080ed6b96250cc5c80fd02d3744.png
Braineack is offline   Reply With Quote
Old 02-29-2016, 10:03 PM   #570
Elite Member
Thread Starter
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 7,945
Total Cats: 126
Default

After looking at the pics and parts, I think it's a fatigue failure. And these parts are lathe machined. A quick search shows that a polished surface has a fatigue life about 7x that of a machined surface on a shaft in torsional loading.

Thus I'm now thinking of somehow polishing this part before installing it. But given that it's probably heat treated to the moon, and I have only hand tools, that's gonna be, it's gonna suck.
patsmx5 is offline   Reply With Quote
Old 02-29-2016, 10:17 PM   #571
Boost Pope
iTrader: (8)

Joe Perez's Avatar

Join Date: Sep 2005
Location: Chicago
Posts: 24,644
Total Cats: 1,562
Default

Quote:
Originally Posted by patsmx5 View Post
Is there any way to tell if the bearing is shot or ok? If I reassemble it and the bearing is damaged, will it be obvious but not dangerous? I'd like to just swap in the axle and drive it, make sure nothing else failed (trans, diff, etc).
One way to think about it is that bearings are cheap, and most of the hard work is already done.

HUB BEARING ASSEMBLY PGB PGRW237 | NAPA Auto Parts


And the press-free replacement procedure: How to replace your rear wheel bearings without a press




Quote:
Originally Posted by patsmx5 View Post
Thus I'm now thinking of somehow polishing this part before installing it. But given that it's probably heat treated to the moon, and I have only hand tools, that's gonna be, it's gonna suck.
That stub axle has oil-control grooves cut all around it, and is broached all to hell. It's basically made out of stress risers.
Joe Perez is offline   Reply With Quote
Old 02-29-2016, 10:18 PM   #572
Cpt. Slow
iTrader: (24)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 11,632
Total Cats: 463
Default

Looks like it snapped right at the end of the spline?

You wouldn't want it heat treated, it'd shatter more.

And as far as the wheel bearing goes, I've just heard that if its moved at all without an axle or with a loose nut, it'll blow the bearing within a few hundred miles.

Also not broached joe, you can only broach internal splines AFAIK. Look up horizontal hob machine.
curly is offline   Reply With Quote
Old 03-01-2016, 04:19 AM   #573
Senior Member
iTrader: (2)

Join Date: Dec 2011
Posts: 1,249
Total Cats: 101
Default

Quote:
Originally Posted by patsmx5 View Post



This looks like the carnage you see all over the 4WD forums when you mix plentiful torque with advantaged gear ratios. You did with just one of them. Props for that, I guess.
good2go is offline   Reply With Quote
Old 03-01-2016, 09:43 AM   #574
Senior Member

Join Date: Oct 2013
Location: NorthWest NJ
Posts: 748
Total Cats: 28
Default

Christ, that is impressive. Look at those spiral shaped cracks, twisted off. That said, it is nice to know I will never have to worry about the MSM diff and axels going in my car. I plan to stay on stock internals for a while, so will never develop anywhere close to the type of power/abuse you put these through.
x_25 is offline   Reply With Quote
Old 03-01-2016, 09:47 AM   #575
Boost Pope
iTrader: (8)

Joe Perez's Avatar

Join Date: Sep 2005
Location: Chicago
Posts: 24,644
Total Cats: 1,562
Default

This is what the last page of this thread has consisted of:



Me: "Block."

Everyone else: "Block doesn't mean block."

Me: "Block means block."

Everyone else: "You're being pedantic."

Me: "Broach."

Quote:
Originally Posted by curly View Post
Also not broached joe, you can only broach internal splines AFAIK. Look up horizontal hob machine.
Me: "Broach doesn't mean broach."
Joe Perez is offline   Reply With Quote
Old 03-01-2016, 09:58 AM   #576
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 33,150
Total Cats: 1,988
Default

The block is a lie.

Also, you're just mad this thread contains zero redheaded cats.

And I don't mean redheaded cats.
18psi is offline   Reply With Quote
Old 03-01-2016, 01:21 PM   #577
Boost Pope
iTrader: (8)

Joe Perez's Avatar

Join Date: Sep 2005
Location: Chicago
Posts: 24,644
Total Cats: 1,562
Default

Quote:
Originally Posted by 18psi View Post
The block is a lie.

Attached Thumbnails
Pat's Ebay Turbo Compound Boost Build-80-undefined_b8c1ac95d8f225e8ae406f81dbaad1be380d9dd4.png
Joe Perez is offline   Reply With Quote
Old 03-01-2016, 01:59 PM   #578
Elite Member
iTrader: (3)

Join Date: Mar 2008
Location: Granbury, TX
Posts: 5,807
Total Cats: 551
Default

All I can say is . . . dayum!

Pat, you need your own reality TV show. This is good **** right here.
hornetball is offline   Reply With Quote
Old 03-01-2016, 02:09 PM   #579
Elite Member
Thread Starter
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 7,945
Total Cats: 126
Default

Quote:
Originally Posted by 18psi View Post
and think about how much abuse those axles took up to this point. we're talking years of non-stop thrashing at the drag strip
These have 160 passes on them at the drag strip. All running 30+ pounds of boost on drag radials, all with 3 second 2nd gear burnout to clean/heat the tires and launching with launch control/flat shift. I'm guessing the axles were cracked before the pass where they broke from previous abuse. They have seen a lot of wheel hop/harsh shifting. I have a video with it on the SC barking 2nd, 3rd, and 4th on drag radials for example, that has to be hell on axles.

You can hear it bark 4th in this vid:


Bark 2nd, 3rd, and 4th on this pass:



Also I may or may not have cracked the subframe in two different spots.... Gotta fix that too.

But I'm hoping I can keep these axles alive with better setup of the launch control/flat shift to reduce shock loading.
patsmx5 is offline   Reply With Quote
Old 03-01-2016, 02:19 PM   #580
Junior Member

Join Date: Jun 2008
Location: Senatobia, MS
Posts: 120
Total Cats: 6
Default

"Also I may or may not have cracked the subframe in two different spots.... Gotta fix that too.
But I'm hoping I can keep these axles alive with better setup of the launch control/flat shift to reduce shock loading."

Good lord! I'd like to see a camera view from behind your car and see how much it twists.


__________________
fivehundredton is offline   Reply With Quote
