Old 07-27-2015, 07:26 PM   #461
SadFab Sales Lady
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 15,204
Total Cats: 974
Default

<p>I thought the wrapping held the heat in and caused corrosion. Like even on stainless.</p><p>I just have my license plate shield, some wrap around the heater hoses, brake master. And everything is working fine.</p>
aidandj is offline   Reply With Quote
Old 07-27-2015, 07:26 PM   #462
Sadfab Union President
iTrader: (3)

Join Date: May 2014
Location: Kansas
Posts: 2,690
Total Cats: 114
Default

I never want to have to split my turbo from the manifold, it's locked hard on chinese studs and nuts somehow.

I would look into a way to remove the downpipe without moving the turbo, but I'm lazy and hate dealing with coolant and oil. My downpipe is two v-band nuts and the two band clamp bolts, unplugging the stupid wideband is the hardest part, of course mine is a lot simpler setup, though.

Are you sure you can't just piviot it down and out the bottom?

My searching says no wrap, but heatshield the trans from the exhaust if you can, and gas tank which I'm still using the stock one back there.
deezums is offline   Reply With Quote
Old 07-27-2015, 07:27 PM   #463
SadFab Sales Lady
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 15,204
Total Cats: 974
Default

<p>
Quote:
Originally Posted by deezums View Post
unplugging the stupid wideband is the hardest part, of course mine is a lot simpler setup, though.
</p><p>I just pull the sensor from the downpipe.</p>
aidandj is offline   Reply With Quote
Old 07-27-2015, 07:28 PM   #464
SadFab CEO
Thread Starter
iTrader: (3)

Join Date: Sep 2012
Location: your mom's house phoenix, AZ
Posts: 3,445
Total Cats: 422
Default

Quote:
Originally Posted by aidandj View Post
<p>Good luck As long as you aren't completely ditching the possibility it should be fine.</p>
Not opposed at all to whatever I need to make it all work.

Current plan:

I bought 18" of 5/8" round 750x inconel(great choice of alloy IMO) from the ebays for $20.

Friend machines aerospace alloys for a living. I replaced fork seals on dirtbike, he turns rod into studs.

hardware store nuts

total cost ~$25. If it works, thatll be awesome. If not, another $50-80 for resbond and stg 8 nuts
hi_im_sean is online now   Reply With Quote
Old 07-27-2015, 07:29 PM   #465
SadFab Sales Lady
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 15,204
Total Cats: 974
Default

<p>Stage8 is the ****. Just sayin.</p>
aidandj is offline   Reply With Quote
Old 07-27-2015, 07:30 PM   #466
Sadfab Union President
iTrader: (3)

Join Date: May 2014
Location: Kansas
Posts: 2,690
Total Cats: 114
Default

I'm not sure turning studs will get you what you want, if I'm not mistaken the cool bit about the spendy ones is they're rolled.

Can't be any worse than what I'm using though, lol
deezums is offline   Reply With Quote
Old 07-27-2015, 07:33 PM   #467
SadFab CEO
Thread Starter
iTrader: (3)

Join Date: Sep 2012
Location: your mom's house phoenix, AZ
Posts: 3,445
Total Cats: 422
Default

Ok no wrap then, I go back on forth on that so much.

I might be able to install the DP from the bottom, it just looked tight. Im going to weld it all up and go try though, we'll see what happens. Like I said, worst case scenario, if I bake my studs and it becomes a PITA to get the nuts , then ill just cut it where I would have anyway and weld one in.

O2 is going right before or right after the v band, mounted vertically. Its an AEM with a decent pigtail, unplugging should be a non issue.
hi_im_sean is online now   Reply With Quote
Old 07-27-2015, 07:39 PM   #468
Elite Member
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 8,024
Total Cats: 129
Default

Quote:
Originally Posted by hi_im_sean View Post
Also whats the consensus on wrapping the DP.

I was going to order 35ft of DEI titanium, yes? In addition to a heat shield, i hope to have under hood temps under control and no melted anything.
I don't think there has or ever will be a consensus.

But I'm about to wrap the crap out of mine where I can not shield it, and then shield everything else. In my case I really need to get the heat down, so if the steel doesn't last as long, oh well.
patsmx5 is offline   Reply With Quote
Old 07-27-2015, 07:42 PM   #469
SadFab Sales Lady
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 15,204
Total Cats: 974
Default

aidandj is offline   Reply With Quote
Old 07-27-2015, 07:45 PM   #470
SadFab Sales Lady
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 15,204
Total Cats: 974
Default

aidandj is offline   Reply With Quote
Old 07-27-2015, 07:47 PM   #471
Elite Member
iTrader: (3)

Join Date: Mar 2008
Location: Granbury, TX
Posts: 5,821
Total Cats: 555
Default

Seriously guys, ceramic coating FTW.
hornetball is offline   Reply With Quote
Old 07-27-2015, 07:47 PM   #472
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 33,416
Total Cats: 2,034
Default

maybe corky should be against powdercoated mild steel intercooler pipes that rot to crap on 99% of his turbo kits.

.....oh wait

I've wrapped stuff here with excellent results, because CA.

If you take underwater snorkeling adventures with your car, you should probably ceramic and/or heat shield.

...personally tho I like heat shielding
18psi is offline   Reply With Quote
Old 07-27-2015, 07:49 PM   #473
SadFab CEO
Thread Starter
iTrader: (3)

Join Date: Sep 2012
Location: your mom's house phoenix, AZ
Posts: 3,445
Total Cats: 422
Default

Quote:
Originally Posted by deezums View Post
I'm not sure turning studs will get you what you want, if I'm not mistaken the cool bit about the spendy ones is they're rolled.

Can't be any worse than what I'm using though, lol
As far as I understand, the stretch issue isnt with ultimate or notch strength(rolled threads), but thermal creep(material choice). They are 2 completely different failure modes and I have never seen anyone discuss the latter here. The studs stretch due to creep, not because they are being fatigued by tensile forces. If it wasnt for the heat, we know even grade 5, crap 8mm bolts will hold the turbo to the mani just fine.

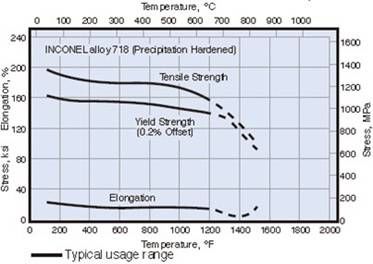

Its also cheaper and easier to roll a thread into challenging material like inconel when you do any sort of volume, which is why i think companies like begi and TSE do it. In fact I recall reading corky discuss how cutting threads was a joke unless you are specifically set up for and experienced with inconel.

Dont get me wrong rolling threads definitely makes a better fastener, I just dont think it applys as a requirment in this scenario.

You see the knee at the right of the curve? Thats what we care about. Whether you roll the threads or not, that knee follows the same curve for a given material choice. SS, and mild steel and a few hundred degree to the left. Rolling the threads just brings the curve prior to the knee up a little.




Having said all that im no expert, just a google jockey, and im talking out my ***.
Attached Thumbnails
sean's cheap thrills, 90 1.6 with subaru td04-80-xtemperature_dependence_mechanical_properties_for_the_aged_inconel_718_jpg_pagespeed_ic_l1kdb.jpg

Last edited by hi_im_sean; 07-27-2015 at 08:03 PM.
hi_im_sean is online now   Reply With Quote
Old 07-27-2015, 07:51 PM   #474
SadFab CEO
Thread Starter
iTrader: (3)

Join Date: Sep 2012
Location: your mom's house phoenix, AZ
Posts: 3,445
Total Cats: 422
Default

Quote:
Originally Posted by hornetball View Post
Seriously guys, ceramic coating FTW.

Thread is called "sean's CHEAP thrills"

I wish though, just not in the cards.
hi_im_sean is online now   Reply With Quote
Old 07-27-2015, 07:52 PM   #475
SadFab Sales Lady
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 15,204
Total Cats: 974
Default

<p>
Quote:
Originally Posted by 18psi View Post
If you take underwater snorkeling adventures with your car, you should probably ceramic and/or heat shield
</p><p>So....an average Oregon day?</p><p>
</p>
aidandj is offline   Reply With Quote
Old 07-27-2015, 07:53 PM   #476
SadFab CEO
Thread Starter
iTrader: (3)

Join Date: Sep 2012
Location: your mom's house phoenix, AZ
Posts: 3,445
Total Cats: 422
Default

Quote:
Originally Posted by 18psi View Post
maybe corky should be against powdercoated mild steel intercooler pipes that rot to crap on 99% of his turbo kits.

.....oh wait

I've wrapped stuff here with excellent results, because CA.

If you take underwater snorkeling adventures with your car, you should probably ceramic and/or heat shield.

...personally tho I like heat shielding
Arizona. probably will never get driven in the rain, unless I get caught off guard when im out with it or something. Car is covered 100% of the time its not being driven. Does sit for long periods though (a month plus sometimes).

Common 18, talk me into it...
hi_im_sean is online now   Reply With Quote
Old 07-27-2015, 07:53 PM   #477
Sadfab Union President
iTrader: (3)

Join Date: May 2014
Location: Kansas
Posts: 2,690
Total Cats: 114
Default

Quote:
Originally Posted by aidandj View Post
I just pull the sensor from the downpipe.
The wiring on my sensor is stiff and doesn't turn very easily especially while still installed.

My charge pipes seem to be doing fine, I took lots of extra time to make sure I solidly coated the inside though, I have no idea what corky's doing.

Ceramic coating would cost more than double what I spent on most of my ****, I could just wrap it and remake it if it melts. I don't care what it looks like, so it really don't make sense to spend for it. Wish it were something I could do myself...
deezums is offline   Reply With Quote
Old 07-27-2015, 08:00 PM   #478
Sadfab Union President
iTrader: (3)

Join Date: May 2014
Location: Kansas
Posts: 2,690
Total Cats: 114
Default

Quote:
Originally Posted by hi_im_sean View Post
As far as I understand, the stretch issue isnt with ultimate or notch strength(rolled threads), but thermal creep(material choice). They are 2 completely different failure modes and I have never seen anyone discuss the latter here. The studs stretch due to creep, not because they are being fatigued by tensile forces. If it wasnt for the heat, we know even grade 5, crap 8mm bolts will hold the turbo to the mani just fine.

Its also cheaper and easier to roll a thread into challenging material like inconel when you do any sort of volume, which is why i think companies like begi and TSE do it. In fact I recall reading corky discuss how cutting threads was a joke unless you are specifically set up for and experienced with inconel.

Dont get me wrong rolling threads definitely makes a better fastener, I just dont think it applys as a requirment in this scenario.

You see the knee at the right of the curve? Thats what we care about. Whether you roll the threads or not, that knee follows the same curve for a given material choice. SS, and mild steel and a few hundred degree to the left.





Having said all that im no expert, just a google jockey, and im talking out my ***.
I used to turn inconel and monel for the oil industry all the time, so I'm familiar with what a ---- it is. You are right that it would be best, fastest, most reliable and consistent to roll them. Making a set or two, then billing them at 2000% material cost for a small run to a customer with the pockets is what I'm familiar with.

I'm no injuneer either though, and I like how you word things. I'll probably try and make some as well when I eventually lift my cheap crap.
deezums is offline   Reply With Quote
Old 07-27-2015, 08:17 PM   #479
SadFab CEO
Thread Starter
iTrader: (3)

Join Date: Sep 2012
Location: your mom's house phoenix, AZ
Posts: 3,445
Total Cats: 422
Default

Quote:
Originally Posted by deezums View Post
I used to turn inconel and monel for the oil industry all the time, so I'm familiar with what a ---- it is. You are right that it would be best, fastest, most reliable and consistent to roll them. Making a set or two, then billing them at 2000% material cost for a small run to a customer with the pockets is what I'm familiar with.

I'm no injuneer either though, and I like how you word things. I'll probably try and make some as well when I eventually lift my cheap crap.
Now that you mention it, i think youve told me that before.

The most challenging stuff ive worked with was 304, maybe it was 316... Im not experienced so it was difficult to say the least. Ive heard what a bitch the nickel super alloys can be even compared to 304. I was happy to find 750x as it is supposed to one of the easiest to machine among the inconels.


I did some reasearch and found this wonderful publication. Look at the "work hardening graph" on page one. youll see how 750 approximates 304SS.
http://www.specialmetals.com/assets/smw_docs/Mach.pdf

Another benefit is, the linear CTE of 750 is almost identical to 1018.

X-750 Data Sheet

And heres a decent article on thermal creep.
http://www.nationalboard.org/Index.aspx?pageID=181
hi_im_sean is online now   Reply With Quote
Old 07-27-2015, 08:23 PM   #480
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 33,416
Total Cats: 2,034
Default

Quote:
Originally Posted by hi_im_sean View Post
Arizona. probably will never get driven in the rain, unless I get caught off guard when im out with it or something. Car is covered 100% of the time its not being driven. Does sit for long periods though (a month plus sometimes).

Common 18, talk me into it...
lol

It's $32

/convincing
18psi is offline   Reply With Quote
