@Bird: I'm working on this ---- pretty much in all of my spare time, lol.

@Viper
http://www.ebay.com/itm/94-00-Mazda-...#ht_1048wt_906
Baller timing belt kit.
It doesn't include the tensioner spring which kind of bummed me out.... Also the water pump gaskets are cheap ----.. but hey, baller black pulleys. IDK how well they will work, though. They aren't smooth - have a bit of a texture on them. We'll see.
soviet is offline   Reply With Quote
Old 03-14-2012, 07:27 PM   #82
Elite Member
Thread Starter
iTrader: (10)

soviet's Avatar

Join Date: Jan 2010
Location: VA
Posts: 3,507
Total Cats: 248
Default

Hey guys.
Quick question for anyone who knows anything about welding.

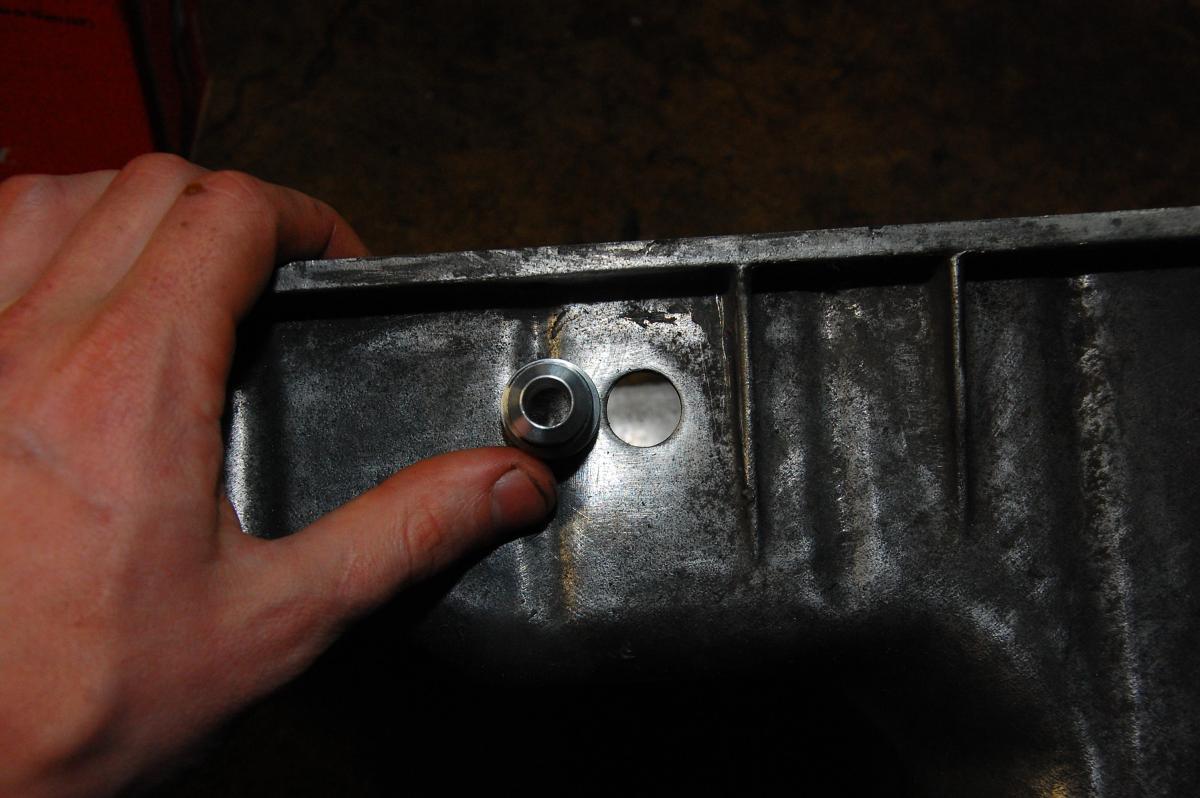

I decided to get an -8AN bung welded to my oil pan. First I tapped it pan right below the turbo but it didn't work out. The 3/8 NPT to -8AN fitting bottomed out and still wasn't tight. I either stripped the threads, tapped it wrong, or the fitting is ----. In either case I doubt it would seal.

So, I found a place to get it welded. How should I prepare it? The fitting is 22mm wide, the current hole is about 16mm. Should I enlarge the hole? To how big? 22mm? or make it larger so the weld can seal the gap?

Please educate me.

Attached Thumbnails
In Soviet Russia car build YOU!-dsc_9486.jpg
soviet is offline   Reply With Quote
Old 03-14-2012, 07:44 PM   #83
Elite Member
Thread Starter
iTrader: (10)

soviet's Avatar

Join Date: Jan 2010
Location: VA
Posts: 3,507
Total Cats: 248
Default

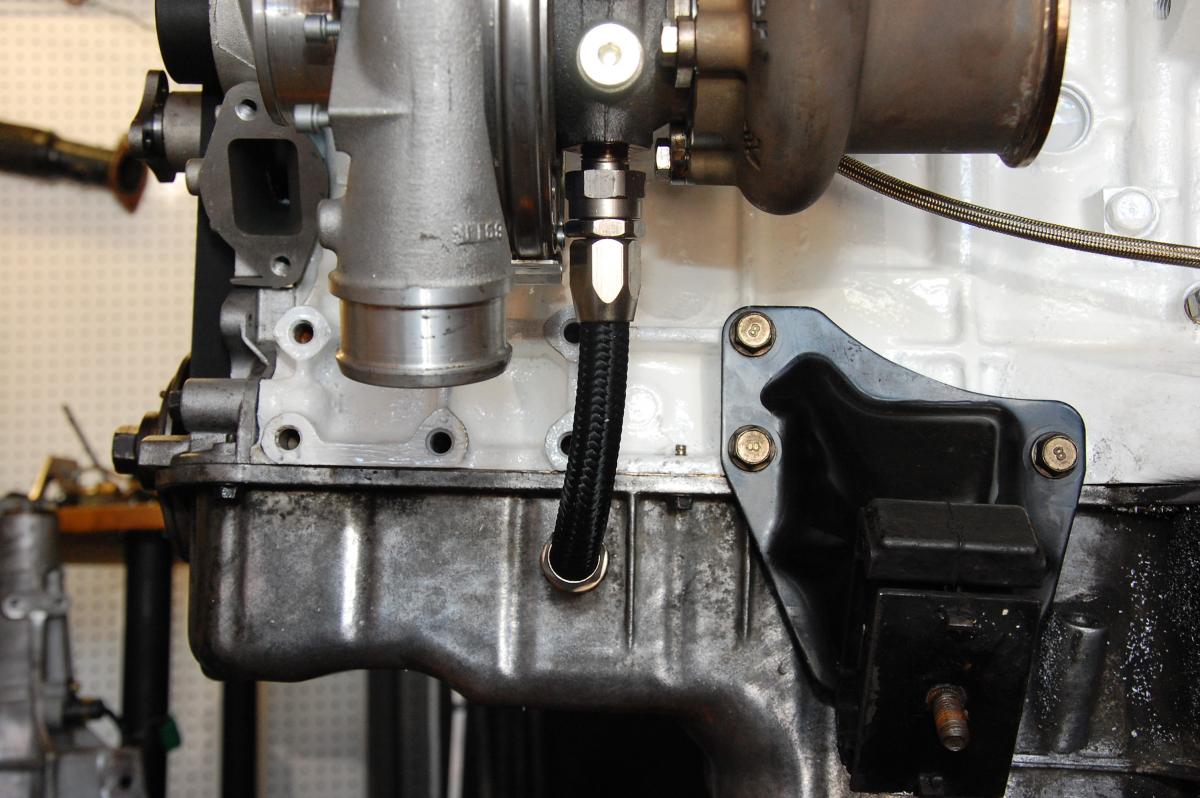

Also this is how the drain line looked like (and will be once the bung is welded)
I just hope it doesn't interfere with the steering shaft.

Attached Thumbnails
In Soviet Russia car build YOU!-dsc_9481.jpg
soviet is offline   Reply With Quote
Old 03-14-2012, 08:04 PM   #84
Junior Member
iTrader: (2)

Join Date: Nov 2010
Location: Los Angeles
Posts: 65
Total Cats: 1
Default

How do you like the black nylon AN Lines?
TheBirdmanJD is offline   Reply With Quote
Old 03-14-2012, 08:14 PM   #85
Elite Member
Thread Starter
iTrader: (10)

soviet's Avatar

Join Date: Jan 2010
Location: VA
Posts: 3,507
Total Cats: 248
Default

They are quite nice but I never dealt with regular ss lines so can't compare!
soviet is offline   Reply With Quote
Old 03-14-2012, 08:26 PM   #86
Elite Member
iTrader: (6)

blaen99's Avatar

Join Date: Sep 2010
Location: Seattle, WA
Posts: 4,112
Total Cats: 28
Default

Quote:
Originally Posted by soviet View Post
@Bird: I'm working on this ---- pretty much in all of my spare time, lol.

@Viper
http://www.ebay.com/itm/94-00-Mazda-...#ht_1048wt_906
Baller timing belt kit.
It doesn't include the tensioner spring which kind of bummed me out.... Also the water pump gaskets are cheap ----.. but hey, baller black pulleys. IDK how well they will work, though. They aren't smooth - have a bit of a texture on them. We'll see.
Are eBay timing kits worth the cash? Or are they total crap?
blaen99 is offline   Reply With Quote
Old 03-14-2012, 08:50 PM   #87
mkturbo.com
iTrader: (24)

shuiend's Avatar

Join Date: May 2006
Location: Charleston SC
Posts: 12,210
Total Cats: 750
Default

Quote:
Originally Posted by blaen99 View Post
Are eBay timing kits worth the cash? Or are they total crap?
I have used eBay timing belt kits for years, you just need to make sure it comes with a GMB water pump.
shuiend is offline   Reply With Quote
Old 03-14-2012, 08:53 PM   #88
Elite Member
iTrader: (6)

blaen99's Avatar

Join Date: Sep 2010
Location: Seattle, WA
Posts: 4,112
Total Cats: 28
Default

Quote:
Originally Posted by shuiend View Post
I have used eBay timing belt kits for years, you just need to make sure it comes with a GMB water pump.
Huh, roger. Thanks SHOES!
blaen99 is offline   Reply With Quote
Old 03-14-2012, 09:17 PM   #89
Boost Czar

iTrader: (60)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 70,165
Total Cats: 1,401
Default

Hey, can I buy the driver fender from you?

or swap for a really really shitty one?
Braineack is offline   Reply With Quote
Old 03-14-2012, 10:23 PM   #90
Senior Member

Join Date: Aug 2010
Location: Arl. Texas
Posts: 927
Total Cats: 16
Default

On the weld fitting.. Just make the hole as big as the inside dia of the fitting. Is it flush with the pan? Leave as much pan as you can for the welder(heat soak). The cleaner the material the better, oil free too.
Miater is offline   Reply With Quote
Old 03-14-2012, 10:45 PM   #91
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 33,168
Total Cats: 1,990
Default

I check back on this and you're rocking EFR?

VERY good progress indeed lol
18psi is offline   Reply With Quote
Old 03-15-2012, 12:49 PM   #92
Elite Member
Thread Starter
iTrader: (10)

soviet's Avatar

Join Date: Jan 2010
Location: VA
Posts: 3,507
Total Cats: 248
Default

yep, I went from poor man's turbo to baller status.
soviet is offline   Reply With Quote
Old 03-15-2012, 01:00 PM   #93
Senior Member
iTrader: (6)

Join Date: May 2009
Location: San Francisco
Posts: 989
Total Cats: 23
Default

On the weld, like the guy previous said you want the hole to be as close fitting to
The threads as possible. The more aluminum there will be easier to weld.
wittyworks is offline   Reply With Quote
Old 03-15-2012, 01:01 PM   #94
Elite Member
iTrader: (10)

leatherface24's Avatar

Join Date: Dec 2006
Location: Pembroke Pines
Posts: 4,031
Total Cats: 1
Default

Absolutely love the single tag to this thread. Looking good dude.
leatherface24 is offline   Reply With Quote
Old 03-15-2012, 01:19 PM   #95
Elite Member
Thread Starter
iTrader: (10)

soviet's Avatar

Join Date: Jan 2010
Location: VA
Posts: 3,507
Total Cats: 248
Default

Quote:
Originally Posted by wittyworks View Post
On the weld, like the guy previous said you want the hole to be as close fitting to
The threads as possible. The more aluminum there will be easier to weld.
Quote:
Originally Posted by Miater View Post
On the weld fitting.. Just make the hole as big as the inside dia of the fitting. Is it flush with the pan? Leave as much pan as you can for the welder(heat soak). The cleaner the material the better, oil free too.
K thanks guys. The OD of the fitting is 7/8". I thought about just using a stepper drill bit but instead I'll enlarge the hole with a dremel. I want to move it a bit so there's more room to weld next to the "rib".
soviet is offline   Reply With Quote
Old 03-20-2012, 03:08 AM   #96
Elite Member
Thread Starter
iTrader: (10)

soviet's Avatar

Join Date: Jan 2010
Location: VA
Posts: 3,507
Total Cats: 248
Default

delays, delays, delays

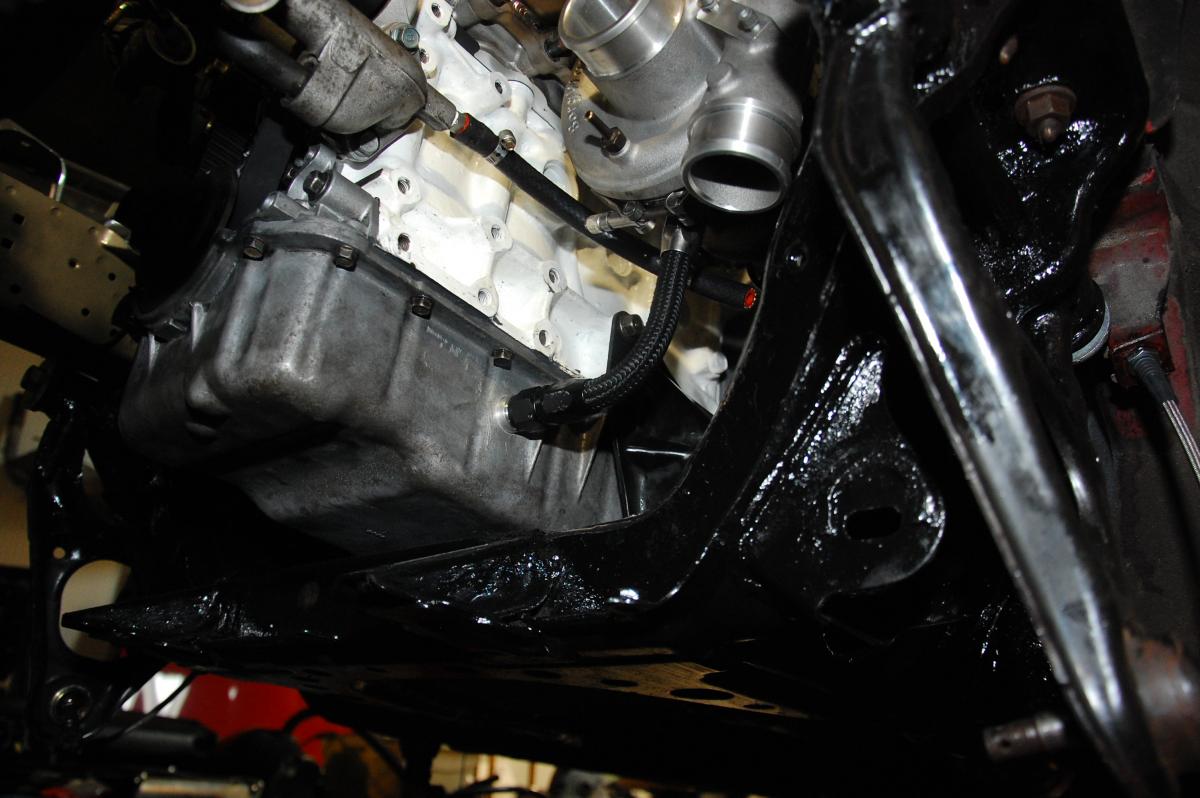

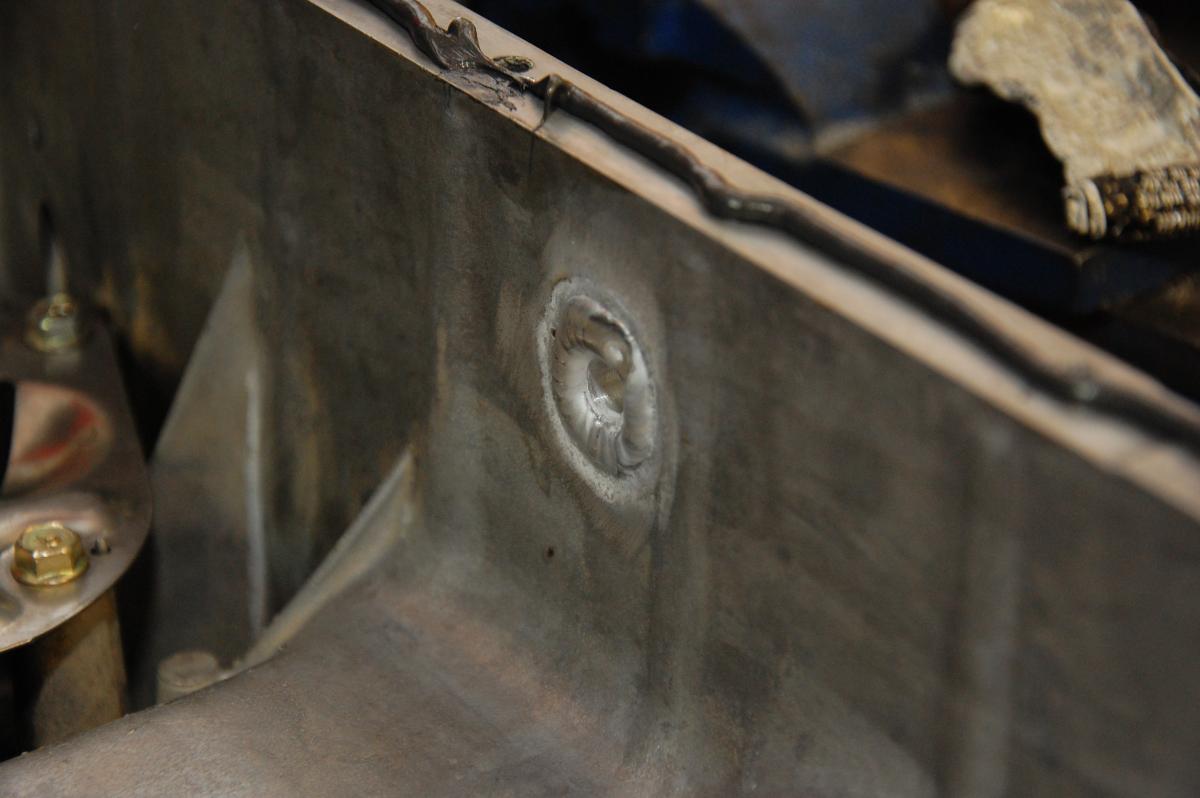

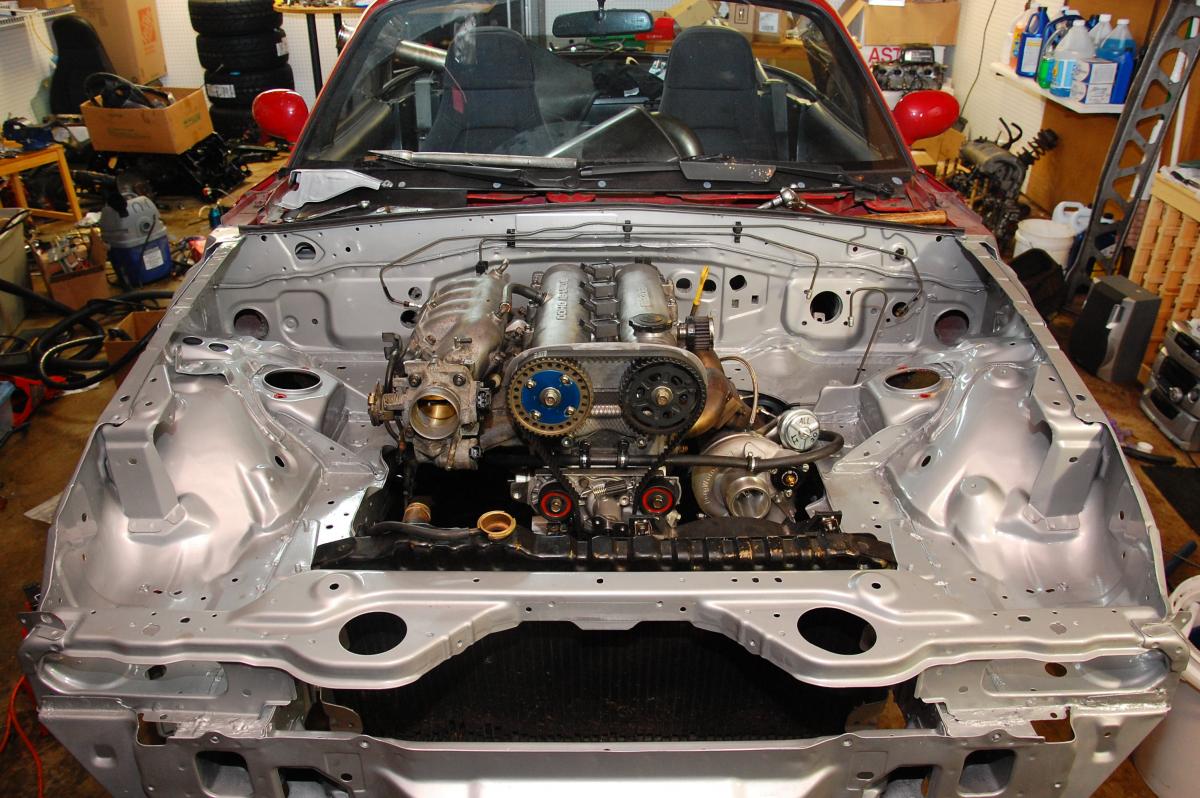

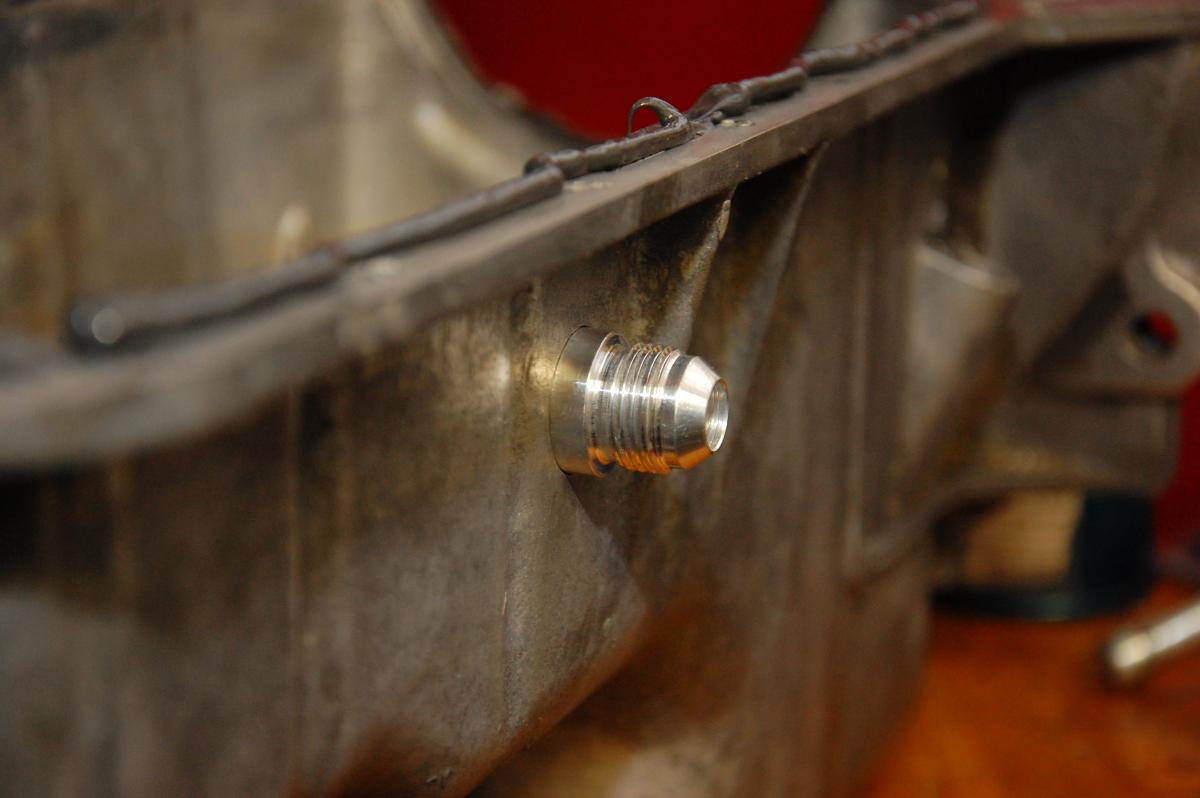

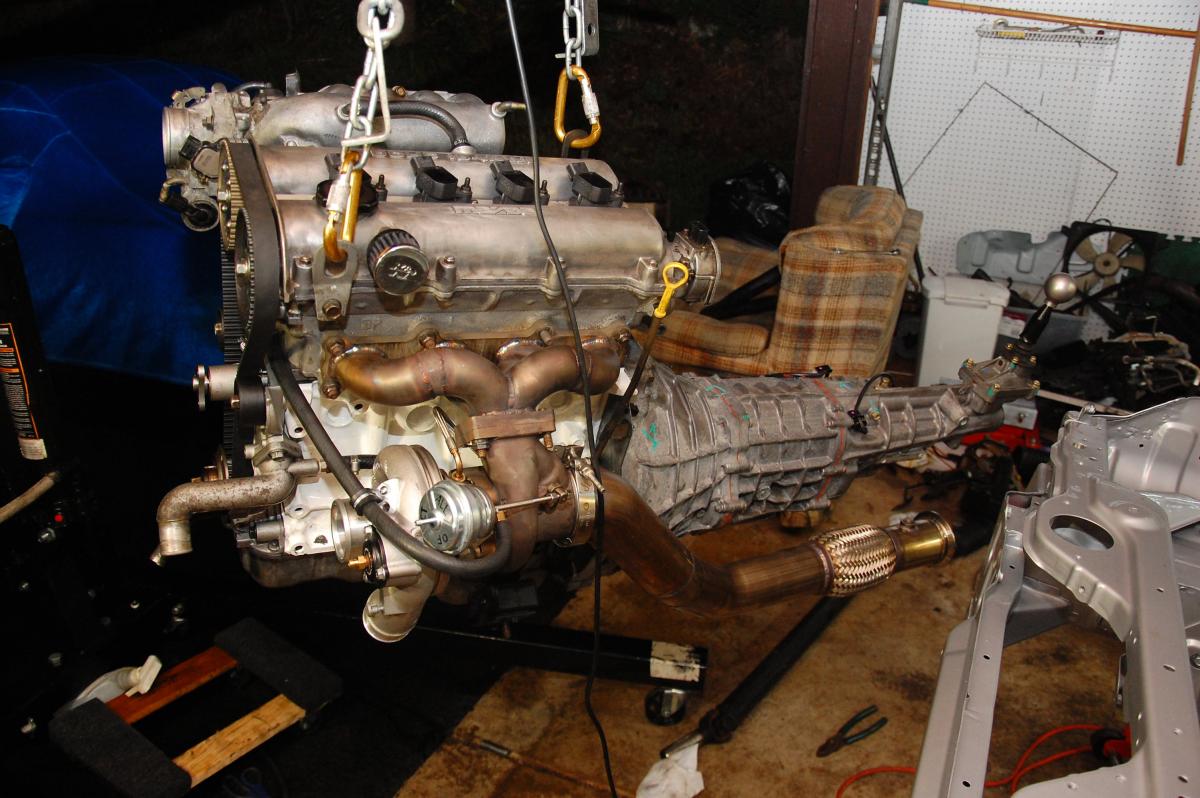

but I got the oil pan back from local shop. they welded the bung on and I finished the oil drain and hulked the engine into the car.

i'd write more but I gotta sleep and work and shiт







there are a few things i'm not happy about but i'll fix them later. tomorrow the rear subframe + diff + ppf are going in.
Attached Thumbnails
In Soviet Russia car build YOU!-dsc_9657.jpg   In Soviet Russia car build YOU!-dsc_9658.jpg   In Soviet Russia car build YOU!-dsc_9678.jpg   In Soviet Russia car build YOU!-dsc_9680.jpg   In Soviet Russia car build YOU!-dsc_9684.jpg

soviet is offline   Reply With Quote
Old 03-20-2012, 03:13 AM   #97
Senior Member
iTrader: (6)

Join Date: May 2009
Location: San Francisco
Posts: 989
Total Cats: 23
Default

I like what you did with the coolant line, just tapped it into the speed sensor hole!! Man that stuff looks sexy in your super clean engine bay. I'm glad it will be put to use on a built motor track beast!
wittyworks is offline   Reply With Quote
Old 03-20-2012, 03:17 AM   #98
Elite Member
Thread Starter
iTrader: (10)

soviet's Avatar

Join Date: Jan 2010
Location: VA
Posts: 3,507
Total Cats: 248
Default

I'm actually going to change the water lines around. I can't get the water inlet hooked, and I don't like the loop the outlet does.

Yeah I bought these hose holder things and they are pretty handy!

For now I'm going to just throw the engine harness in there but eventually full tuck with fusebox (and eventually tiny battery) in the passenger seat.
soviet is offline   Reply With Quote
Old 03-20-2012, 03:20 AM   #99
Senior Member
iTrader: (6)

Join Date: May 2009
Location: San Francisco
Posts: 989
Total Cats: 23
Default

Oh hey also forgot to link you to this: it's considered the EFR bible.

http://www.full-race.com/articles/efrturbotechbrief.pdf

What made me think of it is that just to remind you, the "bottom" water port should be the inlet, and "top" one should be outlet. They suggest that so that it purges any possible air from inside the water jacket in the turbo.
wittyworks is offline   Reply With Quote
Old 03-20-2012, 03:26 AM   #100
Elite Member
Thread Starter
iTrader: (10)

soviet's Avatar

Join Date: Jan 2010
Location: VA
Posts: 3,507
Total Cats: 248
Default

yeah I read that thing, well, most of it! it's awesome.

I actually stripped one of the water plugs already :( they are soft and tightened like a motherfuсker. luckly I found a m14x1.5 plug that should work and fit. for the inlet I'll use an m14 to 1/8npt adapter and a 90* barbed fitting. should work as well and then all the lines will be basically hidden
soviet is offline   Reply With Quote
