Old 06-29-2013, 11:06 PM   #1181
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 33,150
Total Cats: 1,988
Default

it puts out moar powa
18psi is offline   Reply With Quote
Old 06-29-2013, 11:09 PM   #1182
Elite Member
Thread Starter
iTrader: (10)

soviet's Avatar

Join Date: Jan 2010
Location: VA
Posts: 3,505
Total Cats: 248
Default

Quote:
Originally Posted by Leafy View Post
Whats so awesome about the rx7 alt? Is it lighter? Please tell me its lighter. I was so tempted to take the angle grinder to the stock one the last time I had it out.
The FD RX7 alts are 100A (some of them)

Speaking of 100A alts.... Subaru H6 engines have 100A alts that are internally regulated and are piece of cake to remove.

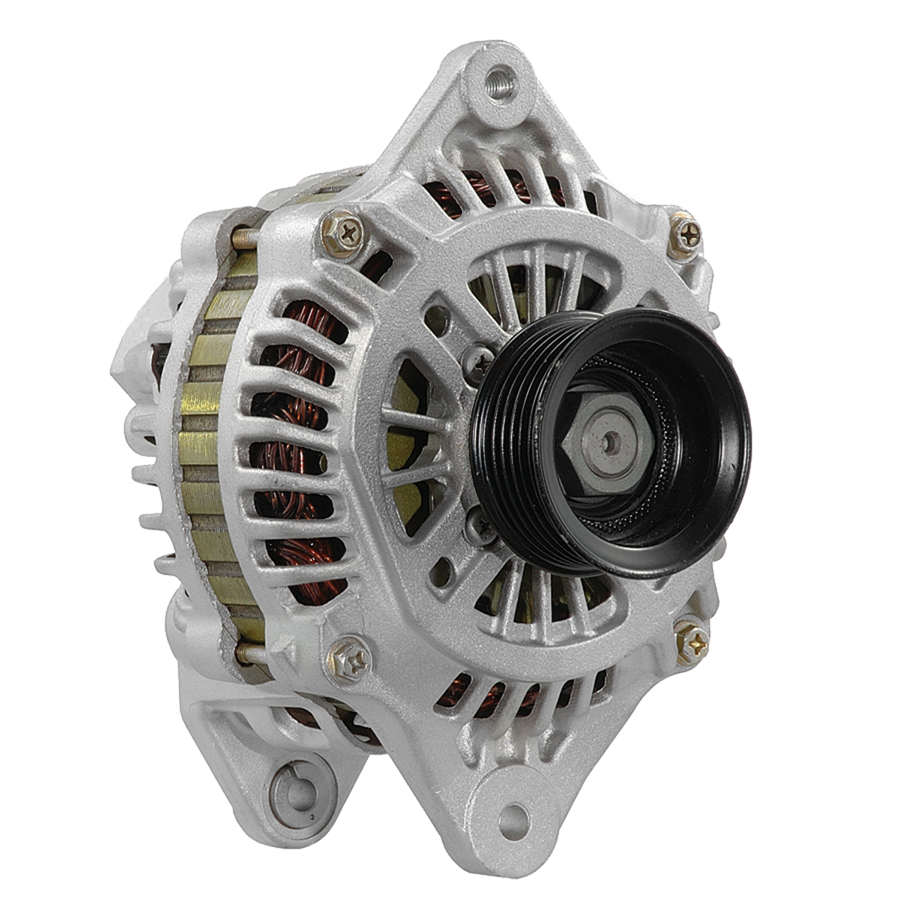

Product Detail - 12289 MIIIA3TB Reman Alternator | Remy
Attached Thumbnails
In Soviet Russia car build YOU!-12289_ang.jpg
soviet is offline   Reply With Quote
Old 06-29-2013, 11:11 PM   #1183
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: woosta, ma
Posts: 8,596
Total Cats: 91
Default

It puts out more juice? But but but thats more draw on the engine so you make less powah. And it must be heavier from the more winds. Its like 2 steps backwards.
Leafy is offline   Reply With Quote
Old 06-29-2013, 11:31 PM   #1184
Elite Member
Thread Starter
iTrader: (10)

soviet's Avatar

Join Date: Jan 2010
Location: VA
Posts: 3,505
Total Cats: 248
Default

if the electical system demands are the same, the bigger alternator will not consume any more HP. just because it's 100A doesn't mean it produces 100A all the time - only when the voltage regulator tells it to.

more weight, yes, unfortunately.
soviet is offline   Reply With Quote
Old 06-30-2013, 10:50 AM   #1185
Boost Czar

iTrader: (60)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 70,100
Total Cats: 1,400
Default

don't buy alts at rock auto. get a 30% off coupon from advance auto parts and order there. you tend to get alts under $100.
Braineack is offline   Reply With Quote
Old 07-04-2013, 03:33 AM   #1186
Elite Member
Thread Starter
iTrader: (10)

soviet's Avatar

Join Date: Jan 2010
Location: VA
Posts: 3,505
Total Cats: 248
Default

Well, my jeep is waiting on new pads after one of the front pad wore down to the metal (apparently the squeal wear indicator was missing from those cheap *** pads). So I grabbed the Jeep battery, put it in the miata - and lo and behold, all driveability and stalling issues disappear. I test the miata battery only to find out its basically discharging on its own (!), meaning it most likely has a dead cell. Still on warranty - just gotta wait for Pep Boys to get the replacement from their warehouse.

With the Jeep battery I went out for some tuning/pulls.

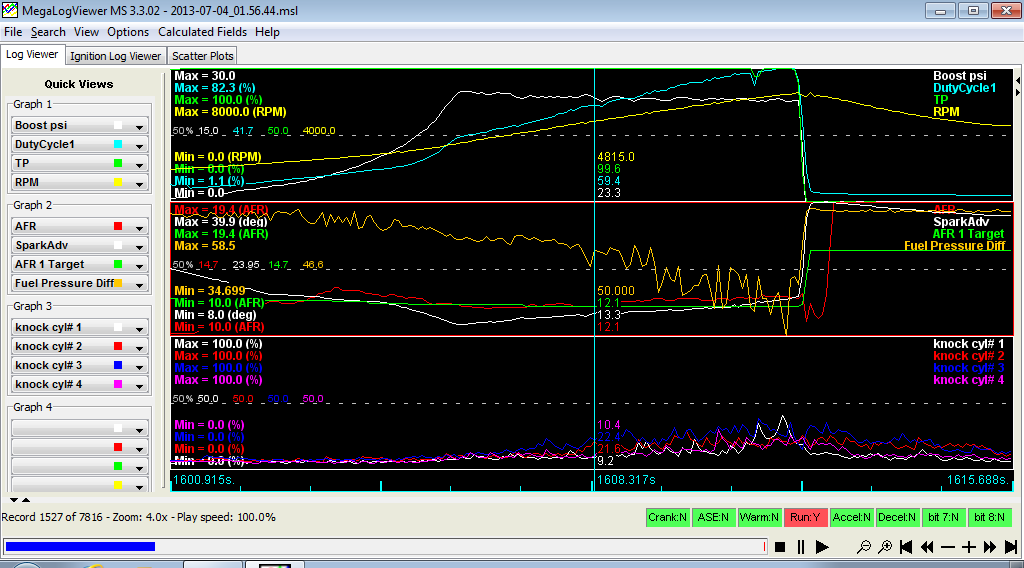

Good news! Still spinning 3rd gear, despite it being summer. The bad news is that it looks like I need a new fuel filter. You know how they say you should change your fuel filter after 100 miles of E85? Well, I guess its 100% true. I'm at about 140 miles on E85 and fuel pressure drops like a rock in boost. Voltage is solid so its either the fuel pump dying or clogged fuel filter. Fuel pressure sensor is BALLER!

Observe. Fuel pressure is displayed as [fuel pressure] - [boost pressure], to get accurate fuel pressure differential at the injectors.
Attached Thumbnails
In Soviet Russia car build YOU!-fuel-filter-clogged.png
soviet is offline   Reply With Quote
Old 07-04-2013, 03:51 AM   #1187
Elite Member
Thread Starter
iTrader: (10)

soviet's Avatar

Join Date: Jan 2010
Location: VA
Posts: 3,505
Total Cats: 248
Default

Virtual dyno puts the above pull (23-22psi) at 324ft/lbs tq. My 400whp dyno was at 326ft/lbs - at 26psi.

Even with the plugged filter and shitty AFRs (i'm targeting 12.2 in boost - because E85) the car still makes boat loads of power.

Compared to a pull last week at different boost and AFRs
Attached Thumbnails
In Soviet Russia car build YOU!-326ftlbs.png
soviet is offline   Reply With Quote
Old 07-04-2013, 04:03 AM   #1188
Junior Member

muoto's Avatar

Join Date: Jun 2008
Location: Finland
Posts: 382
Total Cats: 60
Default

Can you post your virtual dyno pull log?
muoto is offline   Reply With Quote
Old 07-04-2013, 04:16 AM   #1189
Elite Member
Thread Starter
iTrader: (10)

soviet's Avatar

Join Date: Jan 2010
Location: VA
Posts: 3,505
Total Cats: 248
Default

log attached
Attached Files
File Type: msl 5th-pull-clogged-filter.msl (56.0 KB, 35 views)
soviet is offline   Reply With Quote
Old 07-04-2013, 04:41 AM   #1190
Junior Member

muoto's Avatar

Join Date: Jun 2008
Location: Finland
Posts: 382
Total Cats: 60
Default

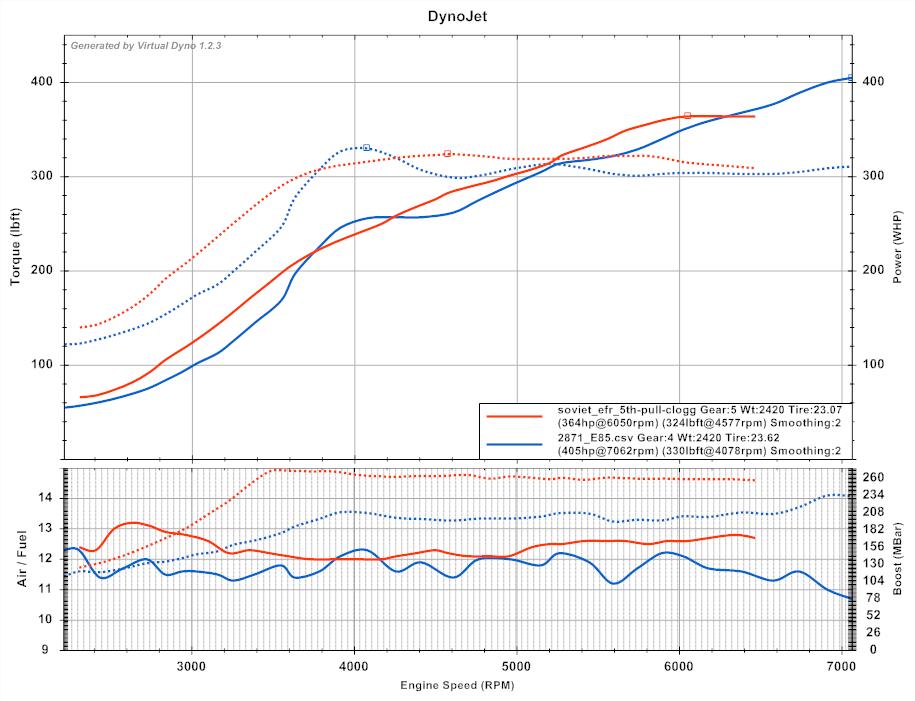

Damn that EFR spools fast. Still old GT2871 seems to keep up surprisingly well if you compare boost levels between those two. Although I believe it’s due my Ign timing: http://www.miata.fi/kuvat/e85timingm.gif
Attached Thumbnails
In Soviet Russia car build YOU!-efr_2871.jpg

Last edited by muoto; 07-04-2013 at 05:00 AM.
muoto is offline   Reply With Quote
Old 07-04-2013, 05:43 AM   #1191
Elite Member
iTrader: (1)

Join Date: Jun 2006
Location: Warrington/Birmingham
Posts: 2,657
Total Cats: 42
Default

Quote:
Originally Posted by soviet View Post
Virtual dyno puts the above pull (23-22psi) at 324ft/lbs tq. My 400whp dyno was at 326ft/lbs - at 26psi.

Even with the plugged filter and shitty AFRs (i'm targeting 12.2 in boost - because E85) the car still makes boat loads of power.

Compared to a pull last week at different boost and AFRs
Soviet, couple of questions if that's OK?

1) Have you tried the HP/TQ dyno output from Tunerstudio beta if so I'm wondering how well it compares to Virtual Dyno.

If you've not, it's a function on the tunerstudio beta's that add's HP/TQ estimation into a datalog, it uses all the inputs from the MS plus whatever additional data you can add Cod, frontal area, gearing, GPS if you have it etc.

2) Is that run to redline? I notice your knock events go to 100% but on that screengrab they don't look to be much higher than 30%? On my car above 4.5 - 5k they almost flatline, I've had to reduce the gain to the absolute minimum to stop them flatlining, but I'm worried now that I just won't pick up any lighter knock events.

I'm using the OEM MK2.5 resonant sensor, is that the same sensor you are using?
richyvrlimited is offline   Reply With Quote
Old 07-04-2013, 04:14 PM   #1192
Elite Member
Thread Starter
iTrader: (10)

soviet's Avatar

Join Date: Jan 2010
Location: VA
Posts: 3,505
Total Cats: 248
Default

muoto, Don't you have an NB? And its heavier and all... I actually know my car's exact weight.

I use a Bosch knock sensor with ms3 knock board. I think its pretty much useless. The values go to 100% because I set the min/max in MegaLogViewer. My knock readings *always* look like that and I think its just valvetrain noise. I also have it set on lowest gain possible.

That pull wasnt to redline because there was too much traffic and I was afraid of attracting police attention

I haven't checked megasquirt's torque thing, but virtual dyno has been very very very accurate compared to dynojet.
soviet is offline   Reply With Quote
Old 07-04-2013, 04:31 PM   #1193
Junior Member

muoto's Avatar

Join Date: Jun 2008
Location: Finland
Posts: 382
Total Cats: 60
Default

Quote:
Originally Posted by soviet View Post
muoto, Don't you have an NB? And its heavier and all... I actually know my car's exact weight.
Yeah NB so it’s probably close to 2600lbs with driver which gives extra 25whp to that virtual dyno graph


Quote:
Originally Posted by soviet View Post
virtual dyno has been very very very accurate compared to dynojet.
It is very accurate! Last time when I played it in local Dyno Dynamics dyno. Results were 3-5% close each other. DD gave 284whp and after that virtual dyno 287whp (these with old GT2560)
muoto is offline   Reply With Quote
Old 07-04-2013, 11:15 PM   #1194
Elite Member
Thread Starter
iTrader: (10)

soviet's Avatar

Join Date: Jan 2010
Location: VA
Posts: 3,505
Total Cats: 248
Default

Your BMEP per MAP is very close to 200psi, which would be impossible for gasoline.
soviet is offline   Reply With Quote
Old 07-04-2013, 11:18 PM   #1195
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 33,150
Total Cats: 1,988
Default

he's on e85
18psi is offline   Reply With Quote
Old 07-04-2013, 11:56 PM   #1196
Elite Member
Thread Starter
iTrader: (10)

soviet's Avatar

Join Date: Jan 2010
Location: VA
Posts: 3,505
Total Cats: 248
Default

Quote:
Originally Posted by 18psi View Post
he's on e85
soviet is offline   Reply With Quote
Old 07-04-2013, 11:58 PM   #1197
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 33,150
Total Cats: 1,988
Default

Quote:
Tags
communists measuring shafts
perfect
18psi is offline   Reply With Quote
Old 07-05-2013, 05:25 AM   #1198
Elite Member
iTrader: (1)

Join Date: Jun 2006
Location: Warrington/Birmingham
Posts: 2,657
Total Cats: 42
Default

Quote:
Originally Posted by soviet View Post
muoto, Don't you have an NB? And its heavier and all... I actually know my car's exact weight.

I use a Bosch knock sensor with ms3 knock board. I think its pretty much useless. The values go to 100% because I set the min/max in MegaLogViewer. My knock readings *always* look like that and I think its just valvetrain noise. I also have it set on lowest gain possible.
You think MS3's knock sensing is useless, or that sensor isn't much use?

Have you played with the knock windowing? I we - as in the MX5/miata community - need to nail that to reduce the amount of external noise picked up. It's good to know that I don't just have a faulty engine or anything though, so thanks.

Quote:
I haven't checked megasquirt's torque thing, but virtual dyno has been very very very accurate compared to dynojet.
I'd heard it was very accurate, that's why I wondered how it compared to TunerStudio's version. It's nice only running 1 program rather than two
richyvrlimited is offline   Reply With Quote
Old 07-05-2013, 01:29 PM   #1199
Elite Member
Thread Starter
iTrader: (10)

soviet's Avatar

Join Date: Jan 2010
Location: VA
Posts: 3,505
Total Cats: 248
Default

Quote:
Originally Posted by richyvrlimited View Post
You think MS3's knock sensing is useless, or that sensor isn't much use?

Have you played with the knock windowing? I we - as in the MX5/miata community - need to nail that to reduce the amount of external noise picked up. It's good to know that I don't just have a faulty engine or anything though, so thanks.

I'd heard it was very accurate, that's why I wondered how it compared to TunerStudio's version. It's nice only running 1 program rather than two
No, the MS3 knock sensing is great, probably one of the best - its just useless on *MY* engine and I could never get a good reading out of it. Knock sensing on E85 is kind of pointless anyways. You need like 120C/250F air intake temperature for it to knock, lol
soviet is offline   Reply With Quote
Old 07-05-2013, 06:49 PM   #1200
Elite Member
iTrader: (1)

Join Date: Jun 2006
Location: Warrington/Birmingham
Posts: 2,657
Total Cats: 42
Default

Quote:
Originally Posted by soviet View Post
No, the MS3 knock sensing is great, probably one of the best - its just useless on *MY* engine and I could never get a good reading out of it. Knock sensing on E85 is kind of pointless anyways. You need like 120C/250F air intake temperature for it to knock, lol
Well I have one half of that equation, shame it's the wrong half
richyvrlimited is offline   Reply With Quote
