Old 10-22-2013, 04:23 PM   #501
Elite Member
Thread Starter
iTrader: (9)

TurboTim's Avatar

Join Date: Jun 2006
Location: Chesterfield, NJ
Posts: 6,177
Total Cats: 198
Default

Quote:
Originally Posted by Savington View Post
The 12-tooth rare earth magnet is wildly overkill, I like it

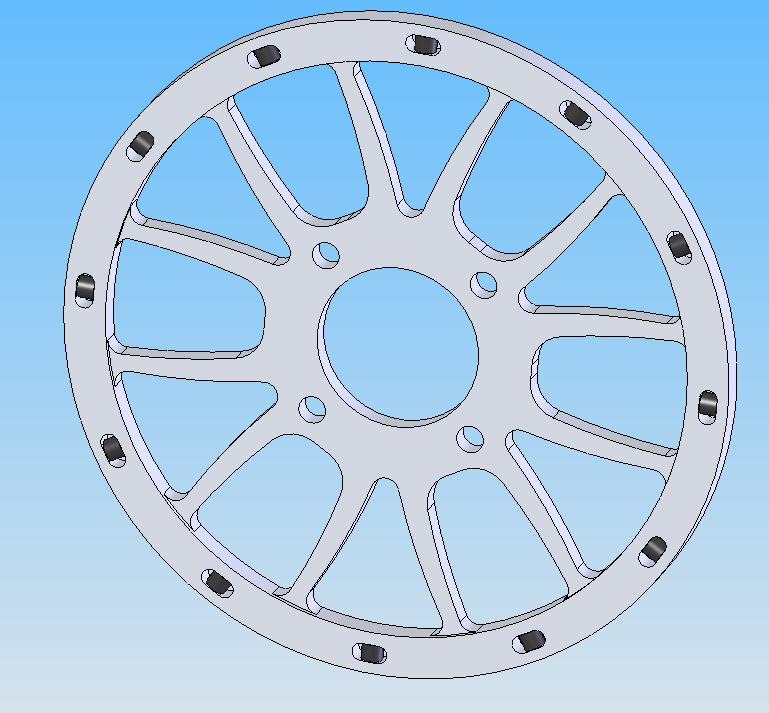

In the spirit of the 6UL rip off thread, I how about a Stance magic 6UL crank trigger?

Attached Thumbnails
ABSURDflow Turbo KLDE Mazda V6 Thread-6ul-crank-trigger.jpg
TurboTim is offline   Reply With Quote
Old 10-22-2013, 04:31 PM   #502
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 33,168
Total Cats: 1,990
Default

make sure its not +36 offset though or Emilio will kill yoiu
18psi is offline   Reply With Quote
Old 10-22-2013, 04:43 PM   #503
Elite Member
Thread Starter
iTrader: (9)

TurboTim's Avatar

Join Date: Jun 2006
Location: Chesterfield, NJ
Posts: 6,177
Total Cats: 198
Default

-3 offset baby.
TurboTim is offline   Reply With Quote
Old 10-22-2013, 04:49 PM   #504
Elite Member
iTrader: (2)

Join Date: Aug 2012
Location: Indianapolis
Posts: 3,325
Total Cats: 231
Default

But how am I supposed to stretch 185s on it?
thenuge26 is offline   Reply With Quote
Old 10-22-2013, 05:29 PM   #505
Elite Member
iTrader: (4)

Join Date: Sep 2006
Location: Charlotte, NC
Posts: 2,857
Total Cats: -4
Default

Amazing

How do I order one?
Efini~FC3S is online now   Reply With Quote
Old 10-22-2013, 05:53 PM   #506
Junior Member

Join Date: Jan 2010
Location: Anderson, SC
Posts: 139
Total Cats: 6
Default

There's is a lot of very respectful fab work in here. I too, am in awe/chuckling at your trigger wheel.

The car has a great snarl to it. Good luck getting the under hood temps sorted!

EDIT: Forgot the thing is hurt. Good luck with that too.
sharkythesharkdogg is offline   Reply With Quote
Old 01-01-2014, 10:33 PM   #507
Senior Member
iTrader: (1)

Join Date: Aug 2006
Location: Illinois
Posts: 1,011
Total Cats: 7
Default

Hey Tim! I had to sneak over here and watch the vids. Don't you just love torque? I'm hoping I can get the RX8 to sound that good. Same firing order anyways.
lazzer408 is offline   Reply With Quote
Old 01-02-2014, 09:00 AM   #508
Elite Member
Thread Starter
iTrader: (9)

TurboTim's Avatar

Join Date: Jun 2006
Location: Chesterfield, NJ
Posts: 6,177
Total Cats: 198
Default

Hey Jeff! Yeah torque is good, but this PT5858 doesn't spool well enough to give me the short-shift low rpm torque feel of a 2560 on the 1.8. Freight train up top though. Part of me wants to buy savington's twinscroll EFR7064 but there's basically zero additional funds for this.

You can see from the pics that my headers aren't equal length, but I think the closer you can get to equal length the sweeter it might sound?

I have been slowly taking apart the bottom end to see if I can find what has been making this odd sound I have been hearing at idle. I have only removed the rod bearings and they are fucked, especially for only ~2000 miles. Looks like detonation damage/pitting and smearing of the aluminum lining. Front most (closest to oil feed) are the worse, the #6 rod bearing looks the nicest. This is backwards to traditional KL wear, where the rear bank gets the least oil supply. So I got to pay more attention to detonation it seems. And take a look at the mains, that's on the list next. Maybe tomorrow. Fortunately the journals all look fine.

These are bi-metal King bearings.
TurboTim is offline   Reply With Quote
Old 02-04-2014, 03:18 PM   #509
Elite Member
iTrader: (3)

Join Date: Aug 2011
Posts: 7,237
Total Cats: 554
Default

Hey Tim, looks like you need to get your *** in gear.

Porsche 944 V6 - Beyond.ca - Car Forums
concealer404 is offline   Reply With Quote
Old 02-04-2014, 03:34 PM   #510
Elite Member
Thread Starter
iTrader: (9)

TurboTim's Avatar

Join Date: Jun 2006
Location: Chesterfield, NJ
Posts: 6,177
Total Cats: 198
Default

Haha nice. Looks a little familiar.

I did some machining today during lunch. I'm building an electric oil priming pump because my main bearings were worn after just ~2000 miles and I would notice it would take a sec or two after the engine is running before the oil pressure gauge would move. This may not be the issue but it's something fun to build.

I got new Clevite bearings ready to go back in for the mains and rods. I still want to cut an oil pressure relief valve access hole into my oil pan before i can reassemble that. And of course my intake manifold, still here partly done since 2012. And I have to finish my electric det can thing.

Last edited by TurboTim; 02-04-2014 at 03:55 PM.
TurboTim is offline   Reply With Quote
Old 02-05-2014, 10:12 AM   #511
Elite Member
iTrader: (5)

m2cupcar's Avatar

Join Date: Jan 2005
Location: Atlanta
Posts: 6,950
Total Cats: 139
Default

This may be relevant - I recently noticed that both my Mazdaspeed motor mounts were tearing. That's after ~2k miles of service. Most of those miles were beating on the car, but no clutch drops. My plan is to add an engine stay after discovering that they are OE on many cars out there AND reading over and over about how miserable any kind of "positive" fastening motor mount is for vibration. The idea of a shock absorber to control the engine makes a lot of sense to me and should ease the burden on the mounts. Have you considered this?
m2cupcar is offline   Reply With Quote
Old 02-05-2014, 11:25 AM   #512
Elite Member
Thread Starter
iTrader: (9)

TurboTim's Avatar

Join Date: Jun 2006
Location: Chesterfield, NJ
Posts: 6,177
Total Cats: 198
Default

Not really, no. I did at one point in my past because I think they look cool, but I have not thought about it for the V6. It's pretty smooth now that I have:

1. taken the car off jack stands. That helped a bunch.
2. adjusted the pinion angle from 'should work fine' to 'theoretically perfect'
3. Made a soft mount for the front of the PPF instead of rigidly bolting it to the trans cross member
4. had the driveshaft balanced 3 times. It ultimately had to go to a shop that had highspeed balancer, not old school machines.
5. replaced the energy suspension polyurethane transmission mount with a factory ford super squishy deform it with your hand mount.
TurboTim is offline   Reply With Quote
Old 02-05-2014, 11:43 AM   #513
Elite Member
iTrader: (3)

Join Date: Aug 2011
Posts: 7,237
Total Cats: 554
Default

Quote:
Originally Posted by m2cupcar View Post
This may be relevant - I recently noticed that both my Mazdaspeed motor mounts were tearing. That's after ~2k miles of service. Most of those miles were beating on the car, but no clutch drops. My plan is to add an engine stay after discovering that they are OE on many cars out there AND reading over and over about how miserable any kind of "positive" fastening motor mount is for vibration. The idea of a shock absorber to control the engine makes a lot of sense to me and should ease the burden on the mounts. Have you considered this?
I think your problem is that mounts for a BP are utterly incapable of dealing with the superior-in-every-way F-series motor.
concealer404 is offline   Reply With Quote
Old 02-05-2014, 11:44 AM   #514
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: woosta, ma
Posts: 8,605
Total Cats: 91
Default

Quote:
Originally Posted by concealer404 View Post
I think your problem is that mounts for a BP are utterly incapable of dealing with the superior-in-every-way F-series motor.
I wish they made AWR mounts with rubber as an option. Would be perfect.
Leafy is offline   Reply With Quote
Old 02-05-2014, 11:48 AM   #515
Elite Member
iTrader: (3)

Join Date: Aug 2011
Posts: 7,237
Total Cats: 554
Default

Nothing's stopping you from making those yourself.
concealer404 is offline   Reply With Quote
Old 02-05-2014, 11:50 AM   #516
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: woosta, ma
Posts: 8,605
Total Cats: 91
Default

Quote:
Originally Posted by concealer404 View Post
Nothing's stopping you from making those yourself.
Too lazy, and I dont think I could keep up with demand.
Leafy is offline   Reply With Quote
Old 02-05-2014, 11:56 AM   #517
Elite Member
iTrader: (3)

Join Date: Aug 2011
Posts: 7,237
Total Cats: 554
Default

I'm saying just buy a set of the mounts, press out the poly, press in new rubber pieces. Done. For yourself.

Or call AWR, i bet Tony would do it for you if you ask nicely.
concealer404 is offline   Reply With Quote
Old 02-05-2014, 11:58 AM   #518
Elite Member
iTrader: (5)

m2cupcar's Avatar

Join Date: Jan 2005
Location: Atlanta
Posts: 6,950
Total Cats: 139
Default

I think it's the torque on upshifts causing the rips. This on a street car that hardly knows the meaning of pulling lateral Gs. But I suspect you'll have some torque there. Of course my swap probably has more mass and a higher cg than your v6.

I don't think rubber in the AWR will work. The problem is that there isn't enough room for bushing material in the captured design for a Miata application. Hard parts take up so much valuable space in the design. Using rubber would just reach the limits of mount quicker (compress quicker.) There are loads of passenger cars that have these "stays" stock and are sold as motor mounts at pullaparts for <$10. I have also seen mtn bike coil over assemblies used in engine swaps- but unsure of a spring in the equation...?
m2cupcar is offline   Reply With Quote
Old 02-05-2014, 12:00 PM   #519
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: woosta, ma
Posts: 8,605
Total Cats: 91
Default

Quote:
Originally Posted by m2cupcar View Post
I think it's the torque on upshifts causing the rips. This on a street car that hardly knows the meaning of pulling lateral Gs. But I suspect you'll have some torque there. Of course my swap probably has more mass and a higher cg than your v6.

I don't think rubber in the AWR will work. The problem is that there isn't enough room for bushing material in the captured design for a Miata application where you have hard parts take up so much valuable space in the design. Using rubber would just reach the limits of mount quicker (compress quicker.) There are loads of passenger cars that have these stock and are sold as motor mounts at pullaparts for <$10. I have also seen mtn bike coil over assemblies used in engine swaps- but unsure of a spring in the equation...?
SUre it would reach the limits of the mounts faster. But not while idling and cruising. It would still transmit less vibes during the times that matters than poly. And it cant tear out.
Leafy is offline   Reply With Quote
Old 02-05-2014, 02:25 PM   #520
Elite Member
Thread Starter
iTrader: (9)

TurboTim's Avatar

Join Date: Jun 2006
Location: Chesterfield, NJ
Posts: 6,177
Total Cats: 198
Default

Quote:
Originally Posted by m2cupcar View Post
I think it's the torque on upshifts causing the rips. This on a street car that hardly knows the meaning of pulling lateral Gs. But I suspect you'll have some torque there. Of course my swap probably has more mass and a higher cg than your v6.
Pic of an engine stay you are considering?
TurboTim is offline   Reply With Quote
