Default GTX3576

Hello, just wondering if any one here has tried the GTX3576.?
I'm building a 2l bp engine with FM's stroker kit, Ported 99 head +1mm valves and big cams,
Have helped build two 1.9l turbo miatas for two friends of mine earlier, and they have both used a gt3076r.with a open.63 exhaust housing.
One of the cars have a stock vvt 2001 head and dynoed 405 rwhp at 1,4 bar of boost and he had 1,7 bar of back pressure.
My engine will breath a lot better and have0,1l more volum, my 99 head flows 266cfm at 12,5mm lift.

So the question is if the gtx3576 with a divided .82 exhaust housing would be too laggy compered to the gt3076r with a open .63 housing..
I remember people tougth that we were crazy running that turbo back in 2006, but they realy work very good on a1.9l bp engine.
I'am shooting for 500whp,
shifti is offline   Reply With Quote
Old 07-08-2016, 10:13 AM   #2
SOMEOFIT
iTrader: (1)

Girz0r's Avatar

Join Date: Jun 2014
Location: Austin, TX
Posts: 2,563
Total Cats: 224
Default

Why not use a borg warner EFR?

borgwarner-efr-6758-turbo.html

Attached Files
File Type: html borgwarner-efr-6758-turbo.html (23.3 KB, 53 views)

Last edited by Girz0r; 07-08-2016 at 12:58 PM.
Girz0r is online now   Reply With Quote
Old 07-08-2016, 12:45 PM   #3
A living god
iTrader: (23)

viperormiata's Avatar

Join Date: Aug 2008
Location: Key West
Posts: 5,950
Total Cats: 228
Default

EFR
viperormiata is offline   Reply With Quote
Old 07-08-2016, 01:07 PM   #4
Junior Member
iTrader: (1)

Downmented's Avatar

Join Date: Oct 2014
Location: Annapolis, MD
Posts: 392
Total Cats: 49
Default

Quote:
Originally Posted by Girz0r View Post
Why not use a borg warner EFR?
Because he wants over 500whp and the 6758 simply wont do that easily if at all, however as far as B1 framed EFRs, the 7163 will meet that criteria with ease.
Downmented is offline   Reply With Quote
Old 07-08-2016, 01:23 PM   #5
SadFab Sales Lady
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 15,161
Total Cats: 972
Default

Soviet did 450 on the 6758. But I bet it was pretty maxed out. With a stroker motor and a 7163 you would see some good stuff.

AFAIK no one has dyno plots of a 7163 yet though.
aidandj is offline   Reply With Quote
Old 07-08-2016, 01:30 PM   #6
Junior Member
iTrader: (1)

Downmented's Avatar

Join Date: Oct 2014
Location: Annapolis, MD
Posts: 392
Total Cats: 49
Default

Quote:
Originally Posted by aidandj View Post

AFAIK no one has dyno plots of a 7163 yet though.
Not as far as ive found there isnt any in the Miata community, and mine is still months away from running :/
Downmented is offline   Reply With Quote
Old 07-08-2016, 01:33 PM   #7
Supporting Vendor
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 13,498
Total Cats: 872
Default

500whp in three easy steps:

Step 1: Product Link - Trackspeed EFR Turbocharger System

Step 2: Select "EFR7163"

Step 3: Install with MS3, ID1300s, and custom transmission of your choosing

Savington is offline   Reply With Quote
Old 07-08-2016, 01:52 PM   #8
Junior Member

Join Date: May 2008
Location: Canada
Posts: 366
Total Cats: 40
Default

Quote:
Originally Posted by Savington View Post
...and custom transmission of your choosing
Very important step.
DeerHunter is offline   Reply With Quote
Old 07-08-2016, 01:54 PM   #9
Newb
Thread Starter

Join Date: Mar 2011
Location: Oslo
Posts: 16
Total Cats: 8
Default

Would't the EFR 7670 be the closest EFR turbo to the GTX3576?
And the reason i'm locking at the garret turbo is there new v-band divided housings, I'm, going to run a divided setup because of the overlap on my cams.
but i can always go EFR but i really like v-band exhaust housings.
The reason i need a turbo that flows very much on the exhaust side is i'm going to rev to 8500 rpm, and i want a flat torque curve from torque peak to the redline.
And because i don't want to use another gear box then the 6 speed miata box.
If i can keep the torque at 450nm from the torque peak and out to 8500 rpm i should get around 500 whp.
shifti is offline   Reply With Quote
Old 07-08-2016, 02:01 PM   #10
Newb
Thread Starter

Join Date: Mar 2011
Location: Oslo
Posts: 16
Total Cats: 8
Default

Quote:
Originally Posted by Savington View Post
500whp in three easy steps:

Step 1: Product Link - Trackspeed EFR Turbocharger System

Step 2: Select "EFR7163"

Step 3: Install with MS3, ID1300s, and custom transmission of your choosing
I'm going to use Autronic sm4 ecu with Ls coils, 1200cc asnu injectors, custom 321 divided manifold with two tial 38mm water cooled wastegates and a custom dual chamber intake with a 70mm throtlebody.
shifti is offline   Reply With Quote
Old 07-08-2016, 02:18 PM   #11
A living god
iTrader: (23)

viperormiata's Avatar

Join Date: Aug 2008
Location: Key West
Posts: 5,950
Total Cats: 228
Default

This would be so much simpler with a divided EFR. You'd save money over a garrett, two wastegates, etc..
viperormiata is offline   Reply With Quote
Old 07-08-2016, 02:22 PM   #12
mkturbo.com
iTrader: (24)

shuiend's Avatar

Join Date: May 2006
Location: Charleston SC
Posts: 12,372
Total Cats: 770
Default

I have a nice Artech setup with a 4" exhaust and a Holset turbo with a quick spool valve. Perfect for making the power you want.
shuiend is online now   Reply With Quote
Old 07-08-2016, 02:28 PM   #13
Newb
Thread Starter

Join Date: Mar 2011
Location: Oslo
Posts: 16
Total Cats: 8
Default

Quote:
Originally Posted by viperormiata View Post
This would be so much simpler with a divided EFR. You'd save money over a garrett, two wastegates, etc..
True, but i'm planing to run a 3 inch exhaust from the turbo, and that starts to build back pressure at 350whp.
so the plan was external waste gates and not route them back in the exhaust, but build a 2,5 inch short exhaust system for the wastegates
shifti is offline   Reply With Quote
Old 07-08-2016, 02:45 PM   #14
Newb
Thread Starter

Join Date: Mar 2011
Location: Oslo
Posts: 16
Total Cats: 8
Default

Quote:
Originally Posted by shuiend View Post
I have a nice Artech setup with a 4" exhaust and a Holset turbo with a quick spool valve. Perfect for making the power you want.
Haha, a 4 inch exhaust would be way to loud for the tracks in Norway, and i don't trust quick spool valves, i have heard of more than a few that has started to stick when used hard at at track racing.
and a want a true divided setup,
shifti is offline   Reply With Quote
Old 07-08-2016, 02:51 PM   #15
Junior Member

Join Date: Jun 2005
Posts: 154
Total Cats: 10
Default

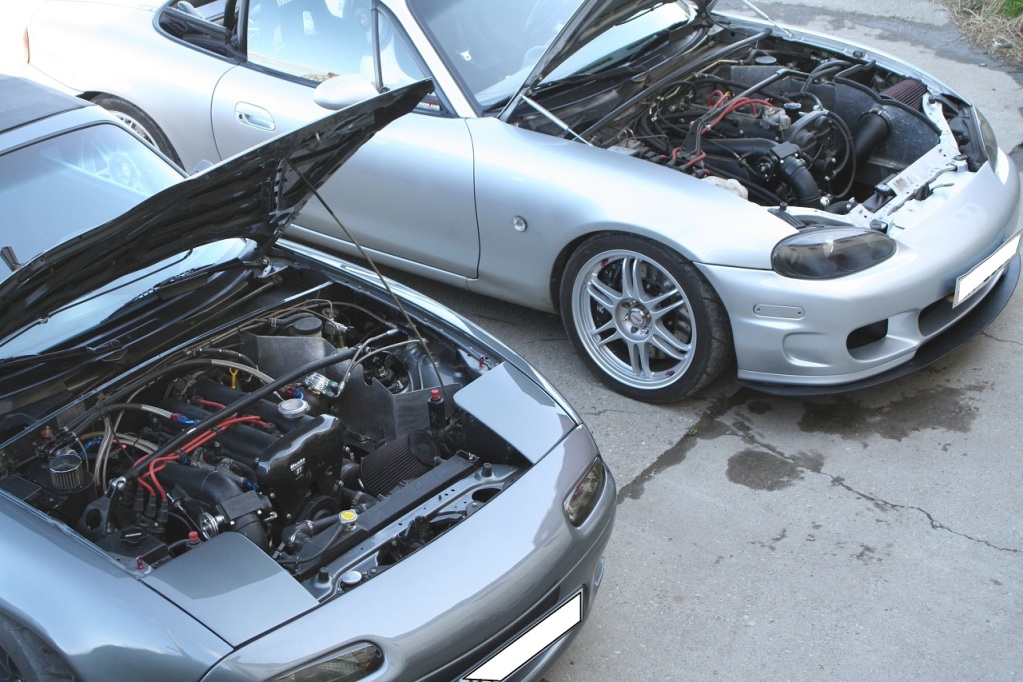

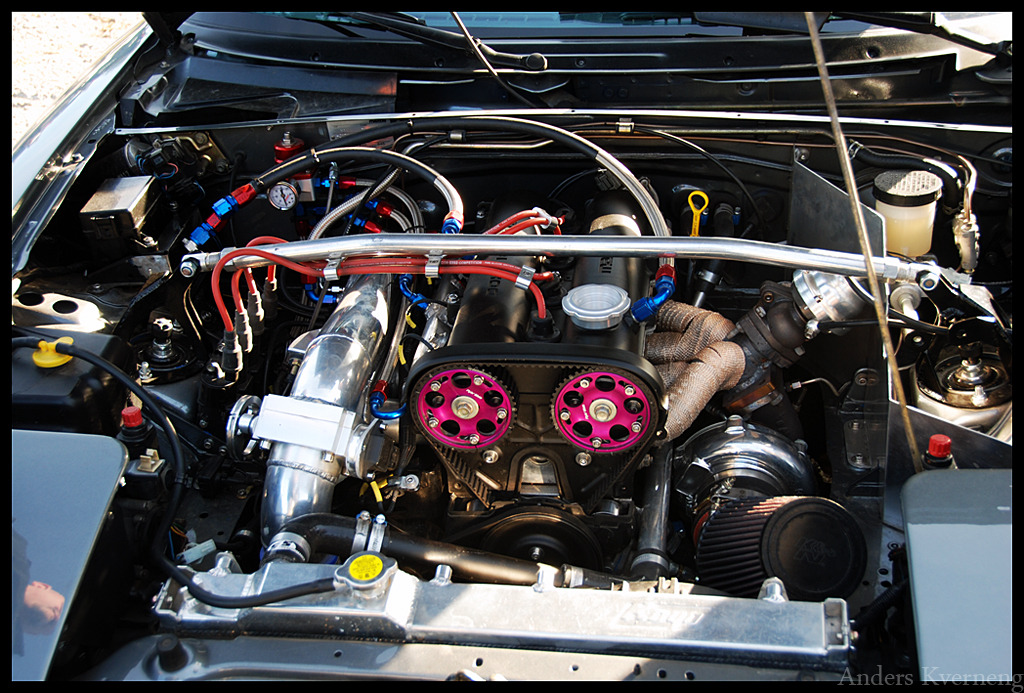

Shifti wants to keep the average HP numbers in our workshop above 400, but does go to extremes to acheive it always one-uping us.. we have 405whp(silver NB), 430whp(NA), and now he wants more probably wont buy a kit, as he has been the guy welding stuff for both these cars too .
excited to see what numbers he will get with a bigger engine, and a LOT more free flowing head than my NA.

Attached Thumbnails
GTX3576-img_2937.jpg   GTX3576-dsc_0046.jpg
hf-mx5t is offline   Reply With Quote
Old 07-09-2016, 04:15 PM   #16
I take big bites
iTrader: (1)

turbofan's Avatar

Join Date: Sep 2010
Location: Portland, OR
Posts: 6,079
Total Cats: 424
Default

You guys definitely seem to know what you're doing. Why not try it and find out?
turbofan is offline   Reply With Quote
Old 07-11-2016, 06:32 AM   #17
Newb
Thread Starter

Join Date: Mar 2011
Location: Oslo
Posts: 16
Total Cats: 8
Default

I will try. the engine will hopefully be in the car next summer and dyno'd as a NA engine first to see how much hp it makes.
Then we will calculate how the GTX3576 will suit the engine. If it turns out to be a mismatch i have to consider other turbos.
shifti is offline   Reply With Quote
Old 07-11-2016, 06:34 AM   #18
Newb
Thread Starter

Join Date: Mar 2011
Location: Oslo
Posts: 16
Total Cats: 8
Default

Quote:
Originally Posted by Downmented View Post
Not as far as ive found there isnt any in the Miata community, and mine is still months away from running :/
I would really like to see your results when you get your car dyno'd
shifti is offline   Reply With Quote
Old 07-12-2016, 05:18 AM   #19
Junior Member

Join Date: Jul 2009
Location: Greenville SC
Posts: 161
Total Cats: 10
Default

I'm not sure if Garret has something similar, but Borg Warner has a good tool to help with sizing their turbos.
BorgWarner MatchBot
Uncle Humjaba is offline   Reply With Quote
Old 07-12-2016, 10:35 AM   #20
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 33,384
Total Cats: 2,032
Default

Quote:
Originally Posted by hf-mx5t View Post
Shifti wants to keep the average HP numbers in our workshop above 400, but does go to extremes to acheive it always one-uping us.. we have 405whp(silver NB), 430whp(NA), and now he wants more probably wont buy a kit, as he has been the guy welding stuff for both these cars too .
excited to see what numbers he will get with a bigger engine, and a LOT more free flowing head than my NA.
wow talk about a blast from the past
Haven't seen you post on MT in several years.

You guys definitely know what you're doing, but I would also suggest going the EFR route, it's newer and better and there are plenty of options for divided housings too. I've seen the 7163 do very impressive things on 2L and 2.5L making 500-550 with a very broad torque curve.
18psi is offline   Reply With Quote
