DIY Turbo Discussion greddy on a 1.8? homebrew kit?

Reply



LinkBack Thread Tools
Old 06-11-2014, 09:21 PM   #221
Elite Member

DNMakinson's Avatar

Join Date: Jan 2013
Location: Seneca, SC
Posts: 2,024
Total Cats: 183
Default

Engine: '99 1.8L Stock
Turbo: TD04L-13T
Manifold: 1 1/4" Schedule 40 LOG
Downpipe Size/Style: Modified 1.6L BEGI Segregated
Exhaust Size: 3" with Mag high flow Cat and Mag 5x22x11
Intercooler Core Size: 5.5x22x2.5
Intake Manifold: Stock
Headwork: none
Engine Management: MS3-Basic
Rear tire size: 195/50-15
Other helpers/hurters: 8 PSI Waste Gate Only

Fourth Gear Pull...

RPM: MAP (psi):
1320 0.3
1400 0.7
1500 1.0
1700 1.6
2000 2.6
2400 4.3
3000 5.9
3500 5.9
4000 6.6
4500 6.9
DNMakinson is offline   Reply With Quote
Old 06-16-2014, 11:53 AM   #222
Elite Member

Chiburbian's Avatar

Join Date: Feb 2008
Location: Gilberts, IL
Posts: 2,027
Total Cats: 115
Default

Engine: 01' 1.8L with functional VVT
Turbo: Precision 4828
Manifold: BEGI cast style with EGR
Downpipe Size/Style: older BEGI non separated gasses
Exhaust Size: Flyin' Miata 2.5" with high flow cat and resonator
Other exhaust: Stock muffler for now.
Intercooler Core Size: 18"x8"x3"? (estimated from memory)
Charge Piping: 2" over the top style hotside, 2.5" behind headlight coldside.
Intake Manifold: Stock
Headwork: none
Engine Management: MS3x
Rear tire size: 205/45R16
Other helpers/hurters: Open Loop EBC, pull was done on slight incline.

This tune was about 230rwhp and 232rwtq on the dyno.


5th gear pull

RPM PSI
2011 -1
2159 0
2321 1.1
2534 2
2749 3
2987 4
3161 5
3333 6
3442 7
3585 8
3728 9
4381 10
4490 11.1
4675 12

[7/10/14 update] Just something I noticed... I am trying to limit my torque to levels safe with a stock motor so about 9psi and 3700 rpm I am starting to limit my boost with the EBC. If I weren't doing so I imagine that my spool would look a little more conventional albeit a bit late compared to others.

Last edited by Chiburbian; 07-10-2014 at 01:44 PM.
Chiburbian is offline   Reply With Quote
Old 07-10-2014, 02:22 AM   #223
Senior Member
iTrader: (1)

Join Date: Jan 2012
Location: Tampa, FL
Posts: 761
Total Cats: 19
Default

Engine: 1.9L forged 8.5:1 comp
Turbo: 2876
Manifold: Custom
Downpipe Size/Style: 3" merged w/ EWG
Exhaust Size: 3"
Exhaust Components: SS Pipe
Intercooler Core Size: BIG
Intake Manifold: Stock
Headwork: Porting/Polishing, valve job, and what not.
Engine Management: Mmm Squirt
Other Spoolin' Helpers/Hurters: Running wastegate spring only.
Trans & Rear End Ratio: 6-speed, 4.3
Rear tire size: 205/45-16

FIFTH GEAR PULL:

RPM Boost(PSI)
2200 - 2.1
3228 - 6.7
3526 - 8.0
3650 - 9.4
3729 - 10.4
3800 - 11.4
3955 - 14.2
4046 - 15.3
4612 - 16.8
5000 - 16.1
5574 - 15.9
6000 - 17.7
6156 - 18.0 (peak)
6500 - 15.4
6788 - 14.5
7006 - 14.7


Attached Thumbnails

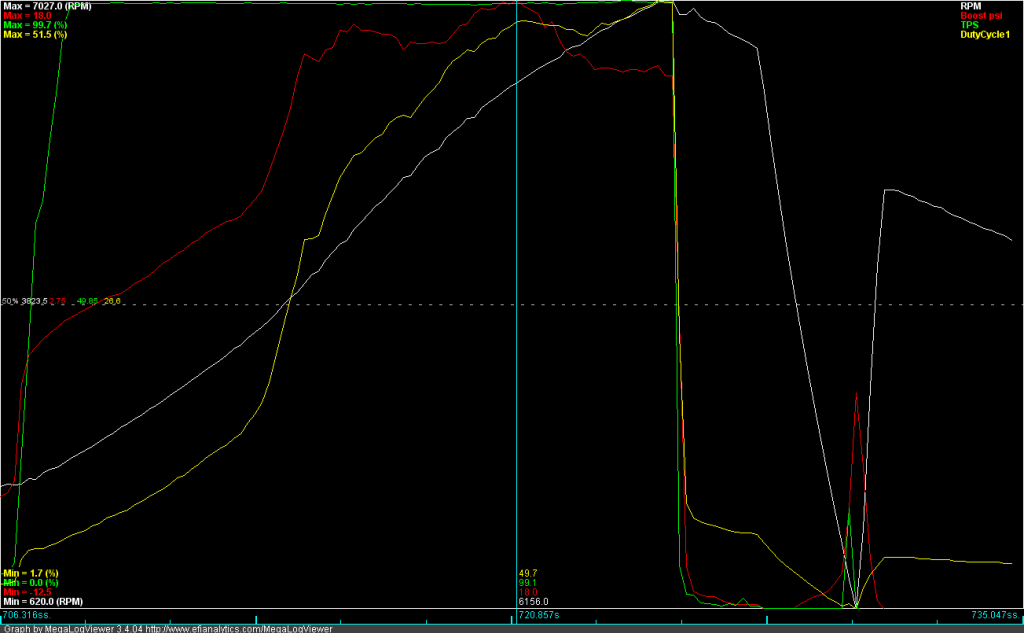

I want your spool data!-graph_zps02d0b37e.png
Impuls is offline   Reply With Quote
Old 07-10-2014, 03:24 AM   #224
Senior Member
iTrader: (1)

Join Date: Jan 2012
Location: Tampa, FL
Posts: 761
Total Cats: 19
Default

Added my self and soviet added.

Attached Thumbnails

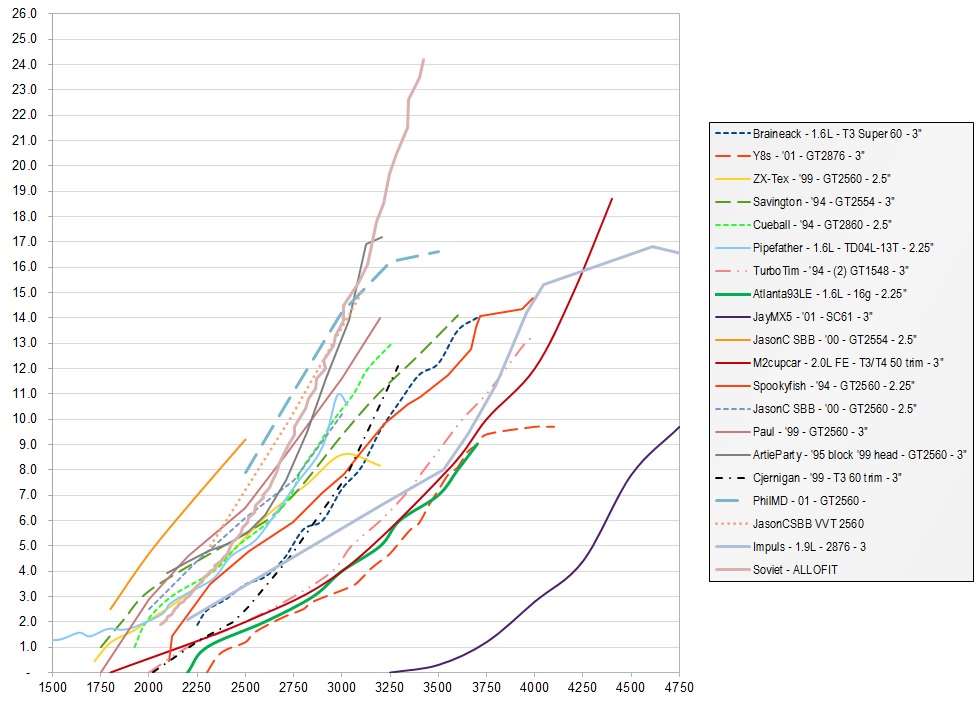

I want your spool data!-spooldata_zpse07293ef.jpg
Attached Files
File Type: xls New Spool plots.xls (59.0 KB, 52 views)
Impuls is offline   Reply With Quote
Old 07-21-2014, 12:51 AM   #225
Elite Member
iTrader: (1)

cordycord's Avatar

Join Date: Dec 2011
Location: SoCal
Posts: 1,738
Total Cats: 134
Default Catfish 1.6

JDM 1.6 of indeterminate age or mileage
MSPNP2
FM Log
2560 Churbo, balanced to 150k
Custom 2.5" dump pipe exiting to 2.5" side pipe
FM IC with external BOV
6 speed (dyno done in 5th gear)
245/35-17" rims (23.7" diameter)

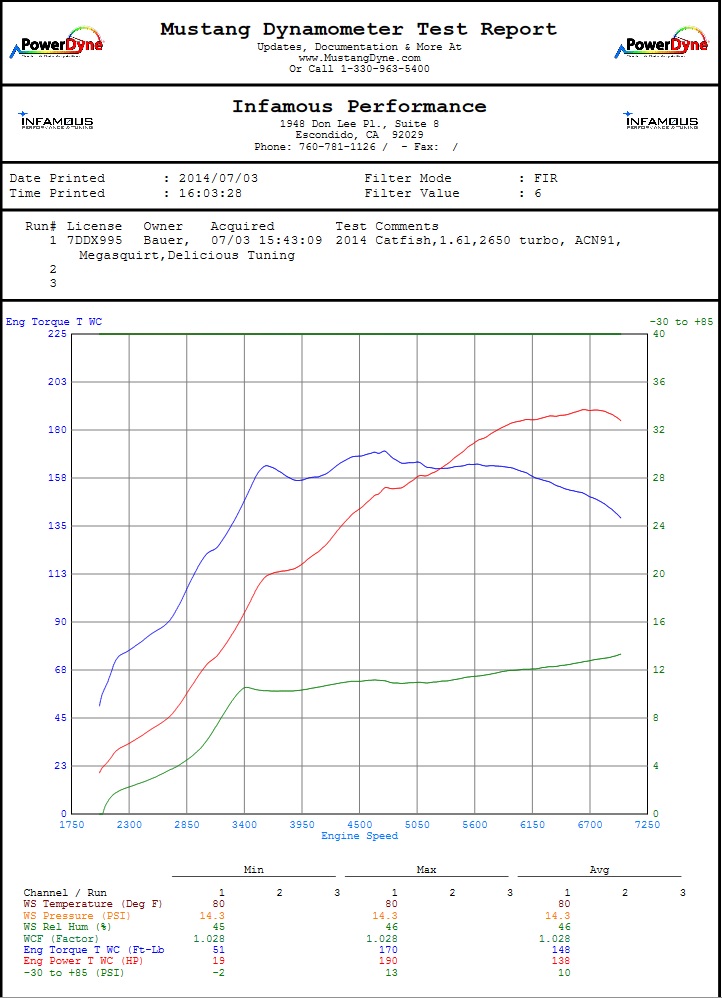

Mustang Dyno--this one has back to back dyno's with the DCSPort dynojet and is 20% conservative

Filter value is 6 out of 50 (not much plot line smoothing)

Adjusted "dynojet" numbers:

190whp = 228whp
170wtq = 204wtq
Attached Thumbnails
I want your spool data!-cat.jpg
cordycord is offline   Reply With Quote
Old 08-18-2014, 03:20 PM   #226
Junior Member

DNA54's Avatar

Join Date: Nov 2013
Location: Sardinia, Italy
Posts: 369
Total Cats: 49
Default

Engine: 1.8L '00 stock BP (not vvt)
Turbo: chrubo "disco potato" compressor: 3" inlet 2" outlet 0.6 A/R 48mm trim turbine: 0.64 A/R 76mm trim
Manifold: begi S4 style
Downpipe Size/Style: 60mm merged wastegate 42mm
Exhaust Size: full 60mm no cat no resonator, nothing!!!
Exhaust Components: magnaflow 60mm with dbkiller
Intercooler Core Size: 550 x 140 x 65 ebay intercooler
Intake Manifold: Stock
Headwork: none
Engine Management: emanage blue (temporary, waiting money for rev ms)
Other Spoolin' Helpers/Hurters: nothing, only wastegate with original compressor signal
Trans & Rear End Ratio: 6-speed, 3.909
Rear tire size: 195/50-15

FIFTH GEAR PULL:

RPM Boost(PSI)

2179 - 0
2481 - 1.45
2760 - 2.18
3087 - 3.63
3447 - 4.35
3860 - 5.8
4277 - 9.43
4394 - 10.15
4655 - 11.31

after 5000 rpm begins to drop down to 9.40 psi at 6500 rpm
DNA54 is offline   Reply With Quote
Old 08-20-2014, 08:14 PM   #227
Elite Member

Chiburbian's Avatar

Join Date: Feb 2008
Location: Gilberts, IL
Posts: 2,027
Total Cats: 115
Default

Engine: 01' 1.8L with functional VVT
Turbo: Precision 4828
Manifold: BEGI cast style with EGR
Downpipe Size/Style: older BEGI non separated gasses
Exhaust Size: Flyin' Miata 2.5" with high flow cat and resonator
Other exhaust: Stock muffler for now.
Intercooler Core Size: 18"x8"x3"? (estimated from memory)
Charge Piping: 2" over the top style hotside, 2.5" behind headlight coldside.
Intake Manifold: Stock
Headwork: none
Engine Management: MS3x
Rear tire size: 205/45R16
Other helpers/hurters: Closed Loop - in the process of tweaking.
Slight up-hill pull so it may shift the boost earlier than normal.

5th gear pull

RPM PSI
2105 1
2209 2
2373 3
2598 4
2801 5
3076 6
3314 7
3426 8
3549 9
3680 10

Last edited by Chiburbian; 09-03-2014 at 11:24 PM.
Chiburbian is offline   Reply With Quote
Old 09-02-2014, 04:05 PM   #228
Senior Member
iTrader: (1)

Join Date: Mar 2014
Location: Rosedale, Indiana
Posts: 611
Total Cats: 42
Default

Here is my turbo spool data for my BEGi S6 kit GT2860 turbo with Tial 38mm external wastegate with 8.7 psi spring. Full 3" catless exhaust is causing boost creep up to 11.5 to 12.0 psi even with the 8.7 psi spring in the wastegate.

Started runs from 1500 RPM up to a hair over 7000 in 4th gear on a 6 speed with 4.3 rear gear.

2000 1.5 psi
2500 2.7 psi
3000 4.5 psi
3500 7.5 psi Wastegate is cracking open here with the 8.7 psi spring.
4000 10.0 psi
4500 10.8 psi
5000 11.2 psi
5500 11.7 psi
6000 11.3 psi
6500 10.6 psi
7000 11.2 psi

I am wondering if with a manual boost controller I can improve spool up without making the boost creep worse.

Keith
Twodoor is offline   Reply With Quote
Old 10-25-2014, 08:28 PM   #229
Newb

Join Date: Sep 2014
Location: Ft Riley, Kansas
Posts: 14
Total Cats: 0
Default

Engine: 2000, 1.8L
Turbo: GT2560R
Manifod: ?
Exhaust Components: Racing Beat full exhaust
Intercooler Core Size: 18"x12"x3"
Intake Manifold: Stock
Headwork: Mild Porting
Engine Management: Adaptronics
Other Spoolin' Helpers/Hurters: Eagle rods, Wiseco pistons
Trans & Rear End Ratio: 5-speed
Rear tire size: 195/50r/15

4th gear pull @ 18psi

Attached Thumbnails

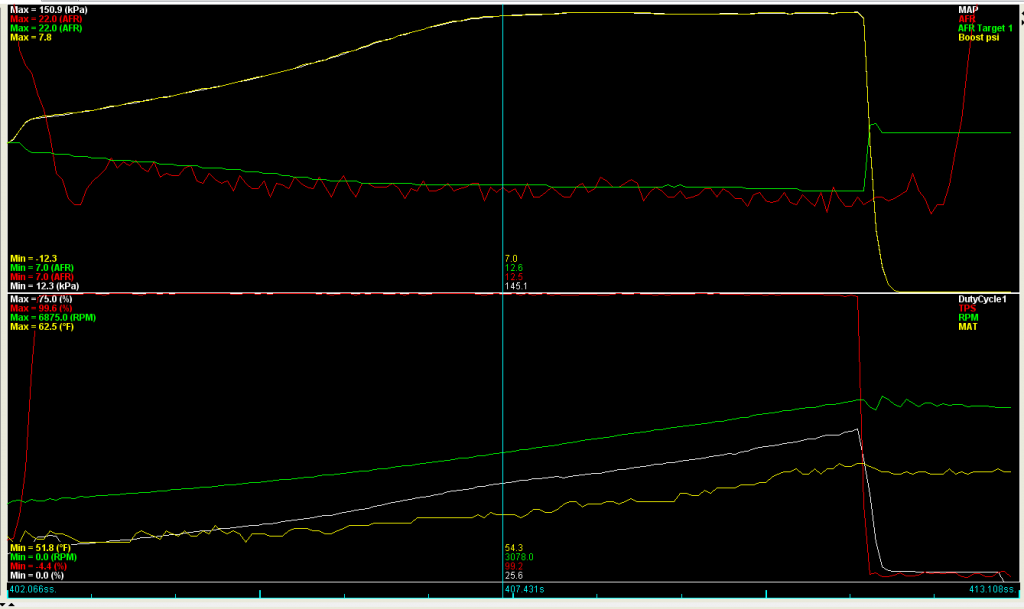

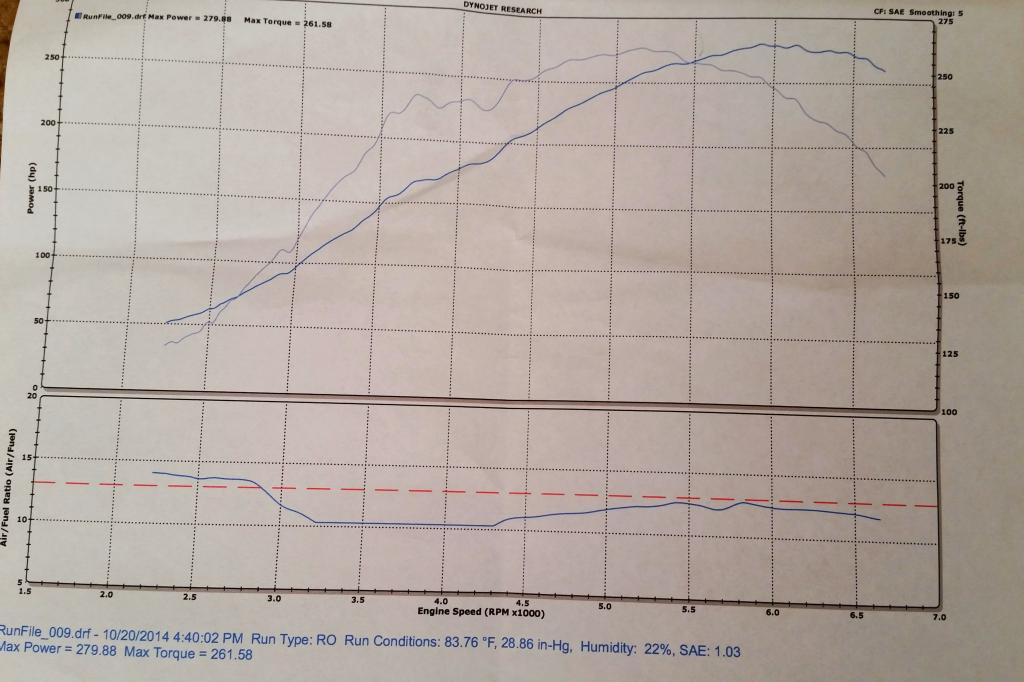

I want your spool data!-20141025_174716_zps47956e0e.jpg

Last edited by Oso787; 10-25-2014 at 08:59 PM.
Oso787 is offline   Reply With Quote
Old 10-26-2014, 04:28 PM   #230
Free Moustache Rides
iTrader: (8)

matthewdesigns's Avatar

Join Date: Jun 2008
Location: Colorado Springs
Posts: 1,654
Total Cats: 45
Default

What is your actual boost vs RPM? I just installed this same turbo and am curious as to how it looks on your 1.8 compared to my 1.6.

Also, that spot where your AFRs flatlined is hurting your spool. Do you know how fat it actually was there? Probably in the 9's? That dip in the TQ curve from 35-4500RPM is related. Any particular reason you made it that rich when you were tuning it?
matthewdesigns is offline   Reply With Quote
Old 10-26-2014, 04:57 PM   #231
Newb

Join Date: Sep 2014
Location: Ft Riley, Kansas
Posts: 14
Total Cats: 0
Default

Quote:
Originally Posted by matthewdesigns View Post
What is your actual boost vs RPM? I just installed this same turbo and am curious as to how it looks on your 1.8 compared to my 1.6.

Also, that spot where your AFRs flatlined is hurting your spool. Do you know how fat it actually was there? Probably in the 9's? That dip in the TQ curve from 35-4500RPM is related. Any particular reason you made it that rich when you were tuning it?
I got the car the way it sits. I had a shop run a diagnostic dyno to see where it stands. We were surprised at the numbers but I have to get the software for adaptronics so we can adjust fire. That was just a diagnostic run.
Oso787 is offline   Reply With Quote
Old 11-09-2014, 12:12 PM   #232
Senior Member
iTrader: (1)

Join Date: Dec 2010
Location: Farmington Hills, MI
Posts: 708
Total Cats: 61
Default

Engine: 1999, 1.8L
Turbo: TD04HL-20T-6cm (OEM Caliber SRT4 turbo, with 6cm housing)
Manifold: Custom log
Exhaust Components: 3" DP, 2.5" back, 1 glasspack, Roadstersport3 muffler
Intercooler Core Size: 11"x12"x3"
Intake Manifold: Stock
Headwork: Stock
Engine Management: DIYPNP, sequential fuel
Other Spoolin' Helpers/Hurters: EBC, ID1000's, Toyota COP
Trans & Rear End Ratio: 5-speed, 4.30
Rear tire size: 205/40/16

3th gear pull @ 9psi

I have some work to do tuning the EBC between 3-4000 rpm, I can definitely reach full boost by around 3200.

Attached Thumbnails

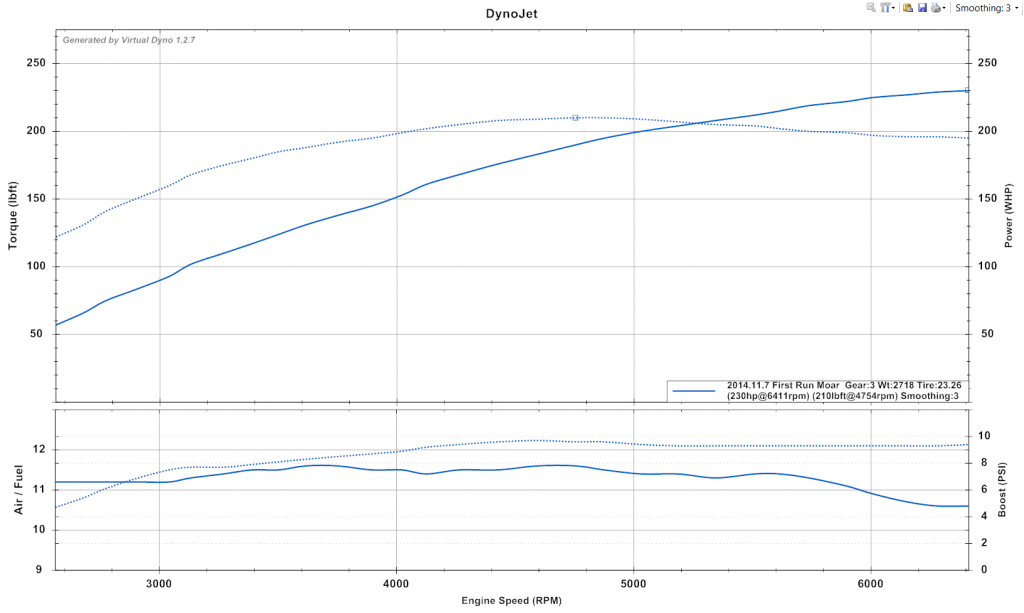

I want your spool data!-230whp_zps71156e69.png
acedeuce802 is offline   Reply With Quote
Old 11-09-2014, 08:32 PM   #233
Senior Member
iTrader: (4)

2manyhobyz's Avatar

Join Date: Feb 2011
Location: Joliet, IL
Posts: 605
Total Cats: 16
Default

Quote:
Originally Posted by acedeuce802 View Post
Engine: 1999, 1.8L
Turbo: TD04HL-20T-6cm (OEM Caliber SRT4 turbo, with 6cm housing)
Manifold: Custom log
Exhaust Components: 3" DP, 2.5" back, 1 glasspack, Roadstersport3 muffler
Intercooler Core Size: 11"x12"x3"
Intake Manifold: Stock
Headwork: Stock
Engine Management: DIYPNP, sequential fuel
Other Spoolin' Helpers/Hurters: EBC, ID1000's, Toyota COP
Trans & Rear End Ratio: 5-speed, 4.30
Rear tire size: 205/40/16

3th gear pull @ 9psi

I have some work to do tuning the EBC between 3-4000 rpm, I can definitely reach full boost by around 3200.

Mr aceduce802, perhaps you'd like to share with the class why we are not seeing a boost/rpm comparison? And furthermore, why in god's name did you choose 3rd (or 3th gear as you put it) , as clearly this isn't a 1:1 ratio as stated at the beginning of this thread?
We enjoy people thinking outside the box on their turbo builds, but as an engineer you should know to keep the data similar for comparison.
2manyhobyz is offline   Reply With Quote
Old 11-09-2014, 11:29 PM   #234
Senior Member
iTrader: (1)

Join Date: Dec 2010
Location: Farmington Hills, MI
Posts: 708
Total Cats: 61
Default

Quote:
Originally Posted by 2manyhobyz View Post
Mr aceduce802, perhaps you'd like to share with the class why we are not seeing a boost/rpm comparison? And furthermore, why in god's name did you choose 3rd (or 3th gear as you put it) , as clearly this isn't a 1:1 ratio as stated at the beginning of this thread?
We enjoy people thinking outside the box on their turbo builds, but as an engineer you should know to keep the data similar for comparison.
Boost/rpm is shown in the bottom graph, the dotted line. This is a log in 3rd because I haven't had the chance to safely log a 4th gear pull. There are others in the thread that have posted 3rd gear pulls, so there is data to compare to. However, I do understand that I don't have to take it to redline in fourth gear to show spool, so I will grab that data.
acedeuce802 is offline   Reply With Quote
Old 11-09-2014, 11:41 PM   #235
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 33,776
Total Cats: 2,112
Default

if you want your data to be relevant please do it in 1:1 gear and start at 2k rpm.

please. otherwise its pretty much useless
18psi is offline   Reply With Quote
Old 11-10-2014, 08:45 AM   #236
Senior Member
iTrader: (1)

Join Date: Dec 2010
Location: Farmington Hills, MI
Posts: 708
Total Cats: 61
Default

Engine: 1999, 1.8L
Turbo: TD04HL-20T-6cm (OEM Caliber SRT4 turbo, with 6cm housing)
Manifold: Custom log
Exhaust Components: 3" DP, 2.5" back, 1 glasspack, Roadstersport3 muffler
Intercooler Core Size: 11"x12"x3"
Intake Manifold: Stock
Headwork: Stock
Engine Management: DIYPNP, sequential fuel
Other Spoolin' Helpers/Hurters: EBC, ID1000's, Toyota COP
Trans & Rear End Ratio: 5-speed, 4.30
Rear tire size: 205/40/16

4th gear pull @ 9psi

RPM Boost(psi)
2240 2.3
2310 2.9
2405 3.9
2522 4.9
2608 5.7
2713 6.6
2815 7.7
2904 8.3
3000 8.9

9 psi until redline
acedeuce802 is offline   Reply With Quote
Old 11-10-2014, 09:02 AM   #237
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 33,776
Total Cats: 2,112
Default

Much better. And looks like the turbo comes on fairly quick, very similar to a t25
18psi is offline   Reply With Quote
Old 11-10-2014, 09:37 AM   #238
Senior Member
iTrader: (1)

Join Date: Dec 2010
Location: Farmington Hills, MI
Posts: 708
Total Cats: 61
Default

Quote:
Originally Posted by 18psi View Post
Much better. And looks like the turbo comes on fairly quick, very similar to a t25
Yes I'm very happy with the response. Unfortunately I haven't been able to find a compressor map for the 20t, but I used a 19t map and it stays in the efficiency range just like a gt2560r, except it seems to have more potential at higher boost levels. I'm way too excited to build the motor, throw in a 6 speed, run a 3" exhaust, and turn it up. I was planning on doing a full 3" back exhaust first, but I don't see the real reason at this point, if I'm already at 230 whp with good spool.
acedeuce802 is offline   Reply With Quote
Old 11-29-2014, 10:16 AM   #239
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 11,811
Total Cats: 479
Default

Engine: 2002 VVT, forged everything
Turbo: Precision 4828
Manifold: BEGI log
Exhaust Components: 3" DP, 3" back, resonator and big magnaflow
Intercooler Core Size: 11"x12"x3"
Intake Manifold: stock VICs
Headwork: Stock
Engine Management: Rev MS3
Other Spoolin' Helpers/Hurters: DIY's EBC, ID650's, LS3 coils
Trans & Rear End Ratio: 6-speed, ??? rearend
Rear tire size: 175-14 snow tires!

5th gear pull @ peak of 21.77psi

RPM Boost(psi)
2625 0.88 -TPS hits ~100%. Little high, but this was the latest log
2721 1.99
2820 3.23
2922 4.25
3014 5.03
3105 5.99
3266 7.8
3339 8.57
3414 9.6
3521 11.05
3753 14.94
4031 18.22

Last edited by curly; 11-29-2014 at 10:29 AM. Reason: oops, psi not kpa...
curly is offline   Reply With Quote
Old 12-03-2014, 10:53 PM   #240
Sadfab Union President
iTrader: (3)

Join Date: May 2014
Location: Kansas
Posts: 2,690
Total Cats: 115
Default

Engine: 91 1.6
Turbo: T3 Churbo .42/.48 A/R, v-band outlet/ported IWG
Manifold: Tacotaco
Downpipe Size/Style: V-band 2.5" to 3.00"
Exhaust Size: 2.5" to 3"
Exhaust Components: Magnaflow 5x11x22 Muffler
Intercooler Core Size: 5.5x27x2.5"
Intake Manifold: Stock 1.6
Engine Management: Megasquirt "DIYPNP"
Other Spoolin' Helpers/Hurters: LS2 Coils, wastegate pressure
Trans & Rear End Ratio: 5-speed, 4.3 VLSD
Rear tire size: 205/50-15

4th Gear Pull

RPM Boost PSI
2000 0.3
2100 0.8
2200 1.4
2300 2.1
2400 2.9
2500 3.6
2600 4.5
2700 5.3
2800 5.9
2900 6.5
3000 6.8
3100 7.0 <-- 7psi Churbo wastegate
3250 7.1
3500 7.2
3750 7.1
4000 7.2
4250 7.2

Attached Thumbnails
I want your spool data!-4thpull_zpsc7d7bfa1.png
deezums is offline   Reply With Quote


Reply

Related Topics
Thread Thread Starter Forum Replies Last Post
1994 Spec Miata Race Car SM/SM2/SSM For Sale Quinn Cars for sale/trade 6 10-23-2016 07:58 AM
Why dynos should plot Torque divided by MAP JasonC SBB ECUs and Tuning 11 10-27-2015 04:56 PM
Back to Stock Part Out!! Turbo Parts, MS2 Enhanced 01-05, Suspension, and MOAR! StratoBlue1109 Miata parts for sale/trade 16 10-02-2015 09:39 AM
The "other" spool question stefanst DIY Turbo Discussion 44 09-28-2015 07:16 PM
Interpreting Deatchwerks Dead Times from Battery Wizard compuw22c MEGAsquirt 0 09-14-2015 06:08 PM


Thread Tools

Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off
Trackbacks are Off
Pingbacks are Off
Refbacks are Off



All times are GMT -4. The time now is 04:21 AM.
