Default I want your spool data!

If some of you remember this thread: https://www.miataturbo.net/forum/sho...ighlight=spool

we started collecting spool-up rates of various turbo setups and threw them into a chart.


I would like to collect new data and try again.

So please respond using the follow example:

Engine: '93 1/6L
Turbo: T3 Super 60 .48 A/R
Manifold: BEGi Cast "Directed Pulse"
Downpipe Size/Style: Single tube 2.5" to 2.75"
Exhaust Size: 2.75" to 3"
Exhaust Components: Louvered resonator & Magnaflow Muffler
Intercooler Core Size: 18"x12"x3"
Intake Manifold: Stock
Headwork: Mild Porting, deshrouding, blended bowl
Engine Management: Megasquirt
Other Spoolin' Helpers/Hurters: Toyota COPs
Trans & Rear End Ratio: 5-speed, 4.1 LSD
Rear tire size: 205/45-16

FOURTH GEAR PULL:

RPM Boost(psi)
2250 1.88
2300 2.46
2400 2.9
2500 3.48
2600 3.77
2700 4.5
2800 5.65
2900 6
3000 7.25
3100 8.1
3200 9.57
3300 10.7
3400 11.75
3500 12.2
3600 13.5
3700 14



Leave it on topic, or posts will get deleted. Try to take the log in 4th gear to keep things constant, and start the pull from 2K. Have fun, don't need to keep pulling to 7K and go +100mph
Braineack is offline   Reply With Quote
Old 10-01-2008, 05:15 PM   #2
y8s
2 Props,3 Dildos,& 1 Cat
iTrader: (8)

y8s's Avatar

Join Date: Jun 2005
Location: Fake Virginia
Posts: 18,999
Total Cats: 395
Default

Engine: '01 1.8L
Turbo: GT2876R .64 A/R turbine housing
Manifold: ETD long tube mild steel
Downpipe Size/Style: 2.25 to 3" transition with external wg
Exhaust Size: 3"
Exhaust Components: cat, resonator, magnaflow big muff.
Intercooler Core Size: Begi #2
Intake Manifold: Stock
Headwork: zip
Engine Management: hydra
Other Spoolin' Helpers/Hurters: Toyota COPs, intake valve advanced 6degrees, super light flywheel/clutch.

FOURTH GEAR PULL:

RPM PSI
2300 0.0
2350 0.6
2400 0.9
2500 1.2
2550 1.6
2700 2.2
2800 2.5
2850 2.8
3050 3.4
3100 3.7
3150 4.1
3200 4.4
3250 4.7
3350 5.6
3400 5.9
3450 6.6
3500 7.2
3550 7.8
3600 8.1
3650 8.7
3700 9.0
3750 9.4
4000 9.7
4050 9.7
4100 9.7
4150 9.7
y8s is offline   Reply With Quote
Old 10-01-2008, 06:13 PM   #3
Elite Member
iTrader: (15)

Join Date: Dec 2007
Location: San Antonio, Texas
Posts: 4,889
Total Cats: 28
Default

Engine: '99 1.8L
Turbo: Garrett GT2560
Manifold: BEGI cast, directed pulse
Downpipe Size/Style: BEGI stainless single tube
Exhaust Size: 2.5"
Exhaust Components: All Magnaflow: metallic high flow cat, resonator, muffler (stealthy)
Intercooler Core Size: 12"x12"x4"
Intake Manifold: stock
Headwork: none
Engine Management: Megasquirt
Other Spoolin' Helpers/Hurters:Megasquirt controlled EBC with GM valve, 2.5"-3" IC plumbing over-the-top
Atmosphere ~98 KPa

FOURTH GEAR PULL:
RPM Boost (psi)
1717 0.45
1801 1.19
1915 1.63
2004 2.08
2203 3.12
2426 4.75
2616 6.24
2816 7.42
3004 8.61
3198 8.17
3407 8.32
3611 8.32
3795 8.32
4018 9.06
4233 8.61
4444 9.35
4609 8.76
4805 9.35
5007 8.76
5241 9.06
5409 8.76
5598 8.76
5818 8.76
6022 8.61
6284 8.76
6310 8.76

EDIT: I logged a 4th gear pull on the way home today just for this thread. The data above has been updated accordingly.

Last edited by ZX-Tex; 10-02-2008 at 11:00 PM.
ZX-Tex is offline   Reply With Quote
Old 10-01-2008, 06:29 PM   #4
Supporting Vendor
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 14,194
Total Cats: 1,222
Default

Engine: '94 1.8 liter, OEM 150k longblock
Turbo: GT2554R
Manifold: BEGi Cast "Directed Pulse" (standard S2/S3) with EGR
Downpipe Size/Style: BEGI 3" SSSG
Exhaust Size: 3"
Exhaust Components: BEGi DP, custom 3" midpipe with metal-core 3" cat, 3" Enthuza catback
Intercooler Core Size: 27x6.5x2.5"
Intake Manifold: Stock
Headwork: OEM
Engine Management: MSPNP
Other Spoolin' Helpers/Hurters: Toyota COPs, MS EBC

FIFTH GEAR PULL: (equivalent of a 4th gear pull in a 5-speed car)

RPM Boost(psi)
1750rpm: 1.0psi
1870rpm: 2.1psi
2014rpm: 3.3psi
2478rpm: 5.4psi
2626rpm: 6.1psi
2783rpm: 7.3psi
3004rpm: 9.4psi
3188rpm: 11.0psi
3394rpm: 12.5psi
3601rpm: 14.1psi


Specify what tranny/rear end you have as well. My 5th gear and everyone else's 4th gear is the same.
Savington is offline   Reply With Quote
Old 10-01-2008, 07:40 PM   #5
Elite Member
iTrader: (13)

Join Date: Nov 2006
Location: Tigard, Oregon
Posts: 3,908
Total Cats: 0
Default

Engine: '94 1/8L
Turbo: GT2860rs
Manifold: BEGi S4 stainless tubular
Downpipe Size/Style: BEGI divorced
Exhaust Size: 2.5"Exhaust Components: Magnaflow Muffler, metal cat
Intercooler Core Size: 18"x8"x3"
Intake Manifold: Stock
Headwork: none
Engine Management: Megasquirt
Other Spoolin' Helpers/Hurters: Toyota COPs

3rd GEAR PULL:

RPM Boost(psi)
3300 = 1psi
3450 = 2psi
3487 = 3psi
3495= 4psi
3520 = 5psi
3550= 6psi
3620= 7psi
3640= 8psi
3660= 9psi
3700= 10psi
3780= 11psi Limit

Total elapsed time 1.36 seconds in 3rd gear. Taken from track day datalog. Was best full throttle example from a low rpm I could find. Makes boost earlier on other logs but this was the cleanest example.

Last edited by cueball1; 10-01-2008 at 08:16 PM.
cueball1 is offline   Reply With Quote
Old 10-01-2008, 07:48 PM   #6
Senior Member
iTrader: (5)

Join Date: Nov 2007
Location: Troy, MI
Posts: 860
Total Cats: 13
Default

Engine: '92 1.6L
Turbo: TD04L-13T from 06 Subaru WRX
Manifold: ETD long tube mild steel
Downpipe Size/Style: 2.25"
Exhaust Size: 2.25"
Exhaust Components: 2.25" flex joint with one 2.00" crush bend radius, 18" straight-through resonator and dual-chamber muffler
Intercooler Core Size: I dunno, its a 1st gen. Ford Probe turbo with 1.75" in/out; probably 12"x8"x2"
Intake Manifold: Stock
Headwork: Stock
Engine Management: Megasquirt
Other Spoolin' Helpers/Hurters: Nothing
Rear End Ratio: 4.3
Rear tire size: 205/50-15

FOURTH GEAR PULL:

RPM PSI
1500 1.1
1700 1.3
2000 2.0
2200 2.6
2500 4.8
2700 9.4
3000 10.0
3500 10.1
5000 Clutch Slip
6000 Clutch Slip
6500 Clutch Slip
7000 Clutch Slip
The_Pipefather is offline   Reply With Quote
Old 10-01-2008, 08:04 PM   #7
Elite Member
iTrader: (9)

TurboTim's Avatar

Join Date: Jun 2006
Location: Chesterfield, NJ
Posts: 6,453
Total Cats: 240
Default

Nice. I was the last post and was never included. ::sniffle-sniffle::

Engine: '94 1.8L
Turbo: two Garrett GT1548
Manifold: Shore Motorsports Absurdflow TT muhahaha
Downpipe Size/Style: 2x 2.25" upper's blended into single 3"
Exhaust Size: 3" Absurdflow Stainless
Exhaust Components: 3" Magnaflow cat and 5x8x18 Magnaflow muffler
Intercooler Core Size: 18"x12"x3" side entry tube/fin ebay special
Intercooler Plumbing Size: 2.5" Stainless
Intake Manifold: Custom rotated plentium for thru-fender I/C plumbing welded onto stock lower half of intake manifold
Headwork: stock '94
Engine Management: AEM EMS
Other Spoolin' Helpers/Hurters: ?
Trans & Rear End Ratio: '92 5-speed, 3.9 torsen
Rear tire size: 205/45-16

FOURTH GEAR PULL:

RPM Boost(psi)
2000 0.0
2200 1.0
2500 2.0
2750 3.0
2950 4.0
3050 5.0
3200 6.0
3325 7.0
3425 8.0
3525 9.0
3625 10.0
3750 11.0
3850 12.0
3950 13.0
4000 13.3

269rwhp @ that 13 psi
TurboTim is offline   Reply With Quote
Old 10-01-2008, 08:31 PM   #8
Elite Member
iTrader: (5)

Atlanta93LE's Avatar

Join Date: Sep 2006
Location: Marietta, GA
Posts: 2,198
Total Cats: 1
Default

Engine: '93 1.6L
Turbo: Mitsu small 16g
Manifold: Bottom-mount mild steel
Downpipe Size/Style: Single tube 3"" to 2.5"
Exhaust Size: 2.25"
Exhaust Components: Magnaflow 2.25" "high flow" ceramic cat, ebay cat-back with glass-pack and resonator
Intercooler Core Size: 9"x7"x2.5"
Intake Manifold: Stock
Headwork: none
Engine Management: Megasquirt PNP
Other Spoolin' Helpers/Hurters: MS controlled EBC, Fidanza flywheel
FOURTH GEAR PULL:

RPM Boost(psi)
2200 0
2300 1
2600 2
2850 3
3000 4
3200 5
3300 6
3500 7
3600 8
3700 9

Last edited by Atlanta93LE; 10-01-2008 at 09:15 PM.
Atlanta93LE is offline   Reply With Quote
Old 10-01-2008, 09:00 PM   #9
Elite Member
iTrader: (12)

Join Date: May 2007
Location: Austin, TX
Posts: 1,923
Total Cats: 0
Default

Engine: '01 1.8L
Turbo: Precision SC61
Manifold: Tubular
Downpipe Size/Style: 3"
Exhaust Size: 3"
Exhaust Components: 3" w/ catalytic converter
Intercooler Core Size: 24"x8"x3.5"
Intake Manifold: Stock
Headwork: none
Engine Management: Hydra
Other Spoolin' Helpers/Hurters: FM Base map w/no tuning
FOURTH GEAR PULL:

RPM Boost(psi)
2000 0.0
2250 0.3
2500 0.9
2750 1.2
3000 1.9
3250 2.8
3500 3.1
3750 4.4
4000 6.2
4250 7.4
4500 9.7

Last edited by JayL; 10-07-2008 at 03:53 PM. Reason: Updated data
JayL is offline   Reply With Quote
Old 10-01-2008, 09:09 PM   #10
Elite Member

Join Date: Jul 2005
Posts: 6,443
Total Cats: 80
Default

Engine: '00
Turbo: GT2554
Manifold: AVO
Downpipe Size/Style: AVO cast ordinary
Exhaust Size: 2.5" custom
Exhaust Components: metal cat, resonator, large magnaflow muffler
Intercooler Core Size: 9x16x3" AVO
Intake Manifold: Stock VICS
Headwork: DIY mild porting, deshrouding, blended bowl
Engine Management: AEM
Other Spoolin' Helpers/Hurters: 8.4:1 Mazda pistons, standard bore

FOURTH GEAR PULL:

RPM Boost(psi)
1800 2.5
2000 4.7
2250 7
2500 9.2
JasonC SBB is offline   Reply With Quote
Old 10-01-2008, 09:15 PM   #11
Elite Member

Join Date: Jul 2005
Posts: 6,443
Total Cats: 80
Default

Engine: '00
Turbo: GT2560
Manifold: ETD shorty, internal gate
Downpipe Size/Style: BEGI custom divorced d/p
Exhaust Size: 2.5" custom
Exhaust Components: metal cat, resonator, large magnaflow muffler
Intercooler Core Size: ~9x16x3" TDR i/c
Intake Manifold: Stock VICS
Headwork: DIY mild porting, deshrouding, blended bowl
Engine Management: AEM
Other Spoolin' Helpers/Hurters: 8.4:1 Mazda pistons, standard bore; metal cat is half clogged.

FOURTH GEAR PULL:

RPM Boost(psi)
2000 2.5
2250 4.4
2500 6.1
2750 7.6
3000 10.2
JasonC SBB is offline   Reply With Quote
Old 10-01-2008, 09:17 PM   #12
Elite Member

Join Date: Jul 2005
Posts: 6,443
Total Cats: 80
Default

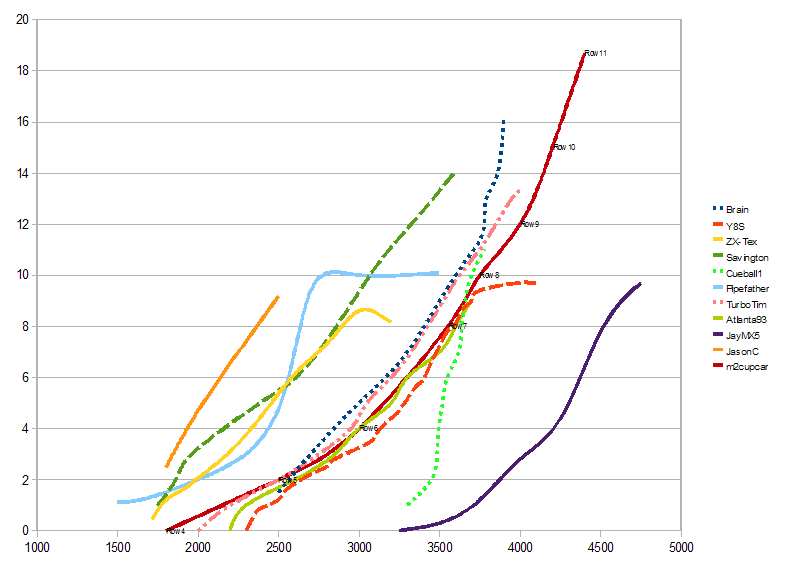

here's a graph of several



Description here:
http://forum.miata.net/vb/showthread...9&page=2&pp=25
JasonC SBB is offline   Reply With Quote
Old 10-01-2008, 09:51 PM   #13
Elite Member
iTrader: (5)

m2cupcar's Avatar

Join Date: Jan 2005
Location: Atlanta
Posts: 7,189
Total Cats: 266
Post

Engine: unopened stock '90 2.0L FE-dohc
Turbo: Garrett t3/t4 stage 3 AR48, 50 trim AR60
Manifold: SS Autochrome BP top-mount mild stainless steel (modified flange to fit FE)
Downpipe Size/Style: Single tube 3"
Exhaust Size: 3"
Exhaust Components: 300 cel metal cat, 18" louvered glass-pack and Raptor turbo-style muffler (quiet)
Intercooler Core Size: 18"x12"x3" eBay bar/plate
Intake Manifold: Top half 1.6 Miata, Bottom half Kia Sportage
Headwork: none
Engine Management: FM Miatalink 1.6
Other Spoolin' Helpers/Hurters: Incomplete closed loop tune on Link EBC. Stock Mercedes internal wastegate w/helper spring. Still haven't dyno tuned the engine management...soon.
Trans & Rear End Ratio: 5-speed, 4.1 open
Rear tire size: 205/45-15
atmos: 98kpa

FOURTH GEAR PULL:
RPM Boost(psi)
  • 1800 onset
  • 2500 2
  • 3000 4
  • 3550 8
  • 3750 10
  • 4000 12
  • 4200 15
  • 4400 18.7

Last edited by m2cupcar; 10-02-2008 at 09:39 PM.
m2cupcar is offline   Reply With Quote
Old 10-01-2008, 10:27 PM   #14
Elite Member

Join Date: Jul 2005
Posts: 6,443
Total Cats: 80
Default

FIFTH gear data, same setup as my post #11:

2000 3
2250 5
2500 6.8
2750 8.6
2900 10

5th gear data about matches Paul's absurdflow data in the graph above, but doesn't beat PhilMD's.
JasonC SBB is offline   Reply With Quote
Old 10-01-2008, 10:36 PM   #15
Elite Member
iTrader: (15)

Join Date: Dec 2007
Location: San Antonio, Texas
Posts: 4,889
Total Cats: 28
Default

Plot for those posted so far
Attached Thumbnails
I want your spool data!-boost-plot.gif

Last edited by ZX-Tex; 10-02-2008 at 10:43 PM.
ZX-Tex is offline   Reply With Quote
Old 10-02-2008, 10:47 PM   #16
Elite Member
iTrader: (15)

Join Date: Dec 2007
Location: San Antonio, Texas
Posts: 4,889
Total Cats: 28
Default

OK the new and improved graph is posted above. The xls file is attached to this post so if you want to change the plot or add your data, go for it.

Cueball's boost slope is nuts! Pipefathers is pretty steep too.

It is also interesting that Brain and TurboTim took two completely different approaches and ended up with practically identical spool behavior.

JasonC no offense but are you sure about your numbers? Our setups are pretty similar but yours is spooling 500 rpm sooner with a clogged cat?

Of course the other factor here is efficiency and how that translates into power. It would be interesting to see a 3-D plot with power added as a third axis.
Attached Files
File Type: xls Spool plots.xls (76.0 KB, 335 views)

Last edited by ZX-Tex; 10-02-2008 at 10:57 PM.
ZX-Tex is offline   Reply With Quote
Old 10-03-2008, 08:40 AM   #17
Boost Czar
Thread Starter
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,455
Total Cats: 1,698
Default

I updated my log as well...I copied from an old thread just to start the thread, I had new data to share.
Braineack is offline   Reply With Quote
Old 10-03-2008, 09:15 AM   #18
Elite Member
iTrader: (9)

TurboTim's Avatar

Join Date: Jun 2006
Location: Chesterfield, NJ
Posts: 6,453
Total Cats: 240
Default

I'll post Paul's to the best of my knowledge. He will let me know if I'm off here. The spool data is taken from the original thread.

Engine: '99 1.8L
Turbo: Garrett GT2560R
Manifold: Shore Motorsports Absurdflow
Downpipe Size/Style: Bellmouth 3"
Exhaust Size: 3" Absurdflow Stainless
Exhaust Components: 3" Magnaflow metalcat and 4x12
Vibrant resonator
Intercooler Core Size: 18"x12"x3" side entry bar/plate ebay special
Intercooler Plumbing Size: 2.5" Stainless
Intake Manifold: BEGI
Headwork: stock '99
Engine Management: Megasquirt
Other Spoolin' Helpers/Hurters: ?
Trans & Rear End Ratio: '94 5-speed, 3.9 torsen
Rear tire size: ?

FOURTH GEAR PULL:

RPM Boost(psi)
1750rpm 0psi
2000rpm 2.9psi
2200rpm 4.6psi
2500rpm 6.5psi
2700rpm 8.5psi
3000rpm 11.6psi
3200rpm 14.0psi

301rwhp @ 14 psi
TurboTim is offline   Reply With Quote
Old 10-03-2008, 02:50 PM   #19
Elite Member
iTrader: (21)

paul's Avatar

Join Date: Jun 2006
Location: Point Pleasant, NJ
Posts: 2,957
Total Cats: 2
Default

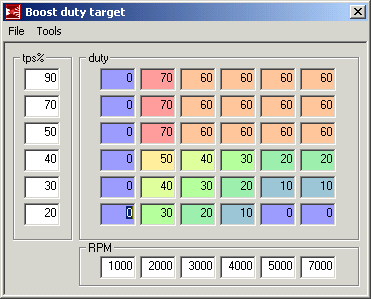

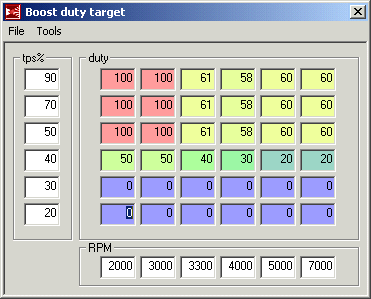

rear tire size at that time was 215/45/15.

That was when i was just learning how to use the EBC and my chart was as follows. The 2nd one is what I run now. I should go do a log just for the **** of it.
Attached Thumbnails
I want your spool data!-300hp_bdc.gif   I want your spool data!-now_bdc.gif
paul is offline   Reply With Quote
Old 10-03-2008, 02:57 PM   #20
Elite AbsurdFlow Member

Laur3ns's Avatar

Join Date: Mar 2008
Location: Enschede, NL
Posts: 2,058
Total Cats: 11
Default

I'll chime in with my unsorted map:

Engine: '94 1.8L
Turbo: Garrett GT2560R
Manifold: BEGi Cast "Directed Pulse"
Downpipe Size/Style: BEGI SGSS
Exhaust Size: Unknown, larger than OEM
Exhaust Components: OEM CAT
Intercooler Core Size: BEGI #2
Intake Manifold: Stock
Headwork: Sandblasted during rebuild
Engine Management: Megasquirt MSPNP9495 HiRes
Other Spoolin' Helpers/Hurters: 8.6:1CR, EBC, AFR:Pig rich
Trans & Rear End Ratio: 5-speed, 4.1 Open
Rear tire size: 195/50R15

FOURTH GEAR PULL:

RPM Boost(psi)
2105 0.4
2120 1.5
2314 3.5
2521 4.8
2745 5.9
2904 7.1
3009 7.8
3100 8.7
3226 9.9
3344 10.6
3405 10.9
3549 11.7
3667 12.8
3693 13.6
3717 14.1
3933 14.4
3992 14.8

Last edited by Laur3ns; 10-06-2008 at 03:26 PM.
Laur3ns is offline   Reply With Quote


Reply

Related Topics
Thread Thread Starter Forum Replies Last Post
1994 Spec Miata Race Car SM/SM2/SSM For Sale Quinn Cars for sale/trade 6 10-23-2016 07:58 AM
Why dynos should plot Torque divided by MAP JasonC SBB ECUs and Tuning 11 10-27-2015 04:56 PM
Back to Stock Part Out!! Turbo Parts, MS2 Enhanced 01-05, Suspension, and MOAR! StratoBlue1109 Miata parts for sale/trade 16 10-02-2015 09:39 AM
The "other" spool question stefanst DIY Turbo Discussion 44 09-28-2015 07:16 PM
Interpreting Deatchwerks Dead Times from Battery Wizard compuw22c MEGAsquirt 0 09-14-2015 06:08 PM


Thread Tools

Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off
Trackbacks are Off
Pingbacks are Off
Refbacks are Off



All times are GMT -4. The time now is 09:01 AM.
