Old 02-23-2016, 10:27 PM   #261
Junior Member

Join Date: Mar 2011
Location: Eindhoven, The netherlands
Posts: 140
Total Cats: 7
Default

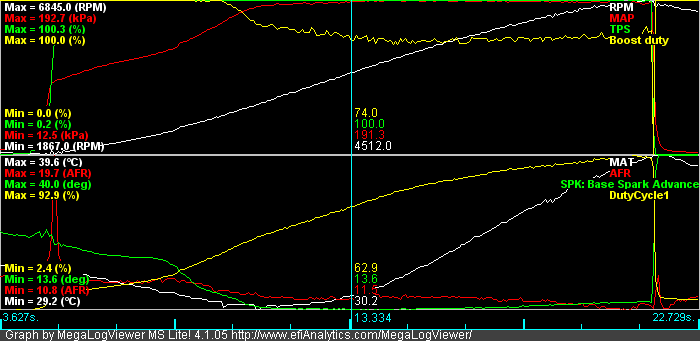

Or do you want the datalog itself?
Attached Thumbnails
I want your spool data!-80-12742584_950601288352133_6099853088521755707_n_e9e7d156a31f82b96a818d647187a86b39a19996.jpg
Vincentmiata is offline   Reply With Quote
Old 02-23-2016, 10:29 PM   #262
Junior Member

Join Date: Mar 2011
Location: Eindhoven, The netherlands
Posts: 140
Total Cats: 7
Default

Quote:
Originally Posted by deezums View Post
Well then. Your td04 does not spool faster then, does it?

Also, since when does 6.8=10?

Finally, my monster 1.6 spools a t3/04 to 18 at 1800 rpm. Well, it would in 4th, if I hadn't never made it.

850 rpm = 8.6
1800 = 12.2
2800 = 38.645, for the transmission

18psi, see

Damn, I type too slow.

Read, i already said that 10 psi at 2500rpm was in 5th gear, i dont have any 4th gear pulls but i posted a 3th gear pull above

Or wait, these can also be faked
Vincentmiata is offline   Reply With Quote
Old 02-23-2016, 10:30 PM   #263
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 33,396
Total Cats: 2,033
Default

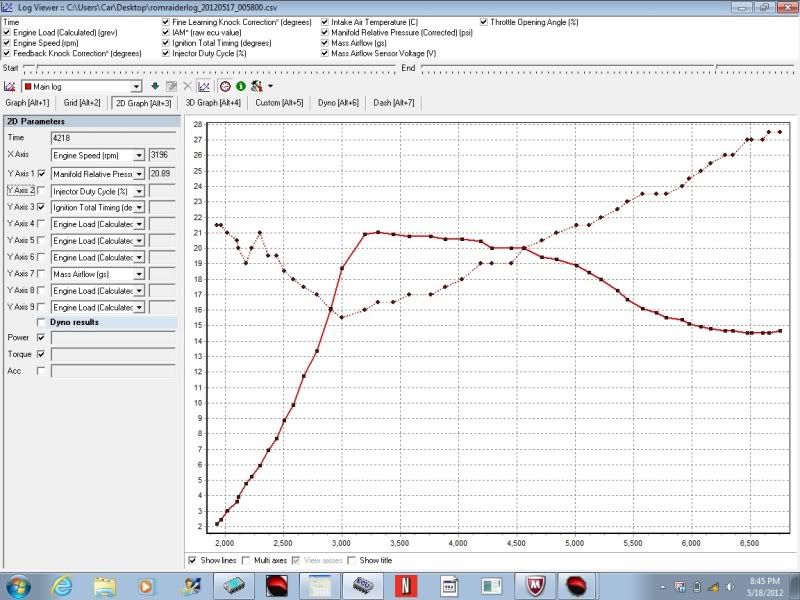

let's see the log from the screen shot you just posted
I'm preparing to be impressed
18psi is offline   Reply With Quote
Old 02-23-2016, 10:34 PM   #264
Junior Member

Join Date: Mar 2011
Location: Eindhoven, The netherlands
Posts: 140
Total Cats: 7
Default

Here is the log, car wasnt running good, looses to much power at top due top some boost leak.

And the last log in 2016 was better, first drive after long time because i had to fix some problems. A day later the car was totaled, so wasnt able to tune it better
Attached Files
File Type: msl 2015-05-07_20_modifieds.msl (64.9 KB, 38 views)
File Type: msl 2016-01-01_18_modified.msl (48.7 KB, 34 views)
Vincentmiata is offline   Reply With Quote
Old 02-23-2016, 10:40 PM   #265
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 33,396
Total Cats: 2,033
Default

ok now I'm impressed

you get a +cat

I guess ebc at 100% duty til 2600rpm really helps even with a straw-like exhaust.

was it running CL boost control? did it ever hit cut?
18psi is offline   Reply With Quote
Old 02-23-2016, 10:46 PM   #266
Junior Member

Join Date: Mar 2011
Location: Eindhoven, The netherlands
Posts: 140
Total Cats: 7
Default

Probably, EBC was a huge improvement after some tuning with the PID

Edit: yes closed loop. But hit cut? I dont understand exactly what you mean.

If i dont reply anymore im sleeping. Its 4 o clock at night overhere. So im really tired.. lol
Vincentmiata is offline   Reply With Quote
Old 02-24-2016, 03:28 AM   #267
Junior Member

Join Date: Dec 2011
Posts: 74
Total Cats: 3
Default

Quote:
Originally Posted by Vincentmiata View Post
Thats slow for an 2560, my TD04l Spools faster, i hit 10 psi at 2500rpm
Mine doesn't like sitting at 1800rpm in 4th gear it's a max 3rd gear rpm for mine really, it's a 5 speed with a 4.1 Diff. It feels like I'm setting off in 2nd gear from a stop for the first second or so. Or is that the same for everyone?
HeresJohnny is offline   Reply With Quote
Old 04-11-2016, 11:00 PM   #268
Elite Member
iTrader: (6)

Join Date: Feb 2013
Location: Staunton, Va
Posts: 1,724
Total Cats: 120
Default

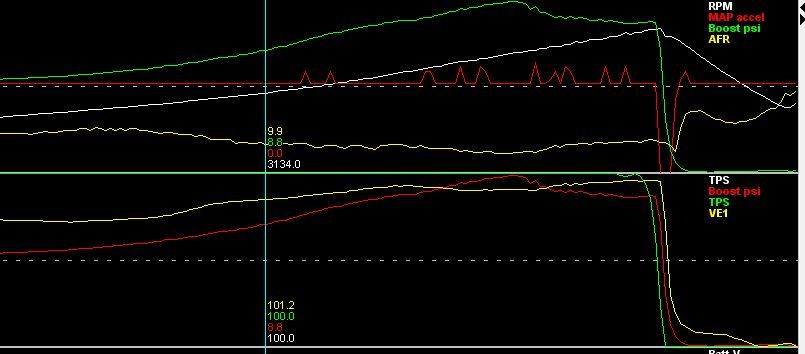

2560R, MBC, ARTech, with a bunch of my stuff n stuff. 3" pipe laid here. AFR's are less than desirable. Much less, but getting there...





5th gear, steep incline hill.
PSI

1- 1600
2- 1880
4- 2500
6- 2845
8- 3050
10- 3230
12- 3440
14- 3725
16- 4060
17- 4190
Attached Thumbnails
I want your spool data!-80-boost_pic_a166b829aedbb855617be604d59121bf3b36d5e8.jpg
ryansmoneypit is offline   Reply With Quote
Old 05-20-2016, 03:28 PM   #269
Junior Member

Join Date: Mar 2011
Location: Eindhoven, The netherlands
Posts: 140
Total Cats: 7
Default

Finally got the engine running in a new car, This time a 1999 NB

Same specs as in my NA except for the 3" exhaust and the new firmware, still can get the boost control settings right. little different with the bias settings.. Sometimes it overshoots and goes into overboost. My target at the moment is 200kpa. Will up that later when its running good Only drove about 2 hour total now


Engine: NB 1884cc forged
Turbo: TD04L
Manifold: Sturovo log
Downpipe Size/Style: 2.75"
Exhaust Size: 2.25
Exhaust Components: Stainless
Intercooler Core Size: BIG
Intake Manifold: Stock NB
Headwork: Stock NB head
Engine Management: Megasquirt3x
Other Spoolin' Helpers/Hurters: EBC, lightweight flywheel out of the HM kit from FM, 3" straight exhaust
Trans & Rear End Ratio: 5-speed, 4.1
Rear tire size: 195/50/15



4th Gear

RPM PSI

2197 -2.1
2278 2.2
2399 4.1
2504 6.0
2618 7.8
2732 10.1
2834 12.4
2918 14.4

Second run also 4th gear
2069 0.1
2137 2.1
2229 4.2
2409 6.6
2508 8.0
2602 10.0
2730 12.0
2834 14.6
2947 16.8
3125 20.3

Vincentmiata is offline   Reply With Quote
Old 06-01-2016, 12:03 AM   #270
Junior Member
iTrader: (3)

Join Date: Mar 2008
Posts: 95
Total Cats: 1
Default

Basic out of the box FM No electronics kit. 157K on original engine.
2000 NB 1.8
Turbo: Garrett 2560R
Manifold: FM log
Downpipe Size/Style: New style FM 2.5"
Exhaust Size: 2.5"
Exhaust Components: Stainless
Intercooler Core Size: FM Intercooler
Intake Manifold: Stock NB
Headwork: Stock NB head
Engine Management: FIC/6
Other Spoolin' Helpers/Hurters: TurboSmart MBC, TurboFuse, lightweight flywheel, FM,2.5" Highflow cat & turbo muffler.
Trans & Rear End Ratio: 5-speed, 4.1 (swapped)
Rear tire size: 195/50/15 BFG Comp-2s on 7.5" wheels.

4th Gear pull
RPM PSI
2458 1.1
2476 2.1
2557 3.0
2560 4.1
2687 5.2
2706 6.2
2758 7.0
2863 8.1
3127 9.0
3246 10.0 (hit speed limit)
fwman1 is offline   Reply With Quote
Old 06-01-2016, 12:10 AM   #271
Elite Member
iTrader: (6)

Join Date: Feb 2013
Location: Staunton, Va
Posts: 1,724
Total Cats: 120
Default

Well both of those posts, seem to argue the 3" exhaust pretty well. Similar set ups, the 3" spools considerably faster.
ryansmoneypit is offline   Reply With Quote
Old 07-16-2016, 02:08 PM   #272
Newb

Join Date: Jul 2016
Posts: 1
Total Cats: 0

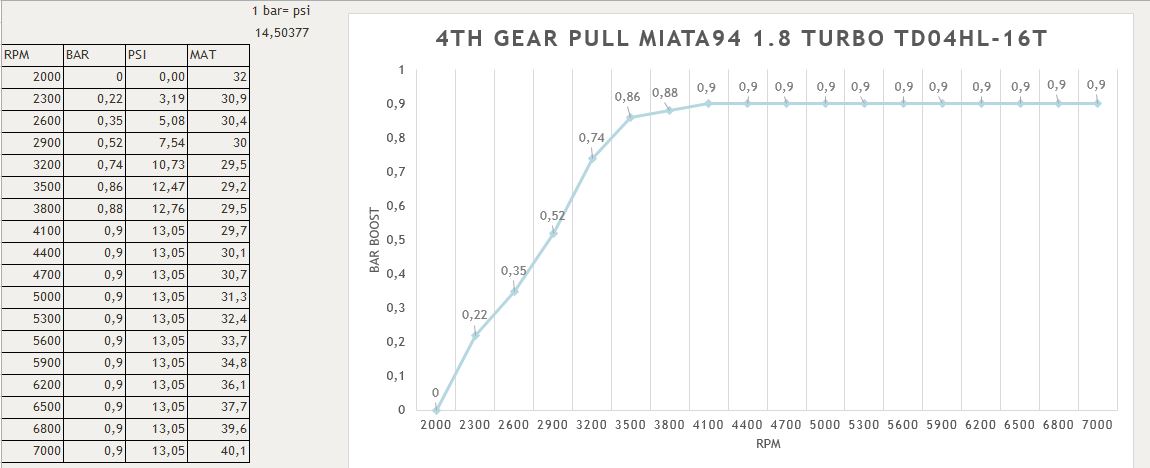

Default Spool data 4th gear mx5 1994 1.8 TD04HL-16T Turbo from Volvo S60

4th gear 1994 miata 1.8 engine 5 speed
Turbo- TD04HL-16T from Volvo S60 T5
Small ebay intercooler
4.1 rear dif ratio, torsen
195/50 r15 tires
3" DP + 2.5" exhaust

MAT is in Celsius
Attached Thumbnails
I want your spool data!-spool-data-1.png   I want your spool data!-4th-gear-spool.jpg
Mario_M is offline   Reply With Quote
Old 11-25-2016, 01:18 PM   #273
Supporting Vendor
iTrader: (3)

emilio700's Avatar

Join Date: May 2005
Posts: 4,603
Total Cats: 857
Default

Why has boost response never been measured here. As in steady state cruise at a given rpm/no boost to WOT/XX boost for say 1s. After that I don't care what it does. I'd like to see three standardized rpm points like 3500, 4500, 5500. The lag in boost returning after closing the throttle has been my personal litmus test, not how the boost build from a WOT roll on from low rpm. Why?, because the roll on is irrelevant. Who drives like that? Boost response after closing the throttle is how we actually drive it.

In 2006 when I had an intercooled GT2554R running on an emanage Ultimate with a 2.5" straight pipe, I datalogged it getting to 4-6psi in about 200ms and rising to 10psi in less than 1s at anyhing above about 3000rpm. Unfortunately I no longer have the program that opens those logs. Pretty much replicates. Andrew's posts from 2008
emilio700 is offline   Reply With Quote
Old 11-25-2016, 02:46 PM   #274
Elite Member

Chiburbian's Avatar

Join Date: Feb 2008
Location: Gilberts, IL
Posts: 1,964
Total Cats: 108
Default

So if I am understanding you correctly Emilio, you are saying that we start out in 'x' gear at 3,500 on flat ground and step on it full throttle and measure the boost built in one second?

What gear do you propose? Maybe this should be a separate thread, or do you think it should be added on as a separate measurement on this one?
Chiburbian is offline   Reply With Quote
Old 11-25-2016, 03:49 PM   #275
Supporting Vendor
iTrader: (3)

emilio700's Avatar

Join Date: May 2005
Posts: 4,603
Total Cats: 857
Default

Maybe separate thread? I'm curious to see how the EFRs stack up against the best Garrett installations
emilio700 is offline   Reply With Quote
Old 11-25-2016, 04:13 PM   #276
Elite Member

Chiburbian's Avatar

Join Date: Feb 2008
Location: Gilberts, IL
Posts: 1,964
Total Cats: 108
Default

Quote:
Originally Posted by emilio700 View Post
Maybe separate thread? I'm curious to see how the EFRs stack up against the best Garrett installations
I'll certainly give it a try at my first opportunity.

I am also curious to see if gear matters substantially at all. As this is a racing concern, what gear would you be in when you hit the throttle and needed instant (or as close to it) response?

If done on a dyno, I bet torque and HP would be nice to see along the same curve.
Chiburbian is offline   Reply With Quote
Old 11-25-2016, 05:02 PM   #277
Supporting Vendor
iTrader: (3)

emilio700's Avatar

Join Date: May 2005
Posts: 4,603
Total Cats: 857
Default

I think 3rd or 4th would be most relevant to track, maybe 2nd for autocross. So maybe 3rd, split the difference?
emilio700 is offline   Reply With Quote
Old 11-25-2016, 05:25 PM   #278
Senior Member
iTrader: (1)

Join Date: Jun 2007
Posts: 656
Total Cats: 28
Default

Quote:
Originally Posted by emilio700 View Post
I think 3rd or 4th would be most relevant to track, maybe 2nd for autocross. So maybe 3rd, split the difference?
I agree. 3rd gear steady state cruise on a levelish road starting at 4000 rpm. Immediate WOT. 2-3 second log should be enough to see what we're after. Most turbo's should light pretty quick under these conditions. I second the start a new thread notion.

Last edited by yank; 11-25-2016 at 05:44 PM.
yank is offline   Reply With Quote
Old 11-25-2016, 06:35 PM   #279
Junior Member

Join Date: Mar 2011
Location: Eindhoven, The netherlands
Posts: 140
Total Cats: 7
Default

Do we measure from the the moment we go full throttle when the TPS hits 100% or from a steady state cruise lets say 10% tps and from there on?


from steady cruise TPS to 100% TPS is about 150ms on my logs
Vincentmiata is offline   Reply With Quote
Old 11-25-2016, 08:26 PM   #280
Supporting Vendor
iTrader: (3)

emilio700's Avatar

Join Date: May 2005
Posts: 4,603
Total Cats: 857
Default

I think the log should start at some small TPS so maps is at lean cruise, say 45-65kpa. Go WOT and log for say 3s or so, just to show boost response.
emilio700 is offline   Reply With Quote
