Old 10-30-2014, 02:47 PM   #201
Senior Member
Thread Starter
iTrader: (1)

Join Date: Jul 2012
Location: durham NC
Posts: 733
Total Cats: 65
Default

If the filter is an issue I have something more narrow from AEM and I can swap with you. Also, if you are going to go megasquirt I can install an IAT sensor in it for you.
asmasm is offline   Reply With Quote
Old 10-30-2014, 03:05 PM   #202
Senior Member
iTrader: (2)

Join Date: Aug 2013
Location: Houston, TX
Posts: 573
Total Cats: 24
Default

Thanks Alec... you rock!
SchmoozerJoe is offline   Reply With Quote
Old 10-31-2014, 11:36 AM   #203
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 11,816
Total Cats: 479
Default

Little update from my end. Assuming all goes well with pick up and a dyno session, I should have back to back dyno comparisons of this intake vs. K&N's '99-'05 intake on Oregonmon's VVT motor.
curly is offline   Reply With Quote
Old 10-31-2014, 12:37 PM   #204
Senior Member
Thread Starter
iTrader: (1)

Join Date: Jul 2012
Location: durham NC
Posts: 733
Total Cats: 65
Default

Thanks curly. At some point, could you guys log the IATs from the K&N setup? I have been doing my IAT testing by starting with a heat soaked car and then driving on the highway for ~30 minutes to see what temp it will cool off to.
asmasm is offline   Reply With Quote
Old 10-31-2014, 01:38 PM   #205
Senior Member
iTrader: (2)

Join Date: Aug 2013
Location: Houston, TX
Posts: 573
Total Cats: 24
Default

I'll be testing this today vs a stock airbox as long as my K&N fits under the radiator support/etc on my ABS and AC equipped '94...
SchmoozerJoe is offline   Reply With Quote
Old 11-24-2014, 03:13 PM   #206
Senior Member
Thread Starter
iTrader: (1)

Join Date: Jul 2012
Location: durham NC
Posts: 733
Total Cats: 65
Default

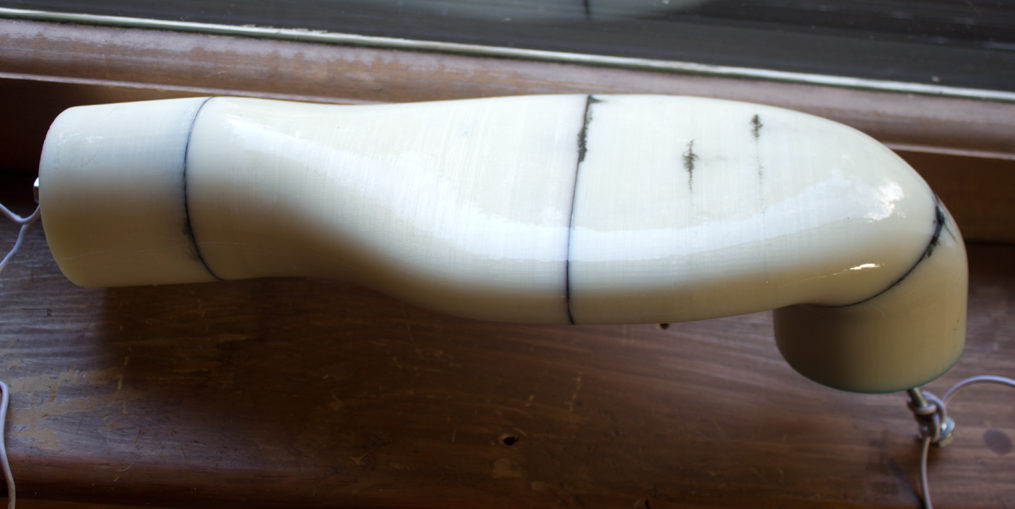

I made some progress on the carbon versions in the form of a final plug with a fully polished surface:


This is my second attempt at this plug- the first one I ruined and had to start over.

Time to make molds and then carbon parts.
asmasm is offline   Reply With Quote
Old 12-09-2014, 10:16 PM   #207
Newb

Join Date: Dec 2014
Posts: 3
Total Cats: -3
Default

PM'd you about some questions
jdm slick is offline   Reply With Quote
Old 12-14-2014, 02:46 PM   #208
Senior Member
Thread Starter
iTrader: (1)

Join Date: Jul 2012
Location: durham NC
Posts: 733
Total Cats: 65
Default

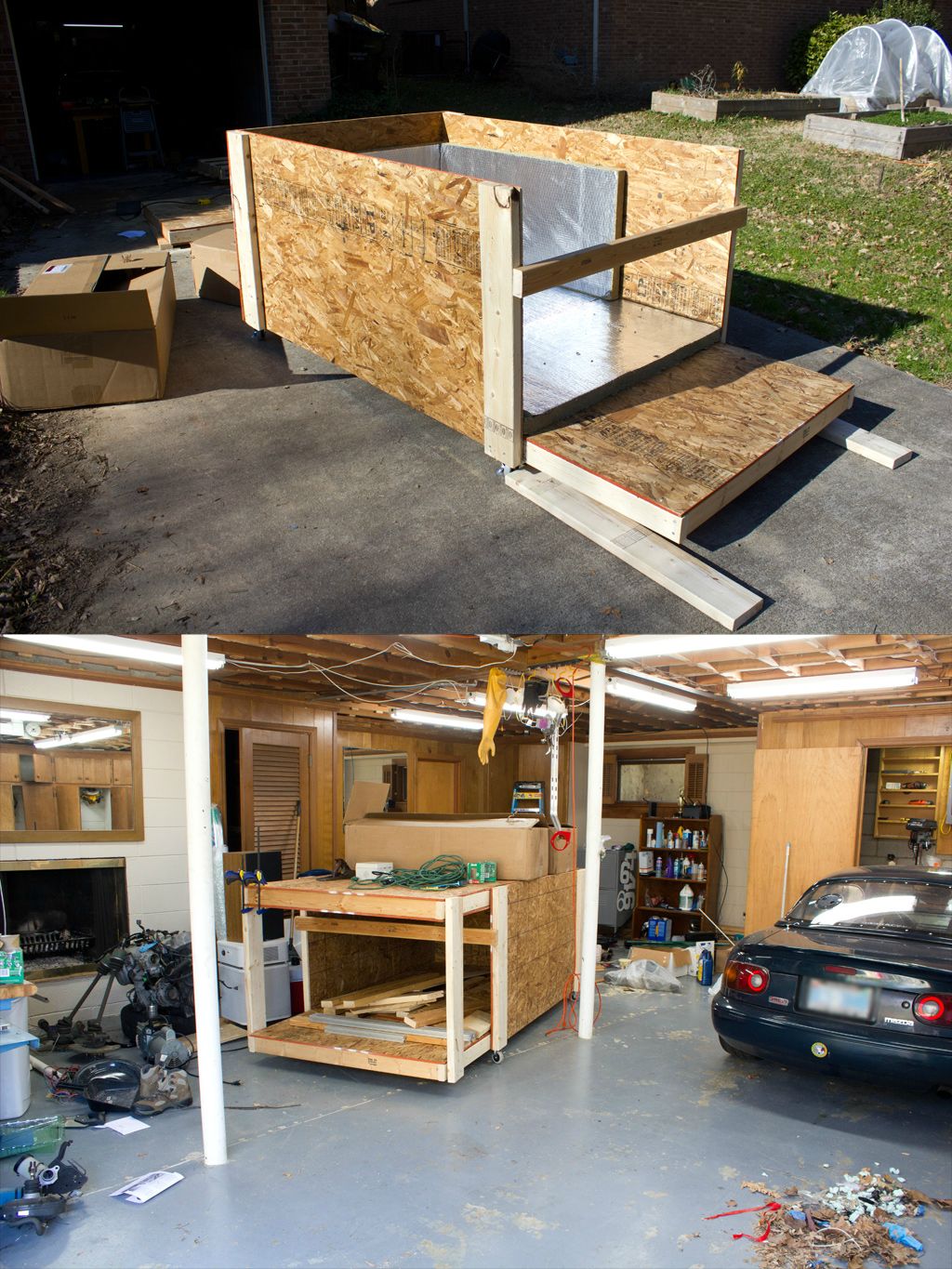

This is slow going but I am getting closer to having composite versions. I got most of the work for my composites oven/work surface finished today:


The internal area for the oven is 4'x6'x2' (minus rockwool thickness). It will be insulated with 2" thick foil faced rockwool that will be sealed with silicone and foil tape at the joints + a sheet metal pan for the bottom surface. I have a digital temp controller that can do ramp/soak functions along with an AC heating element. I need to source some all metal AC fans so I can circulate air inside.
asmasm is offline   Reply With Quote
Old 12-14-2014, 02:54 PM   #209
Elite Member
iTrader: (4)

Join Date: Sep 2006
Location: Charlotte, NC
Posts: 2,885
Total Cats: -11
Default

Things that are kick-***?

The above post for one...
Efini~FC3S is offline   Reply With Quote
Old 01-07-2015, 03:14 PM   #210
Senior Member
iTrader: (1)

Join Date: Apr 2008
Location: Florida
Posts: 774
Total Cats: -6
Default

Daang !!! Where did everybody go ?

By all I know and think I know this intake should do nicely.

It was a few years ago when I toyed with the idea of going to a narrow radiator in order to pick up air from the front of the car.

The intake in this thread seems like an elegant solution.

I have an AFM that would need to sit -probably - in the radiator wash
poobs is offline   Reply With Quote
Old 01-07-2015, 03:31 PM   #211
Destroyer of Inconel
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 9,059
Total Cats: 814
Default

Re: Post #208

Do you have a fireplace in your garage, or did you just say "fuckit!" and converted your house into some sort of amazing man-cave/garage hybrid?
EO2K is offline   Reply With Quote
Old 01-07-2015, 03:33 PM   #212
Senior Member
Thread Starter
iTrader: (1)

Join Date: Jul 2012
Location: durham NC
Posts: 733
Total Cats: 65
Default

Quote:
Originally Posted by EO2K View Post
Re: Post #208

Do you have a fireplace in your garage, or did you just say "fuckit!" and converted your house into some sort of amazing man-cave/garage hybrid?
Hah. A little of both.

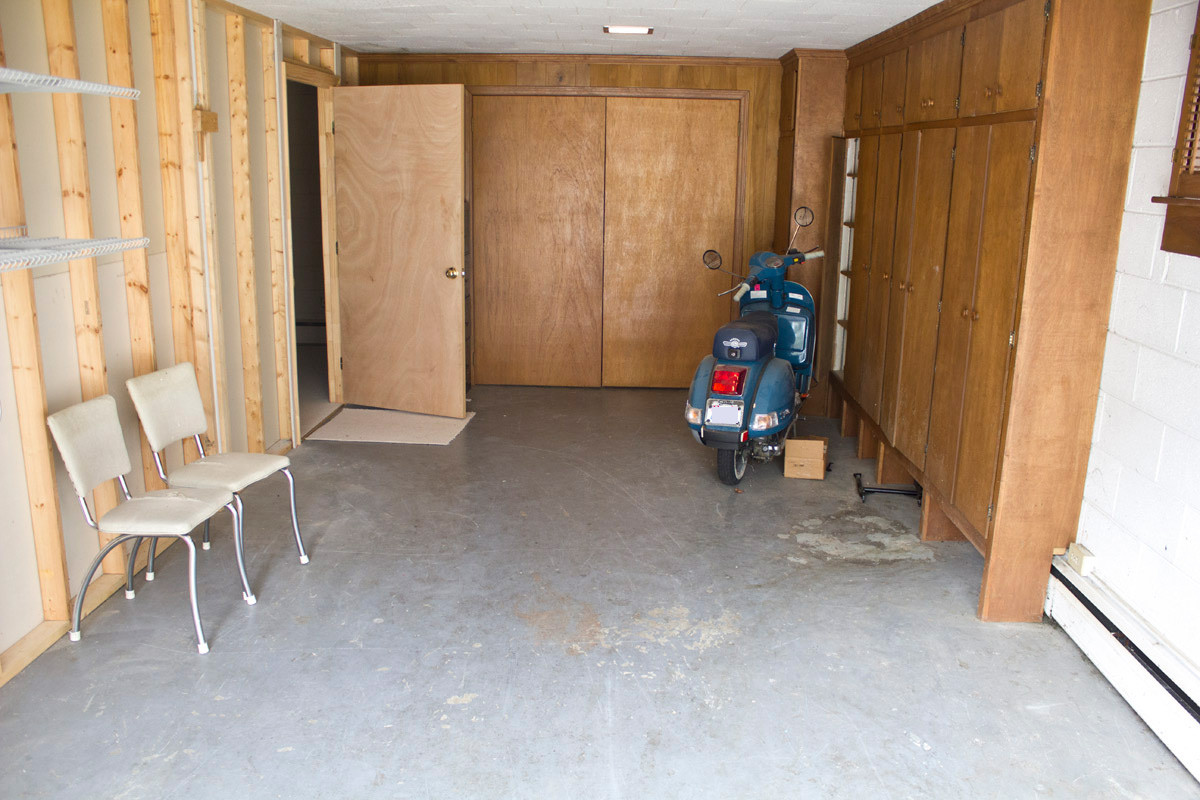

This was my garage when I moved in:

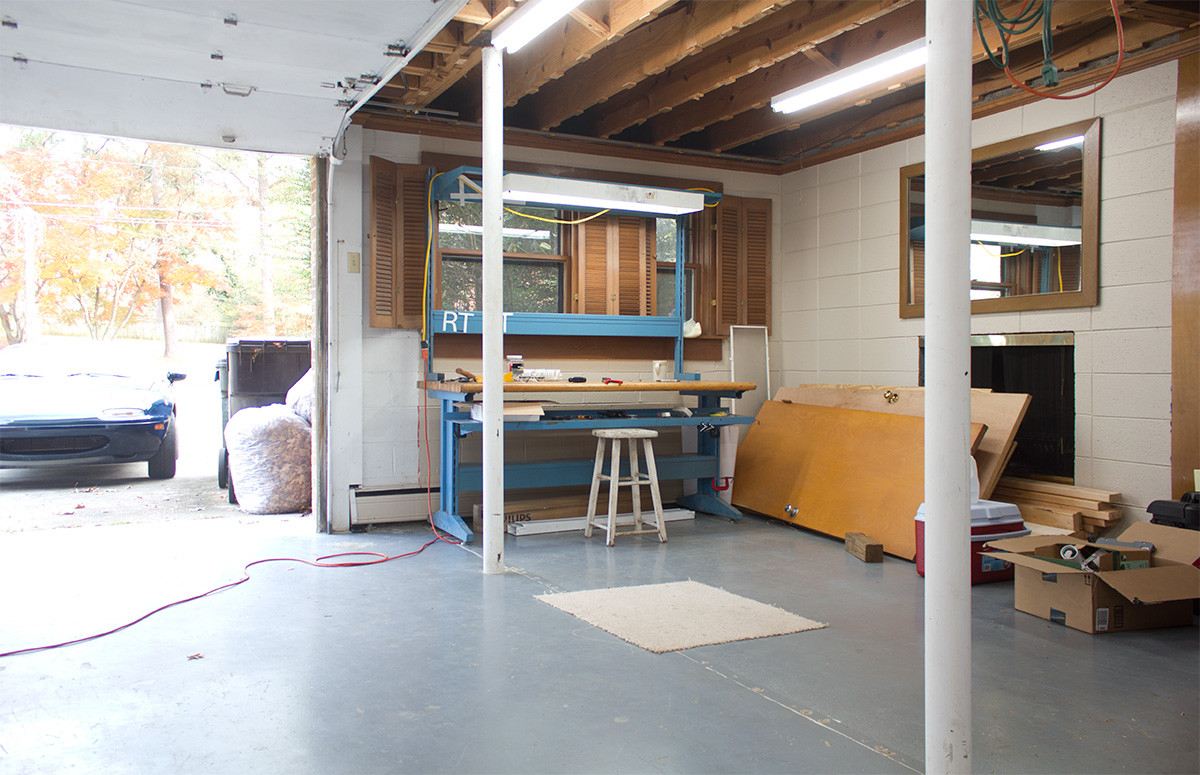

and then I rented a construction dumpster:



Poobs:
I am still making progress on carbon versions but it is very slow. I have an infant and work deadlines taking up the majority of my time.
asmasm is offline   Reply With Quote
Old 01-07-2015, 09:44 PM   #213
Senior Member
iTrader: (1)

Join Date: Apr 2008
Location: Florida
Posts: 774
Total Cats: -6
Default

Quote:
Originally Posted by asmasm View Post
Hah. A little of both.

This was my garage when I moved in:


and then I rented a construction dumpster:



Poobs:
I am still making progress on carbon versions but it is very slow. I have an infant and work deadlines taking up the majority of my time.
I hear u man and can relate. Just trying to get this thread honking

Two things that might be worth determining and posting - Manometer readings at the base of your intake and a factory intake. Since we all tend to have different intake configurations, the stock intake could be a good reference point. It will also be cheaper than dyno time and probably significant.
Also, temperature reading close to the TB showing heat soak or how your intake resists heat soak plus steady state driving intake temperature.

IMO an intake that can optimize both of the above parameters is a winner.
poobs is offline   Reply With Quote
Old 01-08-2015, 08:51 AM   #214
Junior Member

Join Date: Feb 2014
Location: Chicago, IL
Posts: 94
Total Cats: 1
Default

So... About those over the top charge pipes. Ever going to happen?
AdrianD2 is offline   Reply With Quote
Old 01-08-2015, 09:14 AM   #215
Senior Member
Thread Starter
iTrader: (1)

Join Date: Jul 2012
Location: durham NC
Posts: 733
Total Cats: 65
Default

Quote:
Originally Posted by AdrianD2 View Post
So... About those over the top charge pipes. Ever going to happen?
Maybe. They would need to be made from high temp pre-preg carbon and as a result they would end up being really expensive. Figure something around $700 for a set of two. I don't see many diy turbo people being interested in that.

The naturally aspirated intakes can be done with wet layup and more cost effective resin systems since they aren't under pressure and exposed to the same temps.
asmasm is offline   Reply With Quote
Old 01-08-2015, 09:17 AM   #216
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 8,820
Total Cats: 92
Default

1-2 wraps of normal carbon and just vac bagged over the 3d printing would be more than sufficient for charge pipes. They're not going to get any hotter than the normal elbow thats going over the radiator.
Leafy is offline   Reply With Quote
Old 01-08-2015, 09:38 AM   #217
Senior Member
Thread Starter
iTrader: (1)

Join Date: Jul 2012
Location: durham NC
Posts: 733
Total Cats: 65
Default

No it wouldn't.
1) Clearance. The ABS requires a wall thickness that barely fits in the available space. The versions I have carbon skinned usually require hitting things with a hammer to make fit.
2) 'Normal' epoxy resins have a glass transition temp around 200F (that us composites resin is 150F which is why I stopped using it). The radiator surface temps are around 170F. A typical epoxy resin would be highly stressed by the combination of pressure and hotter temps.
3) Wet layup won't provide a consistent enough resin distribution of resin for a part under pressure. If a part for a naturally aspirated intake has small voids scattered through it its no big deal. It will stay air tight from surface coatings and those pinhole sized areas that aren't reinforced aren't under significant pressure.
4) Wrapping and vac bagging sounds nice and easy but it isn't. Vac bagging pressures are enough to crush an 2.5-3mm wall thickness ABS plastic part so the bag needs to be run through the middle of the part to support it from both sides. Getting a bag to sit inside a narrow complex shape without and bridging or without rupturing itself is a pain in the ***.

You might get away with this stuff as a DIY part but for anything you are going to sell you have to deal with a customer base that isn't going to treat it well and won't be pleased when their setup explodes and throws abrasive carbon bits into their engine.
asmasm is offline   Reply With Quote
Old 01-08-2015, 02:41 PM   #218
Senior Member
iTrader: (1)

Join Date: Apr 2008
Location: Florida
Posts: 774
Total Cats: -6
Default

BTW asmasm I'm not above hitting things with a hammer if it will get me "something" for my efforts.
I'd rather not remove pieces of the hood suport but maybe even that can be on the plans .
poobs is offline   Reply With Quote
Old 01-08-2015, 04:33 PM   #219
Senior Member
Thread Starter
iTrader: (1)

Join Date: Jul 2012
Location: durham NC
Posts: 733
Total Cats: 65
Default

Quote:
Originally Posted by poobs View Post
BTW asmasm I'm not above hitting things with a hammer if it will get me "something" for my efforts.
I'd rather not remove pieces of the hood suport but maybe even that can be on the plans .
The ABS part will clear on a stock radiator without hitting anything with a hammer (just barely). The all carbon versions pick up about 4mm of clearance and will fit easily.
asmasm is offline   Reply With Quote
Old 01-08-2015, 07:40 PM   #220
Senior Member
iTrader: (1)

Join Date: Apr 2008
Location: Florida
Posts: 774
Total Cats: -6
Default

Ok maybe just a tap then ...

I'm still wondering what such an intake will do to a stock N/A (?)

The dyno gains were very impressive but comparing an optimized cold side intake using an aftermarket ECU for timing and fuel to an equally optimized intake of your design is not directly transferable to my situation.

I might be able to tweak my AFM and static timing a bit ...
poobs is offline   Reply With Quote
