Anyone here tried out BMC Race Products?

Mazda 18L Header Manifold Flange Standard - 1/2" mild
Model #: MAZDA18LHF
Our Price: $37.50
Mazda 18L Header Manifold Flange Standard - MAZDA18LHF - BMC Racing Products


T25 Turbine Inlet - 1/2" mild
Model #: T25TI
Our Price: $14.50
T25 Turbine Inlet - T25TI - BMC Racing Products



Unfortunately they do not offer the BP head flange in their "Premium" profile. According to BMC: "Premium flanges are port matched from 1 1/2 inch Schedule 40 Pipe to the head port. Reliefs are machined on the flange to help isolate the heat from the manifold."

What cooks my noodle is these guys don't appear to sell a standard Garrett 5 bolt outlet flange

BMC wants $7.00 shipping to the left coast so that's $59.00 for both flanges in 1/2" mild. Weir wanted $62.32 shipped for the same thing, but in 3/8" mild.

I'll let you guys know how they look when they get here

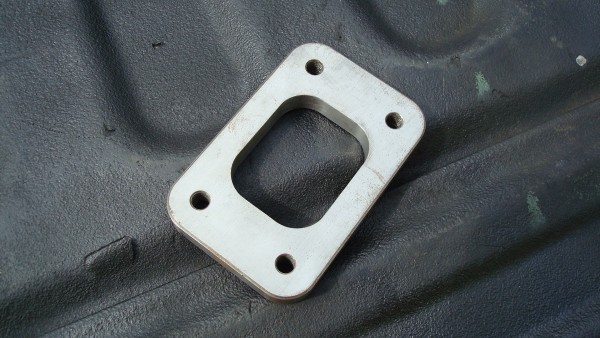

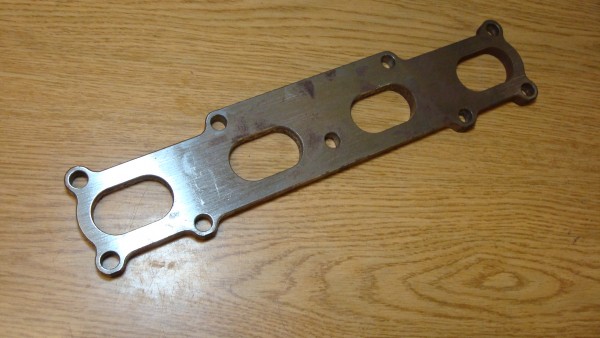

Attached Thumbnails
DIY manifold-1343074931-dsc05475.jpg   DIY manifold-1342992381-dsc05465.jpg

Last edited by EO2K; 10-08-2012 at 09:29 PM.
EO2K is offline   Reply With Quote
Old 10-08-2012, 09:41 PM   #142
Senior Member
Thread Starter
iTrader: (5)

Join Date: Sep 2009
Location: Lompoc, CA
Posts: 579
Total Cats: 12
Default

That premium option would be awesome. I'd call them and see if they'll do it. If I knew what I know now about building a manifold, I would've definitely sprung for that additional option.
baron340 is offline   Reply With Quote
Old 10-08-2012, 09:49 PM   #143
Destroyer of Inconel
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 8,876
Total Cats: 774
Default

That's not a bad idea actually. I'll give them a call tomorrow morning and see if they are willing to make the change. They probably just cut these things to order anyway seeing as how they are on a CNC.

Edit: Just sent them an email, I'll report back with any response.
EO2K is offline   Reply With Quote
Old 10-18-2012, 02:02 AM   #144
Newb

Join Date: Oct 2010
Posts: 12
Total Cats: 0
Default

A welder buddy tried the bp flange they offer, claimed there was slight fitment issues
imnatelol is offline   Reply With Quote
Old 10-18-2012, 02:30 AM   #145
Destroyer of Inconel
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 8,876
Total Cats: 774
Default

I guess I'll find out when it gets here, but that would be a bummer. Come to think of it, I haven't heard back from them as of yet.
EO2K is offline   Reply With Quote
Old 10-18-2012, 04:28 PM   #146
Newb

Join Date: Apr 2011
Posts: 32
Total Cats: 2
Default

Anyone remember the size of the tubes for a 1.8 turbo manifold?
sasu` is offline   Reply With Quote
Old 10-18-2012, 04:37 PM   #147
Destroyer of Inconel
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 8,876
Total Cats: 774
Default

McMaster-Carr Mild Steel Weld Els seem to be the norm. Also available in stainless if that's your thing.
http://www.mcmaster.com/#catalog/118/75/=js03tr Steel Pipe Fittings & Pipe

Example:
Long Radius 90
Standard Sch 40
1 1/2 "Pipe Size"
0.145" wall thinkness
2.25" radius
PN 43425K151
McMaster-Carr

FYI: Internal diameter ends up being 1.6" w/Sch 40, that's why it says "Pipe Size" in quotes. Same part in Sch 80 has actual 1.5" ID
EO2K is offline   Reply With Quote
Old 10-18-2012, 05:44 PM   #148
Free Moustache Rides
iTrader: (8)

matthewdesigns's Avatar

Join Date: Jun 2008
Location: Colorado Springs
Posts: 1,644
Total Cats: 45
Default

Does the 1.5" end up being the best match for the exhaust ports? I'm going to dive into a manifold soon and have been leaning towards 1.25" for the sake of higher exhaust velocity but would ditch it if it does not end up matching well.
matthewdesigns is offline   Reply With Quote
Old 10-18-2012, 06:24 PM   #149
Destroyer of Inconel
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 8,876
Total Cats: 774
Default

I honestly don't know, I've never built one before! I was just going off what BMC said about their particular flanges. This started as Baron340's thread and I believe he did Sch10 SS? Stein, Wayne_curr, 18psi and others have DIY'd, but only Stein linked his in this thread (post #13.) 18 has like 6 build threads so good luck finding his. The Stein/Wane_curr/baron340 manifold is basic enough that even a caveman like me should be able to blunder through it.

Quote:
Originally Posted by Stein View Post
Also, now I am not so sure that Schedule 10 wouldn't be fine. Wall thickness is .109" vs .145 so plenty there. Weld Els go down to $4.95 for 1 1/2" long radius stainless els in schedule 10. As a matter of fact, I may have used schedule 10. Pretty sure I did.

You have to put one end in the vise to smash it down to oval it to match the ports in the head flange but it's no biggie.
Quote:
Originally Posted by 18psi View Post
whatever the hell we used was definitely WAY thick and could have been half as thick and would have probably still held up. so yeah
Quote:
Originally Posted by 18psi View Post
if I was doing that same exact mani again, I'd pick up something a tad thinner and in mild only cause IDGAF about rust in CA and neither should you in FL

would probably be a lot easier to work with and cheaper
Quote:
Originally Posted by Stein View Post
Are you TIG welding? If not, go mild steel. It's easier to cut and it DGAF what filler you use. Prices are actually higher for mild steel over stainless but a couple of bucks would be less headaches cutting the els...

Schedule 40 will be more tolerant of shitty cutting and fitment as you can put more heat into the gap and the heavier wall will help bail you out.
Quote:
Originally Posted by Stein View Post
Heavier is always better? Safer? IDK, but you can't go wrong doing the schedule 40 mild steel.
So to make it easier on myself, I decided to take advice from those before me and go with Sch 40 1.5" mild.

Stein's build thread has the best pics I've found thus far

I <3 this thread

Last edited by EO2K; 10-18-2012 at 06:49 PM.
EO2K is offline   Reply With Quote
Old 10-18-2012, 06:28 PM   #150
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 33,396
Total Cats: 2,032
Default

lol I only have like 4
18psi is offline   Reply With Quote
Old 10-18-2012, 06:46 PM   #151
Destroyer of Inconel
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 8,876
Total Cats: 774
Default

I should start one that involves less fail
EO2K is offline   Reply With Quote
Old 10-18-2012, 06:47 PM   #152
Senior Member
Thread Starter
iTrader: (5)

Join Date: Sep 2009
Location: Lompoc, CA
Posts: 579
Total Cats: 12
Default

1.5" matches perfectly to the exhaust port size, that is after you oval it out. Like I mentioned before, if I had known how big of a PITA it was going to be oval the pipes and do all of that part of the pipe fitment, I would have shelled out the extra money for the CNC oval to round port flange. I really need to update this thread too. I finally got my exhaust housing ported out and need to finish the manifold now.
baron340 is offline   Reply With Quote
Old 10-18-2012, 06:48 PM   #153
Senior Member
Thread Starter
iTrader: (5)

Join Date: Sep 2009
Location: Lompoc, CA
Posts: 579
Total Cats: 12
Default

Quote:
Originally Posted by EO2K View Post
I should start one that involves less fail
Just add to this one and we can collect all the win in one diy manifold thread instead of having to scour build threads looking for useful information.
baron340 is offline   Reply With Quote
Old 10-18-2012, 06:56 PM   #154
Destroyer of Inconel
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 8,876
Total Cats: 774
Default

Quote:
Originally Posted by baron340 View Post
Just add to this one and we can collect all the win in one diy manifold thread instead of having to scour build threads looking for useful information.
I just hope my ramblings will be useful
EO2K is offline   Reply With Quote
Old 10-18-2012, 08:26 PM   #155
Free Moustache Rides
iTrader: (8)

matthewdesigns's Avatar

Join Date: Jun 2008
Location: Colorado Springs
Posts: 1,644
Total Cats: 45
Default

Quote:
Originally Posted by baron340 View Post
1.5" matches perfectly to the exhaust port size, that is after you oval it out. Like I mentioned before, if I had known how big of a PITA it was going to be oval the pipes and do all of that part of the pipe fitment, I would have shelled out the extra money for the CNC oval to round port flange. I really need to update this thread too. I finally got my exhaust housing ported out and need to finish the manifold now.
Thanks for the info. Why was it a pain to oval them? Heat and beat didn't go so well?
matthewdesigns is offline   Reply With Quote
Old 10-18-2012, 11:04 PM   #156
Senior Member
Thread Starter
iTrader: (5)

Join Date: Sep 2009
Location: Lompoc, CA
Posts: 579
Total Cats: 12
Default

Quote:
Originally Posted by matthewdesigns View Post
Thanks for the info. Why was it a pain to oval them? Heat and beat didn't go so well?
It worked fine, just a big aggravation. Getting the ovals to be at the right orientation with respect to the bend, and getting them all the same (or close), and lining them up properly with the head flange etc. I think a lot of that would've been much easier if I had a decent work table and a solid vice. With that cnc'd round opening that fits perfectly to the weld els everything would've been much easier and gotten about the same results.

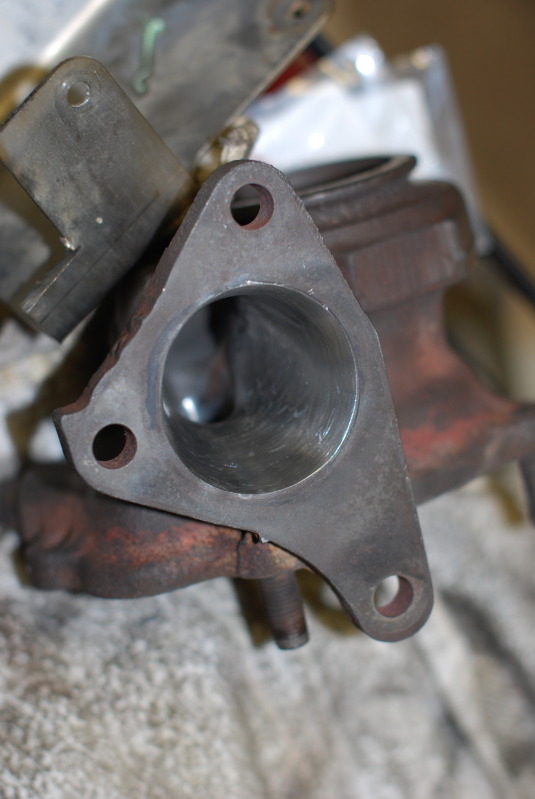

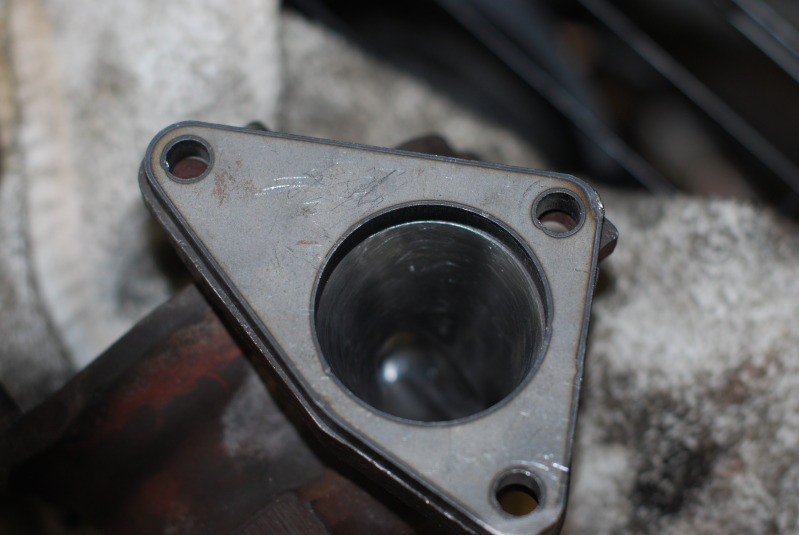

On another note, I finally finished my turbo hot side to my satisfaction, so the manifold building can commence. Hopefully this significantly helps spool.



Attached Thumbnails
DIY manifold-dsc_0695.jpg   DIY manifold-dsc_0698.jpg
baron340 is offline   Reply With Quote
Old 10-18-2012, 11:23 PM   #157
Free Moustache Rides
iTrader: (8)

matthewdesigns's Avatar

Join Date: Jun 2008
Location: Colorado Springs
Posts: 1,644
Total Cats: 45
Default

OK cool. And that port matching looks nice! Remind me of what turbo that is? It's not a Mitsu 13g is it?
matthewdesigns is offline   Reply With Quote
Old 10-19-2012, 12:11 AM   #158
Senior Member
Thread Starter
iTrader: (5)

Join Date: Sep 2009
Location: Lompoc, CA
Posts: 579
Total Cats: 12
Default

OEM TD-04 off of an 04 WRX. Beyond that, I don't know any more details.
baron340 is offline   Reply With Quote
Old 10-19-2012, 12:52 AM   #159
Junior Member

Join Date: Oct 2010
Location: las vegas
Posts: 244
Total Cats: 4
Default

Are the 1.8 and 1.6 port sizes pretty close? I know the spacing is different.
hochkis is offline   Reply With Quote
Old 10-19-2012, 01:04 PM   #160
Senior Member
Thread Starter
iTrader: (5)

Join Date: Sep 2009
Location: Lompoc, CA
Posts: 579
Total Cats: 12
Default

Same port size, or at least pretty close. I'm building a 1.6 manifold for a local guy and used 1.5" tubes as well.
baron340 is offline   Reply With Quote
