Old 12-04-2014, 10:54 AM   #401
Miotta FTW!
iTrader: (24)

Splitime's Avatar

Join Date: Jun 2006
Location: Chicagoland, IL
Posts: 4,215
Total Cats: 21
Default

Quote:
Originally Posted by EO2K View Post
I really shouldn't complain about all this rain, but its making it very difficult to find time to fly
I really shouldn't complain about all this barely double digit weather... oh wait...
Splitime is offline   Reply With Quote
Old 12-04-2014, 12:04 PM   #402
Boost Pope
iTrader: (8)

Joe Perez's Avatar

Join Date: Sep 2005
Location: Chicago
Posts: 24,662
Total Cats: 1,570
Default

Irrelevant:

A couple of weeks ago, we had some guys bring three quadcopters into the studio and fly them around for some fluff segment on the 5pm news.

As soon as they switched on the transmitters, all of our wireless microphones, IFBs and intercoms went nuts.

Lack of frequency coordination FTL.

Last edited by Joe Perez; 12-04-2014 at 01:17 PM.
Joe Perez is offline   Reply With Quote
Old 12-04-2014, 12:29 PM   #403
Destroyer of Inconel
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 8,734
Total Cats: 746
Default

I'm going to take a stab and say 90% of the hobbyist RC world is on 2.4ghz for control. Did you get a peek at their transmitters? The "Spektrum" brand is notorious for doing what you described due to the crazy channel/modulation hopping routine it goes through.
EO2K is offline   Reply With Quote
Old 12-04-2014, 12:44 PM   #404
Boost Pope
iTrader: (8)

Joe Perez's Avatar

Join Date: Sep 2005
Location: Chicago
Posts: 24,662
Total Cats: 1,570
Default

Quote:
Originally Posted by EO2K View Post
I'm going to take a stab and say 90% of the hobbyist RC world is on 2.4ghz for control. Did you get a peek at their transmitters?
I wasn't physically in the studio at the time.

Our digital intercom system is spread-spectrum at 1.88 - 1.93Ghz, and our microphone and IFB systems are all single-frequency operating in the UHF band, sprinkled all over the place from the upper 500Mhz to the mid 600Mhz range. So whatever those guys were radiating, it was all over the place.
Joe Perez is offline   Reply With Quote
Old 12-04-2014, 01:14 PM   #405
Senior Member
iTrader: (20)

yellowihss's Avatar

Join Date: Dec 2008
Location: Austin, TX
Posts: 738
Total Cats: 7
Default

Haven't been on in a while, but I figured id show what I got myself into.

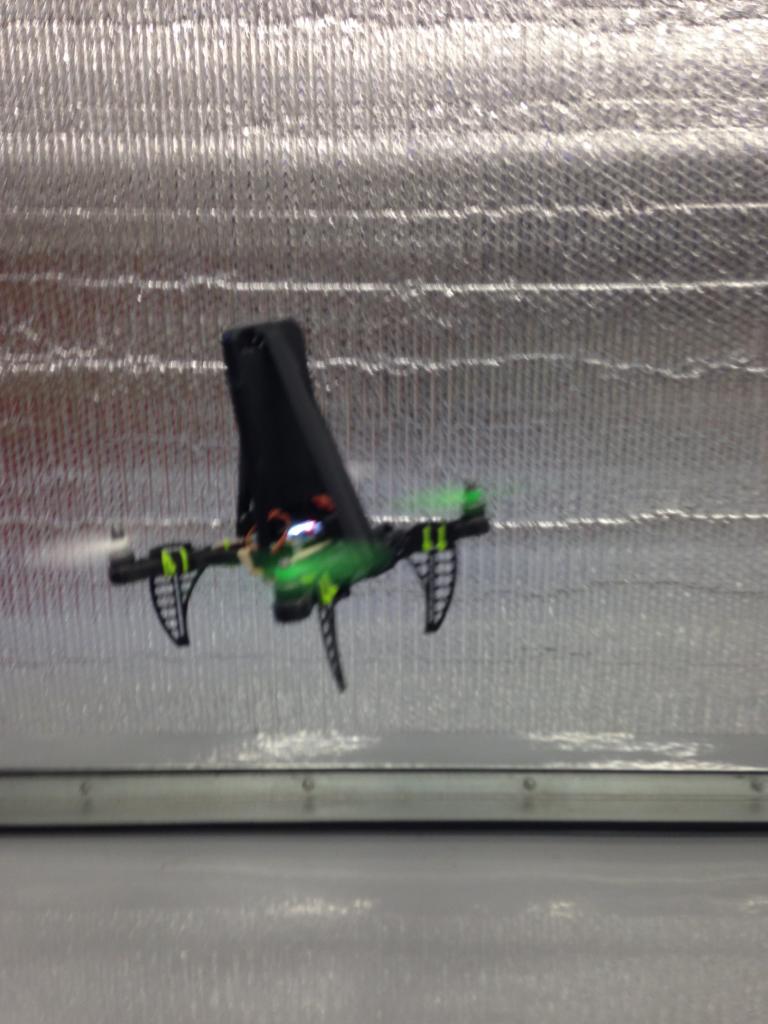

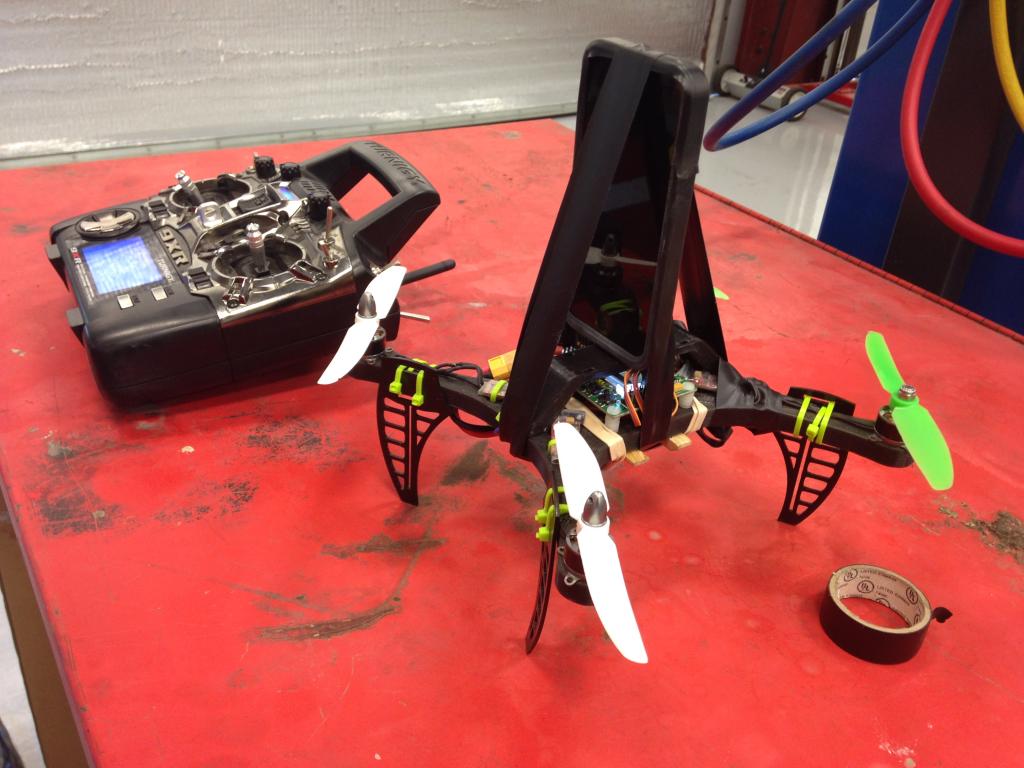

My mini quad with tmotors and KK2.1
It didnt like it, but I could pick up my I phone 5

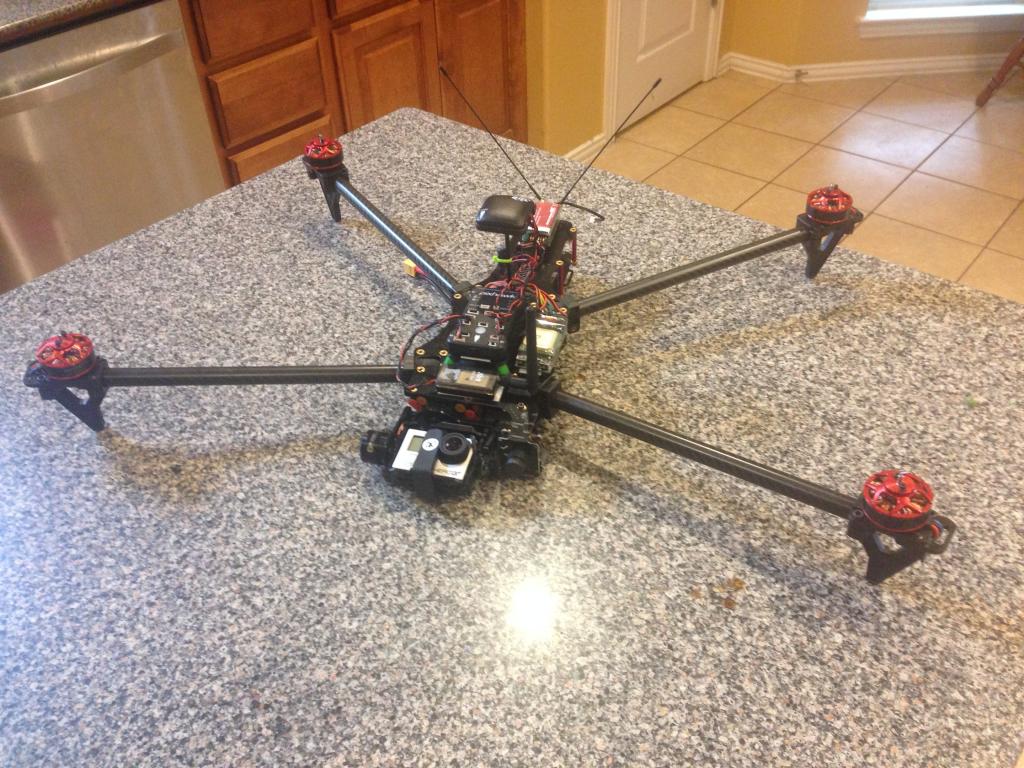

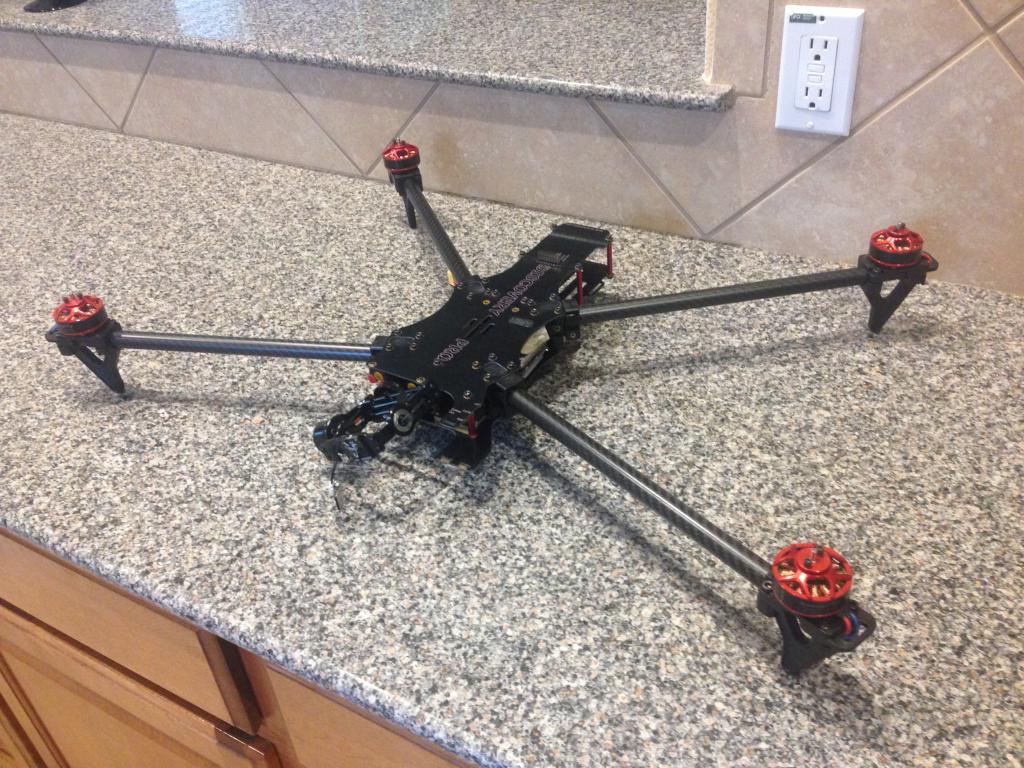

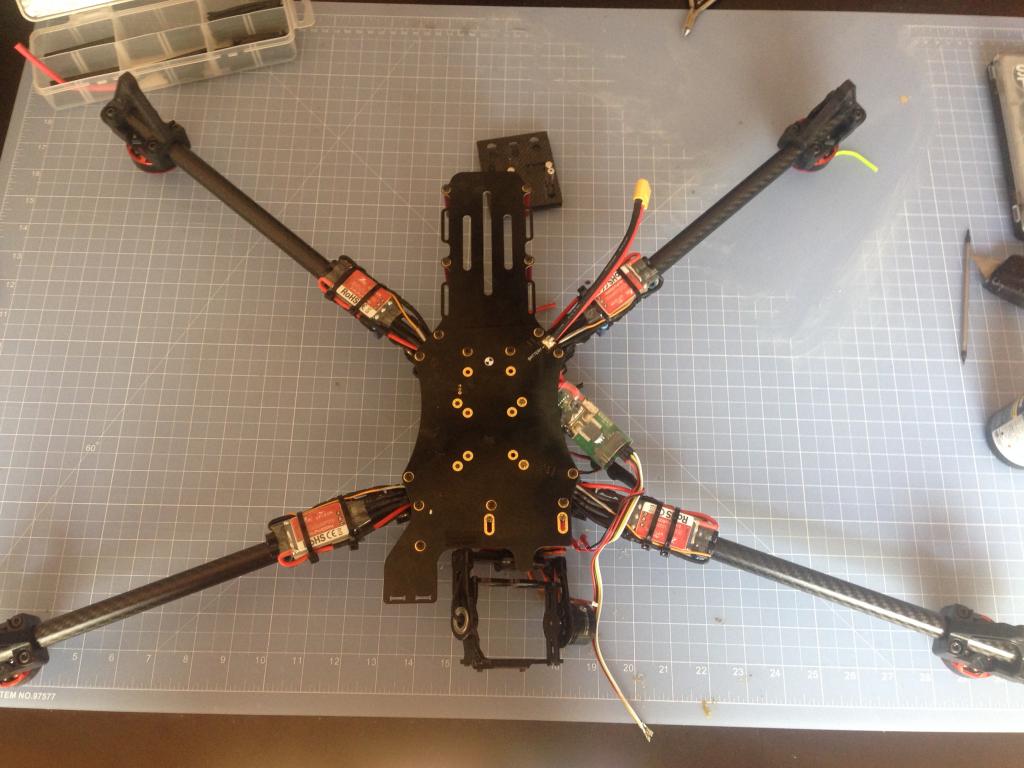

And then my beast.
TBS Disco Pro sut up for long range/flight time.
15" props
Pixhawk
EzOSD
EzUHF
2.4 lawmate tuned video trans
TBS ground station
dual 4000mah batteries for 45min flight time

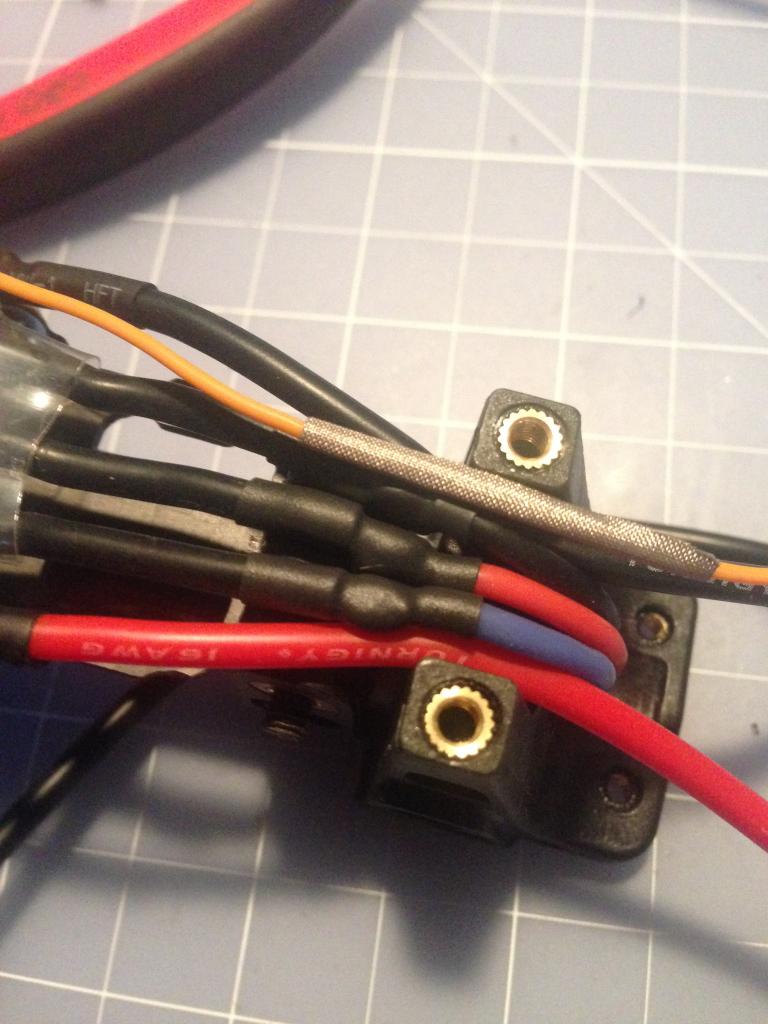

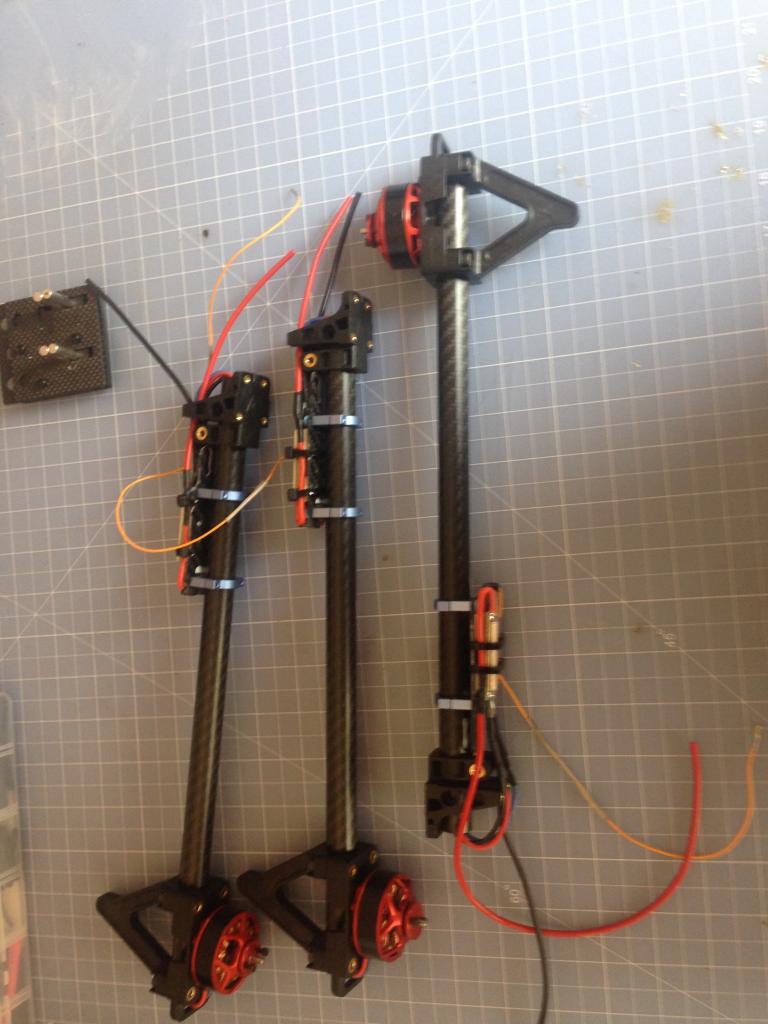

I have a stash of pics, but cant find them yet.
here is what I could find.










Attached Thumbnails
MTnet Builds Flying Machines: Failure Accomplished-7112014048_zps46c0e19a.jpg   MTnet Builds Flying Machines: Failure Accomplished-7112014049_zps999ca3e8.jpg   MTnet Builds Flying Machines: Failure Accomplished-7112014163_zps190d69fd.jpg   MTnet Builds Flying Machines: Failure Accomplished-9052014031_zps8987a6d0.jpg   MTnet Builds Flying Machines: Failure Accomplished-9052014032_zpsa2216b95.jpg

MTnet Builds Flying Machines: Failure Accomplished-9052014034_zps3be2b7b5.jpg   MTnet Builds Flying Machines: Failure Accomplished-8501cdd2-e57c-4ce4-a55f-5c3528678356_zpssiuxtpjg.jpg
yellowihss is offline   Reply With Quote
Old 12-04-2014, 03:04 PM   #406
Destroyer of Inconel
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 8,734
Total Cats: 746
Default

Quote:
Originally Posted by Joe Perez View Post
I wasn't physically in the studio at the time.

Our digital intercom system is spread-spectrum at 1.88 - 1.93Ghz, and our microphone and IFB systems are all single-frequency operating in the UHF band, sprinkled all over the place from the upper 500Mhz to the mid 600Mhz range. So whatever those guys were radiating, it was all over the place.
Interesting. I know there are some control options in the UHF range for the guys flying out at 1~2 miles, but the ratio of people who need, own and understand how these systems work compared to the people who buy them because "more is gooder" is quite low.

I'm sure it was a riot. Did they discover this while live on air, because that would be amazing.
EO2K is offline   Reply With Quote
Old 12-04-2014, 04:30 PM   #407
Elite Member
iTrader: (3)

Join Date: Feb 2008
Location: Huntsville, AL
Posts: 1,867
Total Cats: 45
Default

How are you guys matching props and motors? Is there a knowledge resource for this stuff other than the product feedback pages on HK's website (dubiouly useful), forum trawling (the RC forums I've piddled on seem like an impenetrable trainwreck), or endless eCalc iterations?
vehicular is offline   Reply With Quote
Old 12-04-2014, 04:34 PM   #408
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: woosta, ma
Posts: 8,598
Total Cats: 91
Default

HK has a sweet prop and motor dyno on sale for like $60 right now, that sounds like it could be fun for figuring out prop and motor combos.
Leafy is offline   Reply With Quote
Old 12-05-2014, 12:14 AM   #409
Miotta FTW!
iTrader: (24)

Splitime's Avatar

Join Date: Jun 2006
Location: Chicagoland, IL
Posts: 4,215
Total Cats: 21
Default

Guesstimation?

I probably should run the math on the new rig, optimize for the 4c and 5c batteries.
Splitime is offline   Reply With Quote
Old 12-05-2014, 10:33 AM   #410
Elite Member
iTrader: (3)

Join Date: Feb 2008
Location: Huntsville, AL
Posts: 1,867
Total Cats: 45
Default

Quote:
Originally Posted by Splitime View Post
Guesstimation?

I probably should run the math on the new rig, optimize for the 4c and 5c batteries.
What motors/ props are you using on your big quad, and what does it weigh? And have you actually flown 45 minute flights?


What's your FPV rig?
vehicular is offline   Reply With Quote
Old 12-05-2014, 10:57 AM   #411
Miotta FTW!
iTrader: (24)

Splitime's Avatar

Join Date: Jun 2006
Location: Chicagoland, IL
Posts: 4,215
Total Cats: 21
Default

Quote:
Originally Posted by vehicular View Post
What motors/ props are you using on your big quad, and what does it weigh? And have you actually flown 45 minute flights?


What's your FPV rig?
The new Hex has Turnigy 690v pancakes, 12" CF with unknown pitch (have 13x6.5 CFs also, and some plastic options) and unweighed. Came with a 5s 5000mah cel, which looks to be more battery than the motors are rated for... i do have 4s 4000mah on hand though as alternate.

I haven't flown it at all... likely not until spring here.

FPV rig Foxtech RC832 unit with a quantum diy single screenfpv rig, 500mw unit. Also unused except for about 5 ft range test

But I think you meant to quote someone else
Splitime is offline   Reply With Quote
Old 12-05-2014, 11:20 AM   #412
Elite Member
iTrader: (3)

Join Date: Feb 2008
Location: Huntsville, AL
Posts: 1,867
Total Cats: 45
Default

Quote:
Originally Posted by Splitime View Post
The new Hex has Turnigy 690v pancakes, 12" CF with unknown pitch (have 13x6.5 CFs also, and some plastic options) and unweighed. Came with a 5s 5000mah cel, which looks to be more battery than the motors are rated for... i do have 4s 4000mah on hand though as alternate.

I haven't flown it at all... likely not until spring here.

FPV rig Foxtech RC832 unit with a quantum diy single screenfpv rig, 500mw unit. Also unused except for about 5 ft range test

But I think you meant to quote someone else
Yeah... I was totally reading yellowihss's post, lol.
vehicular is offline   Reply With Quote
Old 12-05-2014, 06:46 PM   #413
Junior Member
iTrader: (4)

Join Date: Jul 2009
Location: Denver, CO
Posts: 274
Total Cats: 10
Default

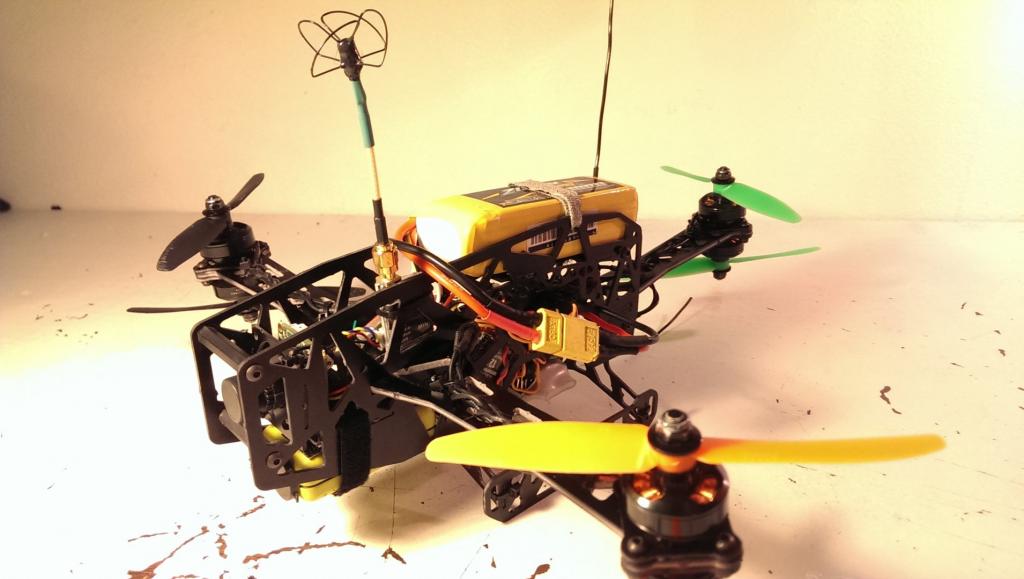

Here's a couple things I've been up to. First I took my quad to California with me:

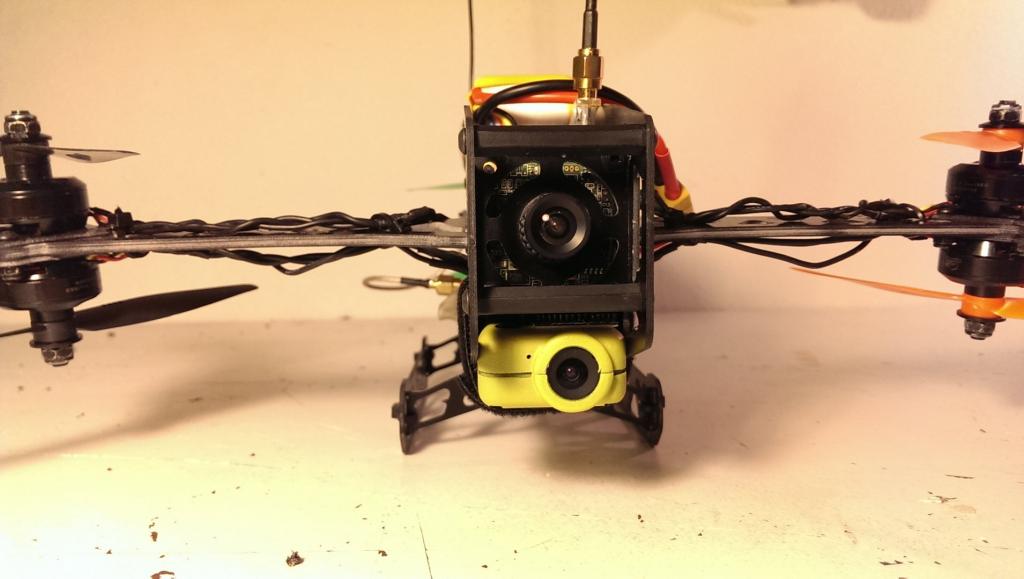

I also upgraded to a Hero4 Black:

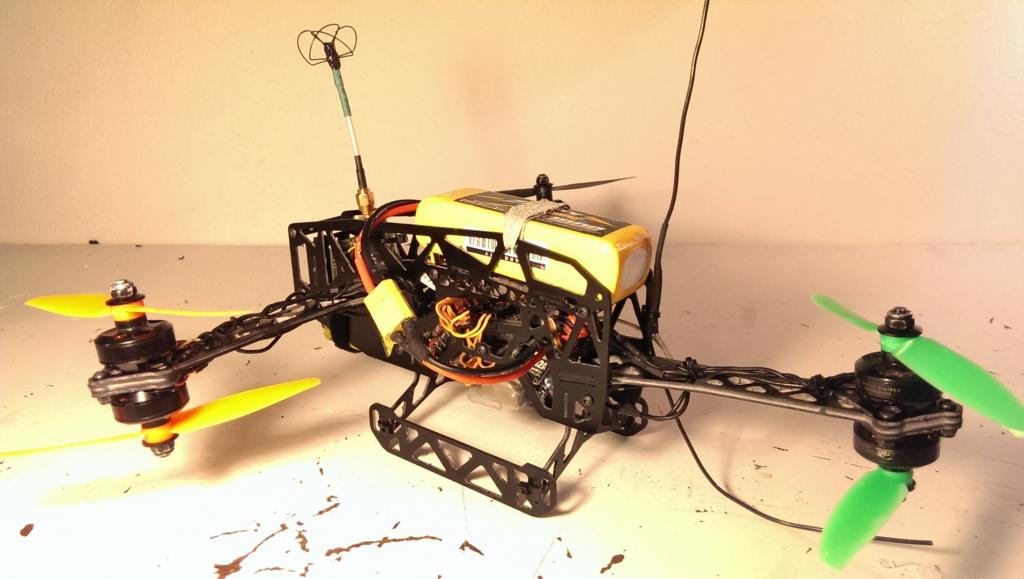

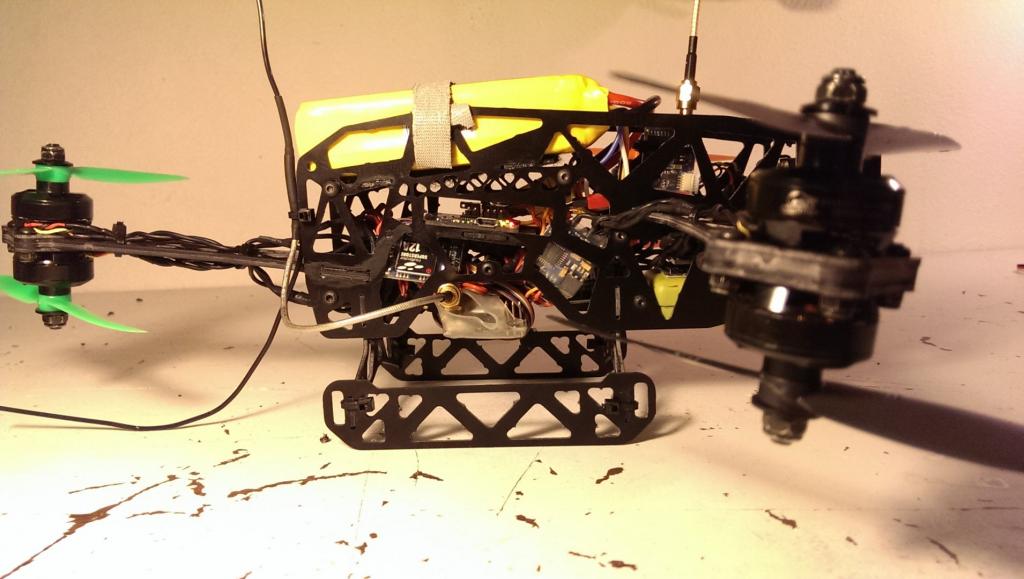

And had my v2 Hex-y CNCed out of G10:









Attached Thumbnails
MTnet Builds Flying Machines: Failure Accomplished-imag0597.jpg   MTnet Builds Flying Machines: Failure Accomplished-imag0599.jpg   MTnet Builds Flying Machines: Failure Accomplished-imag0606.jpg   MTnet Builds Flying Machines: Failure Accomplished-imag0602.jpg
vitamin j is offline   Reply With Quote
Old 12-17-2014, 11:36 AM   #414
Senior Member
iTrader: (20)

yellowihss's Avatar

Join Date: Dec 2008
Location: Austin, TX
Posts: 738
Total Cats: 7
Default

Quote:
Originally Posted by vehicular View Post
What motors/ props are you using on your big quad, and what does it weigh? And have you actually flown 45 minute flights?


What's your FPV rig?
Most motor manufactures have the charts based on your voltage.


I have only flown mine once, and only for a brief time.
The original owner put the basic frame together, and soldered the ESC, but never flew it.
Little did i know, he did not solder it correctly (poor connection), and it crashed.
Only fell 5' into grass.
Since then I have completely rebuilt it, not trusting anything he has done.

Team BlackSheep Online Store - ENDURANCE TBS DISCOVERY PRO LONG RANGE SET (2G4 VIDEO, EZUHF RC)

This is essentially what i have.
Im running a Pixhawk instead of the Naza
yellowihss is offline   Reply With Quote
Old 12-17-2014, 11:43 AM   #415
Senior Member
iTrader: (20)

yellowihss's Avatar

Join Date: Dec 2008
Location: Austin, TX
Posts: 738
Total Cats: 7
Default

Quote:
Originally Posted by vitamin j View Post
And had my v2 Hex-y CNCed out of G10:







I really like this Hex-Y
what motors, and FC are you using?
yellowihss is offline   Reply With Quote
Old 12-17-2014, 03:53 PM   #416
Junior Member
iTrader: (4)

Join Date: Jul 2009
Location: Denver, CO
Posts: 274
Total Cats: 10
Default

Nice the TBS long range kit is awesome.

Hex-y runs on a Naze32 and has Cobra 2204 1960kv motors with 6" props and 4S power. Its fun but needs a few tweaks.
vitamin j is offline   Reply With Quote
Old 12-18-2014, 01:35 PM   #417
Senior Member
iTrader: (20)

yellowihss's Avatar

Join Date: Dec 2008
Location: Austin, TX
Posts: 738
Total Cats: 7
Default

Quote:
Originally Posted by vitamin j View Post
Nice the TBS long range kit is awesome.

Hex-y runs on a Naze32 and has Cobra 2204 1960kv motors with 6" props and 4S power. Its fun but needs a few tweaks.
What is your flight time?
yellowihss is offline   Reply With Quote
Old 12-18-2014, 01:49 PM   #418
Destroyer of Inconel
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 8,734
Total Cats: 746
Default

Damn yellow Zippy flight packs are killing me. Every one of my 3S packs has once cell that discharges at about 2x the rate of its neighbors. I've got maybe 15 cycles on the things and I've been very diligent about not discharging them past the "safe zone" for a lipo. Very annoyed. Much frustration.
EO2K is offline   Reply With Quote
Old 12-19-2014, 05:36 PM   #419
Junior Member
iTrader: (4)

Join Date: Jul 2009
Location: Denver, CO
Posts: 274
Total Cats: 10
Default

Quote:
Originally Posted by yellowihss View Post

What is your flight time?
Depends how it's flown but about 7-8 mins.
vitamin j is offline   Reply With Quote
Old 12-22-2014, 02:32 AM   #420
Junior Member

Join Date: Nov 2009
Location: Jax Fl
Posts: 469
Total Cats: 30
Default

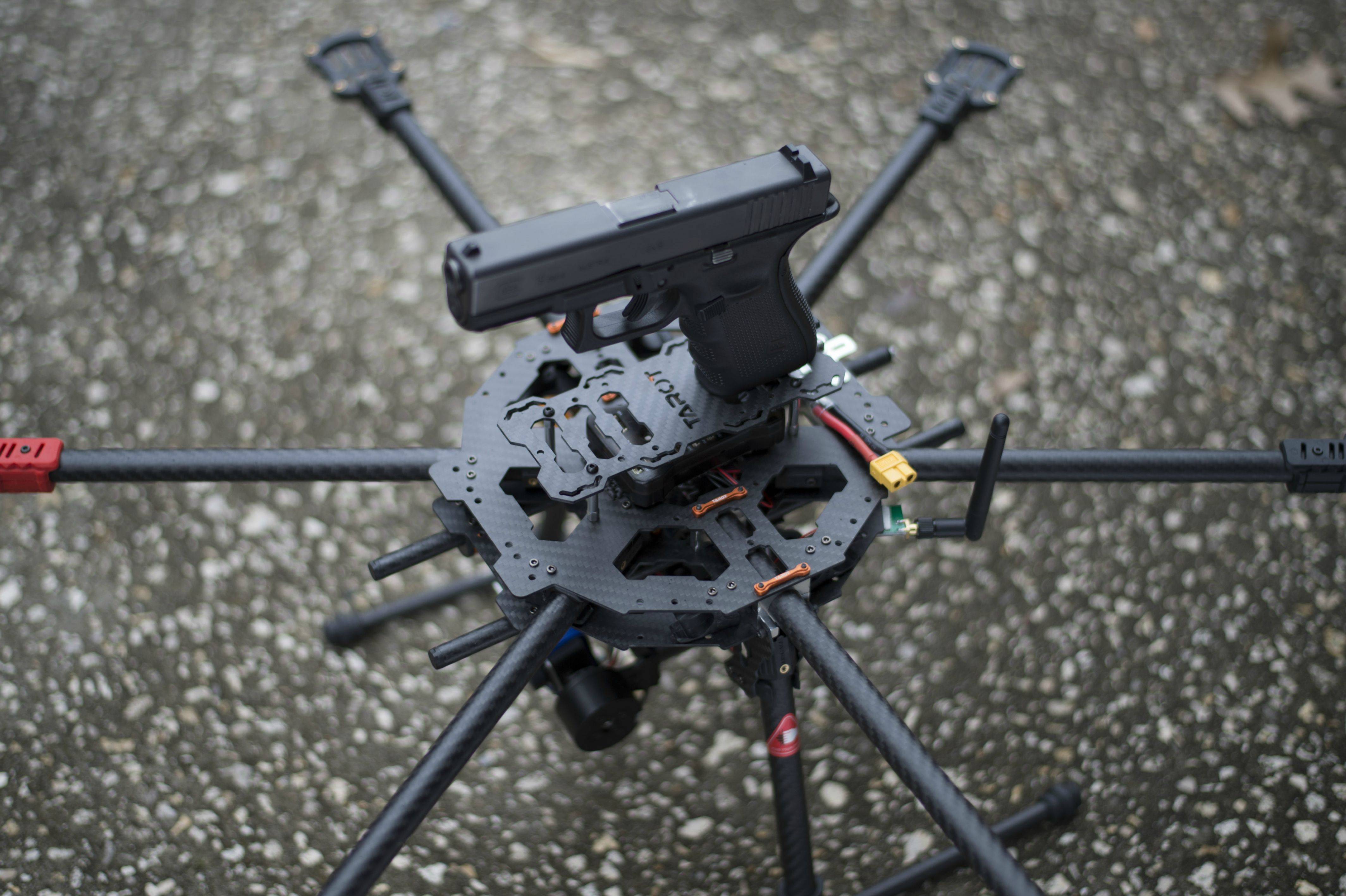

One of the new copters in progress.



Itz TactiCool
Tw34k is offline   Reply With Quote
