Old 03-14-2013, 04:16 PM   #201
Junior Member
iTrader: (4)

Join Date: Nov 2011
Location: Ft Lauderdale, FL
Posts: 76
Total Cats: 0
Default

Hey Joe P.

Thanks for the thread. It's given me the confidence to do two things:
1. Switch back to 87.
2. Run more timing

FWIW, I use Brain's map and added 5 degrees from 1660-7000 RPM and 24-98.7 kPa. It's still about 5 degrees less than yours though. The car's been running great so far.

Lee
gtlee77 is offline   Reply With Quote
Old 03-14-2013, 04:22 PM   #202
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 33,387
Total Cats: 2,032
Default

are you n/a or turbo?
18psi is offline   Reply With Quote
Old 03-14-2013, 04:24 PM   #203
Elite Member
iTrader: (2)

Join Date: Aug 2012
Location: Indianapolis
Posts: 3,325
Total Cats: 231
Default

Unless he welded a turbo to his moss headers, I'm guessing N/A.
thenuge26 is offline   Reply With Quote
Old 03-14-2013, 04:33 PM   #204
Elite Member
iTrader: (8)

Ryan_G's Avatar

Join Date: Jan 2012
Location: Tampa, Florida
Posts: 2,274
Total Cats: 122
Default

Quote:
Originally Posted by thenuge26 View Post
Unless he welded a turbo to his moss headers, I'm guessing N/A.
This sounds like something that needs to be done.
Ryan_G is offline   Reply With Quote
Old 03-14-2013, 05:40 PM   #205
Junior Member
iTrader: (4)

Join Date: Nov 2011
Location: Ft Lauderdale, FL
Posts: 76
Total Cats: 0
Default

Quote:
Originally Posted by 18psi View Post
are you n/a or turbo?
NA 1.6L.

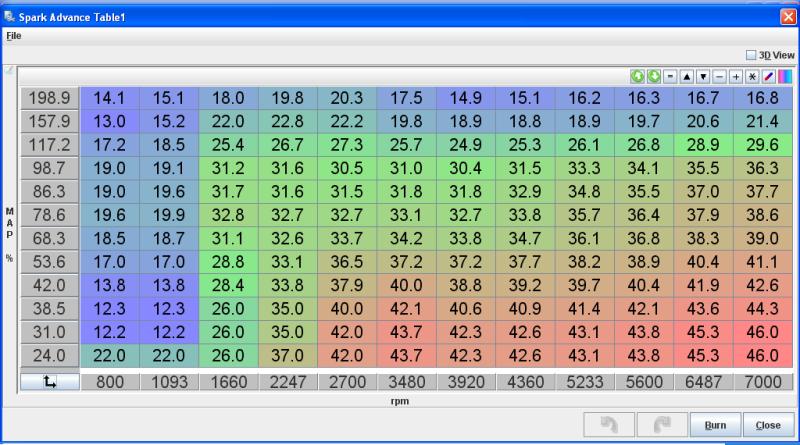

FWIW, here's my spark map. I run an MSPNP with an MS2 and 3.3 alpha 10 code.

Attached Thumbnails
Let's discuss spark advance-spark_map_zps15848359.jpg

Last edited by gtlee77; 03-15-2013 at 12:24 PM. Reason: MS code is at alpha not beta
gtlee77 is offline   Reply With Quote
Old 08-25-2016, 12:26 AM   #206
Senior Member
iTrader: (8)

cyotani's Avatar

Join Date: Jan 2012
Location: Azusa, CA
Posts: 1,361
Total Cats: 80
Default

I just thought I'd share some of the tuning work I've done this weekend. This should give some people a better idea of how WOT spark effects Tooutput as your approach MBT.
Test vehicle is a 99 miata mostly stock (4-2-1 JDM oem header, 2.5" exhaust)
ECU is MS3X, fuel tuned to 12.5 tapering to 12.2
91 octane gas used
Note: low compression in cylinder 4 and it was burning a decent amount of oil

I took the stock MSPNP pro basemap and tuned fuel first. I then did a series of runs at 7 degrees timing pulled from basemap, 5 deg pulled, 3 pulled, 1 pulled, basemap, 1 degree added.

DYNO was a mustang chassis dyno with WHP and WTQ output via analog signals to the spare analog inputs of the MS3X and logged.



I've charted the outputs below. The basemap seems to be pretty spot on MBT. The +1 deg gave a bit more power in some parts of the map but I'd call it just about no gain (MAT was lower for that run too).

I wish I ran a +2, +3, and +4 to see where WTQ drops off or where knock begins to happen. Maybe I'll rerun that another time.












cyotani is online now   Reply With Quote
Old 08-25-2016, 01:12 PM   #207
Junior Member
iTrader: (1)

Join Date: Feb 2011
Location: Richmond, VA
Posts: 272
Total Cats: 15
Default

Quote:
Originally Posted by cyotani View Post
I took the stock MSPNP pro basemap and tuned fuel first. I then did a series of runs at 7 degrees timing pulled from basemap, 5 deg pulled, 3 pulled, 1 pulled, basemap, 1 degree added.
Looks good! This is a very accurate representation of what happens on sweep pulls if you pull timing with static fuel. The most common issue I see in tuning is the addition of fuel and timing for "more power" which, in effect, translates to a slower flame front during combustion from the additional fuel to compensate for the additional timing. All it nets is more fuel used. I'm not saying this is the case here but representing the most common issue I run see. To determine if your timing is optimized, you would choose to make fueling alterations at a given timing point. If you are able to hold a load point on an eddy current or similar dyno, you can make these changes real-time.
vtjballeng is offline   Reply With Quote
Old 08-25-2016, 01:21 PM   #208
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 33,387
Total Cats: 2,032
Default

Pretty cool, thanks for sharing, and yeah there's not really even a point in playing with timing much past base map on 91. 27-28* unless you have major breathing mods

Quote:
Originally Posted by vtjballeng View Post
Looks good! This is a very accurate representation of what happens on sweep pulls if you pull timing with static fuel. The most common issue I see in tuning is the addition of fuel and timing for "more power" which, in effect, translates to a slower flame front during combustion from the additional fuel to compensate for the additional timing. All it nets is more fuel used. I'm not saying this is the case here but representing the most common issue I run see. To determine if your timing is optimized, you would choose to make fueling alterations at a given timing point. If you are able to hold a load point on an eddy current or similar dyno, you can make these changes real-time.
in MS usually the addition of timing necessitates the addition of fuel (if you're really making more power) as the car will lean out otherwise.
18psi is offline   Reply With Quote
Old 08-25-2016, 01:42 PM   #209
Senior Member

Join Date: Oct 2013
Location: NorthWest NJ
Posts: 777
Total Cats: 29
Default

Why is this not a sticky? Lots of good info in here. I need to play with my spark map some.
x_25 is offline   Reply With Quote
Old 08-25-2016, 02:20 PM   #210
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 33,387
Total Cats: 2,032
Default

we have lots of threads that should be stickied. its easier to just berate the n00bs when they ask
18psi is offline   Reply With Quote
Old 08-25-2016, 04:01 PM   #211
Junior Member
iTrader: (1)

Join Date: Feb 2011
Location: Richmond, VA
Posts: 272
Total Cats: 15
Default

Quote:
Originally Posted by 18psi View Post
in MS usually the addition of timing necessitates the addition of fuel (if you're really making more power) as the car will lean out otherwise.
I am referring to the cyclic loop many tuners enter when they simply target more timing to make more power, then end up adding fuel to keep knock under control. Typically, it is possible to dial back fuel and timing in such cases and make the same power. The trick is dialing both back though as playing with just one variable at a time will register lower power. Many articles written about it and tuning guidelines regarding it. Here is one Spark Timing Myths Debunked - Spark Timing Myths Explained:: Application Notes .

The other, even more common, issue I see is people adding fuel when they are seeing a wideband read lean due to rich misfires.
vtjballeng is offline   Reply With Quote
Old 08-25-2016, 04:10 PM   #212
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 33,387
Total Cats: 2,032
Default

throwing fuel at det is doin it wrong.
that wasn't part of this convo which is why I was curious why you brought it up.
18psi is offline   Reply With Quote
Old 08-25-2016, 06:32 PM   #213
Boost Czar

iTrader: (60)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 70,401
Total Cats: 1,426
Default




advancing timing only

Braineack is offline   Reply With Quote
Old 08-25-2016, 09:25 PM   #214
Junior Member
iTrader: (1)

Join Date: Feb 2011
Location: Richmond, VA
Posts: 272
Total Cats: 15
Default

Quote:
Originally Posted by 18psi View Post
throwing fuel at det is doin it wrong.
that wasn't part of this convo which is why I was curious why you brought it up.
You can't be sure unless you also change fuel parameters. He kept them fixed. A full dial in will involve optimizing fuel & ignition. This adds a lot more time to the tuning process and thus money as well. He could end up making more power at -1 deg while targeting 12.9:1 across the range, while saving fuel assuming this is NA. Or he could get nothing and he just happens to be optimized currently using rule of thumb fuel data.
vtjballeng is offline   Reply With Quote
Old 08-30-2016, 06:41 PM   #215
Junior Member

Join Date: Feb 2014
Location: Chicago, IL
Posts: 94
Total Cats: 1
Default

I'm very glad this thread got back from the dead. Have been playing with cruise cells on my friends turbo 1.6 and was really apprehensive about going any further, after referencing other maps.
Learned a lot of good things influenced by this thread. Definitely deserves a sticky.
(Network down at work today, spent the last 9 hours "researching")
AdrianD2 is offline   Reply With Quote
