Old 03-23-2016, 04:26 AM   #721
Newb

Join Date: Jan 2015
Location: Houston, TX
Posts: 32
Total Cats: -1
Default

Quote:
Originally Posted by EricJ View Post
Shaft Diameter? That's a new one.
Read the rules here: https://www.nasaproracing.com/rules

3 points for non-BTM shocks, no reservoirs
2 points for non-BTM springs

Xidas = 5 points.
Was that addressed to me? I have read the TT rules at least 100 times, going back to my Mustang in 2009 or so.

Here is a link to the actual rules rather than your crappy general link:

https://nasa-assets.s3.amazonaws.com...cial_Rules.pdf

So to spoon feed you, here is the complete rule rather than your edited crap:

2) Non-BTM shocks/struts/dampers with a “Piggy Back” external reservoir (fixed reservoir
without a connecting hose) OR with shaft diameter 40mm or greater—must still take
additional points for the springs below +5 (May have spherical tops and/or bottoms)

So, I have done a year with NASA TT in a Mustang, I have done three years with NASA in CMC, and now am looking at an NB1 TT car, so tell me how I get 3 points for Xidas with the 46mm shaft diameter.

Hey, I am trying to find a cheap NB1 Miata to build for TTE, and I would love to have the extra two points, but tell me why the 46mm diam Xidas don't take the points.
HoustonNW is offline   Reply With Quote
Old 03-23-2016, 07:49 AM   #722
Senior Member

Join Date: Feb 2007
Location: Aliso Viejo, CA
Posts: 556
Total Cats: 86
Default

Quote:
Originally Posted by HoustonNW View Post
... so tell me how I get 3 points for Xidas with the 46mm shaft diameter.

Hey, I am trying to find a cheap NB1 Miata to build for TTE, and I would love to have the extra two points, but tell me why the 46mm diam Xidas don't take the points.
Well, because "shaft diameter" is different from "piston diameter."
doward is offline   Reply With Quote
Old 03-23-2016, 12:55 PM   #723
Newb

Join Date: Jan 2015
Location: Houston, TX
Posts: 32
Total Cats: -1
Default

Quote:
Originally Posted by doward View Post
Well, because "shaft diameter" is different from "piston diameter."
Ah, thanks. I ***umed that shaft diameter was the controlled spec because every performance shock notes it. So every time I read the rule I converted piston to shaft. Sorry.
HoustonNW is offline   Reply With Quote
Old 03-23-2016, 01:13 PM   #724
Junior Member
iTrader: (2)

Join Date: Mar 2011
Posts: 250
Total Cats: -161
Default

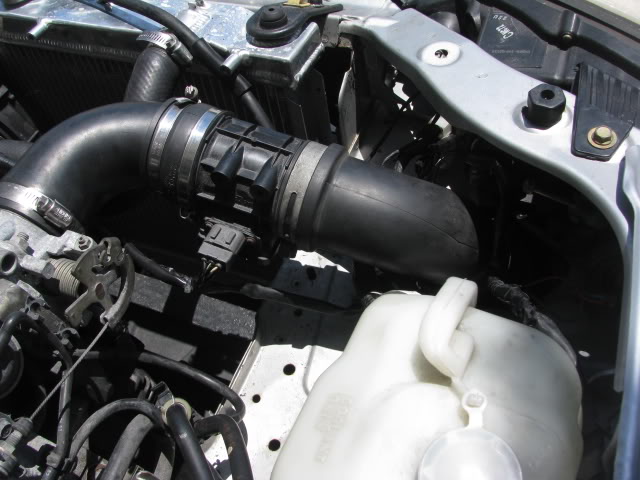

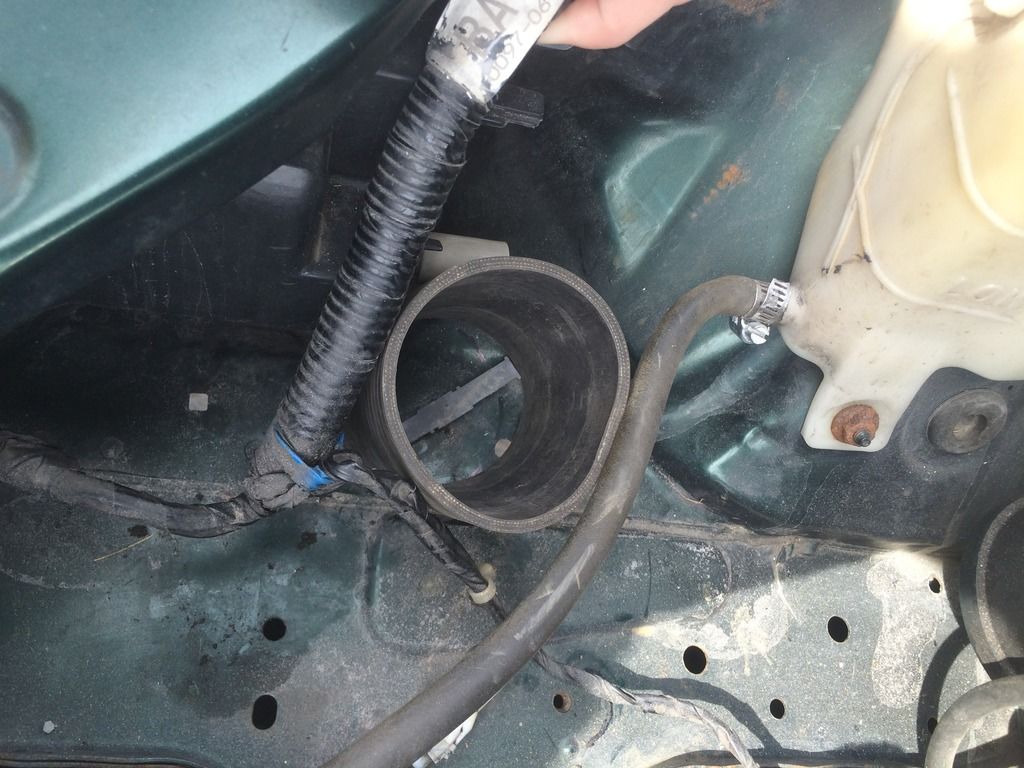

Would an intake like this be assessed for more than 1 point in TTE? Hole saw to the inner fender well.
Attached Thumbnails
Adventures in PTE/TTE-80-image_1_180885c6fd5a43b1caf68c6a05371c39cc5b939a.jpg   Adventures in PTE/TTE-003.jpg
blkmkiii is offline   Reply With Quote
Old 03-23-2016, 09:31 PM   #725
Senior Member
iTrader: (3)

Join Date: Oct 2008
Location: Indianapolis
Posts: 613
Total Cats: 13
Default

How long does Nasa take you to send you a confirmation email when you sign up for their hpdes? I signed up for one today and they didn't send me an email nor did they charge my cc.
btabor is offline   Reply With Quote
Old 03-23-2016, 09:41 PM   #726
Junior Member

Join Date: May 2012
Location: NYC
Posts: 250
Total Cats: 37
Default

Quote:
Originally Posted by btabor View Post
How long does Nasa take you to send you a confirmation email when you sign up for their hpdes? I signed up for one today and they didn't send me an email nor did they charge my cc.
Hm, maybe you should email or call your NASA region instead of posting in some random forum that's discussing TT/PT, not HPDEs...?

I usually get confirmation emails immediately after registering through nasaproracing.com
dasting is offline   Reply With Quote
Old 03-23-2016, 09:46 PM   #727
Senior Member
iTrader: (3)

Join Date: Oct 2008
Location: Indianapolis
Posts: 613
Total Cats: 13
Default

I'm sorry your highness. If it bothers you that much I will delete my post. I thought someone here would know since registration may be a similar process for hpde and tt. I'm working through hpdes to be eligible to run tts.
Anyways, I appreciate your answer, I figured it out thanks to you.
btabor is offline   Reply With Quote
Old 03-23-2016, 11:20 PM   #728
Junior Member

Join Date: Mar 2013
Location: Flower Mound, TX
Posts: 216
Total Cats: 22
Default

Quote:
Originally Posted by HoustonNW View Post
Was that addressed to me?
Yes, as I said before; "Opps, as soon as I saw 'Reservoir' I quit reading." Xidas don't have them, so I didn't fully read the section.
40mm is over 1.5 inches. That seems really big for the shaft size. The ASTs/Xidas seem to be around 15mm.
EricJ is offline   Reply With Quote
Old 03-23-2016, 11:23 PM   #729
Junior Member

Join Date: Mar 2013
Location: Flower Mound, TX
Posts: 216
Total Cats: 22
Default

Quote:
Originally Posted by blkmkiii View Post
Would an intake like this be assessed for more than 1 point in TTE? Hole saw to the inner fender well.
Looks like 1 point to me, section C.1 on p.31. But your regional TT/PT director or Tech guy would be the judge; or I guess anyone that wants to protest it.
EricJ is offline   Reply With Quote
Old 03-24-2016, 12:03 AM   #730
Senior Member

Join Date: Feb 2007
Location: Aliso Viejo, CA
Posts: 556
Total Cats: 86
Default

Getting my moneys worth out of the Xidas:
doward is offline   Reply With Quote
Old 03-24-2016, 12:11 AM   #731
Senior Member
iTrader: (2)

Join Date: Dec 2008
Location: KY
Posts: 621
Total Cats: 34
Default

Quote:
Originally Posted by blkmkiii View Post
Would an intake like this be assessed for more than 1 point in TTE? Hole saw to the inner fender well.

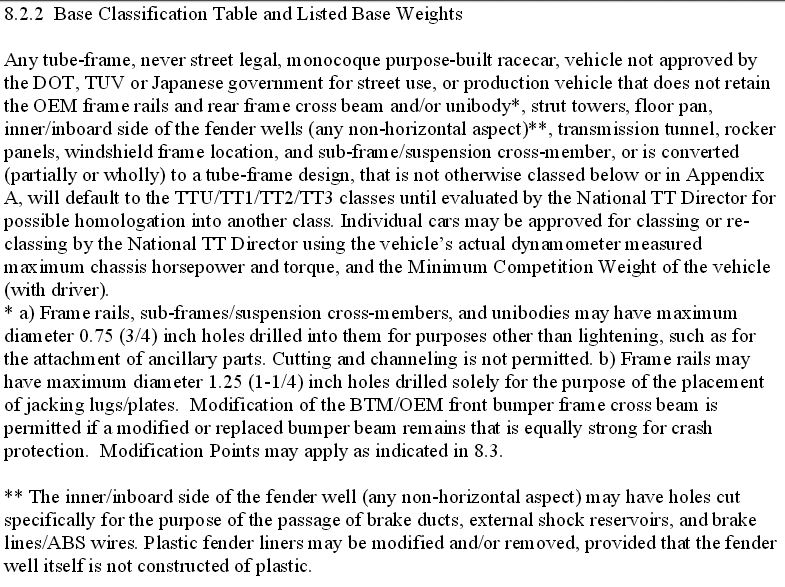

I considered doing that at one point but I'm pretty sure it's illegal. Email Greg to be sure.

Attached Thumbnails
Adventures in PTE/TTE-8.2.2_zpsz05d5m55.jpg
jpreston is offline   Reply With Quote
Old 03-24-2016, 09:49 AM   #732
Elite Member
iTrader: (7)

Join Date: Jan 2008
Location: Knoxville, TN
Posts: 1,900
Total Cats: 14
Default

Congrats on the win and new record Dan! Hopefully I'll meet up with you at NCM or Mid-Ohio this year. Wait, are you going to do Hyperfest at ViR in May?


Quote:
Originally Posted by emilio700 View Post
Just playing with the NASA calculator, this is what I would build:

NB1, 2410# 146whp
83.5mm 9.9:1 blueprinted
full exhaust
stock cast header
MS3 Pro
E85
CAI
Xida 1000/400
stock sway bars
OS Giken & 4.77
15x9 6UL
SM7

Pretty much what we ran in 2013 but now with 2pts leftover that I would use for ELBJ's.
I really want to do this build listed above, I had it planned out for a good while now. However, the engine build I quoted in bold..... I just can't justify dropping the money on a rebuild like that just to have the rules change on me next year.


Braian, just do HPDEs this year with your car as-is. The rules for D/E will likely change next year and definitely the year after that. You might end up with a good combo for TT6.
flier129 is offline   Reply With Quote
Old 03-24-2016, 12:47 PM   #733
Junior Member
iTrader: (2)

Join Date: Mar 2011
Posts: 250
Total Cats: -161
Default

Quote:
Originally Posted by EricJ View Post
Looks like 1 point to me, section C.1 on p.31. But your regional TT/PT director or Tech guy would be the judge; or I guess anyone that wants to protest it.
What kinda intakes are you guys running? I know it is the stupidest thing to overthink, but that's all I do. I'll research for 2 months before building anything.


Quote:
Originally Posted by doward View Post
Getting my moneys worth out of the Xidas:
MORE!!!! Car is boss!
blkmkiii is offline   Reply With Quote
Old 03-24-2016, 01:00 PM   #734
Supporting Vendor
Thread Starter
iTrader: (3)

emilio700's Avatar

Join Date: May 2005
Posts: 4,537
Total Cats: 840
Default

Quote:
Originally Posted by blkmkiii View Post
What kinda intakes are you guys running? I know it is the stupidest thing to overthink, but that's all I do. I'll research for 2 months before building anything.
MX-5 Miata Forum - View Single Post - Miata DIY Intake pipe recipe
emilio700 is offline   Reply With Quote
Old 03-24-2016, 08:31 PM   #735
Junior Member

Join Date: Mar 2013
Location: Flower Mound, TX
Posts: 216
Total Cats: 22
Default

Racing Beat Intake & dryer hose from the radiator inlet to the hole below the left headlamp. The rest stock.
EricJ is offline   Reply With Quote
Old 03-24-2016, 08:34 PM   #736
Supporting Vendor
Thread Starter
iTrader: (3)

emilio700's Avatar

Join Date: May 2005
Posts: 4,537
Total Cats: 840
Default

Quote:
Originally Posted by EricJ View Post
Racing Beat Intake & dryer hose from the radiator inlet to the hole below the left headlamp. The rest stock.
Corrugated hose? That kills flow. Gotta be smooth inside and largest radii possible.
emilio700 is offline   Reply With Quote
Old 03-25-2016, 04:40 PM   #737
Junior Member
iTrader: (2)

Join Date: Mar 2011
Posts: 250
Total Cats: -161
Default



A++
blkmkiii is offline   Reply With Quote
Old 03-25-2016, 07:23 PM   #738
Junior Member

Join Date: Mar 2013
Location: Flower Mound, TX
Posts: 216
Total Cats: 22
Default

Quote:
Originally Posted by emilio700 View Post
Corrugated hose? That kills flow. Gotta be smooth inside and largest radii possible.
Will do!
EricJ is offline   Reply With Quote
Old 03-25-2016, 09:11 PM   #739
Senior Member

Join Date: Feb 2007
Location: Aliso Viejo, CA
Posts: 556
Total Cats: 86
Default

Quote:
Originally Posted by blkmkiii View Post

MORE!!!! Car is boss!
Its not that special. Still has wiper fluid in it. LOL






Attached Thumbnails
Adventures in PTE/TTE-80-12246768_1224175440934726_9035372252033885341_n_bd8c1eb35d6af713f041e301b519c65a7bf93112.jpg   Adventures in PTE/TTE-80-12321554_1224173857601551_8432995642292686029_n_a0a1bbc53769f68334b819fb20554114a9bddf07.jpg
doward is offline   Reply With Quote
Old 03-26-2016, 05:21 AM   #740
Elite Member
iTrader: (2)

Mobius's Avatar

Join Date: May 2008
Location: Portland, Oregon
Posts: 2,779
Total Cats: 205
Default

Good looking pics.
Mobius is offline   Reply With Quote
