Old 08-23-2015, 07:05 PM   #101
SadFab Sales Lady
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 15,889
Total Cats: 1,092
Default

So more dampening at lower speeds is when the car is reacting to driver input/turning. Where faster speed is the potholes.
<br />Linear you have to compromise these 2 and digressive you get the best of both worlds?
aidandj is offline   Reply With Quote
Old 08-23-2015, 09:36 PM   #102
Junior Member

Join Date: Apr 2011
Location: Hollywood, FL
Posts: 440
Total Cats: 13
Default

Hmmm, my ARE built Penske shocks have linear pistons. Obviously Penske has digressive/digressive pistons available. Hell, Penske has pistons no other shock company has available.

Maybe since mine are purpose built for autox? Whatever the reason, I'm not going to question Guy Ankeny. At least not on building an autox shock, and for a CSP Miata no less. Last I remember Guy's shocks have been on all the CSP champ Miatas other than Peter's and Aro's in the last ten years.

But since this is a road race conversation, maybe they don't apply.
hector is offline   Reply With Quote
Old 08-24-2015, 10:29 AM   #103
Senior Member
iTrader: (4)

Join Date: Nov 2012
Location: Colorado
Posts: 647
Total Cats: 35
Default

Quote:
Originally Posted by aidandj View Post
So more dampening at lower speeds is when the car is reacting to driver input/turning. Where faster speed is the potholes.
<br />Linear you have to compromise these 2 and digressive you get the best of both worlds?

yes- suspension tuning is always a compromise. Digressive is usually a better compromise vs. linear.
dcamp2 is offline   Reply With Quote
Old 08-24-2015, 10:32 AM   #104
SadFab Sales Lady
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 15,889
Total Cats: 1,092
Default

Quote:
Originally Posted by hector View Post
Hmmm, my ARE built Penske shocks have linear pistons. Obviously Penske has digressive/digressive pistons available. Hell, Penske has pistons no other shock company has available.<br /><br />
<br /><br /><br /><br />
<br /><br />Maybe since mine are purpose built for autox? Whatever the reason, I'm not going to question Guy Ankeny. At least not on building an autox shock, and for a CSP Miata no less. Last I remember Guy's shocks have been on all the CSP champ Miatas other than Peter's and Aro's in the last ten years.<br /><br />
<br /><br /><br /><br />
<br /><br />But since this is a road race conversation, maybe they don't apply.
<br />I heard the same thing about linear being faster. From an auto-x guy.
<br /><br />I'm supposed to believe everything I read on the internet, but my mommy says the internet isn't always right.
<br /><br />Now I'm lost. I should buy a book on this.
aidandj is offline   Reply With Quote
Old 08-24-2015, 10:46 AM   #105
Elite Member
iTrader: (3)

Join Date: Mar 2008
Location: Granbury, TX
Posts: 5,845
Total Cats: 559
Default

Auto-X != Road Course.

In a lot of ways, this included.
hornetball is offline   Reply With Quote
Old 09-09-2015, 01:23 PM   #106
Senior Member
Thread Starter
iTrader: (3)

Join Date: Nov 2011
Location: Beaverton, OR
Posts: 720
Total Cats: 29
Default

Ok, for whatever my previous graphs are not working so I'm re uploading everything.
No comments, I'll let people look at them and interpret for themselves

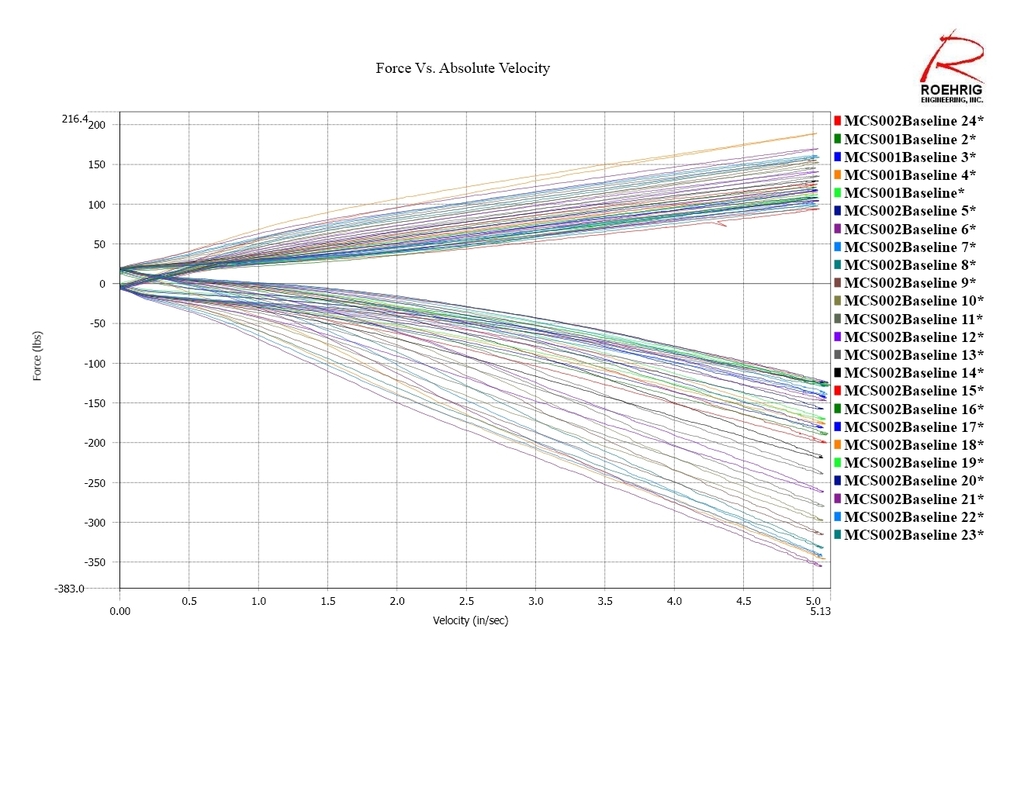

MCS Force v Absolute Velocity

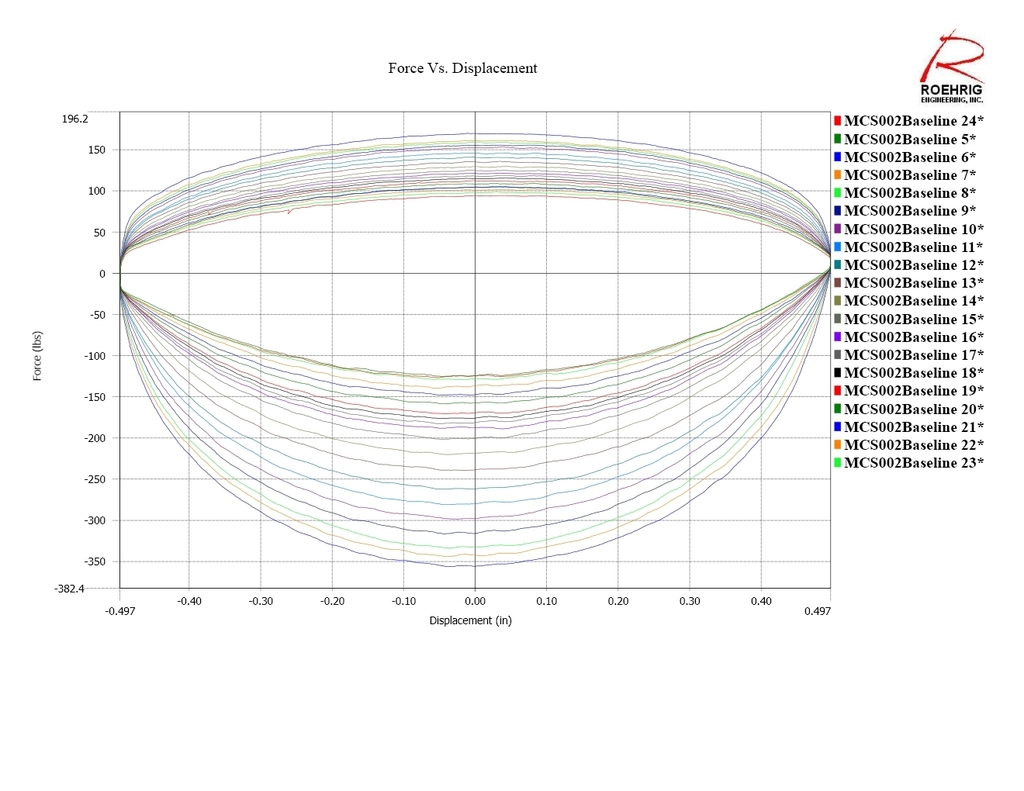

MCS Force V Displacement

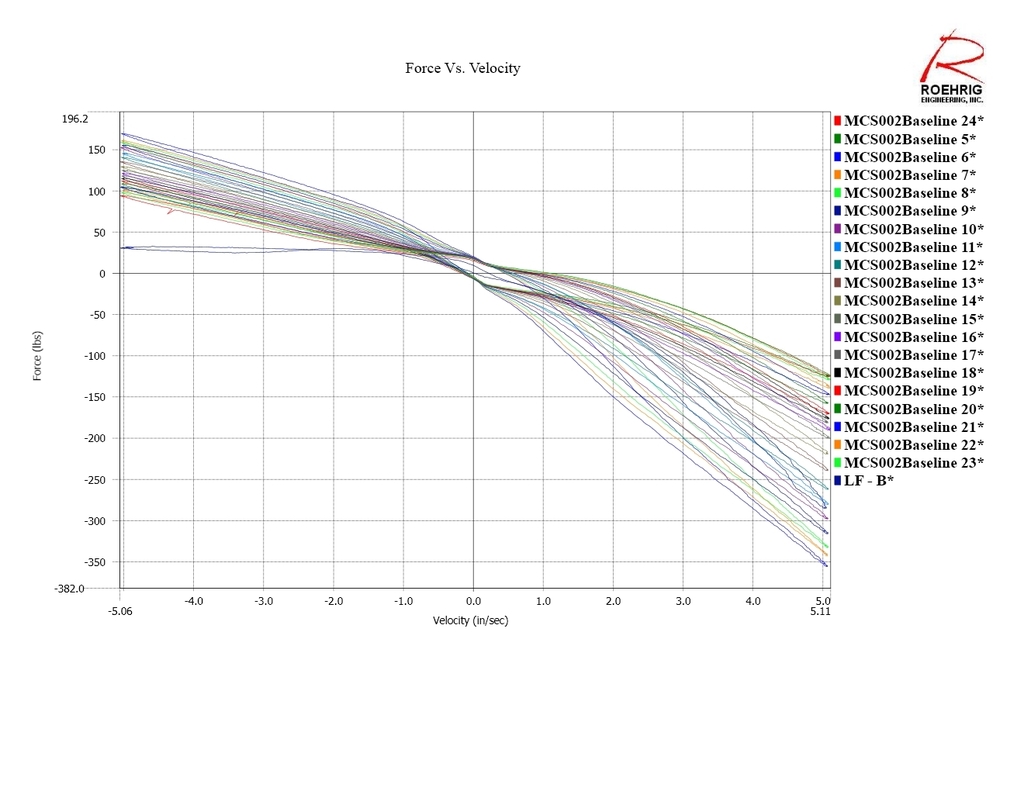

MCS Force vs Velocity

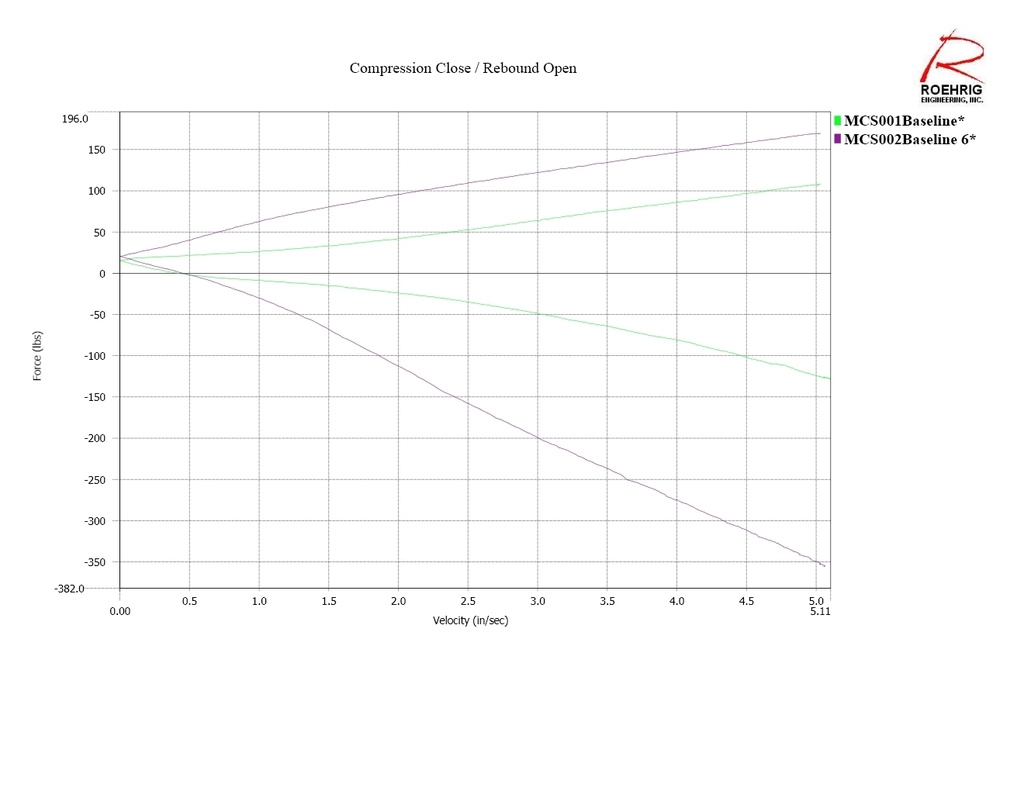

MCS Compression Close Rebound Open

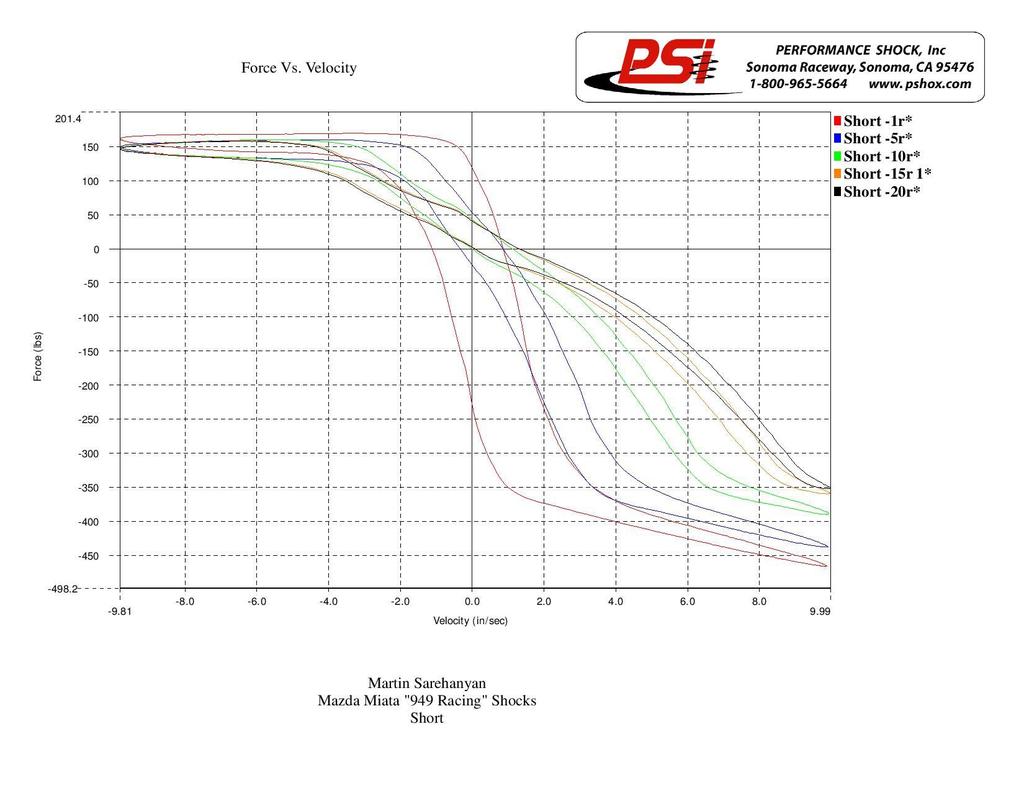

Xida Rear Force v Velocity

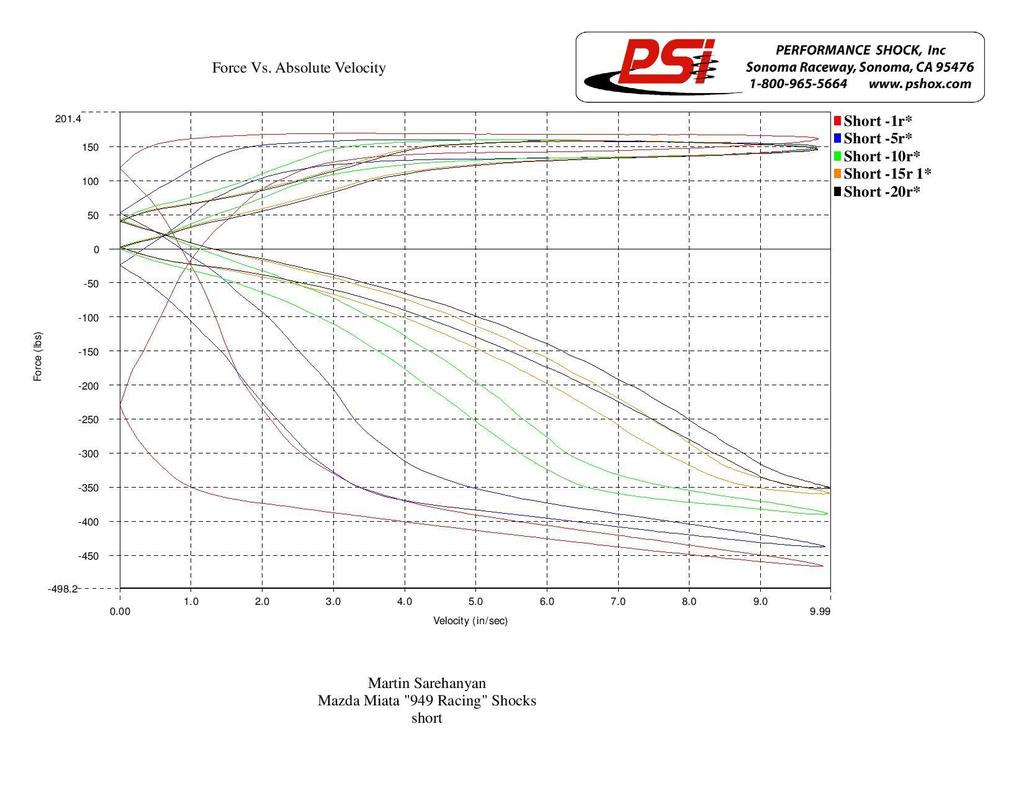

Xida Rear Force v Absolute Velocity

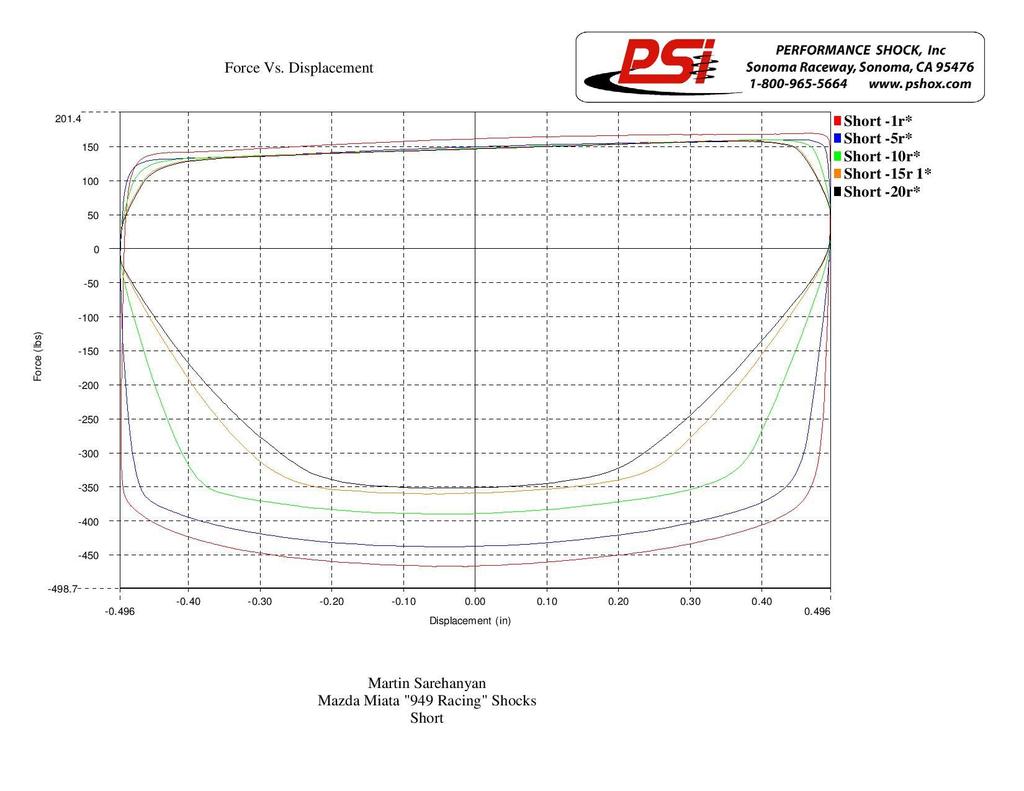

Xida Force v. Displacement Rear

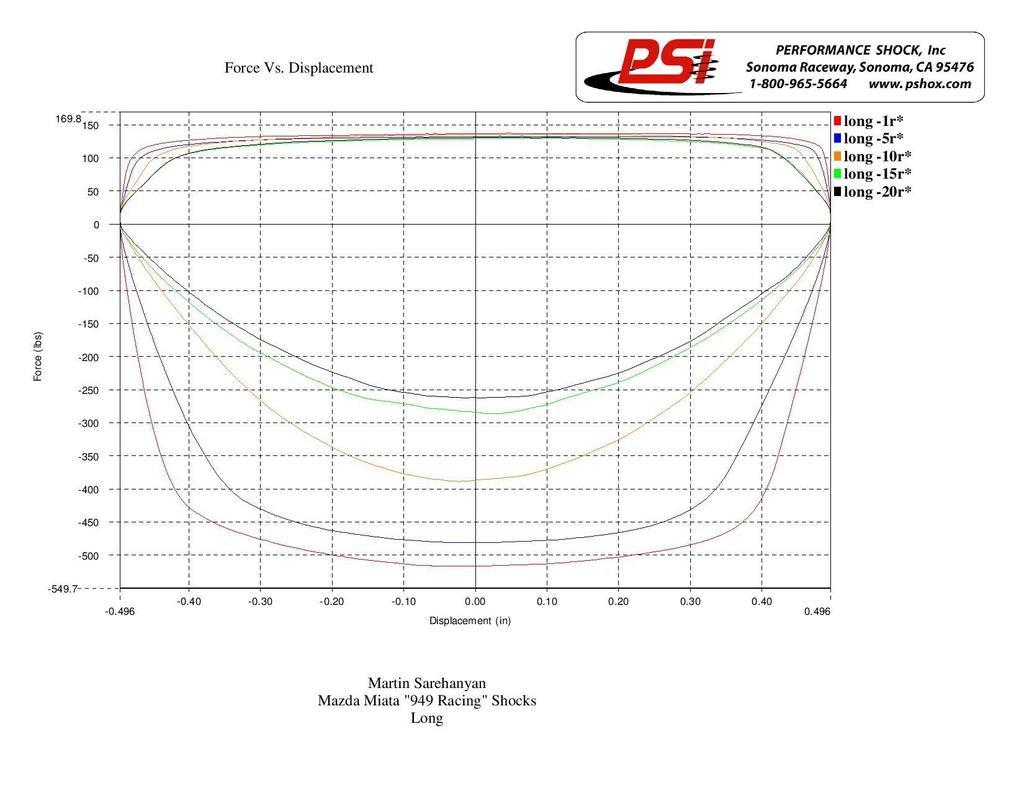

Xida Force v. Displacement Front

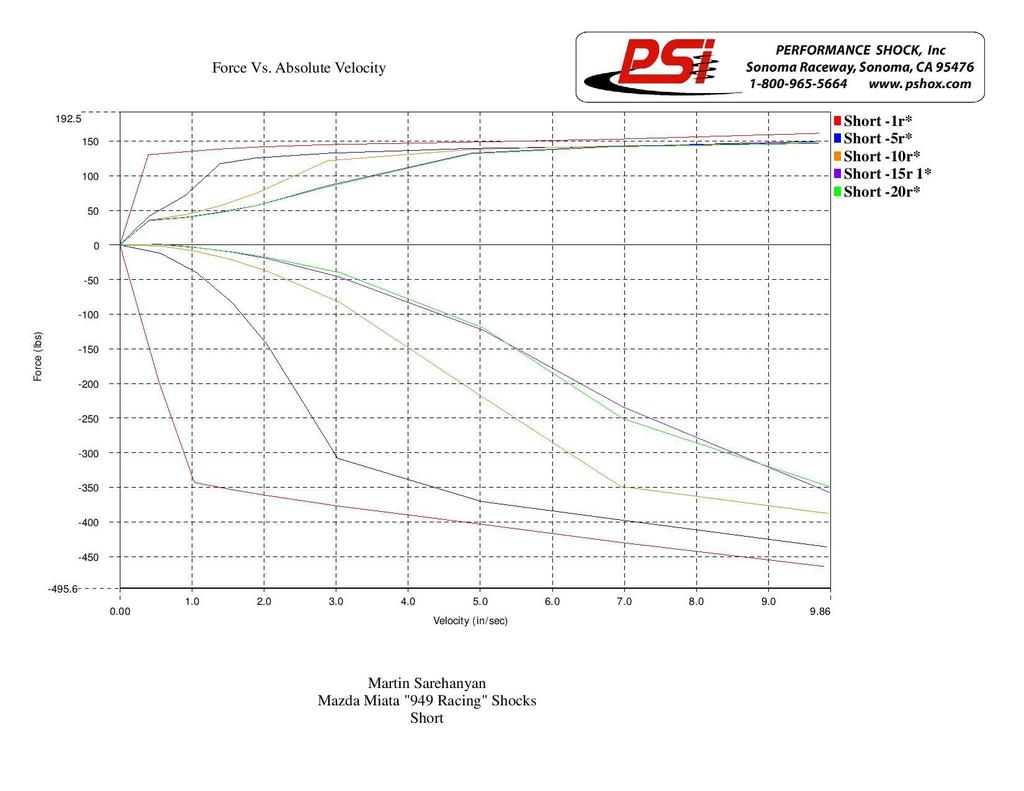

Xida Force v Absolute Velocity Rear

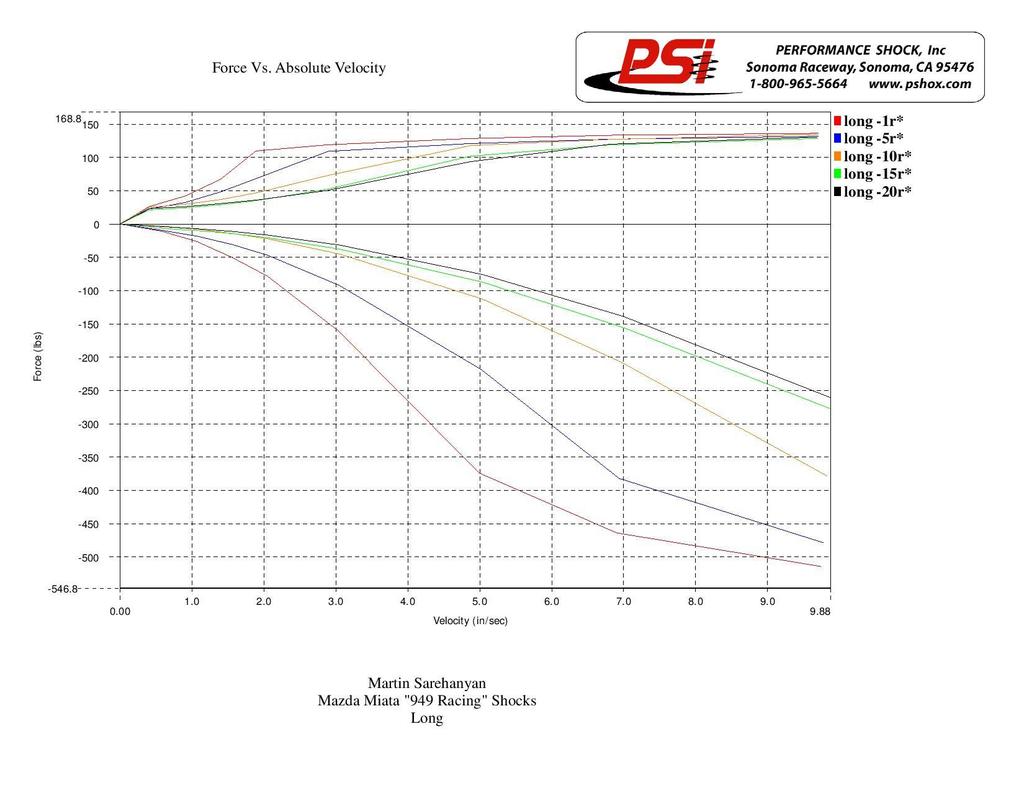

Xida Force v. Absolute Velocity Front

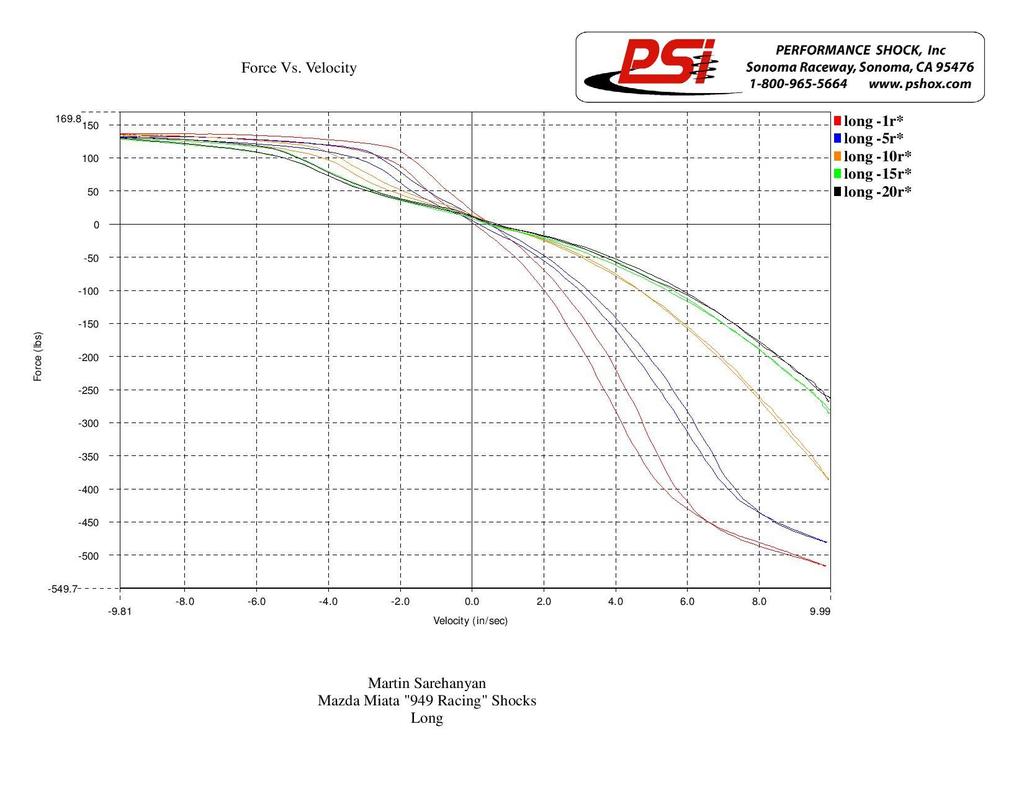

Xida Force v Velocity Front

Xida Force v. Absolute Velocity Front
Attached Thumbnails
Motion Control Single adjustables installed-mcs1-2_zpssxh5odbx.jpg   Motion Control Single adjustables installed-mcs002-1_zps5cktoj13.jpg   Motion Control Single adjustables installed-mcshist-1_zpshoytghn6.jpg   Motion Control Single adjustables installed-mcs4-1_zps5br6lxur.jpg   Motion Control Single adjustables installed-short%2520f%2520vs%2520v-page-001_zpssoxpwocf.jpg

Motion Control Single adjustables installed-s%2520shock-page-001_zpsb3gd5wnp.jpg   Motion Control Single adjustables installed-short%2520f%2520vs%2520d-page-001_zps4vhmatkv.jpg   Motion Control Single adjustables installed-long%2520f%2520vs%2520d-page-001_zpsuwppv4zx.jpg   Motion Control Single adjustables installed-short%2520f%2520vs%2520av-page-001_zpssnagdxmz.jpg   Motion Control Single adjustables installed-long%2520f%2520vs%2520av-page-001_zpsydzpbc4w.jpg

Motion Control Single adjustables installed-long%2520f%2520vs%2520v-page-001_zpsrq3dtgzx.jpg   Motion Control Single adjustables installed-l%2520shock-page-001_zpscbncqxvr.jpg
greddygalant is offline   Reply With Quote
Old 09-09-2015, 01:24 PM   #107
SadFab Sales Lady
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 15,889
Total Cats: 1,092
Default

<p>Different dynos?</p>
aidandj is offline   Reply With Quote
Old 09-09-2015, 01:36 PM   #108
I take big bites
iTrader: (1)

turbofan's Avatar

Join Date: Sep 2010
Location: Portland, OR
Posts: 6,116
Total Cats: 426
Default

<p>Yep. the Xidas were so awesome that they broke the local dyno and had to be sent to california </p><p></p><p>I want to say stuff, but I'm probably the last person who should say stuff.... but just one comment.</p><p><img src="https://cimg5.ibsrv.net/gimg/www.miataturbo.net-vbulletin/1024x791/80-149030_motion_control_single_adjustables_installed _short_2520f_2520vs_2520av_page_001_zpssnagdxmz_5a b091020ca42ef6b7019099f98a36c4499b4f08.jpg" title="" /><br /><br />This looks about like what Emilio had posted previously for the Xidas, no?</p>
turbofan is offline   Reply With Quote
Old 09-09-2015, 03:11 PM   #109
Elite Member
iTrader: (5)

Join Date: Dec 2010
Location: Raleigh, NC
Posts: 1,969
Total Cats: 50
Default

<p>There is a lot to love about that force v. displacement graph from the Xidas.</p>
Seefo is offline   Reply With Quote
Old 09-09-2015, 03:28 PM   #110
Junior Member
iTrader: (5)

Join Date: Oct 2014
Posts: 412
Total Cats: 17
Default

Quote:
Originally Posted by Seefo View Post
<p>There is a lot to love about that force v. displacement graph from the Xidas.</p>
Could you elaborate on that a bit more?
90civichhb is offline   Reply With Quote
Old 09-09-2015, 03:46 PM   #111
Senior Member
Thread Starter
iTrader: (3)

Join Date: Nov 2011
Location: Beaverton, OR
Posts: 720
Total Cats: 29
Default

Same type of shock dyno, local dyno was down so they got shipped out to Performance Shock. Look at the rear force v. velocity and tell me what you see.
greddygalant is offline   Reply With Quote
Old 09-09-2015, 03:50 PM   #112
Supporting Vendor
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 13,726
Total Cats: 975
Default

Quote:
Originally Posted by greddygalant View Post
Same type of shock dyno, local dyno was down so they got shipped out to Performance Shock. Look at the rear force v. velocity and tell me what you see.
What do you think we should be seeing?
Savington is offline   Reply With Quote
Old 09-09-2015, 03:58 PM   #113
Junior Member
iTrader: (1)

Join Date: Apr 2012
Posts: 187
Total Cats: 2
Default

The graph that keeps getting quoted is the same as Emilio posted. But what you guys are not understanding about that graph is that it is an AVERAGE. Yes, the rear Xidas are a true double digressive design, but look at the normal force vs. velocity graphs. Do you see that they start at a point, end at a point, then come back to the original point? This is the full stroke of the shock, forward and back. No shock will have the same line forward and back, but what you want to see is as little deviation as possible. This is called hysteresis. While the rears are a true double diggressive design, look at the deviation. That is A LOT. The fronts, on the other hand, appear to be diggressive in compression, and not so much on rebound. The hysteresis on the graphs on the front is not as bad, in fact it is pretty good. You can't just single out 1 graph (i.e. the graph that keeps getting quoted) and say "well look at that, it is just as good as we thought". The fact is that the rear shock and front shock have different graphs, and the rear shock is not of equal quality as the front.

The MCS, on the other hand, are very consistent. However, I wonder why they didn't do a diggressive piston either, they seem to be quite linear to me.

Disclaimer: I'm not saying Xidas suck or anything, just saying what's up with the rear shock quality? I have no affiliation with MCS, just stating what I see in the graphs.
motormechanic is offline   Reply With Quote
Old 09-09-2015, 04:42 PM   #114
Senior Member
Thread Starter
iTrader: (3)

Join Date: Nov 2011
Location: Beaverton, OR
Posts: 720
Total Cats: 29
Default

Quote:
Originally Posted by Savington View Post
What do you think we should be seeing?
Hysterisis. And lots of it

Also the reason the mcs are linear is because they use a proprietary tulip valve inside rather than a needle valve like everything else out there.

I spoke to Lex at MCS and he spoke very highly of Penske's ability to make a race quality needle valve damper. Considering the companies are direct competitors and meet regularly in major sports car series I found this to be very interesting.
greddygalant is offline   Reply With Quote
Old 09-09-2015, 05:02 PM   #115
I take big bites
iTrader: (1)

turbofan's Avatar

Join Date: Sep 2010
Location: Portland, OR
Posts: 6,116
Total Cats: 426
Default

<p>Thanks for the explanation Jack. I see that now.</p><p>&nbsp;</p><p>There's no question the MCS makes prettier, smoother graphs. Very interesting.</p><p>&nbsp;</p><p>the valving is also clearly very different, right? What are thoughts on valving differences? Has anyone actually solidly stated if digressive is better than the linear MCS, or no?</p><p>Pretty clear it seems that the MCS are higher quality dampers. But are they actually better for a track miata with the different valving?</p><p>&nbsp;</p>
turbofan is offline   Reply With Quote
Old 09-09-2015, 05:56 PM   #116
Supporting Vendor
iTrader: (3)

emilio700's Avatar

Join Date: May 2005
Posts: 4,760
Total Cats: 922
Default

Quote:
Originally Posted by turbofan View Post
Pretty clear it seems that the MCS are higher quality dampers.
I would not come to that conclusion based on the plots published. You might notice the scales are different between the two samples. This affects the deltas and plot curves.

There is more to the damper than meets the eye if you take them both apart. Surface finishes, deburring, coatings.
emilio700 is online now   Reply With Quote
Old 09-09-2015, 05:59 PM   #117
SadFab Sales Lady
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 15,889
Total Cats: 1,092
Default

<p>Will someone please take all of that data and normalize it.</p><p>Also, it looks like the xidas have a huge range of adjustment. Why are we not comparing say the middle or both ends of the spectrum.</p><p>The xida almost changes the shape of the plot over the adjustment window.</p><p>Martin, do you have this data in any format other than pictures?</p>
aidandj is offline   Reply With Quote
Old 09-09-2015, 06:08 PM   #118
I take big bites
iTrader: (1)

turbofan's Avatar

Join Date: Sep 2010
Location: Portland, OR
Posts: 6,116
Total Cats: 426
Default

<p>Affects the deltas and curves, yes, but doesn't affect the presence or absence of hysteresis, right?</p><p>Don't get me wrong, I'm still happy with the direction I chose to take. Just trying to learn here.</p>
turbofan is offline   Reply With Quote
Old 09-09-2015, 06:12 PM   #119
Supporting Vendor
iTrader: (3)

emilio700's Avatar

Join Date: May 2005
Posts: 4,760
Total Cats: 922
Default

Quote:
Originally Posted by aidandj View Post
<p>Will someone please take all of that data and normalize it.</p><p>Also, it looks like the xidas have a huge range of adjustment. Why are we not comparing say the middle or both ends of the spectrum.</p><p>The xida almost changes the shape of the plot over the adjustment window.</p><p>Martin, do you have this data in any format other than pictures?</p>
I'm getting the dyno plots from current production F&R in the same scale as the MCS plots. Yes, the Xida have much greater range. Limited to the force range of the MCS and scaled the same might be a better comparison if we are only looking at the curve shapes and ignoring force/speed values. The velocity scale, for example, is doubled for the Xidas over the MCS
emilio700 is online now   Reply With Quote
Old 09-09-2015, 06:13 PM   #120
Elite Member
iTrader: (5)

Join Date: Dec 2010
Location: Raleigh, NC
Posts: 1,969
Total Cats: 50
Default

<p>
Quote:
Originally Posted by 90civichhb View Post
Could you elaborate on that a bit more?
</p><p>&nbsp;</p><p>Basically its what you see. &nbsp;Force over displacment hardly changes, especially in comparison to the other dyno graph. &nbsp;If anything, I think that's more of an indicator of &quot;quality&quot; than force vs. velocity. &nbsp;Hysteresis is affected by a lot of things, including the piston's adjustment range (and where its currently being used in that range). &nbsp;Also the pressure difference between the comp/rebound side of the piston is a factor. &nbsp;I am sure the piston's design is a large contributing factor too and I have no clue about that so don't ask me which is better.</p><p>&nbsp;</p><p>Sorry, I don't really do a lot of shock related stuff, just kinda going off some reading and old h-fsae experience. &nbsp;Could be wrong.&nbsp;&nbsp;Xida is certainly not perfect, but even with hysteresis the graph <em>shape </em>looks more like what you want out of a race shock. &nbsp;Assuming you don't have shock travel speeds of 9&quot;/s which is pretty intense...</p>
Seefo is offline   Reply With Quote
