Default Weird Suspension Noise

When weight shifts in my 94 something in the suspension shifts and makes noise. Below is a video of the noise with me pressing down on the front of the car. The car is a 94 with 184k miles on it, Xidas, stock swap bars. Is that noise probably just old bushings? Should I worry about it? Do I saw **** it and drive the car to MaTG tomorrow even with these noises?



shuiend is online now   Reply With Quote
Old 07-28-2016, 08:11 PM   #2
Junior Member

slug_dub's Avatar

Join Date: Sep 2010
Location: QLD, 'straya
Posts: 89
Total Cats: 7
Default

Thats enough of a noise that I'd jack it up and visually inspect at least. If a pal pushes on the car while you get close to the ground and listen its possible you could detect where it's coming from.
Did it suddenly just start or has it been getting worse?
Bushes are a reasonable call, perhaps sway bar end link bushes even?
My recent sway bar bracket death that wasn't really felt through driving, just the appearance of a noise, would make me want to check that just in case.
slug_dub is offline   Reply With Quote
Old 07-28-2016, 11:12 PM   #3
SadFab Sales Lady
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 15,858
Total Cats: 1,087
Default

Sway bar.
aidandj is offline   Reply With Quote
Old 07-29-2016, 05:21 AM   #4
mkturbo.com
Thread Starter
iTrader: (24)

shuiend's Avatar

Join Date: May 2006
Location: Charleston SC
Posts: 12,677
Total Cats: 830
Default

I'll unbolt sway bar later today to see if that is it.
shuiend is online now   Reply With Quote
Old 07-29-2016, 06:56 AM   #5
Boost Czar

iTrader: (60)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 70,879
Total Cats: 1,468
Default

my first thought would be sway bar bushings as well...
Braineack is online now   Reply With Quote
Old 07-29-2016, 01:08 PM   #6
Supporting Vendor
iTrader: (3)

emilio700's Avatar

Join Date: May 2005
Posts: 4,754
Total Cats: 922
Default

If they are recently installed gen 2 Xidas, check the plastic spring guides for burrs in the ID. We hand finish those but a few slipped through with a bit of roughness. Harmless but they rub across the threads on the body and make a noise sorta like that.
emilio700 is offline   Reply With Quote
Old 07-29-2016, 04:51 PM   #7
mkturbo.com
Thread Starter
iTrader: (24)

shuiend's Avatar

Join Date: May 2006
Location: Charleston SC
Posts: 12,677
Total Cats: 830
Default

Quote:
Originally Posted by emilio700 View Post
If they are recently installed gen 2 Xidas, check the plastic spring guides for burrs in the ID. We hand finish those but a few slipped through with a bit of roughness. Harmless but they rub across the threads on the body and make a noise sorta like that.

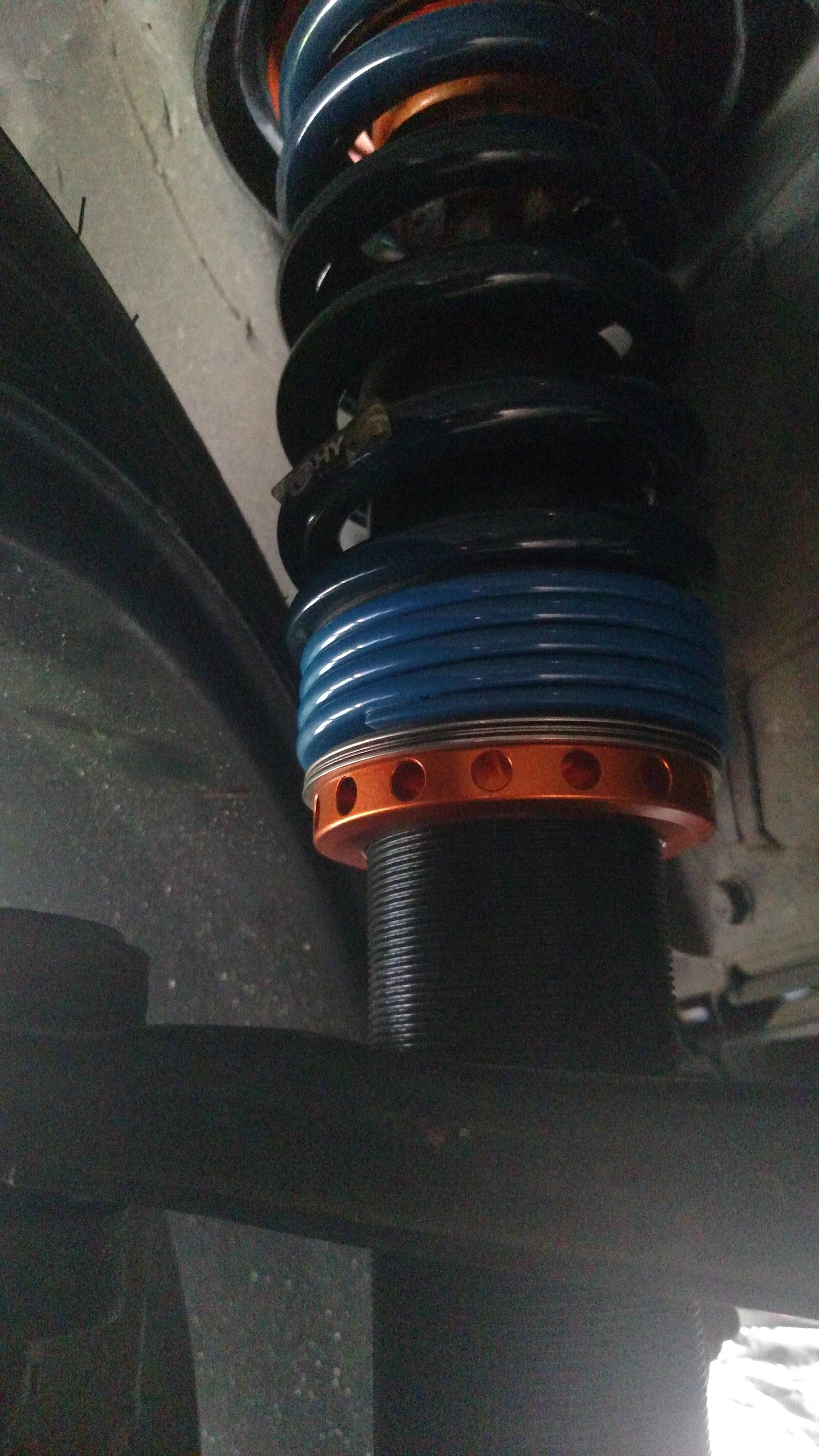

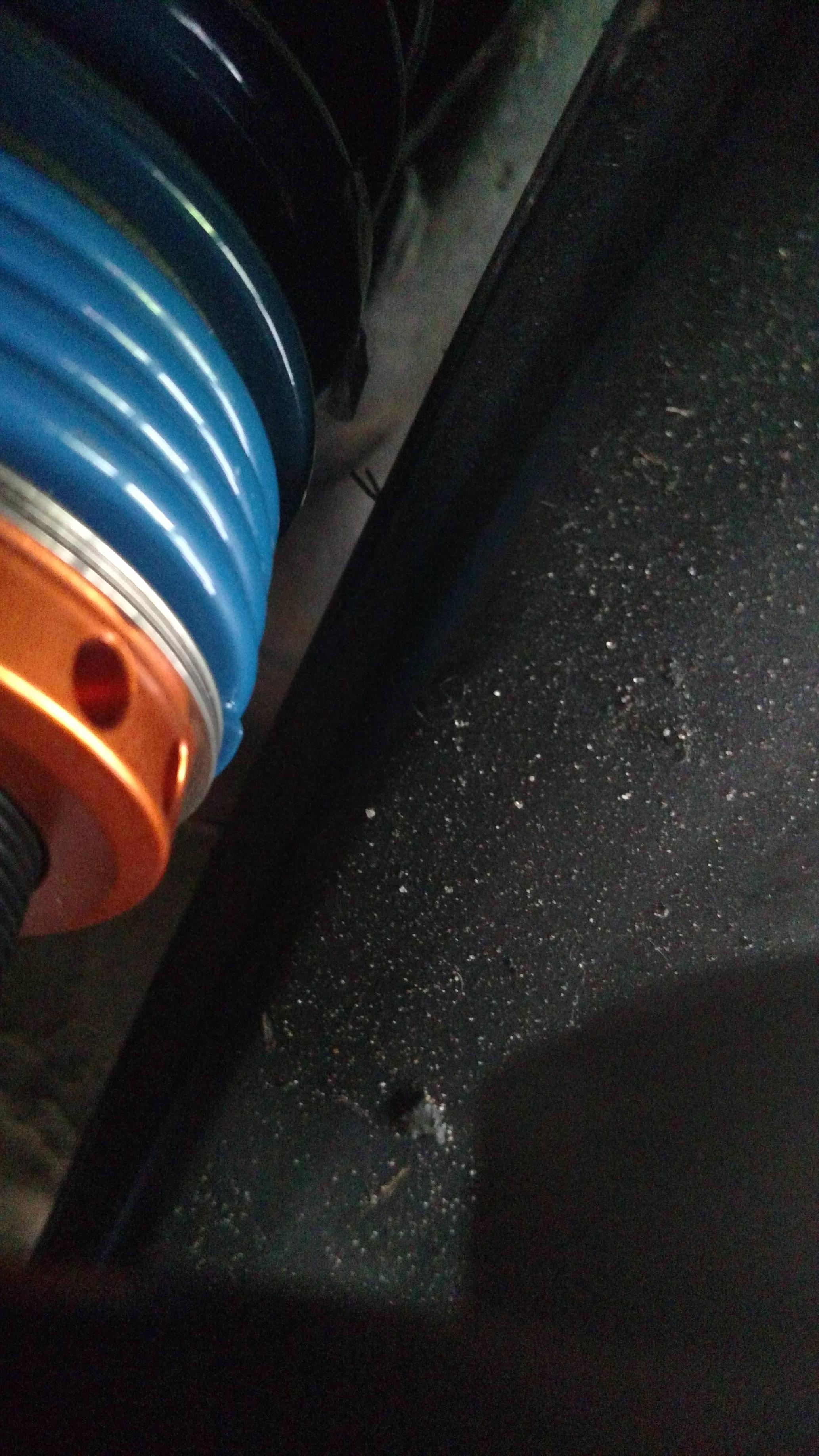

Gen2 Xida's purchased from you last October. This is the second car I installed them on, no noises on the first one. I do have them raised up a good bit as it is a complete DD and I wanted ground clearance. The noises seemed to have started this past weekend when I raised the car a bit more and and swapped on the 15x9 6UL. Current ride height is a bit over 5" from the ground to the pinch welds. I will say I only had about 50 miles driven on them when they were lower, so its very possible they were making noises then, but I did not hear it. Below are pictures of the front 2 shocks. Lower springs are definitely tight.


shuiend is online now   Reply With Quote
Old 07-29-2016, 09:09 PM   #8
Supporting Vendor
iTrader: (3)

emilio700's Avatar

Join Date: May 2005
Posts: 4,754
Total Cats: 922
Default

Bigger pictures please. 9000px preferred. I can't tell anything from the pics.
Anyway, check the black plastic sleeves between the springs to see if they have any friction against the threads.
emilio700 is offline   Reply With Quote
Old 07-29-2016, 09:10 PM   #9
SadFab Sales Lady
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 15,858
Total Cats: 1,087
Default

My money is still on sway bar bushings.
aidandj is offline   Reply With Quote
Old 08-29-2016, 01:51 PM   #10
mkturbo.com
Thread Starter
iTrader: (24)

shuiend's Avatar

Join Date: May 2006
Location: Charleston SC
Posts: 12,677
Total Cats: 830
Default

It was something with the Xida's, probably from them being jacked up so high. I swapped my Tokico's back onto the car and no more noise.
shuiend is online now   Reply With Quote
Old 08-29-2016, 06:08 PM   #11
Mr Broke Pants
iTrader: (7)

thumpetto007's Avatar

Join Date: Sep 2010
Posts: 1,152
Total Cats: 52
Default

My little plastic collar was not binding, my driver front xidas (purchased july 2015) were making a horrendous series of noises, rears clunked too.

I'll see if the rebuild helped soon
thumpetto007 is offline   Reply With Quote
