Old 04-06-2015, 11:01 AM   #201
Junior Member

Join Date: Mar 2014
Location: ATX
Posts: 94
Total Cats: 1
Default

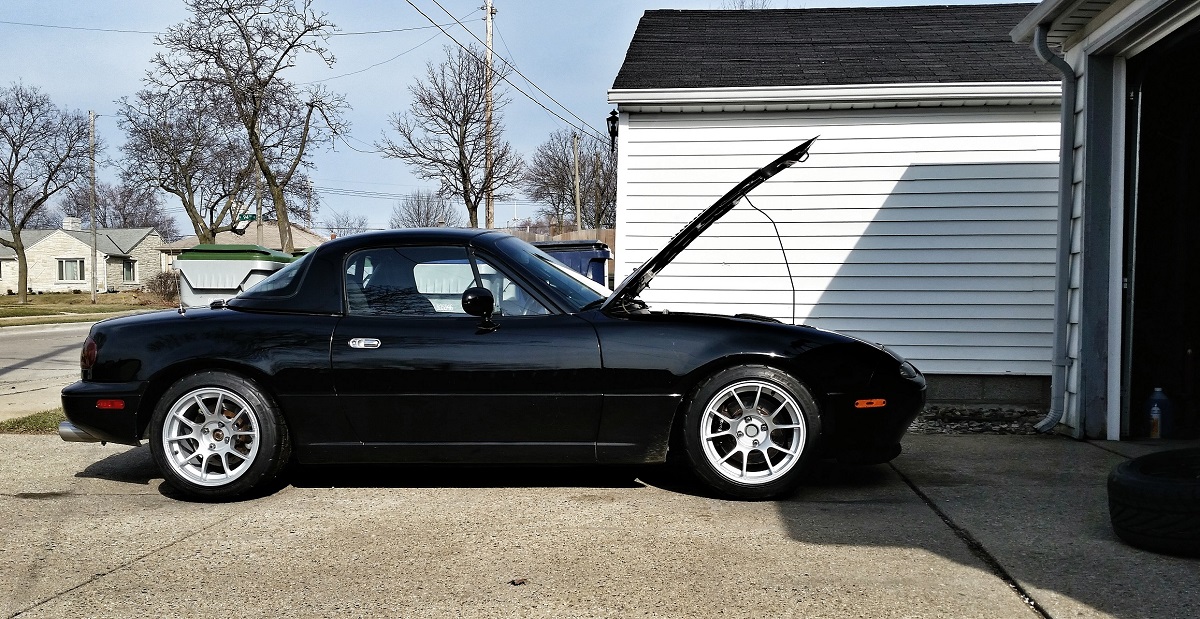

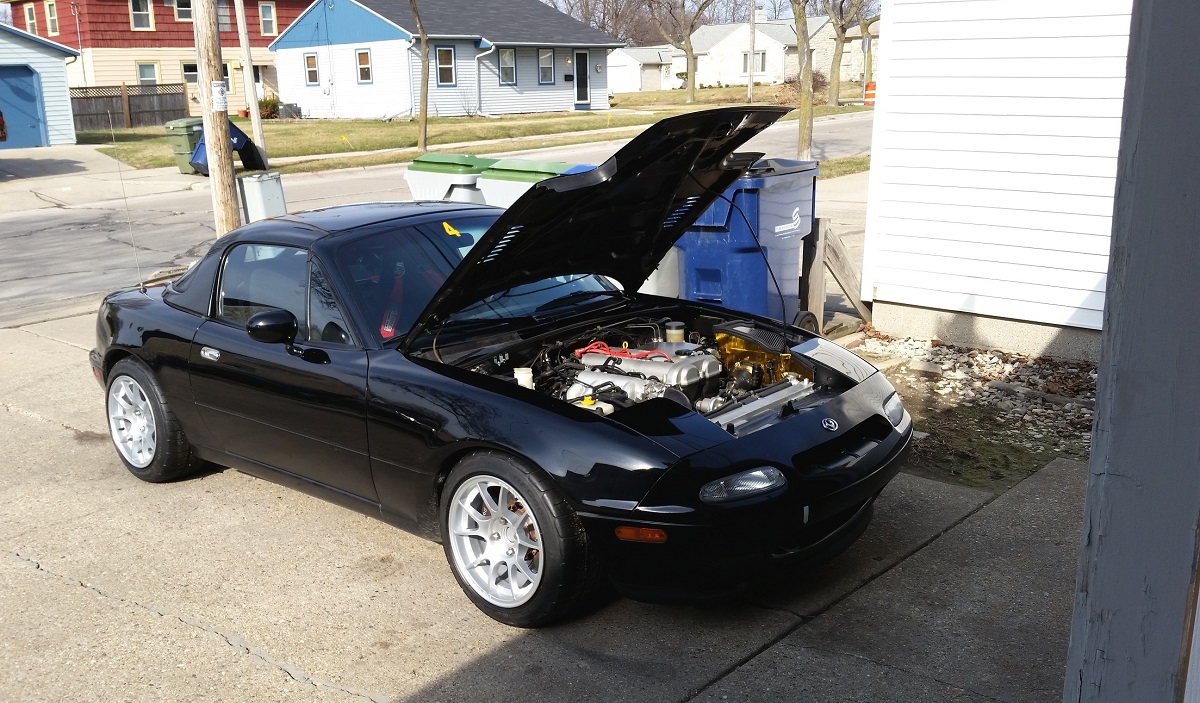

Well the 15x9's are on. I don't see a need for spacers with FatCat Coils, plenty of clearance on the inside. Fenders will have to be rolled (obviously)
Attached Thumbnails
Jongbloed 15x8, 15x9 and 15x10 wheels-20150405_161944_1.jpg   Jongbloed 15x8, 15x9 and 15x10 wheels-20150405_162000.jpg
tyhackman15 is offline   Reply With Quote
Old 04-06-2015, 10:50 PM   #202
Former Vendor
iTrader: (1)

Join Date: Sep 2012
Posts: 147
Total Cats: 25
Default

Quote:
Originally Posted by tyhackman15 View Post
Well the 15x9's are on. I don't see a need for spacers with FatCat Coils, plenty of clearance on the inside. Fenders will have to be rolled (obviously)

Very nice !!
philstireservice is offline   Reply With Quote
Old 04-07-2015, 01:34 AM   #203
Junior Member

Join Date: Nov 2009
Location: Central Coast C.A
Posts: 85
Total Cats: 7
Default

Quote:
Originally Posted by tyhackman15 View Post
Well the 15x9's are on. I don't see a need for spacers with FatCat Coils, plenty of clearance on the inside. Fenders will have to be rolled (obviously)
Badass!! I love the color..... (I wonder why)
jcmusmc00 is offline   Reply With Quote
Old 04-11-2015, 06:05 PM   #204
Newb

Join Date: Nov 2013
Location: Manchester, CT
Posts: 15
Total Cats: 1
Default

Quote:
Originally Posted by Erat View Post
Am i the only one with rubbing problems?
No- you're not alone. Surprised noone else has brought this up.

Got my 15x9 bronze wheels in last week and got them mounted up and took her for a spin today (about 30 miles).

No fender rolling necessary, love how these look. They're mounted on an NB2 with vmaxx xtremes track pack coilovers. Tires are 225/45/15 RS3's. Tires clear the fenders perfectly fine. The tire does show witness marks adjacent to the top hat on the inside of the wheel well in the fronts (I don't have fender liners, so I don't recall if this area is normally covered, regardless, it makes contact there).

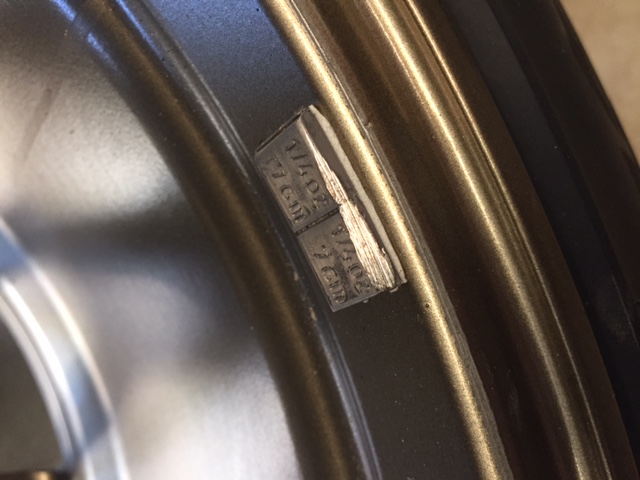

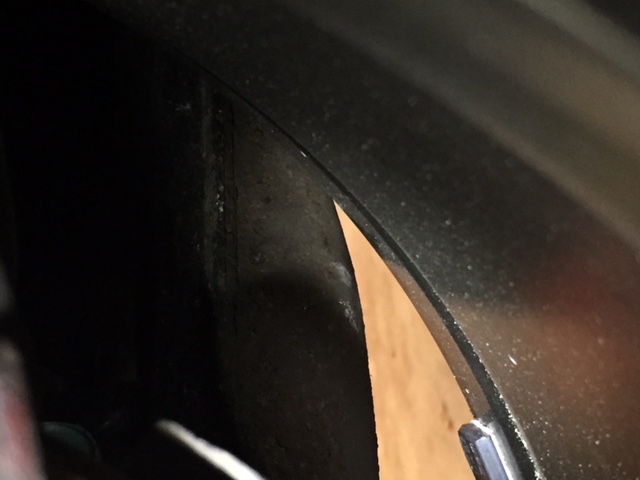

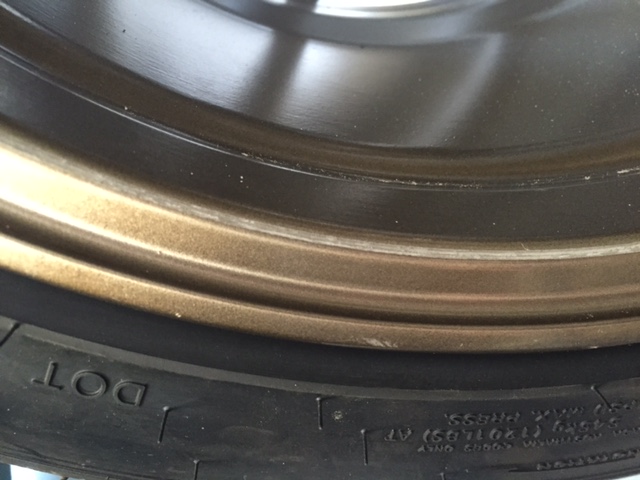

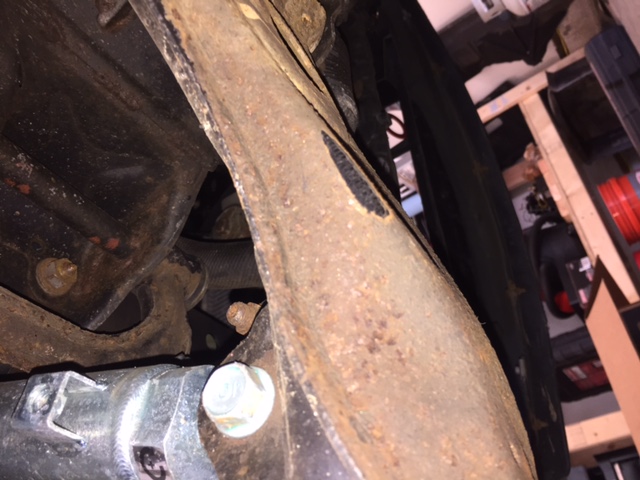

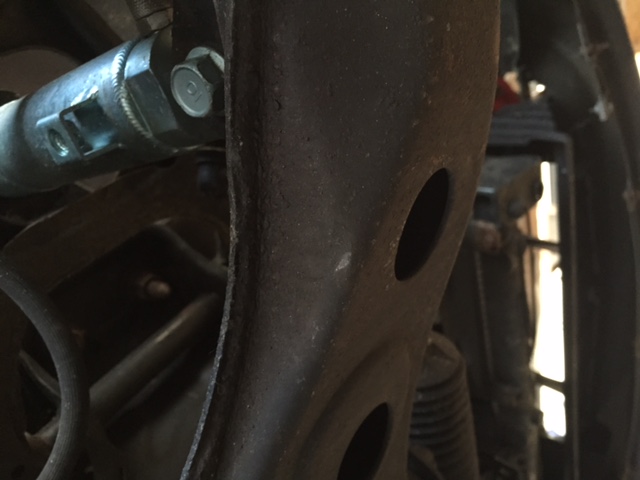

The area of slightly more concern is the front lower A-arms (rear under side). This area seems to make contact with the 2nd radius (middle of three steps) adjacent to the wheel bore. In static state there is plenty of clearance (an inch?). I tried loading it up with the wheel up with the car in the air and it gets closer, but doesn't touch. So it must be dynamic loading near bumpstop territory thats creating contact. It has made contact 360 deg around the wheel right on the radius. Not more than 5 mils depth (0.005") though, so its really only surface damage. I was on some roads with some big dips today, so I don't expect it to make any further contact, but I'll likely see at auto-x tomorrow.

See photos attached. I took a grinding wheel to the A arm surface (just to touch off and take down the surface), hopefully creating enough clearance. If not I may have to look into spacing them out.

Otherwise I'm super happy with the wheels- well made and look great!
Attached Thumbnails
Jongbloed 15x8, 15x9 and 15x10 wheels-img_8511.jpg   Jongbloed 15x8, 15x9 and 15x10 wheels-img_8512.jpg   Jongbloed 15x8, 15x9 and 15x10 wheels-img_8514.jpg   Jongbloed 15x8, 15x9 and 15x10 wheels-img_8517.jpg   Jongbloed 15x8, 15x9 and 15x10 wheels-img_8515.jpg

MoarCurves is offline   Reply With Quote
Old 04-11-2015, 06:16 PM   #205
Newb

Join Date: Nov 2013
Location: Manchester, CT
Posts: 15
Total Cats: 1
Default

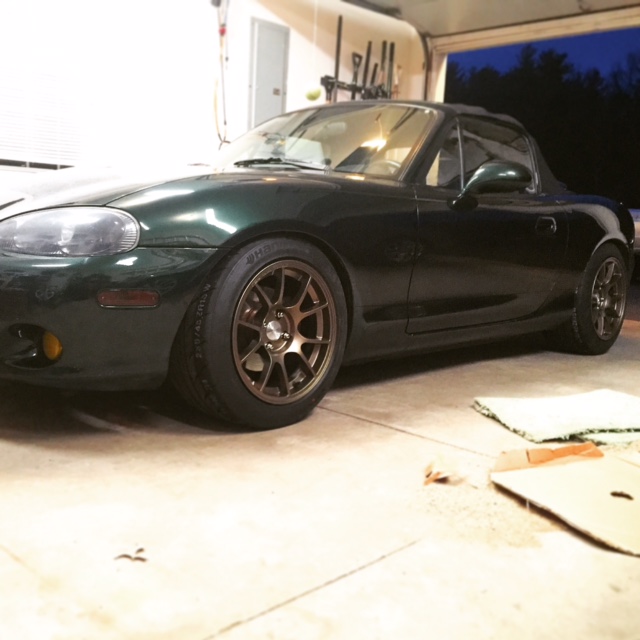

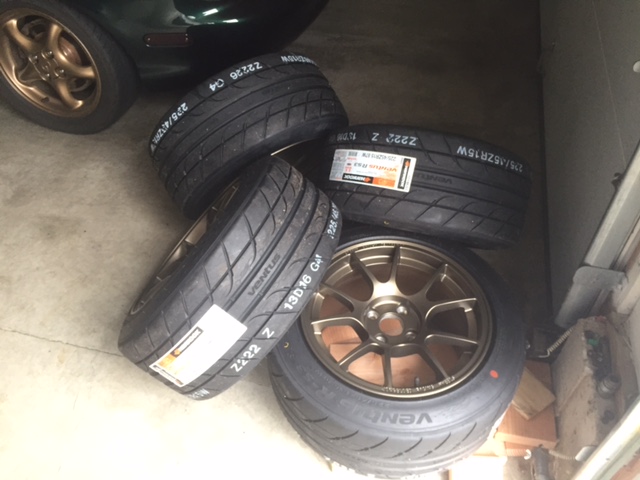

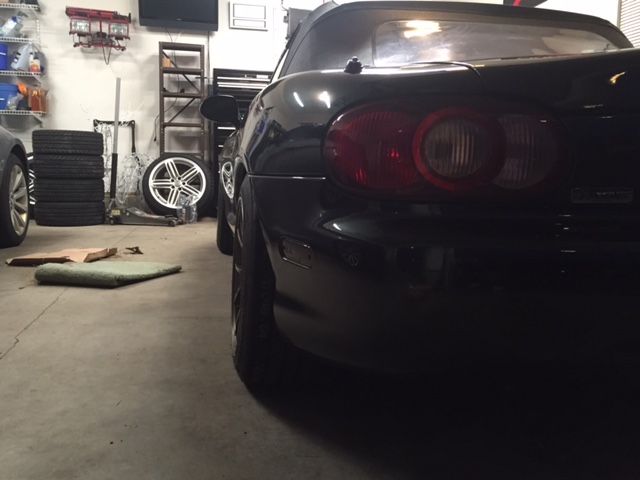

Forgot to post photos of them on the car!
Attached Thumbnails
Jongbloed 15x8, 15x9 and 15x10 wheels-img_8468.jpg   Jongbloed 15x8, 15x9 and 15x10 wheels-img_8479.jpg   Jongbloed 15x8, 15x9 and 15x10 wheels-img_8480.jpg   Jongbloed 15x8, 15x9 and 15x10 wheels-img_8483.jpg
MoarCurves is offline   Reply With Quote
Old 04-11-2015, 06:23 PM   #206
I take big bites
iTrader: (1)

turbofan's Avatar

Join Date: Sep 2010
Location: Portland, OR
Posts: 6,117
Total Cats: 426
Default

Looks awesome, thanks for sharing.

I probably should have bought this, but #949sackrider
turbofan is offline   Reply With Quote
Old 04-11-2015, 06:40 PM   #207
SadFab Sales Lady
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 15,910
Total Cats: 1,093
Default

Is there going to be a redesign/rerun of these? Because the wheels look amazing, but I wonder if they are going to get the weight back down.
aidandj is offline   Reply With Quote
Old 04-13-2015, 04:15 PM   #208
Senior Member
Thread Starter
iTrader: (1)

Join Date: Sep 2006
Posts: 734
Total Cats: 77
Default

If they do come back with the lighter weight, expect the price to go up.

We have discovered that the 15x8 don't clear factory Sport braces without a low profile banjo bolt - same as with the TRM wheels. Easy fix, just use a low profile banjo like the one we sell. I suspect that most stainless brake lines come with the lower profile bolt as well, I know ours do.
Keith@FM is offline   Reply With Quote
Old 04-13-2015, 04:33 PM   #209
Elite Member
iTrader: (3)

Join Date: Aug 2011
Posts: 7,237
Total Cats: 554
Default

Quote:
Originally Posted by MoarCurves View Post
No- you're not alone. Surprised noone else has brought this up.

Got my 15x9 bronze wheels in last week and got them mounted up and took her for a spin today (about 30 miles).

No fender rolling necessary, love how these look. They're mounted on an NB2 with vmaxx xtremes track pack coilovers. Tires are 225/45/15 RS3's. Tires clear the fenders perfectly fine. The tire does show witness marks adjacent to the top hat on the inside of the wheel well in the fronts (I don't have fender liners, so I don't recall if this area is normally covered, regardless, it makes contact there).

The area of slightly more concern is the front lower A-arms (rear under side). This area seems to make contact with the 2nd radius (middle of three steps) adjacent to the wheel bore. In static state there is plenty of clearance (an inch?). I tried loading it up with the wheel up with the car in the air and it gets closer, but doesn't touch. So it must be dynamic loading near bumpstop territory thats creating contact. It has made contact 360 deg around the wheel right on the radius. Not more than 5 mils depth (0.005") though, so its really only surface damage. I was on some roads with some big dips today, so I don't expect it to make any further contact, but I'll likely see at auto-x tomorrow.

See photos attached. I took a grinding wheel to the A arm surface (just to touch off and take down the surface), hopefully creating enough clearance. If not I may have to look into spacing them out.

Otherwise I'm super happy with the wheels- well made and look great!

Hrmmm... should i measure mine to see if the +36mm offset spec is actually correct?

Yours look kindof sunken in the rear, which is surprising to me.
concealer404 is offline   Reply With Quote
Old 04-16-2015, 02:46 PM   #210
Newb

Join Date: Nov 2013
Location: Manchester, CT
Posts: 15
Total Cats: 1
Default

Quote:
Originally Posted by concealer404 View Post
Hrmmm... should i measure mine to see if the +36mm offset spec is actually correct?

Yours look kindof sunken in the rear, which is surprising to me.
Hmm what do you mean sunken?

side note took them to autox this weekend. One side left another mark after I coated the a arms with paint. I think since it's only one side this time it might be at full or close to full lock when I was getting around my other car in my driveway.

The only rubbing I felt and found at autox was on the top of the wheel well. Which is surprising too. Otherwise, the lips are fine.

See some photos from autox with the wheels.


Attached Thumbnails
Jongbloed 15x8, 15x9 and 15x10 wheels-399a4557.jpg   Jongbloed 15x8, 15x9 and 15x10 wheels-img_9686.jpg   Jongbloed 15x8, 15x9 and 15x10 wheels-img_9692.jpg
MoarCurves is offline   Reply With Quote
Old 04-16-2015, 02:55 PM   #211
Elite Member
iTrader: (3)

Join Date: Aug 2011
Posts: 7,237
Total Cats: 554
Default

I mean they almost look like the offset is higher than 36mm in the back.

Is the rubbing enough to cause concern? I rarely rarely hit full lock in my cars.
concealer404 is offline   Reply With Quote
Old 04-16-2015, 02:58 PM   #212
Newb

Join Date: Nov 2013
Location: Manchester, CT
Posts: 15
Total Cats: 1
Default

I was only at full lock because I parked too close to the garage and had to shimmy my way out with the miata. Sucks with no PS ha.

The rubbing in the wheel well doesn't seem too bad, I'll keep an eye on it and report back as necessary.
MoarCurves is offline   Reply With Quote
Old 04-16-2015, 05:02 PM   #213
Elite Member
iTrader: (5)

Erat's Avatar

Join Date: Oct 2011
Location: Detroit
Posts: 3,992
Total Cats: 235
Default

If i go full lock i'll take HUNKS out of the wheel. Mine is no minor rub, I don't even know where full lock is anymore.
Erat is offline   Reply With Quote
Old 04-18-2015, 08:42 PM   #214
Senior Member
iTrader: (8)

paNX2K&SE-R's Avatar

Join Date: Dec 2007
Location: Mocksville, NC
Posts: 652
Total Cats: 10
Default

Does anyone else have these rubbing issues?
paNX2K&SE-R is offline   Reply With Quote
Old 04-19-2015, 06:19 PM   #215
Junior Member
iTrader: (1)

Join Date: May 2013
Location: Sandia Park, NM
Posts: 350
Total Cats: 30
Default

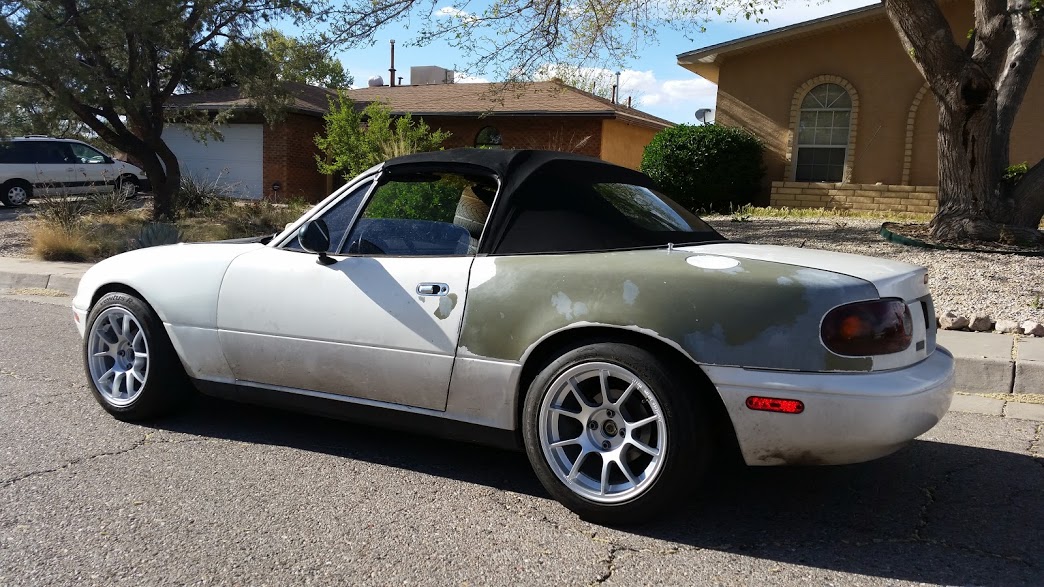

Just did a track day on these. No rubbing to report.
it's probably worth mentioning that it looks like Erat is running stock springs. Maybe he'll chime in with how many of his issues are due to that.
Looks so good my paint fell off
Attached Thumbnails
Jongbloed 15x8, 15x9 and 15x10 wheels-2015-04-18.jpg
leboeuf is offline   Reply With Quote
Old 04-29-2015, 02:02 AM   #216
Newb

Join Date: Oct 2012
Location: Auckland, New Zealand
Posts: 13
Total Cats: 0
Default

Has anyone tried the lower offset (15et) 15x10's Phil's tire service is selling?
evel is offline   Reply With Quote
Old 06-07-2015, 10:32 PM   #217
Newb

Join Date: Sep 2010
Posts: 4
Total Cats: 0
Default

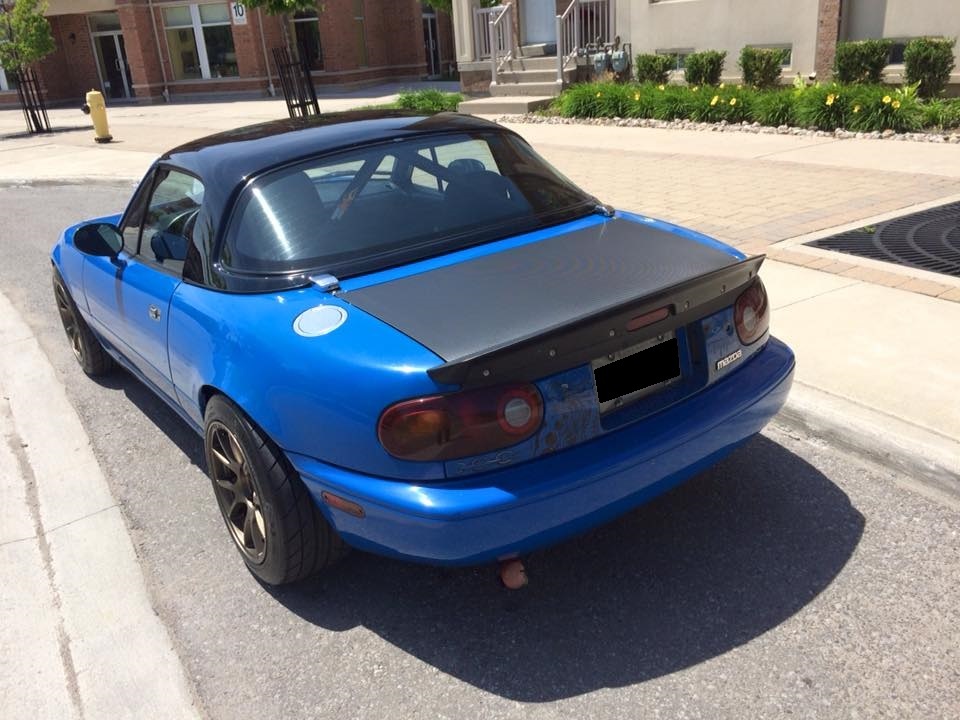

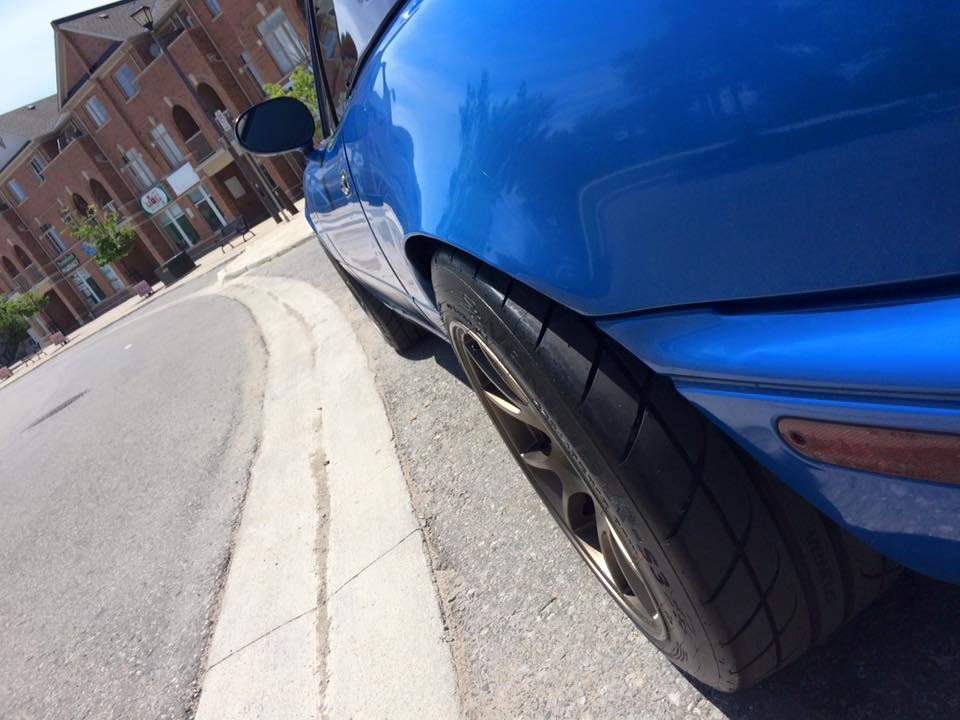

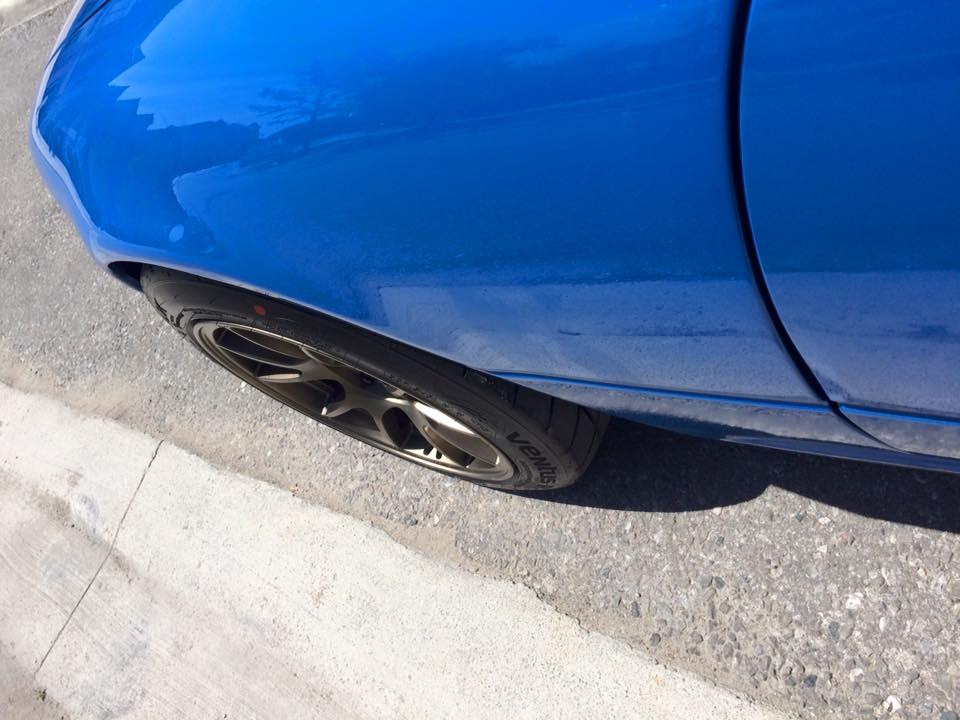

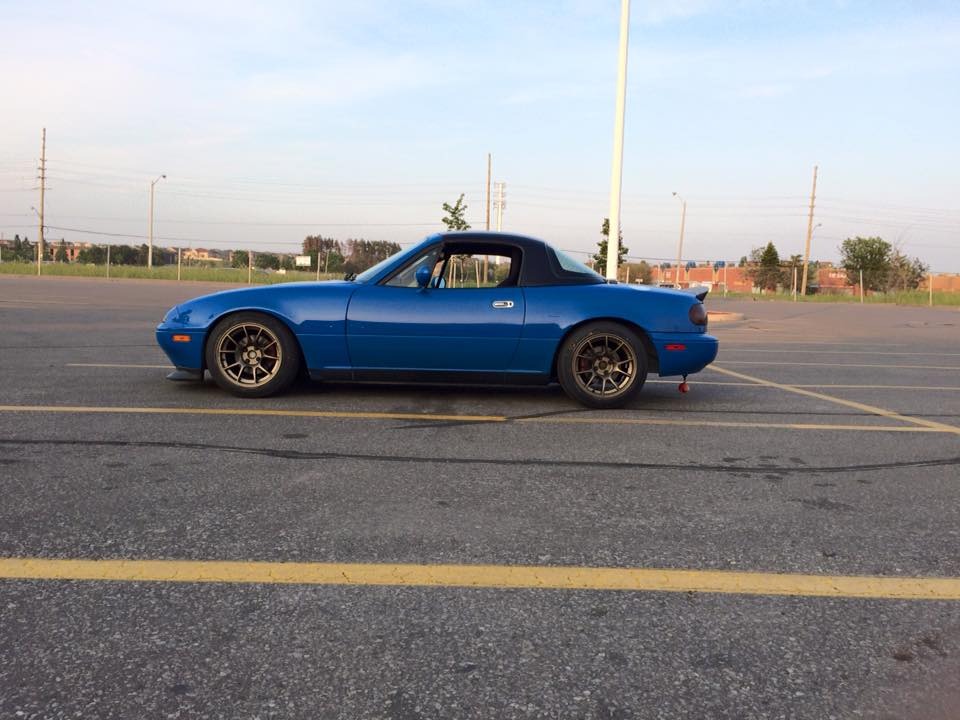

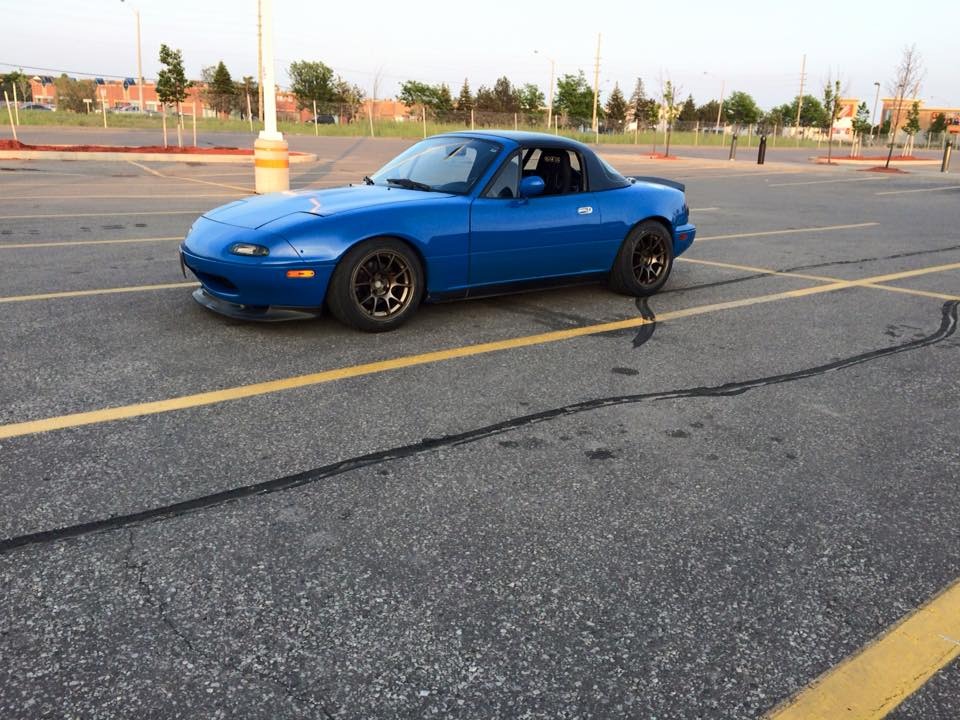

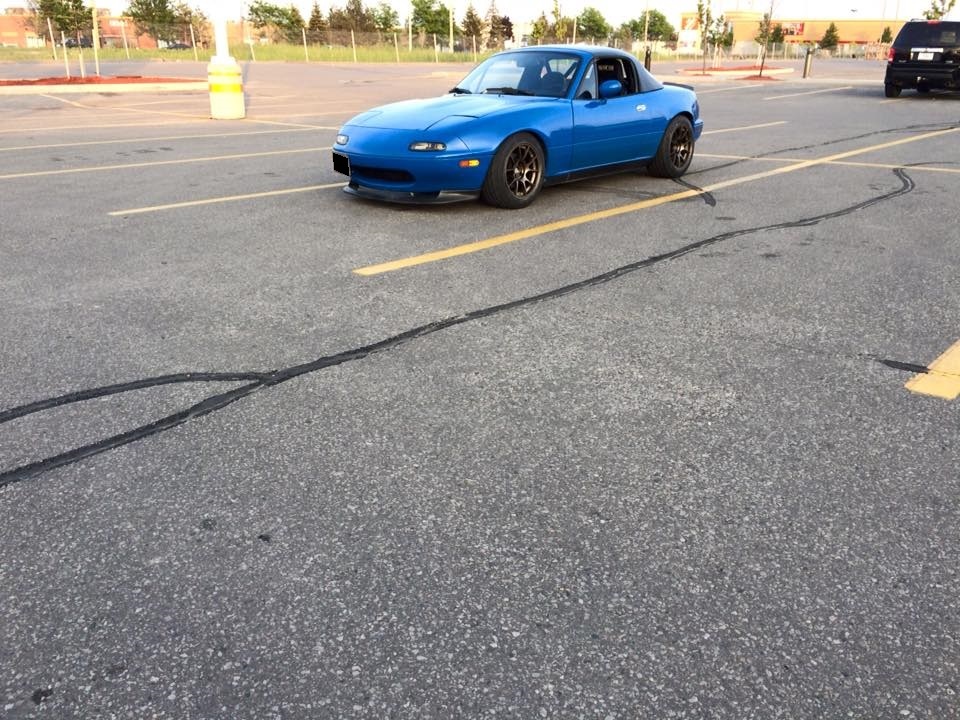

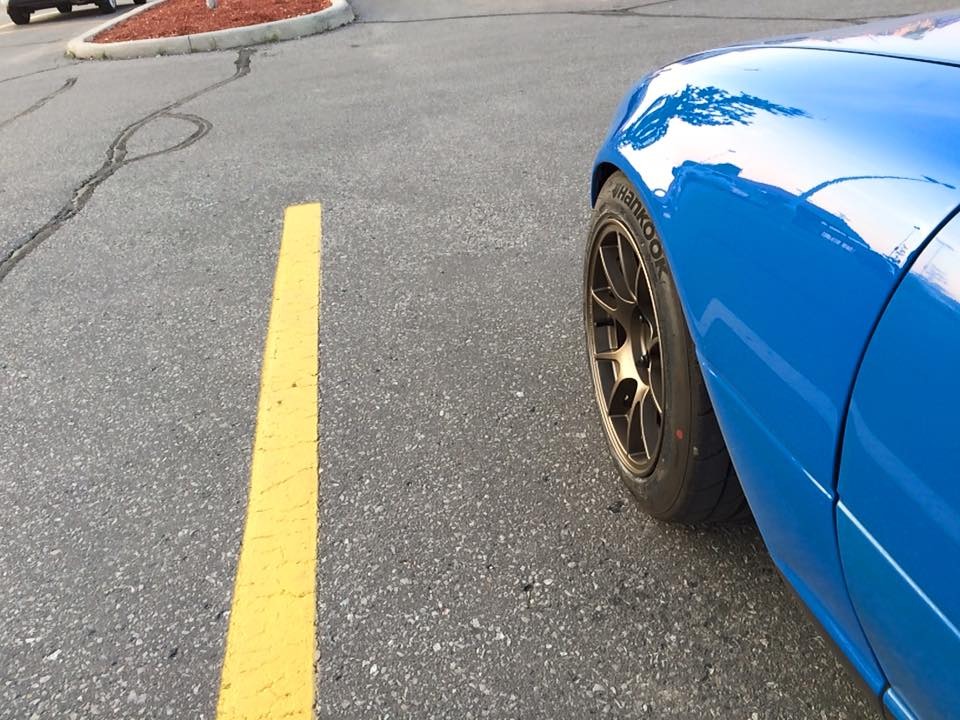

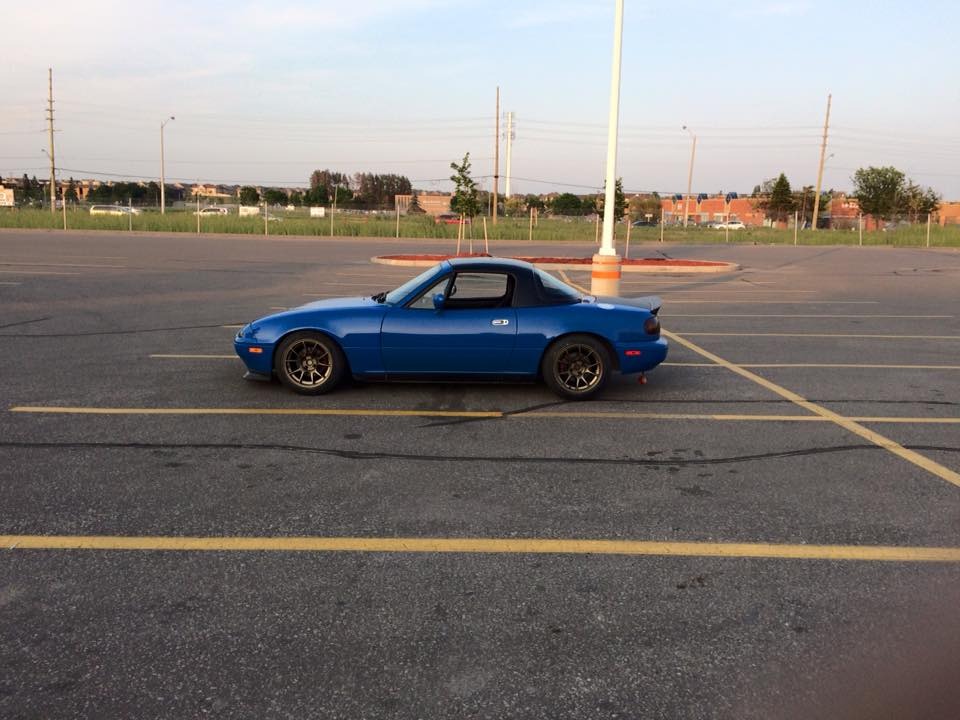

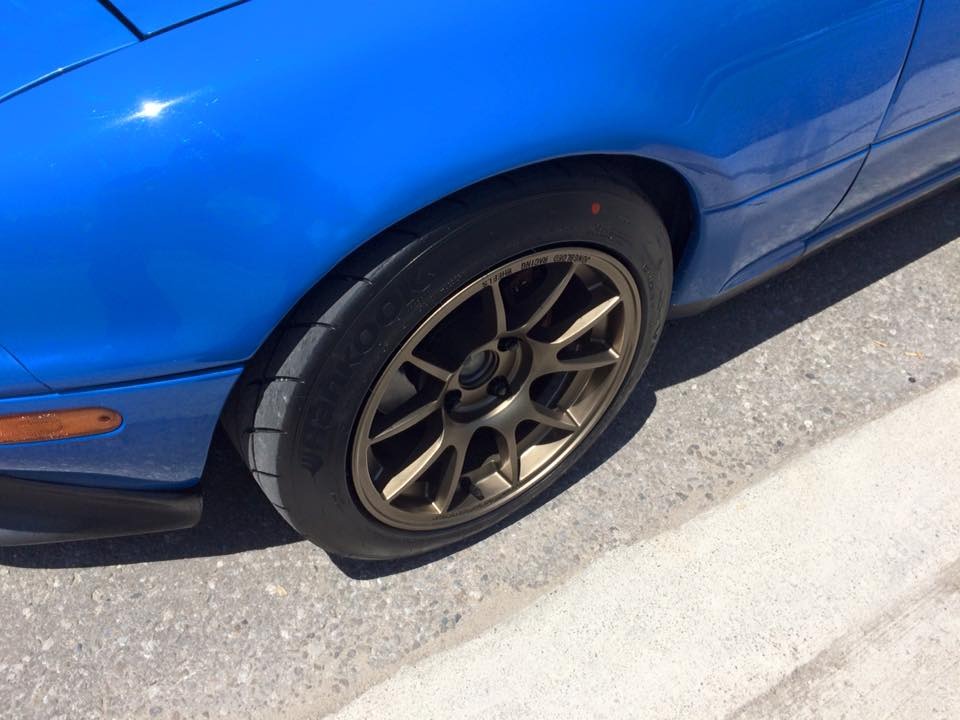

Finally mounted the rims!!!! Jongbloed 15x9 wearing 225/45/15 Hankook RS-3 v2. Car is sitting on HSD Mono Pro 9k front 6K rear iPhone 5s pics

These photos are with no spacers, my rears are rolled flat and slightly pulled, fronts have a mild roll.

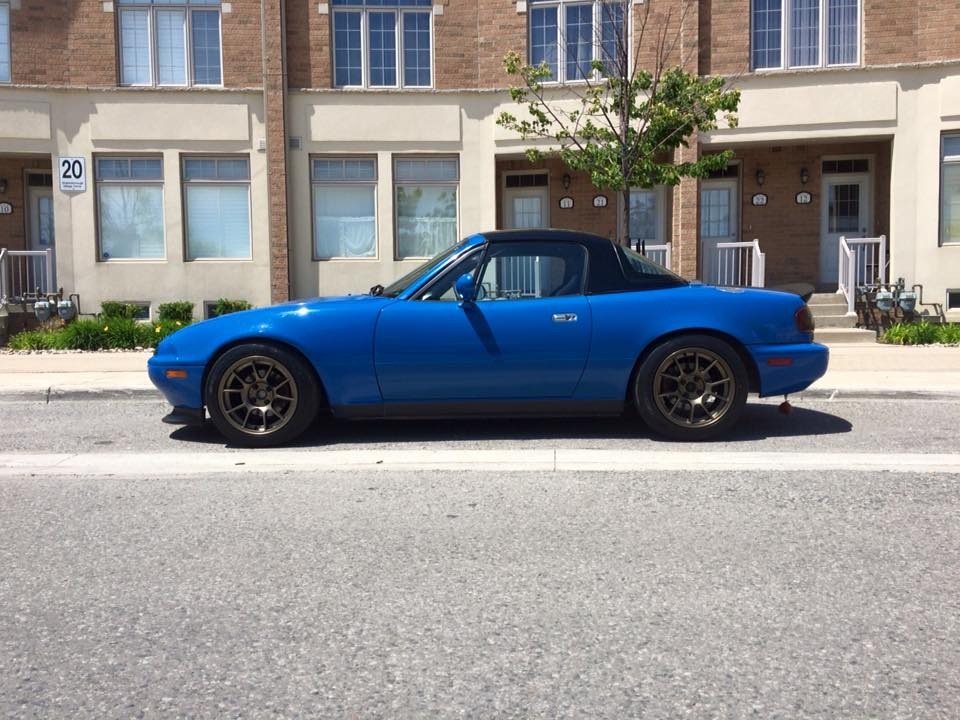

These photos are with spacers, 5mm in the front and 15 mm in the back. I was experiencing bad rub on the LCA in the front. I was actually loosing some lock in the steering wheel due to how bad they were hitting. I tried grinding it but I wasn't comfortable taking any more material and it was still rubbing like mad. 5mm spacer in the front solved most of the rub and gave me back some much needed steering lock. Now it only rubs on the LCA if I'm being belligerent on the wheel. *note* I also was planning on raising the front of the car so the fronts are about 1 inch higher in these pics.














Last edited by bandaiboy; 06-07-2015 at 10:43 PM.
bandaiboy is offline   Reply With Quote
Old 06-17-2015, 07:17 PM   #218
Junior Member

Join Date: Aug 2014
Location: Pittsburgh, PA
Posts: 113
Total Cats: 5
Default

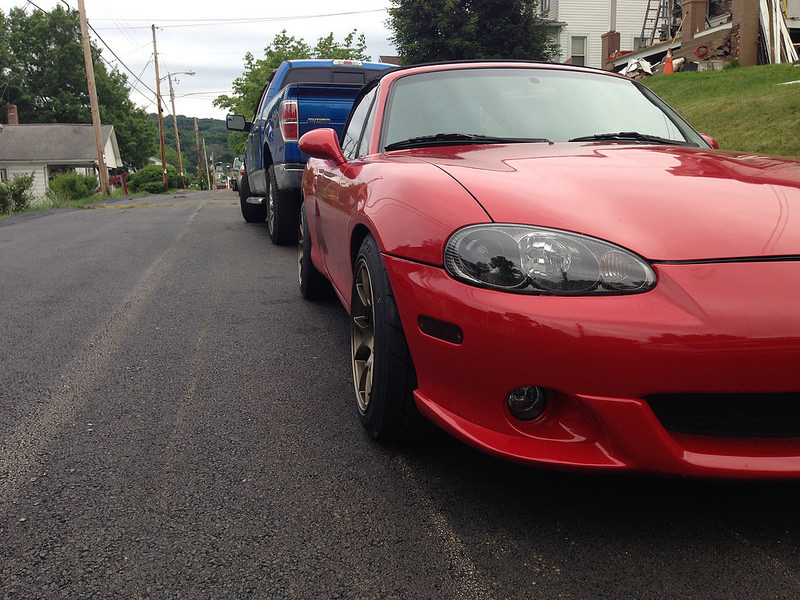

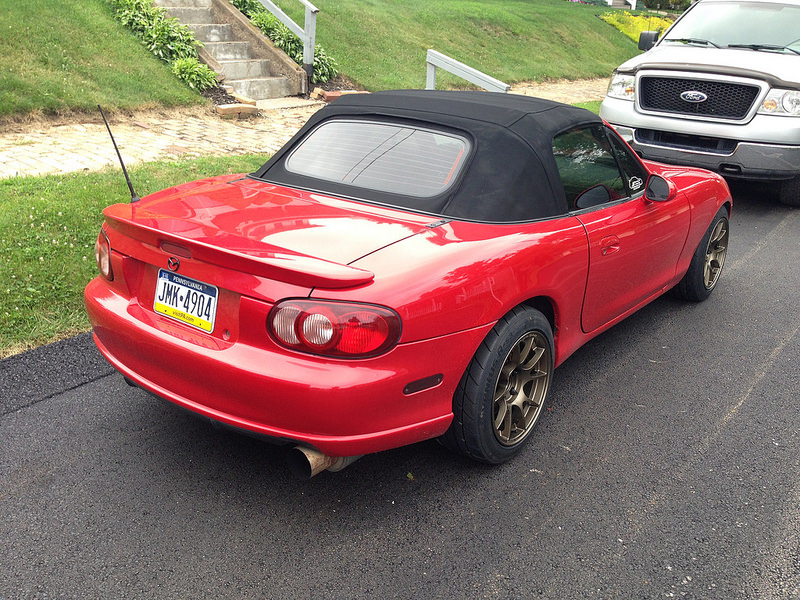

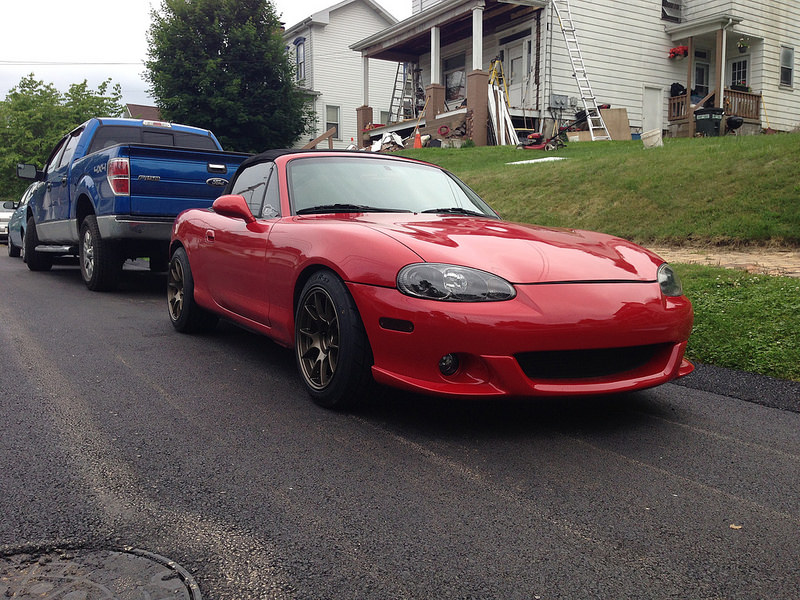

wheels are on! 15x9s on stock MSM Billies and H&R springs, some slight rubbing at full lock but thats not the end of the world and can be fixed down the road pretty easily. Ill get better pics up down the road, until then the phone pics will have to suffice





Attached Thumbnails
Jongbloed 15x8, 15x9 and 15x10 wheels-18716603228_d1437c7da5_c.jpg   Jongbloed 15x8, 15x9 and 15x10 wheels-18716624678_994a093209_c.jpg   Jongbloed 15x8, 15x9 and 15x10 wheels-18877987406_1da6f3b67c_c.jpg
thejeans is offline   Reply With Quote
Old 06-17-2015, 07:22 PM   #219
Elite Member
iTrader: (3)

Join Date: Aug 2011
Posts: 7,237
Total Cats: 554
Default

Looks good! Any fender roll?
concealer404 is offline   Reply With Quote
Old 06-17-2015, 08:57 PM   #220
Junior Member

Join Date: Aug 2014
Location: Pittsburgh, PA
Posts: 113
Total Cats: 5
Default

Quote:
Originally Posted by concealer404 View Post
Looks good! Any fender roll?
I will be rolling the fenders this weekend when I install my Tein coils.
thejeans is offline   Reply With Quote
