Default ismael_pt Adaptronic installation (DIY harness)

I'm currently making my own parallel harness and for now this is what i have done:

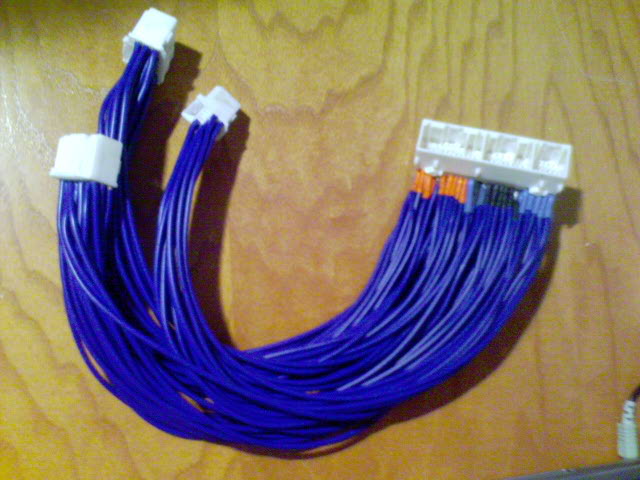

Name:  DSC00197.jpg
Views: 2
Size:  54.4 KB

Routed directly all the wires, so is only an extension harness. Because is my first EMS and in order to make things easier I want to run the most simple parallel installation.

- Adaptronic: Fuel, spark, vvt, ebc.

- Mazda ECU: idle,fans,alternator, and the rest of simple stuff.


So, I removed injector and coils wires from the extension harness and routed to Adaptronic. Next step is sharing sensors between ecus.

I have a couple of questions...

Is the J4-3 (adaptronic) to 4D (mazda) the only wire needed to control VVT?

Do I have to ground all GND connections on Adaptronic?


I accept any suggestion.

When my simple parallel installation starts to work well, i'll deal with MAF trickery, launch control, boost by gear...

Last edited by ismael_pt; 05-15-2009 at 03:30 PM.
ismael_pt is offline   Reply With Quote
Old 05-15-2009, 12:50 PM   #2
Elite Member
iTrader: (22)

Join Date: Dec 2006
Location: Sunny Spanish speaking Non US Caribbean
Posts: 3,257
Total Cats: 3
Default

No answers for your questions here Ismael but; I'm glad to see you've started!

Did you get the DIYAuotune parts?

BTW; I like your plan of attack. Looking forward to seeing good results!
Rafa is offline   Reply With Quote
Old 05-15-2009, 01:25 PM   #3
Junior Member
Thread Starter
iTrader: (1)

Join Date: Aug 2008
Location: Granada, Spain
Posts: 336
Total Cats: 2
Default

Not yet but next monday maybe. It's in the spanish customs now, crossing fingers to let it pass without taxes.
ismael_pt is offline   Reply With Quote
Old 05-15-2009, 01:55 PM   #4
Junior Member
iTrader: (1)

Join Date: Jul 2008
Location: The Netherlands
Posts: 104
Total Cats: 0
Default

I guess that you plan to run both maf and map because you want the ecu for idle and the adaptronic for fuel?

The only ground that isn't connected in my loom is: sensorgnd.
martijn is offline   Reply With Quote
Old 05-15-2009, 03:28 PM   #5
Junior Member
Thread Starter
iTrader: (1)

Join Date: Aug 2008
Location: Granada, Spain
Posts: 336
Total Cats: 2
Default

Quote:
Originally Posted by martijn View Post
I guess that you plan to run both maf and map because you want the ecu for idle and the adaptronic for fuel?

The only ground that isn't connected in my loom is: sensorgnd.
Needs the mazda ecu a signal from the MAF to run the idle? Maybe I'll do the idle with the adaptronic, I want to remove the MAF.
ismael_pt is offline   Reply With Quote
Old 05-18-2009, 09:22 PM   #6
Junior Member
Thread Starter
iTrader: (1)

Join Date: Aug 2008
Location: Granada, Spain
Posts: 336
Total Cats: 2
Default

I plugged the Adaptronic today with my ghetto harness. TPS, crank and cam signals are not working. I triple checked the wires and are ok. I can't figure what's wrong, maybe somthing about ground wires.

Logs are full of interference. Can take a look at it guys?
Attached Files
File Type: rar ismael_pt.rar (3.9 KB, 31 views)
ismael_pt is offline   Reply With Quote
Old 05-18-2009, 09:40 PM   #7
Senior Member
iTrader: (3)

Join Date: Aug 2005
Location: Gig Harbor, WA
Posts: 504
Total Cats: 3
Default

There is something wrong with your log files. Did you modify them? The columns don't line up like they should.

Are you using the newest WARI and firmware?

Could you post some new ones with out pututing them in a .rar file?
TurboRoach is offline   Reply With Quote
Old 05-18-2009, 09:50 PM   #8
Elite Member
iTrader: (22)

Join Date: Dec 2006
Location: Sunny Spanish speaking Non US Caribbean
Posts: 3,257
Total Cats: 3
Default

Ismael, follow roach's advice. You don't need to zip the file.
Rafa is offline   Reply With Quote
Old 05-18-2009, 09:53 PM   #9
Junior Member
Thread Starter
iTrader: (1)

Join Date: Aug 2008
Location: Granada, Spain
Posts: 336
Total Cats: 2
Default

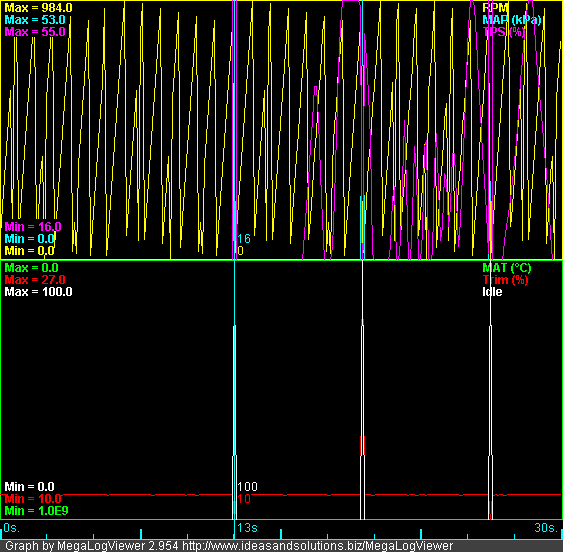

Name:  log1.png
Views: 2
Size:  9.8 KB

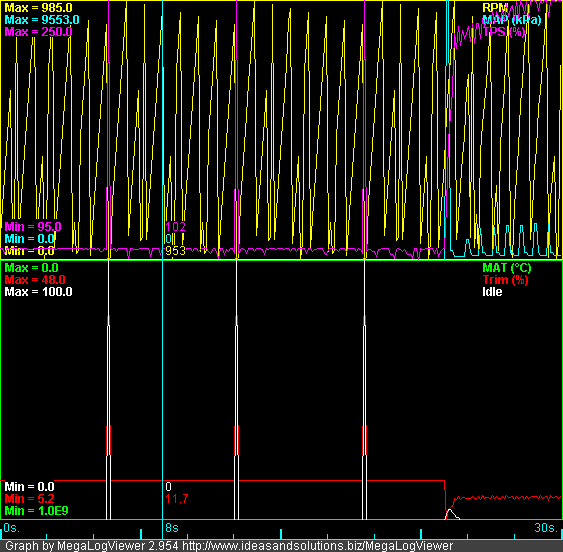

Name:  log2.png
Views: 2
Size:  10.0 KB

version 1.11, firmware 1.0N
ismael_pt is offline   Reply With Quote
Old 05-18-2009, 10:18 PM   #10
Senior Member
iTrader: (3)

Join Date: Aug 2005
Location: Gig Harbor, WA
Posts: 504
Total Cats: 3
Default

I think you may have a communication error between the adaptronic and your pc. The values in the plots you posted are not right. The trim can only have integer values, so 11.7 & 5.2 probably belong to a different column.

Is it possible to get a new log? You don't need to have the car running just turn the key on, then start logging.
TurboRoach is offline   Reply With Quote
Old 05-19-2009, 10:31 AM   #11
Junior Member
Thread Starter
iTrader: (1)

Join Date: Aug 2008
Location: Granada, Spain
Posts: 336
Total Cats: 2
Default

New log, without modification of the file. I can't attach .cvs files, I need to zip them.

WARI shows this:

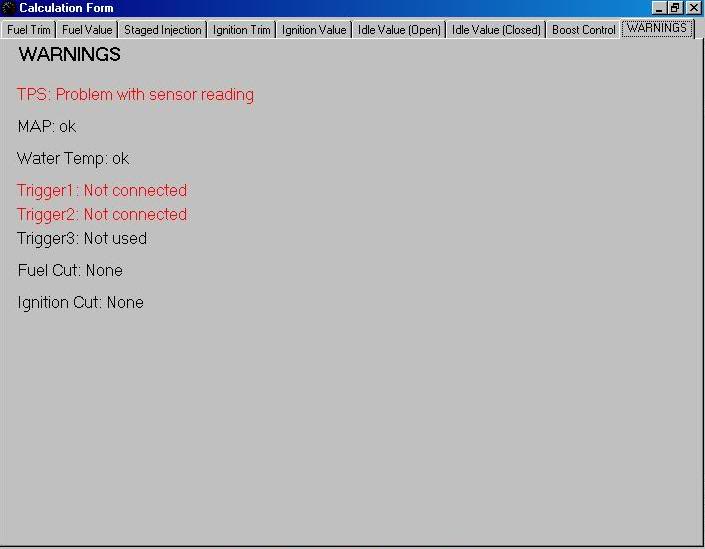

Name:  adaptronic2.jpg
Views: 2
Size:  25.1 KB

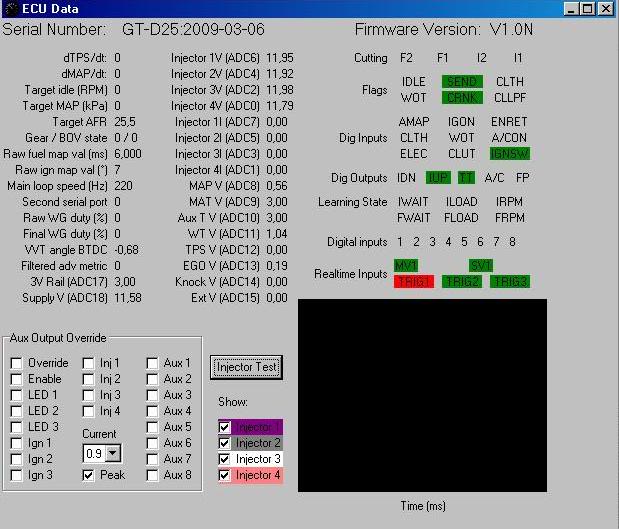

Name:  adaptronic1.jpg
Views: 2
Size:  63.0 KB
Attached Files
File Type: zip log3.zip (44.7 KB, 34 views)
ismael_pt is offline   Reply With Quote
Old 05-19-2009, 10:36 AM   #12
Elite Member
iTrader: (9)

Join Date: Jun 2008
Location: Houston, TX
Posts: 1,583
Total Cats: 8
Default

You have ground loop interference it looks like to me. You'll have to track down where you have multiple grounds for a single input source.
TravisR is offline   Reply With Quote
Old 05-19-2009, 01:25 PM   #13
Senior Member
iTrader: (3)

Join Date: Aug 2005
Location: Gig Harbor, WA
Posts: 504
Total Cats: 3
Default

Travis,
I wouldn't try diagnosing sensor trouble just yet. Those logs are not right. I wouldn't trust any of the readings until you get the log corrected.

ismeal,
Try unplugging all of the adaptronic connectors except the main power connector(8-pin). Take a log of that, and post it. I'd like to see if the log is formatted correctly with just power and no sensors hooked up.
TurboRoach is offline   Reply With Quote
Old 05-19-2009, 02:49 PM   #14
Junior Member
Thread Starter
iTrader: (1)

Join Date: Aug 2008
Location: Granada, Spain
Posts: 336
Total Cats: 2
Default

Quote:
Originally Posted by TurboRoach View Post
Travis,
I wouldn't try diagnosing sensor trouble just yet. Those logs are not right. I wouldn't trust any of the readings until you get the log corrected.

ismeal,
Try unplugging all of the adaptronic connectors except the main power connector(8-pin). Take a log of that, and post it. I'd like to see if the log is formatted correctly with just power and no sensors hooked up.

Another log, this time with only the 8-pin connector plugged in. Looks the same as the other logs.

BTW, the adaptronic reads correctly the IAT, CLT, MAP, but TPS, cam and crank signals are not working.

TPS ground is conected to senGND (4O mazda pin - A20 adaptronic ).
Attached Files
File Type: zip log4.zip (100.6 KB, 34 views)
ismael_pt is offline   Reply With Quote
Old 05-19-2009, 03:03 PM   #15
Junior Member
Thread Starter
iTrader: (1)

Join Date: Aug 2008
Location: Granada, Spain
Posts: 336
Total Cats: 2
Default

Quote:
Originally Posted by martijn View Post
The only ground that isn't connected in my loom is: sensorgnd.

Is it possible this? If I disconnect the senGND, none of my sensors works.

What about the cam and crank signals? Where they must be grounded?
ismael_pt is offline   Reply With Quote
Old 05-19-2009, 03:16 PM   #16
y8s
2 Props,3 Dildos,& 1 Cat
iTrader: (8)

y8s's Avatar

Join Date: Jun 2005
Location: Fake Virginia
Posts: 19,037
Total Cats: 406
Default

Quote:
Originally Posted by ismael_pt View Post
Is it possible this? If I disconnect the senGND, none of my sensors works.

What about the cam and crank signals? Where they must be grounded?
I have all my sensor grounds handled at the stock ECU. my adaptronic harness has the TPS GND removed from the connector and just dangling free. no issues with it that way. when it WAS connected, I had crazy log data. see for yourself:

With TPS GND connected at adaptronic (CAR OFF, not touching anything!):
y8s is offline   Reply With Quote
Old 05-19-2009, 05:49 PM   #17
Senior Member
iTrader: (3)

Join Date: Aug 2005
Location: Gig Harbor, WA
Posts: 504
Total Cats: 3
Default

Yates,
Your values, while crazy, appear to still be technically valid, integer=integer, decimal=decimal. ismeal's values aren't, he has decimals where there should be integers (Trim %) and integers where there should be decimals (Time).

This could be a ground issue, but there is also some sort of communication error as well. With just the +12V and chasis ground connected it should have output the default values for the sensors. Maybe a bad com port either on the PC or ecu...

I think your best bet would be to contact adaptronic and see if they've encountered something like this before.
TurboRoach is offline   Reply With Quote
Old 05-19-2009, 07:13 PM   #18
Junior Member
Thread Starter
iTrader: (1)

Join Date: Aug 2008
Location: Granada, Spain
Posts: 336
Total Cats: 2
Default

update :

The problem is almost located. Something between the TPS GND and the other sensors GND, if I disconnect the sensor ground, all sensors stop working, and TPS starts to work, and vice versa. Where I have to connect the TPS ground? Or maybe I have to ground all the other sensors to a different pin. Currently are sharing the same ground point with the TPS.

BTW, logs still looks weird, but maybe is related to the bad ground.
ismael_pt is offline   Reply With Quote
Old 05-19-2009, 09:54 PM   #19
Senior Member
iTrader: (3)

Join Date: Aug 2005
Location: Gig Harbor, WA
Posts: 504
Total Cats: 3
Default

Quote:
Originally Posted by ismael_pt View Post
Another log, this time with only the 8-pin connector plugged in. Looks the same as the other logs.

BTW, the adaptronic reads correctly the IAT, CLT, MAP, but TPS, cam and crank signals are not working.

TPS ground is conected to senGND (4O mazda pin - A20 adaptronic ).
You could try connecting one sensor at a time and see which one causes the readings to be off.

How can you tell that any of the sensors are reading correctly when they don't show up in the log? Does the live gauge show reasonable values that don't make it into the log?

If you had the other connectors unplugged when you took that last log then the bad log data shouldn't be related to sensor ground.

Y8s has his going, maybe you could look at the connection sheet he posted.
TurboRoach is offline   Reply With Quote
Old 05-19-2009, 10:04 PM   #20
Junior Member
Thread Starter
iTrader: (1)

Join Date: Aug 2008
Location: Granada, Spain
Posts: 336
Total Cats: 2
Default

Quote:
Originally Posted by TurboRoach View Post
You could try connecting one sensor at a time and see which one causes the readings to be off.

How can you tell that any of the sensors are reading correctly when they don't show up in the log? Does the live gauge show reasonable values that don't make it into the log?

If you had the other connectors unplugged when you took that last log then the bad log data shouldn't be related to sensor ground.

Sorry, I haven't explained myself very well. The Adaptronic reads the sensors, but the values are incorrect ( MAP don't change, colant temp is +30 or -30 or something, TPS is sometimes 20-23% and sometimes 40-45% and don't even change if I move the throttlebody)
ismael_pt is offline   Reply With Quote
