Default Proposed Timing Maps

I'm trying to figure out a base map that will atleast kind of work for everyone. This is what I came up with. its a composite of joe perez, savington's and a couple other maps, redone with some polynomial fits and some normalizing, and then a net timing cut to ensure knock safety. Please blister if it looks bad.
Attached Files
File Type: pdf proposedtiming.pdf (401.7 KB, 155 views)
TravisR is offline   Reply With Quote
Old 07-16-2009, 11:54 PM   #2
y8s
2 Props,3 Dildos,& 1 Cat
iTrader: (8)

y8s's Avatar

Join Date: Jun 2005
Location: Fake Virginia
Posts: 19,038
Total Cats: 407
Default

minor change I notice right away

for 0, 500, 1000, and 1500 rpm:

0 kPa:
15, 12, 12, 12

20 kPa:
15, 12, 12, 12

40 kPa:
18, 15, 15, 15

should keep idle stable and happy
y8s is offline   Reply With Quote
Old 07-17-2009, 12:26 AM   #3
Elite Member
iTrader: (46)

Stein's Avatar

Join Date: Dec 2007
Location: Nebraska
Posts: 4,812
Total Cats: 138
Default

Subscribed. After everyone has given it their blessing, I'll throw it in and give it a go.

When you say net timing cut, are you talking a percentage or units across the board?
Stein is offline   Reply With Quote
Old 07-17-2009, 12:32 AM   #4
Elite Member
Thread Starter
iTrader: (9)

Join Date: Jun 2008
Location: Houston, TX
Posts: 1,583
Total Cats: 8
Default

Quote:
Originally Posted by y8s View Post
minor change I notice right away

for 0, 500, 1000, and 1500 rpm:

0 kPa:
15, 12, 12, 12

20 kPa:
15, 12, 12, 12

40 kPa:
18, 15, 15, 15

should keep idle stable and happy
My beautifully blended timing map got raped by your suggestions. I'm going to smooth this out a bit, and post up the revised version, but pretty much the above with what he said. I know some of that low load middle RPM stuff doesn't have alot of advance in it. Anyone care to offer suggestions to part throttle land?

Quote:
When you say net timing cut, are you talking a percentage or units across the board?
I pulled 2 degrees out of everything after it was done.
TravisR is offline   Reply With Quote
Old 07-17-2009, 12:44 AM   #5
Elite Member

Join Date: Jul 2005
Posts: 6,454
Total Cats: 80
Default

In theory the 1.6, 1.8, and 99+ motors have different VE curves and thus should have different timing maps.
JasonC SBB is offline   Reply With Quote
Old 07-17-2009, 12:48 AM   #6
Elite Member
Thread Starter
iTrader: (9)

Join Date: Jun 2008
Location: Houston, TX
Posts: 1,583
Total Cats: 8
Default

Just need a map to make sure everyone is driving safe. Not too much retard to fry valves and not too much advance to ventilate blocks. It would be great if we could get the gold standard for each, but nearly everything on the motor will influence the VE curve as much as the head so its nearly a lost cause on even approaching perfection.
TravisR is offline   Reply With Quote
Old 07-17-2009, 11:29 AM   #7
Senior Member

Join Date: Nov 2007
Location: somewhere in NoVA
Posts: 550
Total Cats: -1
Default

Hmm, I will give these a shot during my next trip out... maybe in an hour.

Dumb question tho... when I try to put a value lower than 16 in the fields that Y8S suggested in his post... they revert back to 16? What's the trick?



Thanks for posting them!!!
Cheers,
Prospero

Last edited by Prospero; 07-17-2009 at 12:12 PM.
Prospero is offline   Reply With Quote
Old 07-17-2009, 01:07 PM   #8
y8s
2 Props,3 Dildos,& 1 Cat
iTrader: (8)

y8s's Avatar

Join Date: Jun 2005
Location: Fake Virginia
Posts: 19,038
Total Cats: 407
Default

Quote:
Originally Posted by TravisR View Post
My beautifully blended timing map got raped by your suggestions. I'm going to smooth this out a bit, and post up the revised version, but pretty much the above with what he said. I know some of that low load middle RPM stuff doesn't have alot of advance in it. Anyone care to offer suggestions to part throttle land?
Your map doesn't have to be smooth down there near the idle transition to throttle-on. so what if the timing jumps 20 or 30 degrees just by touching the gas pedal?

Run lots of advance at part-throttle. I'm between 30-40 degrees from 100kPa down. This is important especially if someone wants to run lean at cruise. edit: I think you're ok for the most part there.
y8s is offline   Reply With Quote
Old 07-17-2009, 02:11 PM   #9
Elite Member
iTrader: (46)

Stein's Avatar

Join Date: Dec 2007
Location: Nebraska
Posts: 4,812
Total Cats: 138
Default

Matt, you should post up your map for reference.
Stein is offline   Reply With Quote
Old 07-17-2009, 02:19 PM   #10
Senior Member

Join Date: Nov 2007
Location: somewhere in NoVA
Posts: 550
Total Cats: -1
Default

Quote:
Originally Posted by Stein View Post
Matt, you should post up your map for reference.
Which Matt?

Y8S or me?

Cheers,
[email protected]
Prospero is offline   Reply With Quote
Old 07-17-2009, 02:43 PM   #11
Supporting Vendor
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 14,370
Total Cats: 1,332
Default

18.0 degrees at 4500rpm and 180kpa would have my motor knocking horribly.
Savington is offline   Reply With Quote
Old 07-17-2009, 03:15 PM   #12
Elite Member
iTrader: (22)

Join Date: Dec 2006
Location: Sunny Spanish speaking Non US Caribbean
Posts: 3,257
Total Cats: 3
Default

Quote:
Originally Posted by Stein View Post
Matt, you should post up your map for reference.
It's in this thread: https://www.miataturbo.net/forum/t18648/
Rafa is offline   Reply With Quote
Old 07-17-2009, 04:20 PM   #13
Elite Member
iTrader: (46)

Stein's Avatar

Join Date: Dec 2007
Location: Nebraska
Posts: 4,812
Total Cats: 138
Default

Quote:
Originally Posted by Prospero View Post
Which Matt?

Y8S or me?

Cheers,
[email protected]
I was referring to Yates.
Stein is offline   Reply With Quote
Old 07-17-2009, 04:26 PM   #14
y8s
2 Props,3 Dildos,& 1 Cat
iTrader: (8)

y8s's Avatar

Join Date: Jun 2005
Location: Fake Virginia
Posts: 19,038
Total Cats: 407
Default

y8s is offline   Reply With Quote
Old 07-17-2009, 04:30 PM   #15
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,198
Total Cats: 2,584
Default

Any chance of a screen shot of your fuel map as well? Or you can pm it to me if its not too much trouble (so we dont knock this thread off topic). I am in the middle of working on mine right now and just want to see as many of your guys' as I can so I know what the "general curve" looks like.....
18psi is offline   Reply With Quote
Old 07-17-2009, 04:33 PM   #16
Elite Member
iTrader: (46)

Stein's Avatar

Join Date: Dec 2007
Location: Nebraska
Posts: 4,812
Total Cats: 138
Default

Thanks Matt.

I wish I would have dont the 300 RPM steps from the get-go just for better resolution. If you change it it just pushes the cells down. I suupose that I could remassage it, seeing as my tune isn't anything special right now.

Looks like another weekend project.
Stein is offline   Reply With Quote
Old 07-17-2009, 04:35 PM   #17
Senior Member

Join Date: Nov 2007
Location: somewhere in NoVA
Posts: 550
Total Cats: -1
Default

Since I had time to kill... I went ahead and put the timing numbers in, sorta a mix between Y8S earlier suggestions and Travis models...

Sure that it will take more playing with; but hey...that's 15 min worth of data entry already done.

Cheers,
Prospero

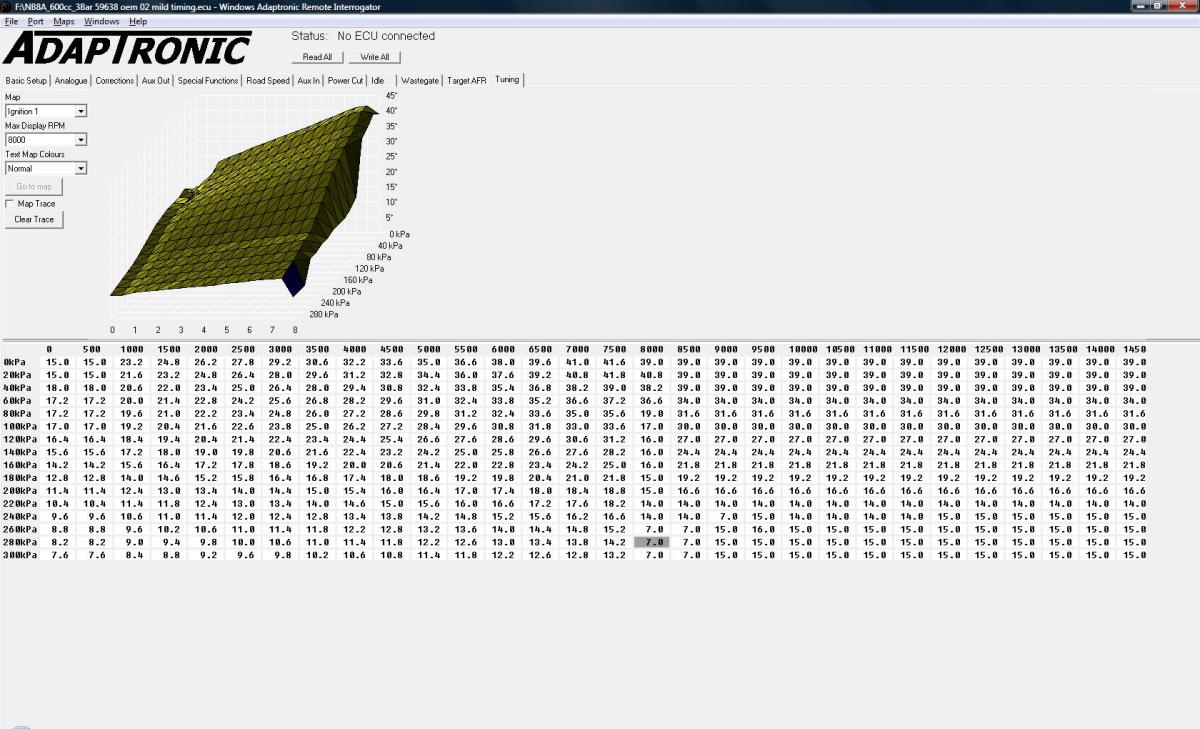

Proposed Timing Maps-timing-per-travis.jpg

NB8A_600cc_3Bar 59638 oem 02 mild timing.zip
Prospero is offline   Reply With Quote
Old 07-17-2009, 05:01 PM   #18
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,198
Total Cats: 2,584
Default

Good stuff


Btw I'm using 500rpm steps as well. All the evo/sti ecu's use that I figure I wont really need much more resolution that that. Am I wrong?
18psi is offline   Reply With Quote
Old 07-17-2009, 05:01 PM   #19
y8s
2 Props,3 Dildos,& 1 Cat
iTrader: (8)

y8s's Avatar

Join Date: Jun 2005
Location: Fake Virginia
Posts: 19,038
Total Cats: 407
Default

Quote:
Originally Posted by Prospero View Post
Since I had time to kill... I went ahead and put the timing numbers in, sorta a mix between Y8S earlier suggestions and Travis models...

Sure that it will take more playing with; but hey...that's 15 min worth of data entry already done.

Cheers,
Prospero
You may want to go back and read Savington's interjection about 18 degrees at 4500 @ 180kPa being a bad thing.

The reason most of our maps dip there is as someone mentioned in the thread Rafa linked--it's the torque peak and the cylinder pressures are highest. That's where knock is most likely to rear its head. Best to back off a little bit and save the motor.

Incidentally, my spark map is *slightly* more aggressive than FM's base map for the hydra. Porting it over was a bitch if anyone cares.

Vlad: start a new thread for fuel maps if you wanna see em. This is the timing map thread.

Stein: I wish the software had two things: 1) fully configurable breakpoints for RPM and MAP, and 2) a rescale function. sigh.
y8s is offline   Reply With Quote
Old 07-17-2009, 05:38 PM   #20
Elite Member
iTrader: (46)

Stein's Avatar

Join Date: Dec 2007
Location: Nebraska
Posts: 4,812
Total Cats: 138
Default

Quote:
Originally Posted by y8s View Post
Stein: I wish the software had two things: 1) fully configurable breakpoints for RPM and MAP, and 2) a rescale function. sigh.

No doubt. I also wish it could toggle between *C and *F.
Stein is offline   Reply With Quote
