well, if the tunnels extend further foward into the undercarriage, a larger AOA can be achieved. The volume isn't necessarily reduced, depending on the shape of the tunnels vs. the shape of the diffuser. Furthermore, the downforce created by the tunnels will bring the CoP closer to vehicle center.
Reply
0
0
Junior Member
Joined: Aug 2006
Posts: 239
Total Cats: 5
From: Cedar City, UT
This popped up on a FB page about prototypes and such, not sue if it would be better to transplant the info into its own thread or put it into this one. But NACA ducts vs Scoops:
NACA Duct vs. Scoops | Ivanitski
NACA Duct vs. Scoops | Ivanitski
Reply
0
0

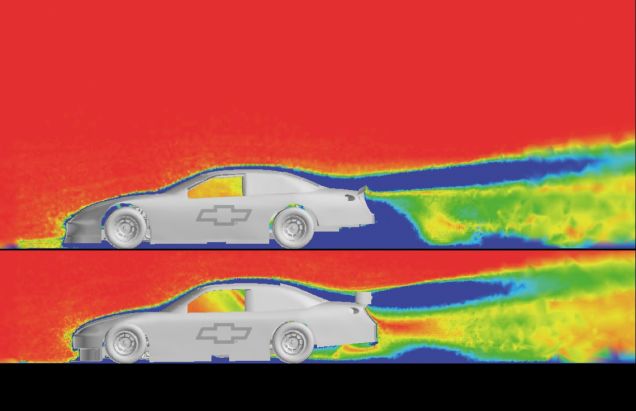

According to the article it says red is laminar. But it wasn't the most technically written aero discussions.
Wings/Spoilers: You're probably doing it wrong.
I was looking more at the comparison of spoiler vs wing which the change in front end shouldn't effect to much.
Wings/Spoilers: You're probably doing it wrong.
I was looking more at the comparison of spoiler vs wing which the change in front end shouldn't effect to much.
Reply
0
0
I know these are half sarcastic, but also things that might actually affect design inputs. However, I'm going to take Ferrari's word that they built this car purely for low lap times.
What reasoning could they have? I haven't seen the under tray, but I would guess it's using ground effects to full advantage. The old F1 cars that ran ground effects still ran a large rear wing element. Is it possible that, with advanced CFD, Ferrari has found that ditching the wing and optimizing the chassis as an air foil can actually make more downforce? Or, what I think is more likely, have they found a middle ground where there is a little less down force, but a lot less drag?
This has nothing to do with aero. Its all about NASCAR regs that were introduced to slow the cars down to make them more safe.
What reasoning could they have? I haven't seen the under tray, but I would guess it's using ground effects to full advantage. The old F1 cars that ran ground effects still ran a large rear wing element. Is it possible that, with advanced CFD, Ferrari has found that ditching the wing and optimizing the chassis as an air foil can actually make more downforce? Or, what I think is more likely, have they found a middle ground where there is a little less down force, but a lot less drag?
This has nothing to do with aero. Its all about NASCAR regs that were introduced to slow the cars down to make them more safe.
Reply
0
0
If I recall correctly NASCAR kept the spoiler because the wing caused lift if the car span out and was traveling backwards increasing the likelyhood of a flip. But for our cars we still have the option to run either.
Reply
0
0
On an F1 car, upwards of 50% of the downforce can come from the underbody/diffuser, and that is with significant limitations on what they can do. An unrestricted car built around the most effective floor/tunnels their engineers dream up could produce incredible downforce without the use of relatively high-drag elements like conventional wings.
-Ryan
-Ryan
Reply
0
0
Ferrari isnt going to sell a car to the public that makes the majority of its downforce from under effects. Its exceptionally dangerous, see the lotus 79; kerbing, dips, and other surface imperfections were a good way to find yourself spinning off into the armco after loosing the majority of your downforce. Its the reason limits got put on under body aero in F1 back then.
Reply
0
0
Reply
0
0
Ferrari isnt going to sell a car to the public that makes the majority of its downforce from under effects. Its exceptionally dangerous, see the lotus 79; kerbing, dips, and other surface imperfections were a good way to find yourself spinning off into the armco after loosing the majority of your downforce. Its the reason limits got put on under body aero in F1 back then.
As such, it'll be sooner rather than later we see pics of totalled FXXK's because they hit a bump.As for its diffuser geometry; it's very likely its throat expansion geometry is well sorted via CFD and wind-tunnel. It's probably much more laminar than it looks from that picture.
Reply
0
0
Given that any FXXK buyer will only be allowed to drive it on approved racetracks under the close supervision of Ferrari's support crew, I tend to agree with ThePass that it's likely the majority of the downforce is going to be from the underbody. Dangerous isn't part of the equation, because Ferrari probably said so. As such, it'll be sooner rather than later we see pics of totalled FXXK's because they hit a bump.
As for its diffuser geometry; it's very likely its throat expansion geometry is well sorted via CFD and wind-tunnel. It's probably much more laminar than it looks from that picture.
As such, it'll be sooner rather than later we see pics of totalled FXXK's because they hit a bump.As for its diffuser geometry; it's very likely its throat expansion geometry is well sorted via CFD and wind-tunnel. It's probably much more laminar than it looks from that picture.
Reply
0
0
Re: FXX K Aero
Re: FXX K Aero
source: Axis Of Oversteer
The front of the car is dominated by a twin-profile spoiler and a larger splitter, which is 30 mm lower, with a gap in its centre. This design is an application of the concepts developed to improve aero balance in the GT category of the WEC, which Ferrari has won for three consecutive years. Two pairs of vertical elements, an endplate and, externally, a dive plane, together with vertical fins channel the air towards the car’s flanks, generating a longitudinal vortex that creates a localised depression. This in turn sucks the wake from the wheels to the outside of the aerodynamic underbody. Along with the side skirts that extend out from the sills, the vortex helps isolate the airflow from the underbody to boost its efficiency.
The solutions on the rear of the car are highly sophisticated, too. The tail section is now higher and the mobile spoiler extends further for a total increase in extension of 60mm when fully deployed. A vertical fin and a small wing each side of the tail act as guide vanes in the low drag configuration and boost the spoiler’s efficiency in the high downforce one. This system also creates considerable downforce at the rear of the car, allowing the use of an extreme diffusion volume for the rear diffuser which optimises air extraction from the underbody. The section of the flat underbody just ahead of the rear wheels is also exploited to the full to generate downforce thanks to the reduced pressure in the wheel arch guaranteed by the direct connection to the rear of the car by a by-pass duct.
The result is a 50% improvement in downforce in the low drag configuration and a 30% improvement in the more aggressive downforce configuration, resulting in a figure of 540 kg at 200 km/h.
The solutions on the rear of the car are highly sophisticated, too. The tail section is now higher and the mobile spoiler extends further for a total increase in extension of 60mm when fully deployed. A vertical fin and a small wing each side of the tail act as guide vanes in the low drag configuration and boost the spoiler’s efficiency in the high downforce one. This system also creates considerable downforce at the rear of the car, allowing the use of an extreme diffusion volume for the rear diffuser which optimises air extraction from the underbody. The section of the flat underbody just ahead of the rear wheels is also exploited to the full to generate downforce thanks to the reduced pressure in the wheel arch guaranteed by the direct connection to the rear of the car by a by-pass duct.
The result is a 50% improvement in downforce in the low drag configuration and a 30% improvement in the more aggressive downforce configuration, resulting in a figure of 540 kg at 200 km/h.
Reply
0
0
Why if not regulated would you not go with active aero or something like an Aeromotions active wing?
