Definitely an Apollo. That splitter looks a lot like mine.

-Ryan



It is a Gumper Apollo


And you are also right. For my setup it will work perfect



Just wanted to say,the lift that Apollo is on is awesome. I've never seen adapters like that.



Sorry if this has been posted before- I skimmed and didn't see it: Developing the Nissan GT-R LM NISMO

Pretty interesting advantages to running FWD

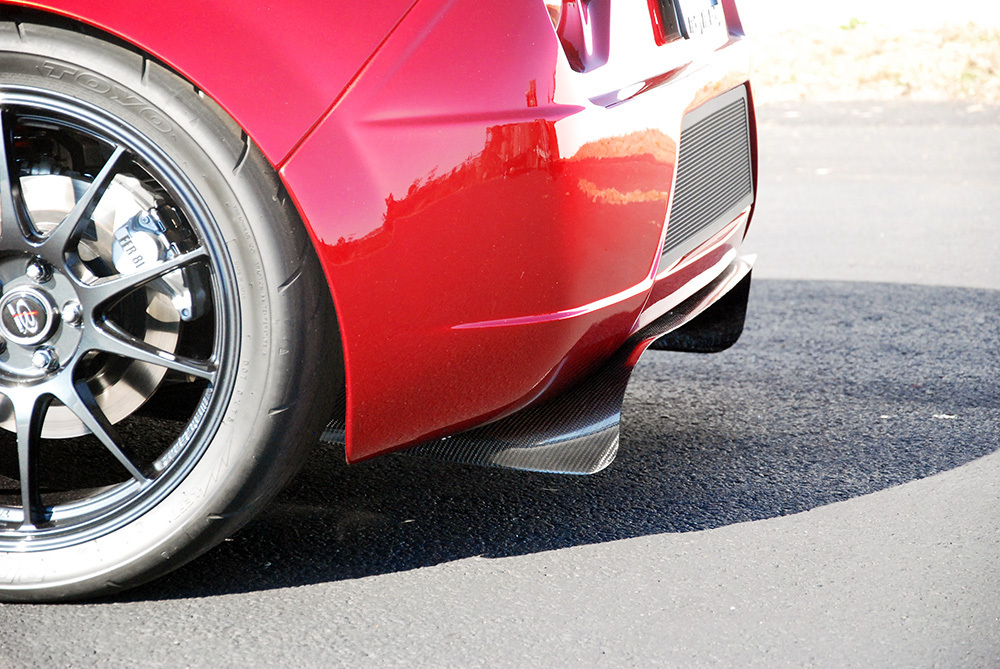

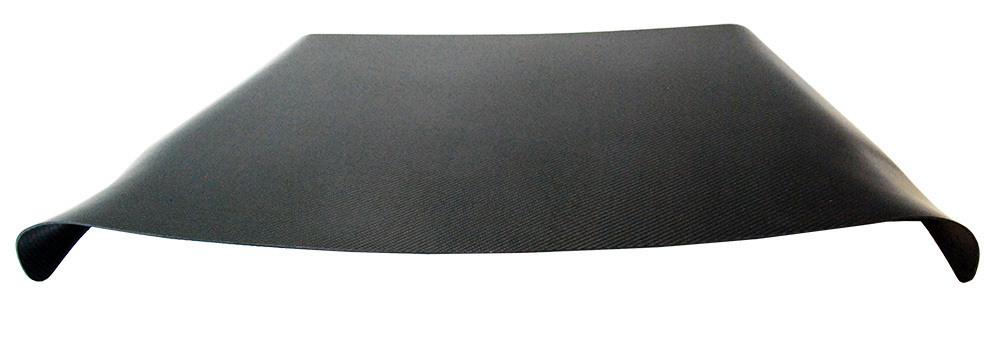

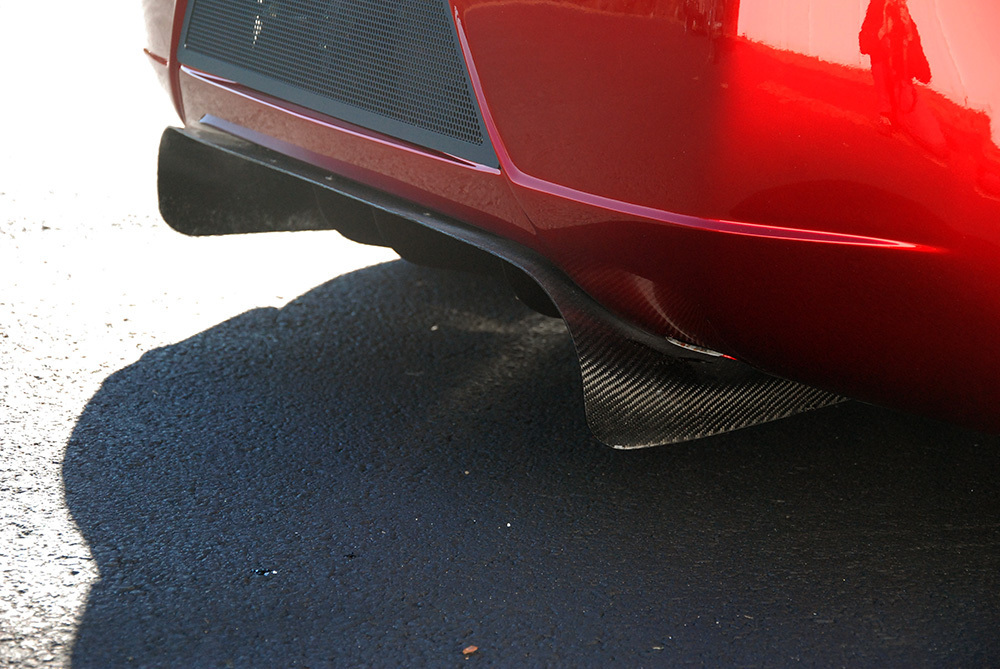

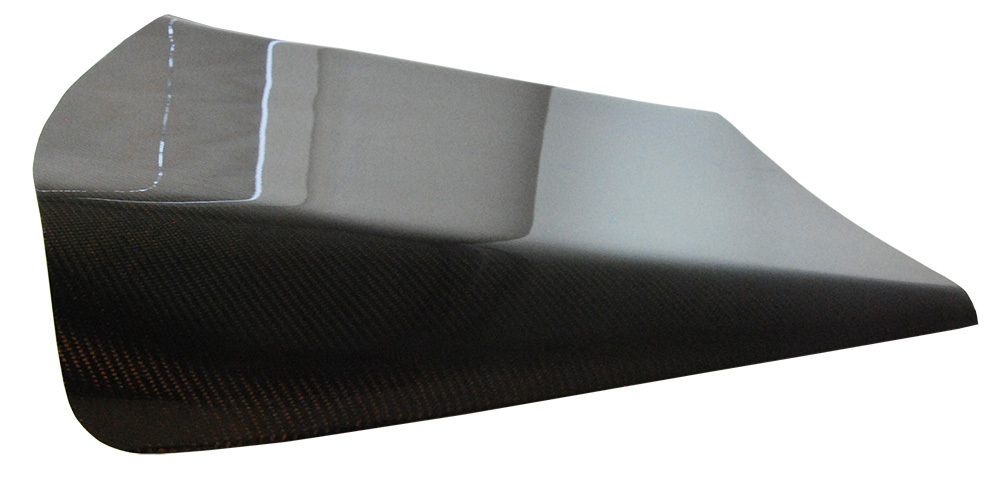

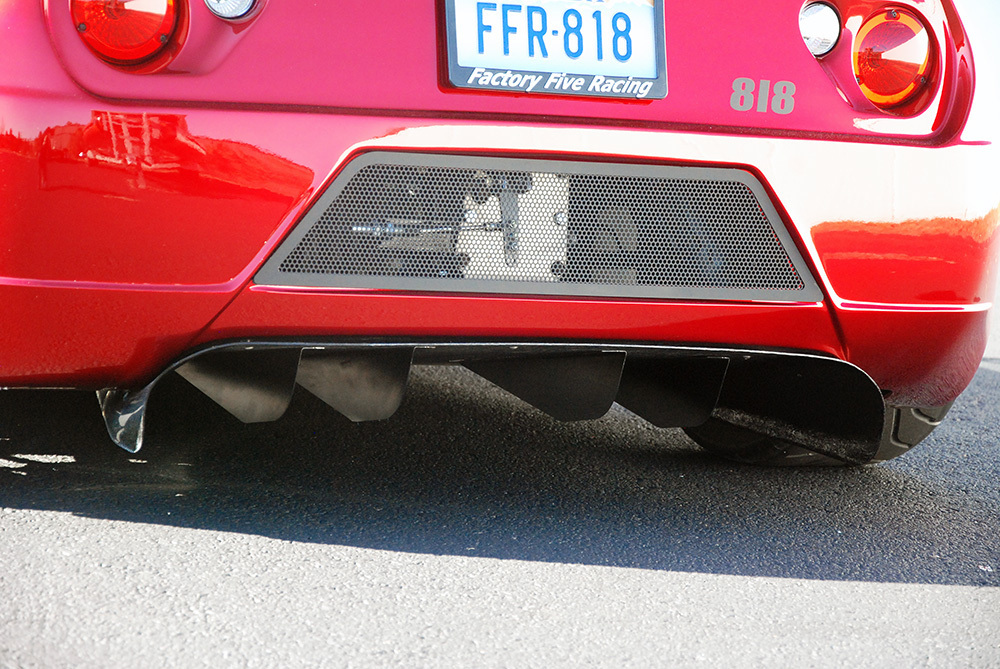

I found this diffuser made from Factory 5 Racing's 818. I emailed them for the measurements, but now I can't find that email.

818 Carbon Fiber Rear Diffuser - Factory Five Parts Catalog

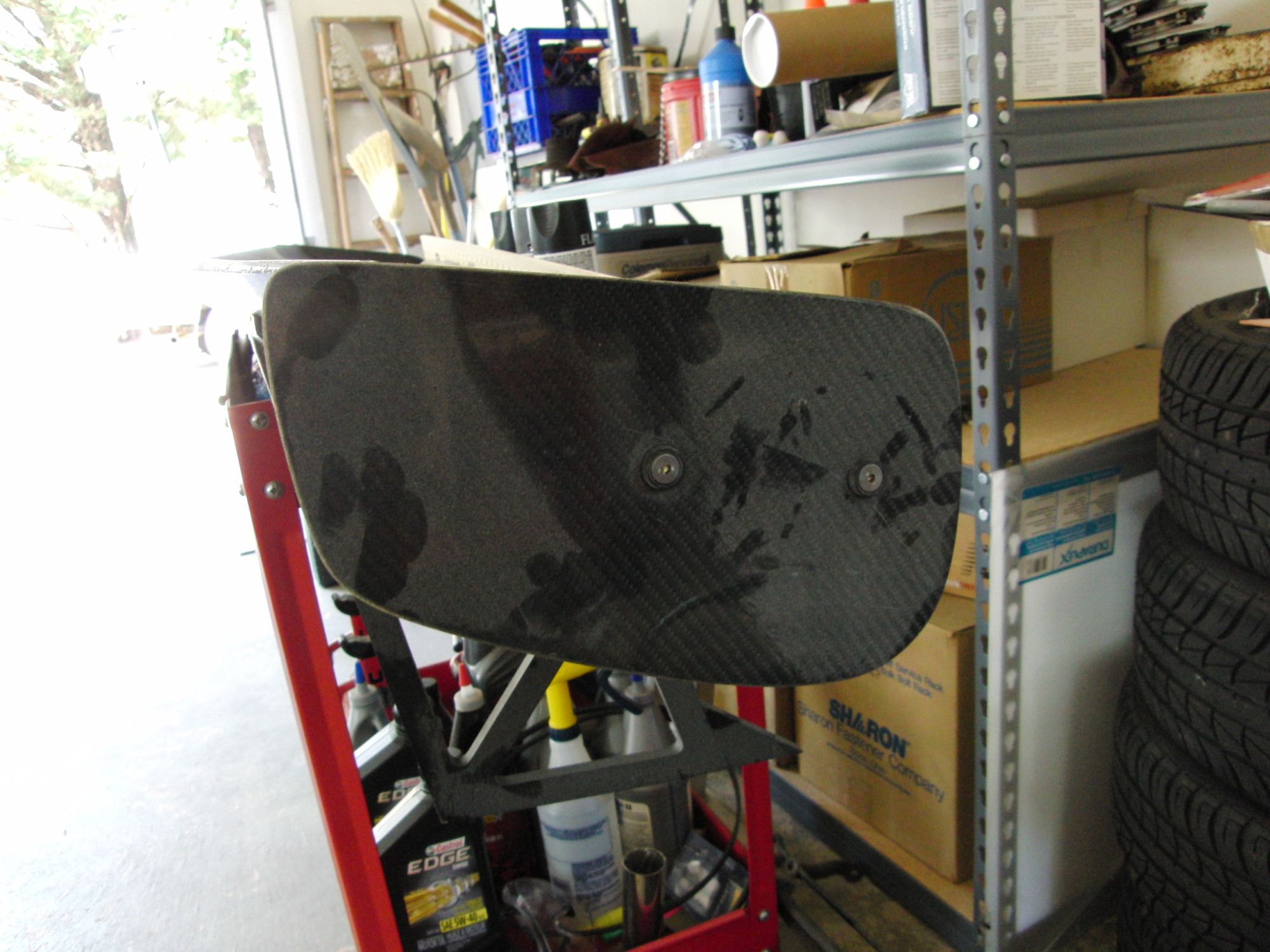

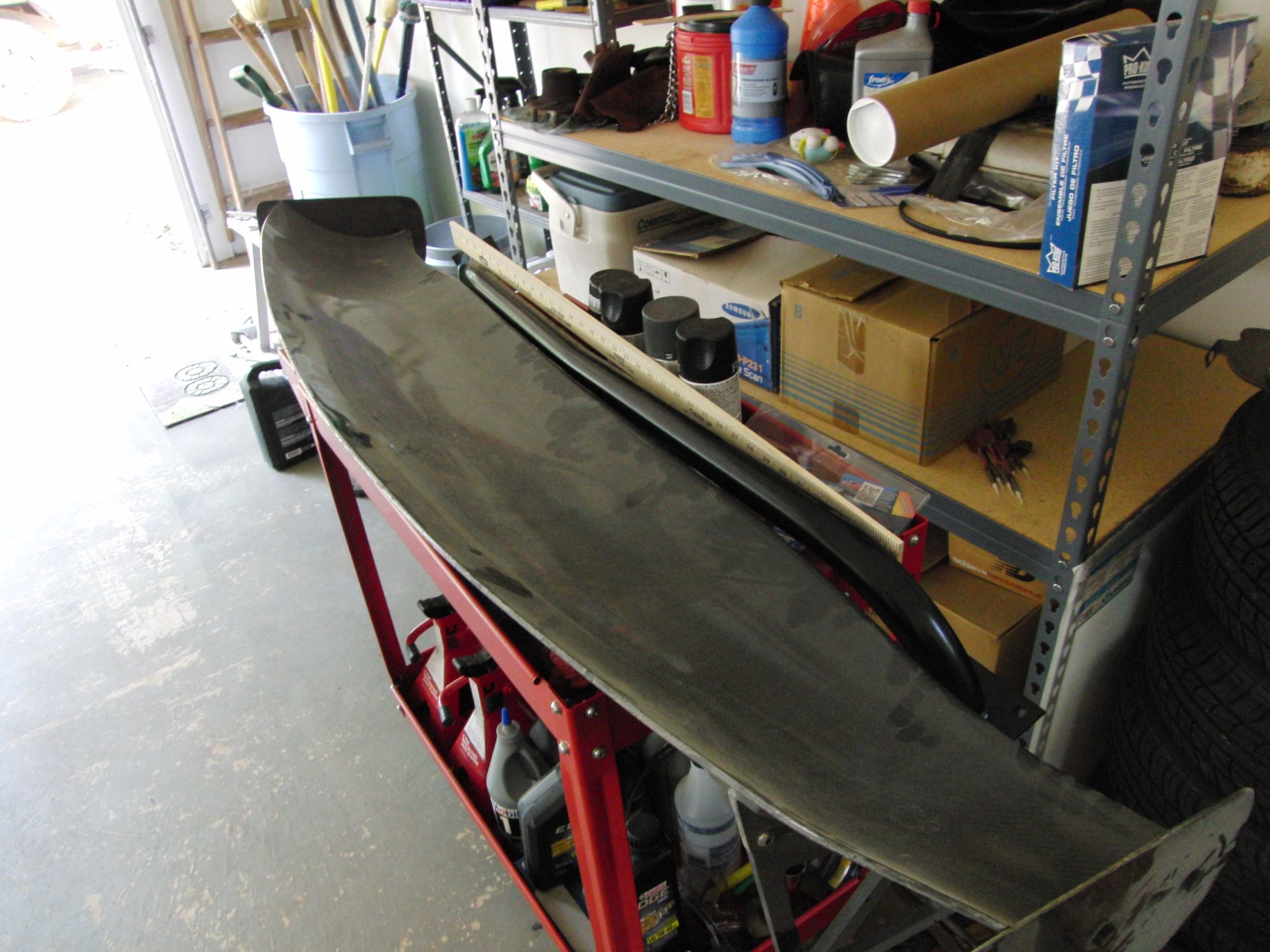

Hey, asking the brain trust on this. I'd like to know what this wing is as I'm not entirely sure. I'm pretty sure that I know what it is but I would like to be sure.

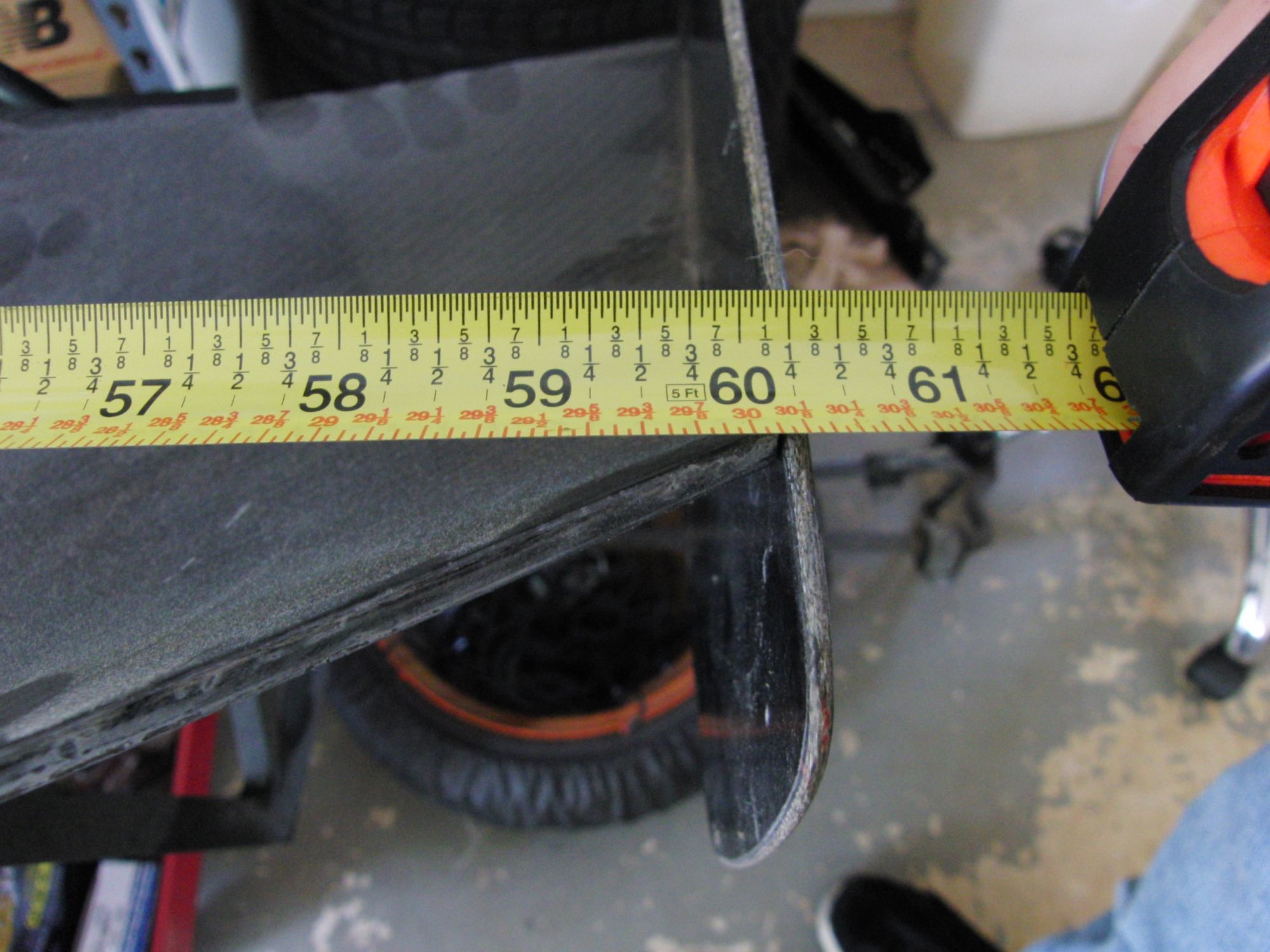

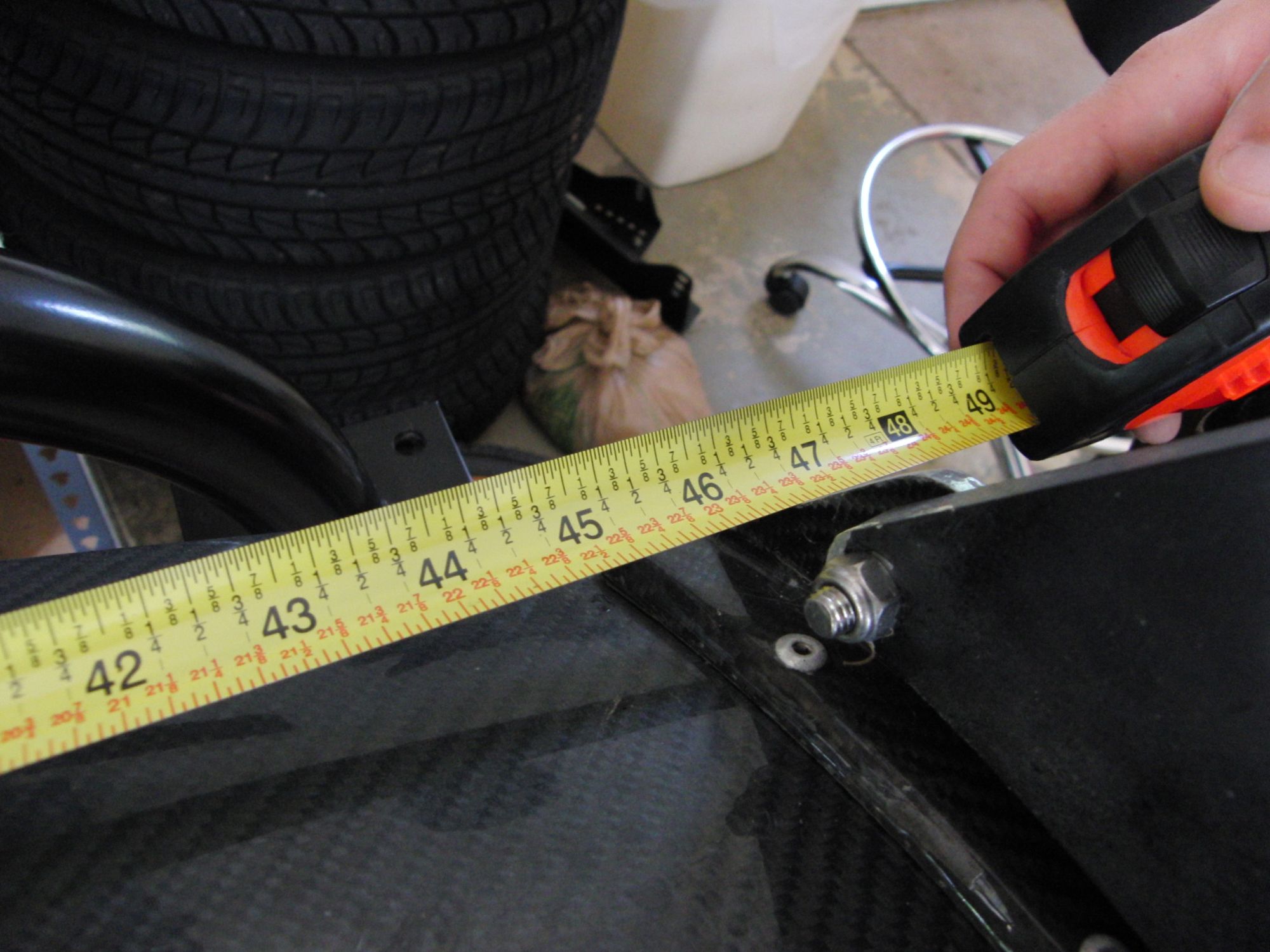

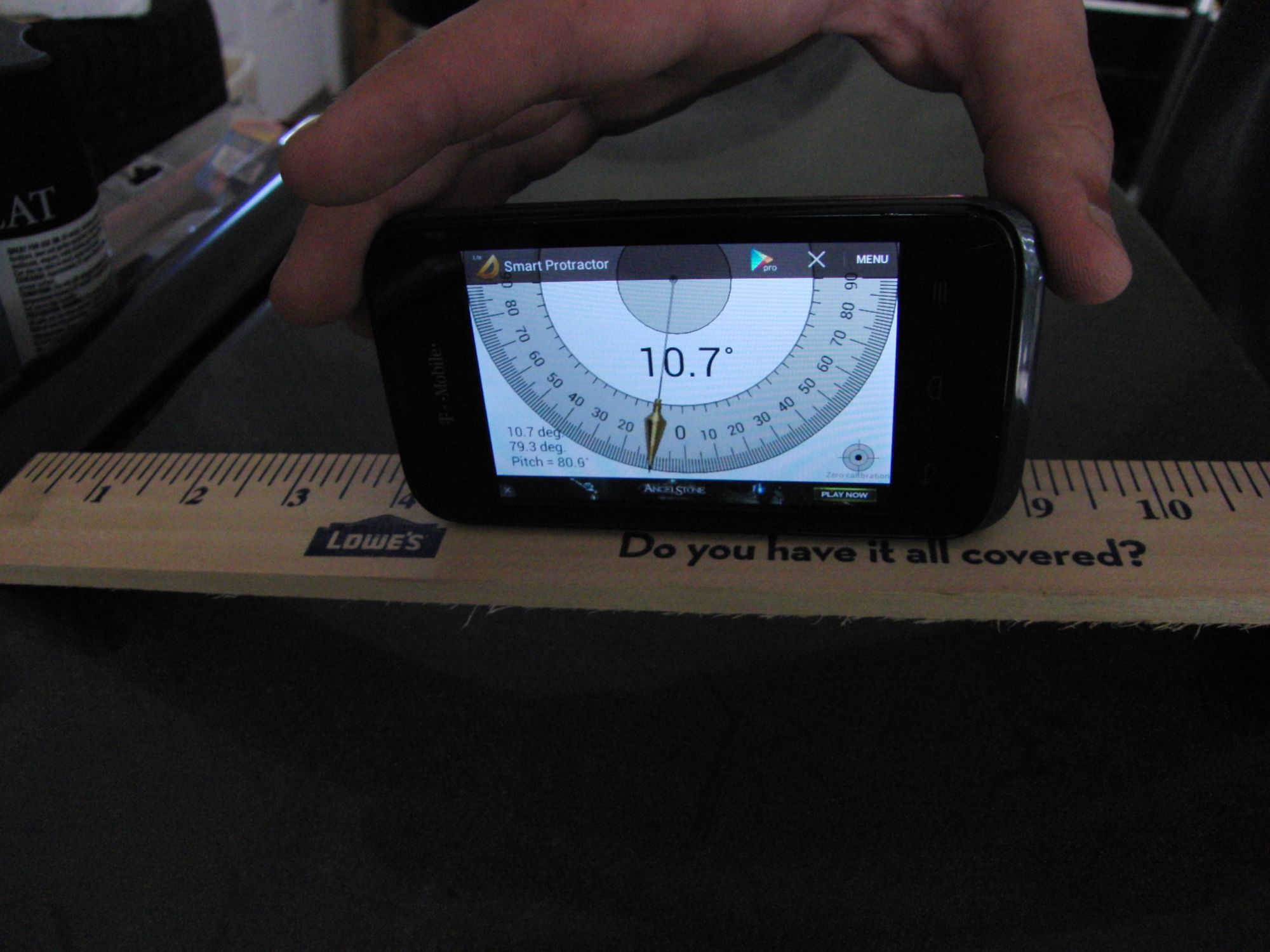

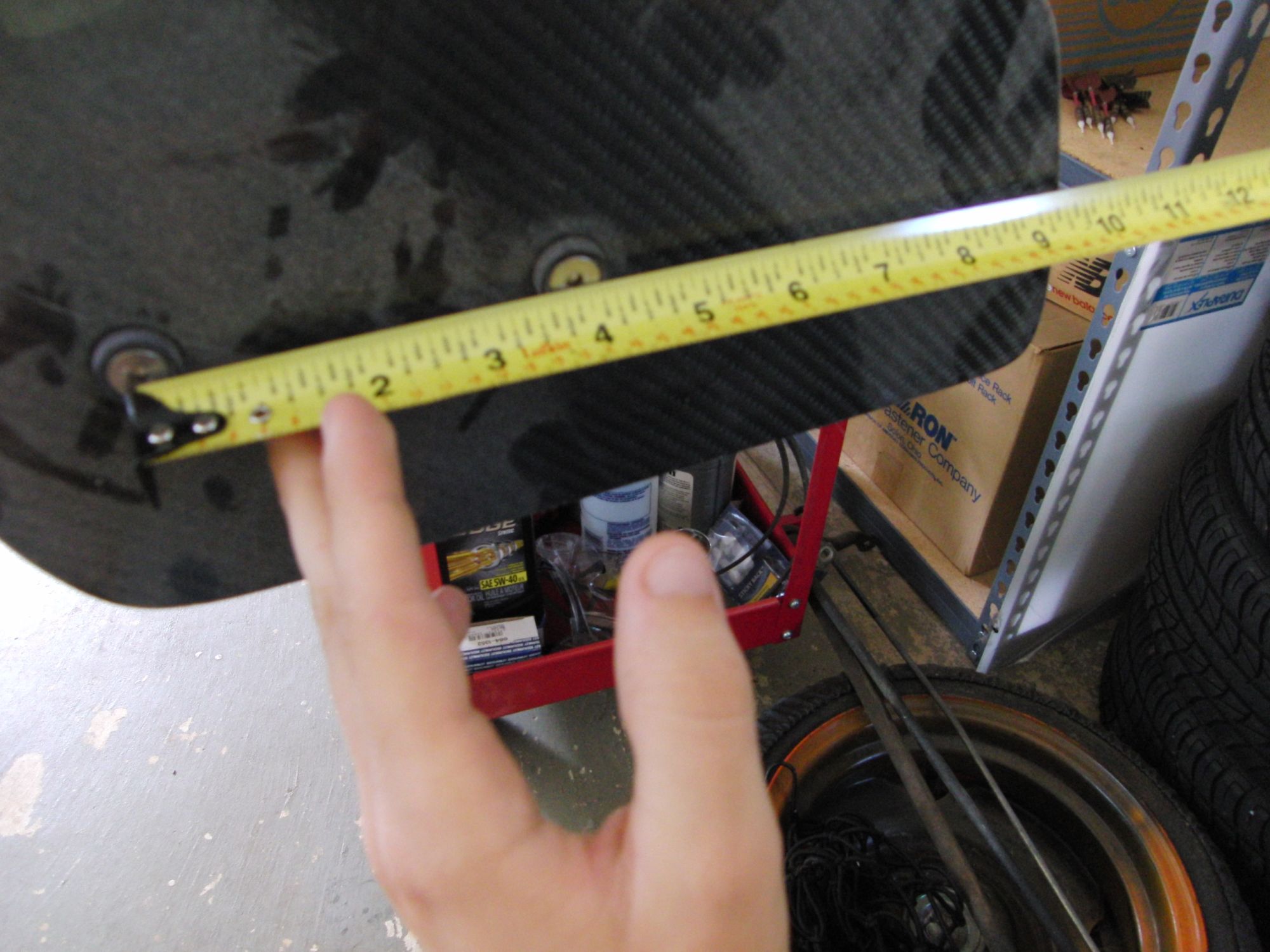

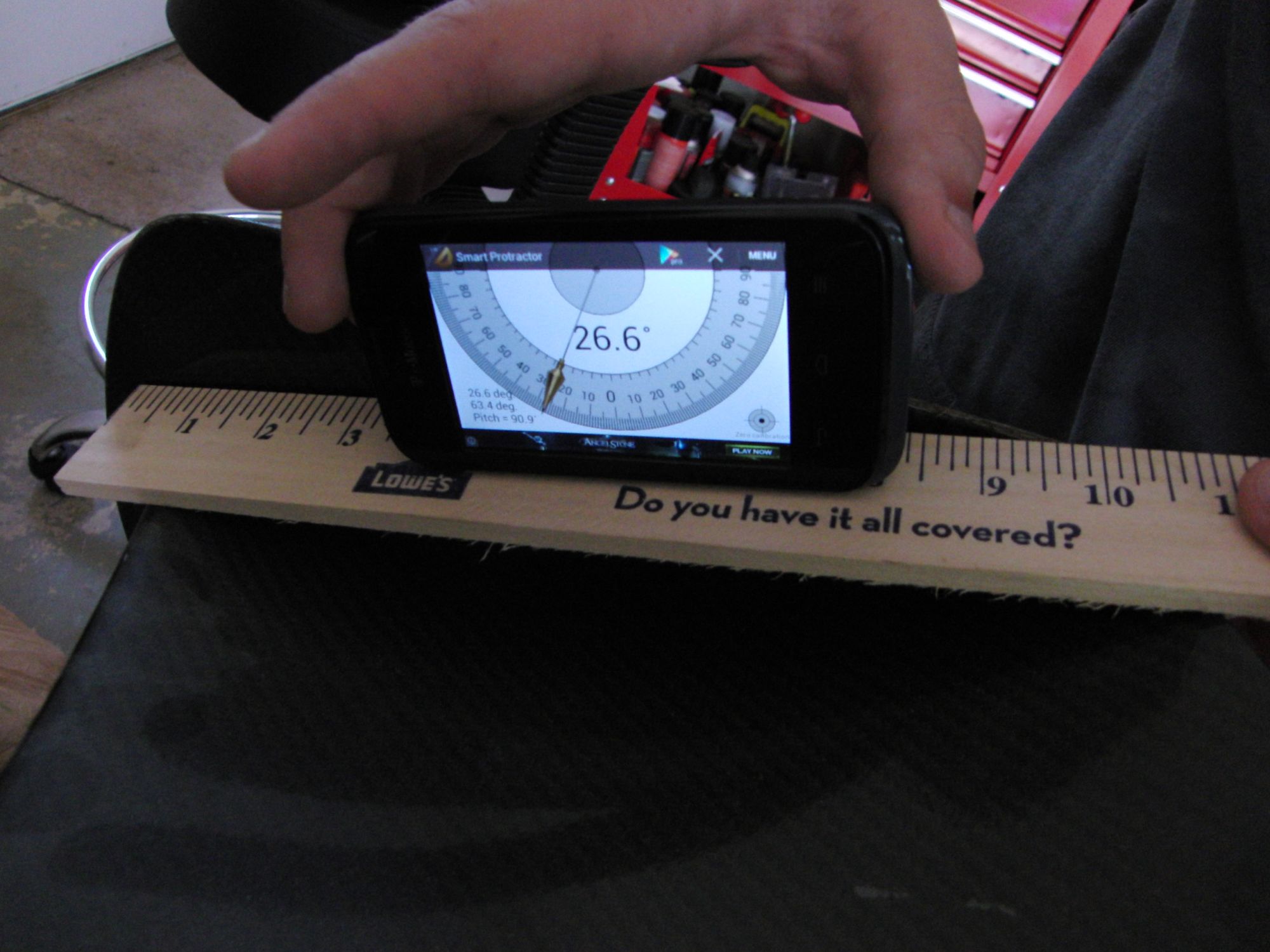

Just under 61" wide. Legs just under 47" apart. Difference in AOA from center to end about 16 degrees.



looks like a replica APR GTC.



61" wide with 47" mount spacing matches GTC-300



Spring load DRS



<p>Could that be done with a trunk spoiler? Like the lexan type. Some really strong springs, so it is upright at low speeds and pushed out of the way at higher speeds? Or would that fail?</p>



Wow, no idea the science behind that. However, I love the idea of it. I hope someone with knowledge chimes in.



Not spring-loaded. According to SVA:

The reason nobody would assume that it is controlled by ECU/GPS based on the video is because the activation and deactivation timing is wayyyy off, but it's obviously a work in progress.



<p>But would spring loaded work?</p>



"Work" is a little broad but my $0.02:
For a DRS system you want a solid fixed position when ON and solid fixed position when OFF. Most springs are linear if you ignore the far extremes of their range, so a simple spring system would be passive (uncontrolled by driver or ecu - not good) and continuously variable as speeds changed (not good). I'm sure a complex spring system could be concocted that worked around that to some degree, but likely no less complicated than other systems, with no benefit (cost doesn't count - there are other low-budget options without these drawbacks, like Keith has done)..



That makes much more sense. I was watching the video and trying to make sense of how they set it up. The wing wasn't acting how I thought it should (in my limited knowledge of Aero). This makes more sense.


Yeah, I am not an expert in this field at all. However, I was waiting for a good example of how this could actually work. Springs did seem like a weird source of resistance. It wasn't making any sense how springs could be functional and efficient. Thanks for the clarification.



Are any of you guys cutting away behind the front wheel to allow better pressure release?



Im sure Ryan will comment(I can see he has done some work on his to help)

Relieving the pressure there isnt just about reducing lift, while thats one of the reasons its not the primary.

Wheels and tyres make really good vacuum cleaners, in which they suck all the air into the wheelarches, but then if it has nowhere easy to go, the pressure increases and creates lift, you can vent from the top of the arch and also the rear part of the arch.

One of the important things about venting arches is to keep the pressure as close to ambient as possible.

Your splitter works by forcing the air that travels underneath it to speed up and as such becomes a low pressure area.........now if you have low pressure heading straight into a high pressure area, thats exactly what it doesnt want to do.

Imagine opening a bottle of fizzy pop, the air always wants to go from high pressure to low pressure

The only way you can force it is with lots of velocity, but effectively its still like hitting a brick wall.

If you can reduce that wheelarch pressure you reduce the 'wall' and the splitter allows more air to pass out of it and hence works better.

This is also why I suggest front diffusers to allow that pressure gradient to be more gradual to reduce the 'wall' scenario.

So your now making more front downforce, you can then add more to the rear to balance the car for a net increase in overall downforce more than just a little reduction in lift in the wheel arch.

Its not as easy on a miata to remove as much as I have but it will be possible with some chopping and welding, a very good example of this would be Under Suzuki

This is what i did with my car, I know its not a miata, but one of the guys on here has said it would help if i joined in with my thoughts



So this is what I found a couple of days ago



To me it looks like its just over 60"



COT wing spotted on Pikes Peak.



He was one of the first guys to start using the COT wings. I ran across his build thread back before I started the big COT wing thread on here.

On another note, I have also been watching those videos for the F1000 composites on youtube...there is some great tech in there, specifically the materials etc.
