Old 12-11-2011, 03:53 AM   #41
Newb

Join Date: Aug 2011
Posts: 30
Total Cats: 0
Default

are these still for sale? they sound so good
Swan843 is offline   Reply With Quote
Old 12-11-2011, 11:32 AM   #42
Senior Member
iTrader: (8)

Join Date: Jun 2010
Location: Navarre, FL
Posts: 1,127
Total Cats: 39
Default

yeah send him a pm
aaronc7 is offline   Reply With Quote
Old 12-11-2011, 04:13 PM   #43
Elite Member

Join Date: Jul 2005
Posts: 6,454
Total Cats: 80
Default

Quote:
Originally Posted by y8s View Post
All the cool kids are running the magnaflow 5x11x22 body muffler. anyone who makes a kit with that and a simple bullet muffler resonator in it will make super bank.

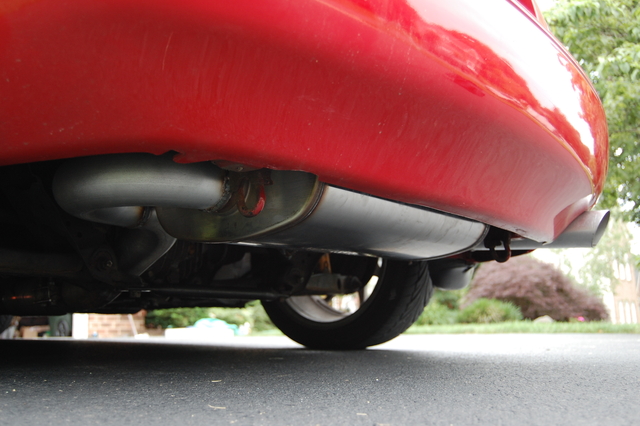

me install on braineack's car:



That's 2.5" piping, right? Can that be done in 3"?
Attached Thumbnails
Custom exhaust-dsc_0029.jpg   Custom exhaust-dsc_0034.jpg
JasonC SBB is offline   Reply With Quote
Old 12-11-2011, 04:42 PM   #44
Newb

Join Date: Aug 2011
Posts: 30
Total Cats: 0
Default

i dont knw i saw on his original post it said he does 3". but if thats 2.5 then its perfect
Swan843 is offline   Reply With Quote
Old 12-12-2011, 05:05 PM   #45
Senior Member
Thread Starter
iTrader: (34)

ARTech's Avatar

Join Date: Mar 2009
Location: Dallas
Posts: 530
Total Cats: 9
Default

Yes, I still make them. I can make it in either 2.5" or 3" and with any size muffler that fits under a Miata.

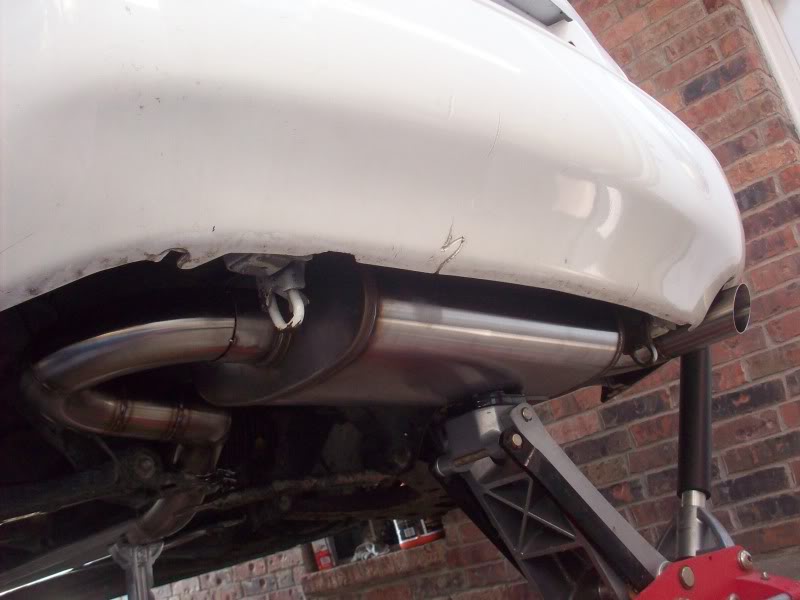

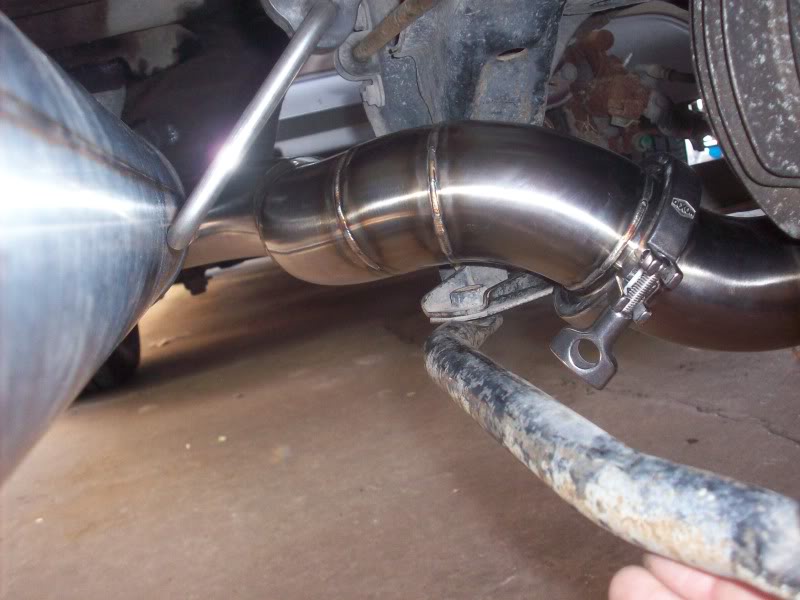

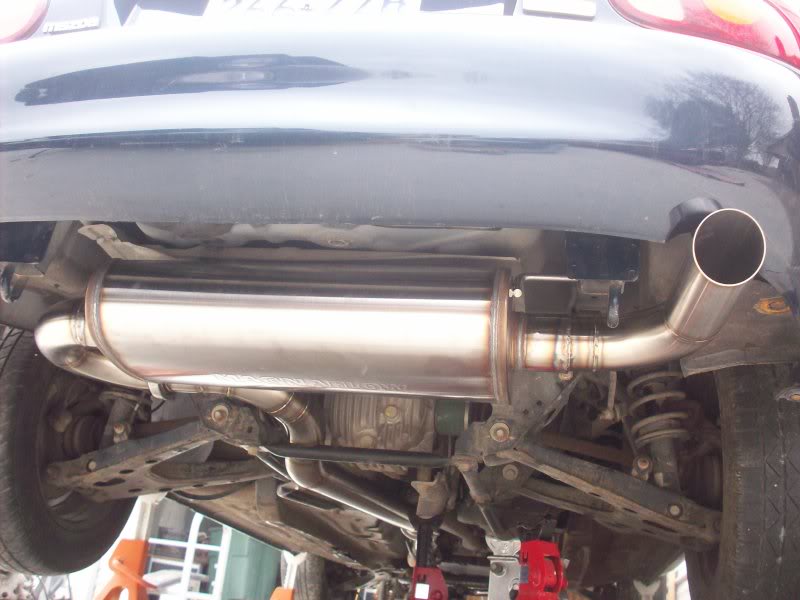

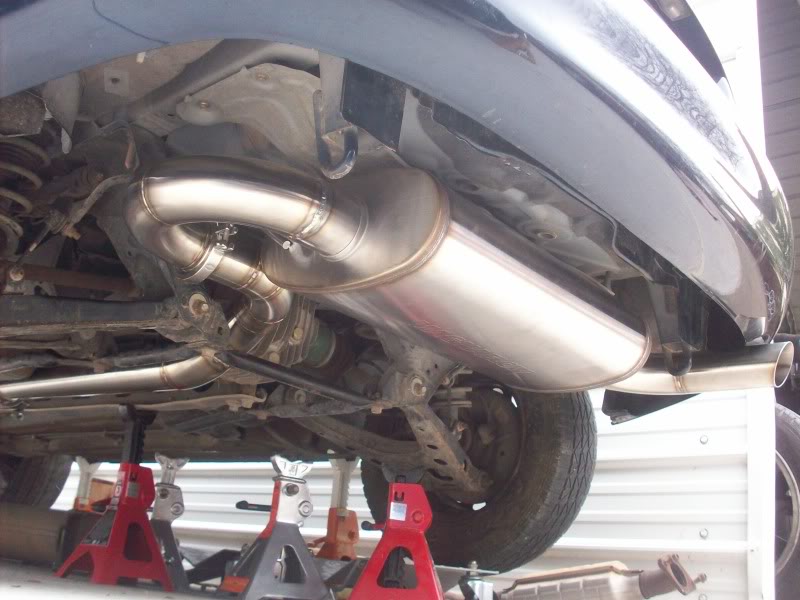

3" piping fits just fine with a 5x11x22 muffler:

NA







NB



Attached Thumbnails
Custom exhaust-100_1416.jpg   Custom exhaust-100_1425.jpg   Custom exhaust-100_1415.jpg   Custom exhaust-100_1475.jpg   Custom exhaust-100_1474.jpg

ARTech is offline   Reply With Quote
Old 12-12-2011, 05:13 PM   #46
Elite Member
iTrader: (9)

TurboTim's Avatar

Join Date: Jun 2006
Location: Chesterfield, NJ
Posts: 6,479
Total Cats: 248
Default

Wow, you don't even have to cut off the straight sections on the muffler, crazy. Nice job Abe.

what brand exhaust hangers are you using?
TurboTim is offline   Reply With Quote
Old 12-12-2011, 05:28 PM   #47
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

I could get one of these exhausts and use the mirror on my shower floor to show off the weldz.
hustler is offline   Reply With Quote
Old 12-12-2011, 11:27 PM   #48
Senior Member
Thread Starter
iTrader: (34)

ARTech's Avatar

Join Date: Mar 2009
Location: Dallas
Posts: 530
Total Cats: 9
Default

ARTech brand I make them myself with a tube/rod bender.

The problem with these big mufflers is the weight is not evenly distributed using the 3 factory points. You'll either have to add a hanger on the on the drivers side or use urethane hanger mounts. I use these:

http://www.ebay.com/itm/Dodge-Neon-S...xp=mtr#vi-desc
ARTech is offline   Reply With Quote
Old 12-13-2011, 01:14 PM   #49
Elite Member

Join Date: Jul 2005
Posts: 6,454
Total Cats: 80
Default

Beautiful work!

Can you make them in mild steel to save money? You can ship them to CA, right?

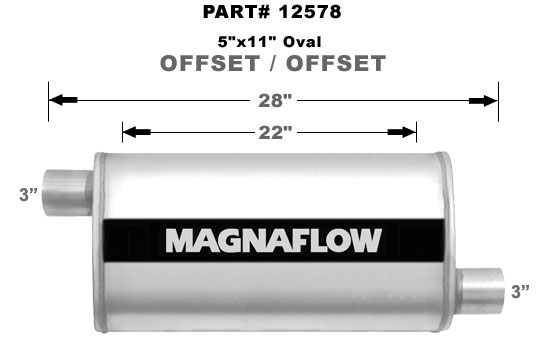

The 5x11x22 muff pictured above uses the centered-inlet / offset-outlet version. Magnaflow make an offset/offset version (below). Would this allow a larger radius bend on the muffler's inlet? Or would said large radius hit something?

Attached Thumbnails
Custom exhaust-12578.jpg
JasonC SBB is offline   Reply With Quote
Old 12-15-2011, 05:27 PM   #50
Senior Member
Thread Starter
iTrader: (34)

ARTech's Avatar

Join Date: Mar 2009
Location: Dallas
Posts: 530
Total Cats: 9
Default

Thanks.

I get a decent deal on SS. I doubt I could make them much cheaper in mild, so I prefer to stick with SS. Yeah, I ship exhausts anywhere within the US, and other, smaller parts all over the world.

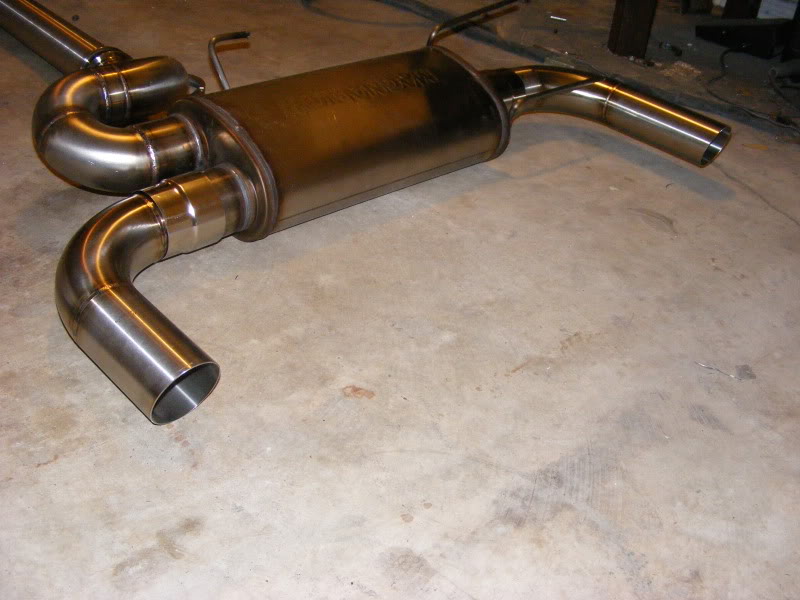

IIRC, the offset exit muffler doesn't work as well because it will either contact the tow hook bracket and or the fender liner on the other side. The center/center works fine for me. 3" diameter on a 4.5" turning radius isn't that tight. I've had to use 3" on a 3" turning radius before on a dual exit large muffler setup before:

Attached Thumbnails
Custom exhaust-dscf5651.jpg
ARTech is offline   Reply With Quote
Old 12-15-2011, 06:01 PM   #51
Elite Member

Join Date: Jul 2005
Posts: 6,454
Total Cats: 80
Default

Anyone have a youtube recording of said 5x11x22 Magnaflow muffler with 3" piping, from behind the car?
JasonC SBB is offline   Reply With Quote
Old 12-16-2011, 01:25 AM   #52
Newb

Join Date: Aug 2011
Posts: 30
Total Cats: 0
Default

^bump for that. if you dont have a video but have the exhaust MAKE ONE!!
Swan843 is offline   Reply With Quote
Old 12-16-2011, 01:36 AM   #53
Elite Member
iTrader: (3)

Join Date: Feb 2008
Location: Huntsville, AL
Posts: 1,881
Total Cats: 45
Default

How much purge gas do you go through on an exhaust like that? Would you consider using Solar Flux in a pinch? Do you have any experience with it?
vehicular is offline   Reply With Quote
Old 12-16-2011, 01:58 AM   #54
Senior Member
iTrader: (8)

paNX2K&SE-R's Avatar

Join Date: Dec 2007
Location: Mocksville, NC
Posts: 675
Total Cats: 11
Default

What would be a ballpark cost for a 3" SS with the 5x11x22? Any chance on adding a resonator or 2 on the straight section? I like the dogleg mufflers better since they tend to be more quiet but a resonator would probably help reduce some of the noise on the straight in/out muffler that fits better in this application.
paNX2K&SE-R is offline   Reply With Quote
Old 12-19-2011, 12:55 PM   #55
Senior Member
Thread Starter
iTrader: (34)

ARTech's Avatar

Join Date: Mar 2009
Location: Dallas
Posts: 530
Total Cats: 9
Default

Yes. Solar flux would be fine to use if not using a cat, or anywhere after the cat, if using one. You don't want that stuff chipping away and clogging up the cat. I'm not sure how much gas I go through. I have a big bottle and it lasts a while.

A 3" exhaust with a 5x11x22 muffler, no cat/resonator, is $550. Magnaflow resonators are $70/ea. I'm not familiar with the dog leg mufflers, but the little info I can find online suggests they don't make good turbo mufflers. A straight through design, like Magnaflow's is the best you can use. Who sells dog leg (center expansion?) mufflers anyway?
ARTech is offline   Reply With Quote
Old 12-19-2011, 01:02 PM   #56
Senior Member
iTrader: (8)

paNX2K&SE-R's Avatar

Join Date: Dec 2007
Location: Mocksville, NC
Posts: 675
Total Cats: 11
Default

Ok cool that sounds pretty reasonable for a nice exhaust. When I say dogleg I'm talking about a muffler with an offset inlet and/or offset outlet. How much lead time is there between the order and the shipping of the finished product?
paNX2K&SE-R is offline   Reply With Quote
Old 12-19-2011, 01:39 PM   #57
Senior Member
Thread Starter
iTrader: (34)

ARTech's Avatar

Join Date: Mar 2009
Location: Dallas
Posts: 530
Total Cats: 9
Default

I see. In that case, an offset inlet/outlet is just an additional, unnecessary bend that makes the piping longer and/or makes it harder to mount the muffler depending which way the offset is facing.

Lead time is normally 6 weeks, but I am taking a little break for the holidays so that doesn't apply to orders placed this week or next
ARTech is offline   Reply With Quote
Old 12-25-2011, 12:00 AM   #58
Junior Member
iTrader: (5)

Join Date: Oct 2011
Location: San Diego, CA
Posts: 402
Total Cats: 21
Default

Your work is beautiful. Just curious if you've any experience with MSMs? I know at least the downpipes are different.
slmhofy is offline   Reply With Quote
Old 12-27-2011, 12:30 AM   #59
Senior Member
Thread Starter
iTrader: (34)

ARTech's Avatar

Join Date: Mar 2009
Location: Dallas
Posts: 530
Total Cats: 9
Default

Thanks. I can only build turbo-back MSM setups for now. I don't have a stock downpipe to use as a starting point for exhausts.
ARTech is offline   Reply With Quote
Old 12-27-2011, 01:58 PM   #60
Newb

Join Date: May 2010
Location: DFW, TX
Posts: 27
Total Cats: 0
Default

Abe, I have a stock MSM downpipe sitting in my garage you can use. I'm wanting a 2.5" exhaust with a round magnaflow muffler similar rear routing to aaronc7's exhaust.
BigDmiata is offline   Reply With Quote
