Default 1.6l NA (AT to MT) w/14b turbo build - Megasquirted, lots of pics

Figured I'd start a thread on what I hope to have done by spring.

For sake of not reposting - here's a snapshot of the car since I've owned it ( more detailed at https://www.miataturbo.net/meet-greet-40/rochester-ny-now-pics-63013/ )

First day home

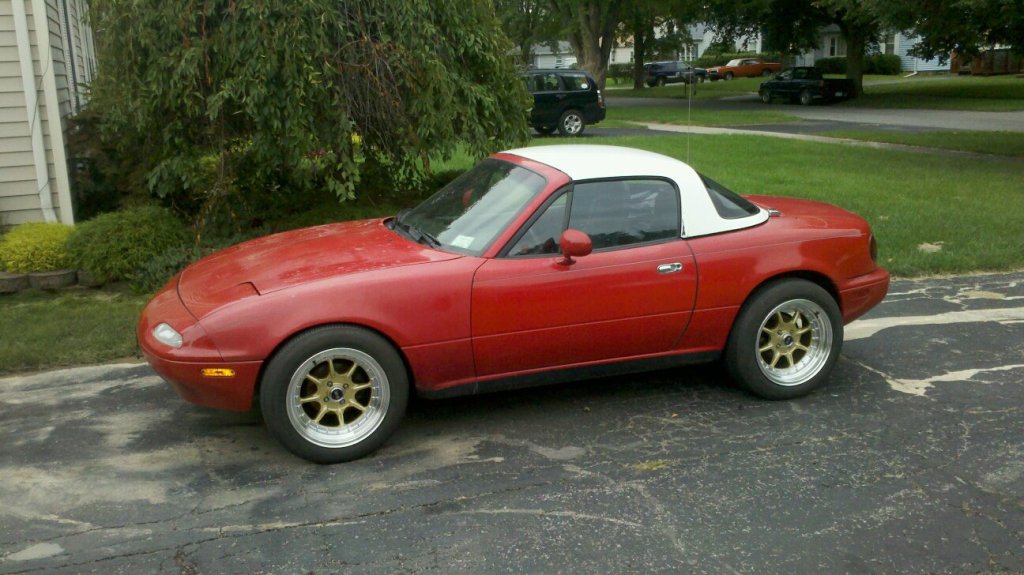

Hardtop/wheels

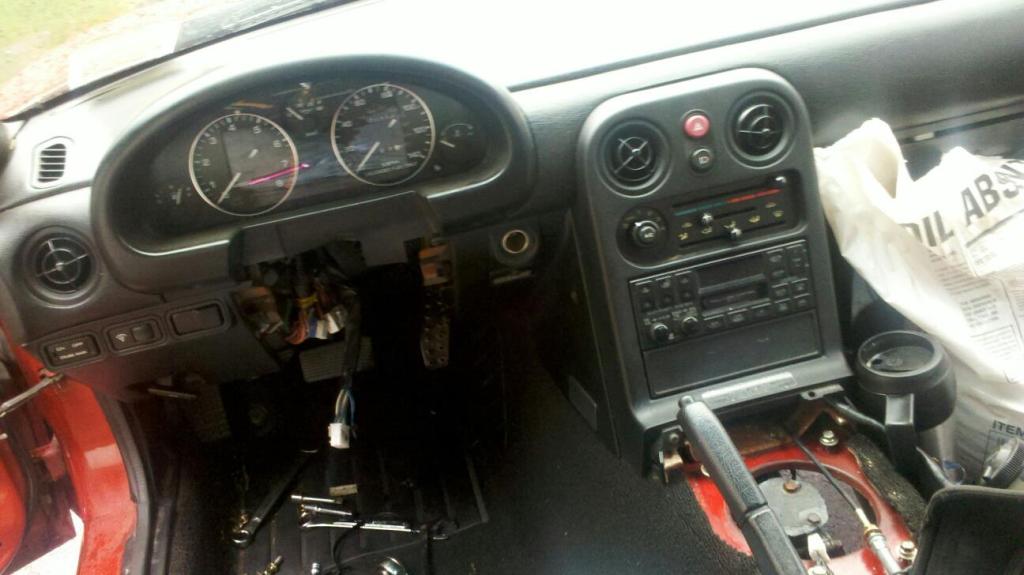

Auto to manual swap



Flares/lip


Last edited by schema; 02-04-2012 at 08:42 PM.
schema is offline   Reply With Quote
Old 02-04-2012, 07:51 PM   #2
Newb
Thread Starter

Join Date: Jul 2009
Posts: 32
Total Cats: 0
Default

Now, on to the turbo stuff

Goals:
-Close, or under, $1k budget
-run MS only as standalone before turbo install
-6psi/150ish HP upon initial setup
-learn my way through the system/dont blow anything up
-up to 10-13+psi, 200ish + HP
-still try not to blow anything up

Here's what came in last week (already have the 14b turbo not pictured)

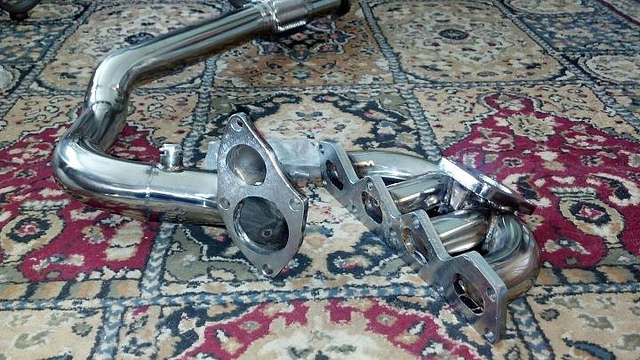

Manifold. Hell yes it's eBay! Im a baller on a budget

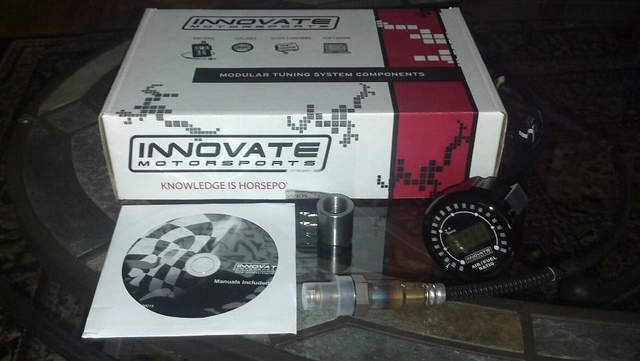

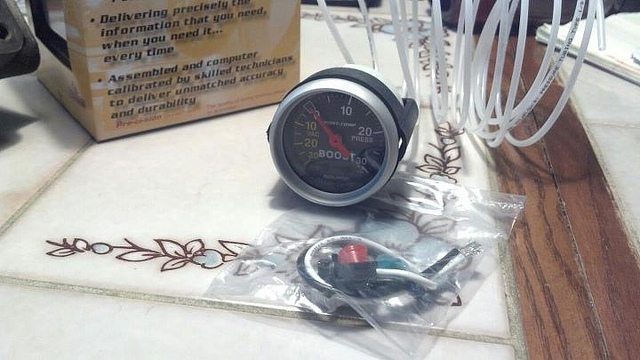

brand new Boost Gauge



MTX-L Wideband

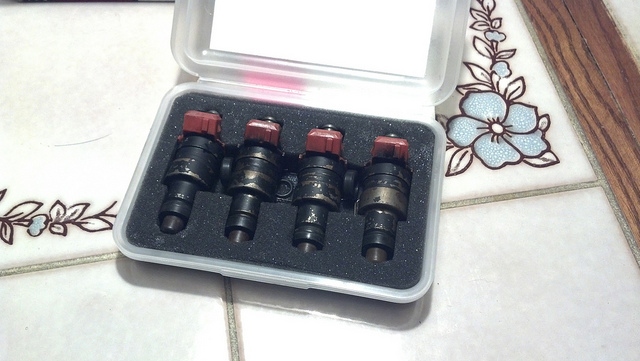

(used) Rx7 red top injectors (460cc). These will be torn apart,claned, new filter, and flowtested before use. Got a great deal on them!

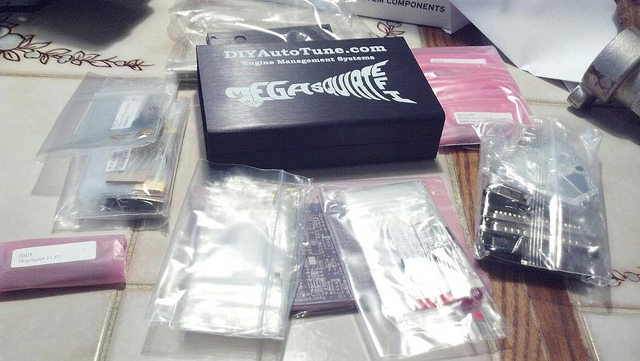

aaaand Megasquirt, my weekend project. Going complete standalone. I ordered a bunch of the add ons for it at well; Idle control valve, boost solonoid, two other things I cant remember,but got them! ha

Attached Thumbnails
1.6l NA (AT to MT) w/14b turbo build - Megasquirted, lots of pics-6819630127_1944164c75_z.jpg   1.6l NA (AT to MT) w/14b turbo build - Megasquirted, lots of pics-6819629829_debf2d9c79_z.jpg   1.6l NA (AT to MT) w/14b turbo build - Megasquirted, lots of pics-6807690299_34f5a1453e_z.jpg   1.6l NA (AT to MT) w/14b turbo build - Megasquirted, lots of pics-6819579967_4c5c929911_z.jpg   1.6l NA (AT to MT) w/14b turbo build - Megasquirted, lots of pics-6813290589_23663e4e5c_z.jpg

schema is offline   Reply With Quote
Old 02-05-2012, 07:09 PM   #3
Elite Member
iTrader: (10)

rccote's Avatar

Join Date: Jan 2008
Location: Buffalo NY
Posts: 1,595
Total Cats: 17
Default

Really consider bracing the turbo because that manifold is going to crack. And where'd you get those 460s? They look extremely familiar.
rccote is offline   Reply With Quote
Old 02-05-2012, 07:37 PM   #4
Elite Member
iTrader: (5)

pusha's Avatar

Join Date: Nov 2009
Location: Miami, FL
Posts: 7,363
Total Cats: -32
Default

sup wit that MONSTER sticker? where can I find of them them *****?
pusha is offline   Reply With Quote
Old 02-05-2012, 07:45 PM   #5
Newb
Thread Starter

Join Date: Jul 2009
Posts: 32
Total Cats: 0
Default

I own a graphics company, I do mostly business stuff, but do have all my consumer stickers on my Ebay store, ill put this one up tonight - www.stores.Ebay.com/taboostickers

Last edited by schema; 02-05-2012 at 11:08 PM.
schema is offline   Reply With Quote
Old 02-05-2012, 07:49 PM   #6
Elite Member
iTrader: (10)

soviet's Avatar

Join Date: Jan 2010
Location: VA
Posts: 3,519
Total Cats: 260
Default

Quote:
Originally Posted by schema View Post
Now, on to the turbo stuff

Goals:
-Close, or under, $1k budget
-run MS only as standalone before turbo install
-6psi/150ish HP upon initial setup
-learn my way through the system/dont blow anything up
-up to 10-13+psi, 200ish + HP
-still try not to blow anything up
your stock rear end is going to explode.
soviet is offline   Reply With Quote
Old 02-05-2012, 09:56 PM   #7
Elite Member
iTrader: (10)

rccote's Avatar

Join Date: Jan 2008
Location: Buffalo NY
Posts: 1,595
Total Cats: 17
Default

Also I didn't see it mentioned anywhere, but to give you a heads up you're going to need a resistor pack/resistors and new clips to use those injectors.
rccote is offline   Reply With Quote
Old 02-05-2012, 10:17 PM   #8
Moderator
iTrader: (11)

sixshooter's Avatar

Join Date: Nov 2008
Location: Tampa, Florida
Posts: 15,686
Total Cats: 1,562
Default

Quote:
Originally Posted by rccote View Post
Also I didn't see it mentioned anywhere, but to give you a heads up you're going to need a resistor pack/resistors and new clips to use those injectors.
For rx7 460s? I don't think so.
sixshooter is offline   Reply With Quote
Old 02-05-2012, 10:41 PM   #9
Elite Member
iTrader: (10)

rccote's Avatar

Join Date: Jan 2008
Location: Buffalo NY
Posts: 1,595
Total Cats: 17
Default

He probably got a good deal because they're the square top low Z ones that require more work and not the PnP high z round clip 460s. In fact depending on where you got them they might even be my old ones by the looks of it.
rccote is offline   Reply With Quote
Old 02-05-2012, 11:05 PM   #10
Newb
Thread Starter

Join Date: Jul 2009
Posts: 32
Total Cats: 0
Default

They are low impedance ones, from what I was told, and was under the impression I will need the resistors.

Rccote, picked them up from a guy names Rynn who was in to MX3's, I believe he was from Farmington. NY.


The manifolds; before they go on, I will weld bracing to them. Having them crack is little concern (even expected with these) as Ive been welding for over 10 years =) Any kind of down time for me would be nothing more than stopping by the shop for a quick repair. Im sure by that point I'll scoop up a cast.


And the stock rear ends, if it blows, it blows! The shop I have my parts car from the manual swap, and where Ive been builing my other v8 miata, has another 10 or so miatas there. No shortage of parts. Likewise, if the stock one goes, I'll throw in the LSD from one of the M's sitting there, and if that one goes, I'll look for something else.
schema is offline   Reply With Quote
Old 02-06-2012, 05:04 AM   #11
Elite Member
iTrader: (1)

Join Date: Jun 2006
Location: Warrington/Birmingham
Posts: 2,658
Total Cats: 39
Default

Quote:
Originally Posted by schema View Post
They are low impedance ones, from what I was told, and was under the impression I will need the resistors.
Or you could run them as low impedance, which your MS is fully capable of.

just make sure you do all the extra ground mods on the board (search MSextra for more info). the MegaSquirt grounds are shitty and can't handle low impedance injectors very well.
richyvrlimited is offline   Reply With Quote
Old 02-06-2012, 11:28 AM   #12
Elite Member
iTrader: (10)

soviet's Avatar

Join Date: Jan 2010
Location: VA
Posts: 3,519
Total Cats: 260
Default

Quote:
Originally Posted by schema View Post
And the stock rear ends, if it blows, it blows! The shop I have my parts car from the manual swap, and where Ive been builing my other v8 miata, has another 10 or so miatas there. No shortage of parts. Likewise, if the stock one goes, I'll throw in the LSD from one of the M's sitting there, and if that one goes, I'll look for something else.
I like that approach
soviet is offline   Reply With Quote
Old 02-06-2012, 11:48 AM   #13
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,900
Total Cats: 1,792
Default

wheel tire combo gives me the willie's.
Braineack is online now   Reply With Quote
Old 02-06-2012, 05:19 PM   #14
Newb
Thread Starter

Join Date: Jul 2009
Posts: 32
Total Cats: 0
Default

Quote:
Originally Posted by Braineack View Post
wheel tire combo gives me the willie's.
I dont know if thats a good thing or bad thing! Theres no questions the tires are oversized (doesnt look tooooo bad with the flares, but still, they're big)

205/55's I think. They were brand new sitting in the shop, bought them for my old porsche 944 but sold the car before I used them. I was so excited when the wheels came in the mail I just thew on whatever I couldnt find, those were it!

Richy, thats awesome, I will look in to that! Injectors are being dropped off for cleaning, filter, and flow testing tomorrow.

Didnt have a lot of time over the weekend to put together the MS, I think I stopped at step #22 putting the power assembly together. and I didnt get any of IC sockets so I can swap them out without desoldering, LAME. Looks like I will overpay for them at Radioshack
schema is offline   Reply With Quote
Old 02-06-2012, 06:09 PM   #15
meatbag
iTrader: (50)

gospeed81's Avatar

Join Date: Nov 2008
Location: Houston, TX
Posts: 7,357
Total Cats: 26
Default

Quote:
Originally Posted by rccote View Post
He probably got a good deal because they're the square top low Z ones that require more work and not the PnP high z round clip 460s. In fact depending on where you got them they might even be my old ones by the looks of it.
Just to clarify for future readers:

Not all square tops are low impedance.

I've gotten deals on high-z injectors because they were squares, and a set of the connectors can be hard for less than $10 on ebay. 8 wires...less than most stereo installs.
gospeed81 is offline   Reply With Quote
Old 02-06-2012, 09:15 PM   #16
Newb
Thread Starter

Join Date: Jul 2009
Posts: 32
Total Cats: 0
Default

I guess its subjective, my "deal" on these were $30 for the set, and I'm paying $40 to have new o-rings,filter, and flow tested with before and after readouts printed out. So $70 total
schema is offline   Reply With Quote
Old 02-07-2012, 12:26 AM   #17
Newb
Thread Starter

Join Date: Jul 2009
Posts: 32
Total Cats: 0
Default

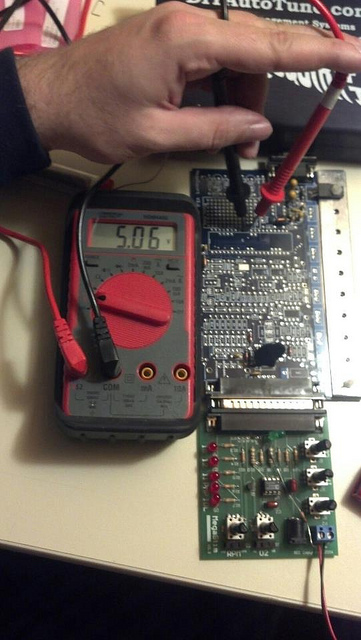

P/S done! My gut sank for a good 5 min till I realized I was reading the IC pins wrong and wasnt getting voltage to a set of connections, but all is well


Attached Thumbnails
1.6l NA (AT to MT) w/14b turbo build - Megasquirted, lots of pics-6833806211_758e0fdbc8_z.jpg
schema is offline   Reply With Quote
Old 02-08-2012, 06:31 PM   #18
Newb
Thread Starter

Join Date: Jul 2009
Posts: 32
Total Cats: 0
Default

Test results came back. I'm pregnant.

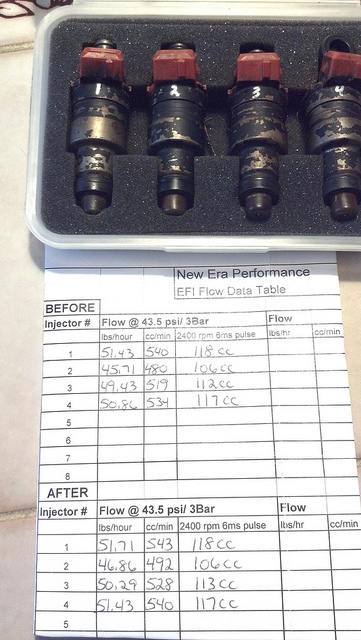

These were supposed to be 460cc injectors, and..... better than expected! Despite any notable difference after cleaning, it looks like there were in good shape to begin with (though they look pretty rough), better safe than sorry!

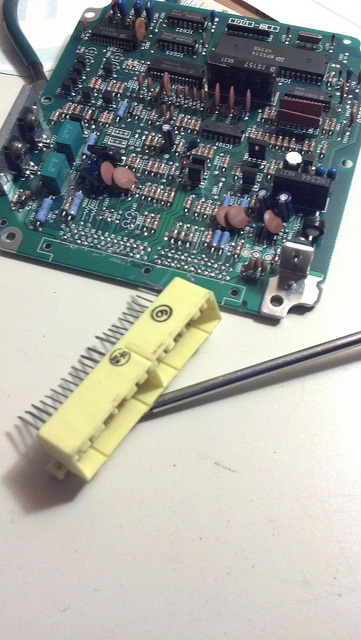

While waiting for the DB9 to USB cable to show up in the mail, i started tearing in to a spare ECU to yank out the connector and tonight I'll make a cable for the MS so I dont have to cut the wiring harness.

Attached Thumbnails
1.6l NA (AT to MT) w/14b turbo build - Megasquirted, lots of pics-6843351305_417e8b6cb0_z.jpg   1.6l NA (AT to MT) w/14b turbo build - Megasquirted, lots of pics-6843402809_c80e8a215d_z.jpg
schema is offline   Reply With Quote
Old 02-08-2012, 07:03 PM   #19
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,109
Total Cats: 518
Default

Um, you're not using those injectors, are you? They're scrap.

Here are my results. Look how much cleaner they are
https://www.miataturbo.net/showthrea...rc+engineering
curly is online now   Reply With Quote
Old 02-08-2012, 07:09 PM   #20
Newb
Thread Starter

Join Date: Jul 2009
Posts: 32
Total Cats: 0
Default

Quote:
Originally Posted by curly View Post
Um, you're not using those injectors, are you? They're scrap.

Here are my results. Look how much cleaner they are
https://www.miataturbo.net/showthrea...rc+engineering
Is it essential to have all the injectors running within a very close proximity of each other?

Pardon my confusion, as this is still a learning endeavor on my end. Would having these run in excess of 460 be problematic?
schema is offline   Reply With Quote
