Old 12-30-2011, 10:30 PM   #41
Slowest Progress Ever
iTrader: (26)

thirdgen's Avatar

Join Date: Oct 2007
Location: The coal ridden hills of Pennsylvania
Posts: 5,812
Total Cats: 187
Default

I remember putting bushings like those on aftermarket control arms for a chevy s10. It was a pain in the *** and took patience and lots of pabst blue ribbon to get the job done.
I don't really look forward to doing it again, but I will in the name of high performance.
thirdgen is offline   Reply With Quote
Old 12-30-2011, 10:32 PM   #42
I'm a terrible person
Thread Starter
iTrader: (19)

FRT_Fun's Avatar

Join Date: Apr 2009
Location: Arizona
Posts: 7,293
Total Cats: 180
Default

Honestly I really worry about these things squeaking. I was conservative with the lube at first because I wasn't sure how much I was going to have. I have progressively been using more, and I think I will run out on my last bushing. I'm considering installing zerk fittings, there are already holes in the control arms, so I would just need to thread in some fittings.
FRT_Fun is offline   Reply With Quote
Old 12-30-2011, 11:34 PM   #43
Elite Member
iTrader: (12)

GeneSplicer's Avatar

Join Date: Sep 2009
Location: Birmingham, AL
Posts: 2,006
Total Cats: 147
Default

Got mine out today, thanks - Yeah, you need to add the Zerks - that's my plan any way. http://949racing.com/installingzerkfittings.aspx
GeneSplicer is offline   Reply With Quote
Old 12-31-2011, 02:28 AM   #44
I'm a terrible person
Thread Starter
iTrader: (19)

FRT_Fun's Avatar

Join Date: Apr 2009
Location: Arizona
Posts: 7,293
Total Cats: 180
Default

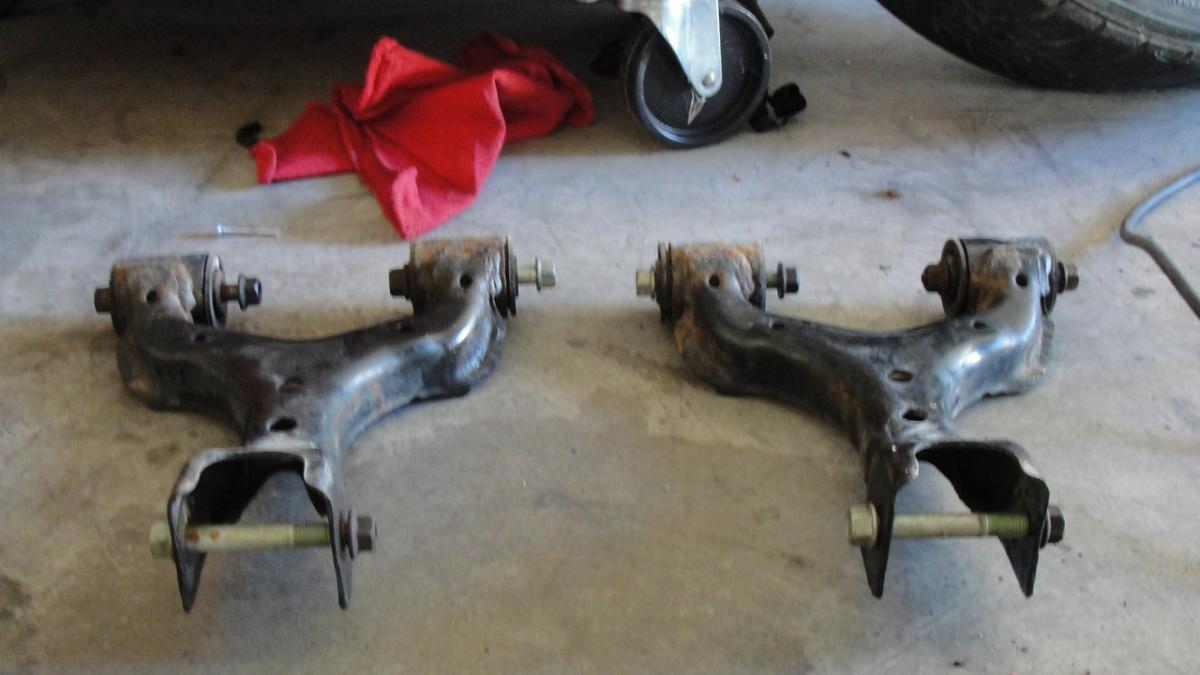

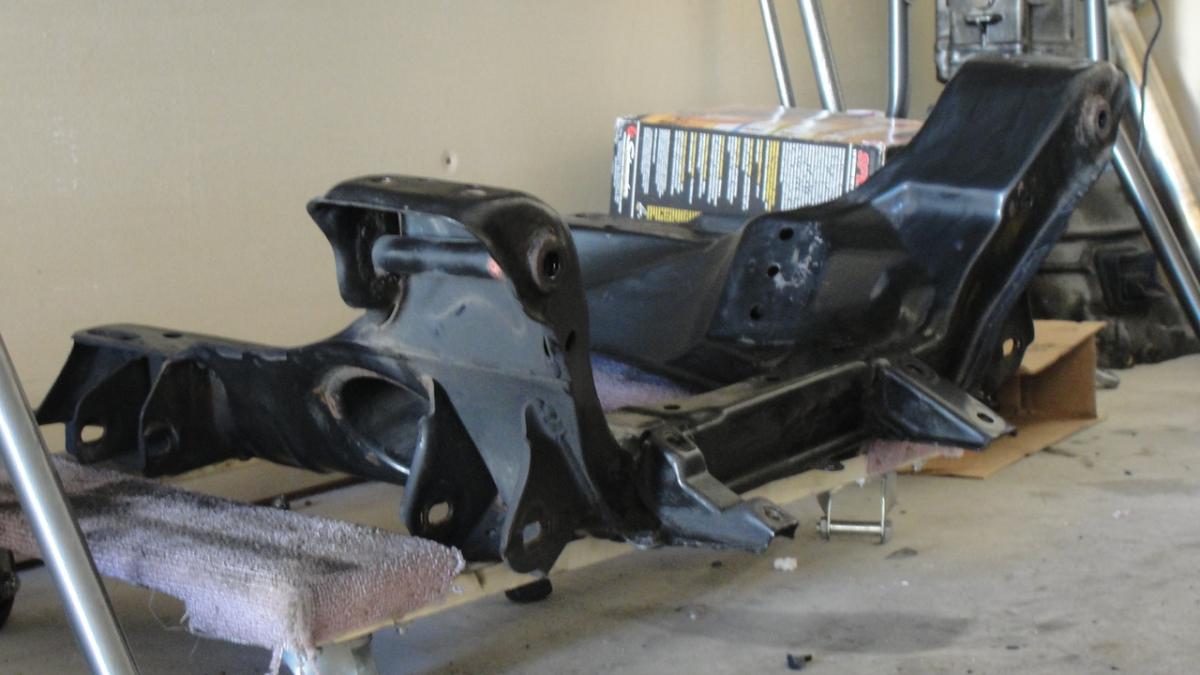

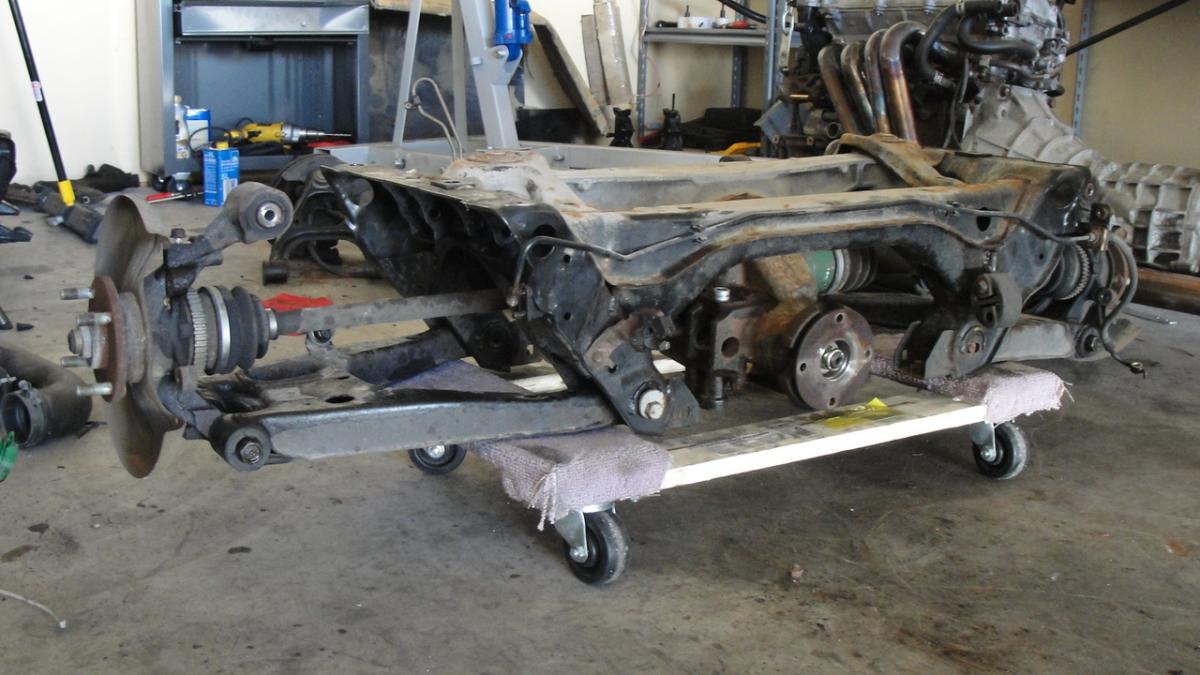

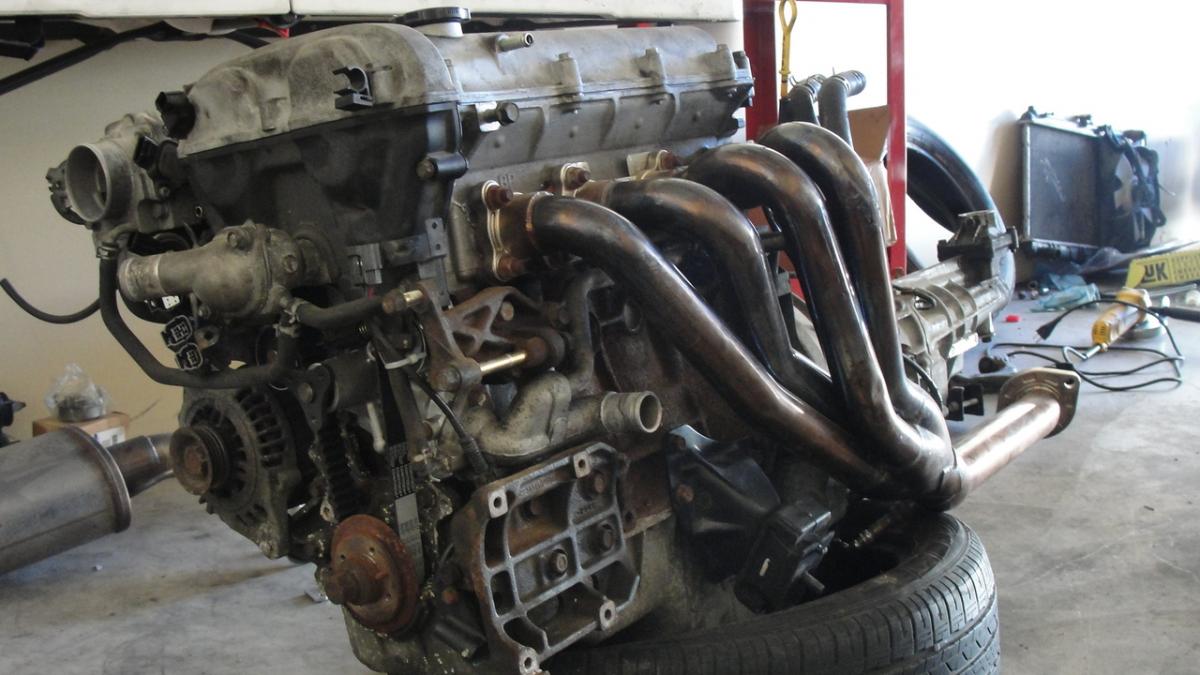

Some photos (Going back in time on some of these as they are off a different camera):







Attached Thumbnails
2000 SE Turbo-dsc01186kg.jpg   2000 SE Turbo-dsc01187q.jpg   2000 SE Turbo-dsc01188p.jpg   2000 SE Turbo-dsc01189er.jpg
FRT_Fun is offline   Reply With Quote
Old 12-31-2011, 02:29 AM   #45
I'm a terrible person
Thread Starter
iTrader: (19)

FRT_Fun's Avatar

Join Date: Apr 2009
Location: Arizona
Posts: 7,293
Total Cats: 180
Default

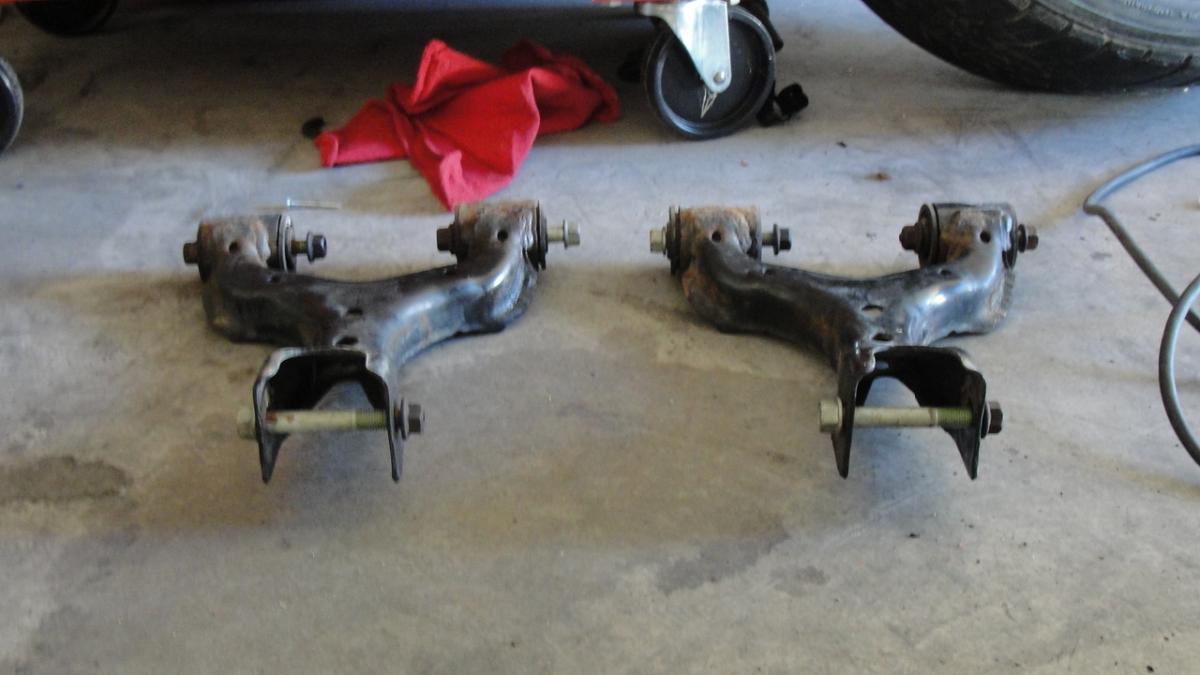

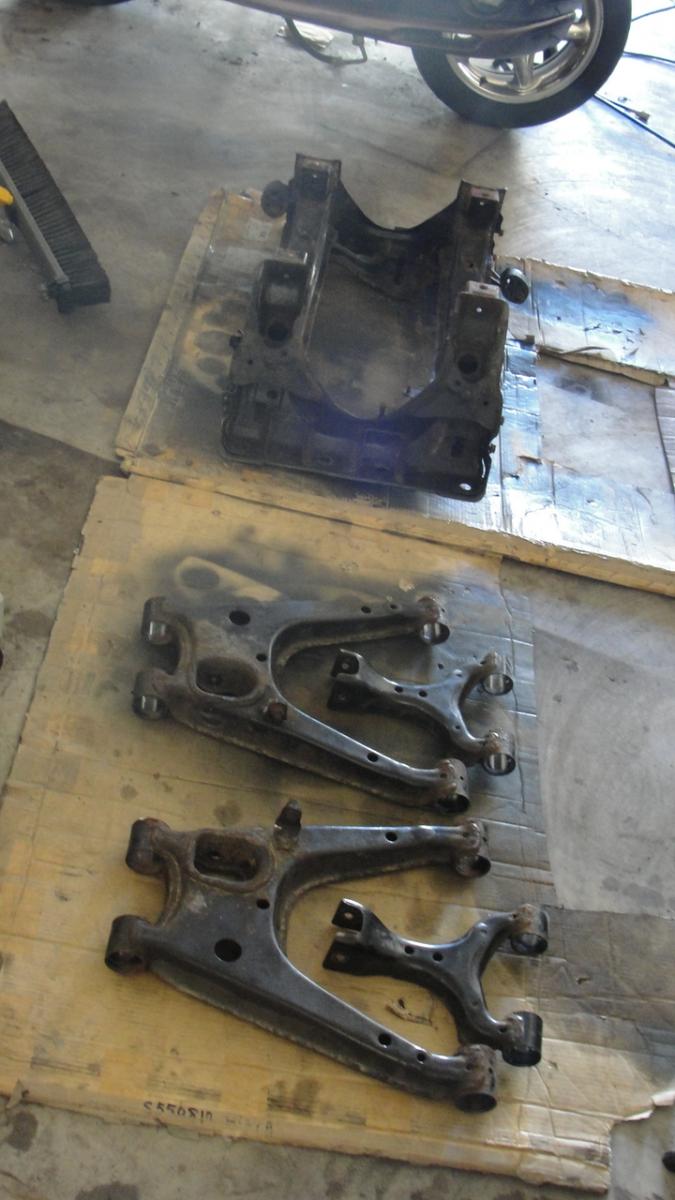

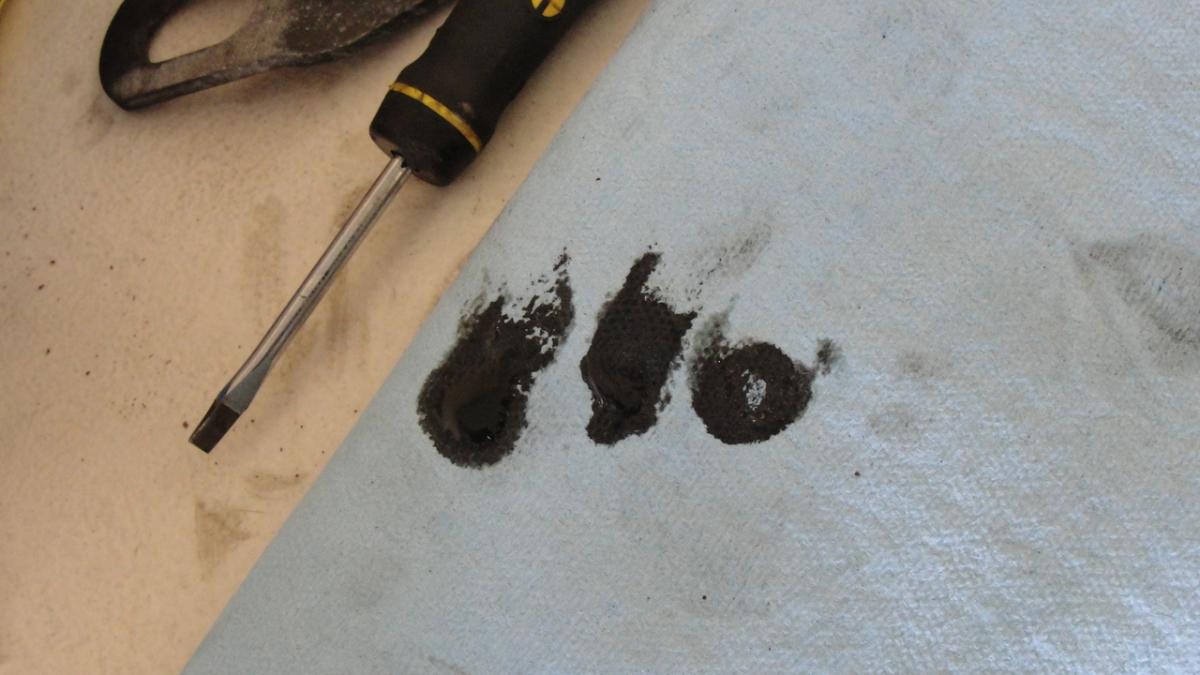

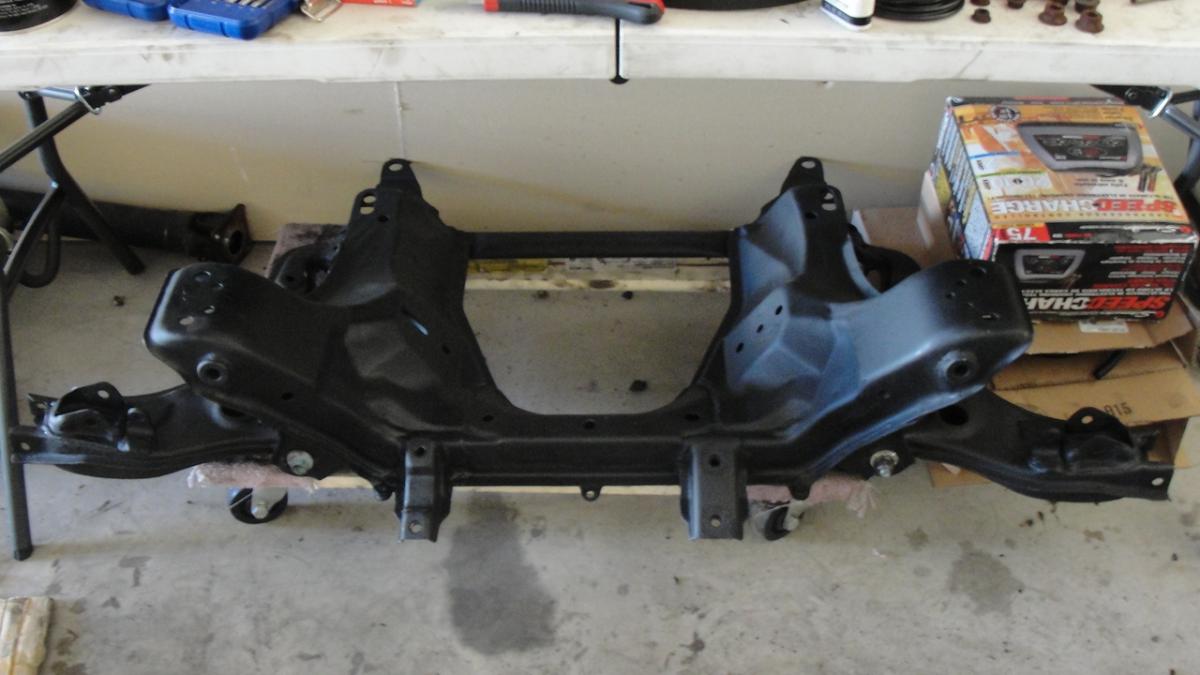

Diff oil... yuck, I'll be changing that out.




Attached Thumbnails
2000 SE Turbo-dsc01190vg.jpg   2000 SE Turbo-dsc01191zf.jpg   2000 SE Turbo-dsc01192r.jpg   2000 SE Turbo-dsc01193x.jpg
FRT_Fun is offline   Reply With Quote
Old 12-31-2011, 02:32 AM   #46
I'm a terrible person
Thread Starter
iTrader: (19)

FRT_Fun's Avatar

Join Date: Apr 2009
Location: Arizona
Posts: 7,293
Total Cats: 180
Default

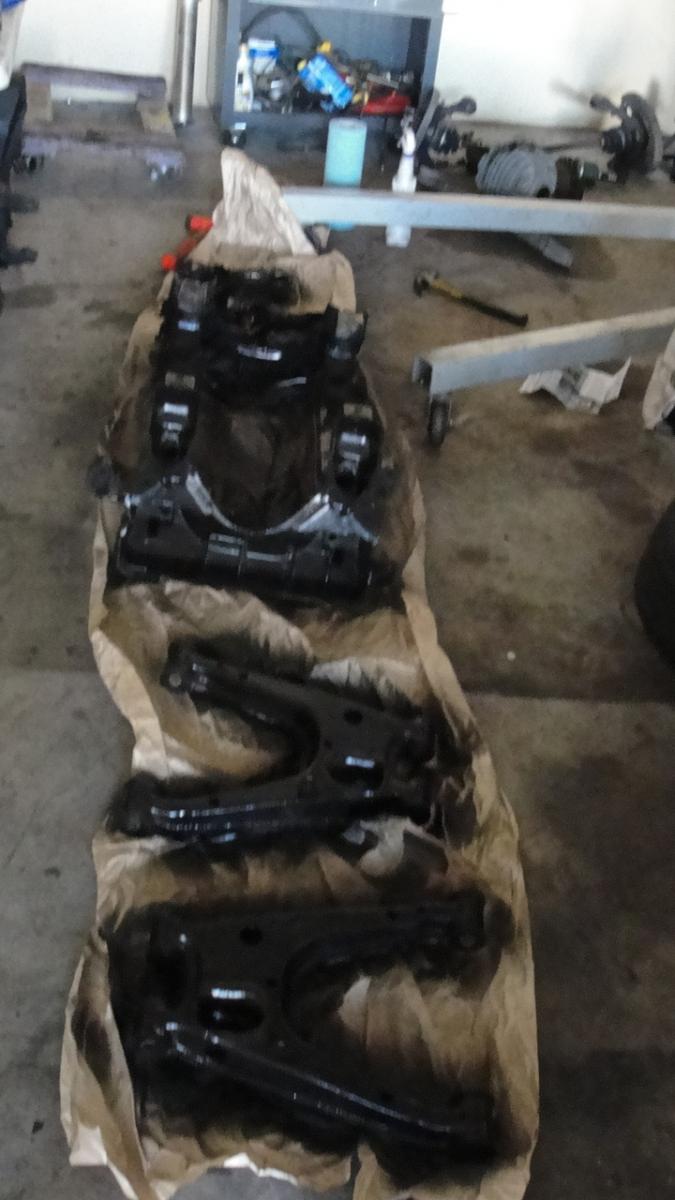

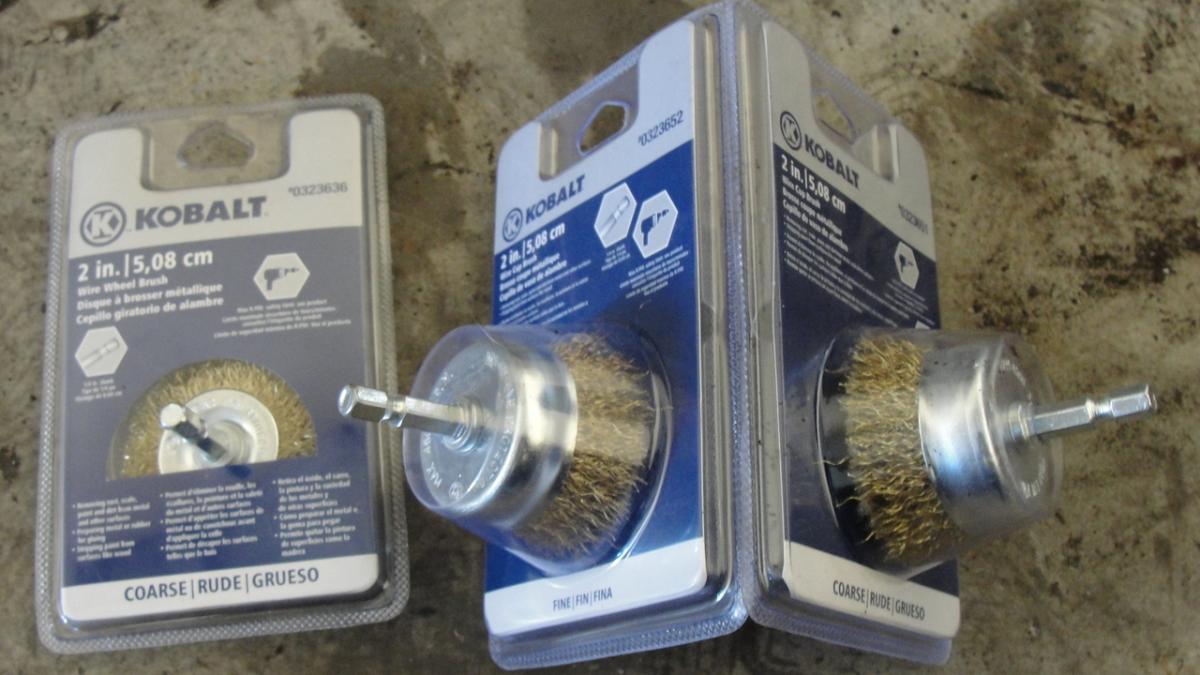

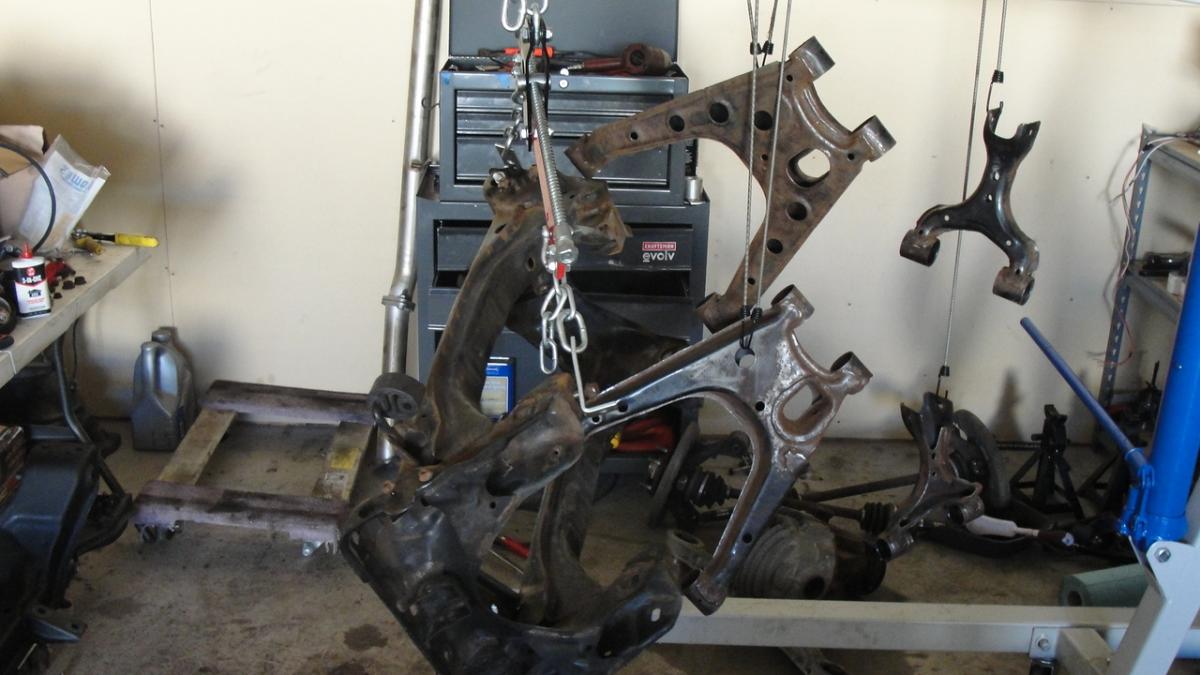

Washing them down for some more prepping.


Round 1:
Attached Thumbnails
2000 SE Turbo-dsc01194xw.jpg   2000 SE Turbo-dsc01195h.jpg   2000 SE Turbo-dsc01197y.jpg
FRT_Fun is offline   Reply With Quote
Old 12-31-2011, 04:03 AM   #47
Junior Member

Join Date: Aug 2011
Location: CT
Posts: 58
Total Cats: 0
Default

Like the work you did on the subframe and control arms, completely changes the look underneath, it is well worth the time! Very nice pictures of the bushing install as well
cwall424 is offline   Reply With Quote
Old 12-31-2011, 11:25 AM   #48
I'm a terrible person
Thread Starter
iTrader: (19)

FRT_Fun's Avatar

Join Date: Apr 2009
Location: Arizona
Posts: 7,293
Total Cats: 180
Default

Im hoping the bushings completly change the feel of the car, in a good way

Very excited to get this thing back together. Unfortunately this thread will get a 5 week break thanks to work. Only 2 days left :*(
FRT_Fun is offline   Reply With Quote
Old 01-01-2012, 07:31 PM   #49
Junior Member

Golferluke's Avatar

Join Date: Oct 2009
Location: Springfield, MO
Posts: 497
Total Cats: 3
Default

Good looking car. I like how you get stuff done quick with quality parts and take lots of pictures in the process. Subscribing for future boosting goodness!
Golferluke is offline   Reply With Quote
Old 01-01-2012, 08:28 PM   #50
I'm a terrible person
Thread Starter
iTrader: (19)

FRT_Fun's Avatar

Join Date: Apr 2009
Location: Arizona
Posts: 7,293
Total Cats: 180
Default

I never. Ever. Want to do differential mounts again. Unfortunately this is the 3rd time I've done them. And probably won't be my last. Enjoy.

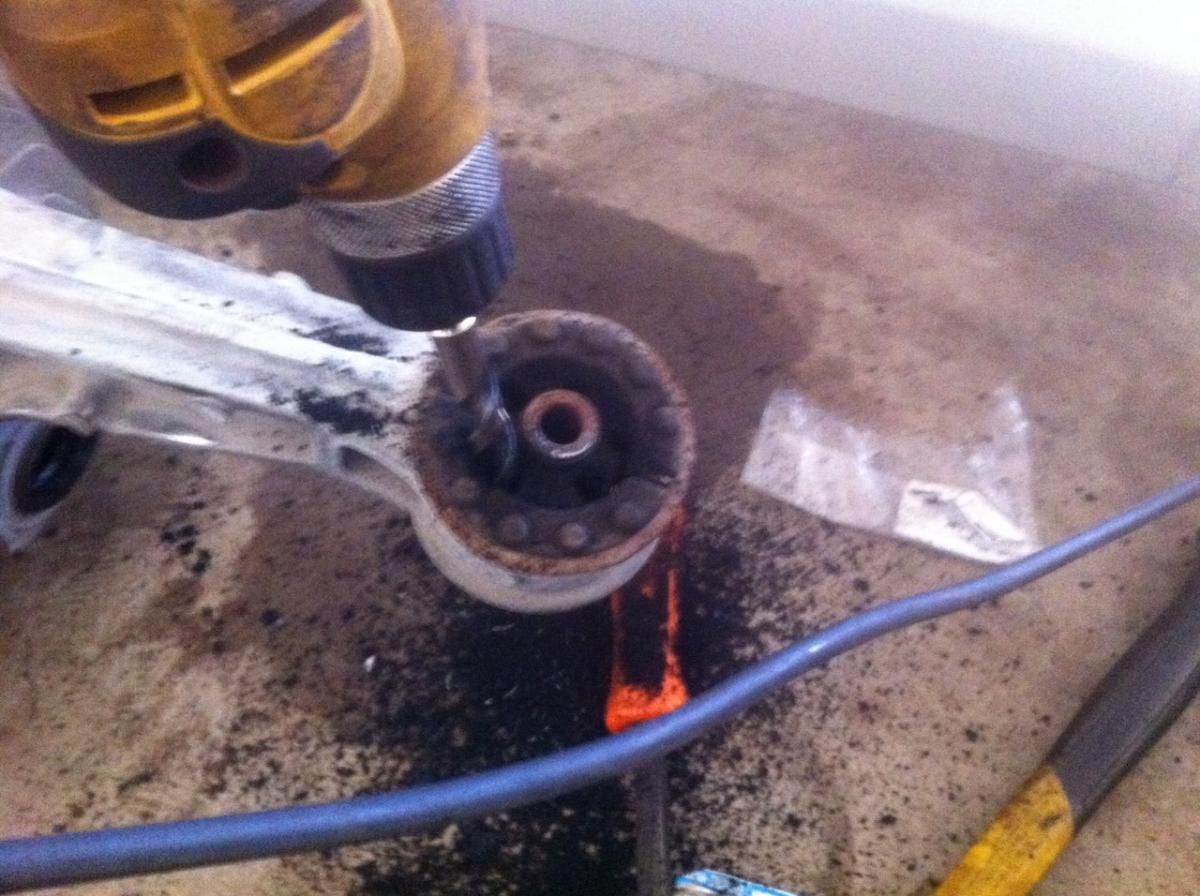

Step 1: Drill the frack out of these mounts like they owe you money.

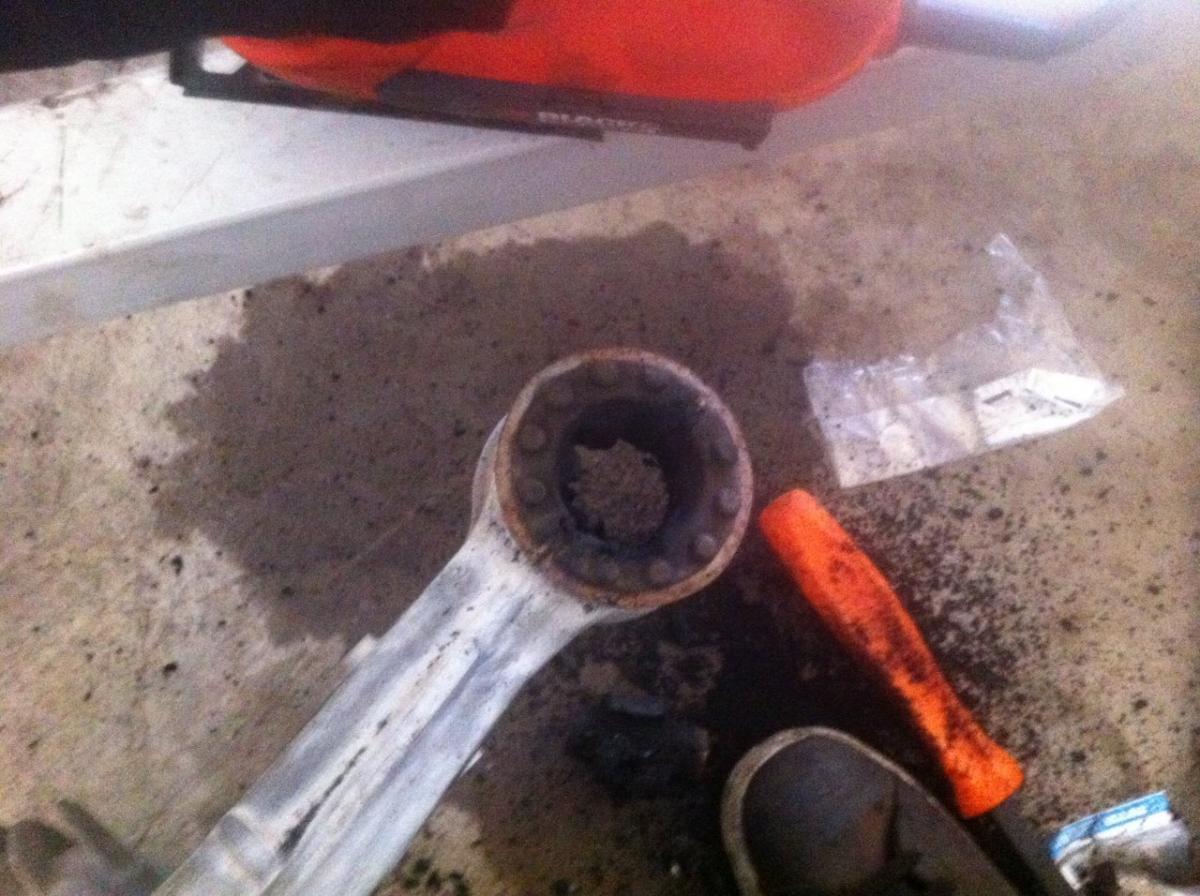

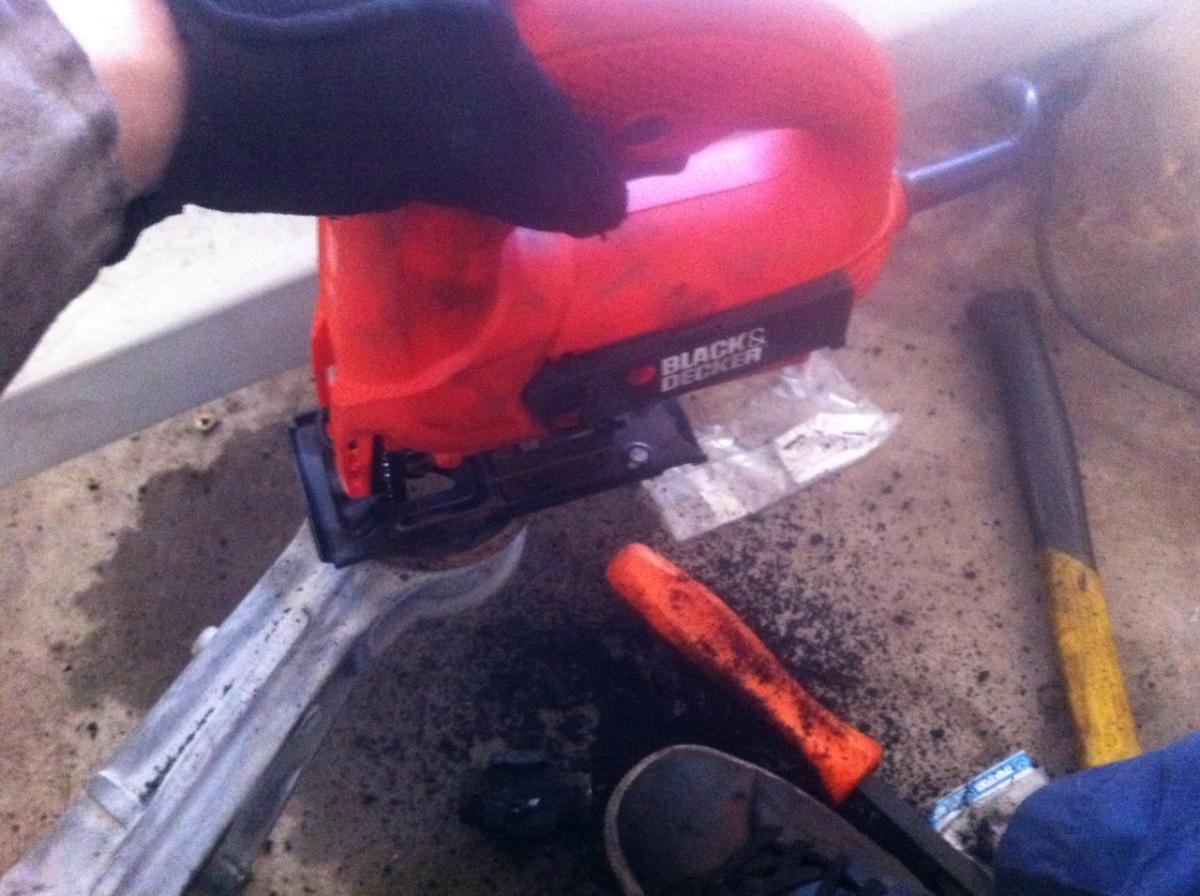

Step 2: Jig saw. Like you've never jig sawed before.



Step 3:And keep doing it until this happens:

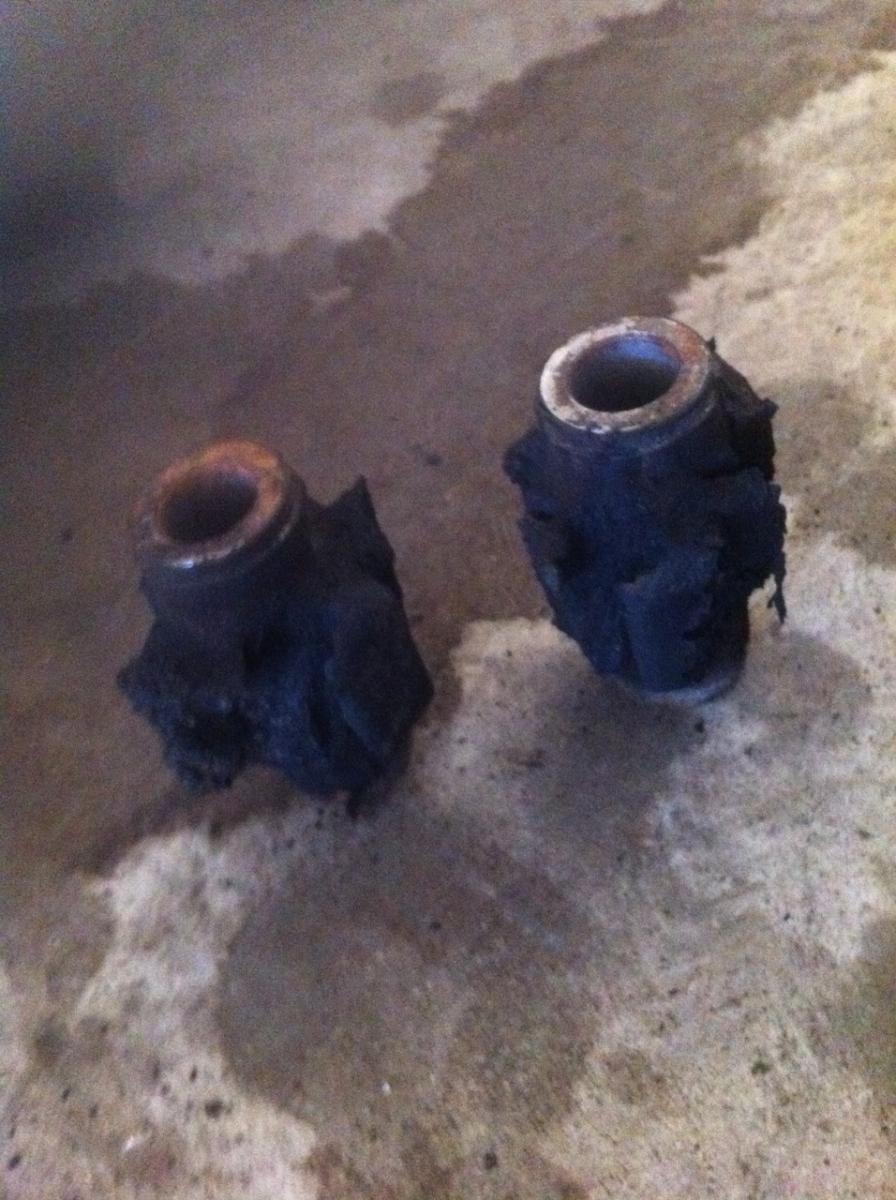

You should then get this:

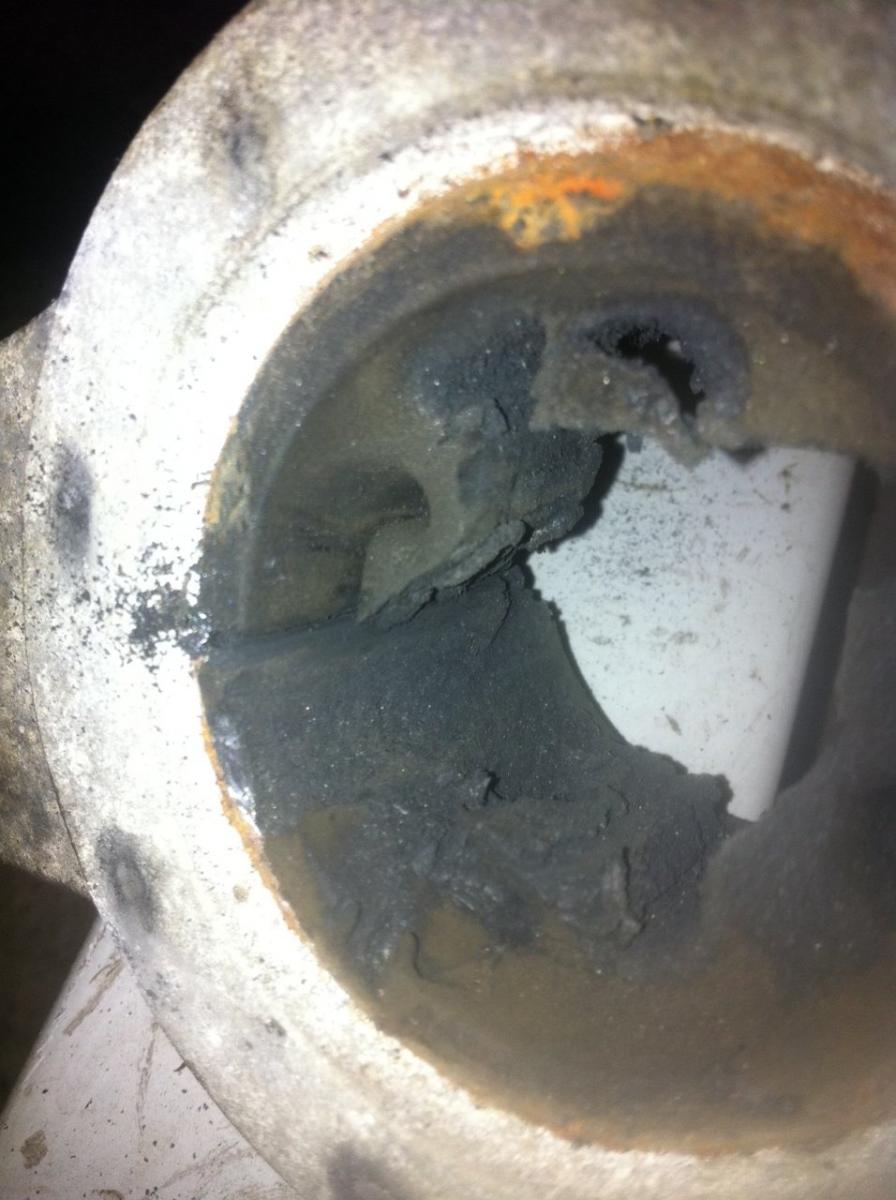

From here the fun starts. You beat the ever living crap out of the metal inserts that are left. As you can see from the picture below, there is a crease, which if you get a nice sharp punch, you can just hammer down the middle of that crease. Do that on both sides, and then start pounding around the edges. Unfortunately all I had was a some beefy Snap On pry bars. And the handles reduced the blow to the mounts so much it took me forever. A few hammers into my thumb later I really hated life.

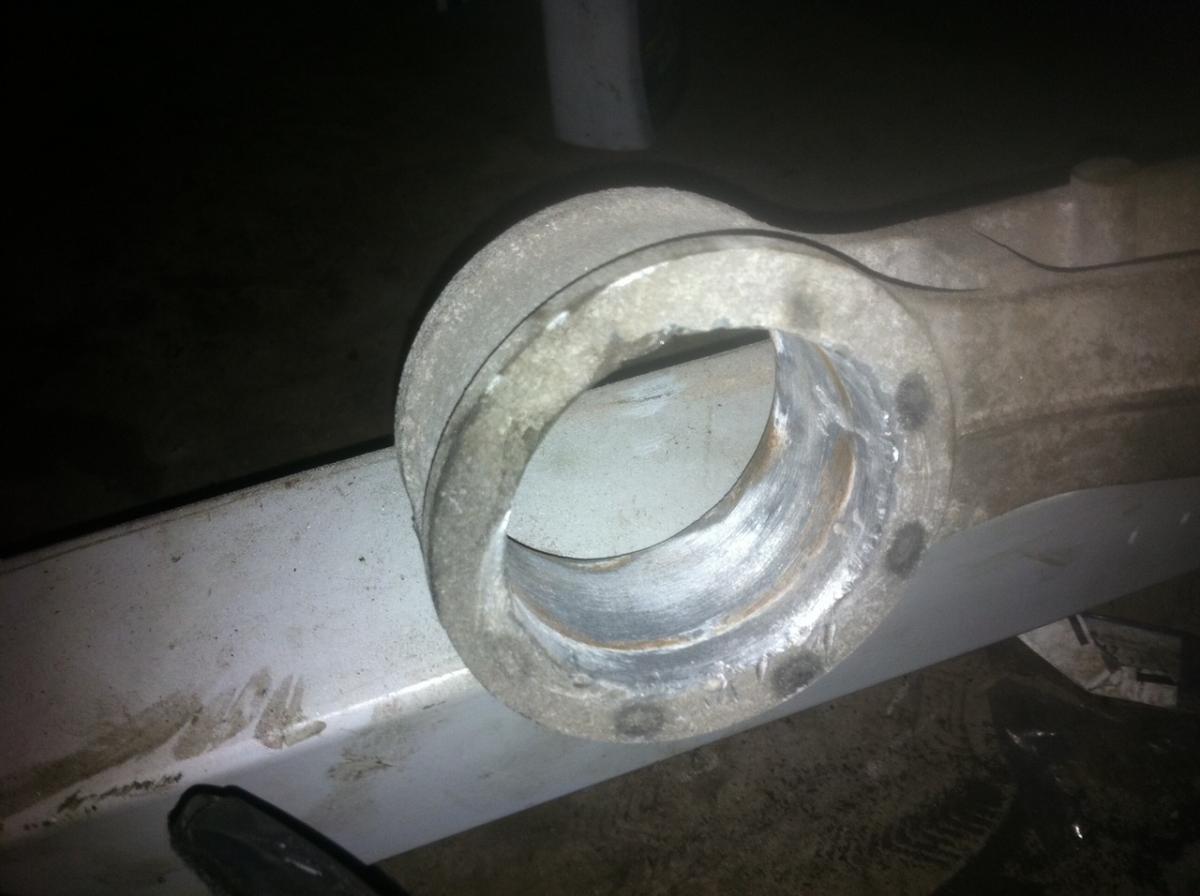

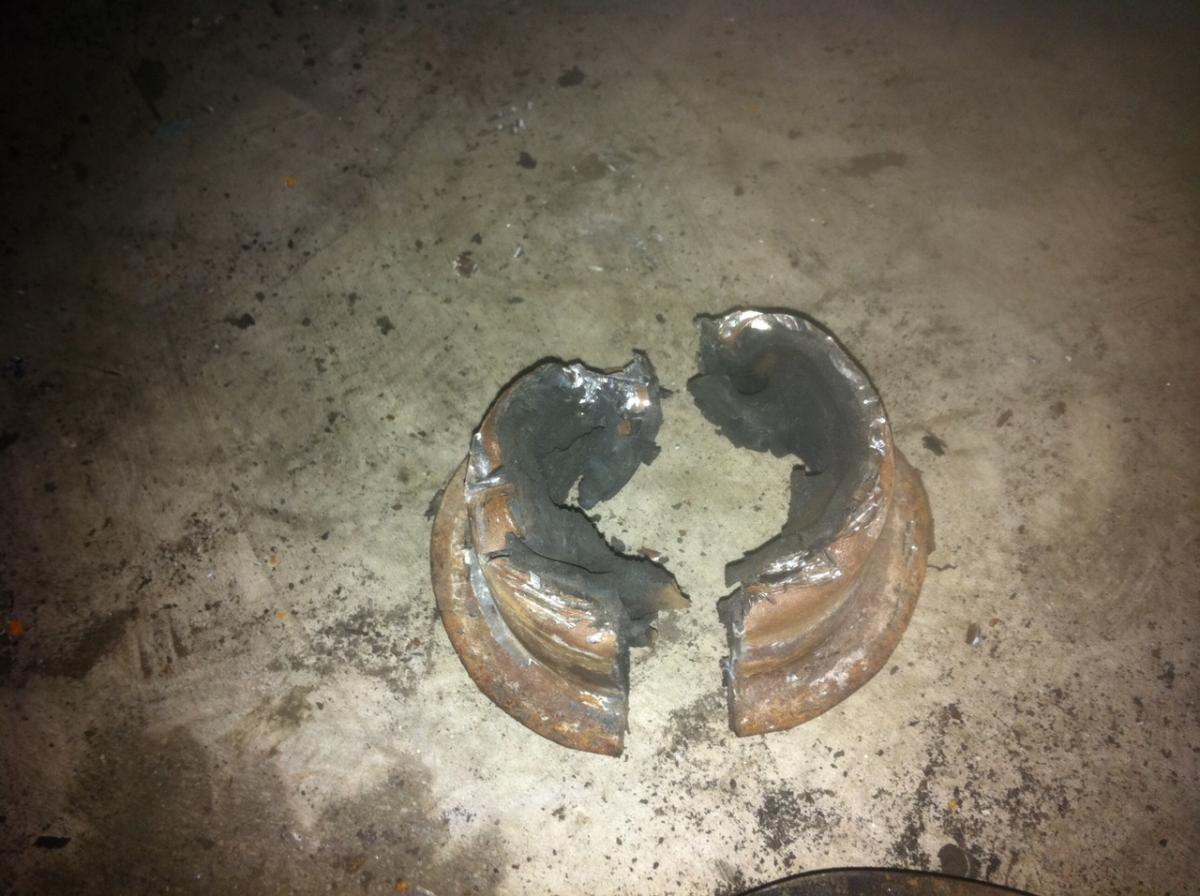

So if you did it right, your thumb will not be hurting, and you will have these:

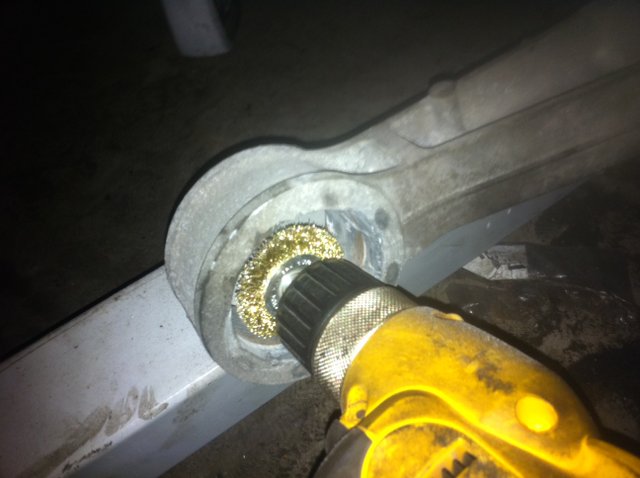

Next clean all the rust and junk out. I used this:



Most of it out:

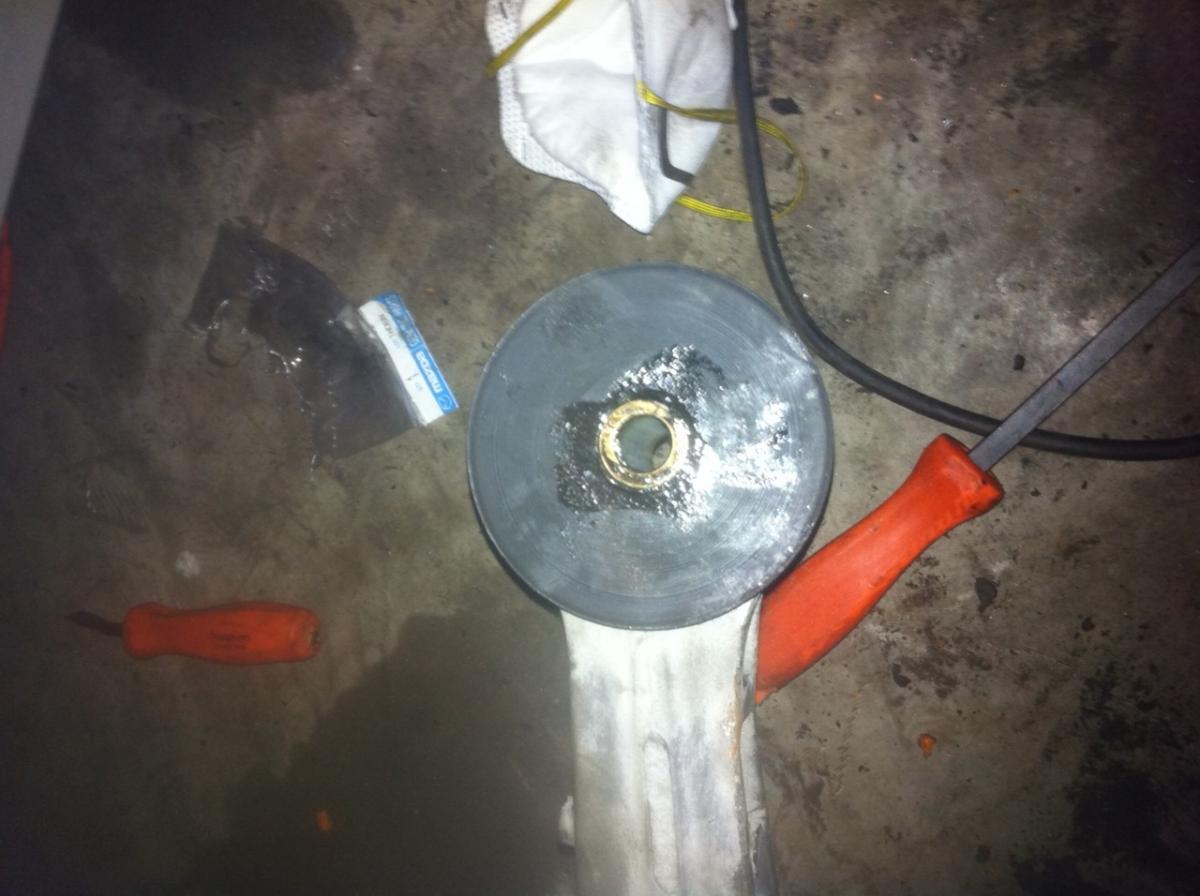

And finally grab your new bushings, ensure you are inserting them the correct way, and hammer the ef out of them with a mallet until they go all the way.




This is about all I did today. I was painting the rest of the sub-frame in between hitting my thumb with a hammer. The amount of flex that the old mounts had, vs the new ones is insane. I could rock the diff about 4 inches with the old mounts. New I can't really rock it at all.
Attached Thumbnails
2000 SE Turbo-photo51b.jpg   2000 SE Turbo-photo52r.jpg   2000 SE Turbo-photo53w.jpg   2000 SE Turbo-photo54a.jpg   2000 SE Turbo-photo56ad.jpg

2000 SE Turbo-photo59l.jpg   2000 SE Turbo-photo57c.jpg   2000 SE Turbo-photo55q.jpg   2000 SE Turbo-photo58nr.jpg

Last edited by FRT_Fun; 01-01-2012 at 11:03 PM.
FRT_Fun is offline   Reply With Quote
Old 01-01-2012, 08:37 PM   #51
I'm a terrible person
Thread Starter
iTrader: (19)

FRT_Fun's Avatar

Join Date: Apr 2009
Location: Arizona
Posts: 7,293
Total Cats: 180
Default

Quote:
Originally Posted by Golferluke View Post
Good looking car. I like how you get stuff done quick with quality parts and take lots of pictures in the process. Subscribing for future boosting goodness!
Thanks! It's a lot of work but I really want to get back to driving this thing so I've been working my A off. After I get the differential back in tomorrow, I should have the whole rear subframe finished.

The front I'm waiting on inner/outer tie rods. Lower ball joints. Spindles. Hubs. and then I'll be putting that all back together as well.

The engine is just about done. I need to drill out a few bolts that broke in the engine bay, as well as a bolt on the intake side of the EGR tube which happened a while ago when the RB downpipe was installed.

I'll probably need two weekends when I get back from my trip in February before it's done. So probably March.
FRT_Fun is offline   Reply With Quote
Old 01-02-2012, 01:12 AM   #52
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,109
Total Cats: 518
Default

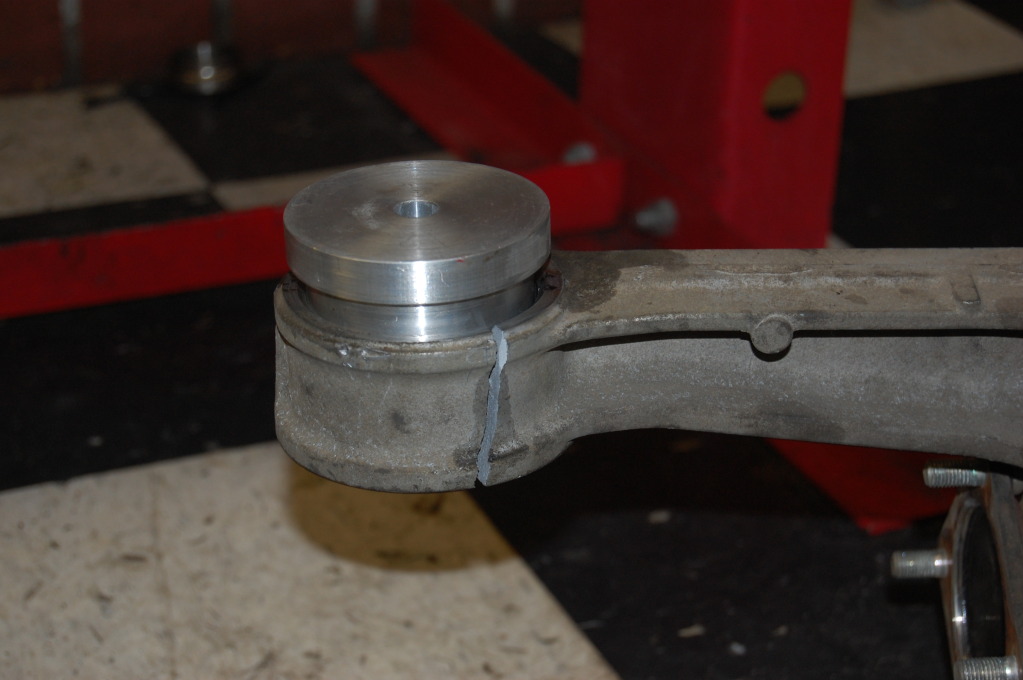

Careful with all that wacking. Seems like it didn't cause you any issues though. These were most likely more of a tolerance issue though.
Attached Thumbnails
2000 SE Turbo-dsc_1129.jpg
curly is offline   Reply With Quote
Old 01-02-2012, 03:02 AM   #53
I'm a terrible person
Thread Starter
iTrader: (19)

FRT_Fun's Avatar

Join Date: Apr 2009
Location: Arizona
Posts: 7,293
Total Cats: 180
Default

Quote:
Originally Posted by curly View Post
Careful with all that wacking. Seems like it didn't cause you any issues though. These were most likely more of a tolerance issue though.
[sad face image]
I really don't see any other way, unless I'm doing it wrong? I was hitting it pretty damn hard and it held up. There were a few times I was thinking that might happen though. WTF is that anyway, a metal bushing? That seems like the issue there.
FRT_Fun is offline   Reply With Quote
Old 01-02-2012, 12:03 PM   #54
I'm a terrible person
Thread Starter
iTrader: (19)

FRT_Fun's Avatar

Join Date: Apr 2009
Location: Arizona
Posts: 7,293
Total Cats: 180
Default

Well I don't have time to work on the car today. I leave at 4am tomorrow so looks like everything will be on hold until I get back. I'll update purchased parts at least though
FRT_Fun is offline   Reply With Quote
Old 01-02-2012, 12:54 PM   #55
Slowest Progress Ever
iTrader: (26)

thirdgen's Avatar

Join Date: Oct 2007
Location: The coal ridden hills of Pennsylvania
Posts: 5,812
Total Cats: 187
Default

Think those bushings would come out easier with a torch?? When it comes time to do mine, I'd rather not fight that hardcore. Did your differential bushings come with your kit?
thirdgen is offline   Reply With Quote
Old 01-02-2012, 12:57 PM   #56
I'm a terrible person
Thread Starter
iTrader: (19)

FRT_Fun's Avatar

Join Date: Apr 2009
Location: Arizona
Posts: 7,293
Total Cats: 180
Default

I did use heat. Not a whole lot, I used my little butane torch. Didn't seem to make a difference which is why I didn't mention it. With something a bit more powerful might be more successful. Yes the diff bushings came with the kit. Seems like the trick to these is just splitting bushing down on the creases. Once I reached the bottom they pretty much just fell out.
FRT_Fun is offline   Reply With Quote
Old 01-02-2012, 01:00 PM   #57
Slowest Progress Ever
iTrader: (26)

thirdgen's Avatar

Join Date: Oct 2007
Location: The coal ridden hills of Pennsylvania
Posts: 5,812
Total Cats: 187
Default

Nice...I'm buying that kit then. I have an oxy/ acetylene torch, so I'll rock that. I also have "kroil" which is the awesomest penetrating oil known to man.
I wonder if those bushings will dramatically help with wheel hop, and also my vibration issue. I can't wait to hear your testimonial.
thirdgen is offline   Reply With Quote
Old 01-02-2012, 07:11 PM   #58
Junior Member
iTrader: (5)

Join Date: Dec 2010
Posts: 142
Total Cats: 2
Default

There is a much easier way to remove/install the diff bushings. I did it on mine with the diff dropped down but not removed from the car. It is a variation of what you did with the control arm bushings, you press them out. Unfortunately I didn't take any pictures as I spent so much time trying other methods I just wanted to get it done. Took maybe 10 minutes per side to remove and a little longer to install the new ones.
chiefmg is offline   Reply With Quote
Old 01-02-2012, 07:21 PM   #59
I'm a terrible person
Thread Starter
iTrader: (19)

FRT_Fun's Avatar

Join Date: Apr 2009
Location: Arizona
Posts: 7,293
Total Cats: 180
Default

Care to explain a bit more? I don't see how the control arm bushing method could work, it seriously took a beating to get those diff bush out.
FRT_Fun is offline   Reply With Quote
Old 01-03-2012, 09:47 PM   #60
Junior Member
iTrader: (5)

Join Date: Dec 2010
Posts: 142
Total Cats: 2
Default

To remove them I used a two arm puller along with a 2 1/2" diameter (IIRC) spacer from my ball joint installation tool set along with a flat plate from the same kit. The spacer just fits into the inside of the diff bushing housing. The two arm puller clamps onto the lip on the bottom of the diff bushing housing and you use it to push the bushing out the top.

To install I put one bushing in and jacked up the diff until the car started to rise, then hit the bottom of the diff bushing housing using a piece of wood to get it started. Once that was done I used a BACC (big *** C-clamp, I'd have to double-check but I think it's an 8") along with a bigger spacer from the ball joint kit on the bottom. Two plates from the ball joint kit, one top and one bottom s the load. Then you just tighten the C-clamp and it will pull the bushing into place.

If I can find where my wife hid my camera I'll lay things out to try and give you some idea of what I'm talking about, if the above doesn't do it.
chiefmg is offline   Reply With Quote
