Old 10-07-2014, 01:41 PM   #81
Junior Member

Join Date: Dec 2008
Location: Ft. Lauderdale, FL
Posts: 273
Total Cats: 7
Default

Quote:
Originally Posted by 18psi View Post
Why do you guys assume a i/h/e vvt engine should make 140whp?
Because emilio did it on some of their cars?
Pretty sure vvt does nothing for peak power gains on a n/a car (at least significantly).
Variation in output can easily vary 13hp between different cars, dyno's, locations, days, etc.

I dunno, just seems like everyone is stuck on numbers when we start talking about this stuff. Like 140 would be amazing, and 128 is crap. Which, to me, is funny.
The first dyno runs with my VVT swapped '90 was 128hp. Further testing and part changes have resulted in 143hp. One tip I can give you, start with a '99-'00 VICS manifold if you cannot get a Flat-top.

VICS manifold vs the VVT stock VTCS manifold (With Butterflies):
DYNO VTCS VS VICS.pdf

Last change was to a Racing Beat header from a Jackson Racing Header (Also completely changed the full exhaust so it is not apples to apples):
racing beat header.pdf
MX5RACER is online now   Reply With Quote
Old 10-07-2014, 02:13 PM   #82
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,106
Total Cats: 518
Default

Yeah, we definitely are leaving some power on the table with the VTCS manifold. I think he's already eying a flat top or VICS at some point.

The VCTS is completely deleted though. I cut the bar into 3 small pieces, then drilled at tapped the manifold flange for m6x1 set screws, and JB welded them in place to hold the bars in.
curly is offline   Reply With Quote
Old 10-07-2014, 02:35 PM   #83
Senior Member
iTrader: (3)

Join Date: Nov 2011
Location: Beaverton, OR
Posts: 737
Total Cats: 30
Default

Needs more Rotrex and e85
I hope to swing by today and check this thing out
greddygalant is offline   Reply With Quote
Old 10-08-2014, 04:43 AM   #84
Junior Member
Thread Starter

Join Date: Apr 2011
Posts: 194
Total Cats: 10
Default

Many photos of VVT swap.

Curly acting like he doesn't know what he's doing, plot twist he does.


But he doesn't know how to sim race. What is this hand technique?

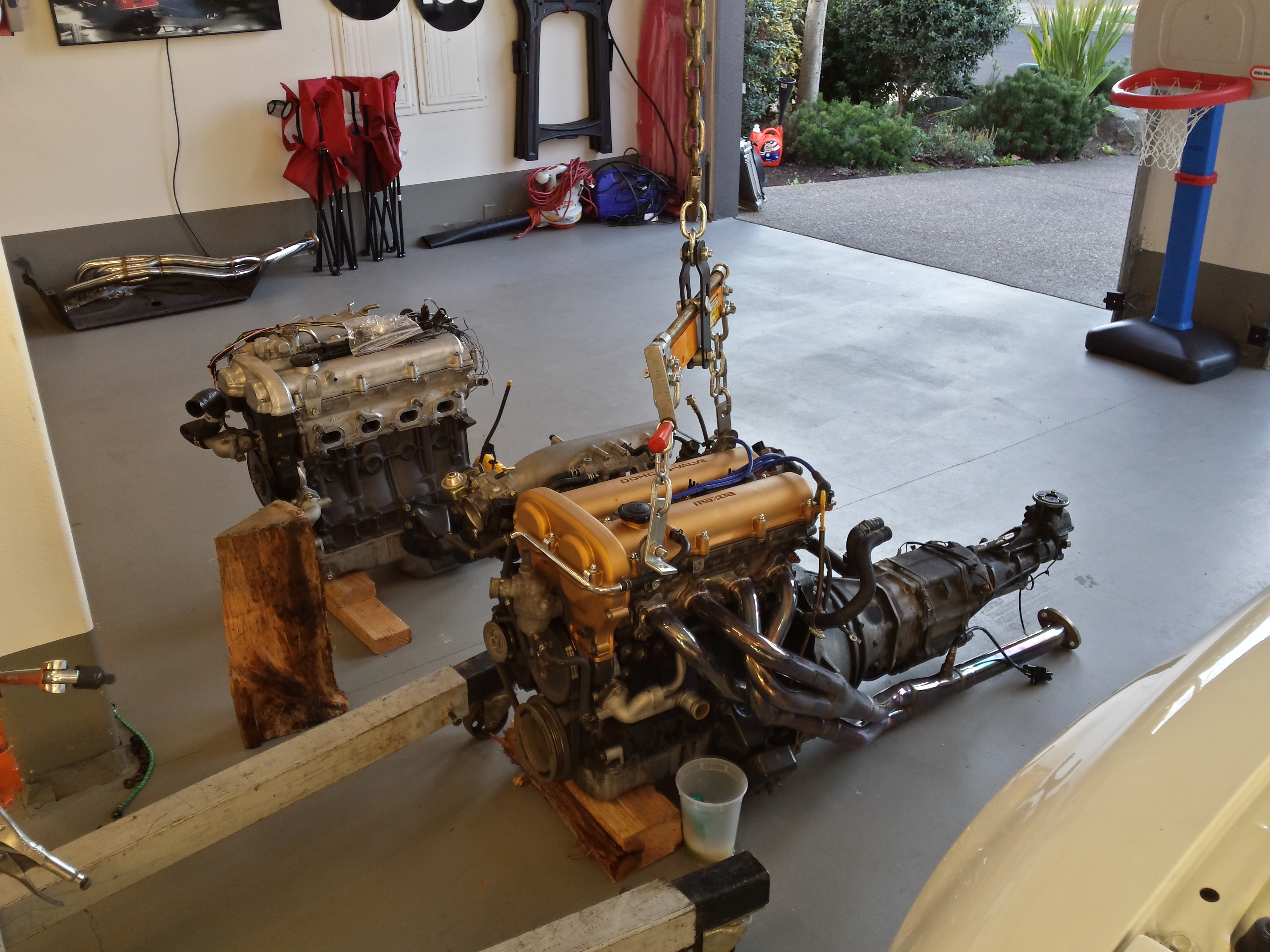

Healthy but extremely grimey and oily 1.6 is out.

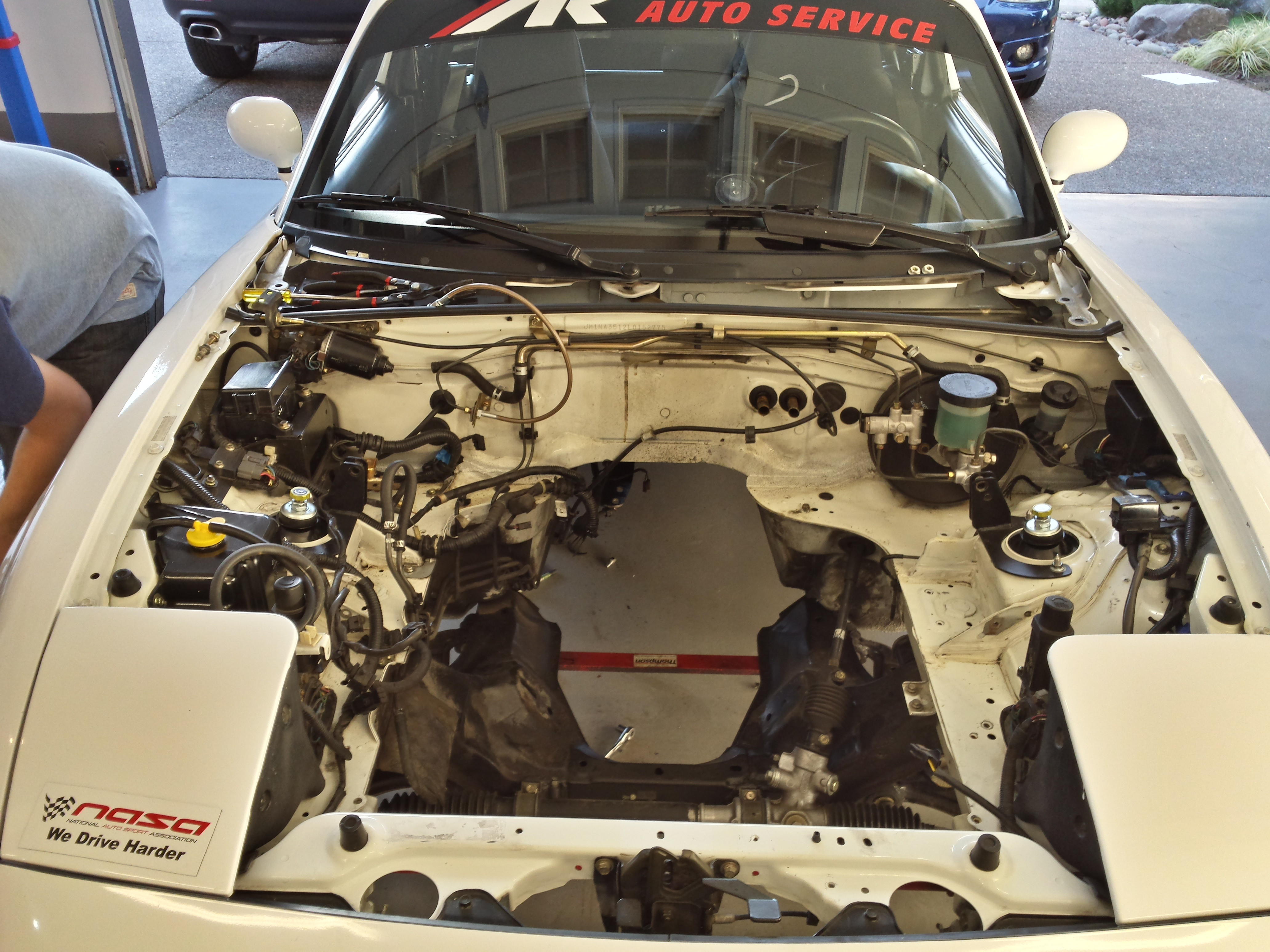

Empty engine bay before serious OCD cleaning began.
oregonmon is offline   Reply With Quote
Old 10-08-2014, 04:46 AM   #85
Junior Member
Thread Starter

Join Date: Apr 2011
Posts: 194
Total Cats: 10
Default

Sprayed engine bay and subframe down heavily with Simple Green, scrub brush and pushed it into the driveway for hosing down. Salmon and wildlife be damned. :(
A leaky valve cover over the years made for a thick grime that really needed to be adressed.

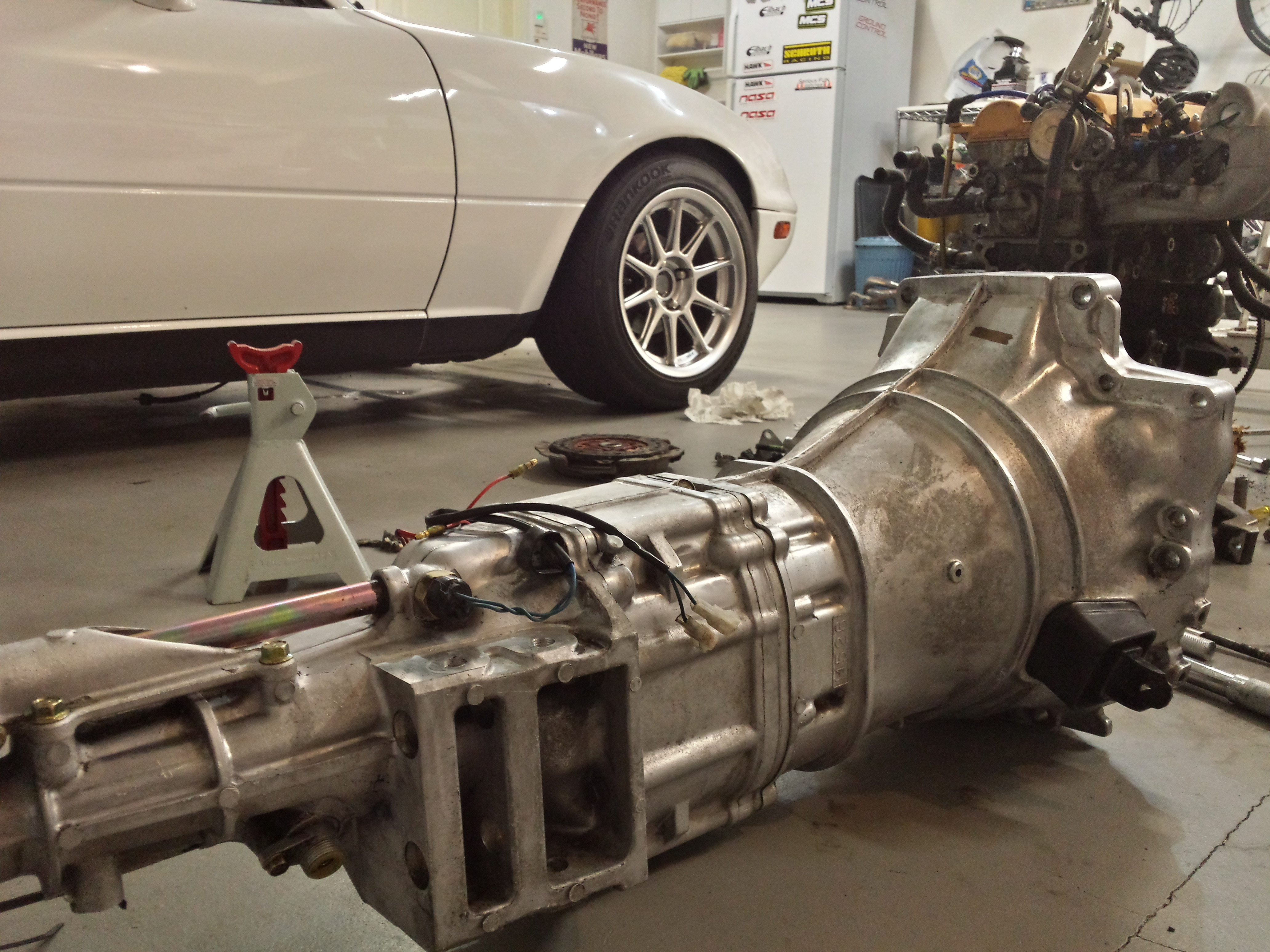

The tranny was black as well. More late night scrubbing and beer while Curly did real work.

Turned out pretty well.

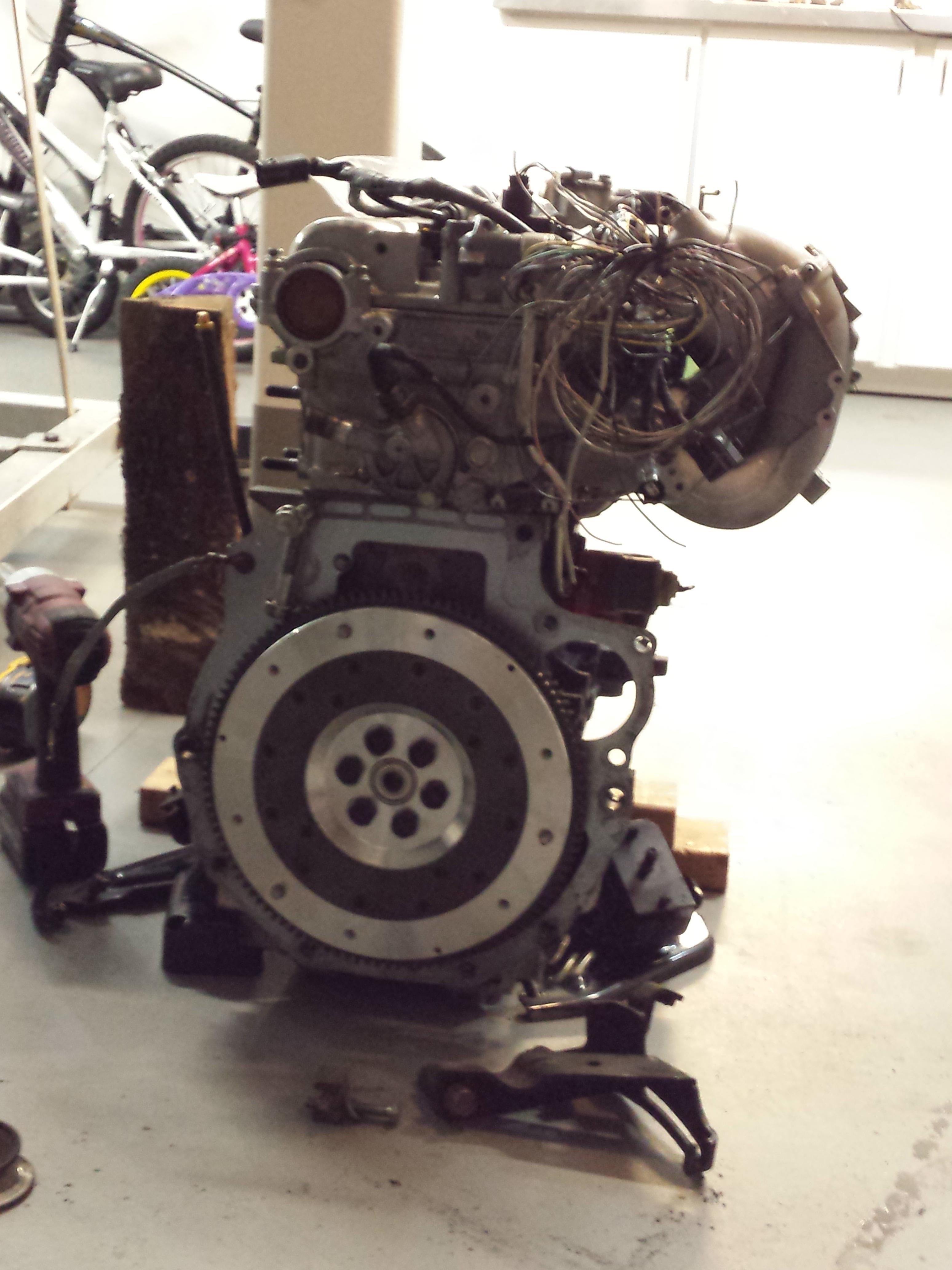

Supermiata flywheel installed.

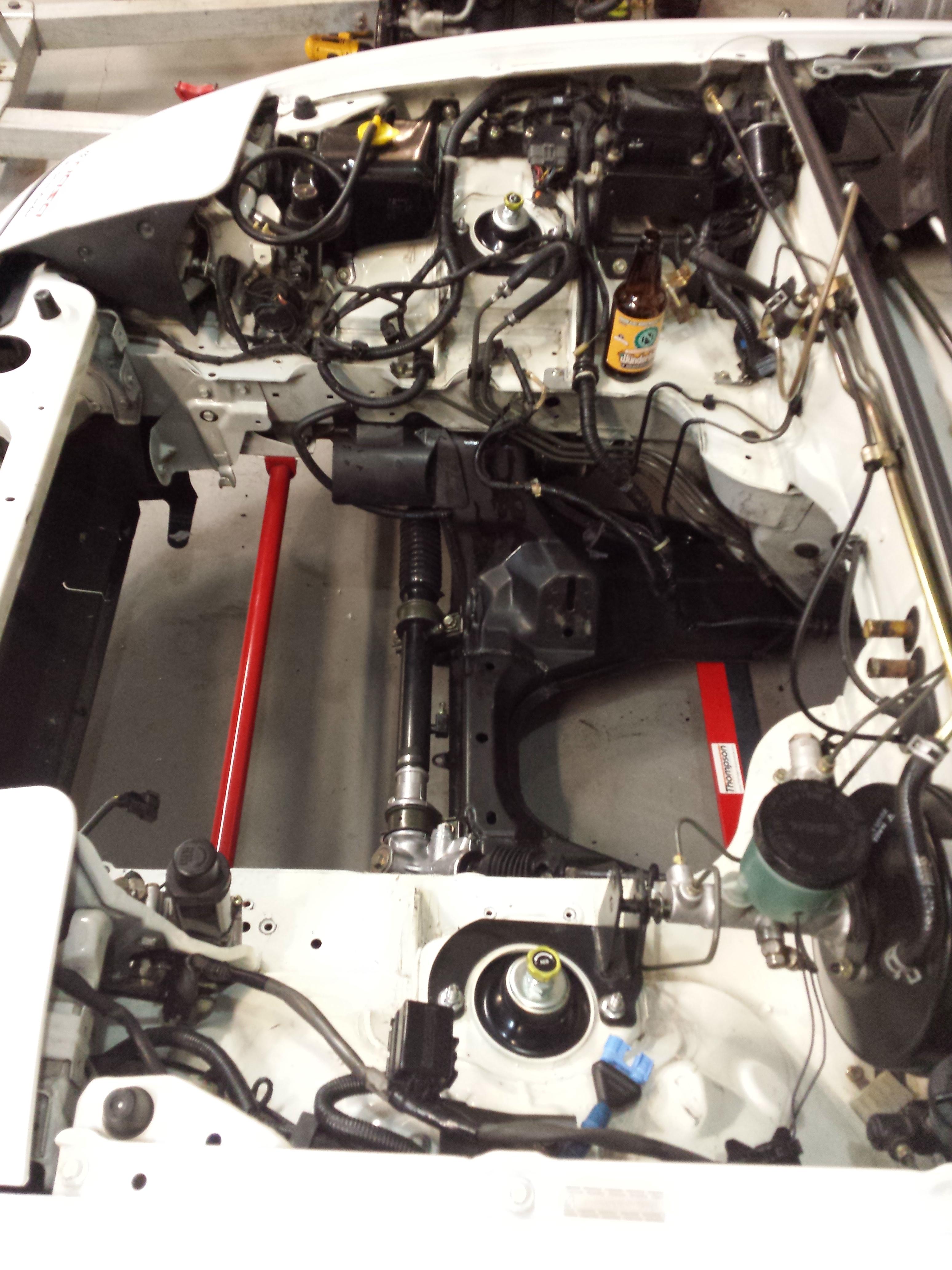

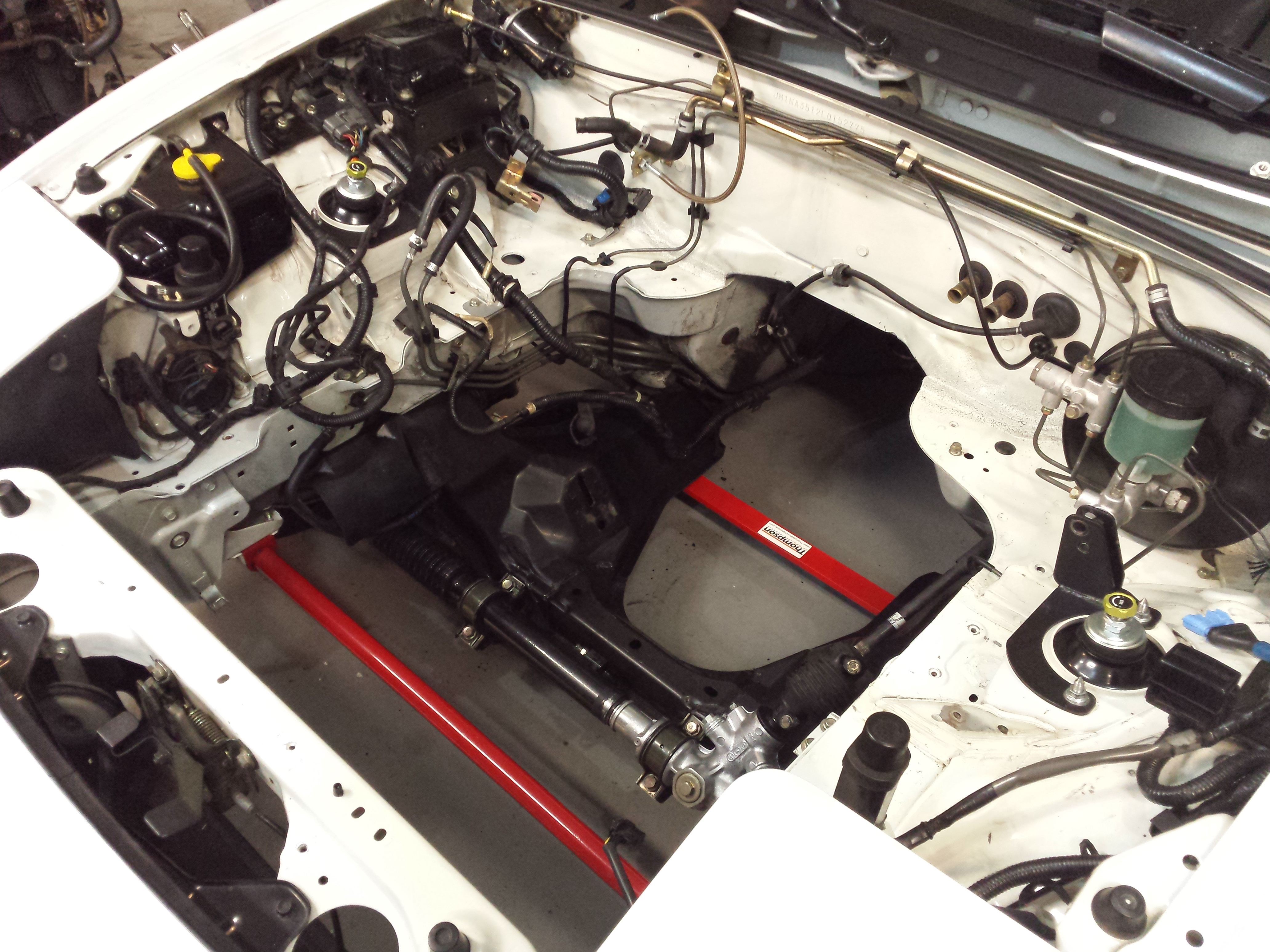

Cleaned engine bay pics.


Quite satisfying really.
oregonmon is offline   Reply With Quote
Old 10-08-2014, 04:47 AM   #86
Junior Member
Thread Starter

Join Date: Apr 2011
Posts: 194
Total Cats: 10
Default

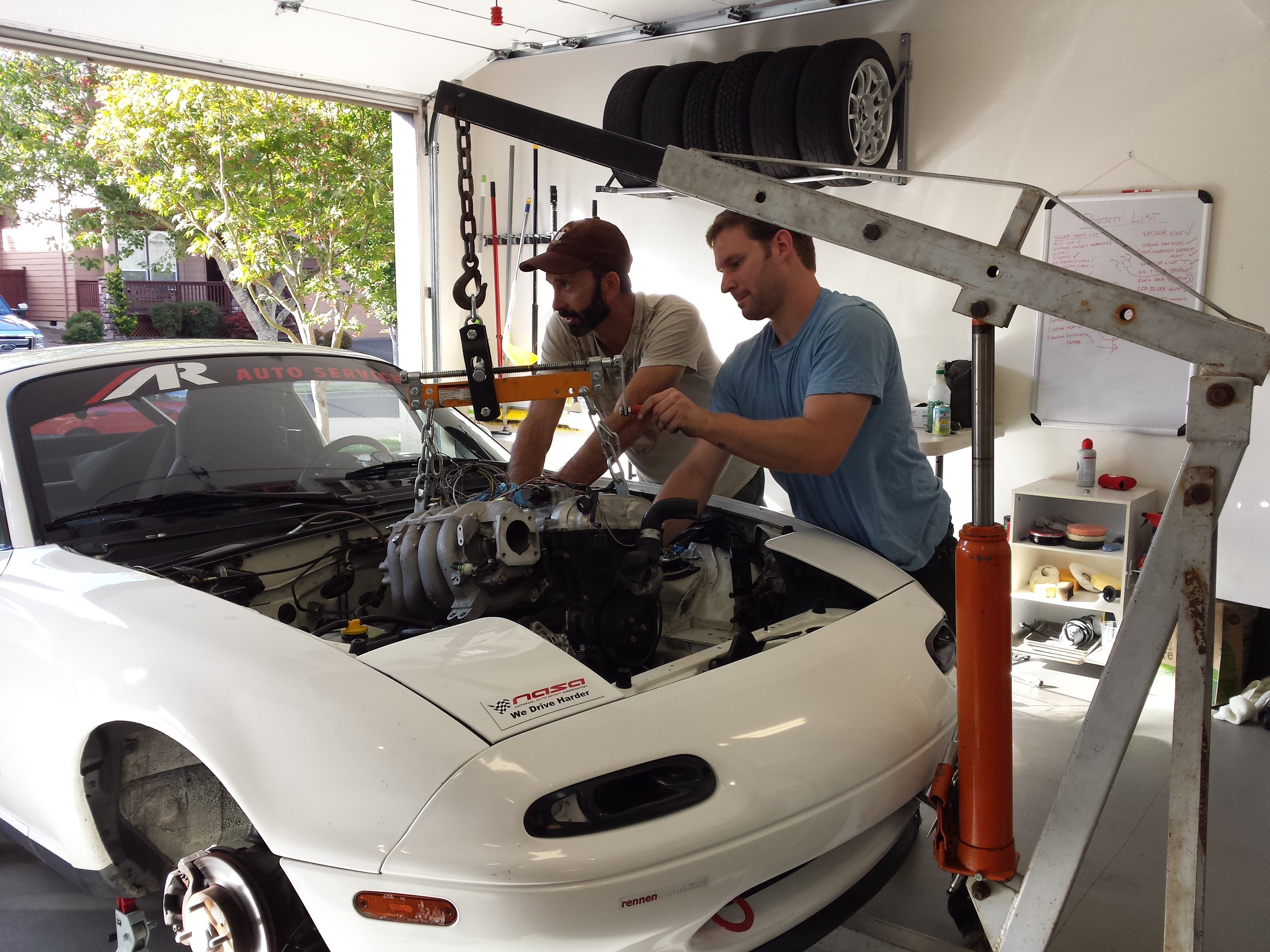

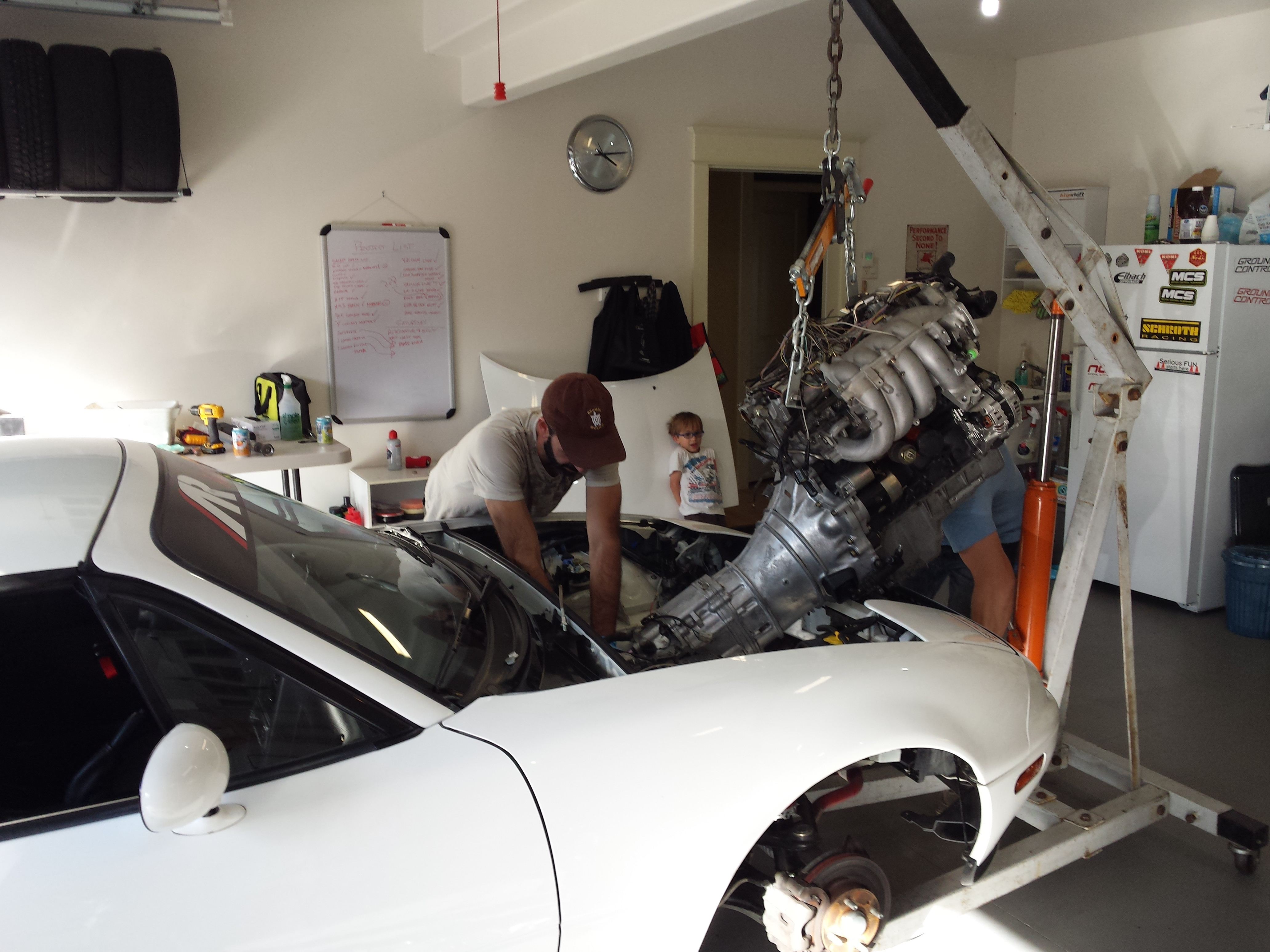

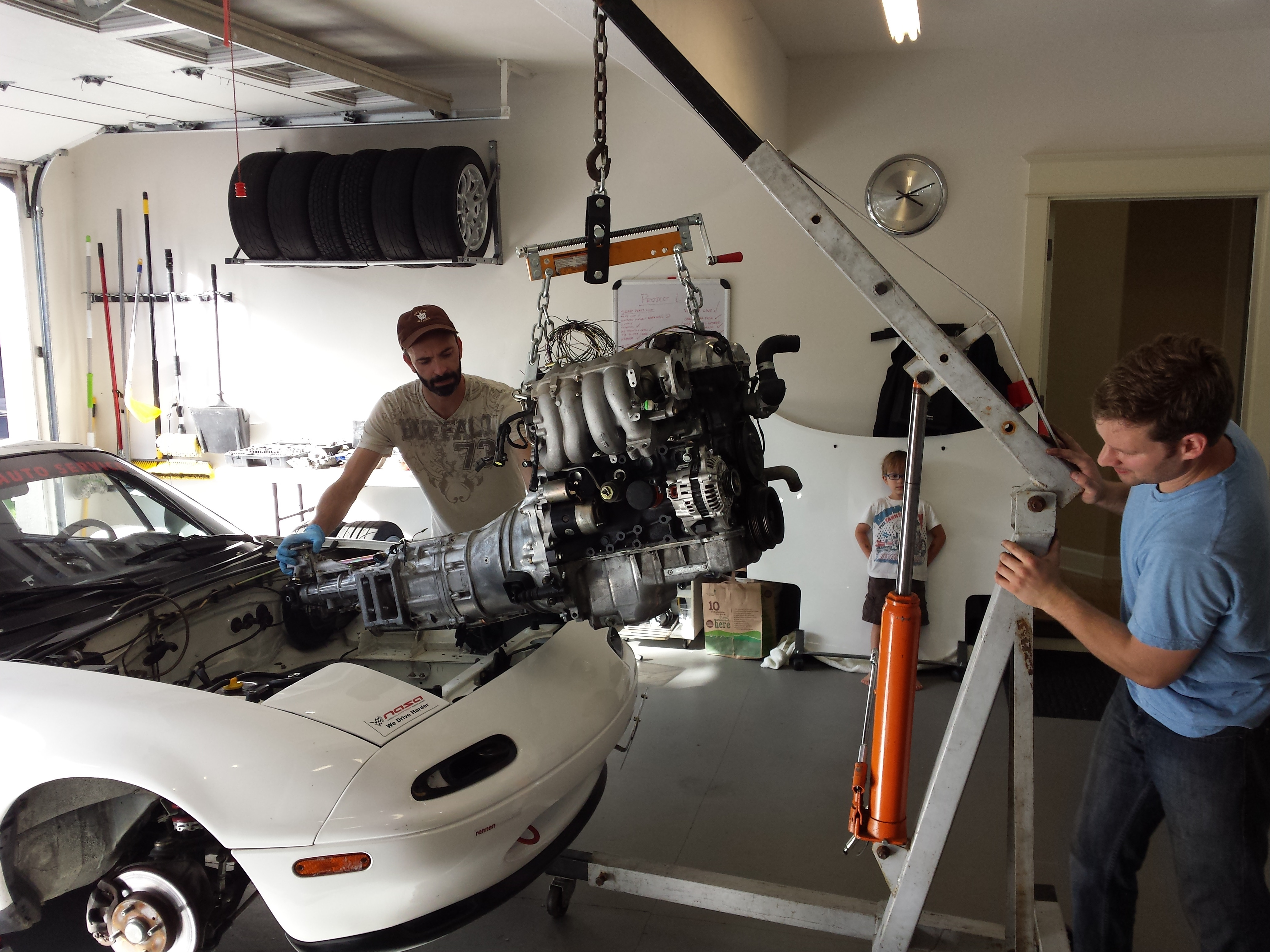

You can see Max leaning against the hood and supervising, finally dropping the engine in.


He's not looking to pleased with our technique.


Ehh, what does a 4 year old know anyway. It slid right in.


Isn't he something folks? CSTG for life.

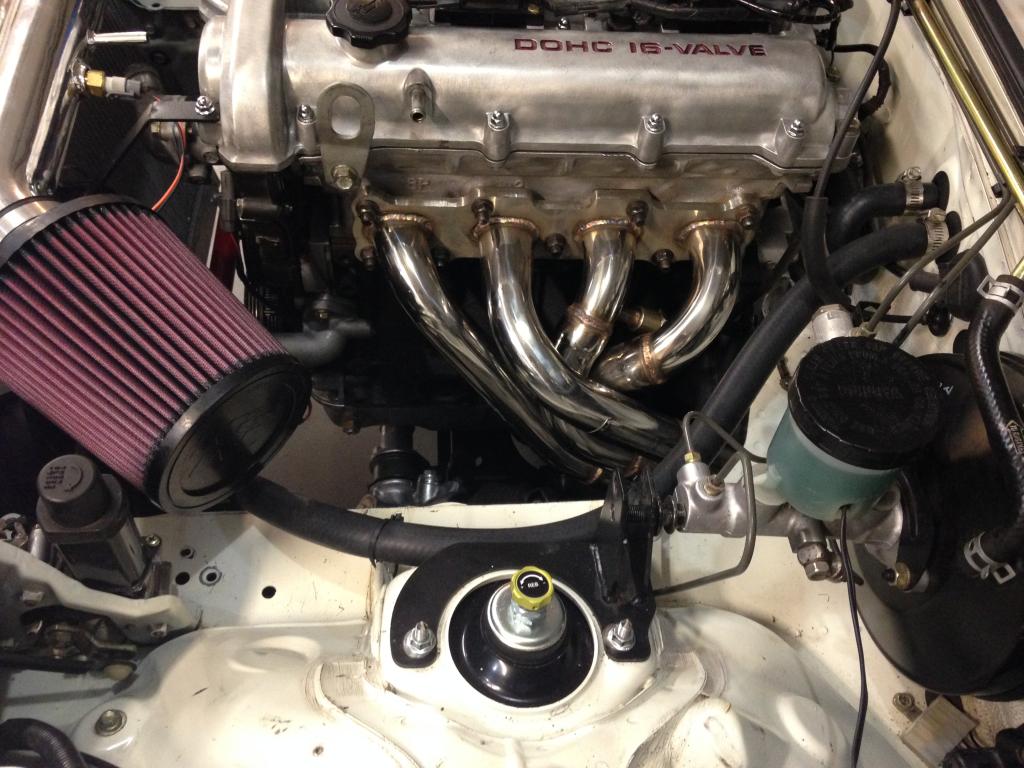

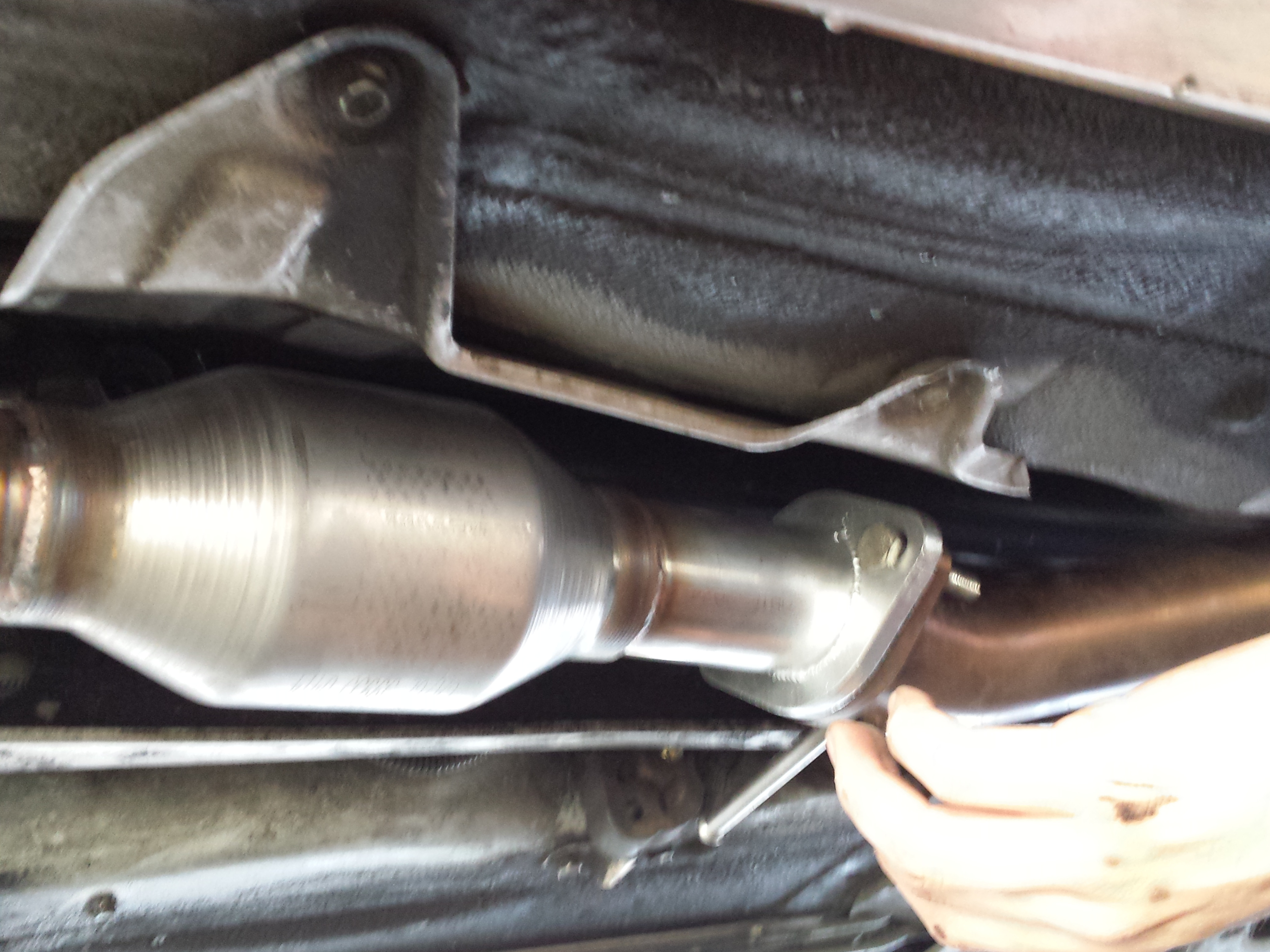

Enthuza's metal core cat installed. 94-97 header + 94-97 cat bolts to 1.6 Racing Beat mid pipe and muffler.

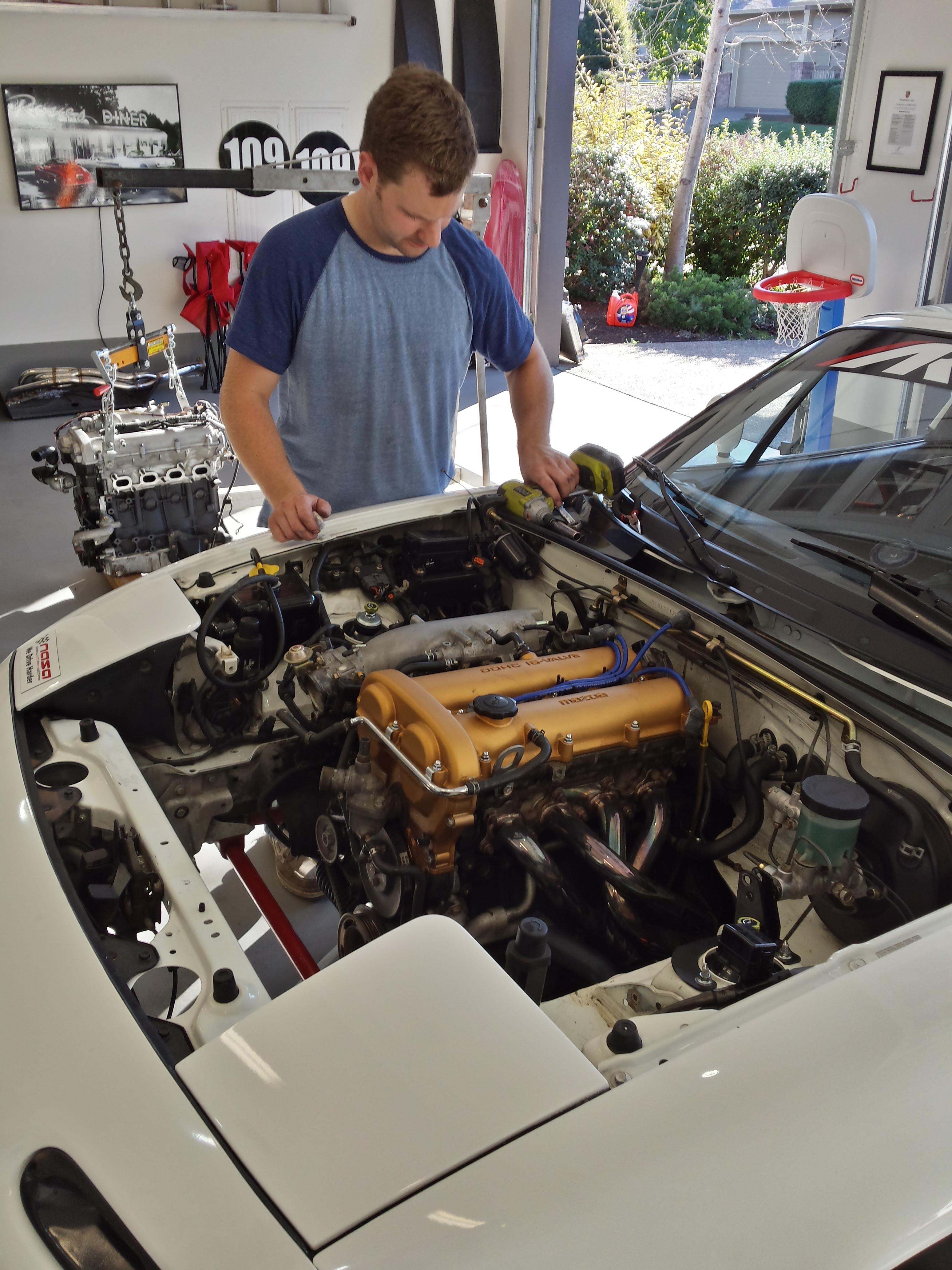

Alright so Josh spent some time hooking things back up and tidying up hoses and wires. Plenty more to do including running individual wires to MS. We're waiting for the correct 99, 00 fuel rail and a 1.8 NA alternator pulley, 2 items that caught us unprepared. Josh is great at finding little bits, brackets and pieces that are useless in the engine bay. WEIGHT SAVINGS, is his motto.

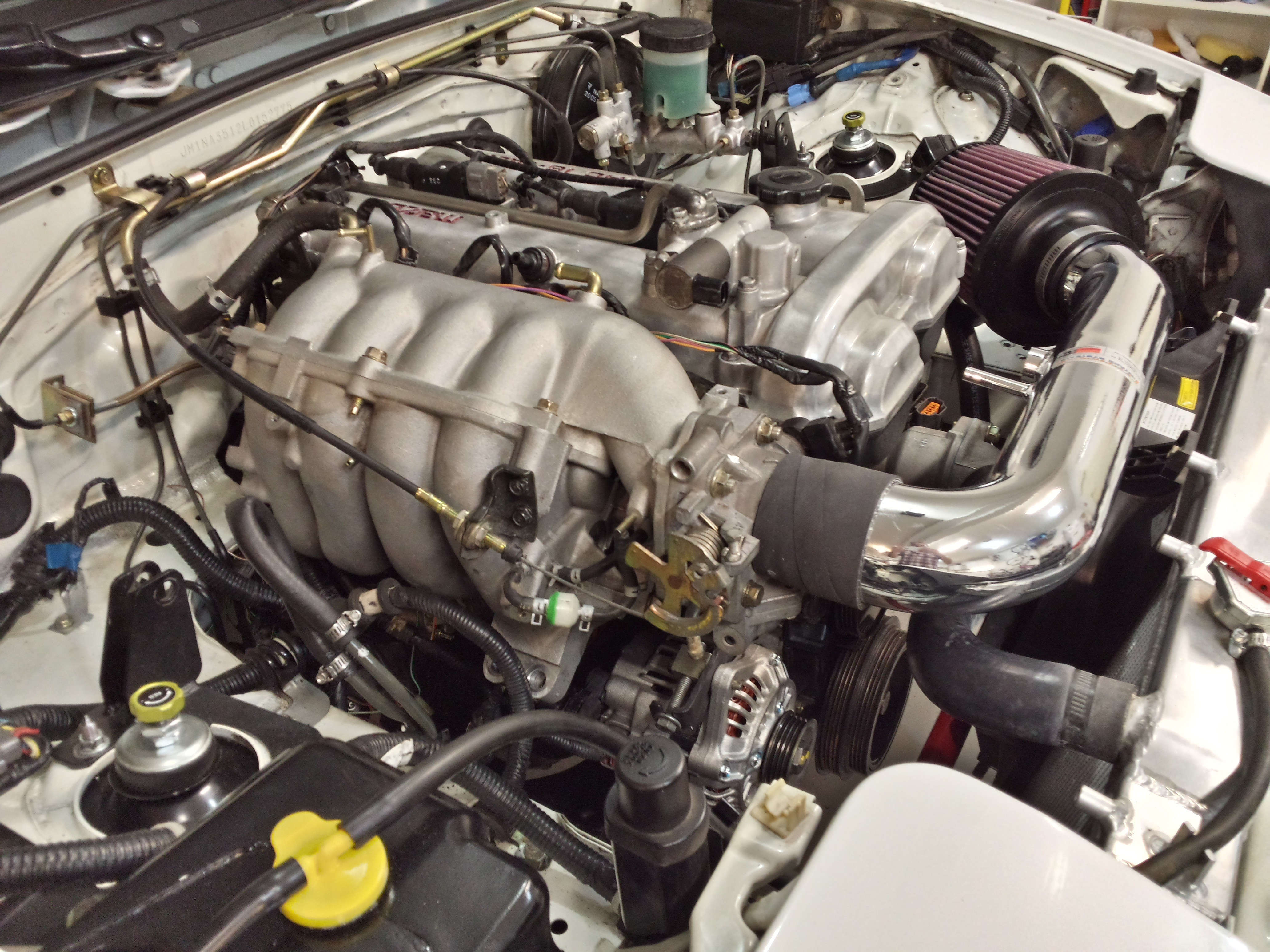

Here's where we are as of now and I'm extremely happy how it looks in the engine bay.



oregonmon is offline   Reply With Quote
Old 10-08-2014, 11:35 AM   #87
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,181
Total Cats: 2,579
Default

Nice progress, good job you guys

Quote:
Originally Posted by MX5RACER View Post
The first dyno runs with my VVT swapped '90 was 128hp. Further testing and part changes have resulted in 143hp. One tip I can give you, start with a '99-'00 VICS manifold if you cannot get a Flat-top.

VICS manifold vs the VVT stock VTCS manifold (With Butterflies):
Attachment 125156

Last change was to a Racing Beat header from a Jackson Racing Header (Also completely changed the full exhaust so it is not apples to apples):
Attachment 125157
I think you guys are misunderstanding where I was going with that. I was just saying that its kinda funny to argue between 5-10hp when sometimes weather and altitude can account for that much between different cars/runs.

But I guess I'm thinking in turbo power terms, where 5-10hp isn't really worth talking about, whereas you n/a guys pay way more attention to the very last 1hp.

Thanks for the plots though, I've seen those before and it always amazes me how big the drop is on the vtcs mani past 6300
18psi is offline   Reply With Quote
Old 10-08-2014, 01:26 PM   #88
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,106
Total Cats: 518
Default

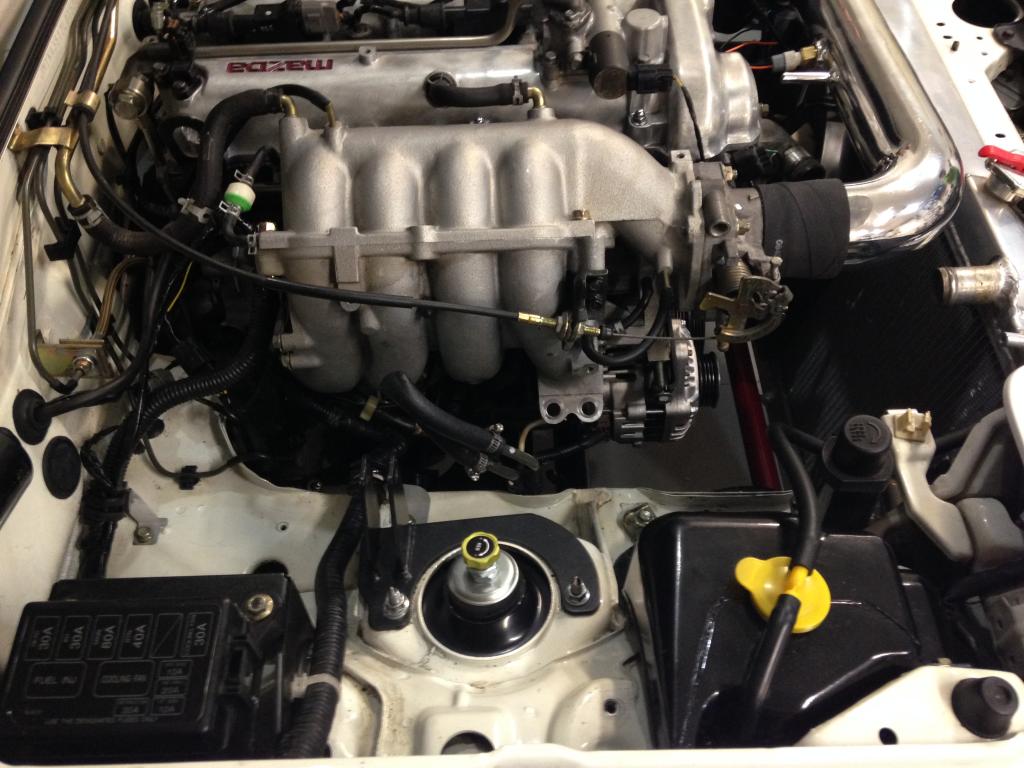

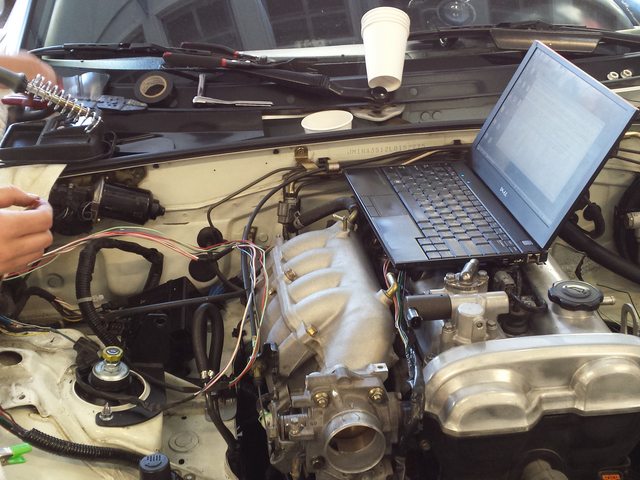

It's now 90% wired, with just the AIT left in the engine bay, and inside needs the 3rd and 4th injector wire and VVT actuator wire soldered to the MS3 plug. Then we're probably going to switch the wideband to the dedicated 12v and ground that Rev provides, and once we get a fuel rail (hopefully Monday or Tuesday) we can plumb the fuel lines and try to start it. GarageStar alternator pulley for the 1.6 alternator should be here today.

Unfortunately I failed at capturing just how clean the wiring is, although I'm not really 100% happy with it. I set it up with nice smooth curves, but once you wrap it with electrical tape, it likes to do what ever the **** it wants.



Attached Thumbnails
2002 VVT swap into 1990 NA with MS3-3e4b6cf6-6563-47c4-939a-dd82dcbbbe6c_zpshpdqynzy.jpg   2002 VVT swap into 1990 NA with MS3-caf4129d-c274-497b-9015-7e6f01d1126b_zpsgrtavi9d.jpg
curly is offline   Reply With Quote
Old 10-08-2014, 07:26 PM   #89
Senior Member
iTrader: (14)

Join Date: Jan 2007
Location: Murfreesboro,TN
Posts: 1,277
Total Cats: 53
Default

Looking good guys.
Midtenn is offline   Reply With Quote
Old 10-08-2014, 07:52 PM   #90
I haz no trubo
iTrader: (2)

Oscar's Avatar

Join Date: Jan 2007
Location: Bolton, UK
Posts: 3,021
Total Cats: 114
Default

Quote:
Originally Posted by curly View Post
It's now 90% wired, with just the AIT left in the engine bay, and inside needs the 3rd and 4th injector wire and VVT actuator wire soldered to the MS3 plug. Then we're probably going to switch the wideband to the dedicated 12v and ground that Rev provides, and once we get a fuel rail (hopefully Monday or Tuesday) we can plumb the fuel lines and try to start it. GarageStar alternator pulley for the 1.6 alternator should be here today.

Unfortunately I failed at capturing just how clean the wiring is, although I'm not really 100% happy with it. I set it up with nice smooth curves, but once you wrap it with electrical tape, it likes to do what ever the **** it wants.
Please post bigger and fuzzier pictures. I like squinting and scrolling left to right

Twist the loom before taping, holds its shape better and is easier to route.
Oscar is offline   Reply With Quote
Old 10-08-2014, 10:05 PM   #91
Elite Member
iTrader: (2)

Mobius's Avatar

Join Date: May 2008
Location: Portland, Oregon
Posts: 3,178
Total Cats: 266
Default

Only in Ryan's garage do you have to worry about, when laying on the floor, your shirt getting the floor dirty.
Mobius is offline   Reply With Quote
Old 10-09-2014, 12:47 AM   #92
Junior Member
Thread Starter

Join Date: Apr 2011
Posts: 194
Total Cats: 10
Default

I'm no good at actually working on the car so I keep the pots washed for the executive chef Curly.
oregonmon is offline   Reply With Quote
Old 10-09-2014, 01:17 AM   #93
Elite Member
iTrader: (2)

Mobius's Avatar

Join Date: May 2008
Location: Portland, Oregon
Posts: 3,178
Total Cats: 266
Default

You've seen my garage. Jealous of your epoxy.
Mobius is offline   Reply With Quote
Old 10-09-2014, 01:22 AM   #94
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,106
Total Cats: 518
Default

Beyond the slight lack of tools, Ryan's garage is an absolute joy to work in. The floor surface, ample room, and two work benches make me so jealous.

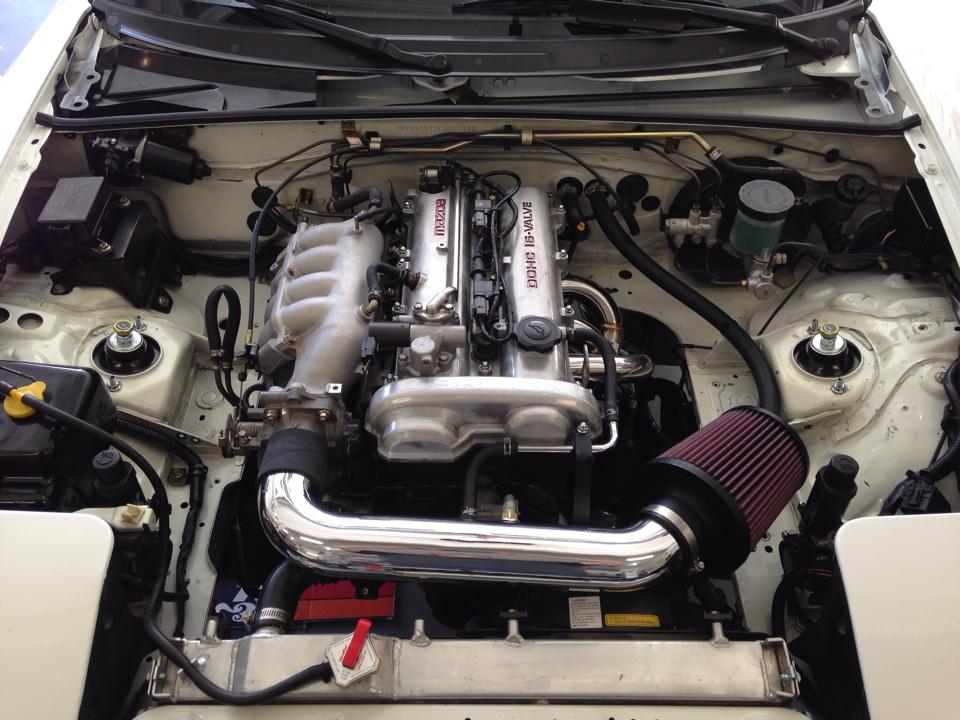

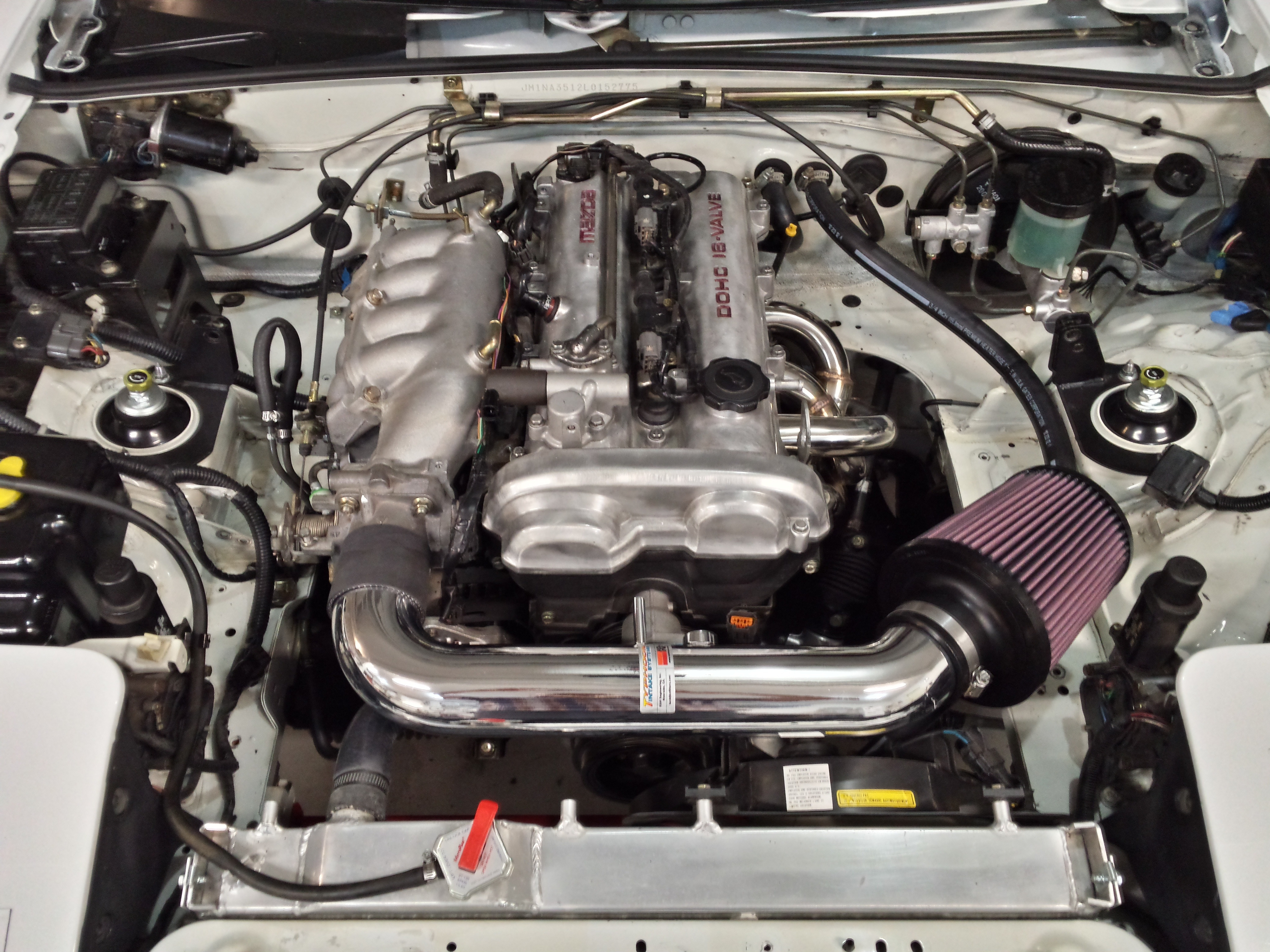

Here's the final engine shot:



In this picture, it's 100% wired, and the only plumbing left is the fuel lines and the FPR vacuum line, which we have to wait on the '99 rail before installing.

Also waiting on some instructions from Rev on how to jumper his MS3 for sequential fuel. That'll be an interesting learning curve.
Attached Thumbnails
2002 VVT swap into 1990 NA with MS3-finishedvvtwiring_zpsecfbe23c.jpg
curly is offline   Reply With Quote
Old 10-09-2014, 02:26 AM   #95
Junior Member
Thread Starter

Join Date: Apr 2011
Posts: 194
Total Cats: 10
Default

3 cars plus kids stuff and storage makes it a priority. Is it wrong for the garage to get precedence over the rest of the house?

Behold true CAI.

3
Piles of stuff no one needs.

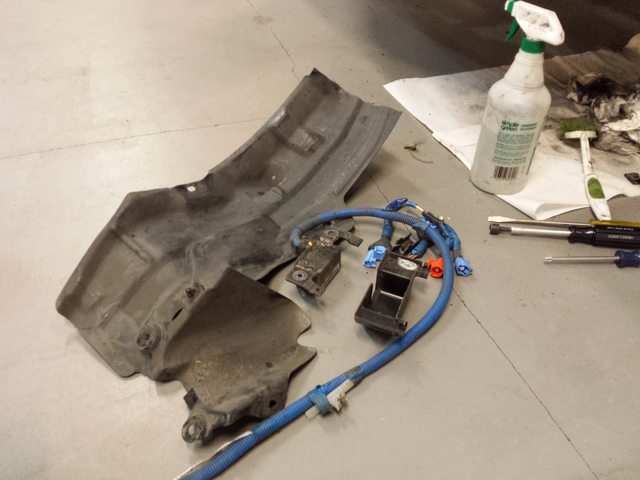

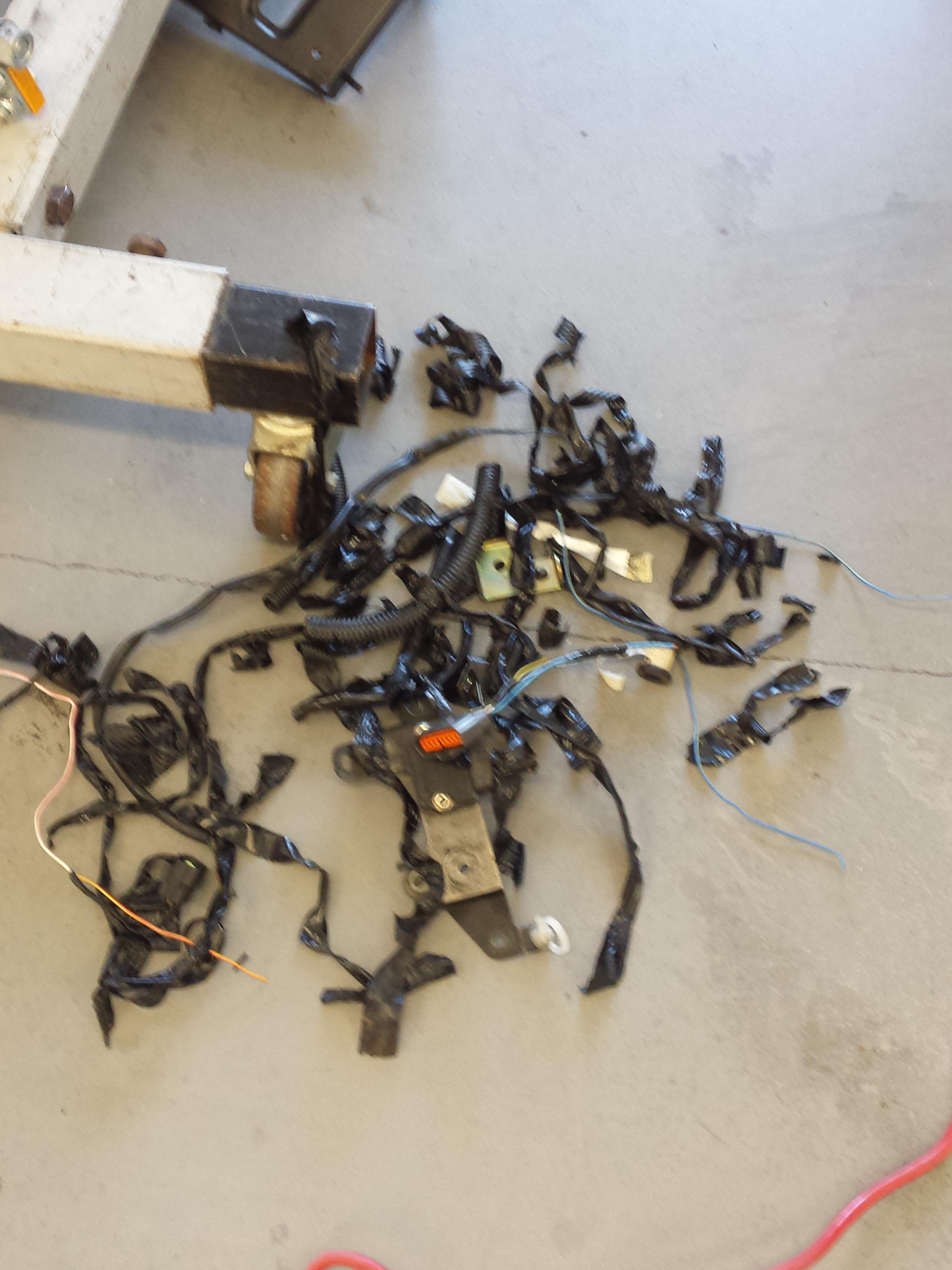

Here's airbag looms and sensor, each sensor weighs about 1lb each. (not all shown) There's 2 in the passenger front fender and 1 in the driver's side, plus the wiring behind the fender liners. During the mild fender roll, I cut about half the fender liners out and pulled the blue looms out. About 4.5-5lbs of weight there.

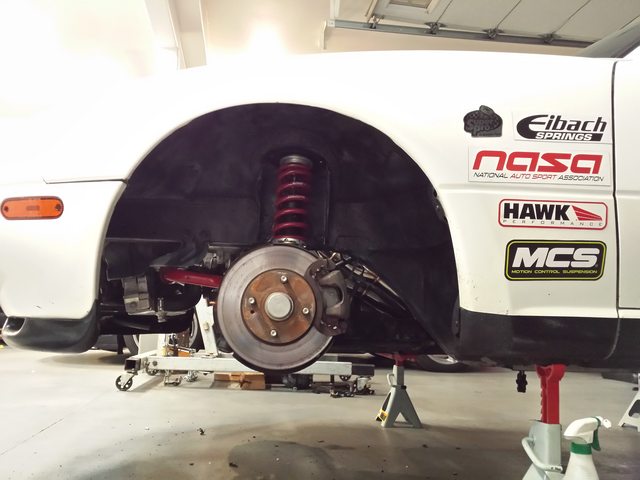

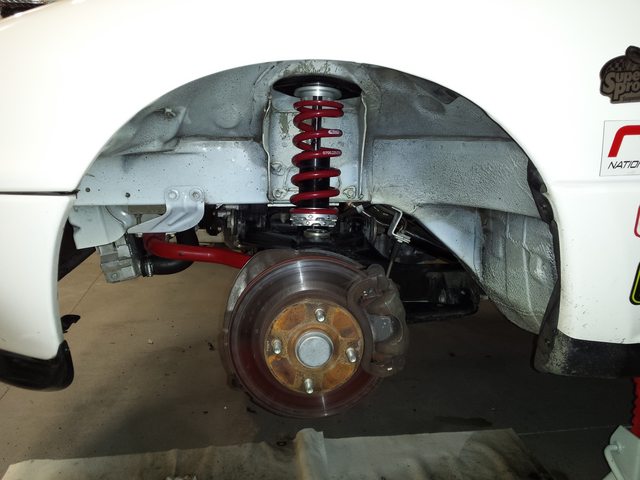

Cleaned fender wells only looked worse.
Before paint.

After some flat black paint.

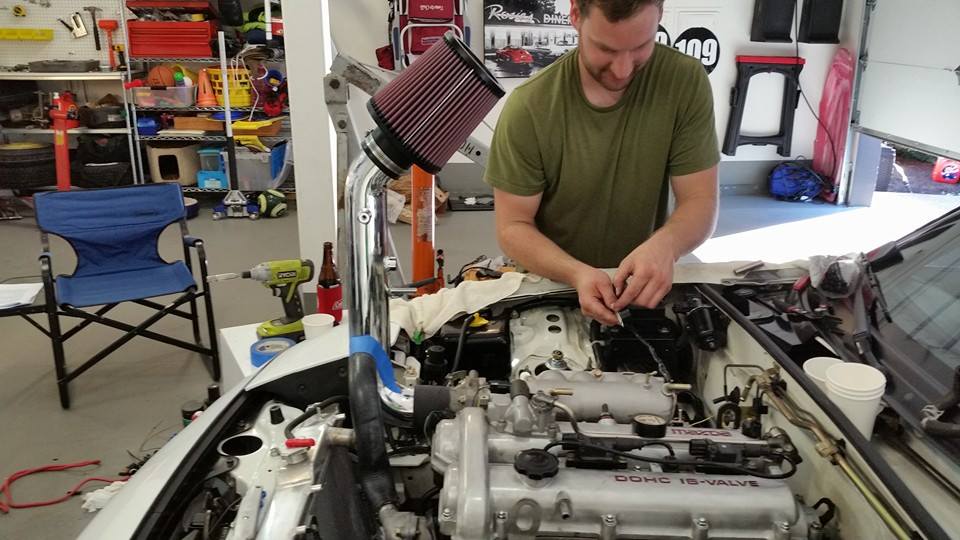

CSTG running wires.

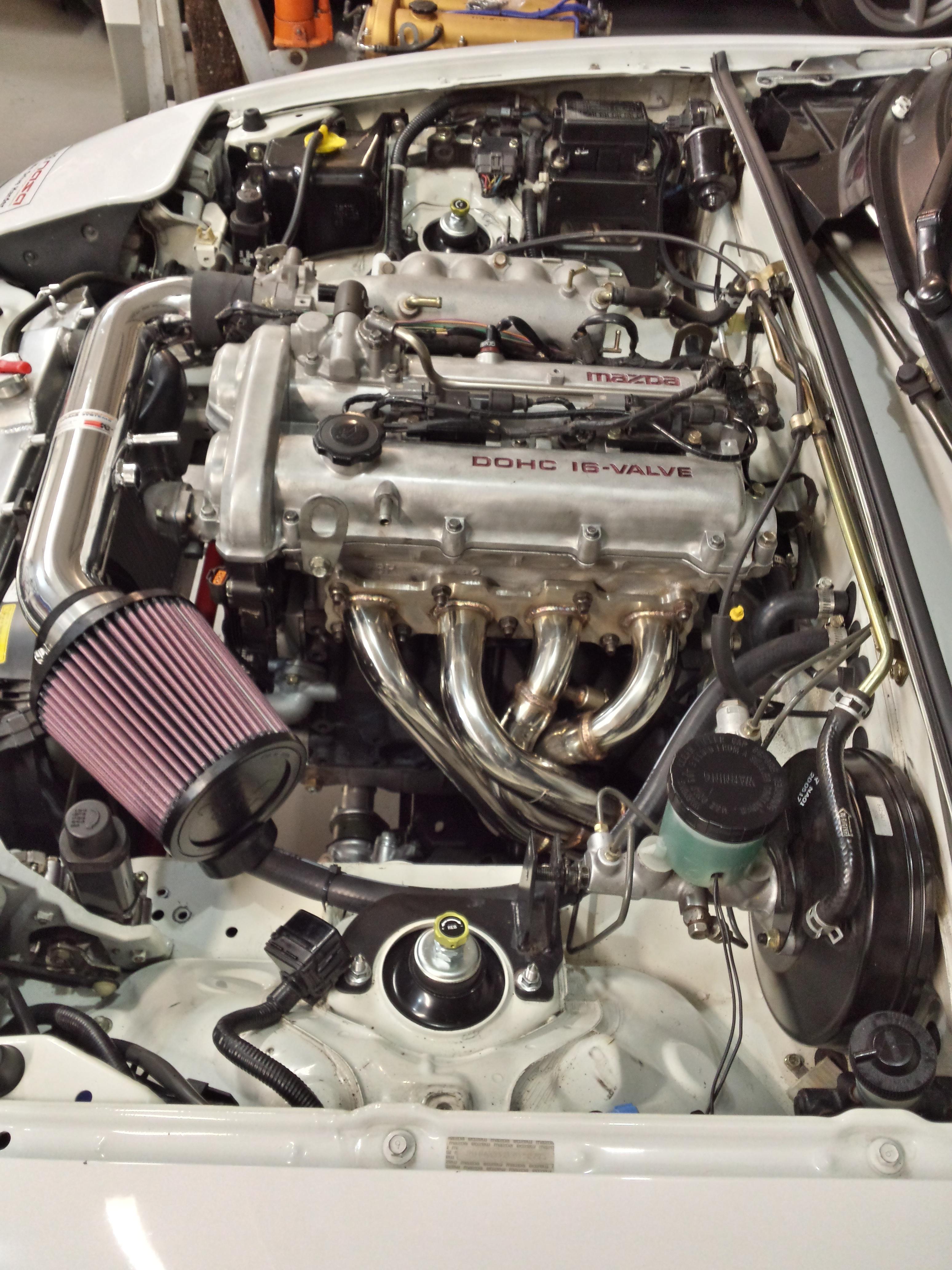

More tidying up the engine bay and 90% of the wiring complete. Awesome work Josh. We have some tweaking to do to the intake and bracket so it will sit straight.

On break for a few days while we wait for a couple parts to come in.
oregonmon is offline   Reply With Quote
Old 10-09-2014, 12:21 PM   #96
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 17,992
Total Cats: 1,459
Default

If you get a chance could I get a couple more pictures of the flipped mixing manifold, and how the heater hose gets rerouted?
aidandj is offline   Reply With Quote
Old 10-17-2014, 11:41 PM   #97
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,106
Total Cats: 518
Default

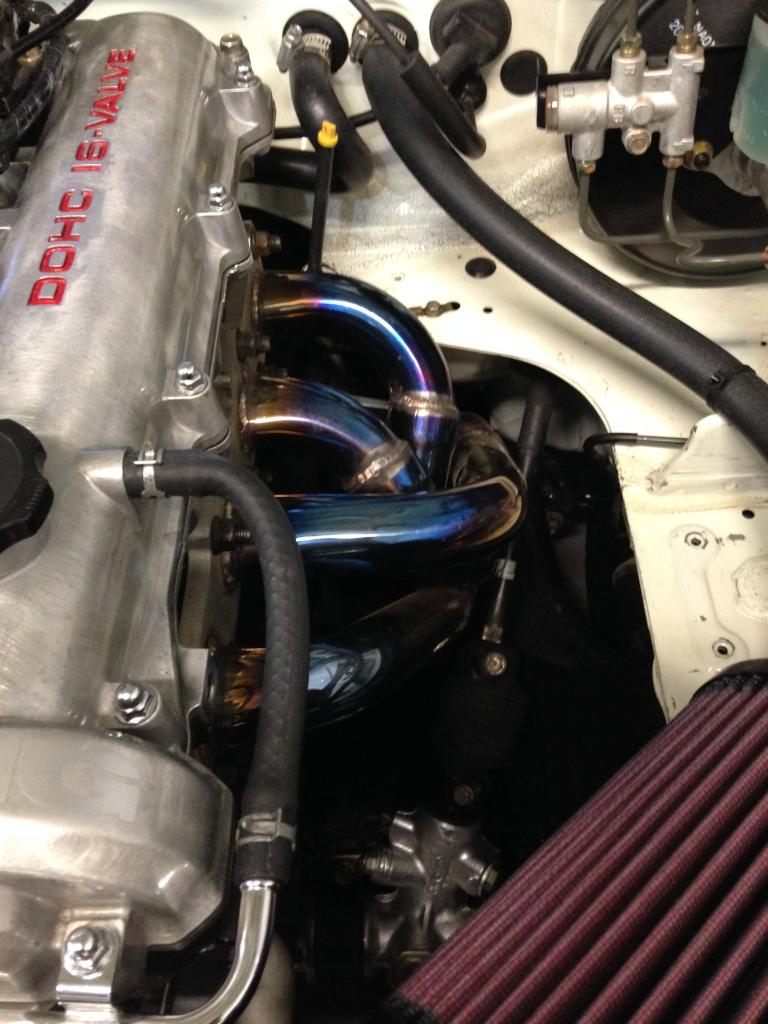

That was easy.



Afr map looks a little lean in lower cells, might have something to do with the blue header.

Otherwise runs good, just have to wire in the other two injector channels properly, they're currently shoved in 2u and 2v, as 1x and 2a weren't working as rev said. We'll figure that out tomorrow. I'm thinking when he suggest those pins, he meant surgically remove them from the harness and clip them into the currently empty 2u and 2v.
Attached Thumbnails
2002 VVT swap into 1990 NA with MS3-13336081-337c-4cb7-807b-b6c37cf6de7d_zpssd7az2ip.jpg
curly is offline   Reply With Quote
Old 10-18-2014, 05:47 AM   #98
Supporting Vendor
iTrader: (10)

Reverant's Avatar

Join Date: Jun 2006
Location: Athens, Greece
Posts: 5,440
Total Cats: 198
Default

Quote:
Originally Posted by curly View Post
I'm thinking when he suggest those pins, he meant surgically remove them from the harness and clip them into the currently empty 2u and 2v.
This.
Reverant is offline   Reply With Quote
Old 10-18-2014, 09:42 AM   #99
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,106
Total Cats: 518
Default

Gotcha, will do.

Although I think those are some of the bigger clips on the end, are we sure the smaller ones will fit?
curly is offline   Reply With Quote
Old 10-18-2014, 10:37 AM   #100
Supporting Vendor
iTrader: (10)

Reverant's Avatar

Join Date: Jun 2006
Location: Athens, Greece
Posts: 5,440
Total Cats: 198
Default

I said 1A and 2X, which are the bigger-type pins, just like 2Y and 2Z.
Reverant is offline   Reply With Quote
