95 M-Edition SR20 T25

Old 04-13-2014, 12:36 PM
  #21
Design Engineer
iTrader: (1)

DNMakinson's Avatar

Join Date: Jan 2013
Location: Seneca, SC
Posts: 3,119
Total Cats: 378
Default

Originally Posted by curly View Post
That's not necessarily the seal, its probably pouring out of the flywheel bolt holes.
Oh boy, should I have put sealant on flywheel bolts?
DNMakinson is offline
Old 04-13-2014, 12:56 PM
  #22
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,462
Total Cats: 589
Default

Yup. That's the orange goo on them from the factory.
curly is offline
Old 04-13-2014, 01:16 PM
  #23
Design Engineer
iTrader: (1)

DNMakinson's Avatar

Join Date: Jan 2013
Location: Seneca, SC
Posts: 3,119
Total Cats: 378
Default

My son-in-law reminds me that we did. We used Red as wee out if Blue. So glad I'm working with someone with lots of experience.
DNMakinson is offline
Old 04-13-2014, 01:55 PM
  #24
Junior Member

Join Date: Jan 2014
Location: Madison
Posts: 158
Total Cats: 7
Default

Originally Posted by curly View Post
Yup.
****.
jt@namiata.com is offline
Old 04-13-2014, 02:55 PM
  #25
Junior Member
Thread Starter

Join Date: Feb 2014
Location: Chicago, IL
Posts: 94
Total Cats: 1
Default

Originally Posted by curly View Post
Yup. That's the orange goo on them from the factory.
Originally Posted by [email protected] View Post
****.

Well, now I know that I have to do that too
AdrianD2 is offline
Old 04-13-2014, 03:17 PM
  #26
Junior Member

Join Date: Jan 2014
Location: Madison
Posts: 158
Total Cats: 7
Default

Yep. At least your stuff is outside the car. Mine is ready to start after a transplant.

I've been advised by my help that I did indeed apply some red locker. My foggy memory does remember not necessarily being copious with its disbursement though. Crossing fingers.
jt@namiata.com is offline
Old 04-14-2014, 12:44 PM
  #27
Junior Member
Thread Starter

Join Date: Feb 2014
Location: Chicago, IL
Posts: 94
Total Cats: 1
Default

The car should be running next weekend I'm estimating. Was going to pull the motor out of my new car yesterday, had everything set up, cold front comes in, drops 30 degrees and it begins to rain. Delayed until Friday perhaps.
AdrianD2 is offline
Old 04-23-2014, 02:01 AM
  #28
Junior Member
Thread Starter

Join Date: Feb 2014
Location: Chicago, IL
Posts: 94
Total Cats: 1
Default

Replaced the front and rear oil seals in the transmission along with the front cover gasket.
Followed by a shifter rebuild.

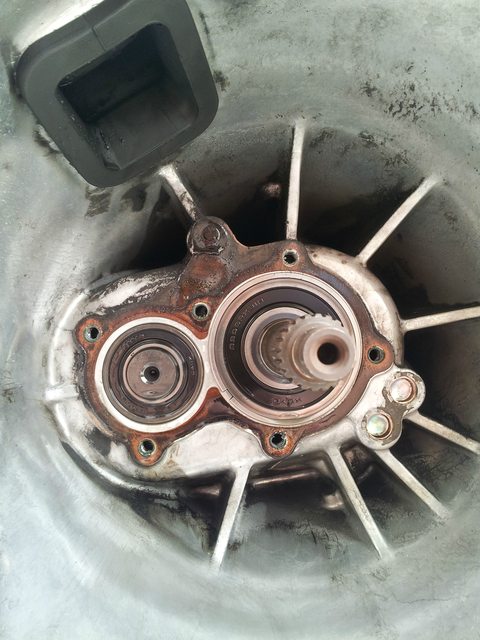

Six bolts and the front cover comes off, revealing the old paper gasket

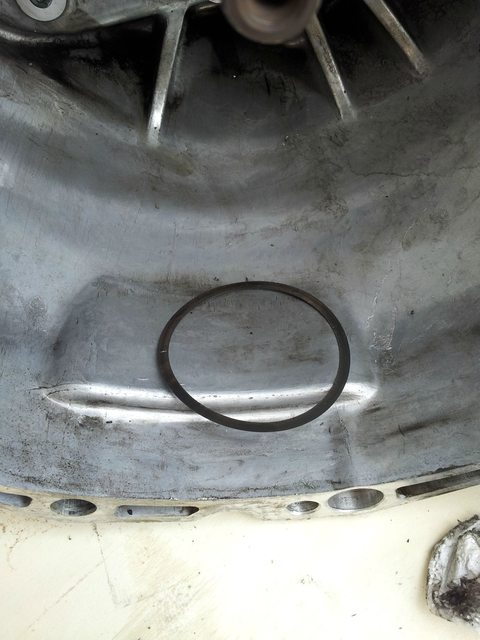

Can't lose the shim that goes under the cover

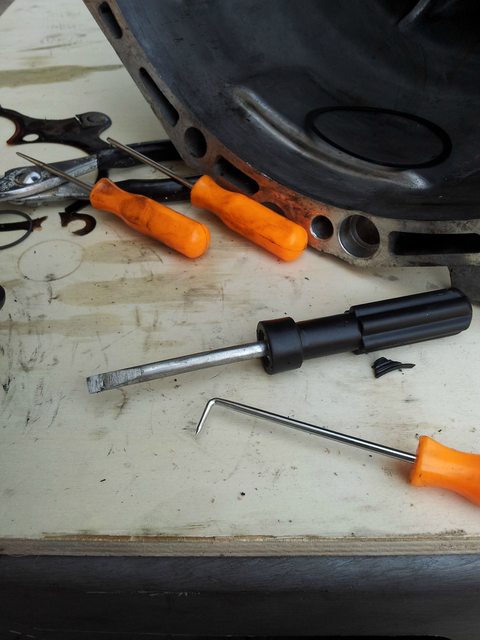

Removed the front oil seal with just a screwdriver and a right angle pick, was unfortunately too lazy to go get a seal puller.

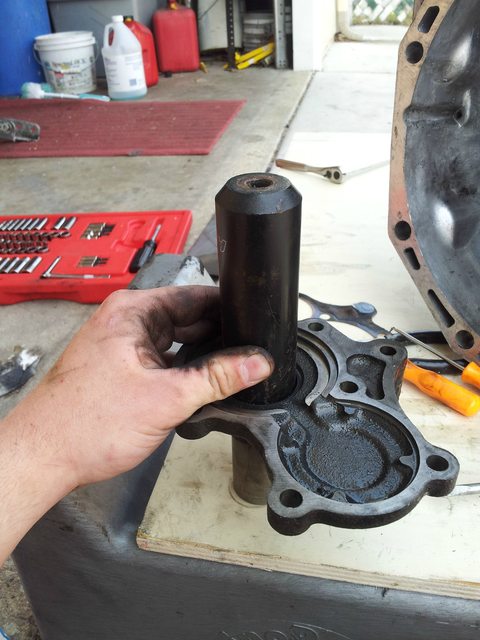

Pressed the new one in with a peg off a bicycle that managed to fit perfectly!

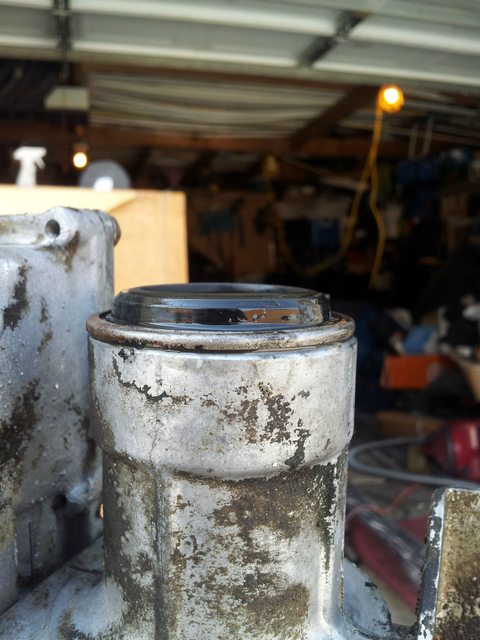

Rear seal was super easy, just need to wedge under the metal lip and go all the way around to get it out.

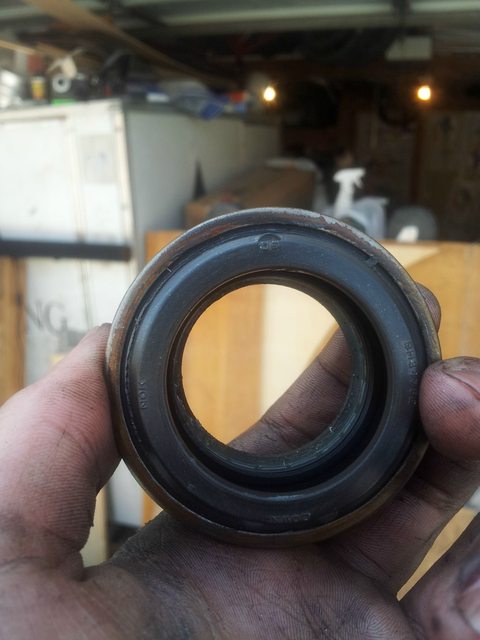

THERE IS AN ORIENTATION FOR THE NEW ONE, it is labeled UP and DOWN, there is a breather hole on the seal that needs to be positioned properly.

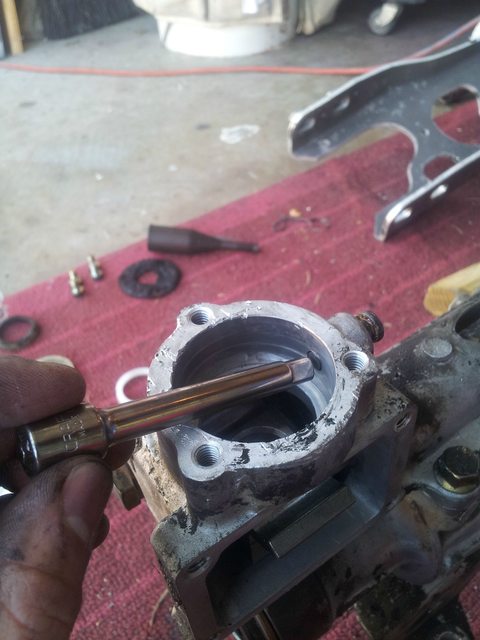

Found it really easy to get that pin out in the shifter turret by hammering on a short 1/4" extension



I was glad I decided to take off the side cover since these guys were just chilling in the bottom of the turret






I realize now that I am pretty terrible at showing any progress of any sort, but I bet you can see that I am fairly bored at this point since I am not driving.
Attached Thumbnails 95 M-Edition SR20 T25-8qmtm6il.jpg   95 M-Edition SR20 T25-mmohkewl.jpg   95 M-Edition SR20 T25-lpkxiupl.jpg   95 M-Edition SR20 T25-gml9vynl.jpg   95 M-Edition SR20 T25-nb6a4otl.jpg

95 M-Edition SR20 T25-r18dvy7l.jpg   95 M-Edition SR20 T25-wrbv8cjl.jpg   95 M-Edition SR20 T25-orncwqdl.jpg
AdrianD2 is offline
Old 12-07-2014, 06:22 PM
  #29
Junior Member
Thread Starter

Join Date: Feb 2014
Location: Chicago, IL
Posts: 94
Total Cats: 1
Default

Forgot about this thread, didn't update all the great things for you guys! Now making 300+ whp, built motor, etc. Yeah, no I am joking.

Motor did make it back into the M, runs great, did some racings.

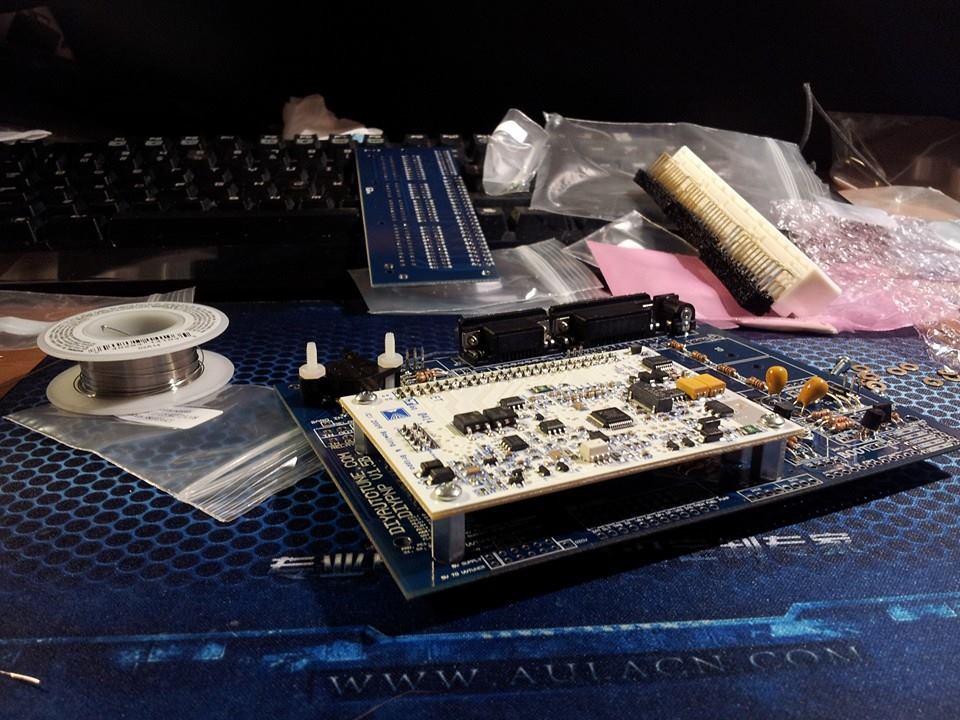

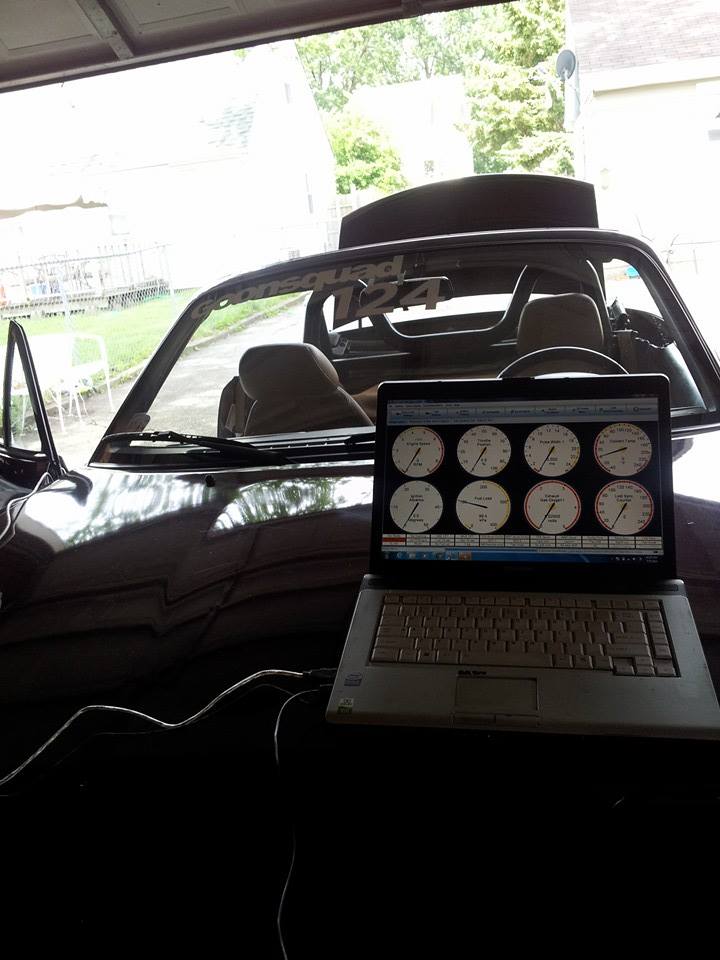

Bought a DIYPNP, built it, worked, car never ran on it, cried, sold it.

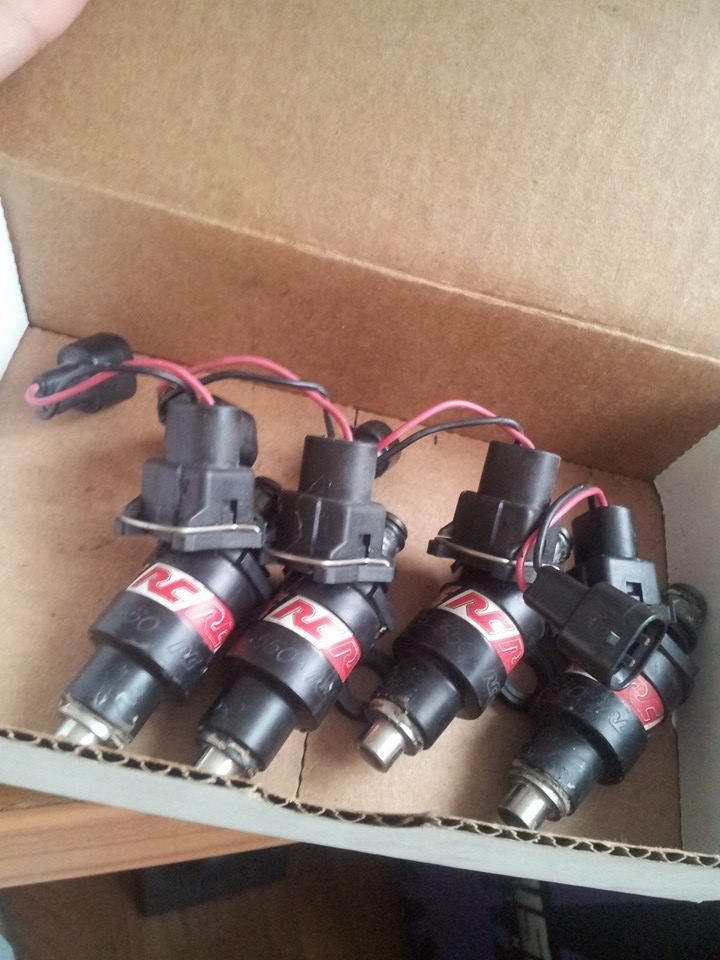

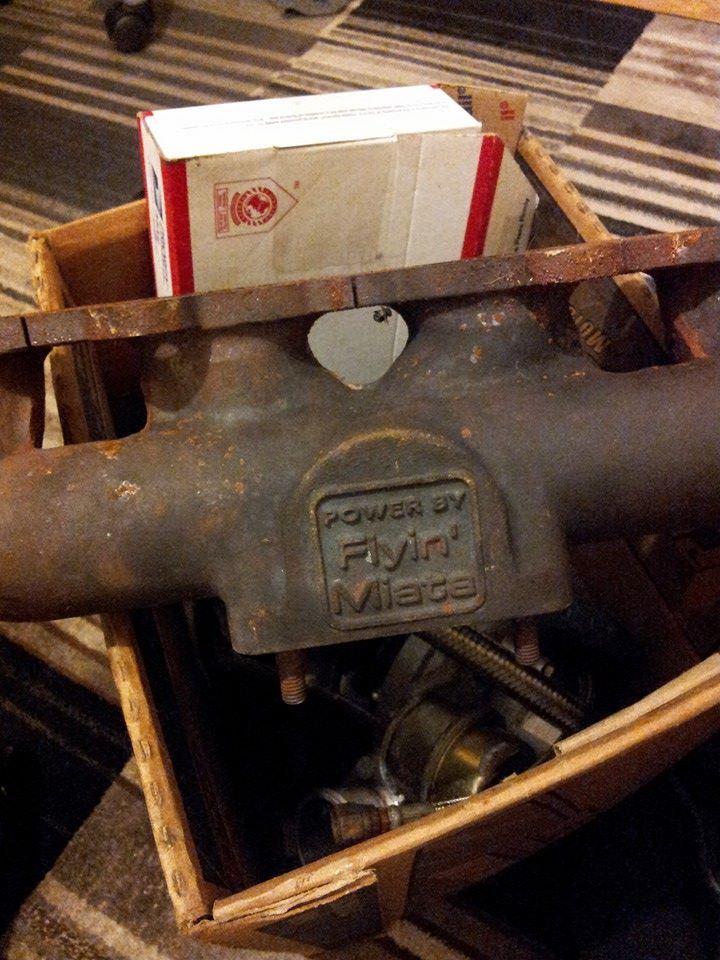

Bought a few more things for the build




And once again it is cold so the M is back in the garage for the winter.
I am not going to be stupid the second time around and I am going to buy a Rev built MS.
AdrianD2 is offline
