Old 08-10-2015, 08:29 PM   #141
Senior Member
Thread Starter
iTrader: (4)

Join Date: Nov 2012
Location: Colorado
Posts: 660
Total Cats: 36
Default

Some stuff has been happening lately...


-My super expensive ceramic bearing exploded after 20 minutes of use but Boca Bearings refunded me and told me to call one of their engineers next time for assistance on selecting the right bearing. Good company.
-Got a squaretop
-Installed my Jongblood 15x9 wheels and xida's

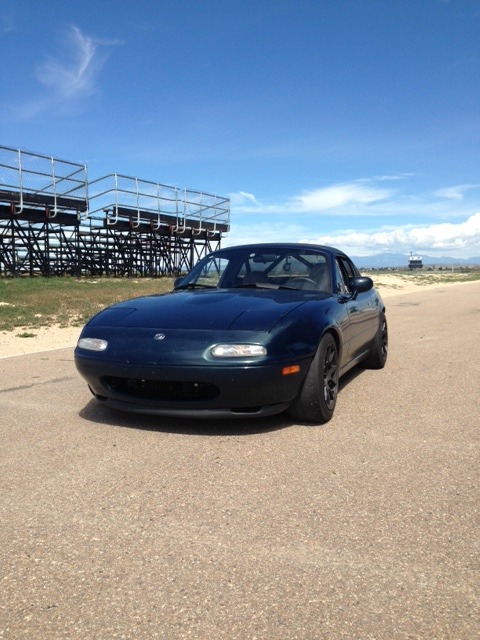

-Went to the track and was seemingly down on power all day. Still tied my personal best (within 1/10th) while being 5mph slower at the end of the long straightaway. So xidas and big wheels make the car grip pretty well.

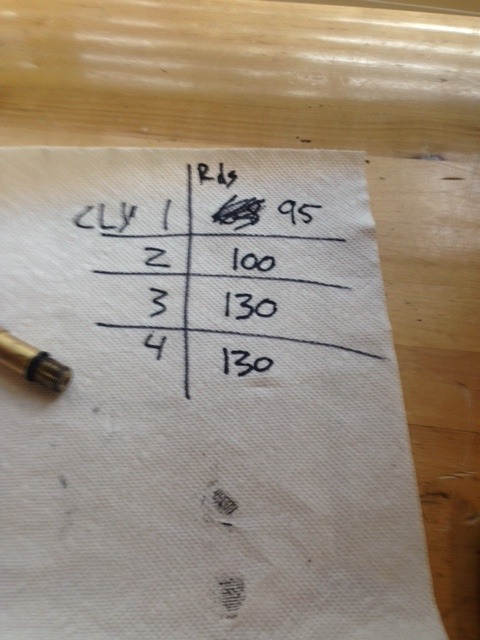

Did compression check after the track day- sad trombone:


Already ordered a nice VVT engine from parts group. Hack job engine swap coming soon
Attached Thumbnails
97 Rotrex HPDE Build-img_1021.jpg   97 Rotrex HPDE Build-img_1024.jpg
dcamp2 is offline   Reply With Quote
Old 08-17-2015, 10:24 PM   #142
Senior Member
Thread Starter
iTrader: (4)

Join Date: Nov 2012
Location: Colorado
Posts: 660
Total Cats: 36
Default

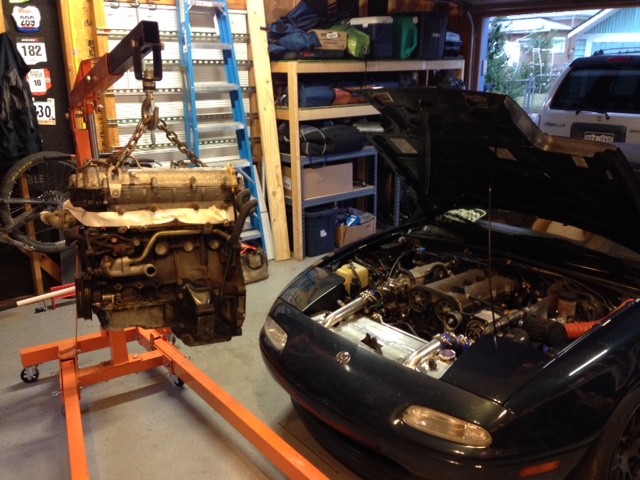

SOON
Attached Thumbnails
97 Rotrex HPDE Build-img_1054.jpg
dcamp2 is offline   Reply With Quote
Old 08-30-2015, 09:31 PM   #143
Senior Member
Thread Starter
iTrader: (4)

Join Date: Nov 2012
Location: Colorado
Posts: 660
Total Cats: 36
Default

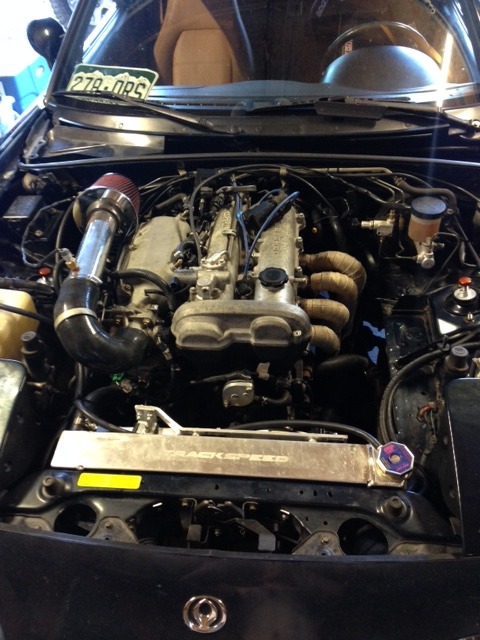

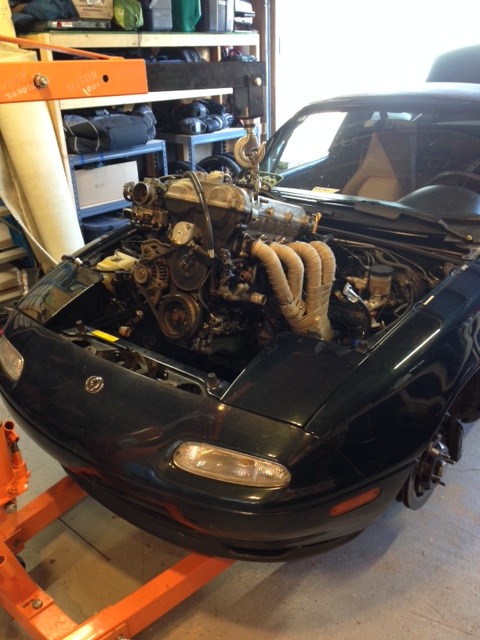

Slammed the new engine in... it runs







Need to put the supercharger back on, the hood, figure out how to mount the coil packs etc. getting close though.
Attached Thumbnails
97 Rotrex HPDE Build-img_1080.jpg   97 Rotrex HPDE Build-img_1081.jpg
dcamp2 is offline   Reply With Quote
Old 08-31-2015, 08:48 AM   #144
Junior Member
iTrader: (3)

Join Date: Oct 2011
Location: Naperville
Posts: 369
Total Cats: 3
Default

Nice!! Is this a built motor or a stocker? Be careful with your tune if it's stock, cause it's 10:1 not what you had.
tomiboy is offline   Reply With Quote
Old 08-31-2015, 06:31 PM   #145
Senior Member
Thread Starter
iTrader: (4)

Join Date: Nov 2012
Location: Colorado
Posts: 660
Total Cats: 36
Default

Quote:
Originally Posted by tomiboy View Post
Nice!! Is this a built motor or a stocker? Be careful with your tune if it's stock, cause it's 10:1 not what you had.
bone stock. I'm going to avoid opening the motor if at all possible... I'm not sure if the head work on the last one caused the loss in compression.

yeah- I will adjust timing/tune for this new one.
dcamp2 is offline   Reply With Quote
Old 09-14-2015, 10:19 AM   #146
Senior Member
Thread Starter
iTrader: (4)

Join Date: Nov 2012
Location: Colorado
Posts: 660
Total Cats: 36
Default

Car is running/driving nicely. Pretty happy with how easy this was for my first motor swap.


Just FYI for those swapping NB2 motors into NA's:

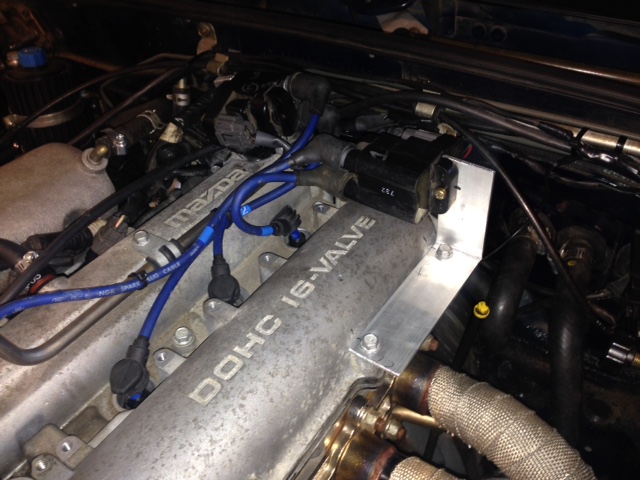

I did ZERO wiring to put this motor in the car... Made some ghetto mounts for my coilpacks, trimmed the plug wires and am running the old style CAS for now. I'm not running VVT until I get motivated to spend money on VVT tuner thing and do some wiring. I made a plug on a lathe at work to cap the new cam-sensor hole for the temporary.

Attached Thumbnails
97 Rotrex HPDE Build-img_1098.jpg
dcamp2 is offline   Reply With Quote
Old 09-14-2015, 11:31 AM   #147
Junior Member
iTrader: (3)

Join Date: Oct 2011
Location: Naperville
Posts: 369
Total Cats: 3
Default

Congrats!!
tomiboy is offline   Reply With Quote
Old 10-12-2015, 10:12 AM   #148
Senior Member
Thread Starter
iTrader: (4)

Join Date: Nov 2012
Location: Colorado
Posts: 660
Total Cats: 36
Default

Car is running AWESOME. Did a personal best at HPR- 2:04.69 I think about 5 sec under SM record on worn NT-01's.

Zero overheating issues with BP6D and reroute.


Video

Clean lap:

Almost Death:

Best Session Ever:
dcamp2 is offline   Reply With Quote
Old 10-12-2015, 11:36 AM   #149
Junior Member
iTrader: (3)

Join Date: Oct 2011
Location: Naperville
Posts: 369
Total Cats: 3
Default

What was that guy doing? Was that a track exit?
tomiboy is offline   Reply With Quote
Old 10-12-2015, 11:46 AM   #150
Supporting Vendor
iTrader: (3)

emilio700's Avatar

Join Date: May 2005
Posts: 4,855
Total Cats: 993
Default

Quote:
Originally Posted by dcamp2 View Post
Car is running AWESOME. Did a personal best at HPR- 2:04.69 I think about 5 sec under SM record on worn NT-01's.

Zero overheating issues with BP6D and reroute.

Cool build.

Sit closer to the wheel.
Your next on track video will demonstrate how you are learning to not palm the steering wheel and not shuffle steer.

emilio700 is offline   Reply With Quote
Old 10-12-2015, 12:08 PM   #151
Senior Member

Join Date: May 2011
Posts: 503
Total Cats: 50
Default

Quote:
Originally Posted by emilio700 View Post
Cool build.

Sit closer to the wheel.
Your next on track video will demonstrate how you are learning to not palm the steering wheel and not shuffle steer.

LOL power move. Emilio is a driving god compared to me (most people), but he's spot on here. I think that every time I see one of your videos.

Awesome update.
EErockMiata is offline   Reply With Quote
Old 10-12-2015, 12:13 PM   #152
Senior Member
Thread Starter
iTrader: (4)

Join Date: Nov 2012
Location: Colorado
Posts: 660
Total Cats: 36
Default

Quote:
Originally Posted by emilio700 View Post
Cool build.

Sit closer to the wheel.
Your next on track video will demonstrate how you are learning to not palm the steering wheel and not shuffle steer.


thanks- I've actually been feeling like I need to move the seat up a bit- and hearing someone else (with lots of experience) say it helps convince me.

I was worried that my legs would be too cramped though- the pedal reach is perfect right now. Might have to buy a pre-made mount with a million holes that I can play around with.
dcamp2 is offline   Reply With Quote
Old 10-12-2015, 12:14 PM   #153
Senior Member
Thread Starter
iTrader: (4)

Join Date: Nov 2012
Location: Colorado
Posts: 660
Total Cats: 36
Default

Quote:
Originally Posted by tomiboy View Post
What was that guy doing? Was that a track exit?
No. It's a bypass for a different configuration that was CLEARLY coned off. Not sure WTF he was doing.
dcamp2 is offline   Reply With Quote
Old 10-12-2015, 12:17 PM   #154
Elite Member
iTrader: (3)

Join Date: Mar 2008
Location: Granbury, TX
Posts: 5,889
Total Cats: 566
Default

Quote:
Originally Posted by dcamp2 View Post
thanks- I've actually been feeling like I need to move the seat up a bit- and hearing someone else (with lots of experience) say it helps convince me.

I was worried that my legs would be too cramped though- the pedal reach is perfect right now. Might have to buy a pre-made mount with a million holes that I can play around with.
Is a racing steering wheel an option for this car? If so, the NRG 2.5 QR + a full length hub adapter (not the short one) moves the wheel to a really nice spot while keeping the seat in your preferred position.

I'd also like to see data on your videos.
hornetball is offline   Reply With Quote
Old 10-12-2015, 12:21 PM   #155
Senior Member
Thread Starter
iTrader: (4)

Join Date: Nov 2012
Location: Colorado
Posts: 660
Total Cats: 36
Default

I'd like to keep the stock wheel- more stock=better for me and I'm too cheap to pay for one.

How do you do data? I have Harry's lap timer, but use go-pro for video. I'm up to 121mph on that back straight
dcamp2 is offline   Reply With Quote
Old 10-12-2015, 12:32 PM   #156
Elite Member
iTrader: (3)

Join Date: Mar 2008
Location: Granbury, TX
Posts: 5,889
Total Cats: 566
Default

I'm capturing vid and data with an iPod and external GPS.

https://www.miataturbo.net/build-thr...6/#post1100556

A side-"benefit" of my mounting location is that Emilio can't see my hands (actually, that's not a "benefit" at all -- since I can't either -- I end up relying upon other instructors observing).
hornetball is offline   Reply With Quote
Old 10-12-2015, 12:38 PM   #157
Senior Member
Thread Starter
iTrader: (4)

Join Date: Nov 2012
Location: Colorado
Posts: 660
Total Cats: 36
Default

haha. nice.

I do miss the driver action in your videos... I love watching people saw away at the steering wheel! And you can more easily tell when someone is sliding/drifting etc.
dcamp2 is offline   Reply With Quote
Old 10-12-2015, 08:40 PM   #158
Elite Member
iTrader: (2)

Mobius's Avatar

Join Date: May 2008
Location: Portland, Oregon
Posts: 2,847
Total Cats: 228
Default

The car is looking good.

RE: the brake dust, I have found a plastic kitchen scrubbie to be the tool of choice to get that stuff off. It takes a while especially in the corners, but it should eventually come off.

I gave up on worrying about corrosive brake dust for track days when I realized since I store my wheels indoors, I'm washing and inspecting the wheels after every event regardless, so it doesn't matter. I've used the Hawks and liked them in the front but they don't have a DTC-60 specifically for the sport rears. I use Cobalts now. They fit properly, they don't really care about bedding or previous transfer layers, and they work.
Mobius is offline   Reply With Quote
Old 10-13-2015, 04:12 PM   #159
Senior Member
Thread Starter
iTrader: (4)

Join Date: Nov 2012
Location: Colorado
Posts: 660
Total Cats: 36
Default

now with data:


data is slow and choppy due to iphone stock GPS...
dcamp2 is offline   Reply With Quote
Old 10-27-2015, 11:30 PM   #160
Senior Member
Thread Starter
iTrader: (4)

Join Date: Nov 2012
Location: Colorado
Posts: 660
Total Cats: 36
Default

Been working on the car more- mostly to fix little things that have been bothering me for a while.

Also ordered a Marrad seat to hopefully make DD'ing a little more comfortable.

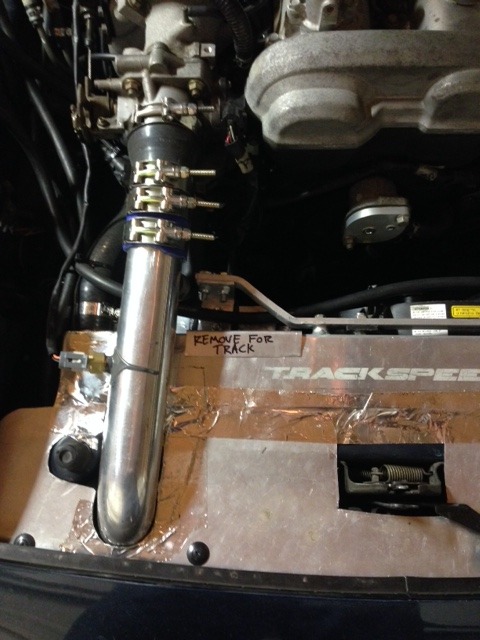

Made (bent a rectangle of aluminum) a block-off plate to cover part of the radiator and oil cooler. I've been having trouble getting up to temp on cool days (street driving) and if I run the heater- forgetaboutit. Might have to cover more area, but this was too easy not to try.

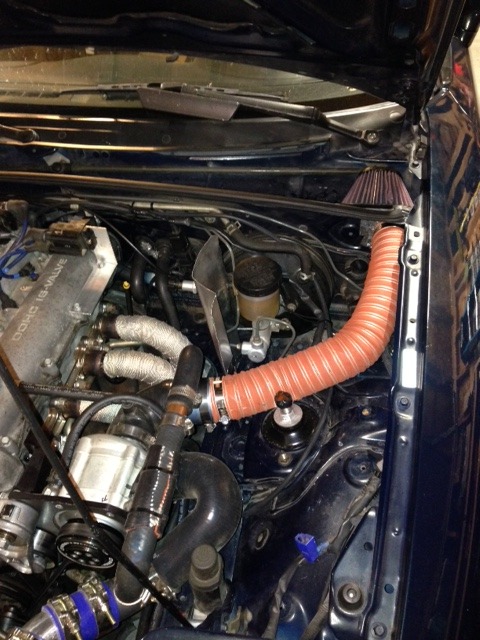

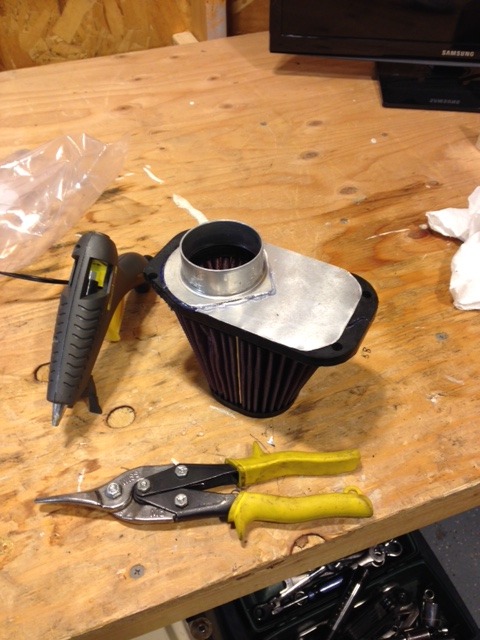

Made a Hornetball style cowl intake filter using a hot glue gun :like cat:

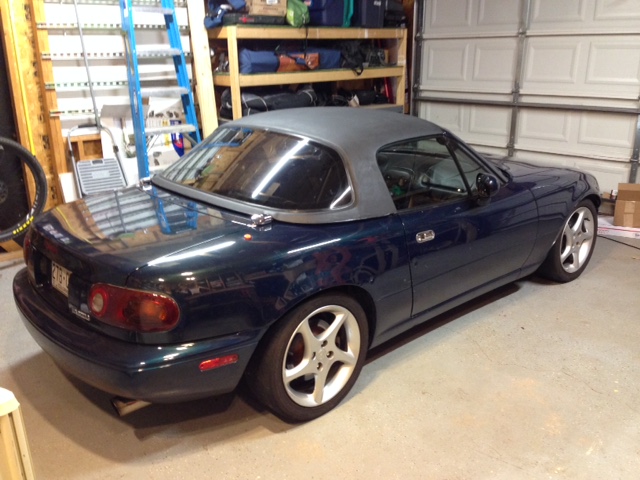

Also got some used OEM 16" wheels. I needed a spare or 2 to fit over my big brakes and now I might start running them at the track. Ultimate sleeper miata? They make Bridgestone Potenza RE71R's in this size...

Attached Thumbnails
97 Rotrex HPDE Build-img_1187.jpg   97 Rotrex HPDE Build-img_1189.jpg   97 Rotrex HPDE Build-img_1190.jpg   97 Rotrex HPDE Build-img_1191.jpg
dcamp2 is offline   Reply With Quote
