Excellent thread. Love it.
Gussy is offline   Reply With Quote
Old 02-10-2011, 07:09 AM   #142
Senior Member
iTrader: (2)

Join Date: Jan 2010
Location: Denver
Posts: 909
Total Cats: 14
Default

Quote:
Originally Posted by jasonb View Post
i haz a sudden fascination w/ that drawing.

found this in one of my photos from earlier today. um.

Looks like you have a little issue. Is it possible that your attachment point is to close to the pivot point? The further away from the fulcrum point the less effort required to control the load.
hingstonwm is offline   Reply With Quote
Old 02-10-2011, 07:56 AM   #143
Junior Member
Thread Starter

Join Date: Jun 2010
Posts: 176
Total Cats: -4
Default

It looks like your design is pretty solid really. The only thing I see is that the rear bolt seems to be off-center in it's upper hole, and maybe the spacer as well. I would look to see if you can extend the subframe pickup point straight to the top off the diff, possibly with a tighter tolerance on those bolt holes.
Do you have any calipers? Should make the job a snap..
Boost_addict is offline   Reply With Quote
Old 02-12-2011, 05:09 PM   #144
Junior Member
Thread Starter

Join Date: Jun 2010
Posts: 176
Total Cats: -4
Default

Small update

Got around to "adding lightness" to the passenger side mount today.. I was using one of the 3axis cnc machines Manually. This means there was no automated program to run, it was instead manually moved on each axis independently (manually ou cannot move in two directions at once). As you may Imagine (some of you) that means making that little 45* cut was very obnoxious... :lol: I had to go 10 thou at a time in each direction then smooth it out on the buffing wheel.

Name:  288870d7.jpg
Views: 65
Size:  54.2 KB

I am happy to see my mounts are coming right along, and I'm confident it won't be too long at all before I can move on to the tranny and diff mounts Anyways, as always, updates soon.

Last edited by Boost_addict; 02-12-2011 at 07:39 PM.
Boost_addict is offline   Reply With Quote
Old 03-13-2011, 07:26 PM   #145
Junior Member

Join Date: Mar 2010
Location: onion city,ca
Posts: 428
Total Cats: 1
Default

Quote:
Originally Posted by hingstonwm View Post
Looks like you have a little issue. Is it possible that your attachment point is to close to the pivot point? The further away from the fulcrum point the less effort required to control the load.

true that small issue i haz. i think i will try to rig up something where you have your heim joint piece so that all of the longitudinal stress isn't going through such a short lever arm (what u said). do you have any pics of yours from the side? i've been under the car and i still can't puzzle out how to fix it for good.


looking for pic something like this view: Name:  thumb_m_DSC02207r90.jpg
Views: 65
Size:  129.4 KB
jasonb is offline   Reply With Quote
Old 03-14-2011, 06:26 PM   #146
Junior Member
Thread Starter

Join Date: Jun 2010
Posts: 176
Total Cats: -4
Default

After reading the other sr20 swap thread in here, it looks like I may be going another way with The diff mount, and I bet you'll agree. The idea is to box In the rear subframe, and place a vertical support between the top of the subframe, and the newly added brace. From there a simple bracket will extend to connect the diff. There's numerous benefits from a setup like that, and it's easy as well.
Boost_addict is offline   Reply With Quote
Old 03-14-2011, 06:31 PM   #147
Crumple Zone Tester
iTrader: (7)

mgeoffriau's Avatar

Join Date: Jul 2009
Location: Jackson, MS
Posts: 7,656
Total Cats: 447
Default

Quote:
Originally Posted by Boost_addict View Post
As you may Imagine (some of you) that means making that little 45* cut was very obnoxious... :lol: I had to go 10 thou at a time in each direction then smooth it out on the buffing wheel.
This immediately brought to mind memories of the frustration of making diagonal lines on an Etch-a-Sketch.
mgeoffriau is offline   Reply With Quote
Old 03-14-2011, 09:51 PM   #148
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,107
Total Cats: 518
Default

Quote:
Originally Posted by Boost_addict View Post
As you may Imagine (some of you) that means making that little 45* cut was very obnoxious... :lol: I had to go 10 thou at a time in each direction then smooth it out on the buffing wheel.
G01 fail. lulz.
curly is offline   Reply With Quote
Old 03-14-2011, 11:04 PM   #149
Senior Member

Join Date: Aug 2009
Location: MONROE CT
Posts: 1,100
Total Cats: 2
Default

I think its funny that the SR20DET is now becoming a motor more seen in the miata well being put in a miata but you get what im saying. Also might i ask what is your location you dont have it listed. If you are close im going to have to stop by and take a look some time.
miatamike203 is offline   Reply With Quote
Old 03-15-2011, 09:31 AM   #150
Junior Member
Thread Starter

Join Date: Jun 2010
Posts: 176
Total Cats: -4
Default

Quote:
Originally Posted by mgeoffriau View Post
This immediately brought to mind memories of the frustration of making diagonal lines on an Etch-a-Sketch.
Exactly!!

Quote:
Originally Posted by miatamike203 View Post
I think its funny that the SR20DET is now becoming a motor more seen in the miata well being put in a miata but you get what im saying. Also might i ask what is your location you dont have it listed. If you are close im going to have to stop by and take a look some time.
Sorry to say I'm down here in sunny south florida, so we may not be able to check each others cars out :/
Boost_addict is offline   Reply With Quote
Old 03-15-2011, 10:42 AM   #151
Senior Member

Join Date: Aug 2009
Location: MONROE CT
Posts: 1,100
Total Cats: 2
Default

Quote:
Originally Posted by Boost_addict View Post
Sorry to say I'm down here in sunny south florida, so we may not be able to check each others cars out :/
Thats not a bad thing thats a good think im always making road trips to GA year round and i have been planning to make a summer road trip with the miata to GA.
miatamike203 is offline   Reply With Quote
Old 03-15-2011, 04:07 PM   #152
Junior Member
Thread Starter

Join Date: Jun 2010
Posts: 176
Total Cats: -4
Default

Well maybe we can work something out then. I just have to focus on getting things made again, my life has been so busy I can't keep up. Haha.
Boost_addict is offline   Reply With Quote
Old 03-15-2011, 09:27 PM   #153
Senior Member

Join Date: Aug 2009
Location: MONROE CT
Posts: 1,100
Total Cats: 2
Default

LOL i know the feeling now that im starting school again.
miatamike203 is offline   Reply With Quote
Old 04-07-2011, 07:58 PM   #154
Junior Member
Thread Starter

Join Date: Jun 2010
Posts: 176
Total Cats: -4
Default

Got a bit of bad news guys. After being fucked out of the turbo, injectors, ecu and wiring harness AND loosing a place to hold the engine, it looks like I'm selling the swap.

All it is now is the block with it's coilpacks, turbo manifold, greddy Mani, and the Internals like the clutch and cams.
The oil pan is done, but the motor mounts and pickup tube are incomplete.

I'm asking 3000 for everything.. Which is damn good considering to buy a stock block and tranny is at least 2000. The miata specific oil pan would be over 2000. a greddy intake is over 500, this one is chrome as well..

Please let me know if you are interested, pm me.
Boost_addict is offline   Reply With Quote
Old 04-08-2011, 12:16 AM   #155
Senior Member

Join Date: Aug 2009
Location: MONROE CT
Posts: 1,100
Total Cats: 2
Default

I have tons of extra parts ecu and more if thats what you need. Im going to be sad to see it not done.Also any news on the drive shaft?
miatamike203 is offline   Reply With Quote
Old 04-08-2011, 12:00 PM   #156
Junior Member
Thread Starter

Join Date: Jun 2010
Posts: 176
Total Cats: -4
Default

Quote:
Originally Posted by miatamike203 View Post
I have tons of extra parts ecu and more if thats what you need. Im going to be sad to see it not done.Also any news on the drive shaft?

Unless you could make me some mounts too idk if I could. I no longer work at the machine shop.. Let's say having you girlfriends father as your boss is not the best idea. If your interested we could talk though, I'll pm you
Y number
Boost_addict is offline   Reply With Quote
Old 04-09-2011, 07:18 PM
Khaos
This message has been deleted by y8s. Reason: jackass!
Old 05-11-2011, 06:58 PM   #157
Junior Member
Thread Starter

Join Date: Jun 2010
Posts: 176
Total Cats: -4
Default

Bump on these parts... nothing has been parted. I would trade it If someone had the right offer.. Like a nice turbo setup, or maybe cash + the right wheels.. Somebody make me an offer please.
Boost_addict is offline   Reply With Quote
Old 07-03-2011, 11:46 PM   #158
Newb

Join Date: Jan 2011
Posts: 1
Total Cats: 0
Default

pm' , i need some info!! i hhave mike old car.
dmonroe2008 is offline   Reply With Quote
Old 12-09-2017, 03:27 AM   #159
Newb

Join Date: Dec 2017
Posts: 1
Total Cats: 0
Default SR 20 sump

Quote:
Originally Posted by Boost_addict View Post
First and foremost, if you don't like, agree with, or understand why i would do this swap, you can gtfo. I am doing this because it's fast, cool and unique.. Not because of the opinion of some Internet voice....

A bit of background; my name is Zander, I'm 19, and currently working I a machine shop. My boss let's me work on whatever I want after hours. I was previously planning on an fe3n turbo engine conversion, however circumstances changed. I was traded the engine for a 700$ turbo, and I saw the potential; all aluminum block, huge aftermarket, and of course, a tranny that can hold some real power. *Currently the engine has 264 cams, pistons, bigger injectors, and a real greddy intake. *Still has the stock t25 for now.

Attachment 192214

Attachment 192215

To fit this engine is not as bad as it would seem. *With the cas positioned how it is on the bp, you loose firewall clearance. *The sr does not have this issue, and will come forward in the engine bay just as far as the bp. *The shifter even sits just an inch farther back than stock, which is really kind of nice..

Current list of mods to make it fit include:

-converting the oil pan from its front sump design to a rear sump
-drive shaft
-motor, tranny, and diff mounts
-vmount setup (not required)

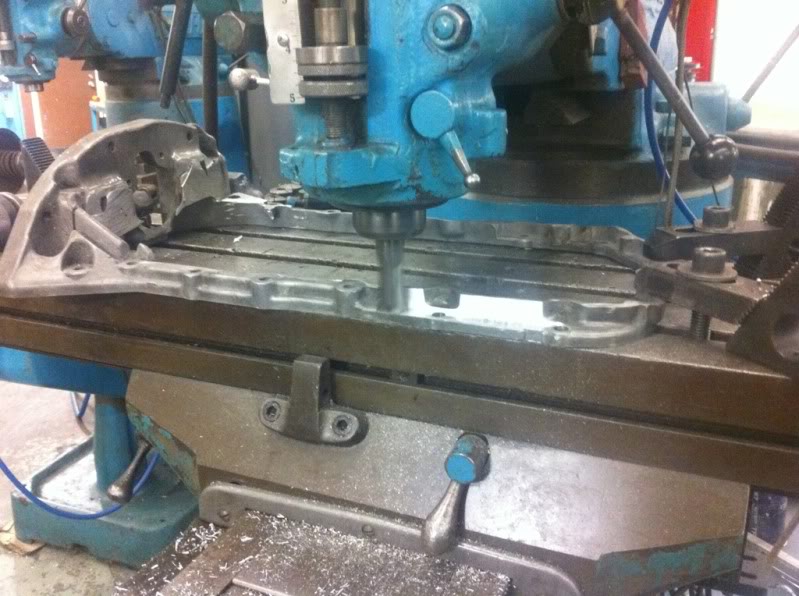

I started by cutting the oil pan down, and machining a nice clean flange for me to build off.*

Attachment 192216
Attachment 192217

Fabbed up the walls
Attachment 192218

Attachment 192219

Little drain bung

Attachment 192220


Currently just needs some welds!

Updates soon.
Hello Im looking for a sump like this do make to seli
cheers Bob
DatGem is offline   Reply With Quote
Old 12-09-2017, 03:36 AM   #160
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,184
Total Cats: 2,582
Default

ask him again in 8 years
