Old 07-07-2015, 03:38 PM   #121
Junior Member
Thread Starter

Join Date: Jan 2015
Location: Saint Louis, MO
Posts: 164
Total Cats: 7
Default

Quote:
Originally Posted by aidandj View Post
Pretty sure it does include that. But in fancy orange, might match your shirt.


Brb buying
typicalsteve is offline   Reply With Quote
Old 07-07-2015, 03:44 PM   #122
SadFab CEO
iTrader: (3)

hi_im_sean's Avatar

Join Date: Sep 2012
Location: your mom's house phoenix, AZ
Posts: 3,904
Total Cats: 613
Default

Quote:
Originally Posted by typicalsteve View Post


Brb buying
As far as I know, the 949 is extended length as well, but is straight at both ends.
hi_im_sean is offline   Reply With Quote
Old 07-07-2015, 03:57 PM   #123
Junior Member
Thread Starter

Join Date: Jan 2015
Location: Saint Louis, MO
Posts: 164
Total Cats: 7
Default

Quote:
Originally Posted by hi_im_sean View Post
As far as I know, the 949 is extended length as well, but is straight at both ends.
What is the benefit of the angle at the one end of the one you posted?
typicalsteve is offline   Reply With Quote
Old 07-07-2015, 04:47 PM   #124
SadFab CEO
iTrader: (3)

hi_im_sean's Avatar

Join Date: Sep 2012
Location: your mom's house phoenix, AZ
Posts: 3,904
Total Cats: 613
Default

Quote:
Originally Posted by typicalsteve View Post
What is the benefit of the angle at the one end of the one you posted?
The line doesnt need to bend as much to make it up past the firewall. You can just see the 30 degree fitting attached to the slave in my pic that shows how it helps the routing.

Either line will work fine. You just need to decide if you want salmon, or angle.
hi_im_sean is offline   Reply With Quote
Old 07-08-2015, 03:13 AM   #125
Junior Member
Thread Starter

Join Date: Jan 2015
Location: Saint Louis, MO
Posts: 164
Total Cats: 7
Default

Sean, always go salmon. Always.

Aidan, just realized I'm subscribed to you on YouTube. Nice shifting noises on your last vid.
typicalsteve is offline   Reply With Quote
Old 07-08-2015, 03:26 AM   #126
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 17,999
Total Cats: 1,466
Default

Thanks. I'm real excited to get this thing back on the road.
aidandj is offline   Reply With Quote
Old 07-09-2015, 03:24 PM   #127
Junior Member
Thread Starter

Join Date: Jan 2015
Location: Saint Louis, MO
Posts: 164
Total Cats: 7
Default

Sorry for the lack of updates- It's been way too busy around here lately.

I might be buying a '93 Mariner Blue with 34,000 original miles on Saturday, woo!
I finished up an entire LED conversion because LEDs are cool and I am procrastinating on my clutch install...
Speaking of which, my clutch kit and brake setup will most likely be on by the end of the weekend. Will post pictures and updates as I get some more work done.

Cheers!
typicalsteve is offline   Reply With Quote
Old 07-09-2015, 03:28 PM   #128
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 17,999
Total Cats: 1,466
Default

Make sure to get a rear main seal to replace it while the trans is out.
<br />
<br />Also don't forget to out a bit of loctite on the flywheel bolts so oil doesn't leak out.
aidandj is offline   Reply With Quote
Old 07-13-2015, 10:08 PM   #129
Junior Member
Thread Starter

Join Date: Jan 2015
Location: Saint Louis, MO
Posts: 164
Total Cats: 7
Default

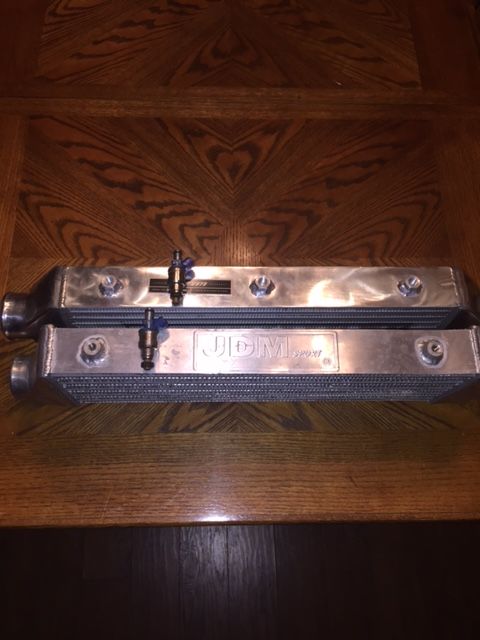

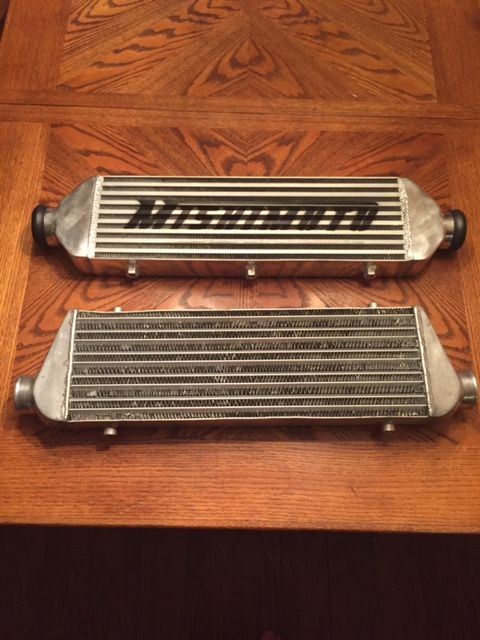

Ordered every single seal/gasket/cap replacement possible for when I do the clutch from Rosenthal. Yes, I still haven't done it.... Also pulled the trigger on the 949 HOK. ALSO got a brand new Mishimoto Z-Line intercooler for $50 so I couldn't really pass up that deal. Now I need advice... Should I use the new Mishimoto over the used JDM Sport one I have? Pics below!

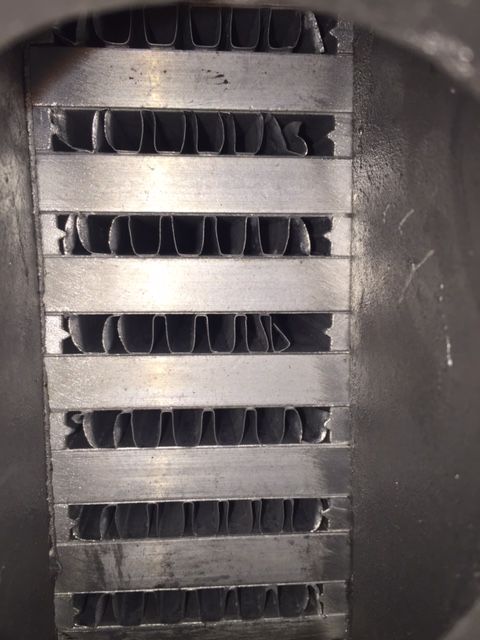

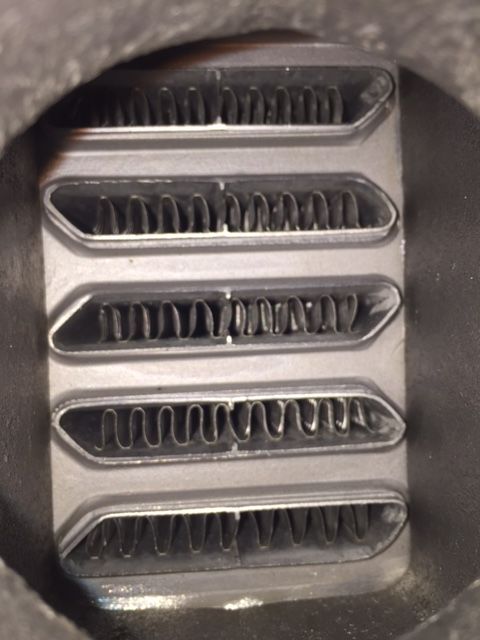

JDM Sport IC has an extra row of fins


JDM Sport core seems more dense... More fins is better, right?


Mishimoto unit as a whole is heavier, though. Better quality unit?


Mishimoto IC has a tad more depth than the JDM Sport one.

I like the Mishimoto one because it is brand new, doesn't have any bent fins, and is heavier. I like the JDM Sport one because the core looks a lot more dense... I'm at a loss.

WHICH ONE DO I USE?!
Attached Thumbnails
Boosting on a Budget: Greddy Kit Done *Right*-80-fullsizerender_2__09e9d54a1c4c50b3e552d13c693e10772e9b86df.jpg   Boosting on a Budget: Greddy Kit Done *Right*-80-img_1252_c507b0fb92e79a5c9ad8091294a11a91bbfa92a6.jpg   Boosting on a Budget: Greddy Kit Done *Right*-80-img_1253_2b99ff7f4aa61fb59b2837e463ce572a145a7a97.jpg   Boosting on a Budget: Greddy Kit Done *Right*-80-img_1254_d058c5ceb3ae442dbd7b69a7f303a41f02d1c517.jpg
typicalsteve is offline   Reply With Quote
Old 07-13-2015, 10:14 PM   #130
SadFab CEO
iTrader: (3)

hi_im_sean's Avatar

Join Date: Sep 2012
Location: your mom's house phoenix, AZ
Posts: 3,904
Total Cats: 613
Default

They are both terrible. Turbolators are ****, the JDM is the better of the 2 though.
hi_im_sean is offline   Reply With Quote
Old 07-13-2015, 10:17 PM   #131
Junior Member
Thread Starter

Join Date: Jan 2015
Location: Saint Louis, MO
Posts: 164
Total Cats: 7
Default

classic. Which one would you use out of the two?
typicalsteve is offline   Reply With Quote
Old 07-13-2015, 10:17 PM   #132
SadFab CEO
iTrader: (3)

hi_im_sean's Avatar

Join Date: Sep 2012
Location: your mom's house phoenix, AZ
Posts: 3,904
Total Cats: 613
Default

For $11.39 more, you could have gotten something better than either of those.

27 25"x6 75"X2 5" Aluminum Chrome Fmic Bar Plate Front Mount Turbo Intercooler | eBay

Edit: I would use the JDM if i had to use one of those 2. It will have less pressure drop, and has marginally better turbolators, it will also be more favorable to routing the piping.

If it were me, those would both go up on craigslist, and id buy the one I have now or the slightly taller one i just linked above.
hi_im_sean is offline   Reply With Quote
Old 07-13-2015, 10:18 PM   #133
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,193
Total Cats: 2,583
Default

he's right. way better.
oh well

use the mishi
the other one is crap
18psi is offline   Reply With Quote
Old 07-13-2015, 10:22 PM   #134
SadFab CEO
iTrader: (3)

hi_im_sean's Avatar

Join Date: Sep 2012
Location: your mom's house phoenix, AZ
Posts: 3,904
Total Cats: 613
Default

Quote:
Originally Posted by 18psi View Post
he's right. way better.
oh well

use the mishi
the other one is crap

Lol, its great getting contradictory info isnt it? Vlad probably know better than me though so...

Although id like to hear why the mishi looks better?
hi_im_sean is offline   Reply With Quote
Old 07-13-2015, 10:24 PM   #135
SadFab CEO
iTrader: (3)

hi_im_sean's Avatar

Join Date: Sep 2012
Location: your mom's house phoenix, AZ
Posts: 3,904
Total Cats: 613
Default

Read padawan:

https://www.miataturbo.net/diy-turbo...tercool-83180/

This what youre looking for



Or spend the $$ and get a precision or similar.
Attached Thumbnails
Boosting on a Budget: Greddy Kit Done *Right*-80-124978_deezums_cheap_1_6_tries_go_fast_img_20141004_110244_zps6036a3c7_6f98961be72705821f8f59.jpg
hi_im_sean is offline   Reply With Quote
Old 07-13-2015, 10:34 PM   #136
Junior Member
Thread Starter

Join Date: Jan 2015
Location: Saint Louis, MO
Posts: 164
Total Cats: 7
Default

Cool, thanks for the info as always guys! I'll be using the Mishi one for now because I'm a brand ***** and it will probably perform better than the JDM Sport one. Maybe I'll get the better Ebay one that you linked to some day when I get bored again
typicalsteve is offline   Reply With Quote
Old 07-13-2015, 10:38 PM   #137
SadFab CEO
iTrader: (3)

hi_im_sean's Avatar

Join Date: Sep 2012
Location: your mom's house phoenix, AZ
Posts: 3,904
Total Cats: 613
Default

Quote:
Originally Posted by typicalsteve View Post
Cool, thanks for the info as always guys! I'll be using the Mishi one for now because I'm a brand ***** and it will probably perform better than the JDM Sport one. Maybe I'll get the better Ebay one that you linked to some day when I get bored again

See what you IATs are, and go from there. If they are acceptable, no need to change the intercooler. That mishi will certainly have less pressure drop than the one I linked though, so there's that.
hi_im_sean is offline   Reply With Quote
Old 07-13-2015, 10:41 PM   #138
Junior Member
Thread Starter

Join Date: Jan 2015
Location: Saint Louis, MO
Posts: 164
Total Cats: 7
Default

Quote:
Originally Posted by hi_im_sean View Post
See what you IATs are, and go from there. If they are acceptable, no need to change the intercooler. That mishi will certainly have less pressure drop than the one I linked though, so there's that.
Yeah I'll do a comparison post when I get the bolts so I can properly install it. I'd imagine I will have more heat transfer due to the decreased density in fin population but I will also have more flow and velocity. The JDM Sport one also has raised lips on the core which was probably blocking airflow as well. So I guess we'll see how the pros and cons of both weigh up in a real world application.

edit: Also hoping for better throttle response from the Mishi.
typicalsteve is offline   Reply With Quote
Old 07-13-2015, 10:48 PM   #139
SadFab CEO
iTrader: (3)

hi_im_sean's Avatar

Join Date: Sep 2012
Location: your mom's house phoenix, AZ
Posts: 3,904
Total Cats: 613
Default

Quote:
Originally Posted by typicalsteve View Post
Also hoping for better throttle response from the Mishi.
lol, stop it with the conjecture.
hi_im_sean is offline   Reply With Quote
Old 07-13-2015, 10:59 PM   #140
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,193
Total Cats: 2,583
Default

the gaydeem sport will let your rad get more airflow
it will also flow less inside due to the tube/fin design
it's also a flimsy thing that you can likely bend with your bare hands
it will also likely deform over time
the mishi will be stronger and likely flow more inside

both are mediocre at best. The one sean linked in theory should be better than both, none of us really tested it though
I've had all 3 of these. I liked the one sean linked the most
[email protected] throttle response comment
18psi is offline   Reply With Quote
