Old 02-21-2013, 11:19 AM   #101
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,833
Total Cats: 1,786
Default

do you have launch control enabled? that's a good way to just sit there and test what settings work best for a faster limiter.
Braineack is offline   Reply With Quote
Old 02-21-2013, 11:54 AM   #102
Moderator
iTrader: (11)

sixshooter's Avatar

Join Date: Nov 2008
Location: Tampa, Florida
Posts: 15,653
Total Cats: 1,559
Default

Quote:
Originally Posted by rhysmate View Post
Hi Lads,

I ran VEAL tonight briefly. here are some logs if someone could take a look see ?
I don't see any issues offhand.
sixshooter is offline   Reply With Quote
Old 02-21-2013, 12:14 PM   #103
Moderator
iTrader: (11)

sixshooter's Avatar

Join Date: Nov 2008
Location: Tampa, Florida
Posts: 15,653
Total Cats: 1,559
Default

Quote:
Originally Posted by rhysmate View Post
So this is cutting 3 sparks out of 5?
In my case I think it is 3 injection pulses out of 5. I would try 2 out of 5 next if it was too harsh, but I'm not finding it to be too unsettling on the track.

Your datalogs didn't show any runs up to around 7000 rpm. I'm curious what your duty cycle is at WOT around 7000 rpm.
sixshooter is offline   Reply With Quote
Old 02-21-2013, 12:43 PM   #104
Junior Member
Thread Starter
iTrader: (1)

Join Date: Jan 2012
Location: Ireland
Posts: 465
Total Cats: 16
Default

Quote:
Originally Posted by Braineack View Post
do you have launch control enabled? that's a good way to just sit there and test what settings work best for a faster limiter.
No i don't have it set up yet i haven't even wired it in.

Quote:
Originally Posted by sixshooter View Post
In my case I think it is 3 injection pulses out of 5. I would try 2 out of 5 next if it was too harsh, but I'm not finding it to be too unsettling on the track.

Your datalogs didn't show any runs up to around 7000 rpm. I'm curious what your duty cycle is at WOT around 7000 rpm.
I tried to keep away from 7000 but i can do one later on and post it. In anything above 1st gear i hit my boost cut (110Kpa) at 4-5000 RPM
rhysmate is offline   Reply With Quote
Old 02-22-2013, 08:01 PM   #105
Junior Member
Thread Starter
iTrader: (1)

Join Date: Jan 2012
Location: Ireland
Posts: 465
Total Cats: 16
Default

by being careful on the throttle i managed a few runs of 7k rpm.. here are two logs. this was after about twenty minutes of tuning with VEAL.
Attached Files
File Type: msl 7000rpm.msl (252.1 KB, 123 views)
File Type: msl tunnel.msl (191.8 KB, 92 views)
rhysmate is offline   Reply With Quote
Old 02-22-2013, 10:54 PM   #106
Moderator
iTrader: (11)

sixshooter's Avatar

Join Date: Nov 2008
Location: Tampa, Florida
Posts: 15,653
Total Cats: 1,559
Default

Why is your MAT reading around -17 to -20 degrees Celsius?


And yes, you are completely out of injector capacity until your other ones come in.
sixshooter is offline   Reply With Quote
Old 02-23-2013, 04:36 AM   #107
Junior Member
Thread Starter
iTrader: (1)

Join Date: Jan 2012
Location: Ireland
Posts: 465
Total Cats: 16
Default

Quote:
Originally Posted by sixshooter View Post
Why is your MAT reading around -17 to -20 degrees Celsius?


And yes, you are completely out of injector capacity until your other ones come in.
I dont know! i hadn't noticed that.. what would cause that? Is it down to my IAT sensor? I have the IAT sensor plugged into the connections for the Air Flow Meter, have i got the polarities mixed up? it is only 4 degrees Celsius here at the moment so it might explain the figure but the polarity is a tad strange!

Edit - I forgot to calibrate my IAT sensor... oops

Last edited by rhysmate; 02-23-2013 at 05:04 AM.
rhysmate is offline   Reply With Quote
Old 02-23-2013, 09:22 AM   #108
Senior Member

Join Date: Dec 2004
Location: Brisbane, Australia
Posts: 1,272
Total Cats: 32
Default

Polarity doesn't matter BTW.
timk is offline   Reply With Quote
Old 02-23-2013, 11:40 AM   #109
Junior Member
Thread Starter
iTrader: (1)

Join Date: Jan 2012
Location: Ireland
Posts: 465
Total Cats: 16
Default

Quote:
Originally Posted by timk View Post
Polarity doesn't matter BTW.
ok, it must be something else somewhere! i calibrated and its reading odd numbers still.. could i really be getting air less that 10 degrees?

heres a log i did on the way home from work. i tried to mix my driving..

another thing i noticed is when i leave off the accelerator the guage goes lean? could that be to do with my target AFR table only going as low as 29 kPa? (when i leave off the MAP says 15 to 16 kPa)

Edit - ill have to upload later this computer is slow
rhysmate is offline   Reply With Quote
Old 02-23-2013, 11:58 AM   #110
Junior Member
Thread Starter
iTrader: (1)

Join Date: Jan 2012
Location: Ireland
Posts: 465
Total Cats: 16
Default

so if i unplug the sensor the gauge in TS reads 21 celsius!
rhysmate is offline   Reply With Quote
Old 02-24-2013, 05:13 PM   #111
Junior Member
Thread Starter
iTrader: (1)

Join Date: Jan 2012
Location: Ireland
Posts: 465
Total Cats: 16
Default

Any ideas on why I'm reading weird on my MAT sensor? Also, im still going lean when I leave off the accelerator in higher revs.. is this bad?
rhysmate is offline   Reply With Quote
Old 02-24-2013, 07:10 PM   #112
Moderator
iTrader: (11)

sixshooter's Avatar

Join Date: Nov 2008
Location: Tampa, Florida
Posts: 15,653
Total Cats: 1,559
Default

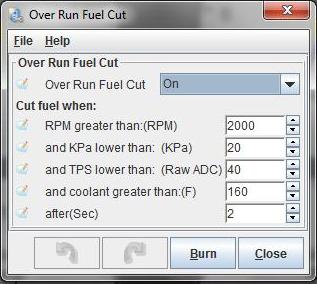

You are supposed to go lean when you release the throttle. Mine cuts all of the fuel off when the throttle is released at medium to high RPMs, and factory ECUs do that also. It is called fuel cut on overrun and can be set up in TunerStudio.

Here's mine:


It gives you better fuel economy because you don't need to waste fuel when you aren't trying to make horsepower at that point.
Attached Thumbnails
breaking my turbo virginity-overrun_zpsea0ed2bf.jpg
sixshooter is offline   Reply With Quote
Old 02-24-2013, 07:18 PM   #113
Moderator
iTrader: (11)

sixshooter's Avatar

Join Date: Nov 2008
Location: Tampa, Florida
Posts: 15,653
Total Cats: 1,559
Default

I didn't know you could use the air fuel meter to measure MAT. And I don't think that will work with a turbo anyway because you need to attain a temperature reading from a source after the turbo and after the intercooler. Most people use a GM IAT sensor after the intercooler and somewhere not right behind the radiator. You can drill a hole in the intercooler piping and add it anywhere convenient.
sixshooter is offline   Reply With Quote
Old 02-24-2013, 07:23 PM   #114
Junior Member
Thread Starter
iTrader: (1)

Join Date: Jan 2012
Location: Ireland
Posts: 465
Total Cats: 16
Default

I see that makes sense! I just didn't like seeing a lean reading.. thanks a lot for all the help so far.. I wouldn't have had the confidence to try this tuning by myself or without some guidance. Its a lot of fun..

I have an IAT sensor that's threaded into the imtercooler piping near the throttle body. .. i wired it following the megasquirt fitting guide which uses the air flow meter connectors. I dont have an air flow ,eter anymore. when I unplug the sensor I get a reading of around 21 degrees, but with the sensor in I get really low and even negative readings? I have a GM sensor from diyautotune and I calibrated it using the resistances that were in the setup manual. And I did it with the car cold
rhysmate is offline   Reply With Quote
Old 02-25-2013, 07:00 PM   #115
Junior Member
Thread Starter
iTrader: (1)

Join Date: Jan 2012
Location: Ireland
Posts: 465
Total Cats: 16
Default

Ok, i went and fitted some 295cc injectors and mapped it to 145kpa. then my duty cycle sits at 85%. but my god am i happy.. here's a log. ill be upping boost to 10psi when my 460 cc injectors arrive next week.
rhysmate is offline   Reply With Quote
Old 02-26-2013, 03:59 AM   #116
Junior Member
Thread Starter
iTrader: (1)

Join Date: Jan 2012
Location: Ireland
Posts: 465
Total Cats: 16
Default

heres my tune file.. the log i did is 3mb and it wont upload. ill get a few snap shots

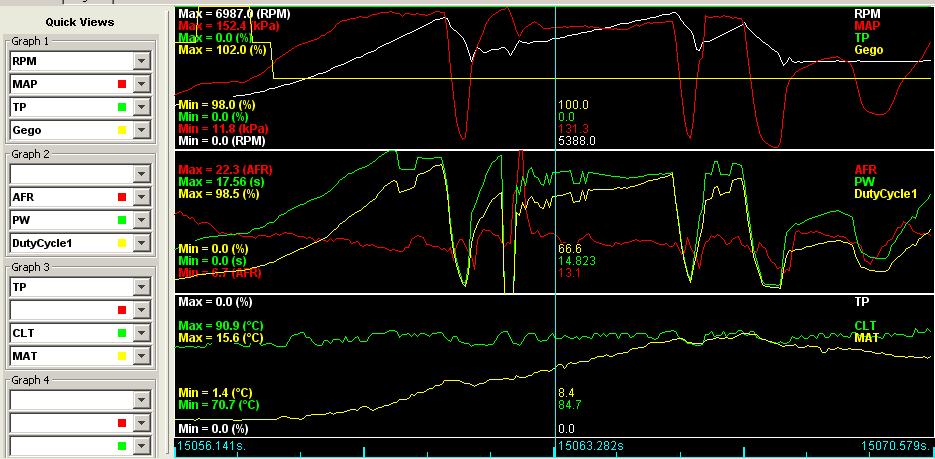

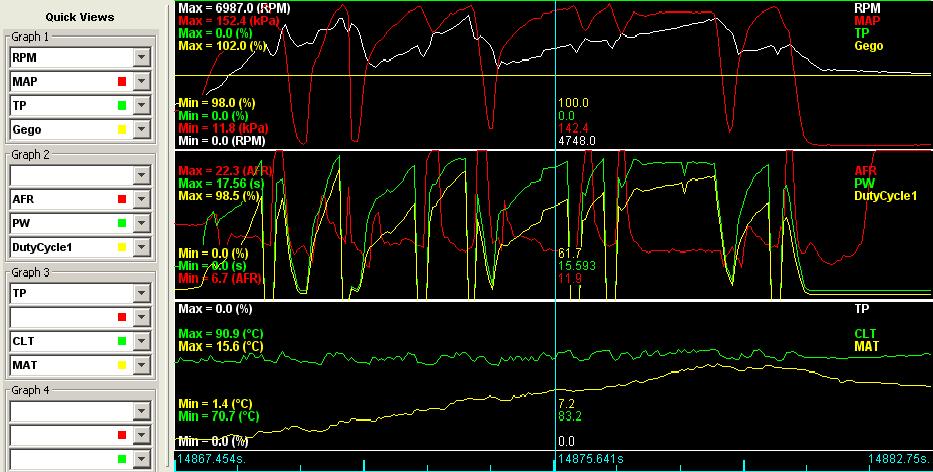

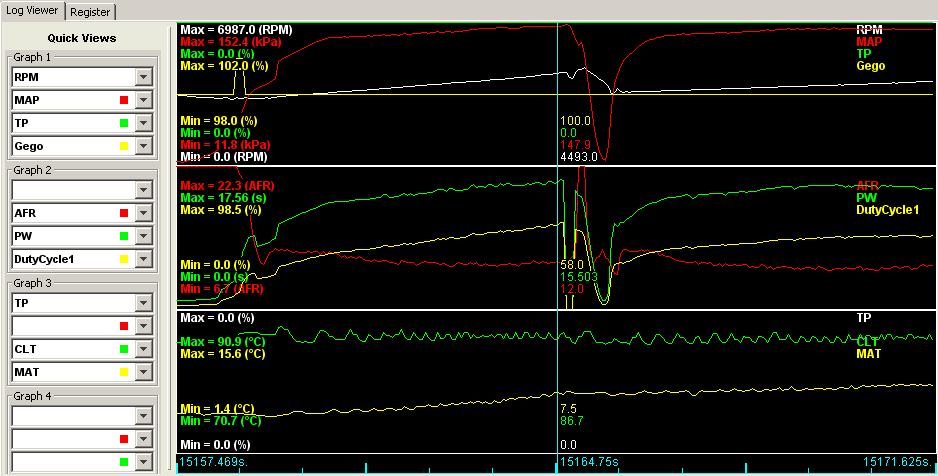

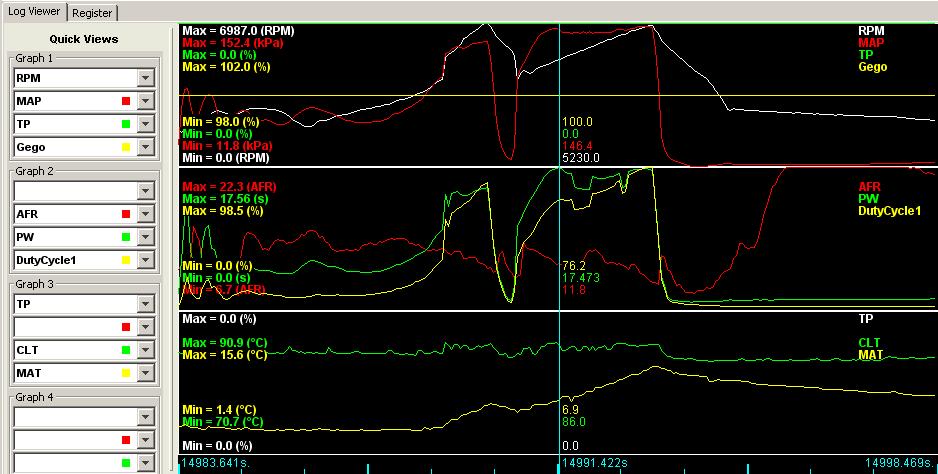

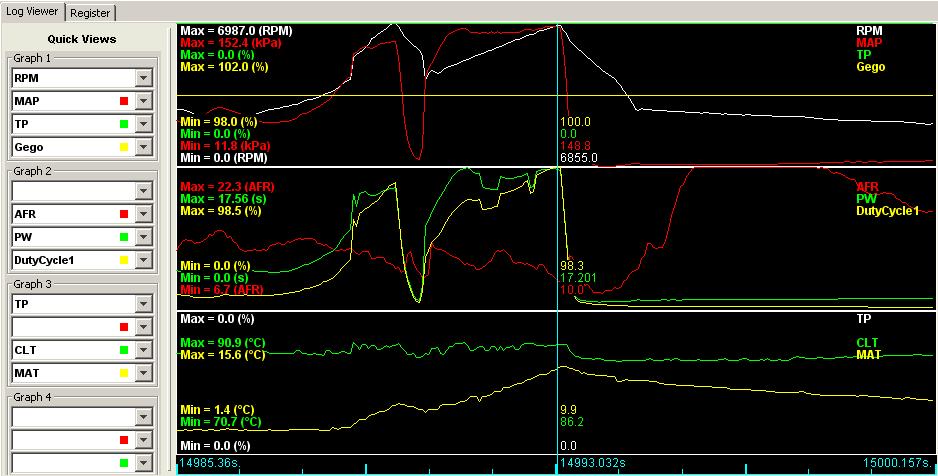

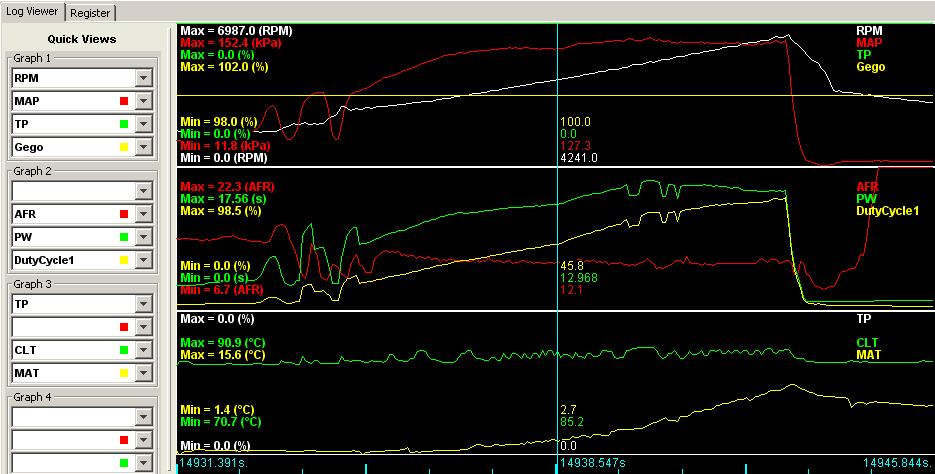

this is where i maxed the injectors



If you could look at my msq and see what my MAT issue could be that'd be awesome!
Attached Thumbnails
breaking my turbo virginity-145kpa5_zps13d5daec.jpg   breaking my turbo virginity-145kpa_zpsea5709a6.jpg   breaking my turbo virginity-145kpa4_zpsa7d10b41.jpg   breaking my turbo virginity-145kpa3_zps7abe3dc7.jpg   breaking my turbo virginity-145kpa2_zps56d6aa01.jpg

breaking my turbo virginity-983dutycycle_zpsff3e9b7a.jpg
Attached Files
File Type: msq CurrentTune.msq (83.9 KB, 90 views)

Last edited by rhysmate; 02-26-2013 at 04:20 AM. Reason: Here's the snaps
rhysmate is offline   Reply With Quote
Old 02-26-2013, 04:37 AM   #117
Junior Member

Join Date: Sep 2012
Location: New Zealand Christchurch
Posts: 207
Total Cats: -5
Default

good looking build! get some bigger injectors you will like moar boost!
jimmyneutron is offline   Reply With Quote
Old 02-26-2013, 02:35 PM   #118
Moderator
iTrader: (11)

sixshooter's Avatar

Join Date: Nov 2008
Location: Tampa, Florida
Posts: 15,653
Total Cats: 1,559
Default

I'm trying to determine the incorrect MAT reading problem. I don't know enough to know if any of this is an issue:

<constant digits="1" name="mat0" units="C">-17.776</constant>

<constant cols="2" digits="1" name="sen_calib_temp" rows="3" units="deg">
0.0 0.0
0.0 0.0
0.0 0.0
</constant>

<constant cols="1" digits="1" name="matCorrTemps" rows="6" units="C">
4.444
15.554
37.774
54.439
71.104
82.214
</constant>

<constant cols="1" digits="1" name="matTemps" rows="6" units="C">
71.104
82.214
93.324
104.434
115.544
126.654
</constant>

<constant cols="1" digits="1" name="matCorrDelta" rows="6" units="%">
0.0
0.0
0.0
0.0
0.0
0.0
</constant>
sixshooter is offline   Reply With Quote
Old 02-26-2013, 04:15 PM   #119
Junior Member
Thread Starter
iTrader: (1)

Join Date: Jan 2012
Location: Ireland
Posts: 465
Total Cats: 16
Default

I have no experience with any of that.. Maybe braineak.can chime in?
rhysmate is offline   Reply With Quote
Old 02-26-2013, 04:19 PM   #120
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,833
Total Cats: 1,786
Default

-17F suggests not connected.
