Old 03-09-2012, 02:52 AM   #21
Elite Member
iTrader: (1)

Join Date: Dec 2010
Location: SoCal
Posts: 4,165
Total Cats: 19
Default

Your goal is 300 hp in a 1500lb car, making it 400hp per ton. A Veyron weighs 4,162lbs and has 1,000 hp meaning its about 500hp per ton. Not bad.
gearhead_318 is offline   Reply With Quote
Old 03-09-2012, 02:58 AM   #22
Senior Member

Join Date: Aug 2010
Location: Arl. Texas
Posts: 937
Total Cats: 23
Default

Holly moo cow!
Miater is offline   Reply With Quote
Old 03-09-2012, 03:20 AM   #23
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,199
Total Cats: 2,584
Default

Attached Thumbnails
Cordycord's epic tube frame build-128875590863673614.jpg
18psi is offline   Reply With Quote
Old 03-09-2012, 05:00 AM   #24
Elite Member
iTrader: (6)

blaen99's Avatar

Join Date: Sep 2010
Location: Seattle, WA
Posts: 4,112
Total Cats: 27
Default

, this looks like one hell of a build.

Unfortunately, it baffles me how the below got linked and associated by Youtube with the -worthy build. Pushy, since when did you start a career as a rapper?

blaen99 is offline   Reply With Quote
Old 03-09-2012, 01:10 PM   #25
Elite Member
Thread Starter
iTrader: (1)

cordycord's Avatar

Join Date: Dec 2011
Location: SoCal
Posts: 1,775
Total Cats: 148
Default

Quote:
Originally Posted by blaen99 View Post
, this looks like one hell of a build.

Unfortunately, it baffles me how the below got linked and associated by Youtube with the -worthy build. Pushy, since when did you start a career as a rapper?

My past always seems to catch up with me. I'll have some more posts later today. I skipped past a whole bunch of assembly, from nekkid Miata to the concept of the frame. BTW, the frame continues to evolve, as chassis #3 is being built for a track-only car. If all goes according to "plans", we'll start on the bodywork this month.
cordycord is offline   Reply With Quote
Old 03-09-2012, 01:47 PM   #26
Free Moustache Rides
iTrader: (8)

matthewdesigns's Avatar

Join Date: Jun 2008
Location: Colorado Springs
Posts: 1,656
Total Cats: 49
Default

Holy cow this is really cool. Great job so far!

So without reading the thread on the other site, it looks like the donor car gave up subframes/suspension, engine/drivetrain/PPF, pedal assy, fuel tank, and maybe the ecu. Anything else that's no so obvious?
matthewdesigns is offline   Reply With Quote
Old 03-09-2012, 03:35 PM   #27
Elite Member
Thread Starter
iTrader: (1)

cordycord's Avatar

Join Date: Dec 2011
Location: SoCal
Posts: 1,775
Total Cats: 148
Default

Quote:
Originally Posted by matthewdesigns View Post
Holy cow this is really cool. Great job so far!

So without reading the thread on the other site, it looks like the donor car gave up subframes/suspension, engine/drivetrain/PPF, pedal assy, fuel tank, and maybe the ecu. Anything else that's no so obvious?

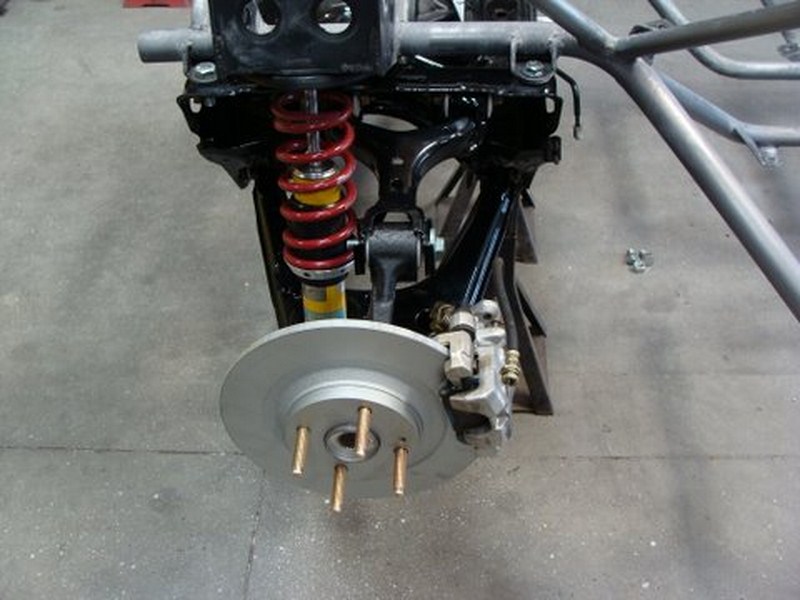

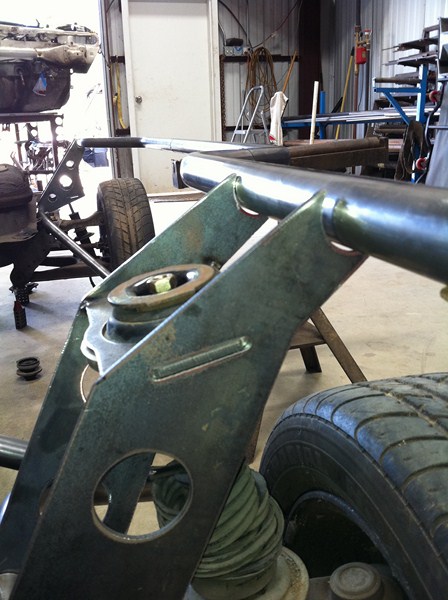

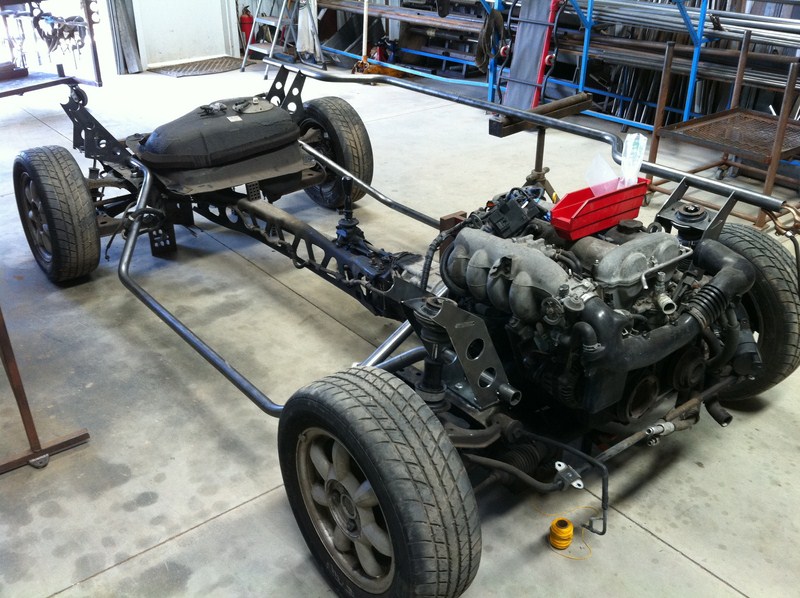

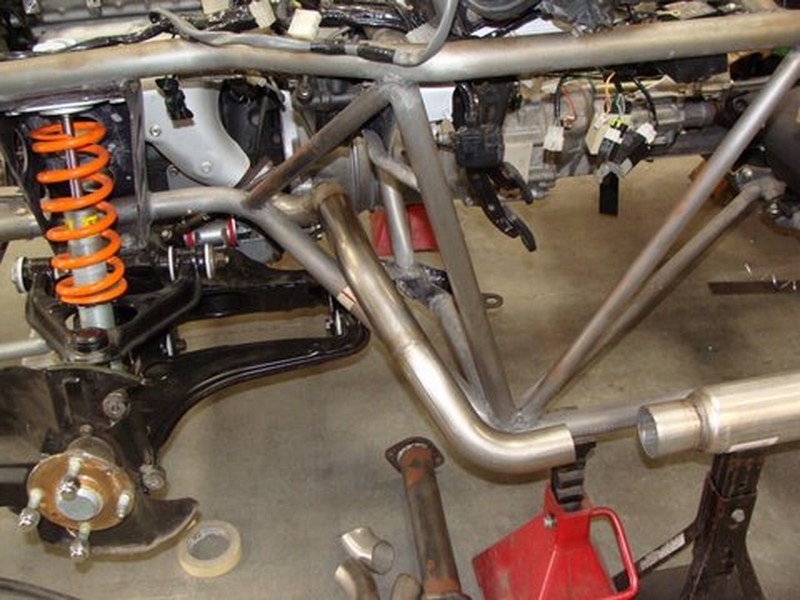

You've got a really good handle on it. You also keep the wiring, fuel lines and brake lines. Obviously there are different levels of build--a racer has different priorities than the guy who is going to use this car for cone-bending on Sundays, or someone who wants to cruise to his local coffee shop. Seats are optional, and we're designing some really, really cool ones. Other options can include wiring, ecu, suspension, racing fuel cell, etceteras.

You can sell (or dump) the unibody, shocks/springs, exhaust, headlight assy, auxiliary wiring, interior/carpet, all glass, all mirrors, all signals and brake lights, A/C pump, HVAC including ducting/controls/wiring, PS complete, door panels/PDL, gas cap door assy, radio/speakers, bumpers, etc. That equals A LOT of weight dropped off the car--weight you won't miss because the performance that replaces all that "stuff" will put a perma-grin on your face.

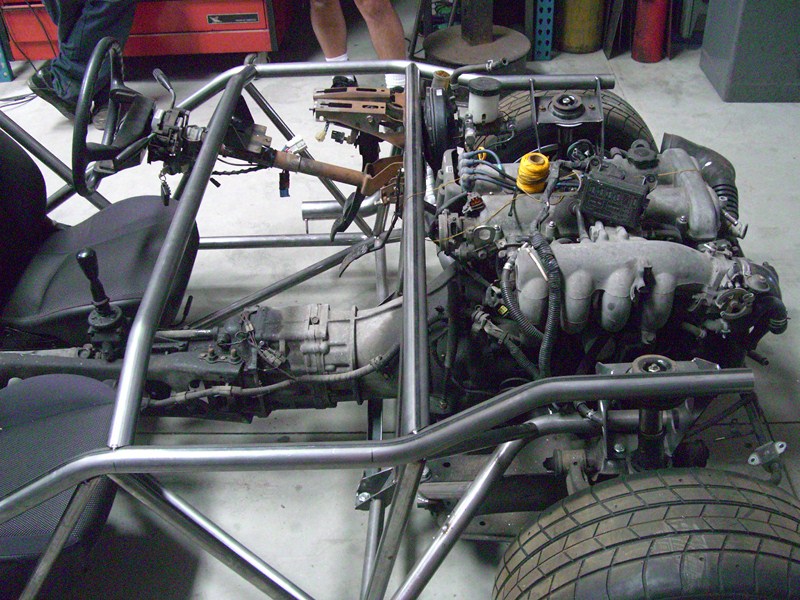

The Miata nekkid seems purpose-built for a tube frame. The car already has a cradle for the front/rear suspension and engine--we simply tie them together. Our frame is a very simple concept--four tubes link the top and bottom of the cradles, with stiffening lattice tubes throughout. In the course of the build, we try to have every frame piece have multiple jobs so there is no extra or wasted tubing.

The result is that a tired old 1.6 short nose turns this frame into a rocket ship. A short drive by two different test drivers with lots of Miata background confirm that this car pulls harder than any Spec Miata. One tester (who will remain nameless at this point) said the car pulls harder than his 284hp turbo NB.
Attached Thumbnails
Cordycord's epic tube frame build-303.jpg   Cordycord's epic tube frame build-14-2-.jpg   Cordycord's epic tube frame build-8.jpg   Cordycord's epic tube frame build-108.jpg   Cordycord's epic tube frame build-87.jpg

cordycord is offline   Reply With Quote
Old 03-09-2012, 04:31 PM   #28
I haz no trubo
iTrader: (2)

Oscar's Avatar

Join Date: Jan 2007
Location: Bolton, UK
Posts: 3,021
Total Cats: 114
Default

All that jazz and no tubular control arms?
Oscar is offline   Reply With Quote
Old 03-09-2012, 06:53 PM   #29
Elite Member
Thread Starter
iTrader: (1)

cordycord's Avatar

Join Date: Dec 2011
Location: SoCal
Posts: 1,775
Total Cats: 148
Default

Quote:
Originally Posted by Oscar View Post
All that jazz and no tubular control arms?
Seriously?! Do you complain when your free hot fudge sundae arrives with only one cherry on top?

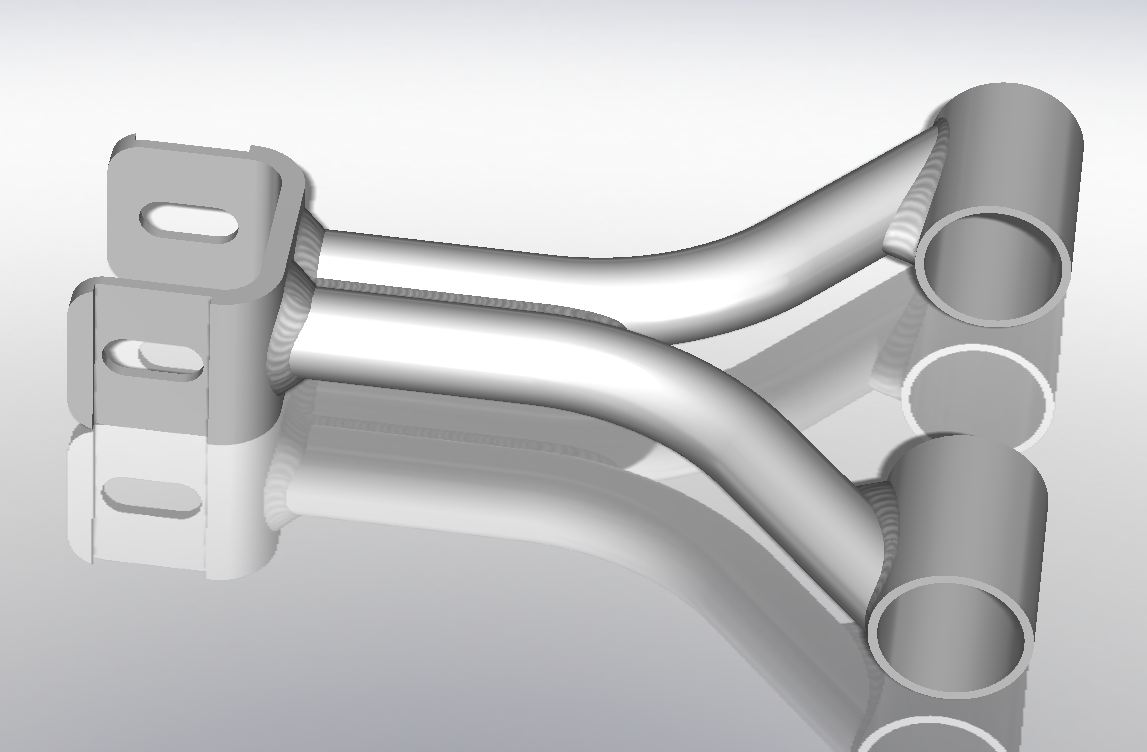

edit--As you can see, we've added the same type of OEM eccentric as on the lower-arms, which should let the racer reduce camber on a lowered car with fat Hoosiers (to flatten the tread profile), or to increase camber for the guy with a lowered car who wants to tuck his tires inside stock fenders.
Attached Thumbnails
Cordycord's epic tube frame build-part1-arm-rear.jpg
cordycord is offline   Reply With Quote
Old 03-09-2012, 07:08 PM   #30
I haz no trubo
iTrader: (2)

Oscar's Avatar

Join Date: Jan 2007
Location: Bolton, UK
Posts: 3,021
Total Cats: 114
Default

I'd complain if it were to come with a cherry. If I'm going to town on hot fudge, the last thing I want is fruit

I'm not shitting in your bowl of coco-pops or knocking your work because it's awesome, it just struck me as odd that you go through the hassle of replacing 90% of a miata with tubes, only to keep the heavy control arms. It would certainly seem that you have the skills and tools to have some tubular arms made.
Oscar is offline   Reply With Quote
Old 03-09-2012, 07:18 PM   #31
Senior Member

Join Date: Aug 2010
Location: Arl. Texas
Posts: 937
Total Cats: 23
Default

Make the tube frame the oil pan. It could hold the oil and cool it too. Pressurise the while thing like one big accusump.

Im just talkin out my ****.
Miater is offline   Reply With Quote
Old 03-09-2012, 07:33 PM   #32
Elite Member
iTrader: (21)

Join Date: Jun 2007
Location: Rochester, NY
Posts: 5,689
Total Cats: 560
Default

That thing is pure automotive sex. I get excited just looking at it.
rleete is offline   Reply With Quote
Old 03-09-2012, 10:33 PM   #33
Elite Member
Thread Starter
iTrader: (1)

cordycord's Avatar

Join Date: Dec 2011
Location: SoCal
Posts: 1,775
Total Cats: 148
Default

Quote:
Originally Posted by Oscar View Post
I'm not shitting in your bowl of coco-pops or knocking your work because it's awesome, it just struck me as odd that you go through the hassle of replacing 90% of a miata with tubes, only to keep the heavy control arms. It would certainly seem that you have the skills and tools to have some tubular arms made.
Understood. We've got upper a-arms planned first, but less for weight and more for camber adjustment. I believe that proper setup will lead to a faster car than simple light weight for this particular part.

This is a Miata-based build, meaning that we're making value choices. Too many "cost no option" decisions mean this won't be able to be reproduced--unless you want to buy a $60,000 Miata?.

The big decision was the tube frame, and it's paid big-time dividends. We'll get to the other stuff, but the next big hurdle will be the body.
cordycord is offline   Reply With Quote
Old 03-10-2012, 05:49 AM   #34
Junior Member

Join Date: Jun 2005
Posts: 166
Total Cats: 11
Default

i would love to have something like that with a 400whp engine
hf-mx5t is offline   Reply With Quote
Old 03-10-2012, 01:17 PM   #35
Elite Member
Thread Starter
iTrader: (1)

cordycord's Avatar

Join Date: Dec 2011
Location: SoCal
Posts: 1,775
Total Cats: 148
Default

Quote:
Originally Posted by hf-mx5t View Post
i would love to have something like that with a 400whp engine
I never said ANYTHING about an LS2 being able to fit perfectly in the frame...
cordycord is offline   Reply With Quote
Old 03-10-2012, 03:00 PM   #36
Elite Member
Thread Starter
iTrader: (1)

cordycord's Avatar

Join Date: Dec 2011
Location: SoCal
Posts: 1,775
Total Cats: 148
Default body

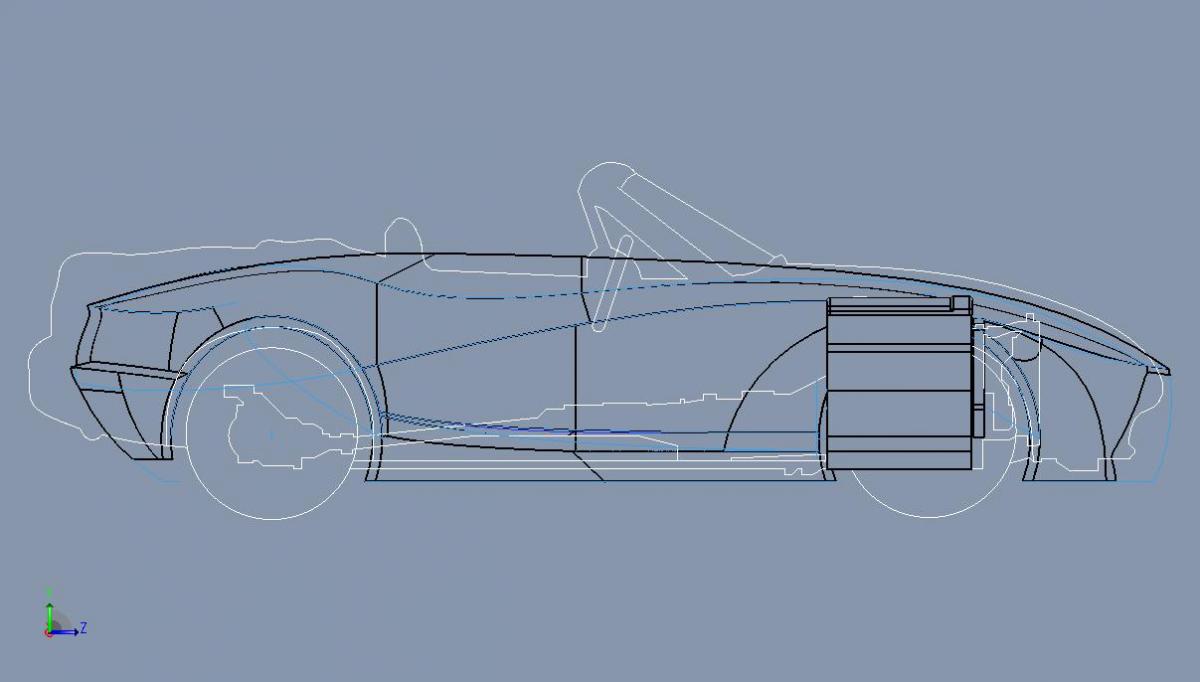

I haven't been showing the body on purpose, mainly because it's not 100% complete. However, this overlay shows the body along with a Miata outline. The engine is actually a Duratec unit, as we couldn't find a suitable CAD drawing of the Mazda mill.

The car is being designed for wider than stock rims like the ones that were on the car in the video, so that is one part that can't be transferred from your old car to the "CF", unless you're already running flares.
Attached Thumbnails
Cordycord's epic tube frame build-miata-overlay.jpg
cordycord is offline   Reply With Quote
Old 03-10-2012, 04:29 PM   #37
Senior Member
iTrader: (4)

Join Date: Nov 2009
Location: Toronto, ON
Posts: 1,479
Total Cats: 6
Default

This just trumped all other builds. I vote sticky.

Attached Thumbnails
Cordycord's epic tube frame build-clapping.gif
dgmorr is offline   Reply With Quote
Old 03-10-2012, 05:44 PM   #38
Senior Member
iTrader: (5)

Join Date: Jul 2011
Location: Sonora, Ca
Posts: 623
Total Cats: 73
Default

Awesome work. I'll be following this.
bikersam717 is offline   Reply With Quote
Old 03-10-2012, 11:08 PM   #39
Elite Member
Thread Starter
iTrader: (1)

cordycord's Avatar

Join Date: Dec 2011
Location: SoCal
Posts: 1,775
Total Cats: 148
Default original concept

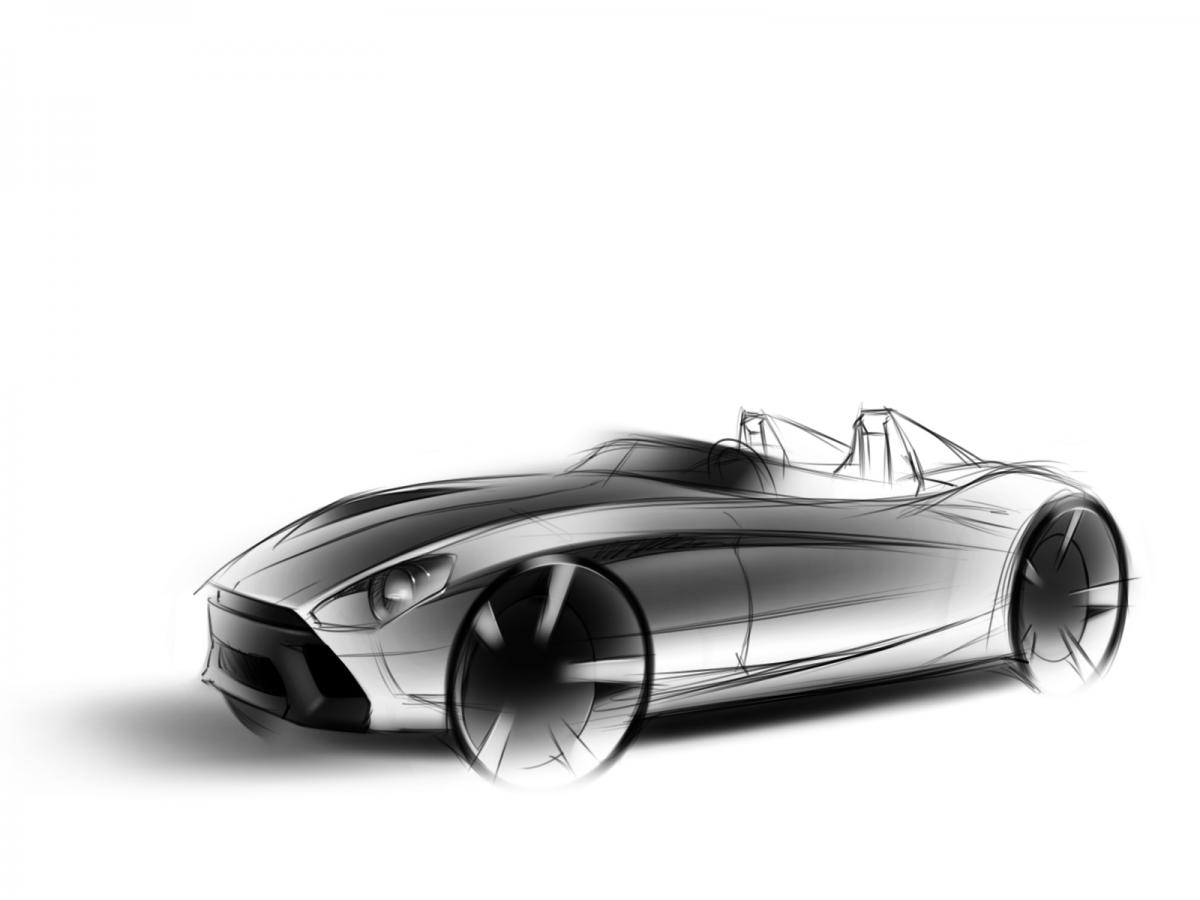

Going back to the very, very start, the concept was to use a Mazda Miata to build a completely new tube frame ultralight car. It's my bucket list car.

In the spirit of the original Miata, it's designed by an American using bulletproof Japanese engineering. Like a Miata it's also a reinterpretation of a classic British sports car.

When you see the original sketch, you hopefully can see some Aston Martin, Jaguar, Triumph, and AC. I wanted that classic British look, but with a modern twist.

Something else you should see is an animal. A fish. Designer Greg Tada of American Suzuki penned this car for me. He's a graduate of the Art Center School in Pasadena, and one of his instructors told him to use nature and animals to reference his sketches. Although you might be able to "see" many different cars in the design, it IS a Catfish.
Attached Thumbnails
Cordycord's epic tube frame build-catfish.jpg

Last edited by cordycord; 03-10-2012 at 11:49 PM.
cordycord is offline   Reply With Quote
Old 03-10-2012, 11:38 PM   #40
Senior Member
iTrader: (1)

gorillazfan1023's Avatar

Join Date: May 2010
Location: Harrisburg, Pa
Posts: 582
Total Cats: 8
Default

I need details on the frame. My buddy and I were recently considering a locost build. This looks much more awesome, and unique. Good job sir.

Last edited by gorillazfan1023; 03-10-2012 at 11:55 PM.
gorillazfan1023 is offline   Reply With Quote
