Old 04-21-2015, 01:46 AM   #101
Junior Member

Join Date: Apr 2011
Posts: 194
Total Cats: 10
Default

Thanks Josh. Hope this is not overload of primping and polishing as it's not nearly as AWESOME as the work Josh has put in. Hope you will be happy with it Mike.
Here's the gist of today.

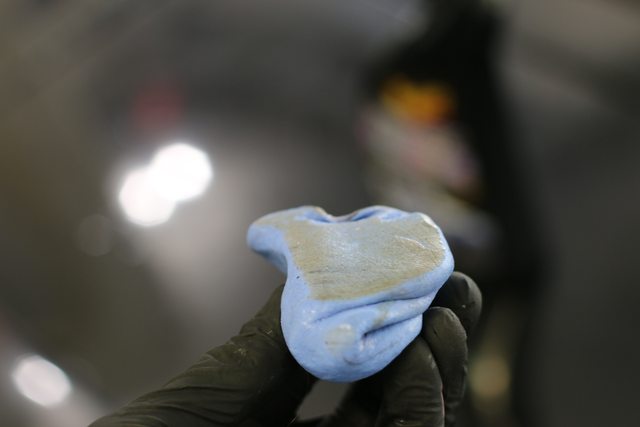

Started with a wash and clay bar. Here's the contaminants off the trunk.

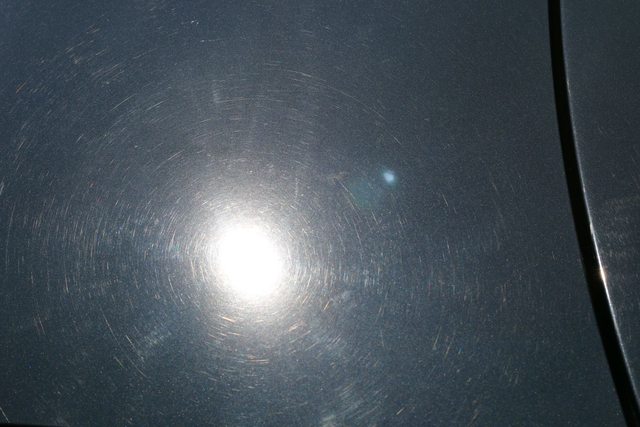

Plenty of swirl marks and haze.

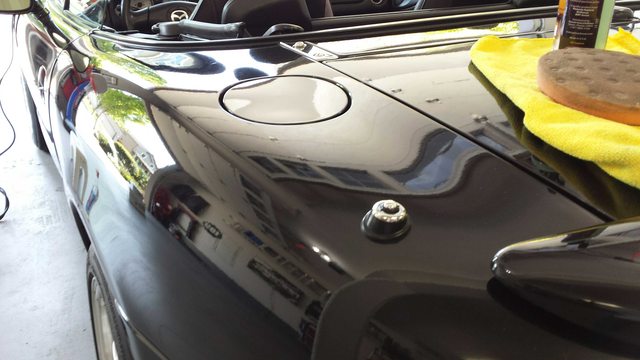

Went back and forth between Chemical Guys and Griots Garage to find the best cutting polish.

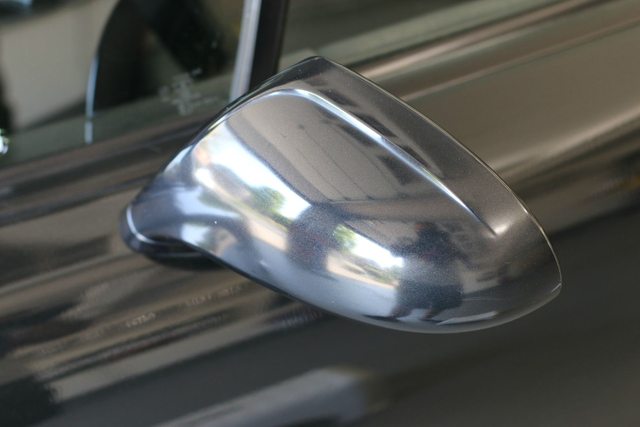

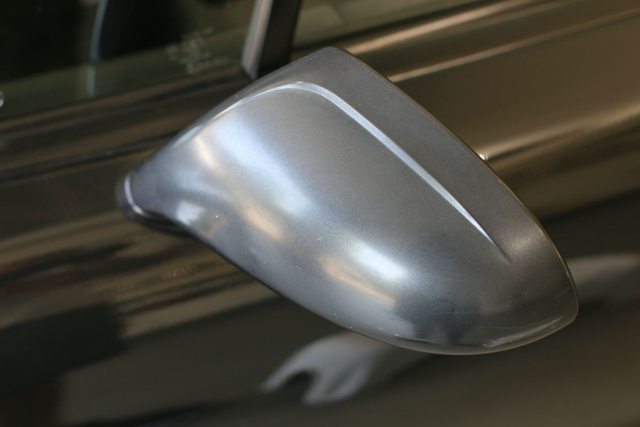

Josh and I weren't sure if the mirrors were actually body color or flat black.

After.


Tried to get rid of some of the scratches in the sweet kick plates and door jams.

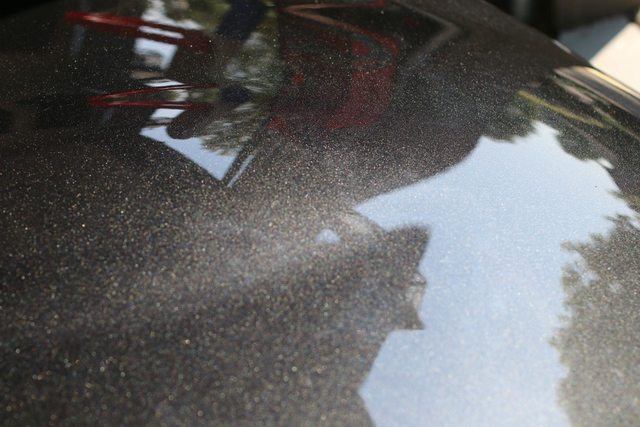

The metallic flake starts to show through a bit more.


Threw some paint on the faded wiper arms. Side Note Mike, I clay'd and polished the windshield but it's really pitted and marred. A replacement may save your eyes with incoming sunlight through that thing.

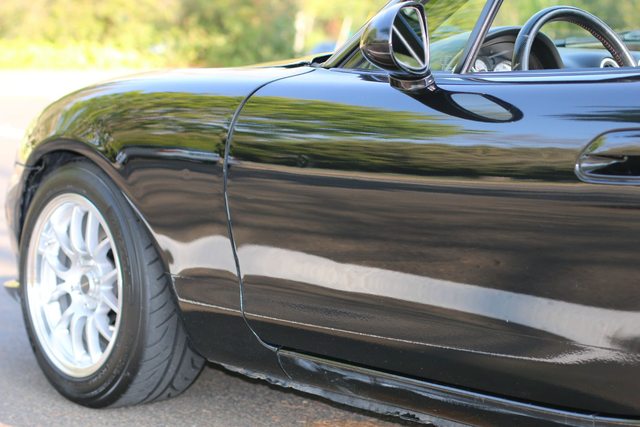

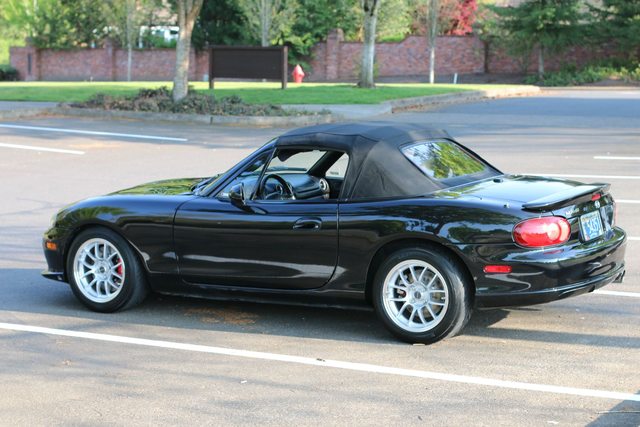

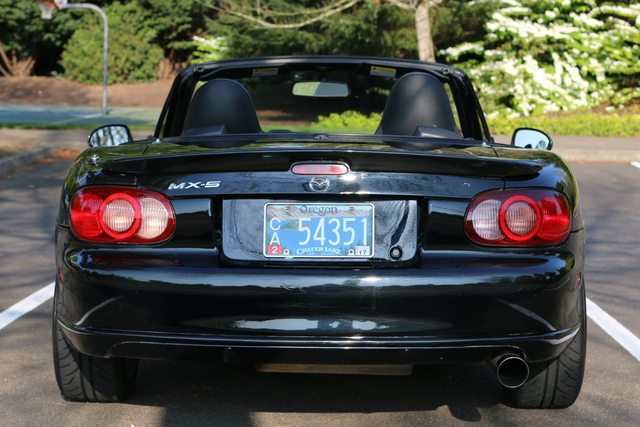

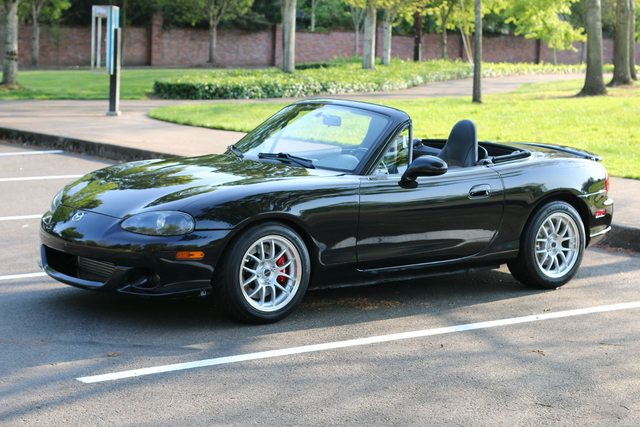

Took it down the street to a shady spot in a park for a couple photos.






Josh's REAL MAN work.

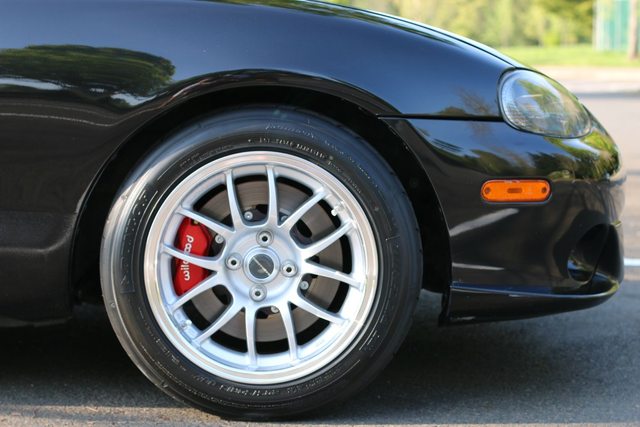

Wilwood BBK.

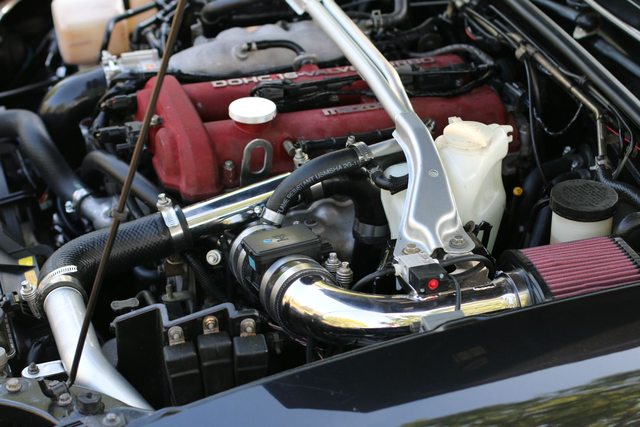

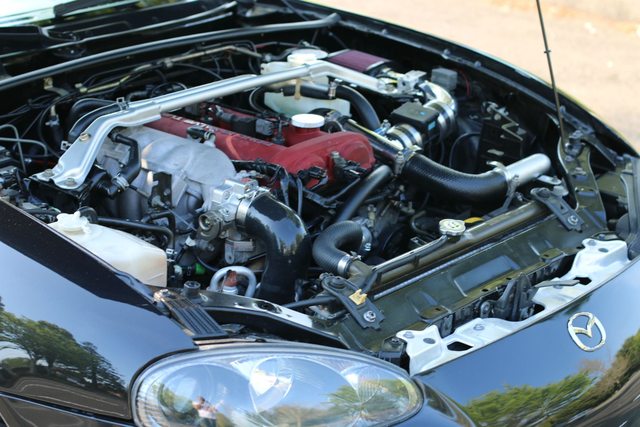

Engine compartment. Makes glorious sounds!

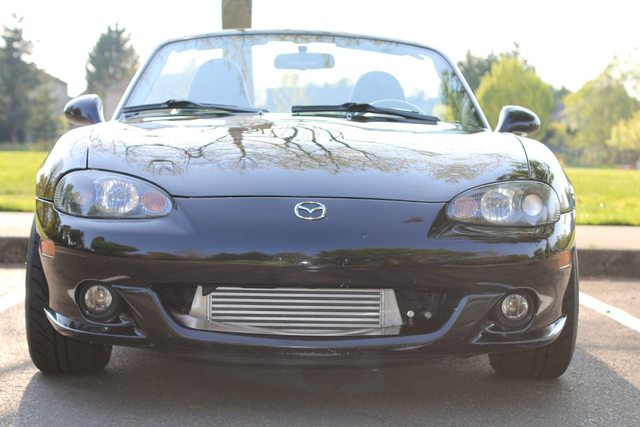

Intercooler.

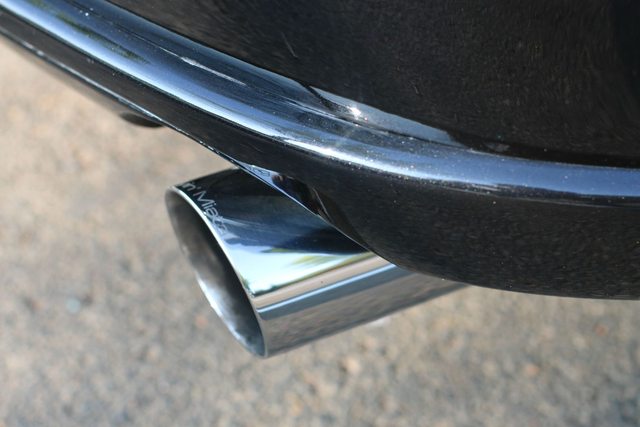

FM Exhaust, subtle and throaty.




Would have loved to taken some photos with the Blackbird rollbar installed. I guess that's going in on Thursday, Josh?
Attached Thumbnails
CSTG's winter/spring build #....7? The Worst MSM Ever.-23utzcyl.jpg   CSTG's winter/spring build #....7? The Worst MSM Ever.-7nfqfrvl.jpg   CSTG's winter/spring build #....7? The Worst MSM Ever.-bwftexll.jpg   CSTG's winter/spring build #....7? The Worst MSM Ever.-40oecvol.jpg   CSTG's winter/spring build #....7? The Worst MSM Ever.-lvboeycl.jpg

CSTG's winter/spring build #....7? The Worst MSM Ever.-qnvi22dl.jpg   CSTG's winter/spring build #....7? The Worst MSM Ever.-kinlmfkl.jpg   CSTG's winter/spring build #....7? The Worst MSM Ever.-8x5c7sjl.jpg   CSTG's winter/spring build #....7? The Worst MSM Ever.-7lfohyrl.jpg   CSTG's winter/spring build #....7? The Worst MSM Ever.-2rzi5lfl.jpg

CSTG's winter/spring build #....7? The Worst MSM Ever.-qqpbbyal.jpg   CSTG's winter/spring build #....7? The Worst MSM Ever.-zo8jxj1l.jpg   CSTG's winter/spring build #....7? The Worst MSM Ever.-rh8escql.jpg   CSTG's winter/spring build #....7? The Worst MSM Ever.-6p1zrpql.jpg   CSTG's winter/spring build #....7? The Worst MSM Ever.-chff8wsl.jpg

CSTG's winter/spring build #....7? The Worst MSM Ever.-fvnk74el.jpg   CSTG's winter/spring build #....7? The Worst MSM Ever.-pbs31dvl.jpg

Last edited by oregonmon; 04-21-2015 at 05:10 AM.
oregonmon is offline   Reply With Quote
Old 04-21-2015, 02:28 AM   #102
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 17,990
Total Cats: 1,457
Default



That is amazing what you can do with that. I will be sending you pictures, and maybe my car very soon.

This car has made a complete U-turn in a better of weeks.
Attached Thumbnails
CSTG's winter/spring build #....7? The Worst MSM Ever.-982aebe2d39aaf5c291f64f526166066.jpg
aidandj is offline   Reply With Quote
Old 04-21-2015, 02:44 AM   #103
I take big bites
iTrader: (1)

turbofan's Avatar

Join Date: Sep 2010
Location: Hurricane, UT
Posts: 6,924
Total Cats: 526
Default

Looks awesome Ryan. Props, great work.
turbofan is offline   Reply With Quote
Old 04-21-2015, 09:56 AM   #104
Cpt. Slow
Thread Starter
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,105
Total Cats: 518
Default

Amazing work as always Ryan, thank you again!

Roll bar Thursday, yup. List is dwindling, but I still have a little less than a dozen things to do, some small like align the FM exhaust, small bigger like wheel studs and roll bar. The owner should be reunited with this black beauty Friday, so time to get cracking!
curly is offline   Reply With Quote
Old 04-22-2015, 09:37 PM   #105
Elite Member
iTrader: (2)

Mobius's Avatar

Join Date: May 2008
Location: Portland, Oregon
Posts: 3,176
Total Cats: 261
Default

Great job Ryan and Josh!
Mobius is offline   Reply With Quote
Old 04-23-2015, 12:58 AM   #106
Elite Member

Join Date: Oct 2013
Location: Cedar City, UT
Posts: 2,769
Total Cats: 948
Default

That was a serious reversal guys. Bringing a piece of **** back from the dead is one of my favorite things.
Jeffbucc is offline   Reply With Quote
Old 04-23-2015, 01:41 AM   #107
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,165
Total Cats: 2,573
Default

Fantastic job, everyone.
What a glorious recovery.

Josh, have you begun to tune the diy ebc? I'm about to start plumbing/wiring in mine tomorrow and will likely have questions.

Car looks amazing, and the before/after pics of the paint are just crazy. Good job oregonmon.
18psi is offline   Reply With Quote
Old 04-23-2015, 02:45 AM   #108
Junior Member

Join Date: Apr 2011
Posts: 194
Total Cats: 10
Default

Thanks guys.

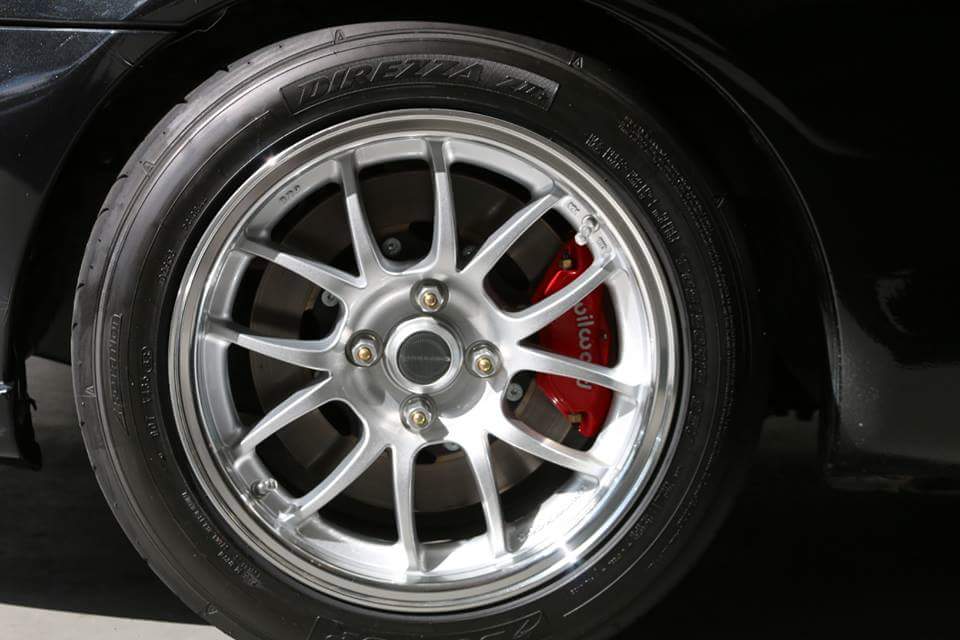

Josh got the ARP extended wheel lugs installed and brake lines bled today.
Attached Thumbnails
CSTG's winter/spring build #....7? The Worst MSM Ever.-qqhxpur.jpg
oregonmon is offline   Reply With Quote
Old 04-23-2015, 02:45 PM   #109
Newb

mikev's Avatar

Join Date: Jan 2015
Location: Medford, OR
Posts: 21
Total Cats: 8
Default

Quote:
Originally Posted by oregonmon View Post
Thanks guys.
Josh got the ARP extended wheel lugs installed and brake lines bled today.
Oregonmon, I am truly humbled by your near magical power to bring back the beauty that is a Black MSM.

I've tried to do this kind of work on my own cars and in every case the car looked better, but was not even close to the full makeover you've done here.

I once talked to Keith Tanner about a black MSM that was for sale on the FM site. He said that he wasn't familiar with that particular car, but in his opinion a black MSM was the best looking Miata Mazda ever made. I agree, especially after seeing what you've done for me and this car.

Thank you! --mike v

Truly incredible work. I thank you
mikev is offline   Reply With Quote
Old 04-23-2015, 03:10 PM   #110
Elite Member

Chiburbian's Avatar

Join Date: Feb 2008
Location: Gilberts, IL
Posts: 2,158
Total Cats: 131
Default

Quote:
Originally Posted by oregonmon View Post
Went back and forth between Chemical Guys and Griots Garage to find the best cutting polish.
I will be doing the same project soon. What did you settle on? I see foam pads as opposed to microfiber. What exact pad/polish combination did you use, if you don't mind?

I bought a DA polisher last year and started building a collection but I have yet to actually touch the polisher to my car. I am both scared and excited to see how it turns out. (I don't want to **** it up)
Chiburbian is offline   Reply With Quote
Old 04-23-2015, 03:15 PM   #111
Elite Member
iTrader: (1)

Join Date: Jun 2014
Location: Austin, TX
Posts: 2,842
Total Cats: 271
Default

I've worked as a porter before at a dealership and THAT is quality work!

Digging the photos... makes me want to repaint my ti gray msm to the stock msm black just for this reason!
Girz0r is offline   Reply With Quote
Old 04-24-2015, 01:41 AM   #112
Junior Member

Join Date: Apr 2011
Posts: 194
Total Cats: 10
Default

Thanks everyone for the kind words. Give me another day or so to respond to the products used on the car.
Mike, hopefully I didn't edit the photos too much. I have to say though, your signature couldn't be more true about having only 1 Miata.

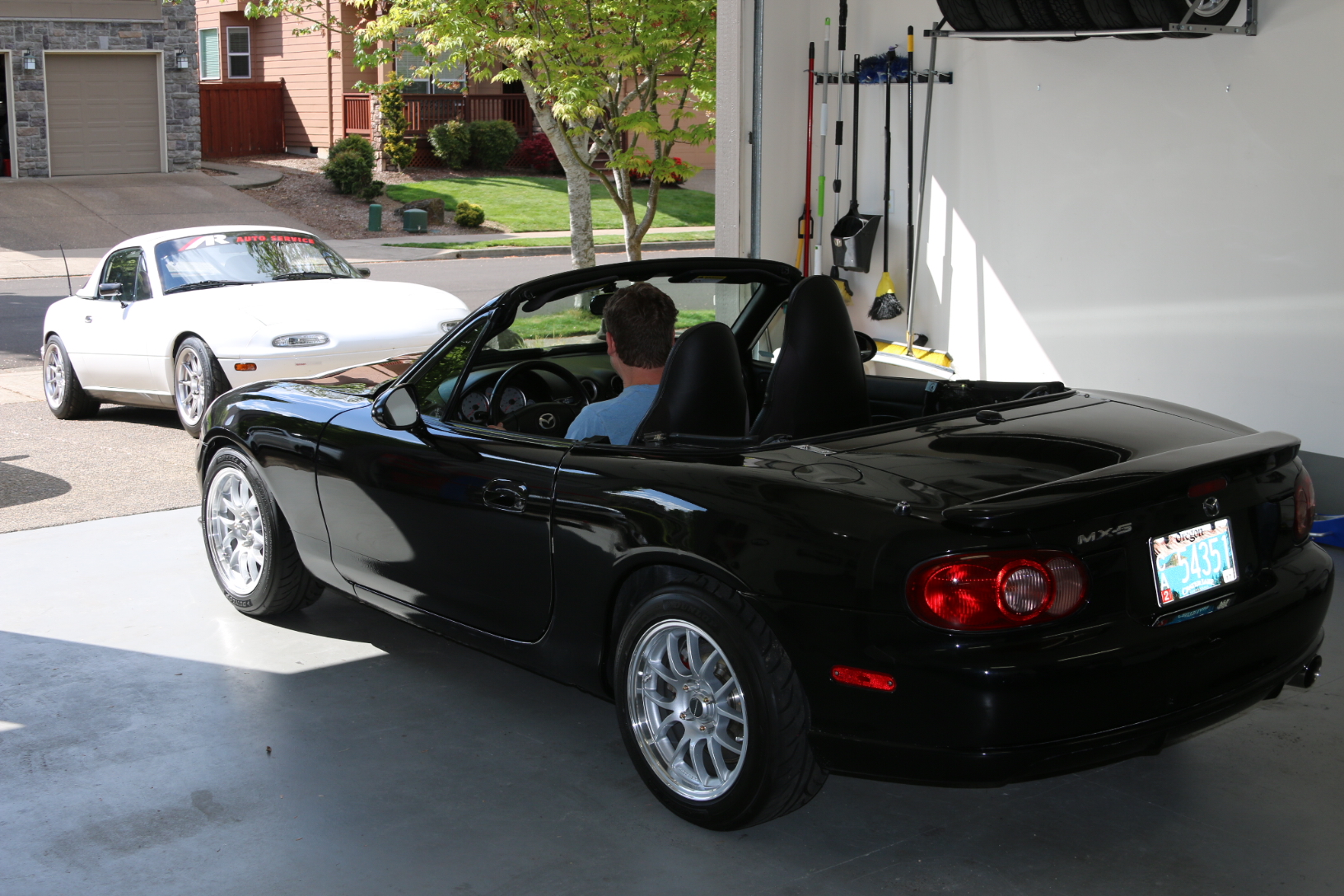

Josh, if you don't mind me updating with a couple photos....

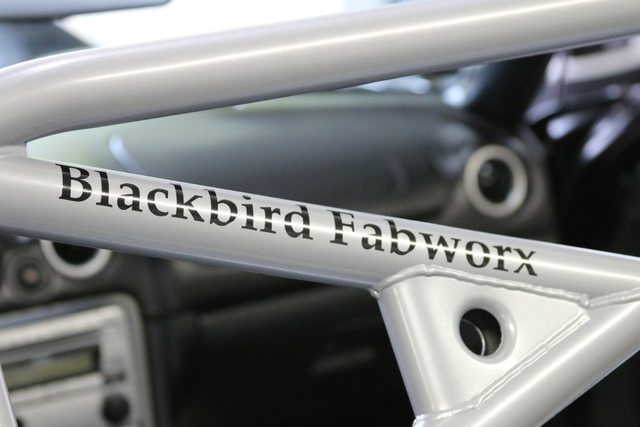

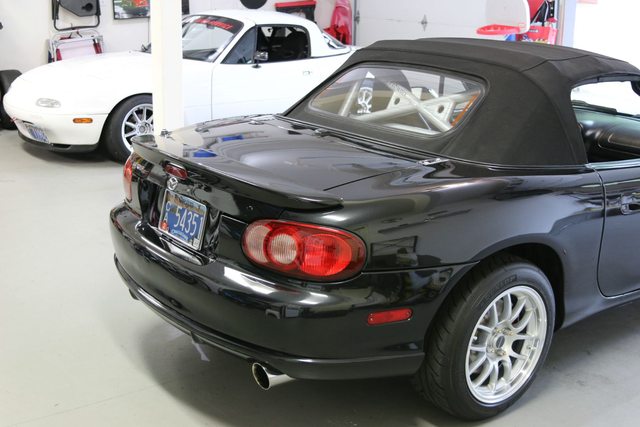

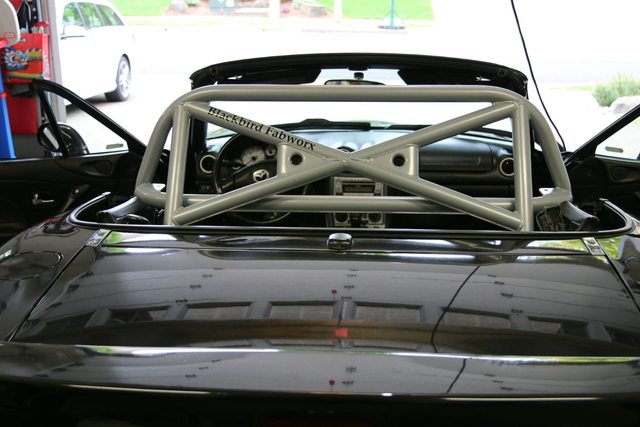

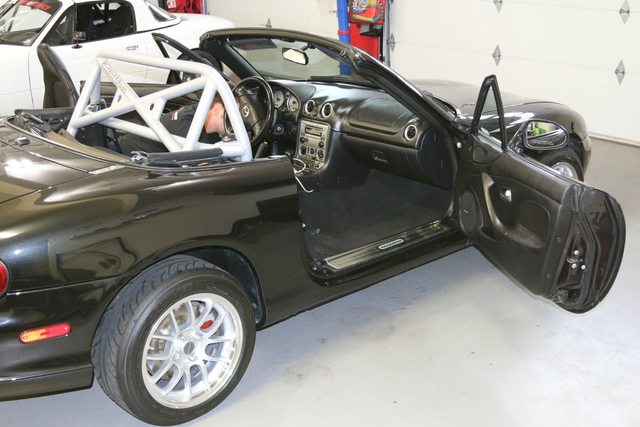

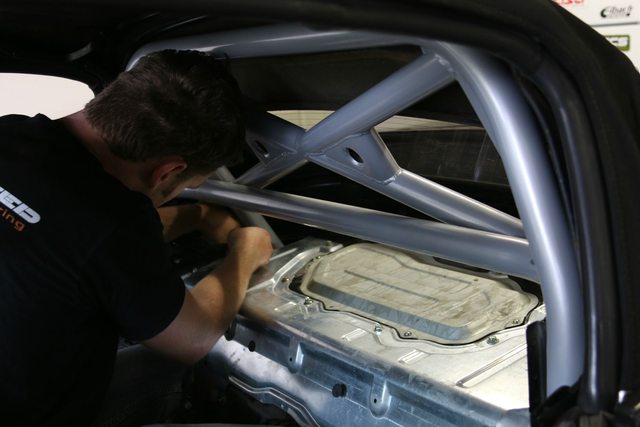

He brought the rollbar over to do the install since his garage was full, I'm still not sure how he gets so much done in a small 1 car garage. But he's got some space at my place, Josh is so fast compared to my slow ***, he yells at me and I do my best to keep up. I'm like the old guy sweeping up dirt in the corner.
The bar's color really pops good choice Josh, it's quite beefy as well.









Mike, since half the interior was out, including seats, we also spent a little time cleaning up the interior surfaces. It's so easy to do when everything is pulled out.

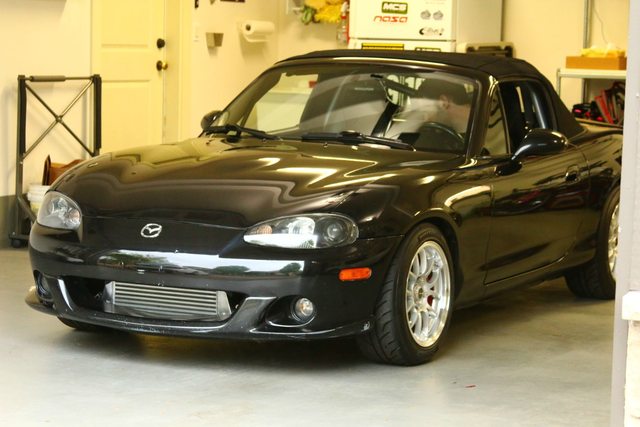

After having the car around for a couple days I was hooked, it looked great next to my white NA. It's really a great car, congrats!





I'll be standing by to hear what sort of dyno numbers you get tomorrow.
Attached Thumbnails
CSTG's winter/spring build #....7? The Worst MSM Ever.-ndxnod3l.jpg   CSTG's winter/spring build #....7? The Worst MSM Ever.-bijxkwcl.jpg   CSTG's winter/spring build #....7? The Worst MSM Ever.-rwighjhl.jpg   CSTG's winter/spring build #....7? The Worst MSM Ever.-p0zsnggl.jpg   CSTG's winter/spring build #....7? The Worst MSM Ever.-ronlqdjl.jpg

CSTG's winter/spring build #....7? The Worst MSM Ever.-ti8hk9il.jpg   CSTG's winter/spring build #....7? The Worst MSM Ever.-7drf9sfl.jpg
oregonmon is offline   Reply With Quote
Old 04-24-2015, 01:58 AM   #113
I take big bites
iTrader: (1)

turbofan's Avatar

Join Date: Sep 2010
Location: Hurricane, UT
Posts: 6,924
Total Cats: 526
Default

That last photo is totally beautiful. Fantastic work.
turbofan is offline   Reply With Quote
Old 04-24-2015, 02:07 AM   #114
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 17,990
Total Cats: 1,457
Default

Damn it. Every time I see a bf gt3 rollbar it makes me regret getting the hard dog.
aidandj is offline   Reply With Quote
Old 04-24-2015, 10:18 AM
greddygalant
This message has been deleted by curly. Reason: Not yet
Old 04-24-2015, 11:11 AM   #115
Cpt. Slow
Thread Starter
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,105
Total Cats: 518
Default

Don't forget how long Hard Dog has been serving the Miata community, they make a great product and fully support it. They're outdated website is only a reminder that they've been making their bars since before the internet was invented.

The Blackbird Fabworx bar is pretty and incredibly functional, but did not go in without it's complications. There were small issues, like one of the holes directly lining up with where the ABS sensor wiring comes through the chassis and plugs into the harness, on both sides. Saved me drilling a hole, but I did need to drill a new hole for the wiring when I was all done. Also, despite it being even to a number of chassis points on both sides, the passenger side rear backing plate would not line up, and I had to cut 1/4" off the edge of the beautifully powder coated edge so it would sit up against the outside of the frame rail. I could have dremeled out the holes, but cutting one straight line seemed like the easier fix.

These are all install issues, nothing to do with how much Mike is going to love it, there were just some dark works spoken during install. As new as Blackbird Fabworx is, I'm sure Moti is constantly improving his product, as he should. I'll share my experience and he'll hopefully learn something from it, that's how it generally works.
curly is offline   Reply With Quote
Old 04-24-2015, 12:11 PM   #116
Elite Member

codrus's Avatar

Join Date: Mar 2007
Location: Santa Clara, CA
Posts: 3,875
Total Cats: 344
Default

Quote:
Originally Posted by curly View Post
These are all install issues, nothing to do with how much Mike is going to love it, there were just some dark works spoken during install. As new as Blackbird Fabworx is, I'm sure Moti is constantly improving his product, as he should. I'll share my experience and he'll hopefully learn something from it, that's how it generally works.
Yeah, rollbar installs are like that, even the Bethania products occasionally have weirdo things like that. The major problem is that Miatas aren't all the same, not when you get down to the quarter inch.

--Ian
codrus is offline   Reply With Quote
Old 04-24-2015, 12:16 PM   #117
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 17,990
Total Cats: 1,457
Default

I have no real issues with my roll bar, and its totally functional. But the built in harness bar, guessets, and everything just make that bar appeal more to me.

Bethania is awesome and so are their roll bars. But in my eyes BF is more awesomer.
aidandj is offline   Reply With Quote
Old 04-24-2015, 01:52 PM   #118
Senior Member

Join Date: Oct 2011
Location: Northridge, CA
Posts: 653
Total Cats: 282
Default

Quote:
Originally Posted by curly View Post
Don't forget how long Hard Dog has been serving the Miata community, they make a great product and fully support it. They're outdated website is only a reminder that they've been making their bars since before the internet was invented.

The Blackbird Fabworx bar is pretty and incredibly functional, but did not go in without it's complications. There were small issues, like one of the holes directly lining up with where the ABS sensor wiring comes through the chassis and plugs into the harness, on both sides. Saved me drilling a hole, but I did need to drill a new hole for the wiring when I was all done. Also, despite it being even to a number of chassis points on both sides, the passenger side rear backing plate would not line up, and I had to cut 1/4" off the edge of the beautifully powder coated edge so it would sit up against the outside of the frame rail. I could have dremeled out the holes, but cutting one straight line seemed like the easier fix.

These are all install issues, nothing to do with how much Mike is going to love it, there were just some dark works spoken during install. As new as Blackbird Fabworx is, I'm sure Moti is constantly improving his product, as he should. I'll share my experience and he'll hopefully learn something from it, that's how it generally works.
Thanks for sending a link to the thread, that car looks beautiful!
I agree with Keith, Black MSMs are some of the nicest Miatas ever made.

Not to be a dick or anything, but did you guys work with the installation manual?
I'm asking because at least in the case of the ABS wiring, it is spelled out in the instructions (step #21) that the ABS wiring needs to be relocated, along with suggestion on where to locate it to, etc..
As they say in the software world - this isn't a bug, it's a feature. And though it's normally referred to as a joke in the software world, in this case it is indeed the reality.

This location was not an oversight on our part when designing the bar either, it's the opposite.
This is as close as you can get to the rear shock towers while still allowing the NB soft top to fold down and for the rear window to lay flat, all while stiffening the chassis where the loads of the suspension are being fed to it.

As for the backing plate alignment issue, after _many_ installations I can think of a number of reasons as to the why and how.
TBH, it's a bit of a bummer to read about it on a forum after the fact because a quick phone call could have saved the time spent and dark words from being spoken
I can only speak for myself, but I bet any vendor that respects themselves would much rather spend a minute on the phone with you on resolving an issue than reading about it on the interwebz after everything is said and done and there's nothing I can do about it at this point.
Not that I am not sorry that you ran into an issue with your installation, just saying that it would have been more productive to give me a chance to help you with it

At any rate, while this is not the solution I would've suggested, it sounds like the issue was resolved.

I'm always looking to improve the products and the roll bars have certainly seen a number of revisions and improvements over the few years that we've been producing them.
Your input is certainly appreciated and it sounds like we need to check the production jig for alignment. It's unlikely, but we have welded hundreds of bars in the jig I'd definitely want to make sure that there's no warping after all that time.
Another poster did mention this as an option, but I can assure you that there are differences between one chassis to the next.
Some of it is production tolerances, some of it is simply aging and fatigue - we see that a lot with the earlier NAs.

Last note - this is probably the first time that someone told me that the bar is packed too well
I'll take it.

Again, thanks for the input, enjoy the bar, car looks great!

Moti
Blackbird is offline   Reply With Quote
Old 04-24-2015, 02:31 PM   #119
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 17,990
Total Cats: 1,457
Default

Instructions? We may own miatas but we're not women.

aidandj is offline   Reply With Quote
Old 04-24-2015, 09:53 PM   #120
Cpt. Slow
Thread Starter
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,105
Total Cats: 518
Default

**** giant response deleted. **** **** ****.

Quote:
Originally Posted by Blackbird View Post
Not to be a dick or anything, but did you guys work with the installation manual?
We did not use instructions, no. I figured I had installed a few HDs, how different could it be, sorry I missed the ABS note. Your reasoning makes sense, so thanks for the explanation!

Quote:
As for the backing plate alignment issue, after _many_ installations I can think of a number of reasons as to the why and how.
TBH, it's a bit of a bummer to read about it on a forum after the fact because a quick phone call could have saved the time spent and dark words from being spoken
But I like cursing!

Quote:
I can only speak for myself, but I bet any vendor that respects themselves would much rather spend a minute on the phone with you on resolving an issue than reading about it on the interwebz after everything is said and done and there's nothing I can do about it at this point.
Not that I am not sorry that you ran into an issue with your installation, just saying that it would have been more productive to give me a chance to help you with it
I'll make the call to you next time with any concerns, I was under a serious time crunch and didn't want even a few minute delay.

Quote:
At any rate, while this is not the solution I would've suggested, it sounds like the issue was resolved.
Yup I saw an easy solution and executed it, again, sorry for not calling.


As for dyno results, final numbers were 211hp and 226ft/lbs, dyno graph will come later. Peak boost was 15 briefly before tapering to 13.5 for a bit, then tapering to 12.5 by 7k. I could have tried a little harder to keep boost up with EBC, but there were serious losses in torque above 4500, needs 3" exhaust

Low boost numbers, which is just running off the wastegate, was 175hp and 170ish ft/lbs. Both power and torque curves follow Laz's graph pretty consistently, Laz is about 10-20ft/lbs higher until 4000, and has about 10hp over this car above 6000rpm. Laz also has no cat and a VICS manifold, so differences are to be expected. Plus I'm always going to tune more aggressively with Laz vs. a car like this. Maybe next time I'll really give it the beans
curly is offline   Reply With Quote


Reply

Related Topics
Thread Thread Starter Forum Replies Last Post
Garrett Turbo, 1.8 Oil Pan, & Misc. Stuff nbdooey Miata parts for sale/trade 9 08-30-2017 10:50 PM
WTB MP62 (Hotside) (NB2) Rick02R WTB 3 01-03-2016 08:18 PM
Expected intake temps on the track? tazswing Race Prep 20 10-03-2015 12:04 PM
Are my coils failing? viriiguy General Miata Chat 5 09-28-2015 08:39 PM
WTB HPDE miata - Texas Voltwings Cars for sale/trade 0 09-27-2015 07:40 PM


Thread Tools Search this Thread
Search this Thread:

Advanced Search

Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off
Trackbacks are Off
Pingbacks are Off
Refbacks are Off



All times are GMT -4. The time now is 09:44 AM.
