Old 07-19-2010, 12:07 PM   #161
Elite Member
iTrader: (12)

Join Date: Nov 2009
Location: Harpers Ferry WV
Posts: 1,521
Total Cats: 20
Default

All I can say is this car gets better and better all the time!!!!
Sean is offline   Reply With Quote
Old 07-19-2010, 02:24 PM   #162
Senior Member
iTrader: (3)

Join Date: May 2005
Location: Mass.
Posts: 816
Total Cats: 41
Default

Quote:
Originally Posted by hingstonwm View Post
Yeah I have access to corner scale. My old setup, when I was running NA was 2405lbs, that is with a full tank of fuel, spare tire, hardtop, trailer hitch, 15x7 team dynamic pro race 2 wheels with 205/50/15's, and of course me.
Assuming you weight is somewhere in the 170-220 lbs range and you have 72 lbs of gas (roughly a full tank) that puts you right around the OEM weight for 1990. Damn good for a full interior car with a hardtop (70 lbs, doesn't seem that heavy but it's what I've read), heavier wheel/tire combo and a beefier rear end.

Those numbers sure make for a compelling swap ... especially with how cheap I've seen these drivetrains going for locally. Alas ... my fabrication skills do not include welding nor do I have a girlfriend with the attention span to a lot myself that much time in the shop.

Thanks for the detailed updates and congratulations on job well done.

-Zach
thasac is offline   Reply With Quote
Old 07-19-2010, 05:27 PM   #163
Senior Member
Thread Starter
iTrader: (2)

Join Date: Jan 2010
Location: Denver
Posts: 909
Total Cats: 14
Default

^^^ You nailed it I weigh 170. The engine weighs a bit less than a Miata power plant the transmission a bit more, it is basically a push. However, a little weight is transferred to the rear of the car due to the transmission being heavier and a bit longer.

Im sure weight distribution will change back to the front by a few tenths of a percent due to the added weight of the turbo, manifold, and IC.

Thanks for the kudos!

I just came in the house from the garage, I was looking at supply and return lines and may have an issue with oil return. Here are a couple of pictures.
Name:  P1010031-5.jpg
Views: 80
Size:  111.8 KB

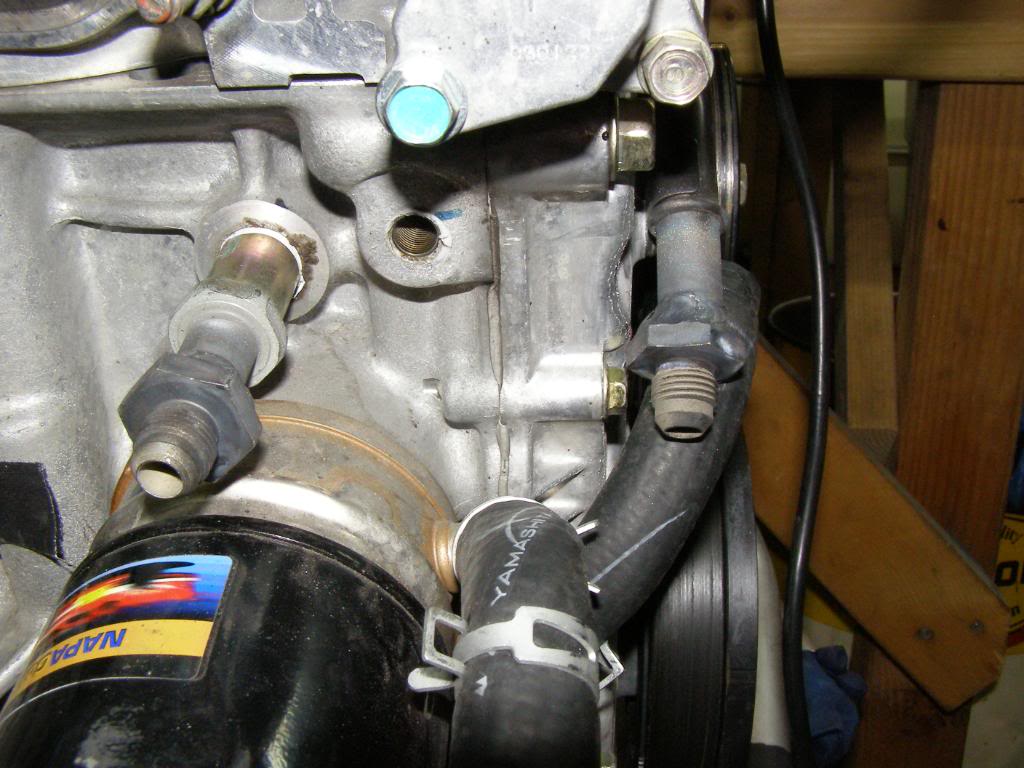

In this picture you can see my water feed and return fittings attached to the engine. I will be relocating the oil filter and doing away with the water to oil cooler/warmer. If you look closely you will also notice the journal where the oil pressure sending unit lives. This will be utilized for oil supply to the turbo and to the mechanical oil pressure gauge.

Name:  P1010033-5.jpg
Views: 46
Size:  73.7 KB

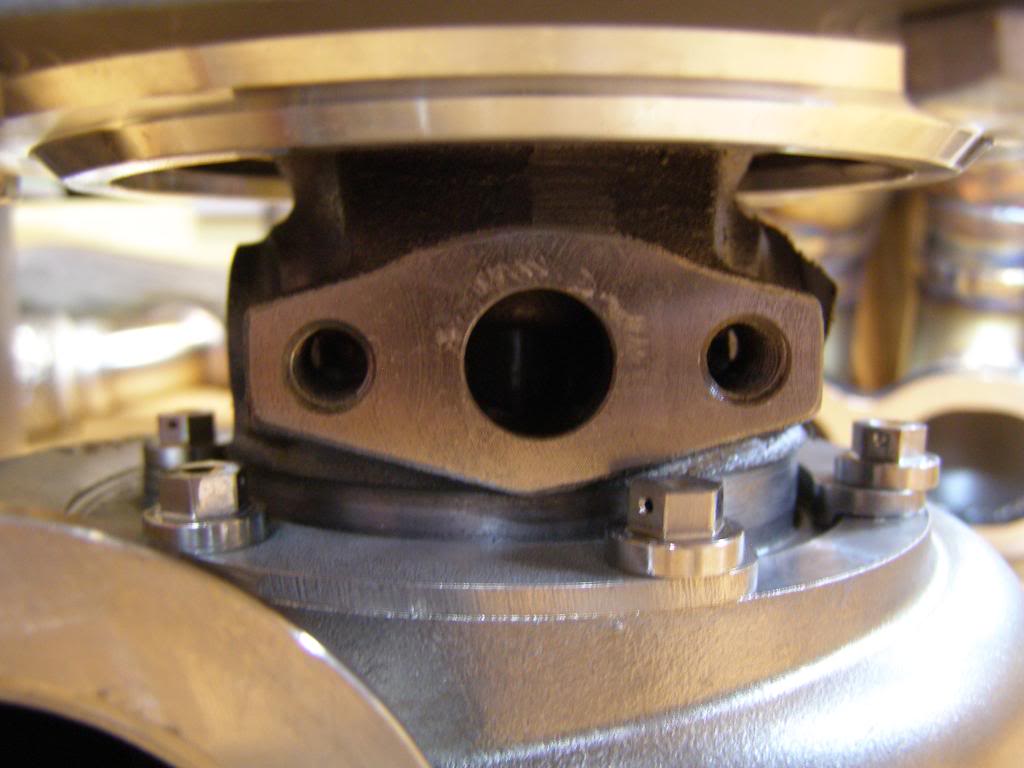

Here is where the oil return is going to bolt up. I received a gasket with the turbo but no fitting for the return; kind of strange. I am going to look online and see what I can find. Worse case I will take some plate aluminum and weld a bung to it.

Name:  P1010034-4.jpg
Views: 46
Size:  77.4 KBName:  P1010035-3.jpg
Views: 46
Size:  66.5 KB

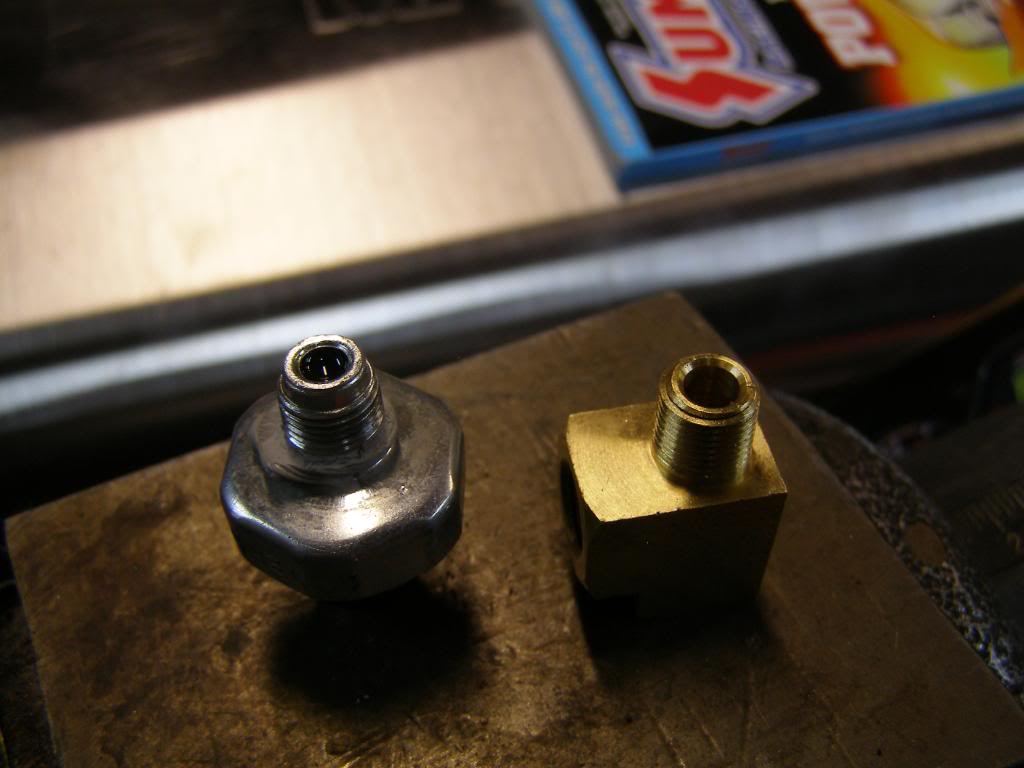

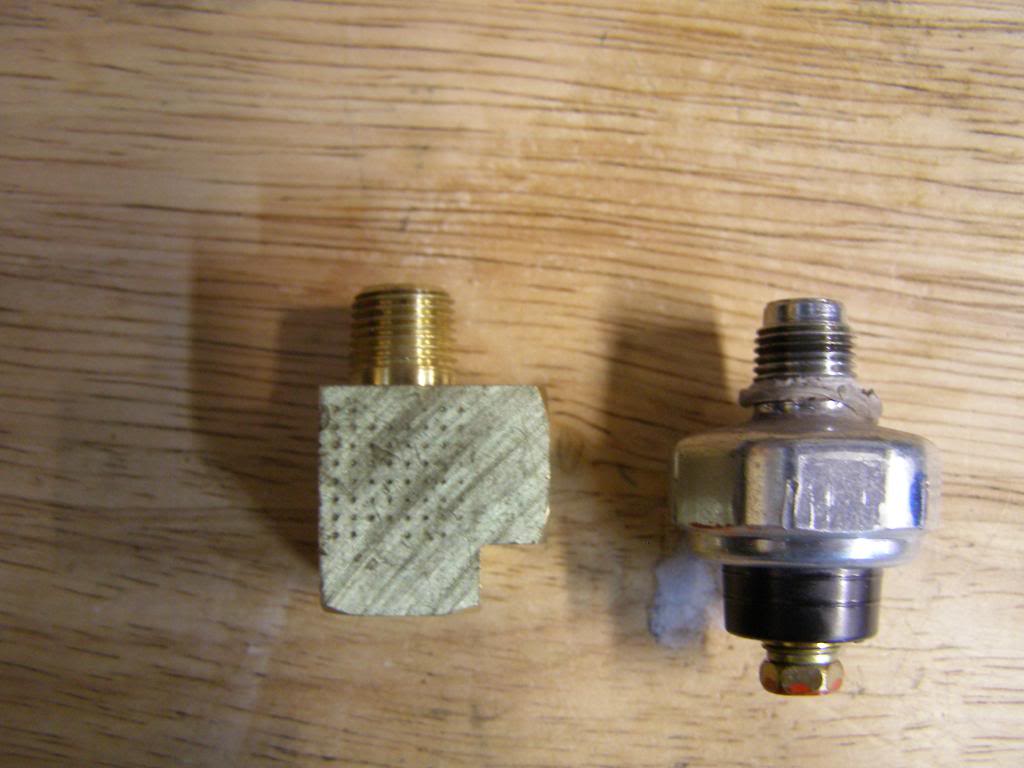

Here is the bigger issue. Oil pressure sensor, and the fitting I was supplied with for oil supply. The sending unit is standard thread, while the new fitting is NPT...this is not going to work! The oil sending unit is also flared at the tip to seat into the block and create a leak free fit. I guess it is off to the speed shop... hope I get lucky
hingstonwm is offline   Reply With Quote
Old 07-19-2010, 05:40 PM   #164
Senior Member
Thread Starter
iTrader: (2)

Join Date: Jan 2010
Location: Denver
Posts: 909
Total Cats: 14
Default

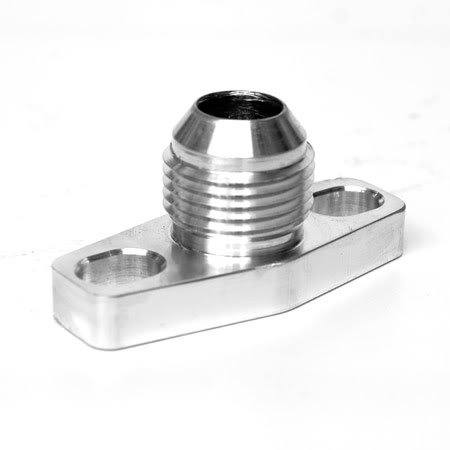

Found this for the return.
Name:  ATP-FLA-019_450.jpg
Views: 46
Size:  15.0 KB
hingstonwm is offline   Reply With Quote
Old 07-19-2010, 07:06 PM   #165
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,187
Total Cats: 2,583
Default

I was just about to post a picture of that exact fitting
18psi is offline   Reply With Quote
Old 07-19-2010, 07:15 PM   #166
Elite Member
iTrader: (17)

Join Date: Apr 2009
Location: Atlanta, GA
Posts: 2,831
Total Cats: 0
Default

Quote:
Originally Posted by hingstonwm View Post
i have been looking for a pic like this for a while to get an idea about the pieces of metal that hold the CHRA onto the turbine housing. did the plates come with the housing or did you have them made?
WonTon is offline   Reply With Quote
Old 07-19-2010, 10:01 PM   #167
Senior Member
Thread Starter
iTrader: (2)

Join Date: Jan 2010
Location: Denver
Posts: 909
Total Cats: 14
Default

^^^^ The plates came with the housing, as did the bolts pre-drilled for safety wire.
hingstonwm is offline   Reply With Quote
Old 07-19-2010, 10:20 PM   #168
Senior Member
Thread Starter
iTrader: (2)

Join Date: Jan 2010
Location: Denver
Posts: 909
Total Cats: 14
Default

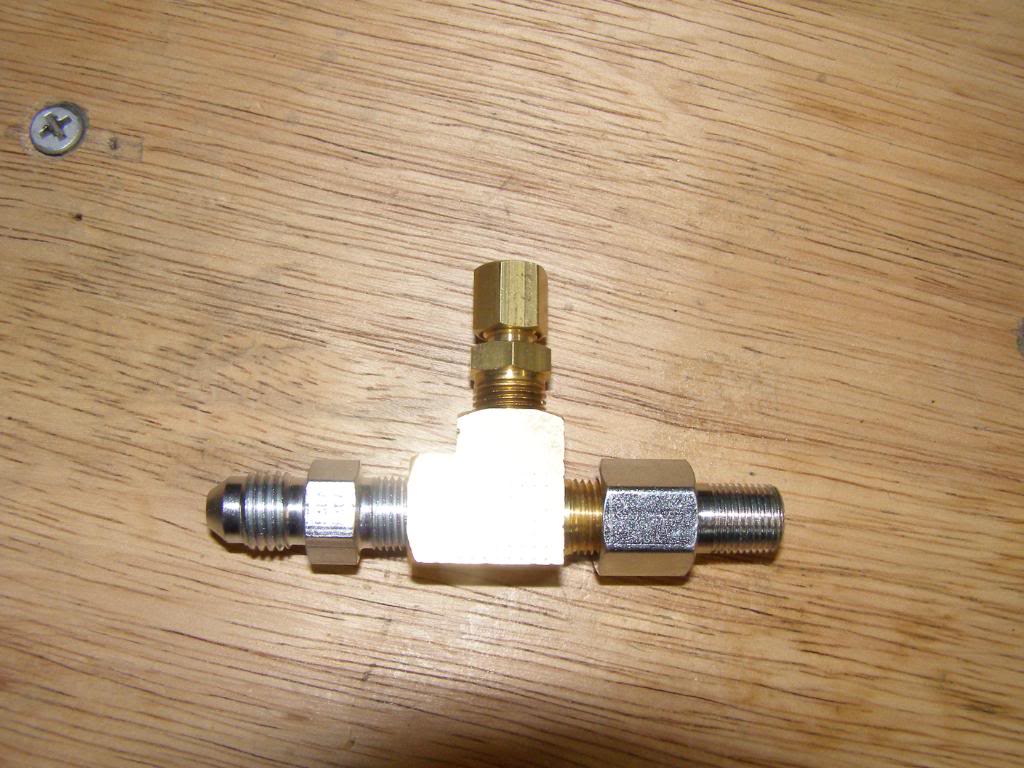

After spending some time at the speed shop I found out that the thread on the oil pressure sending unit is actually bpt (british pipe thread) 27 threads per inch. The original T fitting is npt 28 tpi. The shop that I went to had an adapter. So this is what I have, adapter into engine t fitting into adapter. The two adapter outputs will supply the turbo and the mechanical oil pressure gauge.
Name:  P1010032-5.jpg
Views: 56
Size:  119.6 KB

I may place one more t fitting so I can run the stock oil pressure sending unit as well. Doing this will allow me to set up and data log oil pressure, although I am not sure I need to do that.

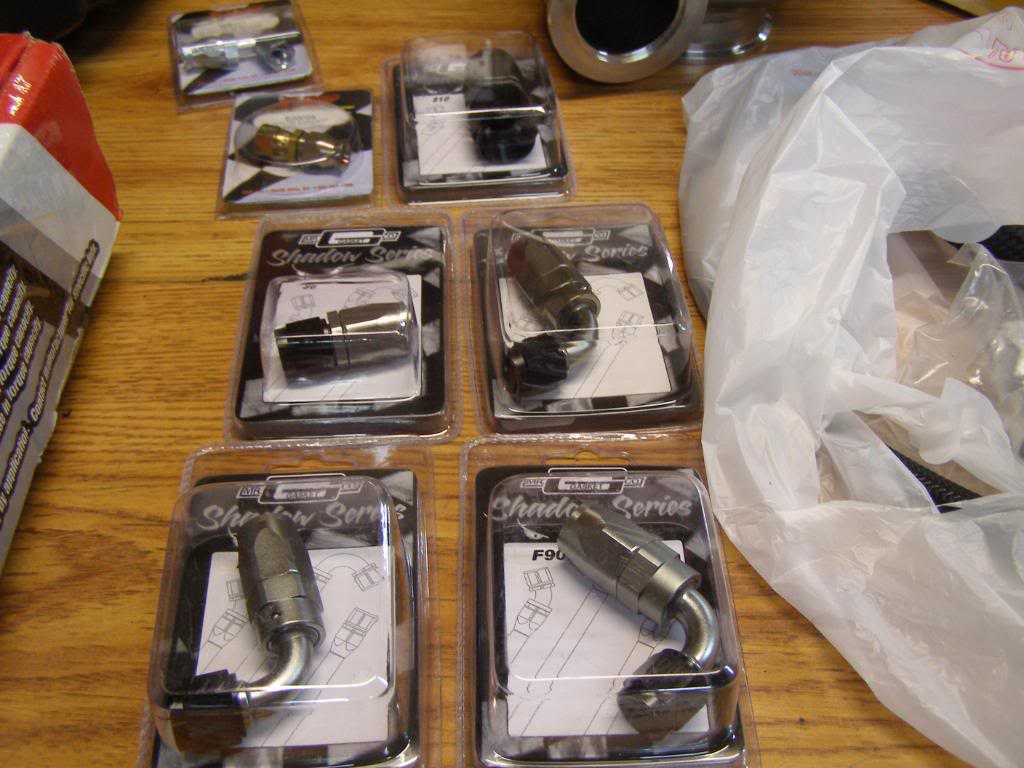

I also picked up the fittings needed to plumb the turbo.
Name:  P1010033-6.jpg
Views: 46
Size:  109.3 KB

Stay tuned more updates to come!!!

Last edited by hingstonwm; 07-20-2010 at 04:08 AM.
hingstonwm is offline   Reply With Quote
Old 07-19-2010, 10:36 PM   #169
Elite Member
iTrader: (9)

TurboTim's Avatar

Join Date: Jun 2006
Location: Chesterfield, NJ
Posts: 6,485
Total Cats: 248
Default

Quote:
Originally Posted by WonTon View Post
i have been looking for a pic like this for a while to get an idea about the pieces of metal that hold the CHRA onto the turbine housing. did the plates come with the housing or did you have them made?
Don't you already have that stuff with your vband manifold from Abe?
TurboTim is offline   Reply With Quote
Old 07-19-2010, 11:00 PM   #170
Elite Member
iTrader: (17)

Join Date: Apr 2009
Location: Atlanta, GA
Posts: 2,831
Total Cats: 0
Default

Quote:
Originally Posted by hingstonwm View Post
^^^^ The plates came with the housing, as did the bolts pre-drilled for safety wire.
Quote:
Originally Posted by TurboTim View Post
Don't you already have that stuff with your vband manifold from Abe?
i was under the impression that the hardware and plates didn't come with turbine housing, that when you buy the housing you only buy the housing. i know for a fact that the hardware is purchased separately as told to me by Sav and hustler....
WonTon is offline   Reply With Quote
Old 07-19-2010, 11:06 PM   #171
Elite Member
iTrader: (9)

TurboTim's Avatar

Join Date: Jun 2006
Location: Chesterfield, NJ
Posts: 6,485
Total Cats: 248
Default

The turbines come with the plates and hardware, just not the baller crossdrilled inconel hardware.
TurboTim is offline   Reply With Quote
Old 07-19-2010, 11:10 PM   #172
Elite Member
iTrader: (17)

Join Date: Apr 2009
Location: Atlanta, GA
Posts: 2,831
Total Cats: 0
Default

hmmm......ARTech said he received any of that when it showed up at his place.
WonTon is offline   Reply With Quote
Old 07-19-2010, 11:17 PM   #173
Elite Member
iTrader: (9)

TurboTim's Avatar

Join Date: Jun 2006
Location: Chesterfield, NJ
Posts: 6,485
Total Cats: 248
Default



When I order turbines separately the metal pieces and bolts are in their own bag jammed inside the scroll. Tial will sell their dealers whatever you need separately if you can't track it down.

Anyway, this is my way of subscribing to this incredible build
TurboTim is offline   Reply With Quote
Old 07-19-2010, 11:34 PM   #174
Elite Member
iTrader: (17)

Join Date: Apr 2009
Location: Atlanta, GA
Posts: 2,831
Total Cats: 0
Default

thanks, i will try to find out more info on my problem......

sorry for the threadjack....
WonTon is offline   Reply With Quote
Old 07-27-2010, 06:41 AM   #175
Senior Member
Thread Starter
iTrader: (2)

Join Date: Jan 2010
Location: Denver
Posts: 909
Total Cats: 14
Default

Another small update. I have not been happy with the way I had run the exhaust so I decided to make a change. I got rid of the s-bend that took the exhaust from the passenger side to the drivers side. I think the new design is going to work much better. It provides a much more direct route for exhaust gases to travel, and should keep back pressure to a minimum. I know you guys are all about pics so here are a few shots that tell the story.

Name:  P1010036-3.jpg
Views: 46
Size:  87.4 KB

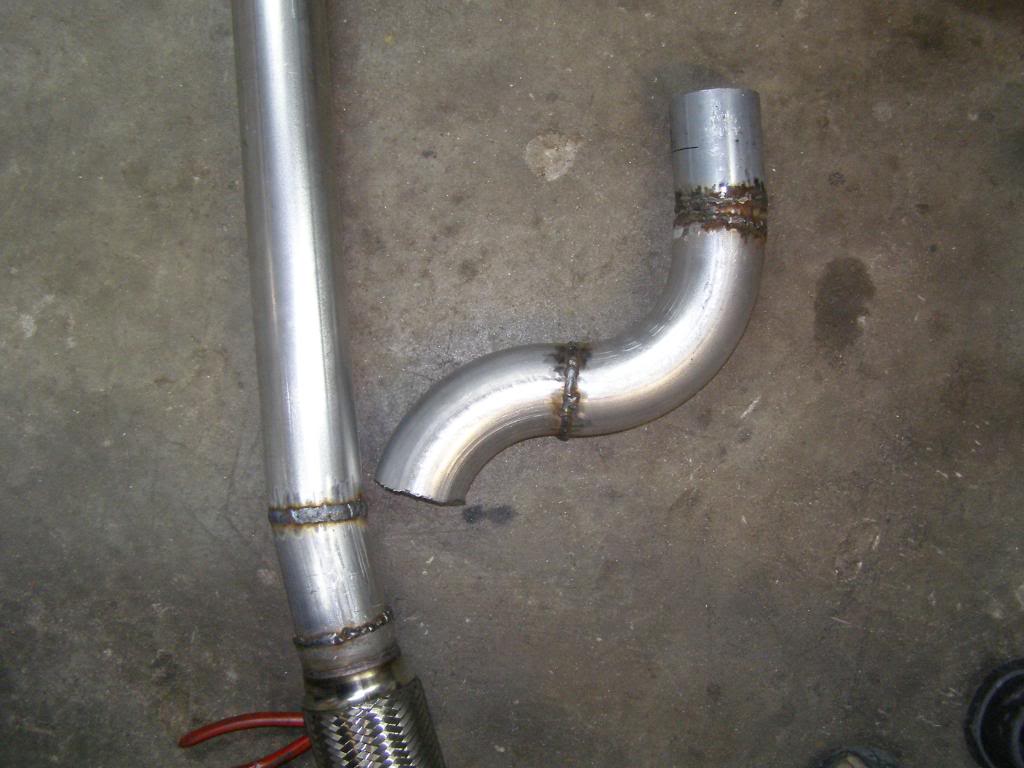

This shows the s-bend that I got rid of. I cut it out and left just the slightest bit of mandrel bend on the existing pipe to set the new angle across the transmission tunnel.I know it looks like a hard angle but the direction change is a radius.

Name:  P1010041-1.jpg
Views: 46
Size:  57.9 KB

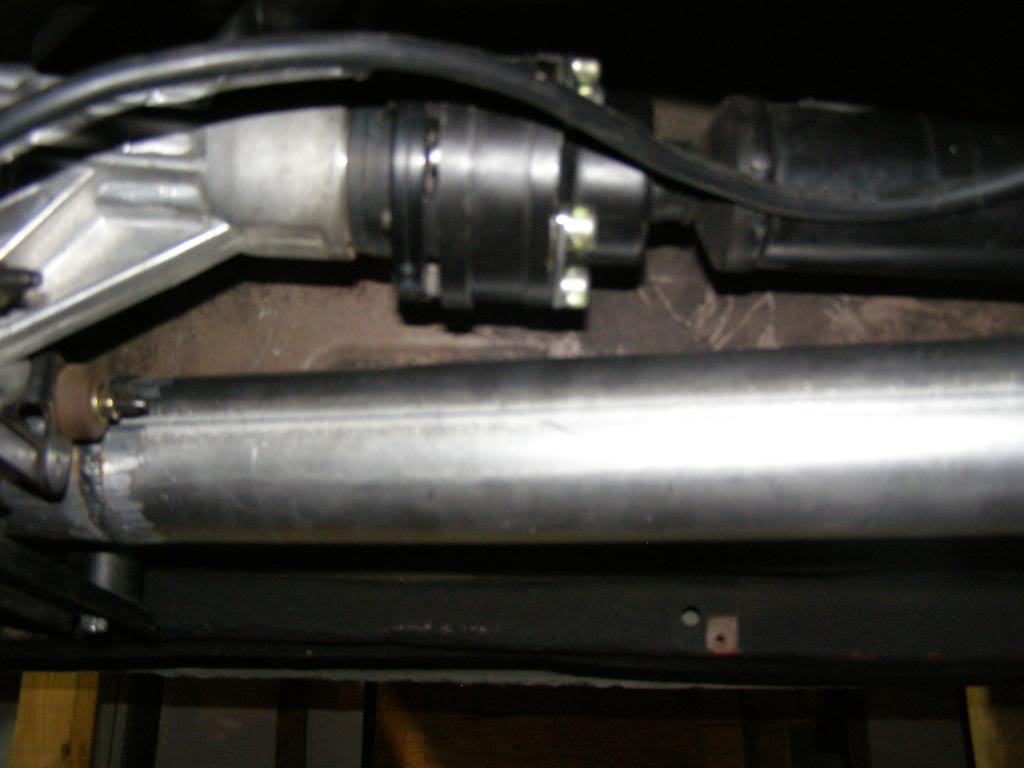

This shows the clearance that I have under the front CV joint on the drive shaft.
Name:  P1010048.jpg
Views: 46
Size:  131.4 KB

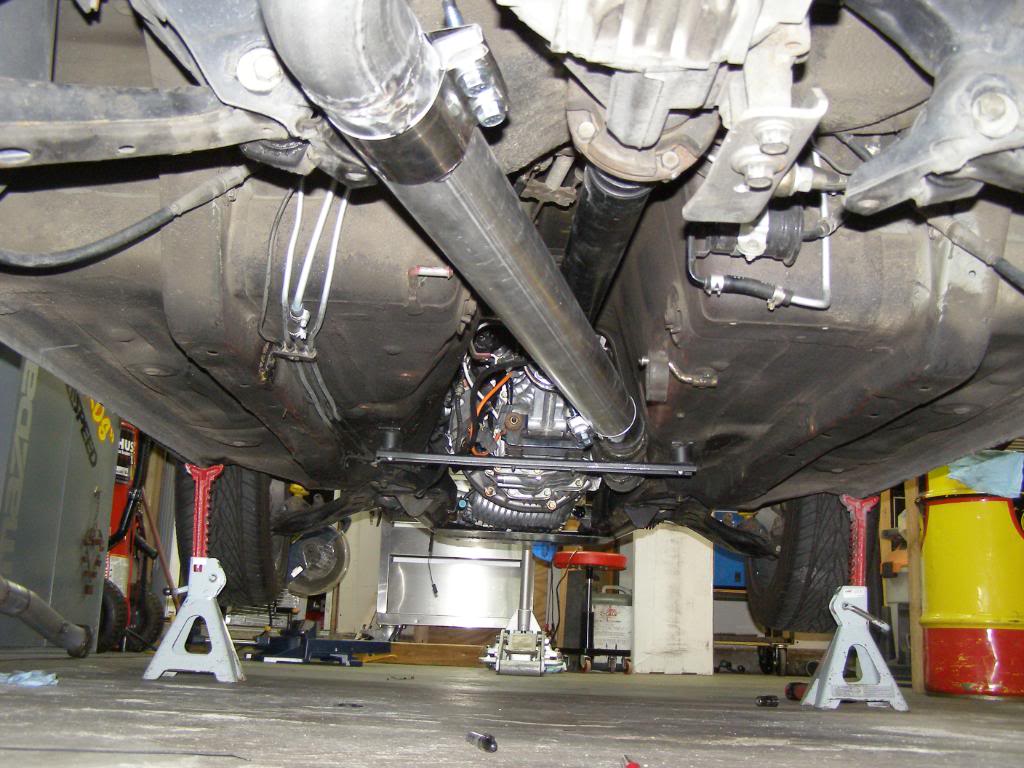

This should flow much better than my previous design.
Name:  P1010028-2.jpg
Views: 47
Size:  97.5 KB

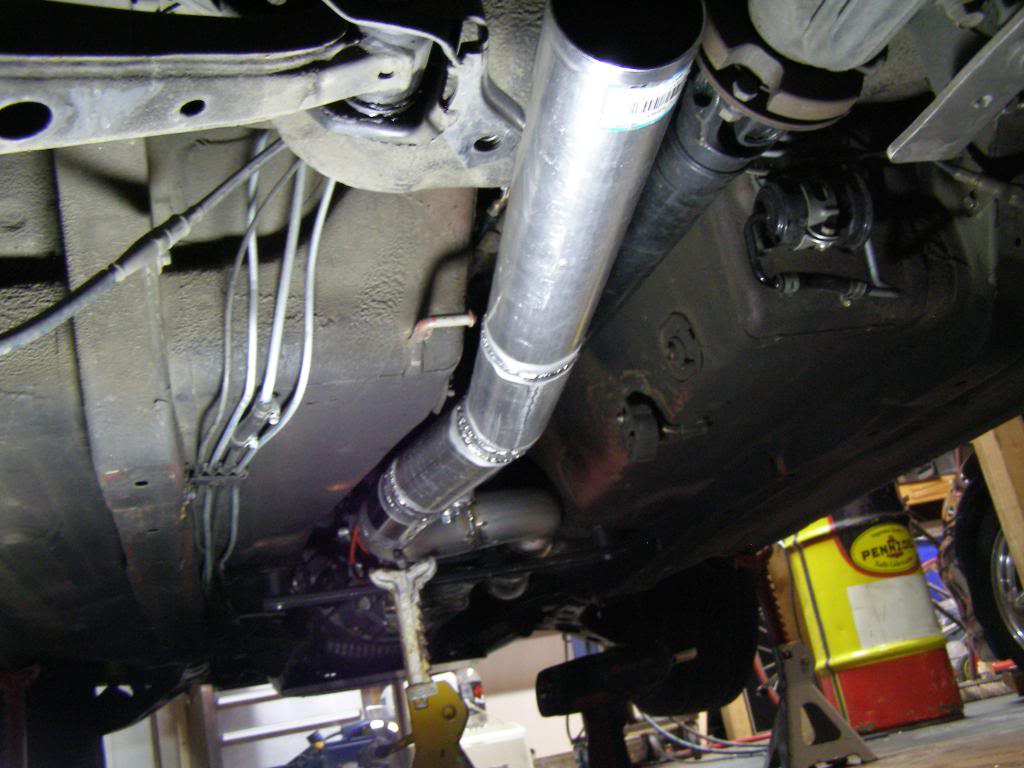

This is my previous exhaust routing. Pay no attention to the fuel lines, they were patch work to get the car running on the cheap when it was NA, I will be running new lines when I build my new fuel system. I forgot how shitty they look, but I didn't want to spend a bunch of time on them when I knew they would be coming out for the turbo project.
Name:  P1010035-4.jpg
Views: 46
Size:  125.1 KB
Name:  P1010034-5.jpg
Views: 46
Size:  82.3 KB

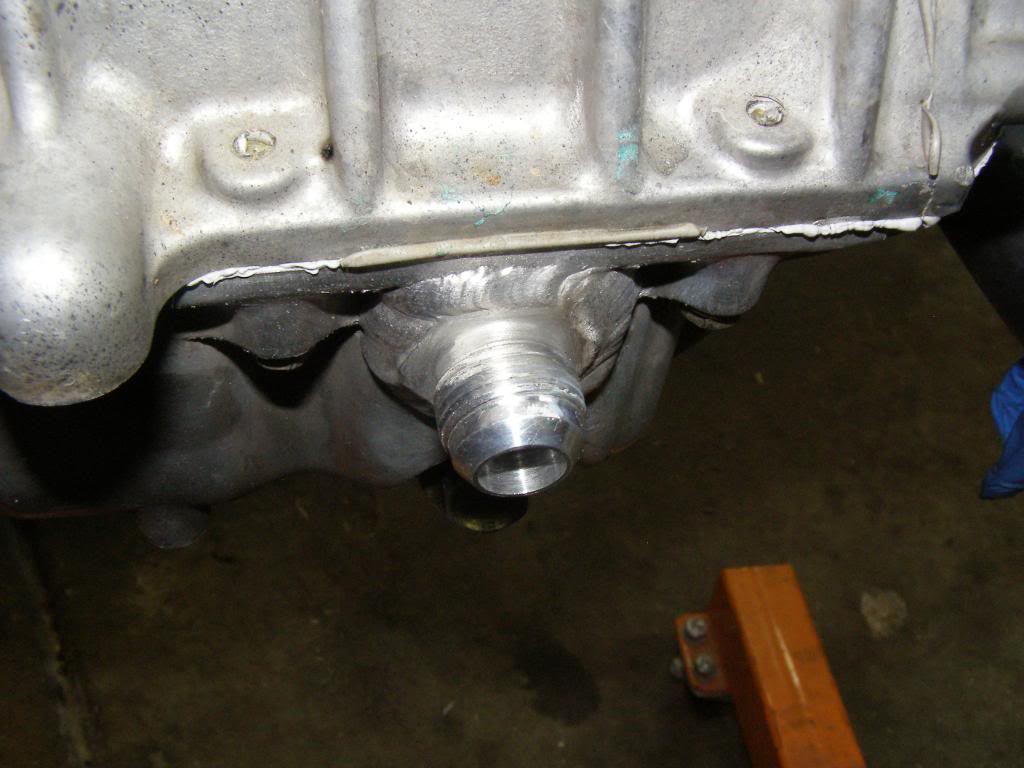

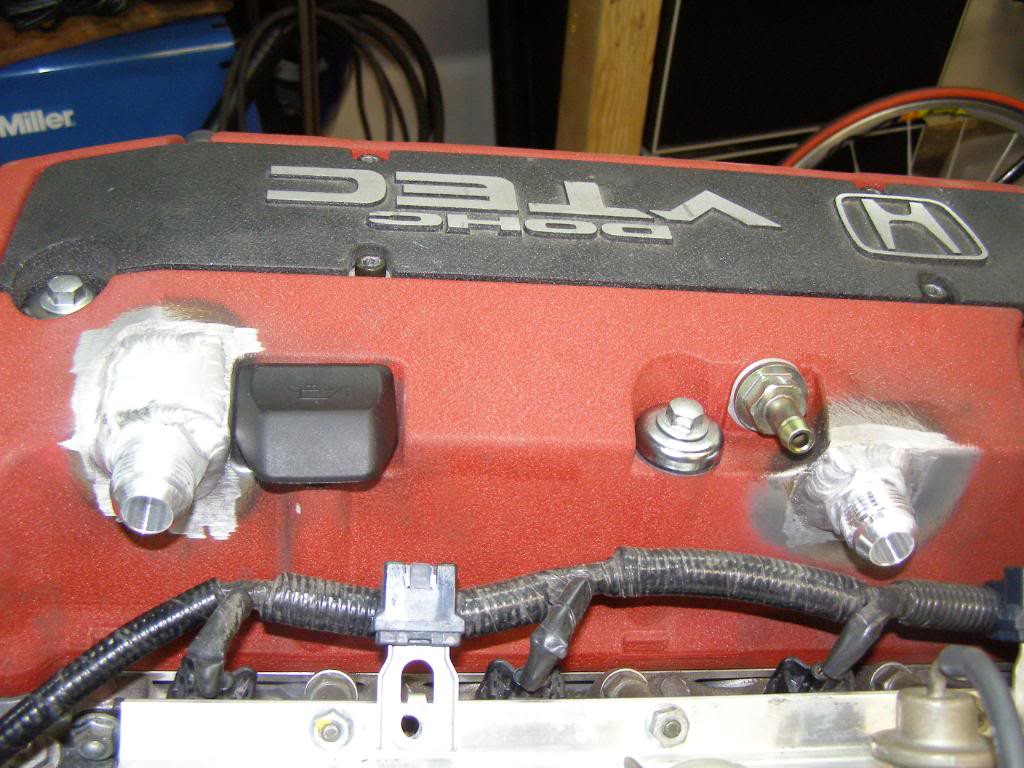

These last 2 shots are of a couple of new fittings. The first are for the breathers, the second shot is my oil return fitting in the pan.

I have also decided to have my manifold and down pipe ceramic coated. I will be pulling everything off tomorrow and sending the manifold and down pipe to Swain for coating.
hingstonwm is offline   Reply With Quote
Old 08-03-2010, 06:39 PM   #176
Senior Member
Thread Starter
iTrader: (2)

Join Date: Jan 2010
Location: Denver
Posts: 909
Total Cats: 14
Default

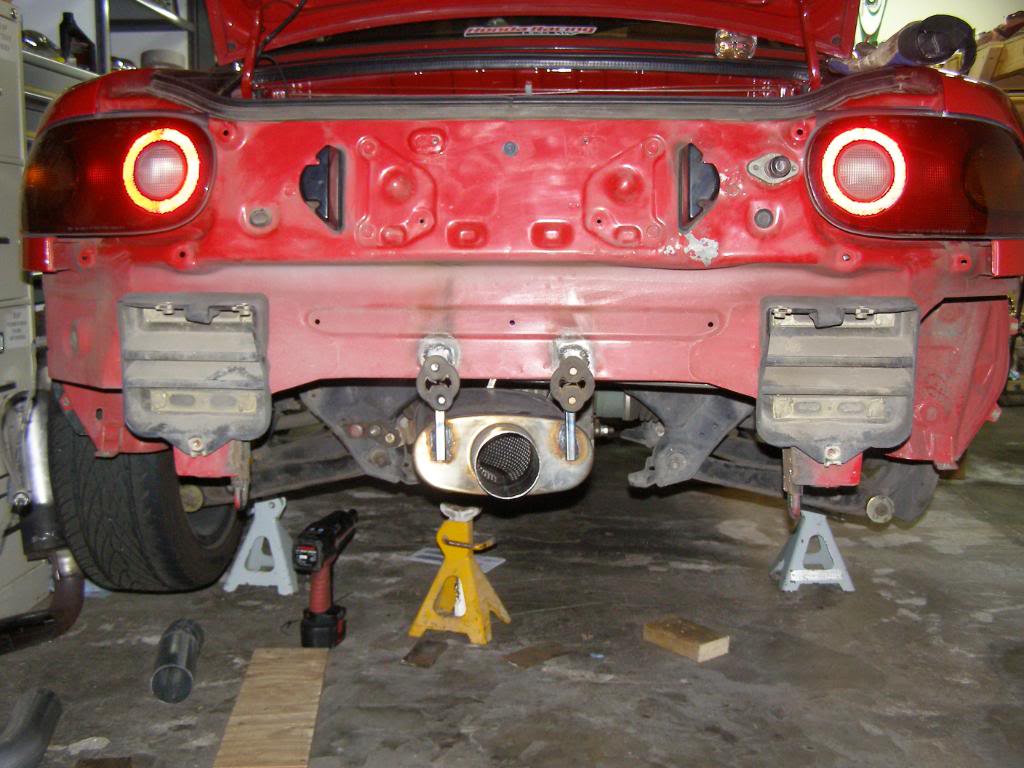

Muffler exit point. The idea was to keep the exhaust as straight as possible so I thought that I would try a middle exit. Here is where I am thus far.
Name:  P1010037-3.jpg
Views: 46
Size:  114.4 KB

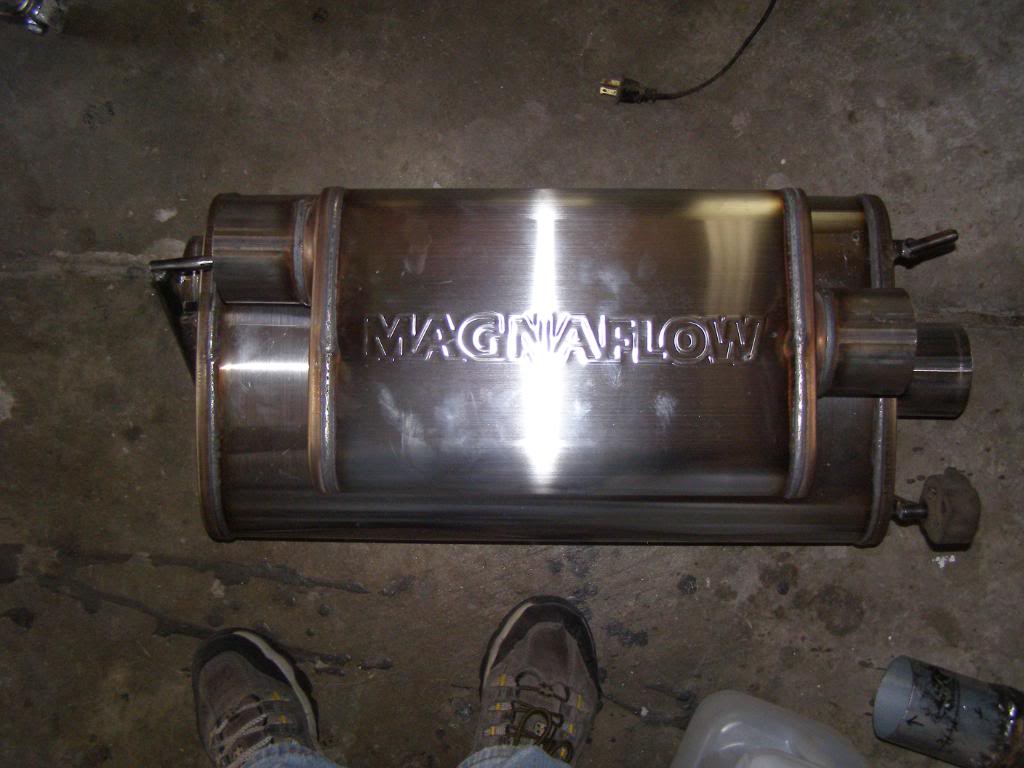

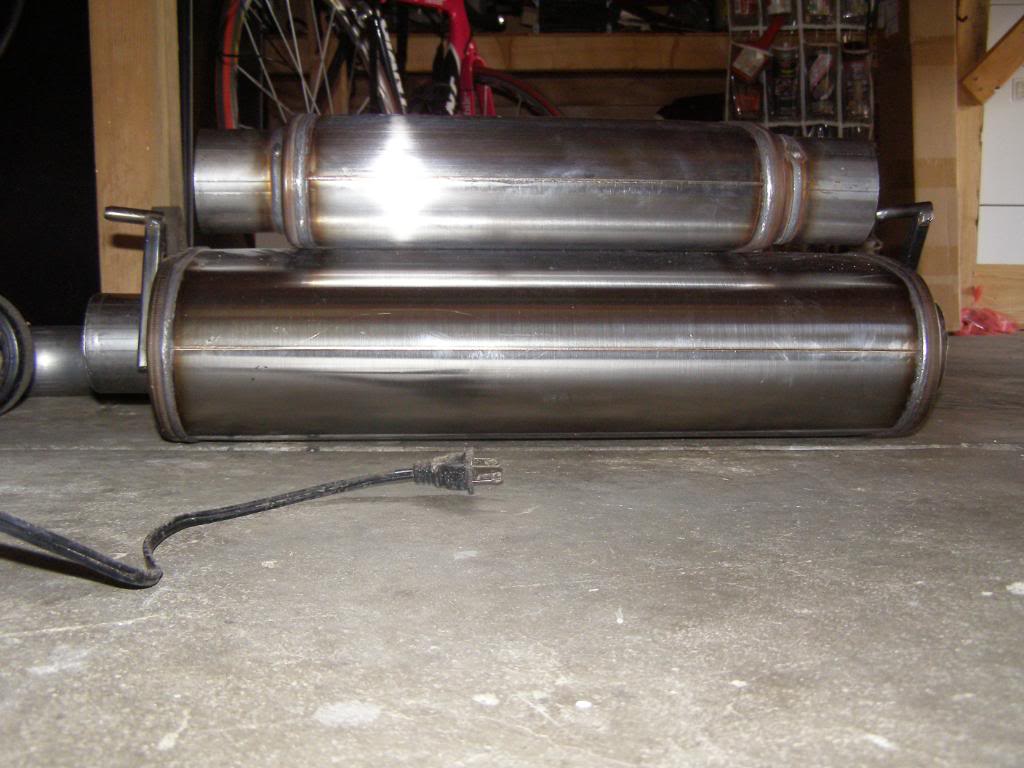

I tried hard to make the big muffler work without the big turns that y8s and brain used. I even looked into exiting through the bumper behind the right rear, but was not happy with how things were looking, so I went with the smaller muffler. The car is a weekend toy, if I find that it is just to loud, I will go with y8s's routing and run the big muffler. Here are a couple of physical size comparison shots.
Name:  P1010036-4.jpg
Views: 46
Size:  99.2 KB
Name:  P1010035-5.jpg
Views: 46
Size:  84.2 KB
hingstonwm is offline   Reply With Quote
Old 08-03-2010, 08:45 PM   #177
Elite Member
iTrader: (4)

Pen2_the_penguin's Avatar

Join Date: Dec 2009
Location: Reno, NV
Posts: 3,690
Total Cats: 97
Default

Moar SEX!!!


I like the exhaust placement, but I think it would look better with a dual tip at least... but thats just IMO. <3
Pen2_the_penguin is offline   Reply With Quote
Old 08-09-2010, 07:47 PM   #178
Senior Member
Thread Starter
iTrader: (2)

Join Date: Jan 2010
Location: Denver
Posts: 909
Total Cats: 14
Default

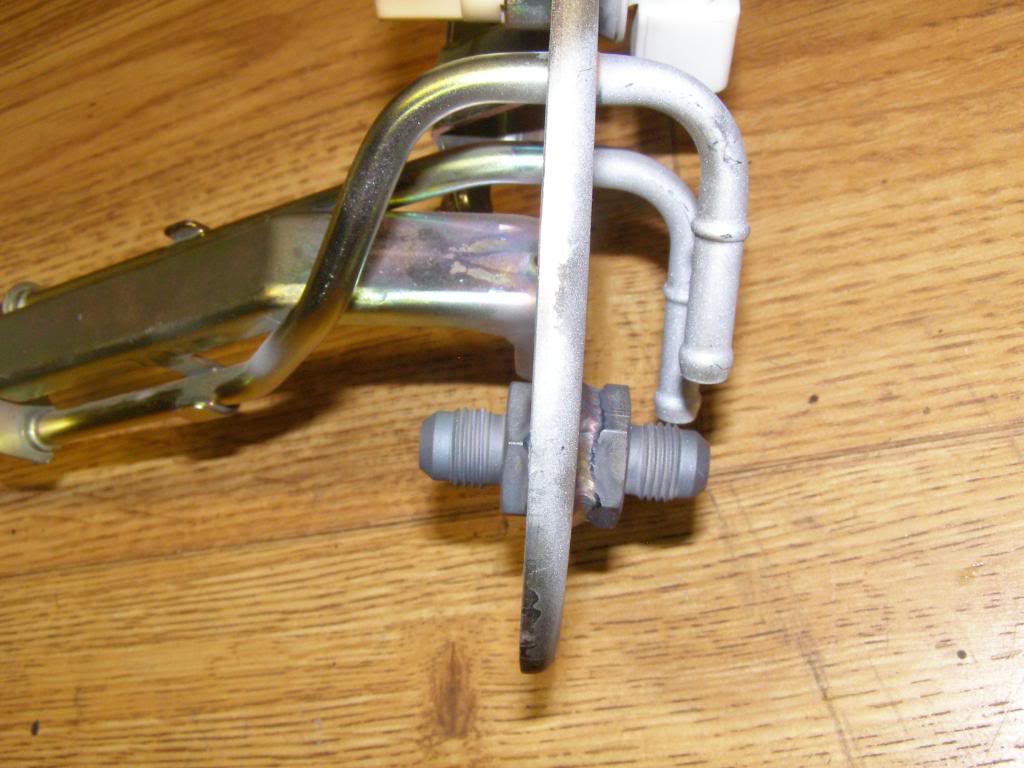

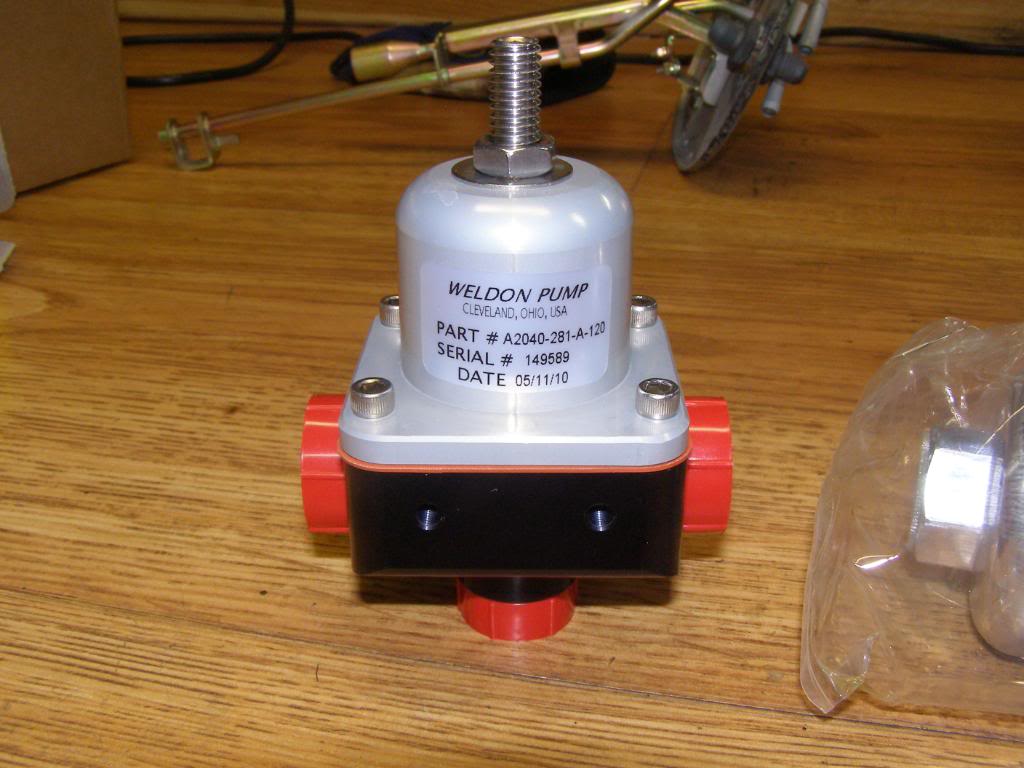

And the build goes on...started accumulating fuel system parts. In the pictures, a weldon 2040 rising rate fuel pressure regulator. A comparo shot, our stock fuel pump compared to a bosch 044. Fuel supply fittings on the gas tank top plate, and finally oil filter relocation blocks.

Name:  P1010035-6.jpg
Views: 47
Size:  93.1 KB
Name:  P1010036-5.jpg
Views: 46
Size:  97.0 KB

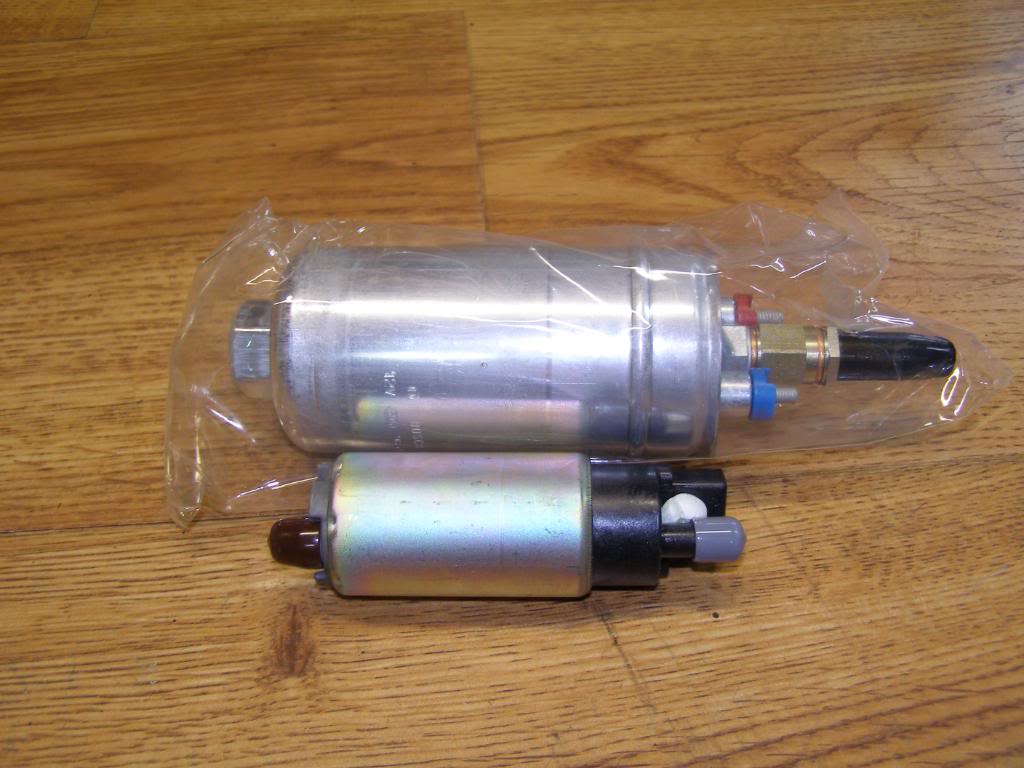

The huge physical size difference between stock and Bosch 044
Name:  P1010037-4.jpg
Views: 46
Size:  96.1 KB

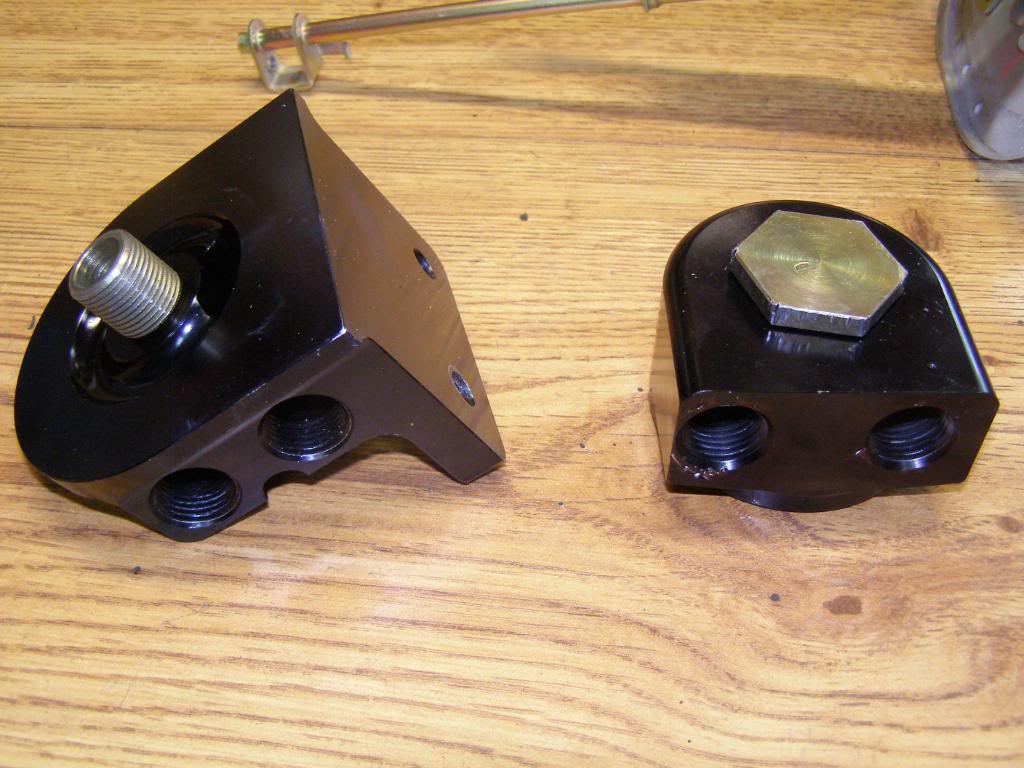

Name:  P1010039-1.jpg
Views: 46
Size:  112.0 KB

Last edited by hingstonwm; 08-09-2010 at 10:54 PM.
hingstonwm is offline   Reply With Quote
Old 08-13-2010, 05:45 PM   #179
Senior Member
Thread Starter
iTrader: (2)

Join Date: Jan 2010
Location: Denver
Posts: 909
Total Cats: 14
Default

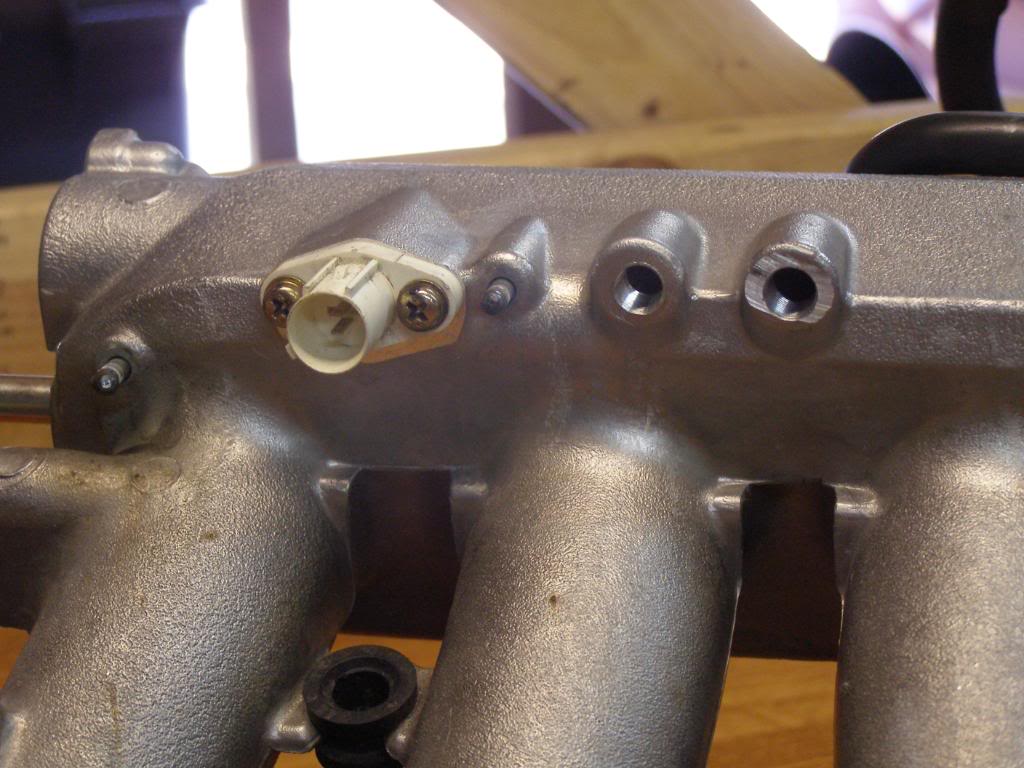

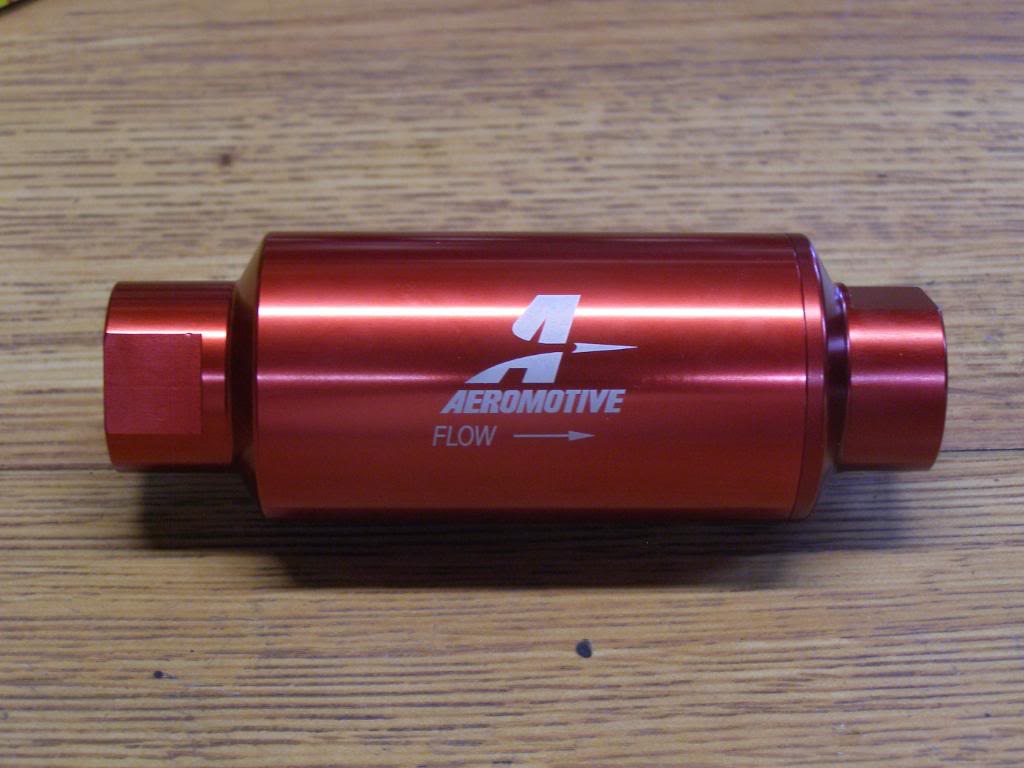

Here are a few more meaningless pics for you guys. The new 100 micron fuel filter, a shot of a couple of the holes that I tapped with 1/8 npt thread in the intake manifold, and a few shots of the exhaust exit from the bumper. Close ups only, as they are sealing the alley behind my garage today.

I used a 5/16 drill bit for the holes, I think next time I may try a 21/64 bit as it was pretty hard to turn the tap as it got close to full depth.

More importantly I received confirmation that my manifold, turbine housing, and down pipe have been delivered to swain, for coating. I should get them back in about 2 1/2 weeks, then I can put everything back on for the last time....I hope!

Here are the pics
Name:  P1010047.jpg
Views: 46
Size:  78.9 KB
Name:  P1010043-1.jpg
Views: 48
Size:  109.2 KB

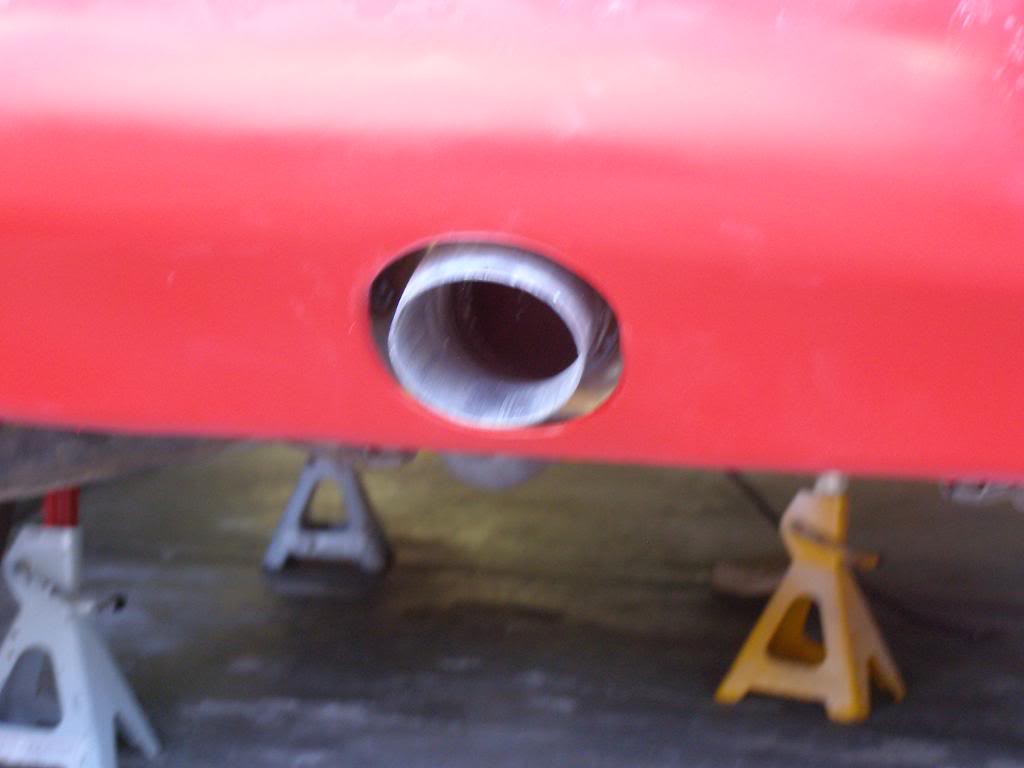

Name:  P1010040-1.jpg
Views: 46
Size:  44.0 KB

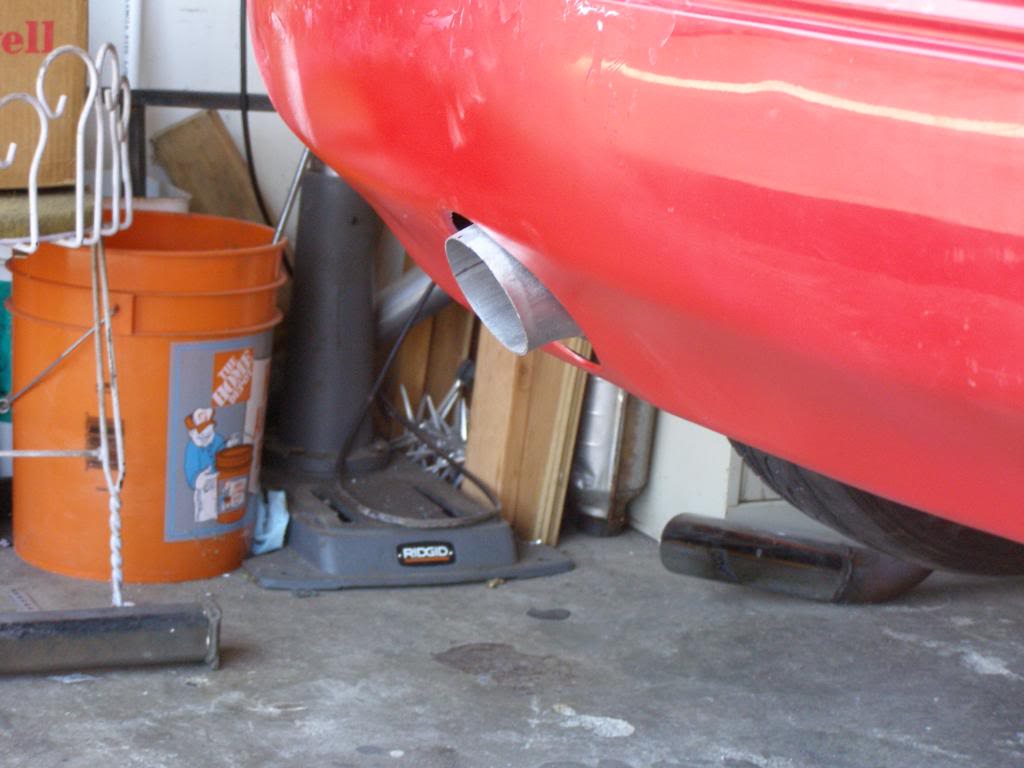

Name:  P1010039-2.jpg
Views: 46
Size:  78.8 KB

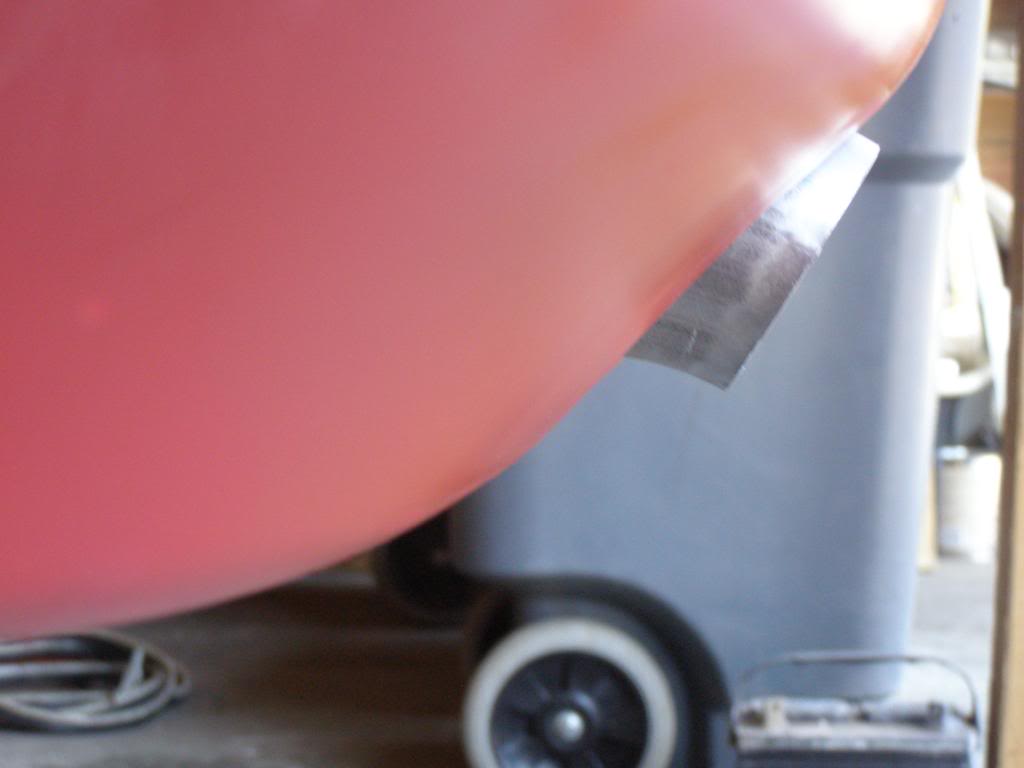

Name:  P1010042-2.jpg
Views: 46
Size:  38.6 KB
hingstonwm is offline   Reply With Quote
Old 08-13-2010, 05:49 PM   #180
Miotta FTW!
iTrader: (24)

Splitime's Avatar

Join Date: Jun 2006
Location: Chicagoland, IL
Posts: 4,295
Total Cats: 26
Default

Hooray middle exits!
Splitime is offline   Reply With Quote
